| Author |
Message |
caleb0101
Samba Member
Joined: August 26, 2014
Posts: 526
Location: Bristol Connecticut
|
 Posted: Mon Jan 03, 2022 4:55 pm Post subject: Re: My 67 Squareback |
 |
|
| old_man wrote: |
I finally decided to tackle this daemon. I was sick of cleaning oily dirty of the back hatch.
I used Belzona 1121. I think my dreams of becoming a claymation artist are officially dashed. |
how has this repair held up?
_________________
Ruby red 1967 beetle sedan with a 2021cc
1967 beetle sedan baja project
April 60 euro spec ragtop beetle with a 1641cc |
|
| Back to top |
|
 |
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23414
Location: Kimball, Mi
|
| Posted: Sat Sep 28, 2019 10:32 am Post subject: Re: My 67 Squareback |
|
|
| old_man wrote: |
So I put the engine back in. Made a mistake. Connected a wire on the wrong side of the coil. Ruined a very nice set of points and and a condenser.
|
I had a guy bring over a dune buggy that wouldn't run. The points and condensor looked just like that set. Put a new set in, and it fired right up.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
W1K1
Samba Member
Joined: March 04, 2004
Posts: 5303
Location: Southern AB
|
| Posted: Fri Sep 27, 2019 1:21 pm Post subject: Re: My 67 Squareback |
|
|
I did the same with brand new points from Glenn on my 019
lots of the magic smoke on that one
_________________
1973 super 2110cc
1965 squareback 1500E-sold
1971 bay window westy- EJ2.5 subi swap |
|
| Back to top |
|
|
old_man
Samba Member
Joined: June 19, 2018
Posts: 1414
Location: Newfoundland
|
| Posted: Fri Sep 27, 2019 11:56 am Post subject: Re: My 67 Squareback |
|
|
So I put the engine back in. Made a mistake. Connected a wire on the wrong side of the coil. Ruined a very nice set of points and and a condenser.
And I went from this:
To this:
|
|
| Back to top |
|
|
old_man
Samba Member
Joined: June 19, 2018
Posts: 1414
Location: Newfoundland
|
| Posted: Thu Sep 26, 2019 11:45 am Post subject: Re: My 67 Squareback |
|
|
| Bobnotch wrote: |
Are you planning on dropping the engine that often? Seems like it from here, adding those fittings to the lines. |
It's thinking ahead. Had I not installed those fittings I would be having to drop the engine a dozen more times. Now that I have installed those fittings I will never have to drop the engine again.
It's like that generator I bought because we kept getting blackouts. Now that I bought it....no more blackouts. |
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23414
Location: Kimball, Mi
|
| Posted: Thu Sep 26, 2019 7:30 am Post subject: Re: My 67 Squareback |
|
|
| old_man wrote: |
I also installed a quick disconnect on the fuel line running from the tunnel to the engine. I did this because 1) It is hard to reach either end that section of fuel line to disconnect the line in case of engine drop, and 2) when I do disconnect them I am left with fuel coming out of the gas tank end that needs to be stopped somehow. Now I just press the detent and it does it all.
|
Are you planning on dropping the engine that often? Seems like it from here, adding those fittings to the lines.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23414
Location: Kimball, Mi
|
| Posted: Thu Sep 26, 2019 7:27 am Post subject: Re: My 67 Squareback |
|
|
| old_man wrote: |
| Bobnotch wrote: |
A thin smear of Ultra Copper Permatex on the gasket to sump surface will help with the oil issue.  The repair looks good, just don't over tigten that 1 bolt. |
Thanks! Does that work with the silicone gaskets? My leak was that I couldn't tighten that one stud too much as it was pulling out. It being pulled out also caused me to use a regular not and not the factory acorn nuts which caused leaks via the threads.
I also have leaks elsewhere that I am not in the mood to investigate. |
Yes, I would think it would work with silicone gaskets. I use it with the stock paper ones.
Yes, I've also ran into oil running down the threads, but with nylock nuts. On my all aluminum case engine it came with them on the sump studs. It makes a mess, but I also keep an eye on the oil level. I just haven't changed the nuts in all of the oil changes I've done on it. A little silicone on the threads slows the oil drips down too.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
old_man
Samba Member
Joined: June 19, 2018
Posts: 1414
Location: Newfoundland
|
| Posted: Wed Sep 25, 2019 3:10 pm Post subject: Re: My 67 Squareback |
|
|
Out of boredom I also re greased my throw out bearing as per some instructions I found on this site. Hopefully I didn't make things worse.

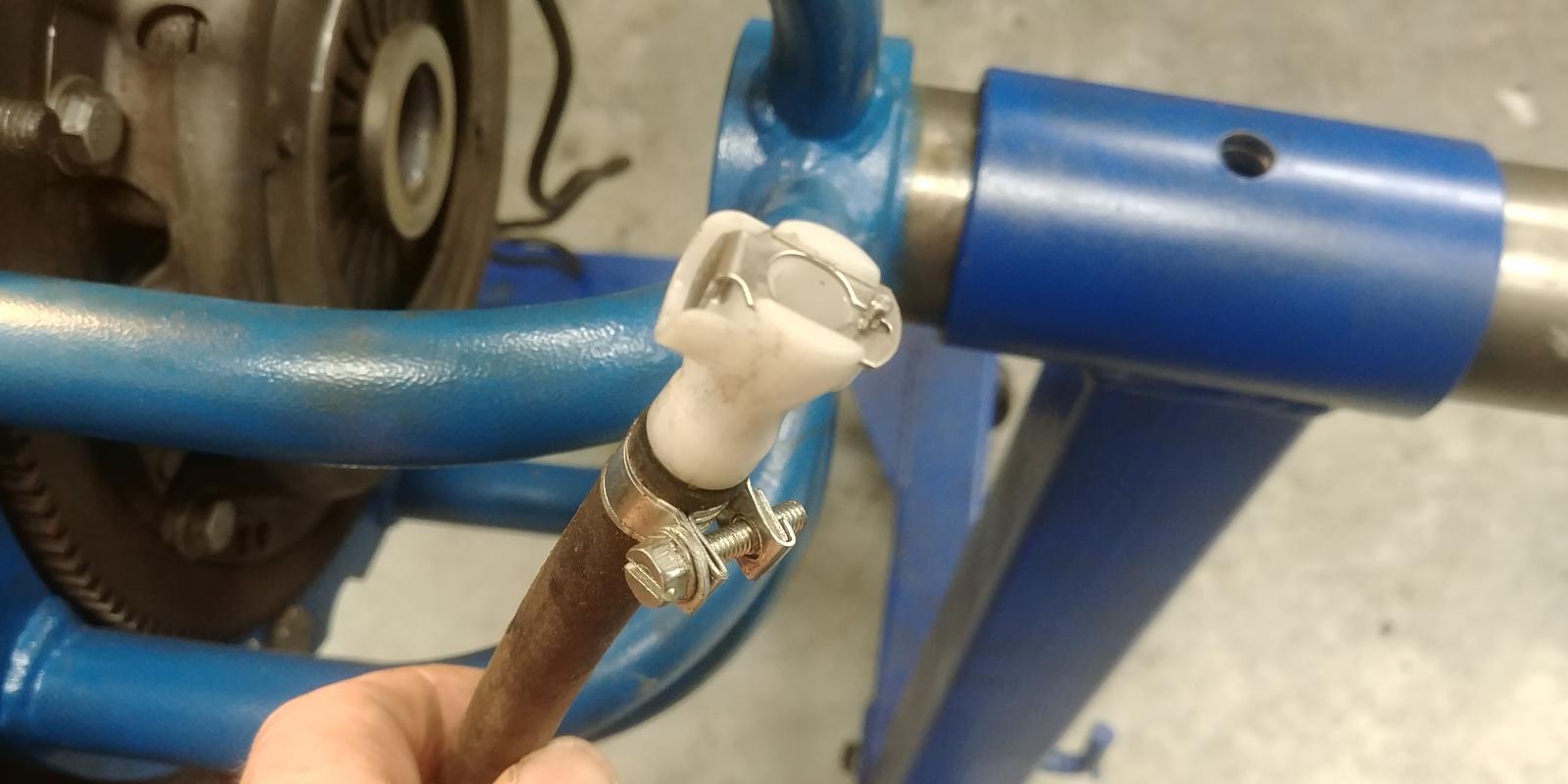

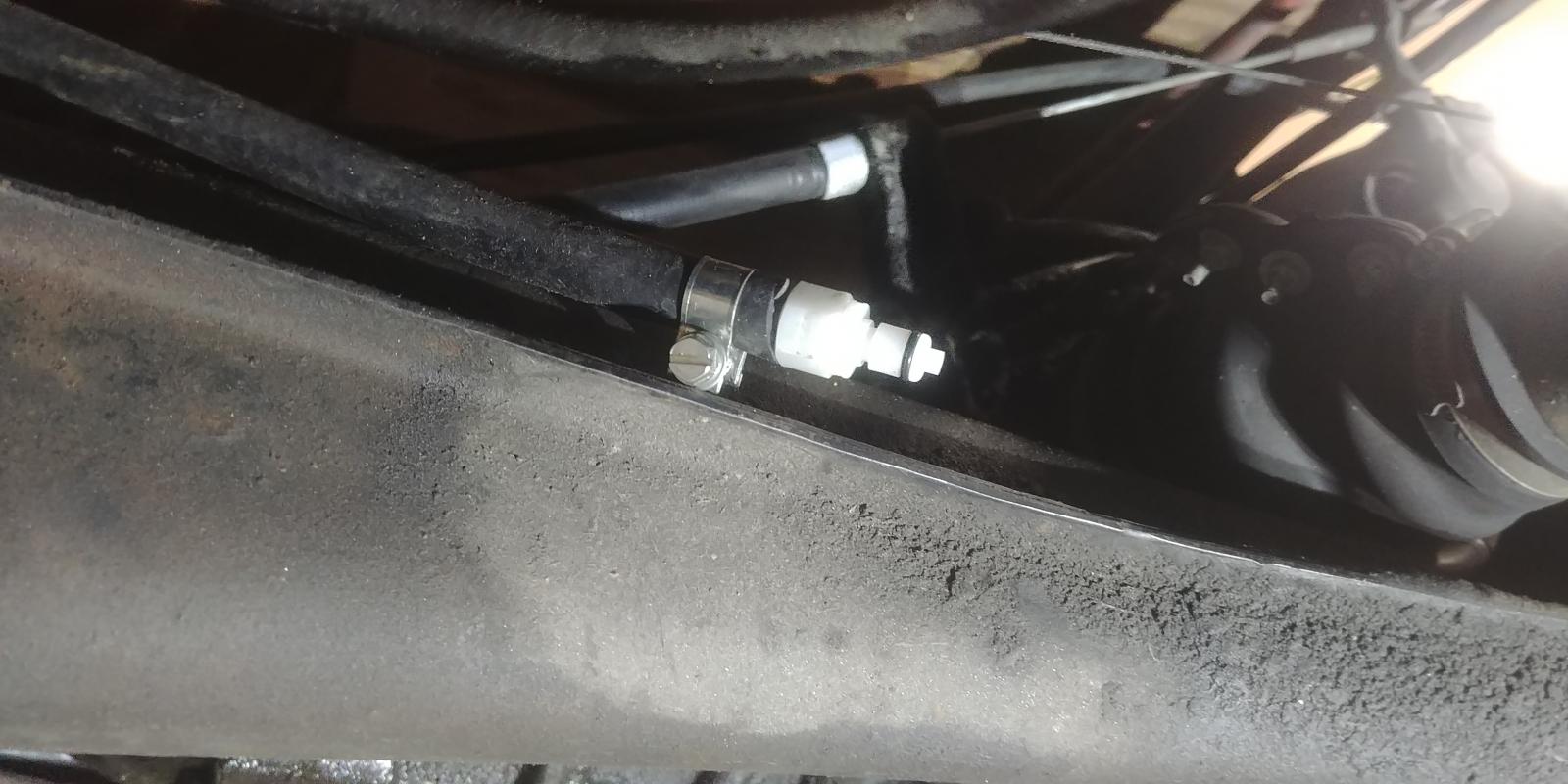

I also installed a quick disconnect on the fuel line running from the tunnel to the engine. I did this because 1) It is hard to reach either end that section of fuel line to disconnect the line in case of engine drop, and 2) when I do disconnect them I am left with fuel coming out of the gas tank end that needs to be stopped somehow. Now I just press the detent and it does it all.
|
|
| Back to top |
|
|
old_man
Samba Member
Joined: June 19, 2018
Posts: 1414
Location: Newfoundland
|
| Posted: Wed Sep 25, 2019 7:47 am Post subject: Re: My 67 Squareback |
|
|
| Bobnotch wrote: |
| A thin smear of Ultra Copper Permatex on the gasket to sump surface will help with the oil issue. The repair looks good, just don't over tigten that 1 bolt. |
Thanks! Does that work with the silicone gaskets? My leak was that I couldn't tighten that one stud too much as it was pulling out. It being pulled out also caused me to use a regular not and not the factory acorn nuts which caused leaks via the threads.
I also have leaks elsewhere that I am not in the mood to investigate. |
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23414
Location: Kimball, Mi
|
| Posted: Wed Sep 25, 2019 7:30 am Post subject: Re: My 67 Squareback |
|
|
A thin smear of Ultra Copper Permatex on the gasket to sump surface will help with the oil issue. The repair looks good, just don't over tigten that 1 bolt.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
old_man
Samba Member
Joined: June 19, 2018
Posts: 1414
Location: Newfoundland
|
| Posted: Wed Sep 25, 2019 7:18 am Post subject: Re: My 67 Squareback |
|
|
I finally decided to tackle this daemon. I was sick of cleaning oily dirty of the back hatch.
I used Belzona 1121. I think my dreams of becoming a claymation artist are officially dashed. |
|
| Back to top |
|
|
old_man
Samba Member
Joined: June 19, 2018
Posts: 1414
Location: Newfoundland
|
| Posted: Fri Sep 13, 2019 1:51 pm Post subject: Re: My 67 Squareback |
|
|
| Bobnotch wrote: |
Is the new for an automatic? Just asking as it's very large. As for the old one, I'd hang on to it, as it does work (sometimes). Maybe rebuild it. |
Ya, it's a Bosch SR17X. Self supporting for an auto. It really turns over the engine.
On a positive note I believe I have fixed my nagging overheating problems. All I got to say is 311 119 599A. It's important, especially if you have a slight exhaust leak. I could actually see soot marks where it was being ingested by the cooling fan. It is also a bitch to put in after the fact.
On a down side, my new stock throttle return springs came in the mail and I installed them. They are much stiffer/stronger than whatever I was using before. Now my car idles high...I don't know why. |
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23414
Location: Kimball, Mi
|
| Posted: Fri Sep 13, 2019 9:29 am Post subject: Re: My 67 Squareback |
|
|
| old_man wrote: |
Out with the old and in with the new (well, rebuilt anyways). The old one was giving me troubles every now and then necessitating a gentle tap with a hammer to get it working. Not fun in a rainy parking lot. I took it apart and the wires on the brushes that, I think, were contacting the housing. It helped but it still gave me trouble.
Amazon had a sale on this thing so I went for it. Hopefully it doesn't give me troubles. Not sure what I should do with the old one.
|
Is the new for an automatic? Just asking as it's very large. As for the old one, I'd hang on to it, as it does work (sometimes). Maybe rebuild it.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
old_man
Samba Member
Joined: June 19, 2018
Posts: 1414
Location: Newfoundland
|
| Posted: Thu Sep 12, 2019 12:23 pm Post subject: Re: My 67 Squareback |
|
|

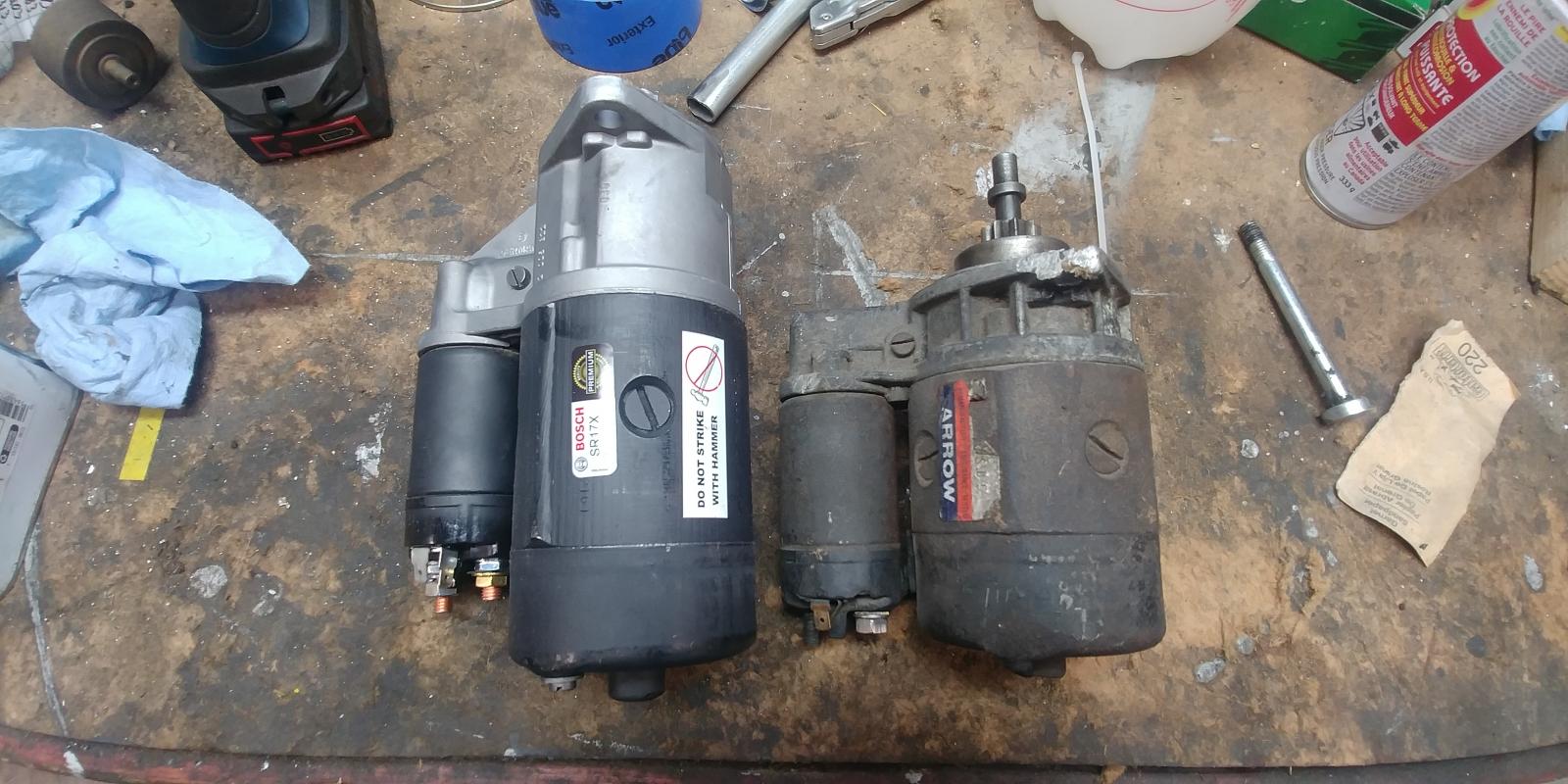

Out with the old and in with the new (well, rebuilt anyways). The old one was giving me troubles every now and then necessitating a gentle tap with a hammer to get it working. Not fun in a rainy parking lot. I took it apart and the wires on the brushes that, I think, were contacting the housing. It helped but it still gave me trouble.
Amazon had a sale on this thing so I went for it. Hopefully it doesn't give me troubles. Not sure what I should do with the old one.
|
|
| Back to top |
|
|
old_man
Samba Member
Joined: June 19, 2018
Posts: 1414
Location: Newfoundland
|
| Posted: Mon Aug 26, 2019 2:13 pm Post subject: Re: My 67 Squareback |
|
|
So I've been chasing an overheating problem. I don't think it's anyone one thing wrong but rather a series of things that add up.
One of them might have been my single relief spring being tired. So I bought a new one. I read all the warnings about how new ones are the wrong length but I think I managed to find one......so I ordered 10 of them.
Here is the old one; that is no longer the correct length, and here is the new one; that is the correct length.
I created a rudimentary spring tester to see if it had the correct spring force according to Bentley and it was bang on. Well, at least as close as my spring tester could measure. I then tried to measure the old one but then my spring tester broke. It set the spring flying across the shop. I haven't found it yet.
Here is the invoice from where I got them. They are on clearance and very cheap so I thought I would spread that info if anyone else needs one.
|
|
| Back to top |
|
|
ibjack
Samba Member
Joined: February 06, 2002
Posts: 2116
Location: Imperial Beach CA
|
| Posted: Thu Aug 15, 2019 7:51 am Post subject: Re: My 67 Squareback |
|
|
| old_man wrote: |
| Out of curiosity, anyone ever install an altitude corrector into their solexes? I'm not really at altitude these days, just wondering if anyone had ever used one. |
I’ve got them in my automatic 68 T34. Runs similar to my 64 T34 without.
_________________
'68 Lotus White T34 automatic sunroof
'64 Manila Yellow T34
'65 Sea Blue Square Panel
the1500club.com
Shop Lacky at the T3/34 Factory, https://www.facebook.com/profile.php?id=100094313902074 |
|
| Back to top |
|
|
old_man
Samba Member
Joined: June 19, 2018
Posts: 1414
Location: Newfoundland
|
| Posted: Wed Aug 14, 2019 4:18 pm Post subject: Re: My 67 Squareback |
|
|
| Out of curiosity, anyone ever install an altitude corrector into their solexes? I'm not really at altitude these days, just wondering if anyone had ever used one. |
|
| Back to top |
|
|
oxsign
Samba Member
Joined: February 19, 2006
Posts: 607
Location: Sanford, FL
|
| Posted: Tue Aug 13, 2019 3:30 pm Post subject: Re: My 67 Squareback |
|
|
| old_man wrote: |

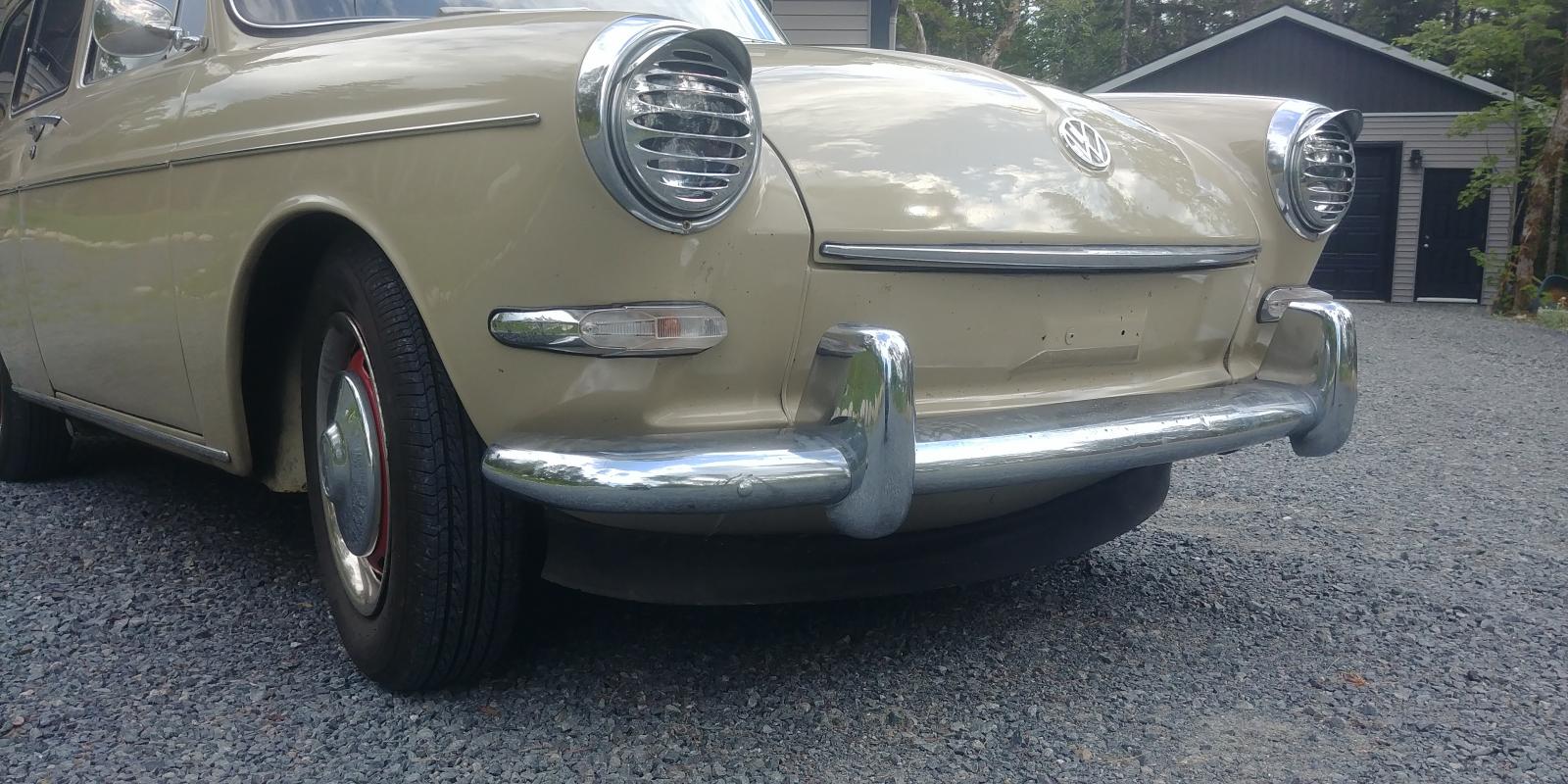

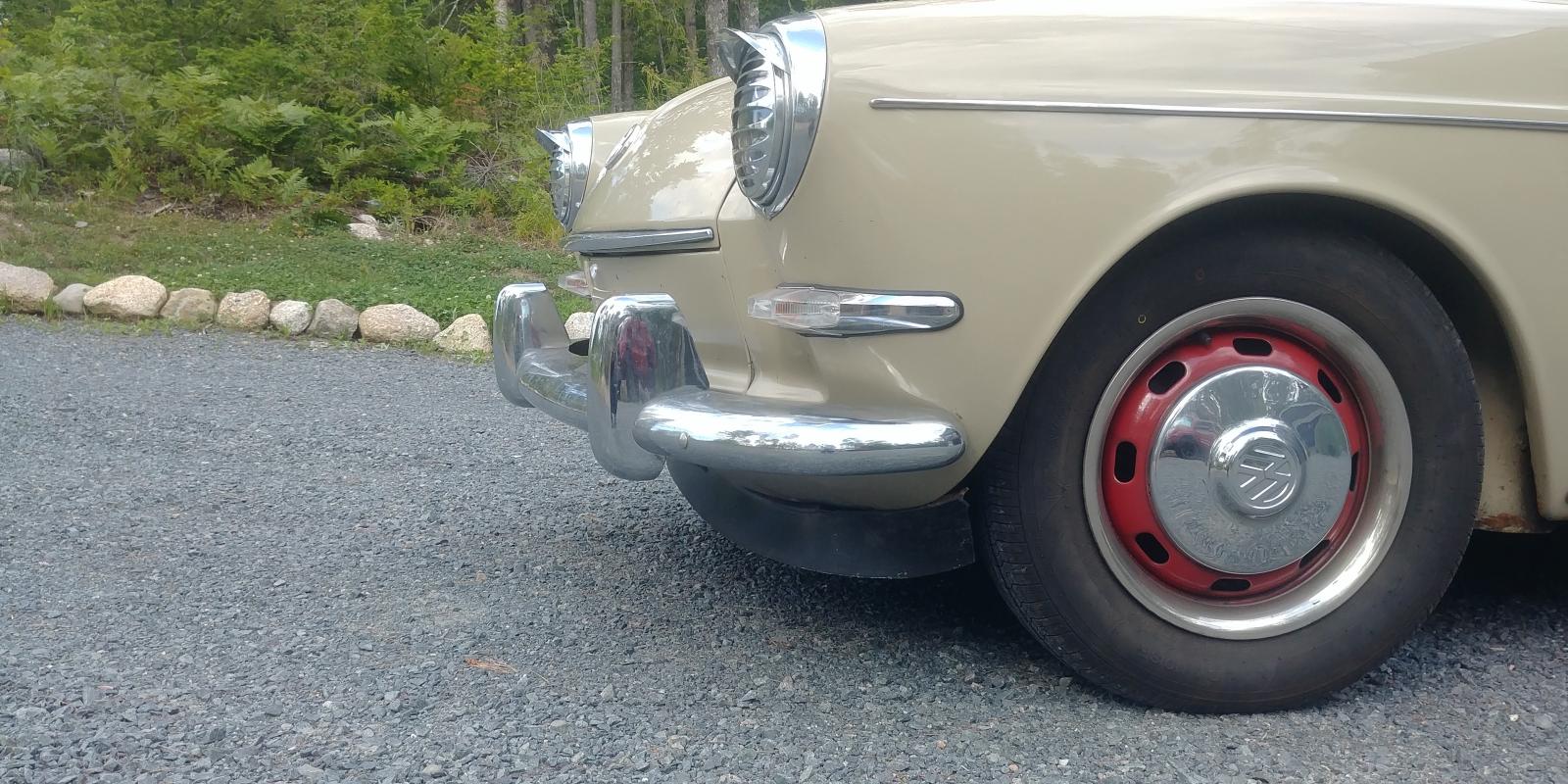

So I was having problems with stability at speeds of 70 mph and above. It would really dance all over the place if there was a bit of wind. A bit of research led me to believe it was the front end getting really light due to aerodynamics.
$11 from a junkyard and the problem seems to be solved.
It's off an old Jaguar XJS, I just had to trim the ends. I still have to do some more testing and I may put a couple metal brackets behind it as a backing but it seems to be working.
Asethetically I don't think it's very obtrusive or even noticeable. |
I'll be honest, I didn't even notice it till the 3rd pic, lol. If it works, that's all that matters. As long as it's not some crazy "Fast & Furious" chin guard, lol.
_________________
1971 Squareback, fully bagged, 1776.
Build thread here.....
https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0 |
|
| Back to top |
|
|
old_man
Samba Member
Joined: June 19, 2018
Posts: 1414
Location: Newfoundland
|
| Posted: Tue Aug 13, 2019 2:43 pm Post subject: Re: My 67 Squareback |
|
|
| Bobnotch wrote: |
Check the front tire pressure, as it might be too high. These cars like 18-20 psi on the front, and 28-30 in the rear. |
I just checked. 28/29 in the rear. 20/21 in the front. |
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23414
Location: Kimball, Mi
|
| Posted: Tue Aug 13, 2019 11:44 am Post subject: Re: My 67 Squareback |
|
|
| old_man wrote: |
So I was having problems with stability at speeds of 70 mph and above. It would really dance all over the place if there was a bit of wind. A bit of research led me to believe it was the front end getting really light due to aerodynamics.
$11 from a junkyard and the problem seems to be solved.
It's off an old Jaguar XJS, I just had to trim the ends. I still have to do some more testing and I may put a couple metal brackets behind it as a backing but it seems to be working.
Asethetically I don't think it's very obtrusive or even noticeable. |
Check the front tire pressure, as it might be too high. These cars like 18-20 psi on the front, and 28-30 in the rear.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
|
