halbug
Samba Member
Joined: March 09, 2006
Posts: 579
Location: Germany
|
|
| Back to top |
|
|
Ian Godfrey
Samba Member
Joined: September 25, 2006
Posts: 1217
Location: Melbourne Australia
|
| Posted: Sat Mar 25, 2023 2:22 pm Post subject: Re: Cool Transmission |
|
|

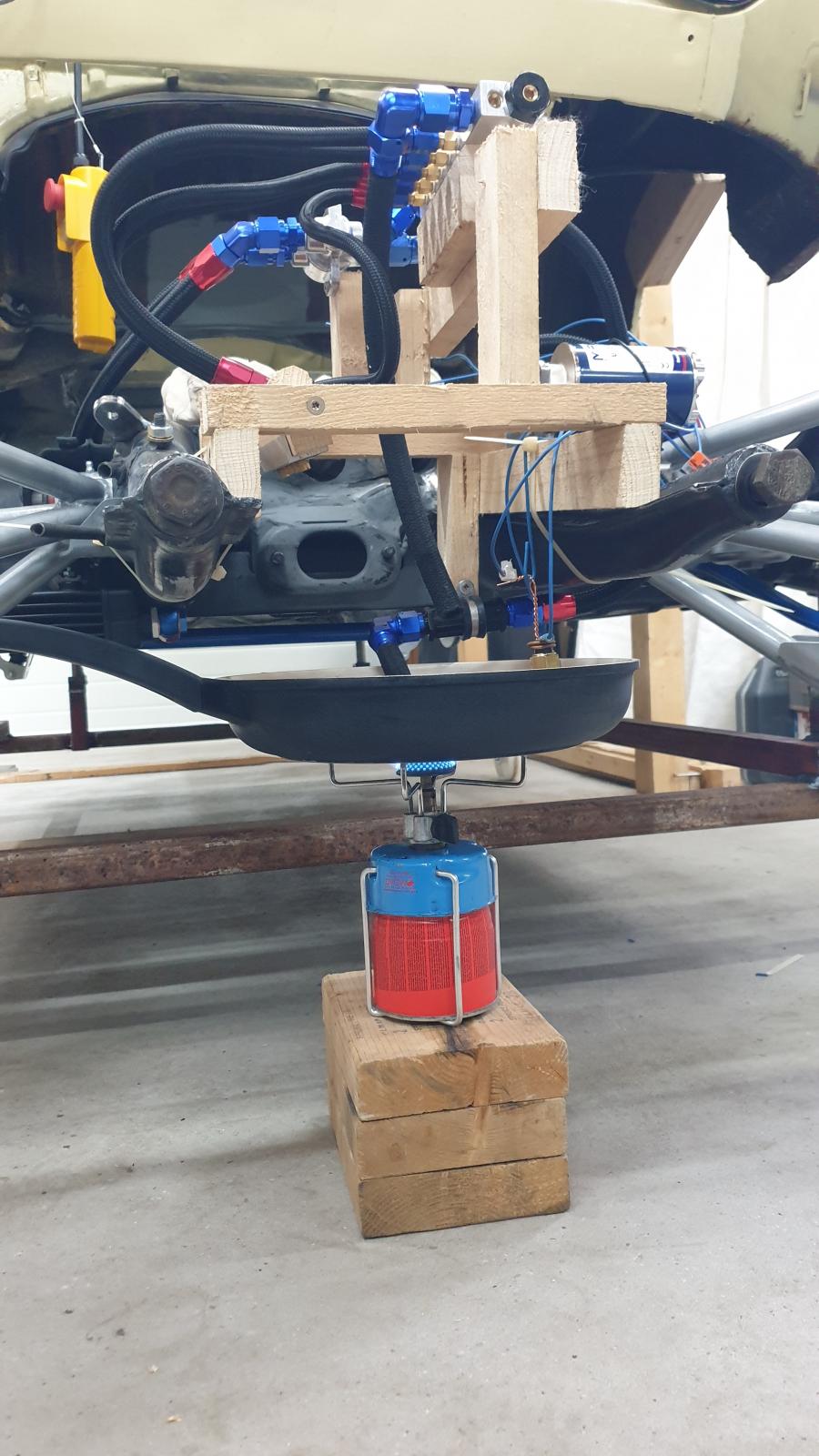

Wow, that is one of the most elaborate test beds I have ever seen. A big tick for ingenuity   |
|
| Back to top |
|
|
halbug
Samba Member
Joined: March 09, 2006
Posts: 579
Location: Germany
|
|
| Back to top |
|
|
halbug
Samba Member
Joined: March 09, 2006
Posts: 579
Location: Germany
|
| Posted: Sat Jan 28, 2023 7:11 am Post subject: Re: Cool Transmission |
|
|
The built of my chassis has finally progressed to a point where I could assemble all the transmission oiling stuff. I am sure the oil will be terribly confused finding its way back into the case

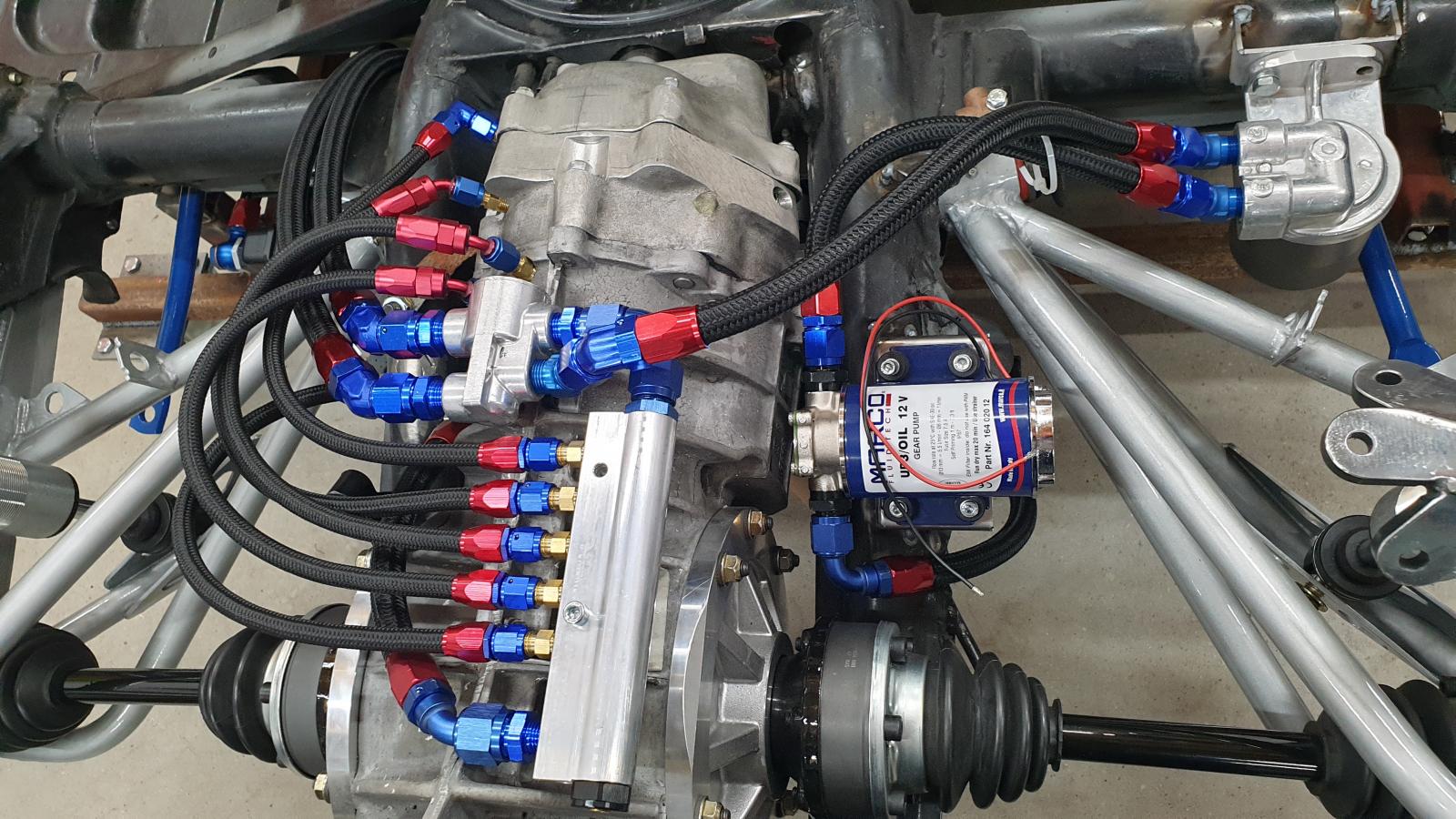

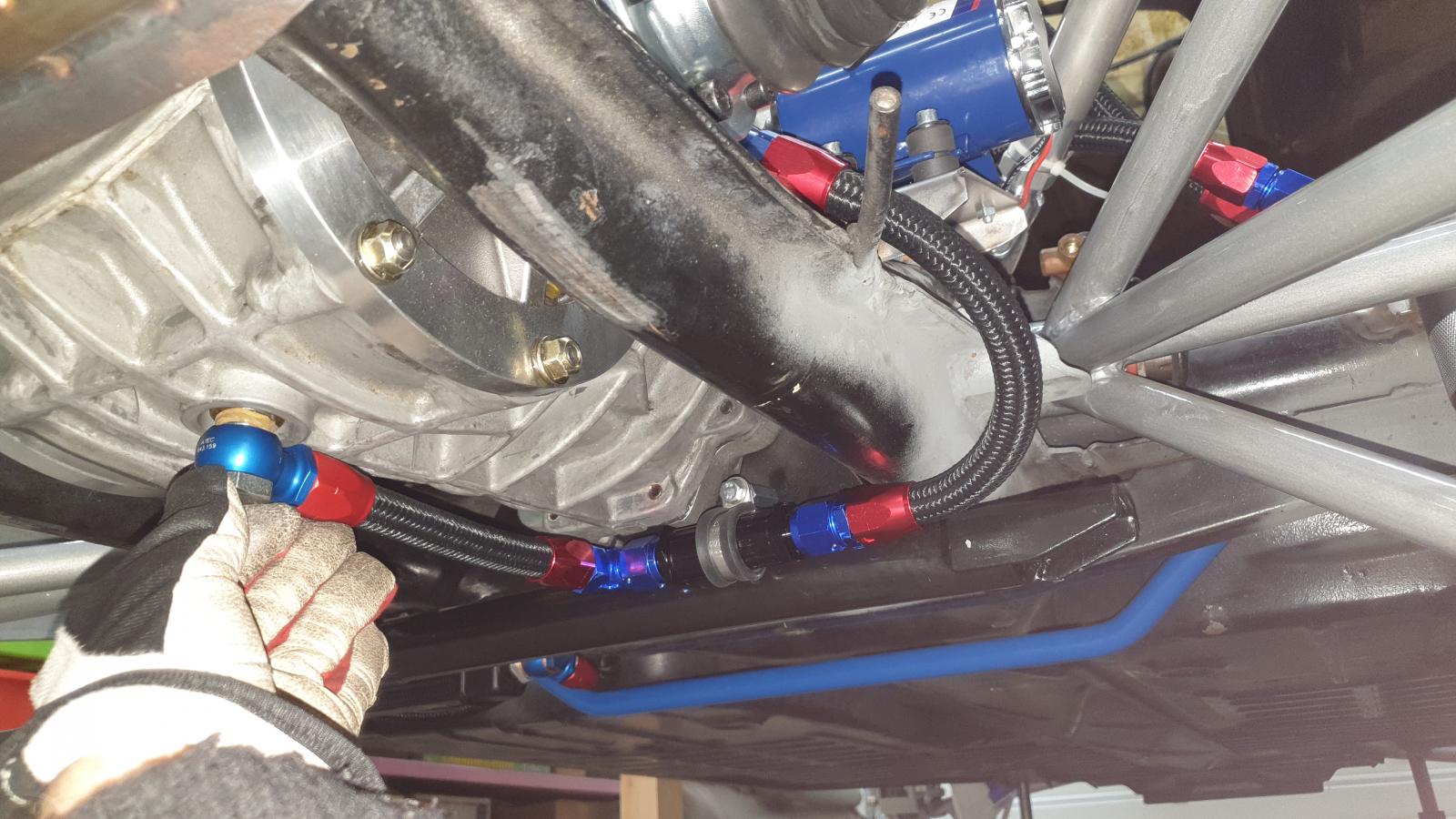

Oil pick up and scavange filter with magnet
Electrical oil pump switched on at 113F, into filter from there to thermostat
Oil exceeding 180F will be routed to the oil cooler

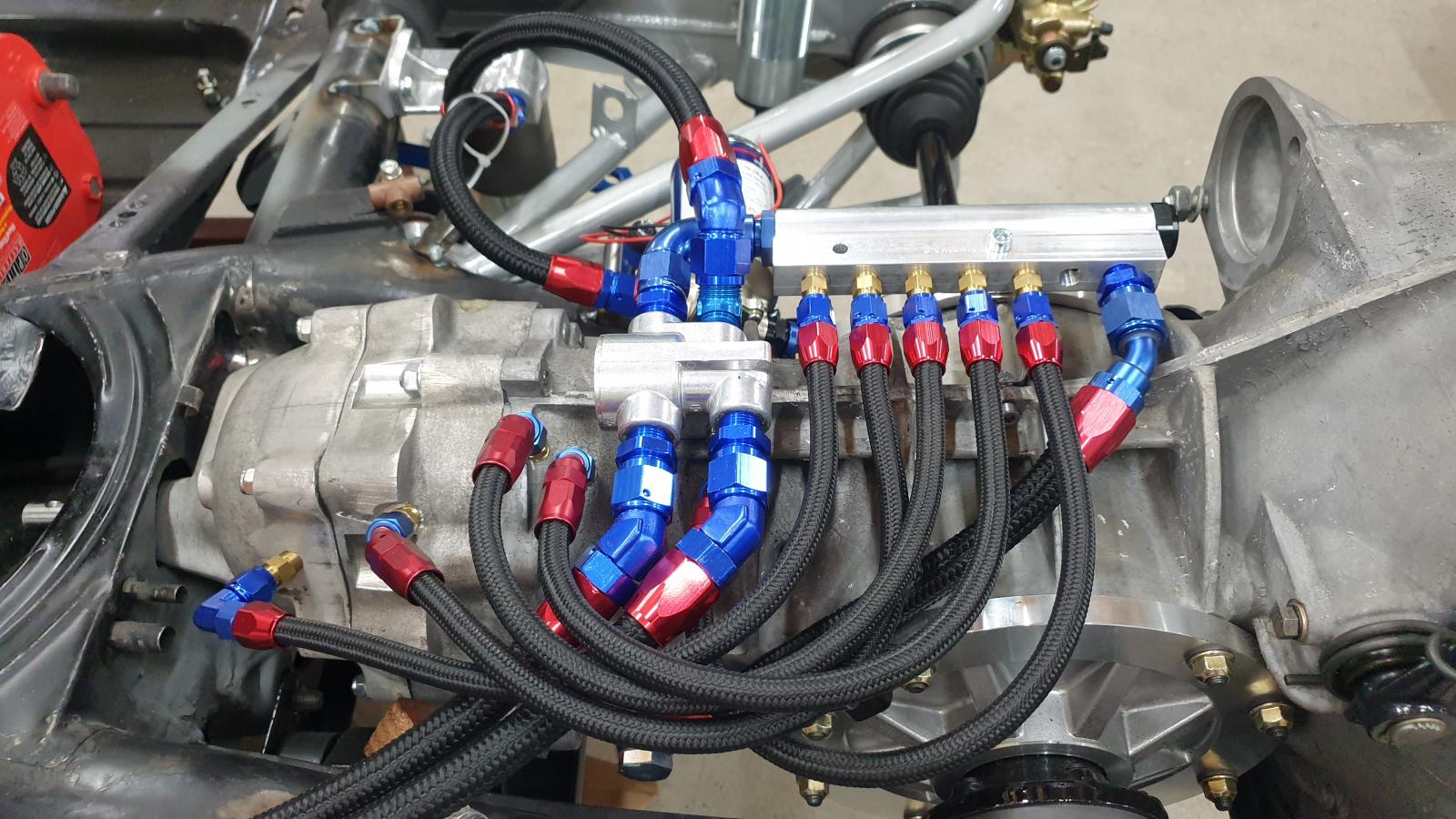

Pressure control and distribution to the gear pairs
Excessive oil directly into case

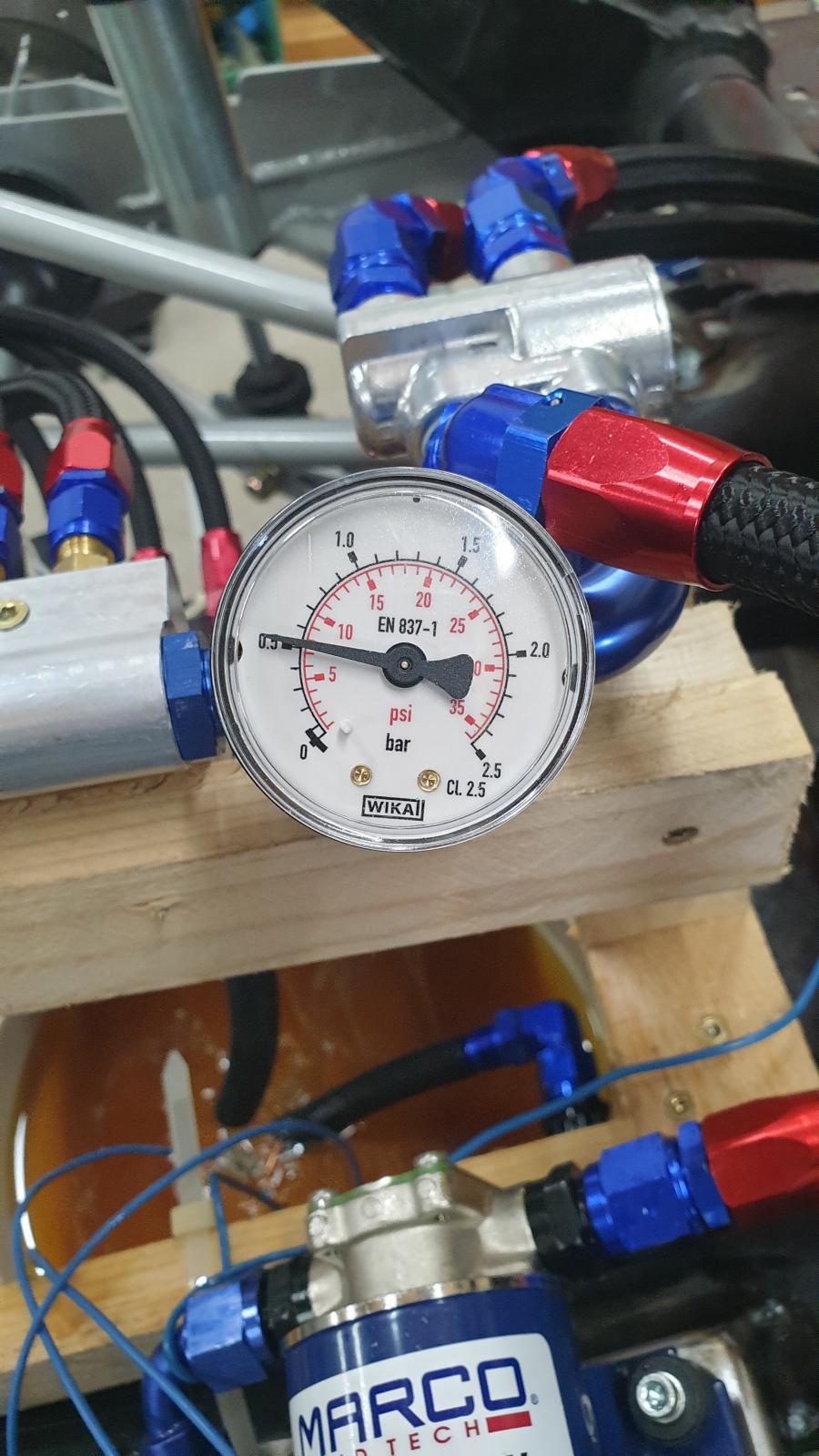

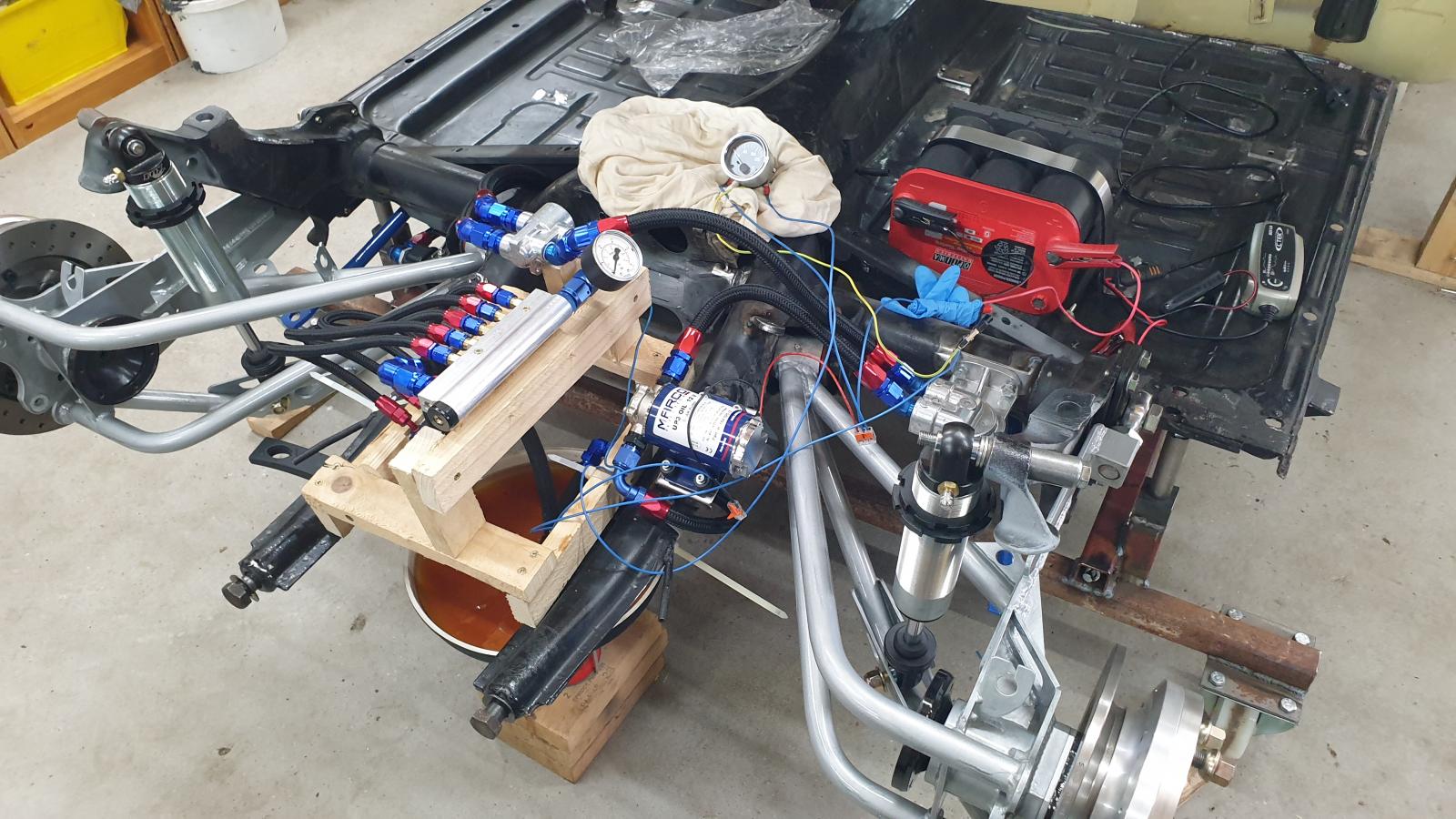

Now I can bench the system. I need to find the sweetspot of spraying a good amount onto the gears and still flow some directly to the R&P. All at as low pressure as needed. Things I can play with is the nozzle size and spring pressure for oil pressure control. More to come.
_________________
Stealth Ghia Transformation: http://www.thesamba.com/vw/forum/viewtopic.php?p=7226044&highlight=#7226044
My Berg5: https://www.thesamba.com/vw/forum/viewtopic.php?t=730276&start=0
The motor: https://www.thesamba.com/vw/forum/viewtopic.php?p=10343324#10343324 |
|
| Back to top |
|
|
halbug
Samba Member
Joined: March 09, 2006
Posts: 579
Location: Germany
|
|
| Back to top |
|
|
slayer61
Samba Member
Joined: June 01, 2021
Posts: 1371
Location: TX
|
| Posted: Tue Oct 26, 2021 7:29 am Post subject: Re: Cool Transmission |
|
|
Brother your attention to detail is off the chart. Very cool
Your car is stunning!
_________________
| Cusser wrote: |
... Most folks are idiots when it deals with electrical !!! |
| 67rustavenger wrote: |
3/4 race cam? What's missing, one of the lobes? |
Paul
'68 Manx clone... Sears??
RLR/Strange brakes
2276 built on AS21 case
W-125 w/ GB 1.25:1 rockers
Mahle forged pistons
CB 4340 crank
CB H beam rods
deep sump
45 DCOE
Garrett turbo
Tim's stage II turbo heads
MSD Box and distributor
Car Craft turbo header |
|
| Back to top |
|
|
halbug
Samba Member
Joined: March 09, 2006
Posts: 579
Location: Germany
|
|
| Back to top |
|
|
Max Welton
Samba Member
Joined: May 19, 2003
Posts: 11143
Location: Black Forest, CO
|
|
| Back to top |
|
|
halbug
Samba Member
Joined: March 09, 2006
Posts: 579
Location: Germany
|
|
| Back to top |
|
|
halbug
Samba Member
Joined: March 09, 2006
Posts: 579
Location: Germany
|
|
| Back to top |
|
|
raygreenwood
Samba Member
Joined: November 24, 2008
Posts: 23533
Location: Oklahoma City
|
| Posted: Thu Aug 05, 2021 1:46 pm Post subject: Re: Cool Transmission |
|
|
[quote="halbug"]
| halbug wrote: |
Based on some Porsche racing transmissions I have seen, I like the idea to return the cooled oil through jets directly onto the gears - at least some of the oil...
To make sure I have constant pressure and therefore even supply to all those points, I designed a distributor block with build-in pressure regulator. Anything past 10-14psi (adjustable with washers) will return directly into the case, through the oil filler hole.
And yes, it is a fuel injection rail profile
quote]
Very nice!
Is that just a spring loaded ball check valve inside?
Ray
Altmost to plan  |
|
|
| Back to top |
|
|
halbug
Samba Member
Joined: March 09, 2006
Posts: 579
Location: Germany
|
|
| Back to top |
|
|
halbug
Samba Member
Joined: March 09, 2006
Posts: 579
Location: Germany
|
|
| Back to top |
|
|
Tvättbjörn
Samba Member
Joined: May 07, 2004
Posts: 1438
Location: SoCal
|
| Posted: Sun Jun 27, 2021 11:16 pm Post subject: Re: Cool Transmission |
|
|
| halbug wrote: |
| Bad bug wrote: |
| halbug wrote: |

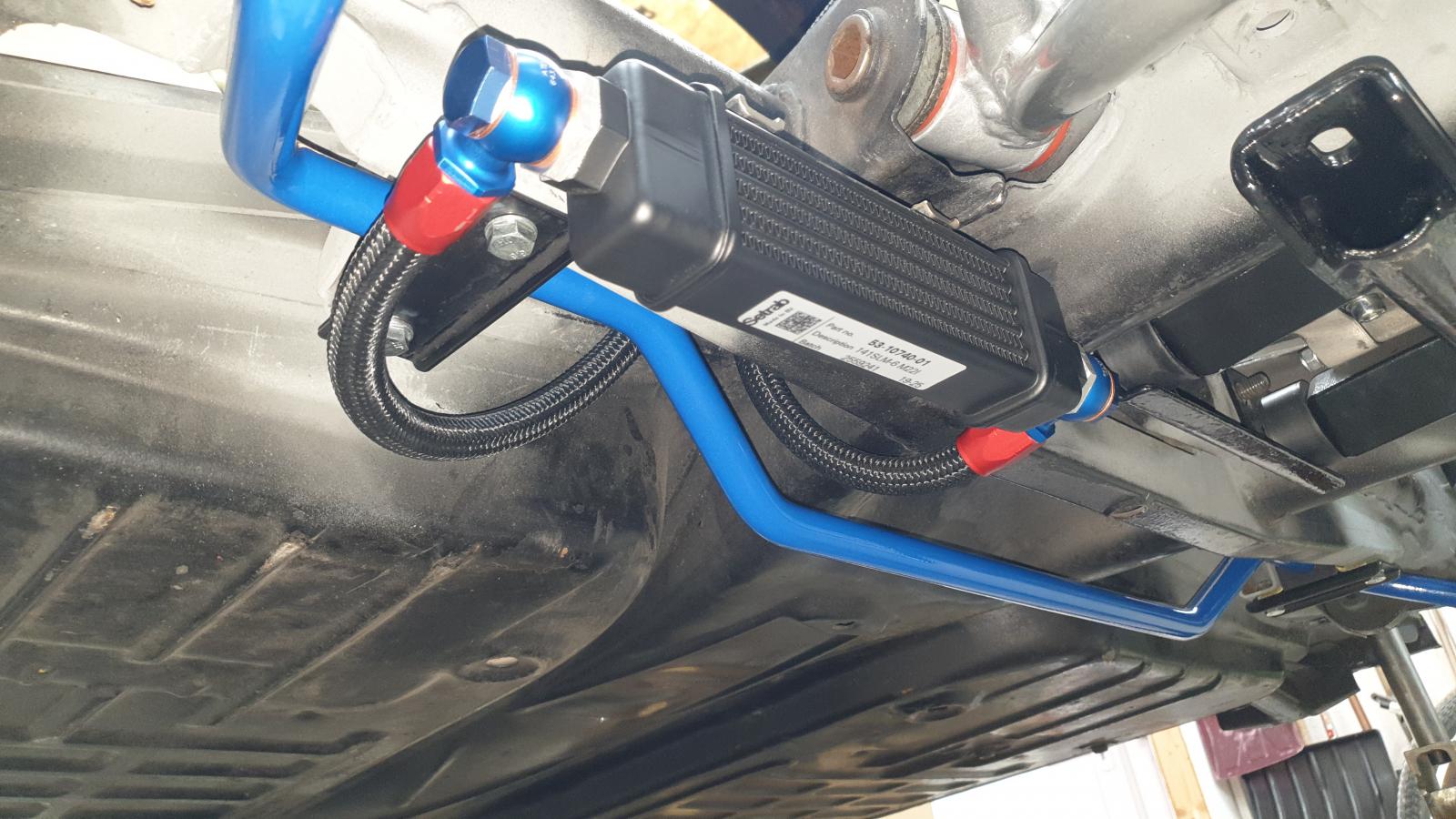

Cooler is in place
|
