| Author |
Message |
PITApan
Samba Member
Joined: November 09, 2014
Posts: 1058
Location: Northern Colorado
|
 Posted: Fri Feb 20, 2015 1:36 pm Post subject: |
 |
|
| jtauxe wrote: |
Wow - a whole lot of non-useful replies there...
That hose, which is often missing, attaches to the drain at the bottom of the air box, as has been pointed out. The other end of it is to be fished vertically through a hole in the body directly below. That way water that gets into the airbox (like from driving in the rain) gets neatly diverted to the road below, just in front of the splash pan.
It actually is an important connection. Without it, water gets put into the space forward of the kick panels, and may or may not find its way to the drain hole.
AFAIK, all buses have these, or at least did have them. |
So you are saying the exit hole for the tube is directly below that spigot?
I didn't find one there but I did feel a hole that felt like the right size over by the steering box. I'll look again.
I have no idea why my spigot is so crunched. |
|
| Back to top |
|
 |
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
|
| Posted: Fri Feb 20, 2015 2:10 pm Post subject: Fresh Air Drain Hose |
|
|

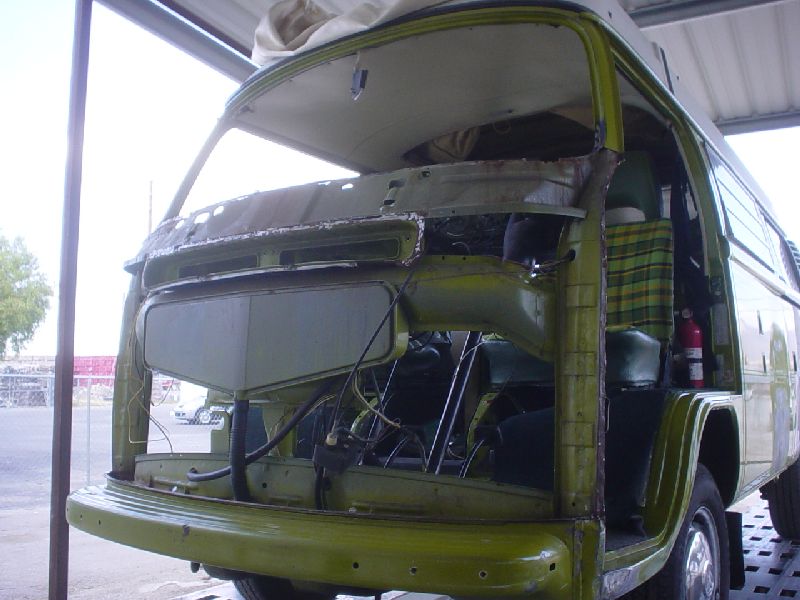

Click on pic to enlarge.
|
|
| Back to top |
|
|
PITApan
Samba Member
Joined: November 09, 2014
Posts: 1058
Location: Northern Colorado
|
| Posted: Fri Feb 20, 2015 2:40 pm Post subject: Re: Fresh Air Drain Hose |
|
|
| Tcash wrote: |
Click on pic to enlarge.
|
Just what my bus needs, a nosectomy!. |
|
| Back to top |
|
|
jtauxe
Samba Member
Joined: September 30, 2004
Posts: 5976
Location: Los Alamos, New Mexico, USA
|
| Posted: Fri Feb 20, 2015 3:00 pm Post subject: Re: Fresh Air Drain Hose |
|
|
What a perfect photo for that!
That's interesting. It seems that they moved the hole from over the steering box more towards the middle. My experience is based on '73 and later buses. Hoses are not that long, and would not allow for water to collect in the hose like that one.
I guess the answer is to just feel around until you find the damned hole!
You know, somewhere (and this may already exist) we need a comprehensive list of what all changed and when for the Bay Window Bus. All the way down to little details like this.
_________________
John
"Travelling in a fried-out Kombi, on a hippie trail, head full of zombie..." - Colin Hay and Ron Strykert
http://vw.tauxe.net
1969 Transporter, 1971 Westfalia, 1976, 1977, 1976, 1977, 1971, 1973, 1977 Westfalias,
1979 Champagne Sunroof, 1974 Westfalia Automatic, 1979 Transporter, 1972 Sportsmobile, 1973 Transporter Wild Westerner, 1974 Westfalia parts bus, 1975 Mexican single cab *FOR SALE*, 1978 Irish 4-door double cab RHD
|
|
| Back to top |
|
|
outrun1984
Samba Member
Joined: July 16, 2010
Posts: 267
Location: Rutland, VT
|
| Posted: Fri Feb 20, 2015 5:14 pm Post subject: |
|
|
I agree...these are the little changes that the Bay's went through. I wonder if my 79' has this same drain hole...I know the front end clip was replaced.
_________________
1979 Westy, Mexico Beige, 2.0 FI, Petronix, KYLE Fuel Injection Harness upgrade.
Going Furthur...in search of the sound....... |
|
| Back to top |
|
|
PITApan
Samba Member
Joined: November 09, 2014
Posts: 1058
Location: Northern Colorado
|
| Posted: Fri Feb 20, 2015 5:19 pm Post subject: |
|
|
| outrun1984 wrote: |
| I agree...these are the little changes that the Bay's went through. I wonder if my 79' has this same drain hole...I know the front end clip was replaced. |
If would make sense that if you have nose vents there is some sort of drain in the system. |
|
| Back to top |
|
|
Brian
Samba Moderator
Joined: May 28, 2012
Posts: 8339
Location: Oceanside
|
| Posted: Fri Feb 20, 2015 10:36 pm Post subject: |
|
|
there was a thread about this not too long ago and whats his name with the donkey avatar said to just go find a hose at HomeDepot that fits.
My late '68 has it.
_________________
Wash your hands
'69 Bug
'68 Baja Truck
'71 Bug
'68 Camper
Only losers litter |
|
| Back to top |
|
|
EZ Gruv
King of Plaid
Joined: December 10, 2002
Posts: 8576
Location: Las Vegas
|
| Posted: Fri Feb 20, 2015 10:59 pm Post subject: |
|
|
My '77
_________________
Eric
1977 Deluxe Westfalia - 2.0L FI Type IV, Completely Original
Photographer for HotVWs, VolksWorld, AirMighty, VW Camper & Commercial, Hayburner, and more.
My Photography Page. |
|
| Back to top |
|
|
airschooled
Air-Schooled
Joined: April 04, 2012
Posts: 13548
Location: West Coast, USA
|
| Posted: Sat Feb 21, 2015 8:06 am Post subject: |
|
|
 I think the relocation of the hose towards center corresponds with when the splash pan (pedal cluster cover) receieved a large hole, approximately the diameter of the hose in question.
_________________
One-on-one tech help for your vintage Volkswagen:
www.airschooled.com
Road trip reports and tech blog:
https://www.patreon.com/airschooled |
|
| Back to top |
|
|
chachi
Samba Member
Joined: November 18, 2003
Posts: 858
Location: PNW
|
| Posted: Sat Feb 21, 2015 11:21 am Post subject: |
|
|
my '74 has it. i was just under the floor and noticed the outlet and wondered where it went...
_________________
'74 transporter panel
'91 vanagon carat NAHT |
|
| Back to top |
|
|
SamboSamba22
Samba Member
Joined: August 06, 2015
Posts: 2806
Location: Benton, Arkansas
|
|
| Back to top |
|
|
malcolm2
Samba Member
Joined: September 28, 2011
Posts: 1280
Location: Mount Juliet, TN
|
| Posted: Mon Apr 18, 2022 12:50 pm Post subject: Re: where does the hose go --- Front vent drain hose |
|
|
I went to Home Depot and got this hose in WHITE.
BRAND: EVERBILT
6ft BILGE AND PUMP DISCHARGE HOSE
+5*F to +150 *F
1-1/8" ID
upc is 8 11000 01190 9
is on the label
I cut the good ends off of my 50 year old hose and those pieces entered nice and firmly into this hose.
I suppose if you did not have a crappy one with holes in it, you could still make this one work... $8-ish, IIRC
_________________
My Toys: '75 Porsche 914, '92 Ski Nautique and now a 1972 VW Transporter Deluxe (punch list fixing) |
|
| Back to top |
|
|
kguarnotta
Samba Member
Joined: April 01, 2004
Posts: 1207
Location: Woodstock, NH
|
| Posted: Mon Apr 18, 2022 2:18 pm Post subject: Re: where does the hose go --- Front vent drain hose |
|
|
I ran into this issue many moons ago on my '69 singlecab. original plastic was all beat up cracked etc.
There was no repro made - I found a washing machine drain hose works great, just about the same size.
_________________
-Kevin
Lincoln, MA
2001 Eurovan
'86 Triple Knob Syncro w/EJ22
'78 Westy
'69 Single Cab
'65 Kombi - EZ-Camper |
|
| Back to top |
|
|
otiswesty
Samba Member
Joined: November 21, 2006
Posts: 1768
Location: Portland
|
| Posted: Fri Jun 17, 2022 5:13 pm Post subject: Re: where does the hose go --- Front vent drain hose |
|
|
My 78 has one, cracked tho.
Thanks for the part number, made it easy to find on the Bus-OK website.
https://bus-ok.nl/Type2-late-bay-fresh-air-box-drain-hose-211259217B
_________________
1978 Sage Green P22 Westfalia
1988 T3 Syncro Single cab
Just a regular guy |
|
| Back to top |
|
|
stevo
Samba Member
Joined: January 22, 2004
Posts: 990
Location: the eugeniverse
|
| Posted: Sun Sep 14, 2025 5:10 pm Post subject: Re: where does the hose go --- Front vent drain hose |
|
|

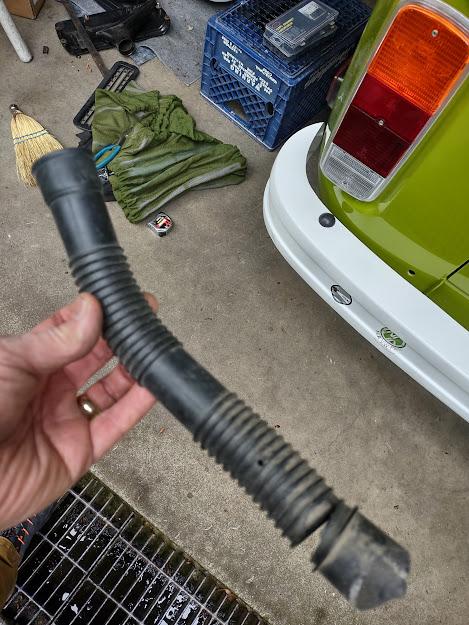

Moments ago listed a hose that was sent to me by one of our favorite used parts vendors. I asked for one to be sent for my 1968 DC and found the "replacement" had two extra segments making it longer than my original. I asked what year bus he removed the hose and he replied 1973. When vendors selling new hoses suggest theirs fit 1968-73, I have significant doubts.
https://www.thesamba.com/vw/classifieds/detail.php?id=2763062
_________________
When you cross an Irishman, they never forget. I mean, never. |
|
| Back to top |
|
|
Bnanwel
Samba Member
Joined: November 10, 2022
Posts: 318
Location: Ft Lauderdale
|
| Posted: Sun Sep 14, 2025 9:23 pm Post subject: Re: where does the hose go --- Front vent drain hose |
|
|
It’s corrugated bilge hose sold at every would-be marine store in the world for a couple of bucks a foot. What on earth would possess anyone to buy a 50 year old piece of plastic that will soon look just like the one removed. Buy some new hose, heat flare the upper end and cut the lower end at an angle. It will look and function EXACTLY like the original. I’m all about keeping my bus original, but some things are just stupid. I have some NOS tires and oil that I’m selling. PM me.
_________________
‘72 Karmann Ghia Conv.
‘73 Karmann Ghia Coupe
‘74 Karmann Ghia Coupe
‘70 Deluxe
‘72 Deluxe |
|
| Back to top |
|
|
Abscate
Samba Member
Joined: October 05, 2014
Posts: 24123
Location: NYC/Upstate/ROW
|
| Posted: Mon Sep 15, 2025 3:14 am Post subject: Re: where does the hose go --- Front vent drain hose |
|
|
Shouldn’t RHD vehicles discharge the water on the other side?
_________________
🇺🇸 🇺🇸 🇺🇸 🇺🇸 🇺🇸 🇺🇸 🇺🇸 🍊 🍊 🍊 |
|
| Back to top |
|
|
Bnanwel
Samba Member
Joined: November 10, 2022
Posts: 318
Location: Ft Lauderdale
|
| Posted: Mon Sep 15, 2025 4:40 am Post subject: Re: where does the hose go --- Front vent drain hose |
|
|
Only 3 miles outside the Colregs.
_________________
‘72 Karmann Ghia Conv.
‘73 Karmann Ghia Coupe
‘74 Karmann Ghia Coupe
‘70 Deluxe
‘72 Deluxe |
|
| Back to top |
|
|
lil-jinx
Samba Member
Joined: August 14, 2013
Posts: 1659
Location: New Brunswick,Canada
|
|
| Back to top |
|
|
Abscate
Samba Member
Joined: October 05, 2014
Posts: 24123
Location: NYC/Upstate/ROW
|
| Posted: Mon Sep 15, 2025 6:18 pm Post subject: Re: where does the hose go --- Front vent drain hose |
|
|
| Bnanwel wrote: |
| Only 3 miles outside the Colregs. |
Grey water only
