| Author |
Message |
sgellis
Samba Member
Joined: July 06, 2016
Posts: 2218
Location: SW Nova Scotia, Canada
|
|
| Back to top |
|
 |
zimblewinder
Samba Member
Joined: January 22, 2004
Posts: 900
Location: Australia
|
 Posted: Mon Aug 17, 2020 4:40 am Post subject: Re: 1959 Mango walkthru metal rehab. |
 |
|
it was beautifully done though!
_________________
58Euro 23 343208 The Ultimate Zimblewinder Machine.
59 mango standard
Wanted- splash pan supports, og pressed bumper coach bolts, ivory blaupunkt knobs (early), armrest alloy strips, NOS door mechanism |
|
| Back to top |
|
|
Burlyhammer
Samba Member
Joined: March 07, 2002
Posts: 1734
Location: Great north woods Maine
|
| Posted: Mon Aug 17, 2020 5:53 am Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
| sgellis wrote: |
| Burlyhammer wrote: |

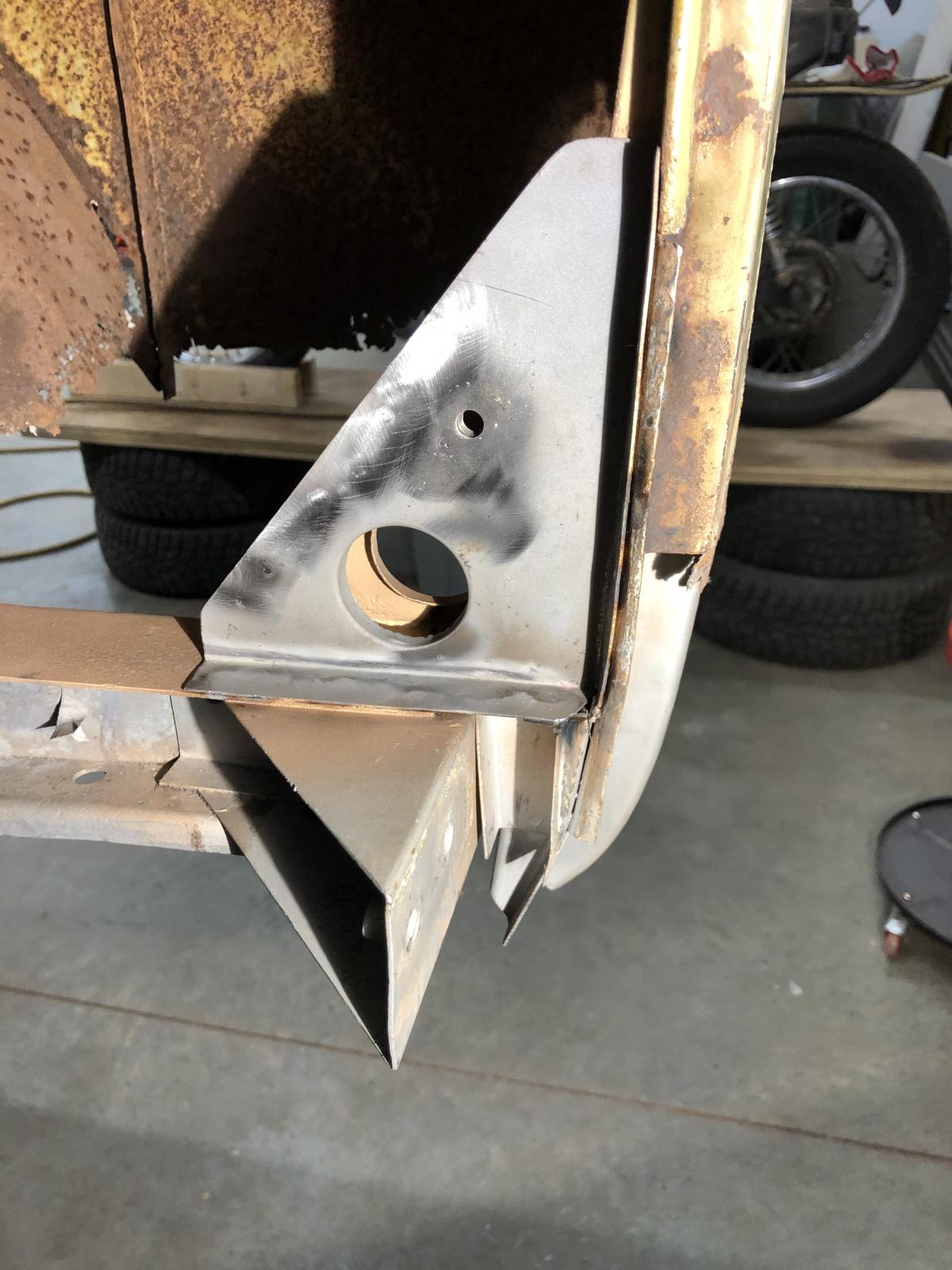

indented hole in the center is pressed the wrong way. |
Amazing what the brain can ignore sometimes
I would jam a block of wood in the hole and hole saw out the lip section, flip and weld back. |
Haha. Don’t get me started with my brain...
I was thinking along those lines myself. Can’t leave it. |
|
| Back to top |
|
|
Burlyhammer
Samba Member
Joined: March 07, 2002
Posts: 1734
Location: Great north woods Maine
|
| Posted: Mon Aug 17, 2020 5:54 am Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
| zimblewinder wrote: |
| it was beautifully done though! |
 |
|
| Back to top |
|
|
Burlyhammer
Samba Member
Joined: March 07, 2002
Posts: 1734
Location: Great north woods Maine
|
| Posted: Mon Aug 24, 2020 12:49 pm Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
I took last week off from work. I planned to go on a road trip with my chums similar to what we did last year. This year I couldn't go, so instead of moping around, I worked on VW stuff. My plan was to sand blast the chassis and inside of the bus. Matt, the owner of the bus came up to lend a hand. We used 800 pounds of sand, and made quite a bit of progress between rain storms:

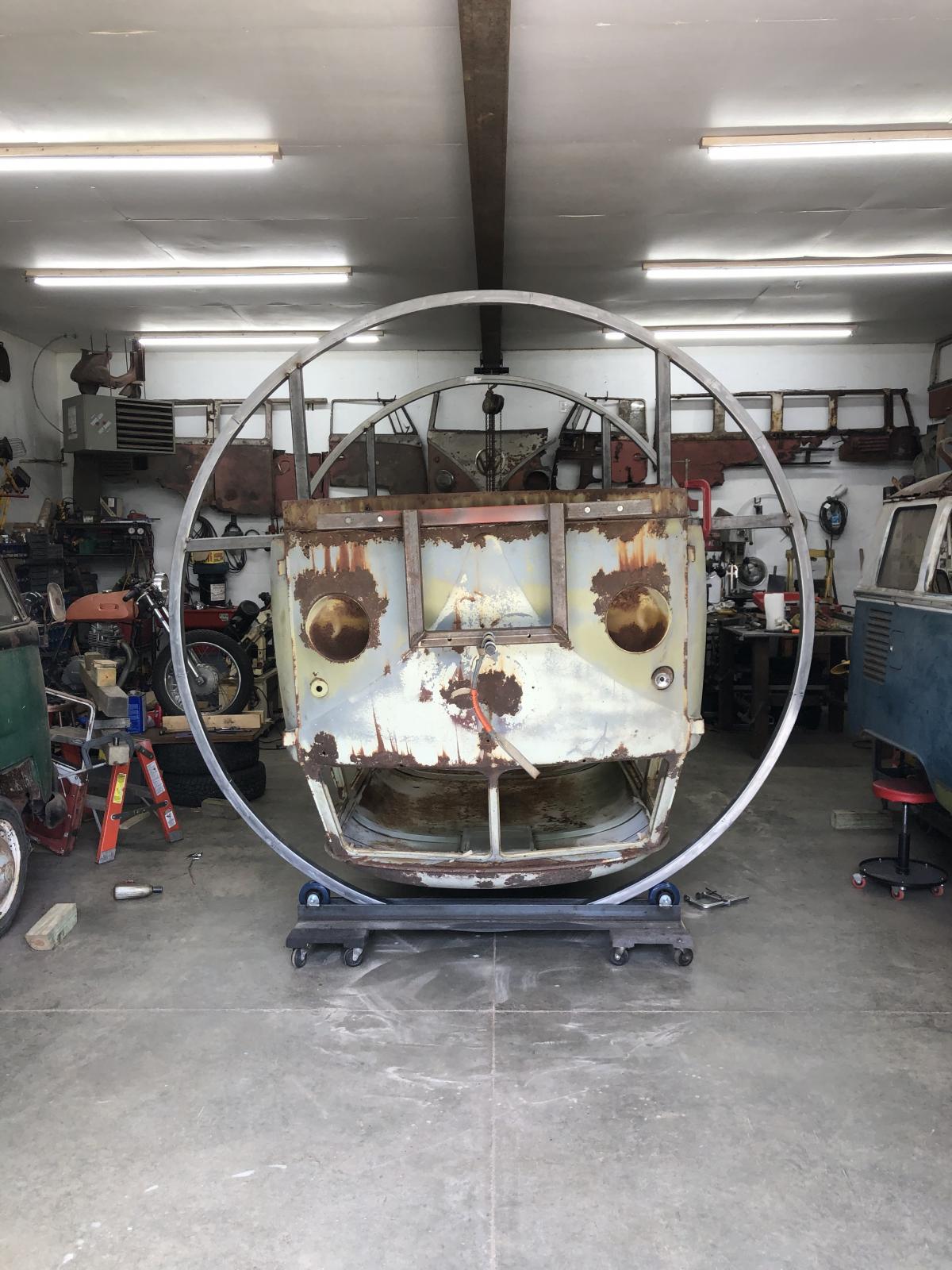

While I was blasting, Matt got going on the rotisserie we had planned to make. There is still some blasting left, but we did make this:
Now the fun can really begin! |
|
| Back to top |
|
|
boulderz
Samba Member
Joined: February 05, 2009
Posts: 74
Location: VT
|
| Posted: Mon Aug 24, 2020 4:09 pm Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
| Great job on the rotisserie, where did you have the hoops made? |
|
| Back to top |
|
|
Burlyhammer
Samba Member
Joined: March 07, 2002
Posts: 1734
Location: Great north woods Maine
|
| Posted: Tue Aug 25, 2020 7:18 am Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
| boulderz wrote: |
| Great job on the rotisserie, where did you have the hoops made? |
We had the hoops bent at a local fabrication shop. Each hoop is made from three separate pieces of 2" stock. One hoop had to be sectioned in several places to make it round and "flat." When we first got the pieces, I did not think they were going to work out, but Matt spent a lot of time configuring, and splicing to get the hoops where we could use them. They aren't perfect, but definately a step in the right direction.
Thanks boulderz! |
|
| Back to top |
|
|
Burlyhammer
Samba Member
Joined: March 07, 2002
Posts: 1734
Location: Great north woods Maine
|
| Posted: Tue Aug 25, 2020 7:22 am Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
Fixed this:
Working on the back end. I made some progress this morning:
|
|
| Back to top |
|
|
zimblewinder
Samba Member
Joined: January 22, 2004
Posts: 900
Location: Australia
|
| Posted: Tue Aug 25, 2020 8:40 pm Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
again....beautifully done. Your work is very easy on the eye for the (slightly?) obsessive.
_________________
58Euro 23 343208 The Ultimate Zimblewinder Machine.
59 mango standard
Wanted- splash pan supports, og pressed bumper coach bolts, ivory blaupunkt knobs (early), armrest alloy strips, NOS door mechanism |
|
| Back to top |
|
|
Burlyhammer
Samba Member
Joined: March 07, 2002
Posts: 1734
Location: Great north woods Maine
|
| Posted: Wed Aug 26, 2020 7:33 am Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
| zimblewinder wrote: |
| again....beautifully done. Your work is very easy on the eye for the (slightly?) obsessive. |
Thanks zimblewinder! |
|
| Back to top |
|
|
Burlyhammer
Samba Member
Joined: March 07, 2002
Posts: 1734
Location: Great north woods Maine
|
| Posted: Wed Aug 26, 2020 7:34 am Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
Finished welding, grinding, and moving over to the drivers side:
|
|
| Back to top |
|
|
Blue Baron
VW Aficionado
Joined: June 16, 2006
Posts: 28322
Location: Free State of Florida
|
| Posted: Wed Aug 26, 2020 1:14 pm Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
| Burlyhammer wrote: |
Finished welding, grinding, and moving over to the drivers side:
|
I'm not seeing the VIN stamping showing clearly here.
_________________
We are striving for perfection, to make our cars run forever, if possible.
Heinz Nordhoff |
|
| Back to top |
|
|
Burlyhammer
Samba Member
Joined: March 07, 2002
Posts: 1734
Location: Great north woods Maine
|
| Posted: Thu Aug 27, 2020 5:09 am Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
| Blue Baron wrote: |
| Burlyhammer wrote: |
| Finished welding, grinding, and moving over to the drivers side: |
I'm not seeing the VIN stamping showing clearly here. |
I have the VIN stamping from the original piece. We are either going to cut it out and weld it over where it is supposed to be, reinsert it, or re stamp it. It will be there. |
|
| Back to top |
|
|
Burlyhammer
Samba Member
Joined: March 07, 2002
Posts: 1734
Location: Great north woods Maine
|
| Posted: Thu Aug 27, 2020 5:22 am Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
Moving on to the drivers side:

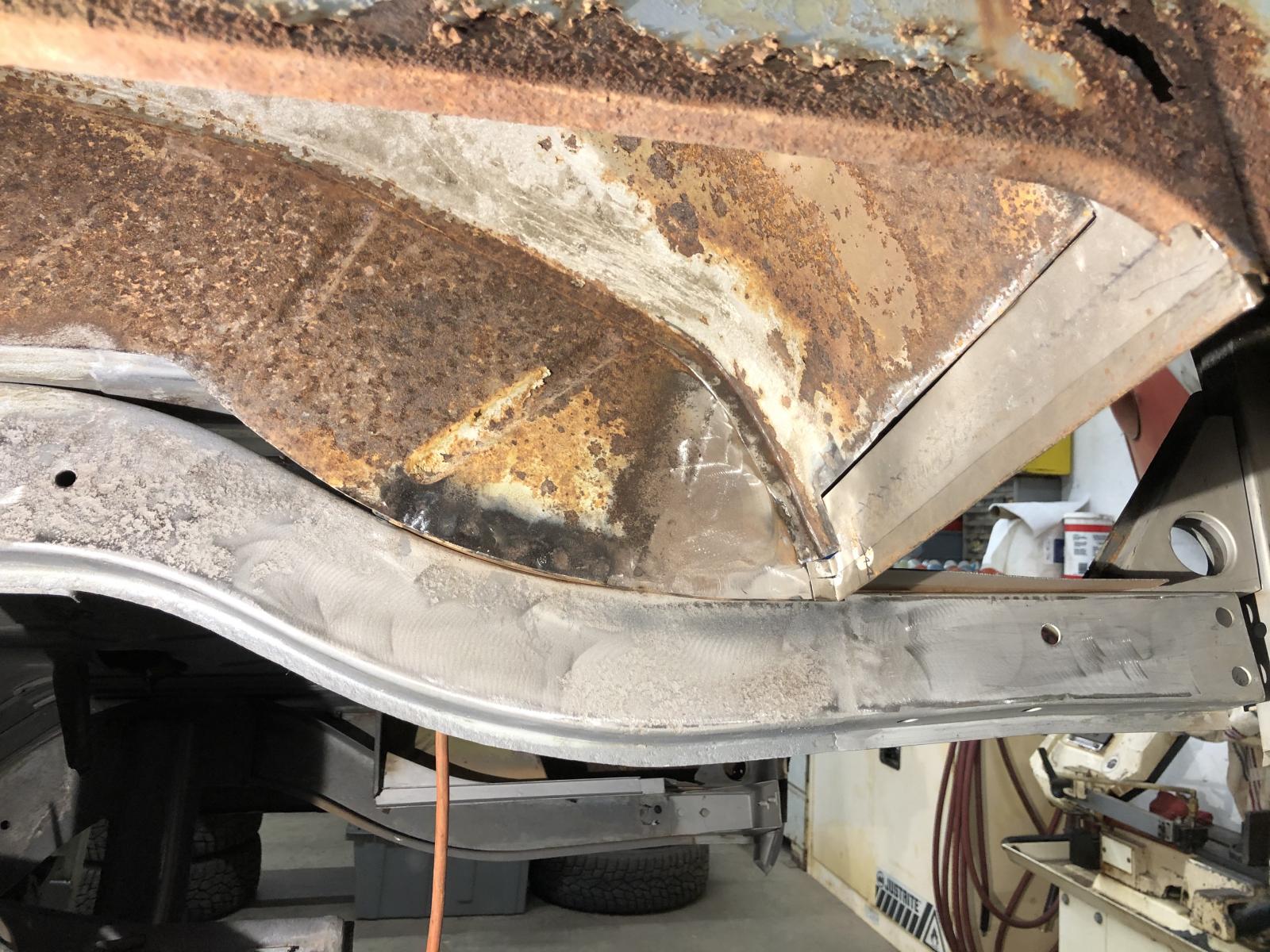

I copper welded the repair section for the drivers side fender. well While the paint was drying, I moved back over to the passenger side to start in that rear fender well:
I am going to cut the remaining flange off of the inner fender, I just want to make sure I get my radius right on the replacement panel first. When we were sandblasting, we postponed blasting the inside of the bus, and some of the rear sections to be done a little later. It rained several times while blasting, and the metal was flash rusting. Now all of the bare metal has been treated, there is no rust concern. Hopefully we will finish the sand blasting soon. Can't wait!  |
|
| Back to top |
|
|
LJay
Samba Member
Joined: August 05, 2007
Posts: 602
Location: Arbroath,Scotland
|
| Posted: Thu Aug 27, 2020 7:19 am Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
This is gonna turn out soooo sweet, You’re making a fantastic job!
I wish I had time to do one this rough!
_________________
1962 Turkis Westfalia so34.
My build thread.
https://www.thesamba.com/vw/forum/viewtopic.php?t=742279 |
|
| Back to top |
|
|
Burlyhammer
Samba Member
Joined: March 07, 2002
Posts: 1734
Location: Great north woods Maine
|
| Posted: Thu Aug 27, 2020 7:49 am Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
| LJay wrote: |
This is gonna turn out soooo sweet, You’re making a fantastic job!
I wish I had time to do one this rough! |
I really like this bus. I think it will be a good one. I don’t look for rough buses to work on, but all of the ones that come my way seem to be that way. Haha.
Thanks LJay! |
|
| Back to top |
|
|
kafer60
Samba Member
Joined: January 17, 2005
Posts: 369
Location: Fredericksburg, Va
|
| Posted: Sat Aug 29, 2020 7:25 pm Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
| Burlyhammer wrote: |
I also cut back the walkthru bases where they connect to the top hat to prep for repair. I also cut back the bottom edge of the floor and replaced it. I welded the easy part. I’ll weld the underside once we put the bus on the
BOOKMARK! This has been one of the mystery sections on my 60 walk through. Thanks for always including great detail shots in your builds! |
Is this the samr on a 65 wt?
_________________
Can't polish a turd!
"Midman- Seems to have worked well for Ted Bundy."
"seems like the right front tire is flat at the bottom, rest looks pretty good"
"The hardest part about business, is minding your own" |
|
| Back to top |
|
|
Burlyhammer
Samba Member
Joined: March 07, 2002
Posts: 1734
Location: Great north woods Maine
|
| Posted: Mon Aug 31, 2020 9:35 am Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
| kafer60 wrote: |
| Burlyhammer wrote: |
I also cut back the walkthru bases where they connect to the top hat to prep for repair. I also cut back the bottom edge of the floor and replaced it. I welded the easy part. I’ll weld the underside once we put the bus on the
BOOKMARK! This has been one of the mystery sections on my 60 walk through. Thanks for always including great detail shots in your builds! |
Is this the samr on a 65 wt? |
It is. |
|
| Back to top |
|
|
kafer60
Samba Member
Joined: January 17, 2005
Posts: 369
Location: Fredericksburg, Va
|
| Posted: Mon Aug 31, 2020 1:54 pm Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
| Burlyhammer wrote: |
| kafer60 wrote: |
| Burlyhammer wrote: |
I also cut back the walkthru bases where they connect to the top hat to prep for repair. I also cut back the bottom edge of the floor and replaced it. I welded the easy part. I’ll weld the underside once we put the bus on the
BOOKMARK! This has been one of the mystery sections on my 60 walk through. Thanks for always including great detail shots in your builds! |
Is this the samr on a 65 wt? |
It is. |
Thanks, i guessing you used 20 ga and bent it up or 18 ga?
_________________
Can't polish a turd!
"Midman- Seems to have worked well for Ted Bundy."
"seems like the right front tire is flat at the bottom, rest looks pretty good"
"The hardest part about business, is minding your own" |
|
| Back to top |
|
|
Burlyhammer
Samba Member
Joined: March 07, 2002
Posts: 1734
Location: Great north woods Maine
|
| Posted: Tue Sep 01, 2020 7:40 am Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
| kafer60 wrote: |
| Burlyhammer wrote: |
| kafer60 wrote: |
| Burlyhammer wrote: |
I also cut back the walkthru bases where they connect to the top hat to prep for repair. I also cut back the bottom edge of the floor and replaced it. I welded the easy part. I’ll weld the underside once we put the bus on the
BOOKMARK! This has been one of the mystery sections on my 60 walk through. Thanks for always including great detail shots in your builds! |
Is this the samr on a 65 wt? |
It is. |
Thanks, i guessing you used 20 ga and bent it up or 18 ga? |
I think it was 18GA I used the same thickness metal that was there to begin with. I had to replace the same piece on our 15 Window bus. This one was easier to make with the cut in for the shift rod still there. I think I traced that on to the new piece of metal.
God luck with your project, and thanks! |
|
