1957_SC
Samba Member


Joined: June 30, 2008
Posts: 24
Location: Pomona, CA
1957_SC is offline

PostPosted: Mon Nov 11, 2024 7:28 pm    Post subject: Re: 1954 & 1955 engines whats not correct! Reply with quote

Anyone know if there is anything unique to the Heater box tin, no the box itself, but rather the "Sled" that runs under the pushrod tubes with the flap?


Looking for one for an early 55 (jan) engine, and not sure if I am looking for something specifc.

Thanks
Back to top
View user's profile Send private message Classifieds Feedback
janerick3
Samba Member


Joined: June 04, 2006
Posts: 1892
Location: Colorado
janerick3 is offline

PostPosted: Wed Oct 23, 2024 3:28 am    Post subject: Re: 1954 & 1955 engines whats not correct! Reply with quote

I think the confusion comes from the 356 community, where the purists are much more anal.

356/912 fan shrouds, which are no more than modified VW stampings, are held in place by 2 hex bolts on the ends. I have never seen an original 36 or 40hp VW engine with anything other than cheese head screws holding the fan shroud in place.
_________________
Thanks,
Jan K.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bnam
Samba Member


Joined: July 02, 2006
Posts: 3383
Location: El Dorado Hills CA/ Bangalore, India
bnam is offline

PostPosted: Tue Oct 22, 2024 8:59 pm    Post subject: Re: 1954 & 1955 engines whats not correct! Reply with quote

You’re right it seems to have been superseded only sometime after 67 with 2 hex bolts.

The fan cover screws seem to have been hex bolts throughout.
_________________
1971 1302LS Convertible (RHD) owned since '74
Click to view image
1965 Karmann Ghia Coupe - under restoration
1966 Fiat 1500 Cabrio (with 1600 Twin cam)
1952 Citroen TA 11BL
Back to top
View user's profile Send private message Gallery Classifieds Feedback
RockStock
Samba Member


Joined: November 26, 2004
Posts: 4111
Location: England
RockStock is offline

PostPosted: Tue Oct 22, 2024 1:20 pm    Post subject: Re: 1954 & 1955 engines whats not correct! Reply with quote

One example. Jan 55 bus engine.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

1954 Bus Parts Manual
#45

Image may have been reduced in size. Click image to view fullscreen.

_________________
-StockRocks-
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
bnam
Samba Member


Joined: July 02, 2006
Posts: 3383
Location: El Dorado Hills CA/ Bangalore, India
bnam is offline

PostPosted: Tue Oct 22, 2024 8:38 am    Post subject: Re: 1954 & 1955 engines whats not correct! Reply with quote

RockStock wrote:
sgellis wrote:
Was the fastener on end of fan shroud a flat head or hex head?

Should be a cheese head screw, not the hex head.


The parts manual says different - N 10 212 3, bolt, hex head 6x12.

Byas
_________________
1971 1302LS Convertible (RHD) owned since '74
Click to view image
1965 Karmann Ghia Coupe - under restoration
1966 Fiat 1500 Cabrio (with 1600 Twin cam)
1952 Citroen TA 11BL
Back to top
View user's profile Send private message Gallery Classifieds Feedback
B_vdd
Samba Member


Joined: March 18, 2021
Posts: 4
Location: Belgium
B_vdd is offline

PostPosted: Sun Oct 13, 2024 12:54 am    Post subject: Re: 1954 & 1955 engines whats not correct! Reply with quote

EverettB wrote:


Are you asking if the cylinder tin should be 3-hole?
Yes.



Yes those with the different pressing.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
EverettB Premium Member
Administrator


Joined: April 11, 2000
Posts: 70931
Location: Phoenix 602
EverettB is offline

PostPosted: Sun Oct 06, 2024 11:06 am    Post subject: Re: 1954 & 1955 engines whats not correct! Reply with quote

Wow, excellent summary and really nice photos of what you found.

I did not know the generator commutator had a date code.

Are you asking if the cylinder tin should be 3-hole?
Yes.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Instagram YouTube Gallery Classifieds Feedback
B_vdd
Samba Member


Joined: March 18, 2021
Posts: 4
Location: Belgium
B_vdd is offline

PostPosted: Sun Oct 06, 2024 1:54 am    Post subject: Re: 1954 & 1955 engines whats not correct! Reply with quote

Image may have been reduced in size. Click image to view fullscreen.

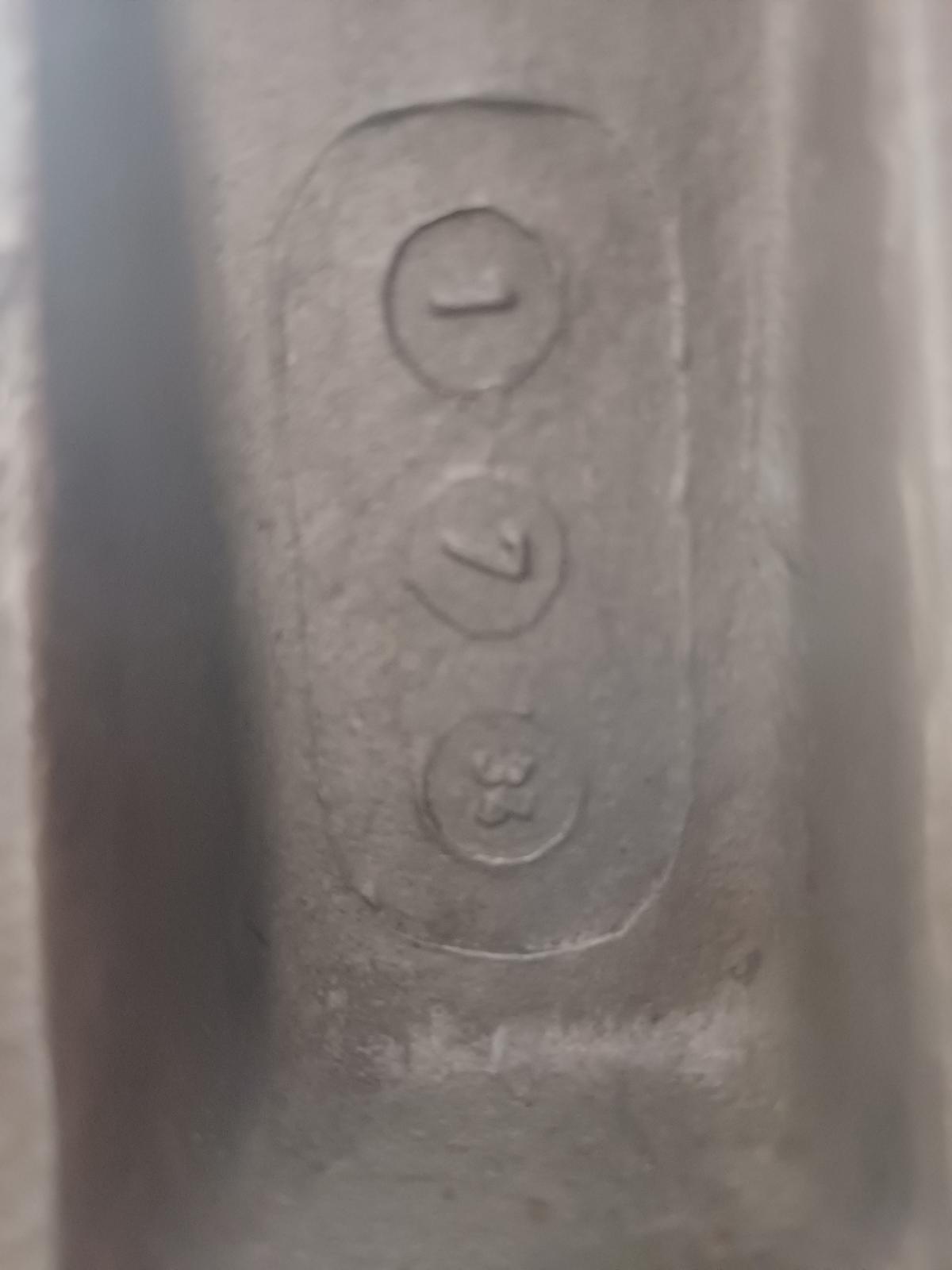

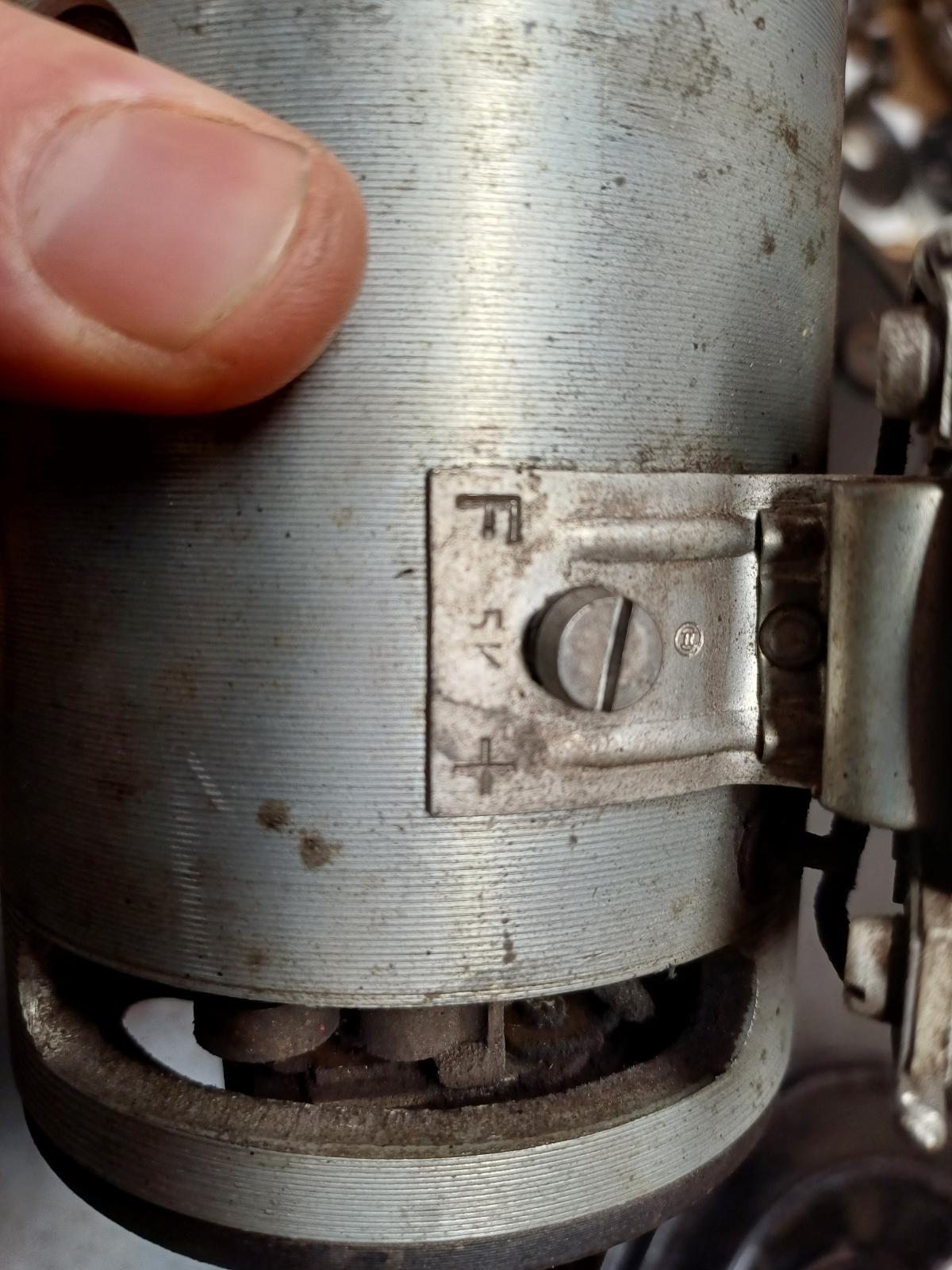

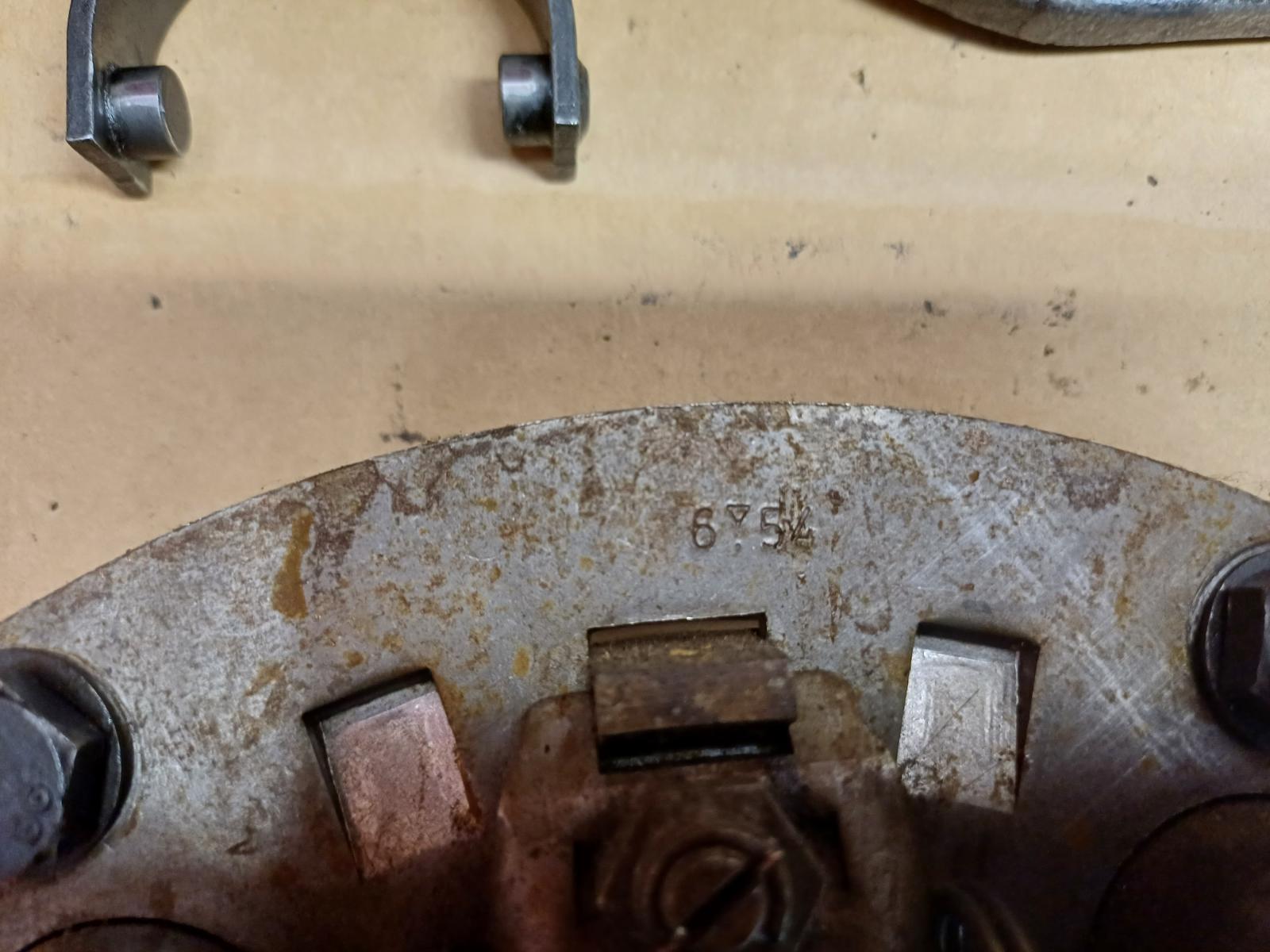

Some date codes I saw while building a july 54 industrial engine. The matching engine was once replaced by a '59. Starter motor still the original one. The industrial engine had period correct date codes ( if I may believe this topic) and suits my 15july 54 very well. ( wheels are 7/54 , speedo 6/54)

1 clips from the distributor is not correct. Boxes are 3 holes but didn't find the older style cylinder tin. And maybe there's more stuff ?



Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
iThing
Samba Member


Joined: February 11, 2012
Posts: 17
Location: Oshkosh WI
iThing is offline

PostPosted: Wed Aug 21, 2024 7:37 am    Post subject: Reply with quote

53 0val wrote:
RareAir wrote:
Luftsick Tero wrote:
When did the generator nut change to smaller one?


Generator nut went to 21mm size in 1956


The real question is: What color were they painted? :D


Look! A squirrel!
_________________
Therefore, I am.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
tasb Premium Member
The Distributor Distributor


Joined: April 27, 2002
Posts: 6515
Location: Pentwater, Michigan
tasb is offline

PostPosted: Tue Aug 13, 2024 6:45 pm    Post subject: Re: 1954 & 1955 engines whats not correct! Reply with quote

I should have been more specific, sorry. I was referencing the distributor badge shown on page one of this topic.
_________________
Roads Scholar &
1957 Kombi low mileage 36 hp governor equipped M 178 Slow Drag Winner 2014, 2015, 2018

1965 hardtop Deluxe Microbus owned since 1990 M 620 factory 12 v 1500cc

1961 (October)Single Cab- Road Trip Workhorse

Member# 2059
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
RockStock
Samba Member


Joined: November 26, 2004
Posts: 4111
Location: England
RockStock is offline

PostPosted: Tue Aug 13, 2024 4:12 pm    Post subject: Re: 1954 & 1955 engines whats not correct! Reply with quote

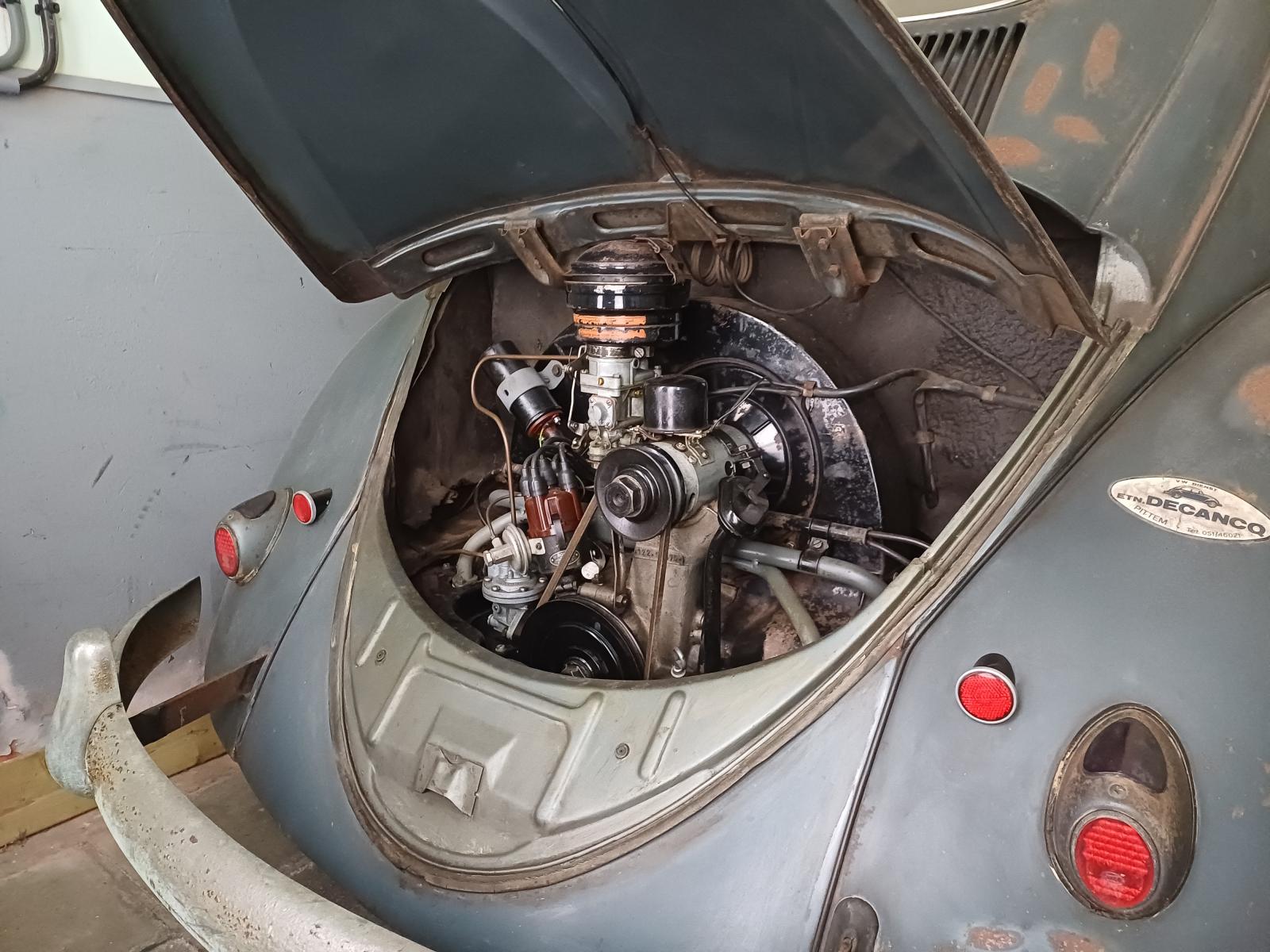

A very original February 1955 36hp engine in a very original Swedish Oval
1-0983220

Image may have been reduced in size. Click image to view fullscreen.

Bar maybe a uterus manifold and a lead boot…I can’t fault it
Lovely
_________________
-StockRocks-
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
Dan22
Samba Member


Joined: August 30, 2019
Posts: 585
Location: Battle Ground, WA
Dan22 is offline

PostPosted: Wed Jul 31, 2024 1:22 pm    Post subject: Re: 1954 & 1955 engines whats not correct! Reply with quote

It looks like his dist tag is like this one. Mine is that style too, which is date code 5L.

https://www.thesamba.com/vw/gallery/pix/2397273.jpg
_________________
1-0900722 die langsame grüne Schildkröte
https://www.thesamba.com/vw/forum/viewtopic.php?t=765074
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tasb Premium Member
The Distributor Distributor


Joined: April 27, 2002
Posts: 6515
Location: Pentwater, Michigan
tasb is offline

PostPosted: Tue Jul 30, 2024 12:07 pm    Post subject: Re: 1954 & 1955 engines whats not correct! Reply with quote

The badge on the distributor is a reproduction. You might want to check the distributor body stamp to make sure it really is a BR3.
_________________
Roads Scholar &
1957 Kombi low mileage 36 hp governor equipped M 178 Slow Drag Winner 2014, 2015, 2018

1965 hardtop Deluxe Microbus owned since 1990 M 620 factory 12 v 1500cc

1961 (October)Single Cab- Road Trip Workhorse

Member# 2059
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Tempie
Samba Member


Joined: March 19, 2004
Posts: 320
Location: Belgium
Tempie is offline

PostPosted: Mon Jul 29, 2024 1:44 pm    Post subject: Re: 1954 & 1955 engines whats not correct! Reply with quote

Yes, clamps are original.

Must honestly say, the sticker on air cleaner was not there when I found the car
_________________
When a deluxe is not enough.... you go standard Smile
Early 55 standard sunroof Smile

Visit the Standard Split and Oval Beetle group!!

VW Standard Split and Oval Beetle
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
RockStock
Samba Member


Joined: November 26, 2004
Posts: 4111
Location: England
RockStock is offline

PostPosted: Mon Jul 29, 2024 1:39 pm    Post subject: Re: 1954 & 1955 engines whats not correct! Reply with quote

Sticker on the filter too

This is supposedly a very original 1955 engine
Month unknown

Image may have been reduced in size. Click image to view fullscreen.

Have you have a lot of the fixings blackened?
Screws like the regulator mounting screws, fuel pump cap screws, carb screws/bolts?

Another pretty original 55 engine from p10:

Image may have been reduced in size. Click image to view fullscreen.

Tempie wrote:
Clamps are screw types...

Original to the engine as far as you know?
_________________
-StockRocks-


Last edited by RockStock on Tue Jul 30, 2024 3:53 am; edited 5 times in total
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
Tempie
Samba Member


Joined: March 19, 2004
Posts: 320
Location: Belgium
Tempie is offline

PostPosted: Mon Jul 29, 2024 1:15 pm    Post subject: Re: 1954 & 1955 engines whats not correct! Reply with quote

RockStock wrote:
Good effort!
The 2 lhs regulator screws should be fitted from underneath

Your lead pipe clamps…are they the weldnut type? Or screw type?


Thx for the tip. Regulator was all that was missing Smile
Clamps are screw types...
_________________
When a deluxe is not enough.... you go standard Smile
Early 55 standard sunroof Smile

Visit the Standard Split and Oval Beetle group!!

VW Standard Split and Oval Beetle
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
RockStock
Samba Member


Joined: November 26, 2004
Posts: 4111
Location: England
RockStock is offline

PostPosted: Mon Jul 29, 2024 12:55 pm    Post subject: Re: 1954 & 1955 engines whats not correct! Reply with quote

Good effort!
The 2 lhs regulator screws should be fitted from underneath

Your lead pipe clamps…are they the weldnut type? Or screw type?
_________________
-StockRocks-
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
Tempie
Samba Member


Joined: March 19, 2004
Posts: 320
Location: Belgium
Tempie is offline

PostPosted: Mon Jul 29, 2024 12:20 pm    Post subject: Re: 1954 & 1955 engines whats not correct! Reply with quote

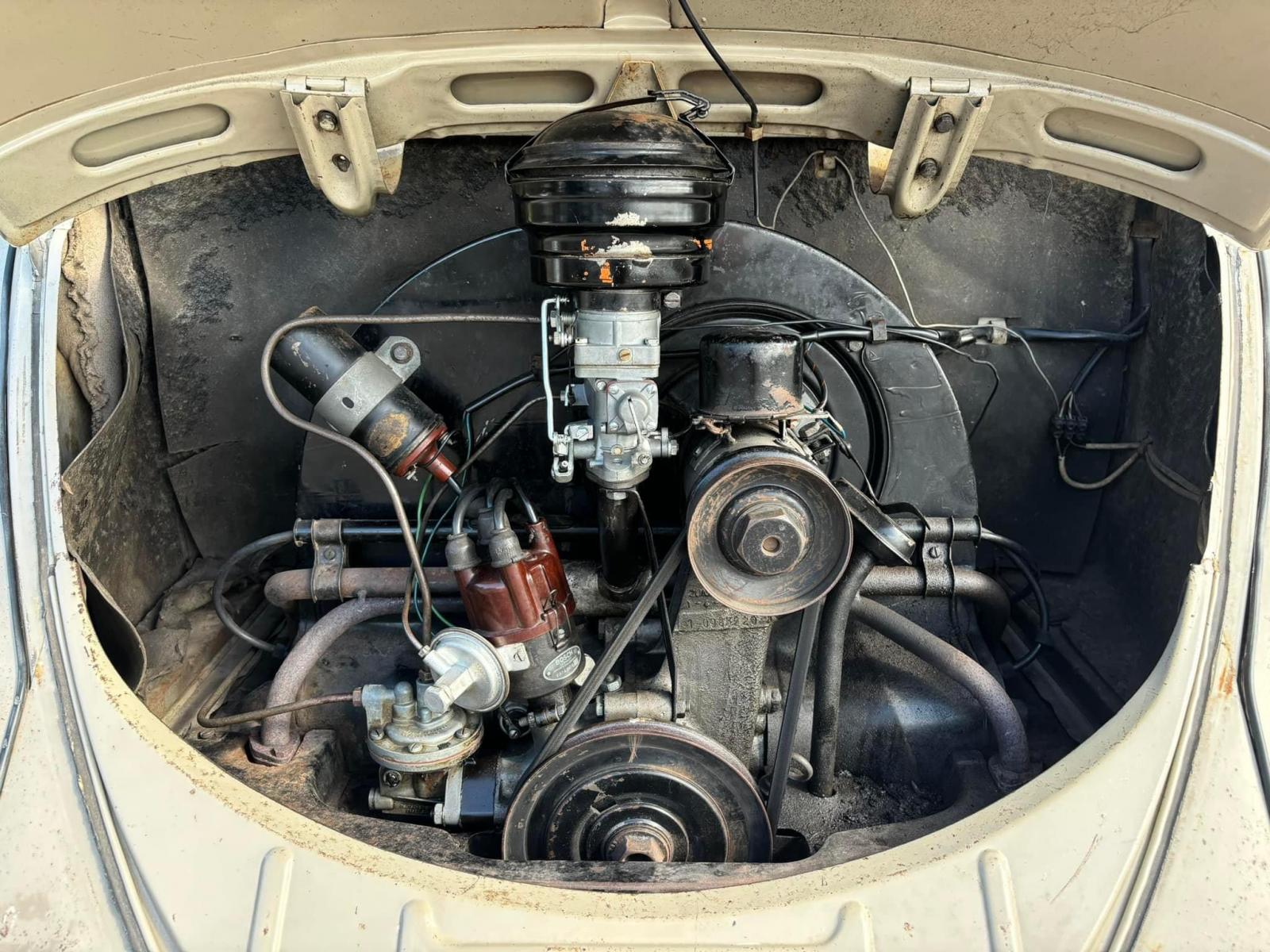

Here is my jan55 engine.
It was all original except the regulator. It has the early MANN filter.
Wiring needs to be finalized.

Please put your remarks

Image may have been reduced in size. Click image to view fullscreen.
.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
When a deluxe is not enough.... you go standard Smile
Early 55 standard sunroof Smile

Visit the Standard Split and Oval Beetle group!!

VW Standard Split and Oval Beetle
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
bwaz
Samba Member


Joined: August 24, 2004
Posts: 1809

bwaz is offline

PostPosted: Mon Jul 08, 2024 8:07 pm    Post subject: Reply with quote

EverettB wrote:
Here some 54/55 fuel pump serial numbers for reference.

These are all loose pumps so I don't know what month/year engines they were removed from.

938716 - Screw
999870 - Screw
1300635 - Screw
1304024 - Screw
1311009 - Screw
1578179 - No Screw
1659613 - No Screw


I’ve just picked up a no screw fuel pump with number
1711392 - no screw (so must be late in the run of no screw versions)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
EverettB Premium Member
Administrator


Joined: April 11, 2000
Posts: 70931
Location: Phoenix 602
EverettB is offline

PostPosted: Fri Apr 05, 2024 5:58 pm    Post subject: Re: 1954 & 1955 engines whats not correct! Reply with quote

Weird but very cool.

I guess they had the numbers backwards?
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Instagram YouTube Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Beetle - Oval-Window - 1953-57 All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3 ... 31, 32, 33  Next
Jump to:
Page 1 of 33


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2024, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
