Replacing transmission drive flange oil seal -pics-
Page: 1, 2, 3, 4, 5, 6  Next
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
captainpartytime
Samba Member


Joined: December 04, 2005
Posts: 713
Location: Mission Viejo, CA
captainpartytime is offline

PostPosted: Mon Aug 20, 2007 8:56 pm    Post subject: Replacing transmission drive flange oil seal -pics- Reply with quote

Parts from GoWesty
Final drive seals: $15.98/each (x 2)
Caps: $3.95/each (x 2)
Circlips (used): $1.95/each (x 2)
Spacer: $0.49/each (x 2)

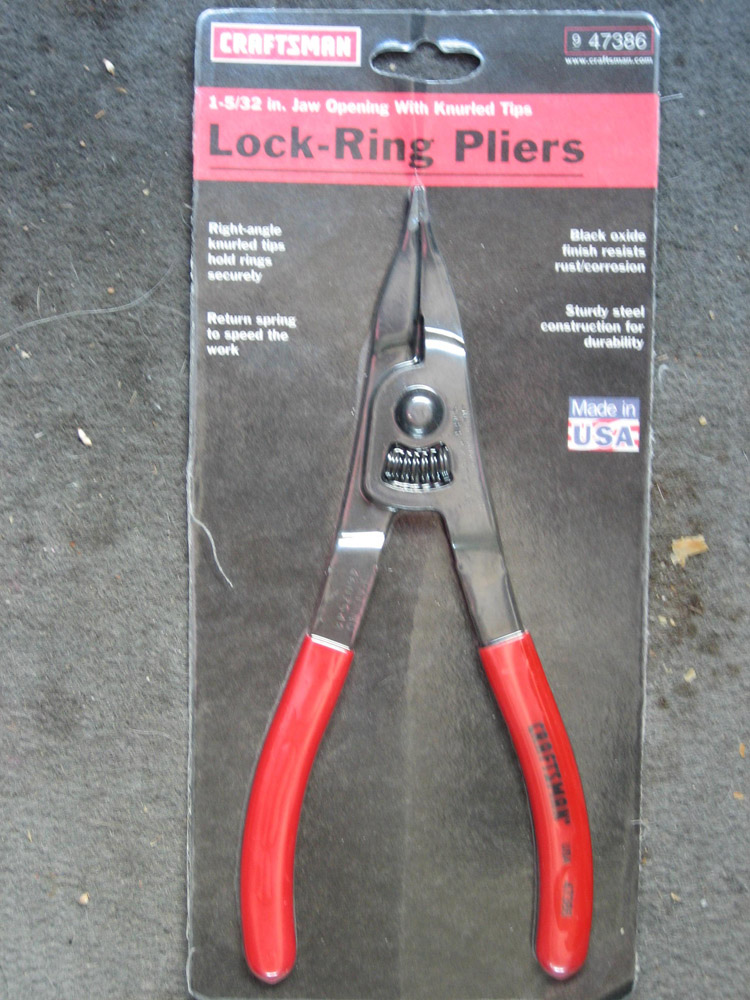

Lock ring pliers from Sears $14.00
Image may have been reduced in size. Click image to view fullscreen.

Punch through cap with screwdriver and pry out cap
Image may have been reduced in size. Click image to view fullscreen.

Remove circlip with lock-ring pliers
Image may have been reduced in size. Click image to view fullscreen.

Remove flange, spring washer, and cover
Image may have been reduced in size. Click image to view fullscreen.

Drill small hole in oil seal then screw in wood screw. Pull out seal from screw with hammer claw.
Image may have been reduced in size. Click image to view fullscreen.

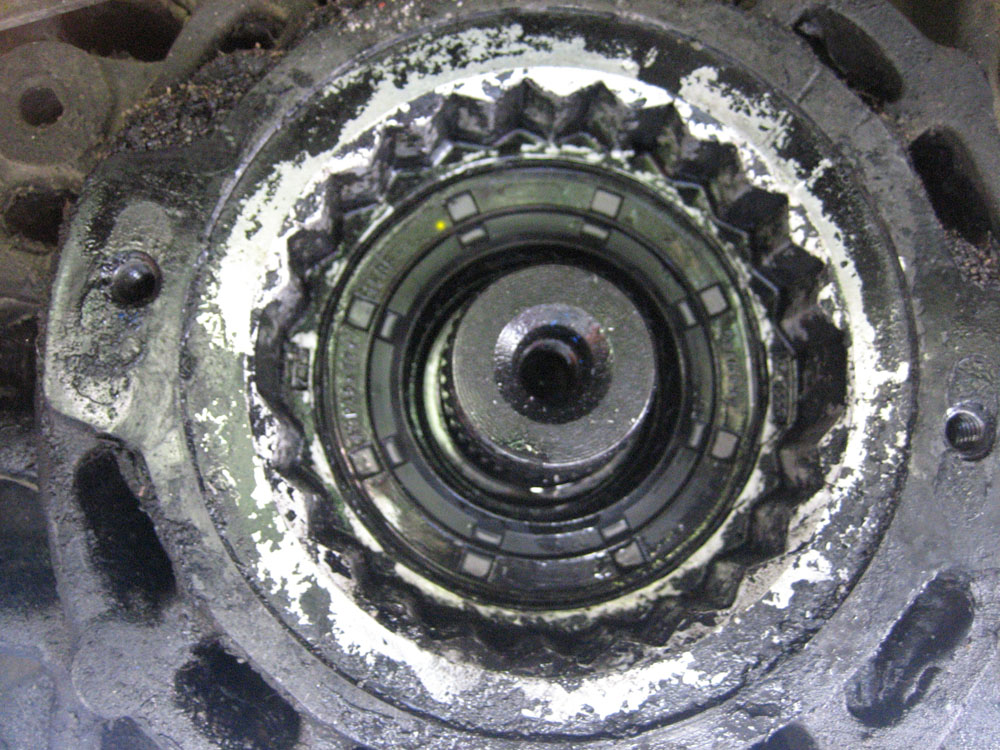

Final drive oil seal removed
Image may have been reduced in size. Click image to view fullscreen.

New oil seal installed. I lubed the seal and used a brass punch to carefully install the seal.
Image may have been reduced in size. Click image to view fullscreen.
[url]
Clean and install cover
Image may have been reduced in size. Click image to view fullscreen.

Install flange, spring washer and circlip. I used my plyers and a rubber mallet to compress the flange while installing the new circlip.
Image may have been reduced in size. Click image to view fullscreen.

Install new cap, re-pack cv joint bearings, and torque down drive shaft bolts to 45 Nm or 33 ft. lbs.
Image may have been reduced in size. Click image to view fullscreen.

She loves it when the tranny doesn't leak anymore!
Image may have been reduced in size. Click image to view fullscreen.

_________________
-Kerry

1982 turbo diesel Westfalia
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Bern
Samba Member


Joined: March 08, 2004
Posts: 151
Location: Issaquah, WA
Bern is offline

PostPosted: Mon Aug 20, 2007 9:59 pm    Post subject: Reply with quote

nice write-up. I need to do this on mine, but I think I'm just gonna nut up and get the tranny I want built with the guts I want... now I just need to find a way to win the lotto... Laughing
_________________
VR6 Vanagon. Yup, it vrooms and stuff.
Back to top
View user's profile Send private message Send e-mail AIM Address MSN Messenger Classifieds Feedback
70coupyel
Samba Member


Joined: September 06, 2006
Posts: 1643
Location: So.Cal
70coupyel is offline

PostPosted: Mon Aug 20, 2007 10:42 pm    Post subject: Super Vangonman Reply with quote

Damn! Floors and seals in one day???
You Da Man

And that cutie dau of yours must love her jungle jim Vanagon!
_________________
TheAndante wrote:
Saying that specs are different than dimensions doesn't make sense. Porsche specs/VW specs/engineering specs are nothing but a series of dimensions,sizes,percentages,measurements, etc.

http://www.thesamba.com/vw/forum/viewtopic.php?t=338946&highlight=
70 KG Coup
83 Westy Waterboxer
Back to top
View user's profile Send private message Gallery Classifieds Feedback
weatherbill
Samba Member


Joined: May 15, 2007
Posts: 366
Location: Nashville
weatherbill is offline

PostPosted: Wed Aug 22, 2007 7:43 pm    Post subject: Reply with quote

how dare you! Send your little girl under there to do the job! What kind of dad are you?......LOL Laughing

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Classifieds Feedback
psych-illogical
Samba Member


Joined: October 14, 2004
Posts: 1181
Location: AZ
psych-illogical is offline

PostPosted: Tue Sep 11, 2007 12:56 pm    Post subject: Reply with quote

I remembered seeing this thread a little while ago. I just ordered the parts to do this job on mine (and a half a dozen other nagging little repairs). My only question is based on something shown in the Bentley manual. They show a special puller needed to remove the drive flange. I noticed that you didn't mention anything about that so, did it just pry out easily with a coupla big screwdrivers or what? The puller in the Bentley looks like one that could be easily fabricated but I don't want to go to the trouble if I don't need to.
_________________
83 1/2 Westy waterboxer
'57 Beetle-sold Sad
Coupla '81 BMW motorcycles (R80G/S; R100RS)
'96 BMW R1100GS
Back to top
View user's profile Send private message Gallery Classifieds Feedback
rs4-380
Samba Member


Joined: August 13, 2006
Posts: 450
Location: Maine
rs4-380 is offline

PostPosted: Tue Sep 11, 2007 1:02 pm    Post subject: Reply with quote

the puller compresses the flange against the spring to releive pressure on the circlip so it's easier to get out. Usually, you can get the flange out without the puller, but it's often hard to get it back in without it (because the flange needs to be compressed far enough to reveal the slot for the circlip). At least that has been my experience on FWD VW trannies, by the looks of the pictorial, it seems that at least in the Original poster's case such a device was not necessary.
_________________
Dave
87 EJ25 Syncro GL
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kevinbassplayer
Samba Member


Joined: June 15, 2006
Posts: 1040
Location: Nor-Cal (Chico California)
kevinbassplayer is offline

PostPosted: Tue Sep 11, 2007 4:11 pm    Post subject: Reply with quote

I did this job several months ago and there seemsto be a key component missing. In order to re-install the flange it was necessary to make a special tool with a threaded bolt going through a metal plate to compress the flange back on. I originally tried hammering the thing on with a rubber mallet but there was no way. I'm not sure how you did it without using something to press the flange back on. I also needed to use a standard type gear puller to get the flanges off. Great pictures!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
captainpartytime
Samba Member


Joined: December 04, 2005
Posts: 713
Location: Mission Viejo, CA
captainpartytime is offline

PostPosted: Tue Sep 11, 2007 7:11 pm    Post subject: Reply with quote

My flange came right off. I rapped on it very gently with a mechanics hammer to try and resonate the metal in order to loosen it. I then hit it a couple times with a rubber mallet and it came off with very little pulling force. I definitely DID NOT need a puller. When I re-assembled the flange I rapped it again pretty hard with my rubber mallet to try and seat the flange. I then opened up the new circlip with my pliers and installed it. The circlip wasn't fully seated so I took my brass punch and very gently tapped the circlip working it around until it finally seated. For me, getting the new seal fully seated was the hardest part. Another poster told me to get a socket that just barely cleared the shaft and tap on it which would push on the flange and force the circlip on. I thought this was a good idea but I didn't have any sockets that big (bigger than 22 mm). I would say that this install was easier than I originally anticipated. It's been almost a month and I haven't seen any tranny fluid leak since! Good Luck!!!
_________________
-Kerry

1982 turbo diesel Westfalia
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kevinbassplayer
Samba Member


Joined: June 15, 2006
Posts: 1040
Location: Nor-Cal (Chico California)
kevinbassplayer is offline

PostPosted: Wed Sep 12, 2007 10:42 am    Post subject: Reply with quote

Lucky! (read with the Napoelean Dynamite voice)
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
unibagel
Samba Member


Joined: December 02, 2004
Posts: 403
Location: Bflo, NY
unibagel is offline

PostPosted: Tue Jun 16, 2009 7:01 am    Post subject: Reply with quote

Thanks for the speedy and informative response!! I have a couple of questions though.

1. After I remove all of the CV Bolts does the Axle just move out of the way, or do I need to remove entire driveshaft out of the Van?
2. Best case scenario, how long to typically do the job?

Thanks!
Chris
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
deprivation
Samba Member


Joined: September 14, 2006
Posts: 1219
Location: Austin, Texas
deprivation is offline

PostPosted: Tue Jun 16, 2009 7:14 am    Post subject: Reply with quote

unibagel wrote:
1. After I remove all of the CV Bolts does the Axle just move out of the way, or do I need to remove entire driveshaft out of the Van?

Once the CV bolts are off, gravity will do the rest. It might make the job a little easier to just take the whole axle off. And why not take the time to repack the joints while you're in there?
unibagel wrote:
2. Best case scenario, how long to typically do the job?
I replaced my flange seals in a few hours but I tend to work slowly.
_________________
1986 Westy 2WD auto a.k.a. "The Old Girl"
www.kittenfart.com
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
captainpartytime
Samba Member


Joined: December 04, 2005
Posts: 713
Location: Mission Viejo, CA
captainpartytime is offline

PostPosted: Tue Jun 16, 2009 10:15 pm    Post subject: Reply with quote

I took the whole axle off as it made the job a lot easier. I also figured I might as well repack both CV's since I was already doing one side...
_________________
-Kerry

1982 turbo diesel Westfalia
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Blix
Samba Member


Joined: August 12, 2009
Posts: 131
Location: Fort Collins, Colorado
Blix is offline

PostPosted: Sun Aug 30, 2009 9:59 pm    Post subject: Reply with quote

Still trying to get my head around this job, I'm determined to do this but just need to let it percolate for a week or so first. Trying to get the parts off of busdepot at the moment.

Is this the cap? https://busdepot.com/details.jsp?partnumber=002517289A

Do I need Final Drive Seal or Rear Final Drive Seal?

Also what is the spacer piece listed in parts? Can't seem to find that.

I'll take a long look at this when the bentley arrives. Also got the haynes manual maybe it discusses this job as well.

Many thanks to all of you for providing this information and knowledge.
Cool
_________________
When I say whas up, you know where I'm from.

84 Westy
Back to top
View user's profile Send private message Visit poster's website Classifieds Feedback
singler3360
Samba Member


Joined: February 25, 2009
Posts: 1191
Location: Corvallis, Oregon
singler3360 is offline

PostPosted: Sun Oct 17, 2010 11:30 am    Post subject: Reply with quote

Blix wrote:

Do I need Final Drive Seal or Rear Final Drive Seal?

Also what is the spacer piece listed in parts? Can't seem to find that.


Bump up to see if there are answers to these questions. Thanks.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
srmpf
Samba Member


Joined: February 25, 2011
Posts: 296
Location: Austin, TX
srmpf is offline

PostPosted: Sun May 15, 2011 5:18 pm    Post subject: Reply with quote

thanks for that great writeup - did the job today in two hours Wink

some hints from my side:
- to remove the flange I had to use a puller tool (rented that for free at the local autozone).
- I used a 46mm nut to hammer the flange seal into place.
- getting the flange back on needed a bit help of a piece of hardwood and a hammer. driver side was easy, passenger side needed more force.
- a smaller nut (27mm) was a great help to put the final seal/cap in place (together with some RTV).

_________________
1982 Westfalia AAZ Diesel, named "Travolta" - work in progress
Back to top
View user's profile Send private message Gallery Classifieds Feedback
86syncrowesty
Samba Member


Joined: September 23, 2010
Posts: 115
Location: Colorado Front Range
86syncrowesty is offline

PostPosted: Sun Jun 26, 2011 1:57 pm    Post subject: Reply with quote

Just did my driver side seal, wondering, the axle flange seems to have slight play in/out, could that be I seated the seal to deeply? I do also have a Small car speed sensor.
_________________
1986 Vanagon -- Syncro, Westy
2.5L Subaru
Back to top
View user's profile Send private message Classifieds Feedback
srmpf
Samba Member


Joined: February 25, 2011
Posts: 296
Location: Austin, TX
srmpf is offline

PostPosted: Sun Jun 26, 2011 2:30 pm    Post subject: Reply with quote

that doesn't sound right - the flange should sit on the axle with no play at all. you need some force to get it off and later back on again. Some need more, some less force. I would check the seal again, you might end up with some play if the seal is not seated deep enough, IMHO.

86syncrowesty wrote:
Just did my driver side seal, wondering, the axle flange seems to have slight play in/out, could that be I seated the seal to deeply? I do also have a Small car speed sensor.

_________________
1982 Westfalia AAZ Diesel, named "Travolta" - work in progress
Back to top
View user's profile Send private message Gallery Classifieds Feedback
86syncrowesty
Samba Member


Joined: September 23, 2010
Posts: 115
Location: Colorado Front Range
86syncrowesty is offline

PostPosted: Sun Jun 26, 2011 4:29 pm    Post subject: Reply with quote

Thanks, the seal appeared to be seated fully and the circlip acted like it seated fully and doubled checked it to make sure. I will watched it, it may be just a millimeter or less.
_________________
1986 Vanagon -- Syncro, Westy
2.5L Subaru
Back to top
View user's profile Send private message Classifieds Feedback
stl_stadtroller
Samba Member


Joined: June 22, 2009
Posts: 302
Location: St. Louis
stl_stadtroller is offline

PostPosted: Thu Dec 29, 2011 10:41 pm    Post subject: Reply with quote

I'm in the middle of doing a complete seal-job and reconditioning of my Syncro trans, and I'm at the part where I should be re-installing my drive flanges.

The part that's holding me up are the 4 M7(?) pan head screws which secure the dust cover / retainer.
I had to darn near destroy my screws getting them out, and I'm having a surprisingly hard time sourcing replacements.

Does anyone have a reliable source for these screws?

Not even Google has helped me here, neither has the search on this forum, though it did reveal this thread thankfully!

Thanks all!
_________________
Brian W
St. Louis, MO
'64 SO-33 Hatch Top Westy | '73 Thing | '87 Syncro Westy: Subaru EZ30D powered | 2002 VW Winnebago Vista
Back to top
View user's profile Send private message Visit poster's website Facebook Twitter Instagram Classifieds Feedback
presslab
Samba Member


Joined: September 29, 2008
Posts: 1730
Location: Sonoma County
presslab is offline

PostPosted: Fri Dec 30, 2011 11:55 am    Post subject: Reply with quote

stl_stadtroller wrote:
The part that's holding me up are the 4 M7(?) pan head screws which secure the dust cover / retainer.
I had to darn near destroy my screws getting them out, and I'm having a surprisingly hard time sourcing replacements.


Did you use an impact driver to get the screws out?
Image may have been reduced in size. Click image to view fullscreen.


ETKA shows the screws as M7x1.25x13, part number N 090 173 3. It is an odd screw, hope that helps you to find it.
_________________
1986 Vanagon Westfalia EJ25
1988 Subaru GL-10 EJ20G --- 2000 Honda XR650L
2010 Titus El Guapo --- 2011 On-One 456 Ti
