Seat rebuild; cleaning, rebuilding foam, adding seat heaters
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
jsSyncro
Samba Member


Joined: August 18, 2007
Posts: 59
Location: mill valley, ca
jsSyncro is offline

PostPosted: Fri Nov 30, 2007 11:36 am    Post subject: Seat rebuild; cleaning, rebuilding foam, adding seat heaters Reply with quote

The '87 I bought a few months back was in pretty decent
shape but the carpets and upholstery were kinda nasty and
I could feel the wires coming thru the disintegrating cushions.

I called Sewfine to order new bottom cushions but the nice
lady there said they were still working on perfecting them.
So I decided to just BS my way through redoing them.

I went out and got some 2" thick upholstery foam and spray adhesive
from the local upholstery shop. I also ordered some seat heat elements from
http://www.heatedseatkits.com/heatedseatkits/index.html
I got the H3 model.

Went to work disassembling the seats per Bentley.

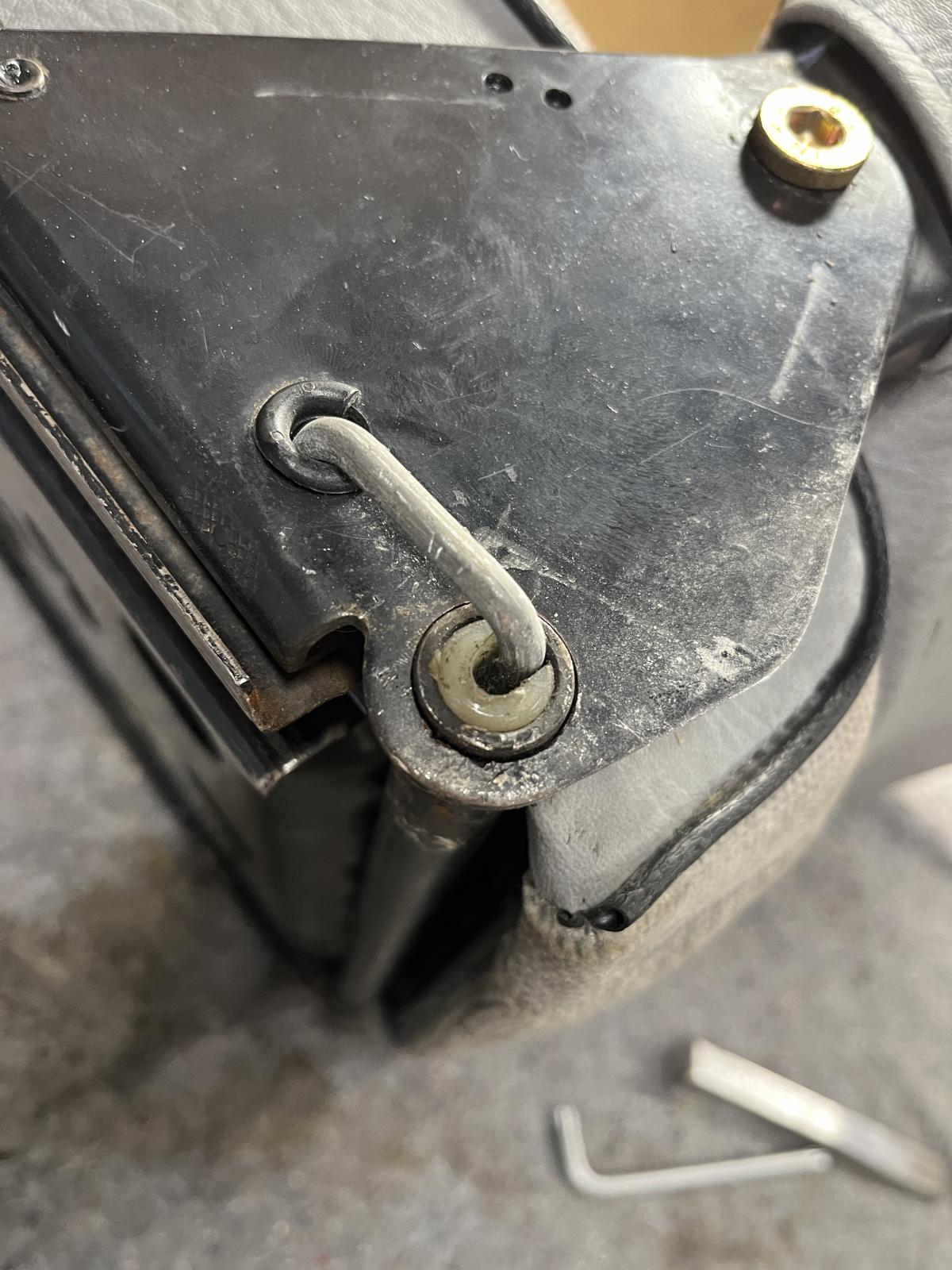

Check out Sewfine's excellent photos on disassembling the arm rests:
http://www.sewfineproducts.com/vanarm.html

I cut the upholstery rings with wire cutters, these will be replaced with
zip ties later.

Image may have been reduced in size. Click image to view fullscreen.


On the seat backs you gently pry back these nasty little clips to get the
covers off:

Image may have been reduced in size. Click image to view fullscreen.

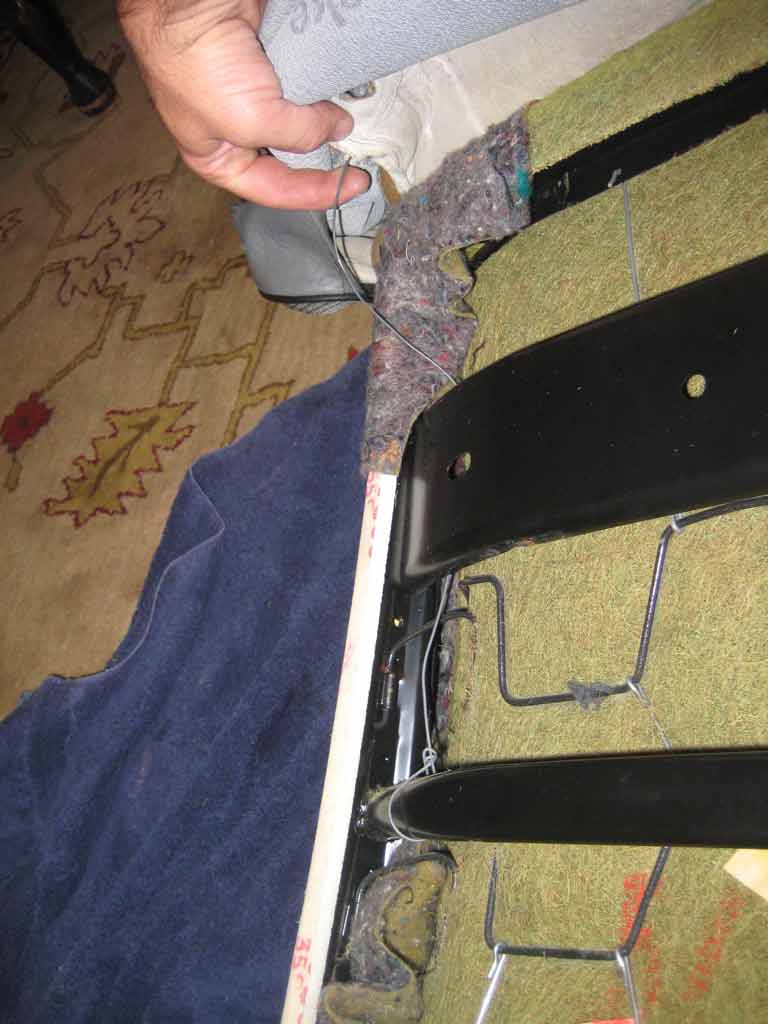

Untie the wires from the seat frame. I kept them in the seat covers
and wrapped the ends in duct tape in order to throw the whole thing in
the washing machine.

Image may have been reduced in size. Click image to view fullscreen.


the head rests are held in place with cotter pins:

Image may have been reduced in size. Click image to view fullscreen.


pull (don't pry) the plastic mounts out like so:

Image may have been reduced in size. Click image to view fullscreen.


All the upholstery got sprayed with a ton of "Shout" and were scrubbed
down pretty good. I washed on COLD. I then let everything air dry.

the covers (left) looked awesome after washing. the seat on the right had
just been shampooed by a local car wash but was still pretty funky:

Image may have been reduced in size. Click image to view fullscreen.



Here we go. The tools of ignorance:

Image may have been reduced in size. Click image to view fullscreen.


I decided to use as much of the original cushion as possible since
it is molded to the steel seat pan. I shaved off the foam on top
that had started tp disintegrate.

Paper templates of main pieces:

Image may have been reduced in size. Click image to view fullscreen.


I shaped the new foam using the sharpest serrated bread knife I had and
glued it in pieces to the old foam. There was a lot of dry fitting and trial and error to get a shape and firmness that worked. I then did some final
shaping with a belt sander (clamp down the seat real good so you don't launch it across the room).

I used duct tape to clamp the foam while the adhesive dried.
Image may have been reduced in size. Click image to view fullscreen.


The seat back cushions were in pretty good shape so I didn't do much to them.

At this point I installed the seat heaters. I neglected to take pics of this but
the instructions that came with mine were very clear. They are self adhesive so they just stick right to the cushion. I made holes through the
seat cushion to run the wires.

As mentioned earlier, I used zip ties to replace the upholstery rings.

here is a finished seat:

Image may have been reduced in size. Click image to view fullscreen.


old on left, new on right:

Image may have been reduced in size. Click image to view fullscreen.


Back in the van, I was installing sound damping and carpet so the seat wiring was easy.

Image may have been reduced in size. Click image to view fullscreen.


I also put in an aux battery at this point and wired the seats up to it.
I believe the heaters draw a lot of amps and I didn't want them draining
the main battery.

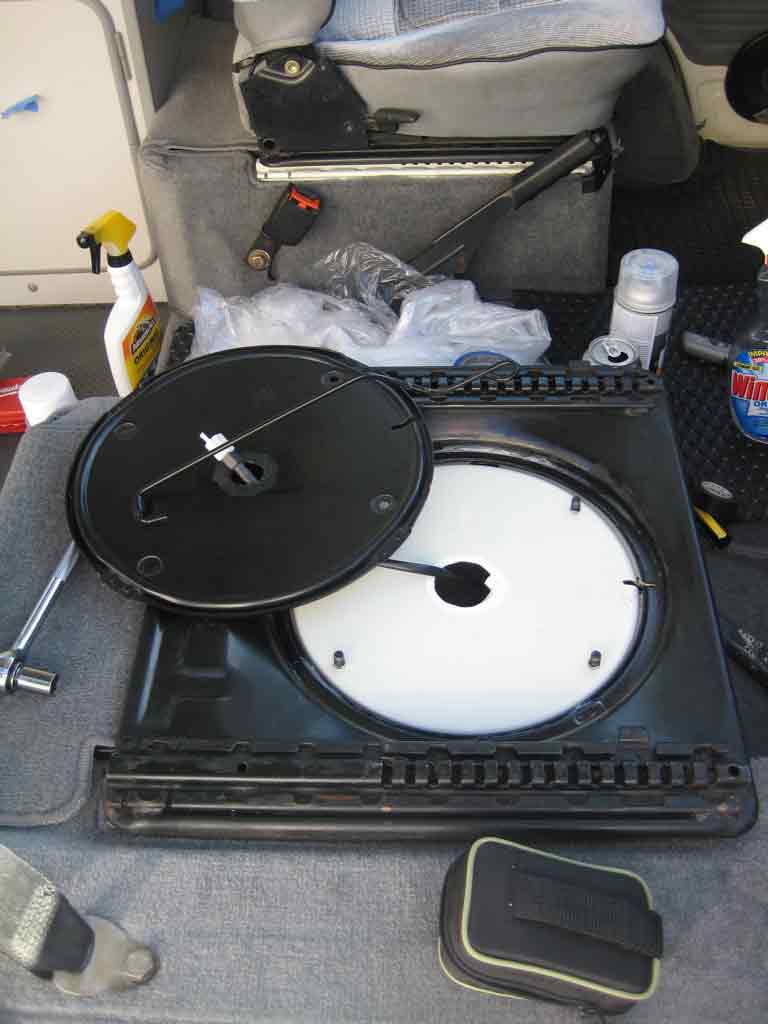

I drilled a 1.5 inch hole in the swivel plates for the heater wiring:

Image may have been reduced in size. Click image to view fullscreen.


I decided to mount them in the lower center console:

Image may have been reduced in size. Click image to view fullscreen.



I'm really happy with the way the upholstery and heaters worked out.
It's getting cold here in Colorado and the van is much more pleasant
to drive with the heated seats.

regards,
john
_________________
++++++++++++++
87 Syncro Westy Hoth Patrol Unit
Back to top
View user's profile Send private message Gallery Classifieds Feedback
rockfish
Samba Member


Joined: February 13, 2007
Posts: 740
Location: Palo Alto, Calif.
rockfish is offline

PostPosted: Fri Nov 30, 2007 11:51 am    Post subject: Reply with quote

Wow. Fantastic job.
Back to top
View user's profile Send private message Classifieds Feedback
Christopher Schimke
Samba Member


Joined: August 03, 2005
Posts: 5129
Location: PNW
Christopher Schimke is offline

PostPosted: Fri Nov 30, 2007 12:11 pm    Post subject: Reply with quote

Cool! One tip for future do-it-yourselfers, an electric turkey carving knive cuts foam like butter.
_________________
Christopher

*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected]
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
FNGRUVN
Samba Member


Joined: October 27, 2007
Posts: 2237
Location: Fort Collins, CO
FNGRUVN is offline

PostPosted: Sat Dec 01, 2007 10:25 am    Post subject: Reply with quote

Where were you when I was doing this to mine. I could have used a play-by-play. I also installed seat heaters when I had mine apart and had Sewfine make some really nice seat covers. I like the tools you used too, however I prefer using a New Belgium Fat Tire or 1554 for those jobs. I'm up in Fort Collins so I might see you around.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Vanagon Nut
Samba Member


Joined: February 08, 2008
Posts: 8182
Location: Sunshine Coast B.C.
Vanagon Nut is offline

PostPosted: Wed Mar 04, 2009 3:48 pm    Post subject: Reply with quote

Just found this. Nice photos JsSyncro!

JsSyncro:

how are they holding up and how do they feel?

Thanks!

Neil.
_________________
1981 Westy air cooled to 15 ABA swap: http://tinyurl.com/y9n4xob8

50 ABA Swap in to '88 Westy: http://tinyurl.com/yap5hpwt

Vanagon VAG GAS engine swap Google Group:
https://tinyurl.com/2f24rmh

VE7TBN
Back to top
View user's profile Send private message Gallery Classifieds Feedback
JeffRobenolt
Samba Member


Joined: February 25, 2007
Posts: 1509
Location: Wisconsin
JeffRobenolt is offline

PostPosted: Wed Mar 04, 2009 4:16 pm    Post subject: Reply with quote

Not sure if zip ties is a good idea instead of the hog rings?
_________________
**For Sale...Modified Subaru Wiring Harnesses**
www.facebook.com/jeffrobenolt
--------------------------------------------------------
[quote="jfats808"]Most, some, few is not all. You can always learn something from everyone , even the fool.[/quote]
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
westylife
Samba Member


Joined: October 28, 2007
Posts: 407
Location: Anchorage, Alaska
westylife is offline

PostPosted: Wed Mar 04, 2009 6:54 pm    Post subject: Reply with quote

This is awesome! I never would have thought to put in seat heaters Shocked

Quote:
Where were you when I was doing this to mine. I could have used a play-by-play. I also installed seat heaters when I had mine apart and had Sewfine make some really nice seat covers. I like the tools you used too, however I prefer using a New Belgium Fat Tire or 1554 for those jobs. I'm up in Fort Collins so I might see you around.


I second that on the Fat Tire! I cant get that up here in Alaska.
_________________
1983.5 Westfalia Bostig RG1
Back to top
View user's profile Send private message Visit poster's website Classifieds Feedback
rockfish
Samba Member


Joined: February 13, 2007
Posts: 740
Location: Palo Alto, Calif.
rockfish is offline

PostPosted: Wed Mar 04, 2009 8:32 pm    Post subject: Reply with quote

Depending upon your budget: Instead of making your own seat cushions, you can purchase replacement seat & back cushions from Sewfine. Same goes for the bench seat, cargo/engine pad and the bunk bed.
_________________
89 Westy
GW 2.5 5-speed trans

"It's what you learn after you know it all that counts."
- John Wooden
Back to top
View user's profile Send private message Classifieds Feedback
Syncroincity
Samba Member


Joined: April 15, 2007
Posts: 1557
Location: New York City
Syncroincity is offline

PostPosted: Wed Aug 18, 2010 8:11 pm    Post subject: Reply with quote

jrobewesty wrote:
Not sure if zip ties is a good idea instead of the hog rings?


Nah, zip-ties are FTW. Not only are they easy to work with, they allow you to keep the upholstery loose while you've got your hands in there routing the other ties, then snug everything down progressively. I've done two Subaru seat sets with zip ties, after 6 years the oldest is in perfect shape. Hog-rings will leave you bloody and cursing your life.
_________________
'86 Syncro CHC Top AAZ Turbodiesel
'04 Passat Variant 4Mo 5MT

Vanagon Build: http://www.thesamba.com/vw/forum/viewtopic.php?t=466866&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
jmranger
Samba Member


Joined: January 14, 2010
Posts: 668
Location: Quebec
jmranger is offline

PostPosted: Fri Jan 18, 2013 11:25 am    Post subject: Re: Seat rebuild; cleaning, rebuilding foam, adding seat hea Reply with quote

Old thread revival warning...

Since this one is in the FAQ, I believe a little correction is warranted.

When removing the headrest mounts, just pulling them...

Quote:
Image may have been reduced in size. Click image to view fullscreen.

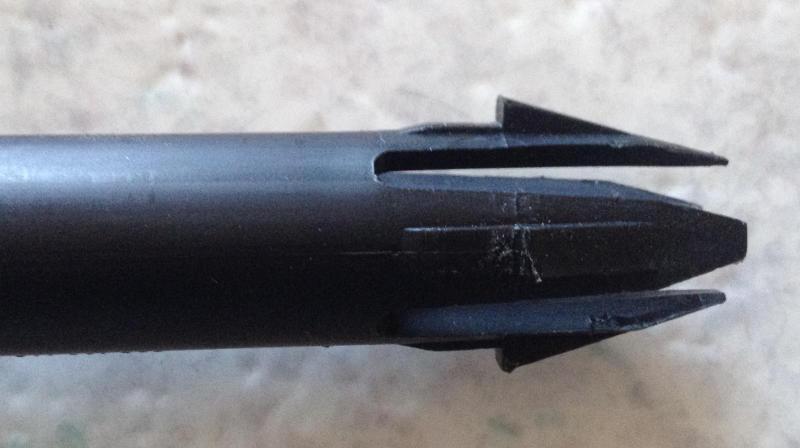

... seems unlikely to succeed, given the adversary:
Image may have been reduced in size. Click image to view fullscreen.


I used a variant of the strategy proposed by Sewfine:
Image may have been reduced in size. Click image to view fullscreen.

1) pre-compress from the top using a (reusable) zip-tie, so the tips are all close enough for step 2
2) compress even more and push out at the same time using the square end of a 1/4" socket

Done! And thanks jsSyncro for the tutorial.

JMR

Back to top
View user's profile Send private message Gallery Classifieds Feedback
vw7266
Samba Member


Joined: April 28, 2004
Posts: 2998
Location: the point, ohio
vw7266 is offline

PostPosted: Fri Jan 18, 2013 11:37 am    Post subject: Reply with quote

I just did this...I popped mine out just like the original poster did...and I do love my seat heaters


Remember there more than one way to skin a cat!
_________________
aka: Brad
Back to top
View user's profile Send private message Gallery Classifieds Feedback
westyman71
Samba Member


Joined: August 28, 2004
Posts: 149

westyman71 is offline

PostPosted: Fri Jan 18, 2013 9:10 pm    Post subject: Reply with quote

Brad??????

Seat heaters??????
Back to top
View user's profile Send private message Gallery Classifieds Feedback
KDI_CUSTOMS
Samba Member


Joined: November 07, 2009
Posts: 91
Location: Maryland
KDI_CUSTOMS is offline

PostPosted: Thu May 23, 2013 6:27 pm    Post subject: Reply with quote

Looks good. Just some simple tips for you guys/girls.

Electric carving knife cuts foam.
Use a good contact cement for gluing things together.
Angle air grinder w a red sand disc will shape foam nicely.
Zipties can be used in place of hogrings.
You can put a small metal rod on backside of foam n tie to tiedown rod on front of foam if its broken loose from inside.
Put headliner over shaped foam to help hide rough edges.

Hope this helps someone w their project. Maybe we should have diy upholstery section sponsored by me. Wink
_________________
KDI CUSTOMS AUTOMOTIVE UPHOLSTERY
www.kdicustoms.com

Full interior services and sales of rare imported material.
Back to top
View user's profile Send private message Visit poster's website Facebook Classifieds Feedback
tam_shops
Samba Member


Joined: November 15, 2012
Posts: 1525
Location: Vancouver BC
tam_shops is offline

PostPosted: Thu May 23, 2013 7:18 pm    Post subject: Re: Seat rebuild; cleaning, rebuilding foam, adding seat hea Reply with quote

THANK YOU for the detailed point by point pictures! I'm not sure I need to re-foam mine, think I might swap mine right to left like someone else suggested. WOW, though, I sure do need to wash them!

tam
jsSyncro wrote:

Image may have been reduced in size. Click image to view fullscreen.


old on left, new on right:

Image may have been reduced in size. Click image to view fullscreen.


john

_________________
1987 Vanagon Westfalia GL Automatic

Making it special:
http://www.thesamba.com/vw/forum/viewtopic.php?t=545885
Back to top
View user's profile Send private message Classifieds Feedback
SyncroChrick
Samba Member


Joined: January 10, 2005
Posts: 869
Location: San Francisco, CA
SyncroChrick is offline

PostPosted: Mon Feb 03, 2014 6:24 pm    Post subject: Reply with quote

I am also doing this job right now. My bottom foam is totally shot, I wasn't expecting that. Those vehicles are starting to be pretty old by now...everything needs replacement.

So now I need to either find another used foam, pay $300 for 2 bottom foam at Sewfine, carve one myself...or get another set of seats.

decision, decision...
Back to top
View user's profile Send private message Gallery Classifieds Feedback
smurfpike
Samba Member


Joined: April 24, 2010
Posts: 216
Location: Utah
smurfpike is offline

PostPosted: Mon Feb 03, 2014 7:55 pm    Post subject: Reply with quote

Where did you get your carpet kit from? It looks very nice! How is the quality?
_________________
1965 Ottinger Tribute Bus
1966 Fastback
1969 Convertible Bug
1974 Thing
1987 Syncro "Big Red", Full restoration thread http://www.thesamba.com/vw/forum/viewtopic.php?t=606596
1978 Westy Camper, Full ground up restoration, restoration thread http://www.thesamba.com/vw/forum/viewtopic.php?t=593413
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Steve M.
Samba Member


Joined: July 30, 2013
Posts: 4216
Location: Floating around.
Steve M. is offline

PostPosted: Mon Feb 03, 2014 8:37 pm    Post subject: Reply with quote

Great job! I wish you had posted before you started because then I would have told you to use an Electric Carving knife to cut the foam! That is so much easier and more accurate since it cuts instead of tearing at the foam while trying to hold it with one hand and cut with the other.
It looks like it turned out well enough though.
