Are there any good alternator pullies? What do you use?

[74 Thing]

The three I have are old German ones with the tangs, but when I put a dial indicator on them they do not run true-high to low is .020" or more. I haven't been able to straighten them out either.

Is there any good aftermarket ones since in the past everything I have tried were not good.

Thanks

[Glenn]

CB has a billet one that's good... if you like that look.

https://www.cbperformance.com/product-p/1931.htm
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009

#BlueSquare

עַם יִשְׂרָאֵל חַי

[ZEKE65]

I had an issue with an aftermarket pulley, so I went back to an old German one. It works well.
_________________
1965 VW Sedan, 1968 C10 Step BB, 99 C5

[richparker]

[txoval]

CB billet alum pulley is very nice

[Rob Combs]

The CB 2164 Rich linked is a good value.

I had a new “made in Germany” pulley from a supplier that specializes more in stock replacement/restoration parts and it would not align to the crank pulley without shimming the crank pulley out so far it probably wouldn’t hold oil back. And i had to hone the inside of it to get it to go on the alternator.

No such trouble with the CB pulley. Slid right on and aligned well.

[daveblank]

I use the CB 2163. I have the 90A alternator so I felt that the cooling fins wouldn't hurt.

https://www.cbperformance.com/product-p/2163.htm

[modok]

Yep, get it from cb

[Esky]

Yep the CB pulley is great. Have spun my motor over 7,500 many times and haven't flipped a belt.

[jim martin]

Here is something that is many times overlooked.

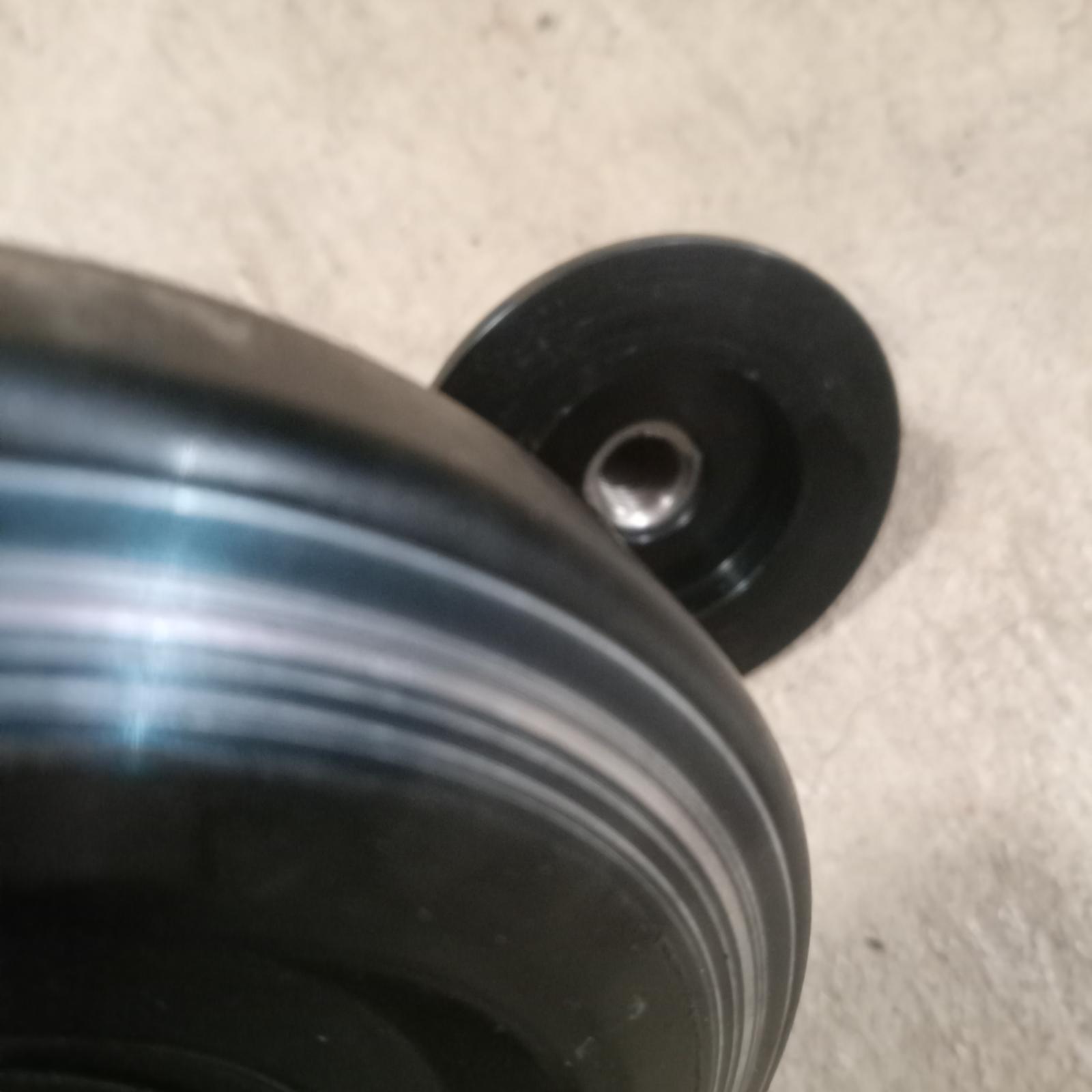

Crappy photos but you will get it . I use a spring clamp and clip a aluminum angle iron section and measure from belt to its edge at the crank pulley then up at the alternator, generator or in this case vacuum pump and shim from there . If you keep your belt square you will never have any issue
_________________
B.C's fastest street legal vw , June 2006 Hot VW's feature car 9.81 sec at 145.26mph.
Sponsored by :
LUCAS OIL PRODUCTS http://www.lucasoil.com
KROC head porting services
Dialedinperformance.com
Airspeedparts.com topic http://airspeedparts.com/forums/index.php?topic=914.0

[jpaull]

I run with belt on at the track. The cb pulley is nice but it is wearing and can feel belt grooves a little. Maybe its fine for street driving but steel will last longer if you can find a good one.

_________________
[email protected] MPH 1/4 Mile & 8.1 @ 83.7MPH in 1/8 Mile with Mild Type 1 VW Mag Case 2234cc commuter engine in stock weight bug w/only .491 total lift(CB2292 Cam), 42x37 heads, 48idf's, Street tires, Belt on, Mufflers, Pump gas, video of the run here: https://youtu.be/M3SPqMOKAOg

Transmission by MCMScott:
Rhino case, Klinkenberg 4.12, Superdiff, 002 mainshaft with 091 first idler. Weddle 1.48 Third & 1.14 Fourth.

[chrisflstf]

Ive used steel pulleys made by Flat Four of japan. A number of distributors sell them. I would buy again, no problemo

[jim martin]

I like the solid gates belts and always adjust so when I have a wrench
On the alt pulley I can break it free easily and spin . Will help with wear
_________________
B.C's fastest street legal vw , June 2006 Hot VW's feature car 9.81 sec at 145.26mph.
Sponsored by :
LUCAS OIL PRODUCTS http://www.lucasoil.com
KROC head porting services
Dialedinperformance.com
Airspeedparts.com topic http://airspeedparts.com/forums/index.php?topic=914.0

[Murt]

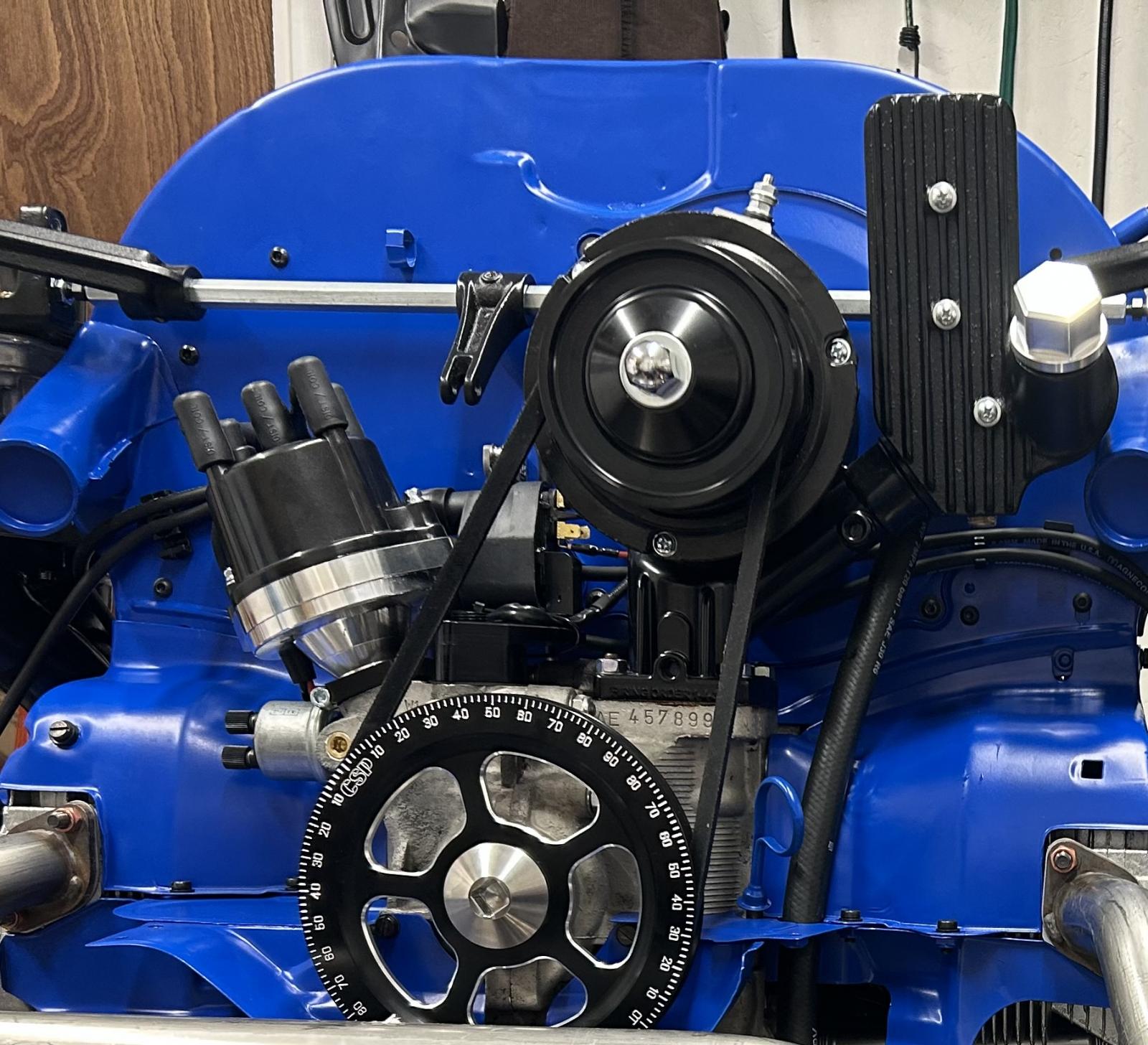

On my 1800cc build, I went with the CSP Pulley, very well made, and fitted perfectly

On my current 2007cc build, I have gone for the RossWulf kit, yet to open open it up, but looks nice as well

_________________
1966 VW Beetle ‘Jules’
1967 Kombi Splitscreen ‘Barney’
2018 VW Caddy Maxi R Line
2017 Golf GTD saloon
2008 VW EOS 2.0 TFSi

[mikedjames]

In the end, I found a new EMPI branded (Polycarter of Brazil made) fan coupled with a new EMPI branded Polycarter pulley ( with some paint overspray scraped out of the alternator spindle bore) was the answer to excessive belt wear

My old fan did not look bad but was causing vibration and off balance made it snatch at the belt at idle, leading to fretting the pulley so hard at 4000rpm + that the metal softened with the heat input, and cracked.
