 Posted: Mon Apr 07, 2008 5:45 pm Post subject: VW Bus air cleaners |
 |
|
I am starting this post as a reference for 50-67 air cleaners and associated parts. Feel free to add to it.
Other Forum threads of similar interest:
Beetle Air Cleaners
Karmann Ghia 40hp air cleaners
'50-'52 used the "T" air cleaner

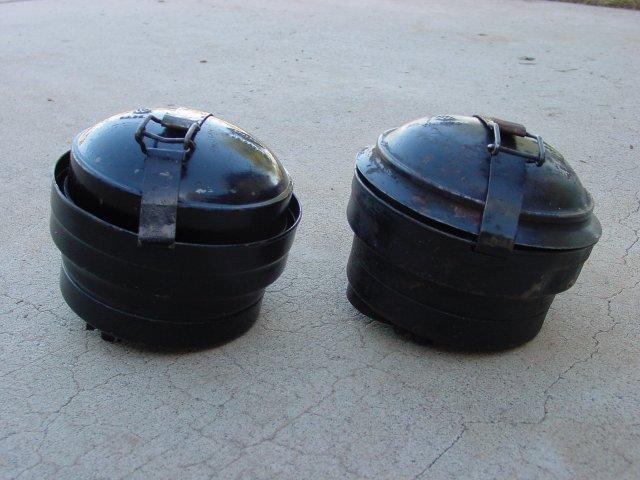

'53 used the "strap" air cleaner. The 1953 air cleaner is open at the top:
http://www.thesamba.com/vw/forum/album_page.php?pic_id=64146
(seen on left)
There is also another air cleaner, exact usage unknown, that is similar in design but has a wing-nut on top of the air cleaner instead of a strap.
<picture needed>
The open top design was corrected for 54-55 Barndoors by extending the lip outward:
http://www.thesamba.com/vw/forum/album_page.php?pic_id=64146
(Seen on right)

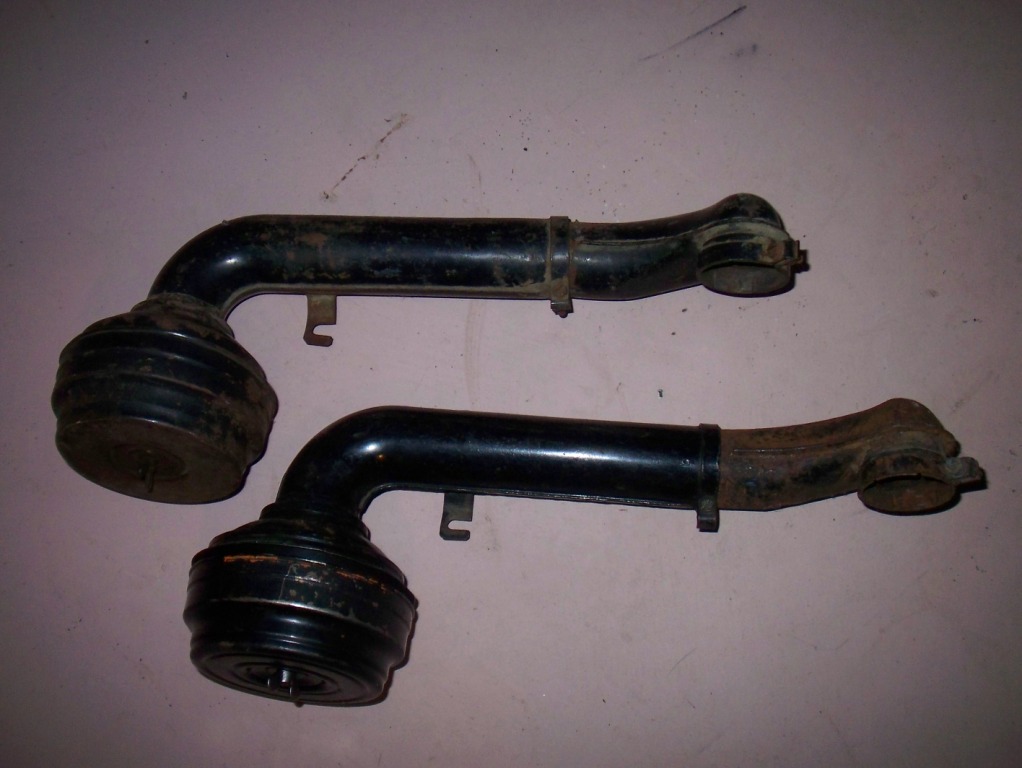

52-54 Barndoor trucks used the following 2-piece air cleaner:
http://www.thesamba.com/vw/forum/album_page.php?pic_id=632950

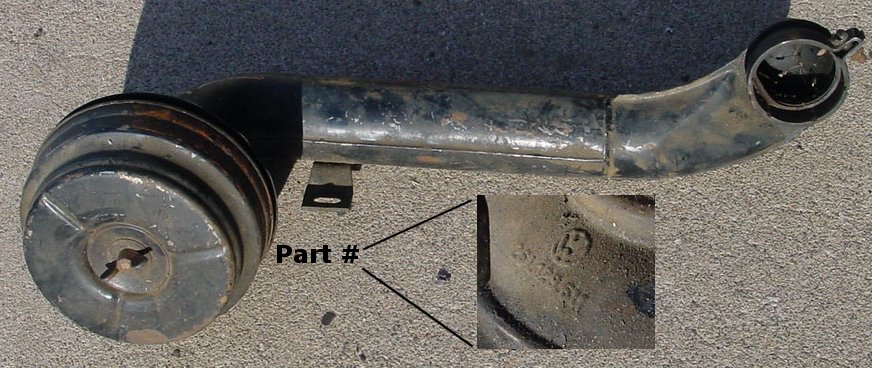

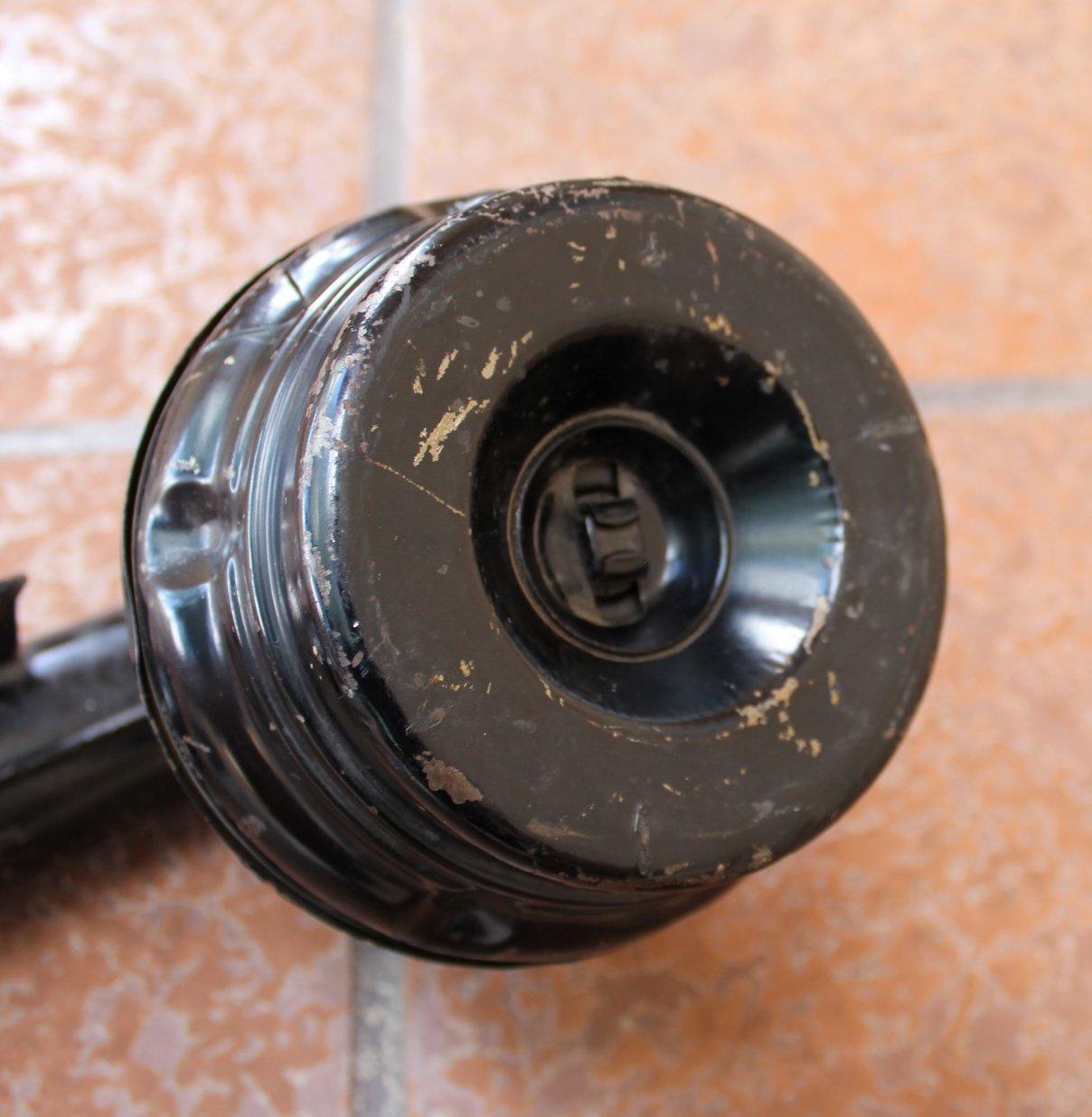

55-56 36hp Buses had a wing nut on the bottom of the air cleaner. This was used until Chassis # 203163 in Sept. 1956.
http://www.thesamba.com/vw/forum/album_page.php?pic_id=215194
http://www.thesamba.com/vw/forum/album_page.php?pic_id=12468

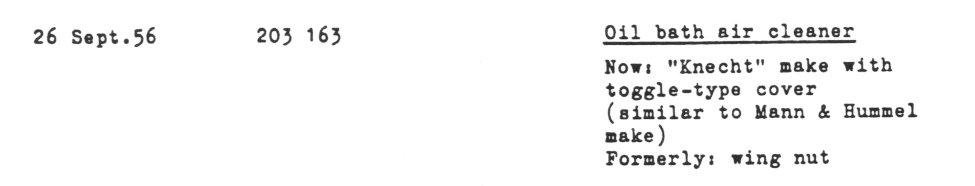

Wing-nut to spin-on design change date from Progressive Refinements:
57-59 Buses use the following air cleaner:
Bottom change:
'60 Bastard engine air cleaner:
Part # 261 129 611B
http://www.thesamba.com/vw/forum/album_page.php?pic_id=909887
http://www.thesamba.com/vw/forum/album_page.php?pic_id=909886
More
http://www.thesamba.com/vw/forum/album_page.php?pic_id=909889
http://www.thesamba.com/vw/forum/album_page.php?pic_id=909888
http://www.thesamba.com/vw/forum/album_page.php?pic_id=909893
Beginning in June, 1960, chassis # 614456:
Part # 261 129 611C

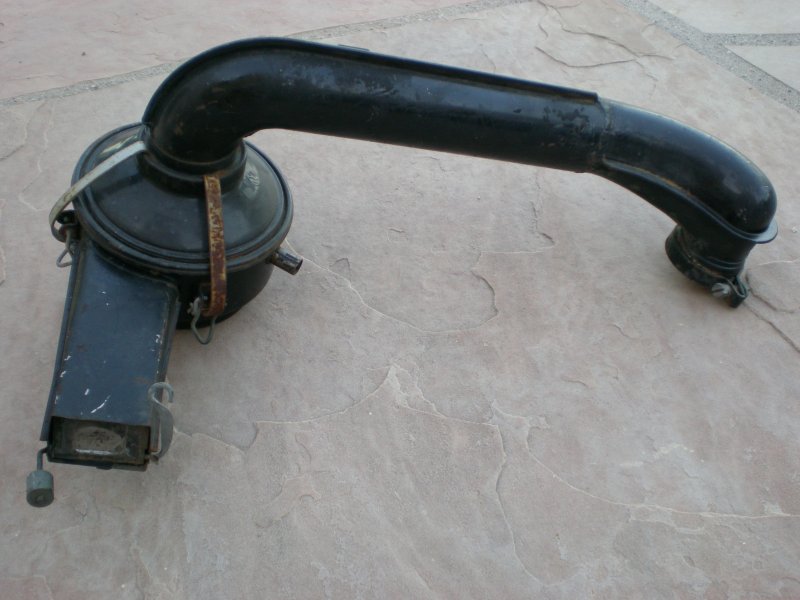

'60-'63 40hp air cleaners used the air cleaners seen on the right in this photo:
http://www.thesamba.com/vw/forum/album_page.php?pic_id=265740
and
http://www.thesamba.com/vw/forum/album_page.php?pic_id=430086
Part # 211 129 611A
and
http://www.thesamba.com/vw/forum/album_page.php?pic_id=430088
http://www.thesamba.com/vw/forum/album_page.php?pic_id=430087

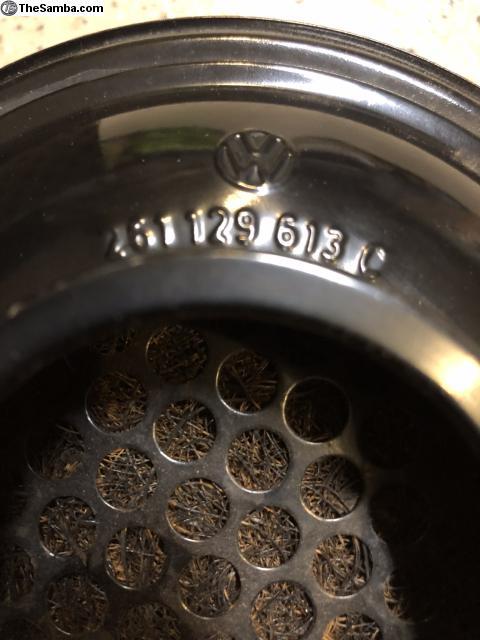

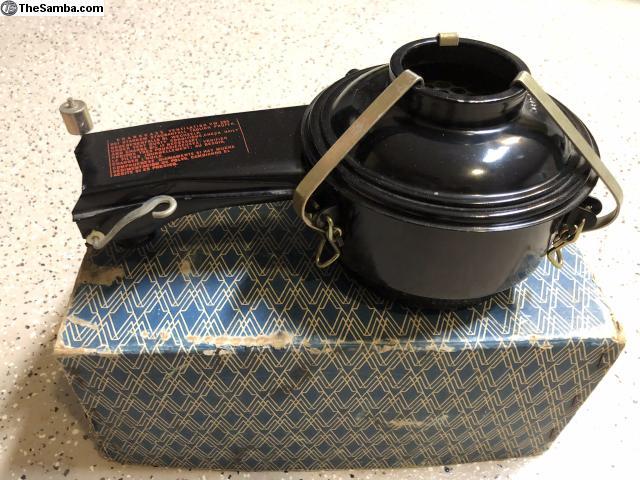

NOS air cleaner with decal, part # 261 129 613C:
There were several minor design changes that included the addition of a vent hose connection as well as a pre-heat connection.
The style above with a pre-heat connection but no breather has part # 211 129 611D

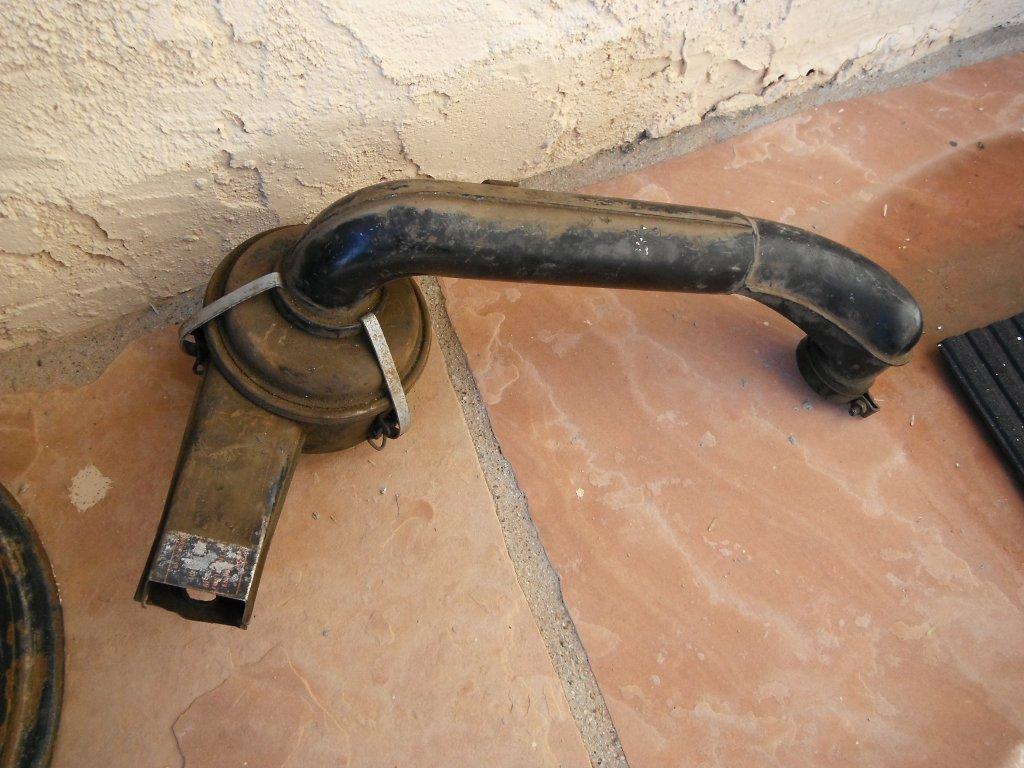

Example:
http://www.thesamba.com/vw/forum/album_page.php?pic_id=1023262
http://www.thesamba.com/vw/forum/album_page.php?pic_id=1023261
http://www.thesamba.com/vw/forum/album_page.php?pic_id=1023260
http://www.thesamba.com/vw/forum/album_page.php?pic_id=1023259

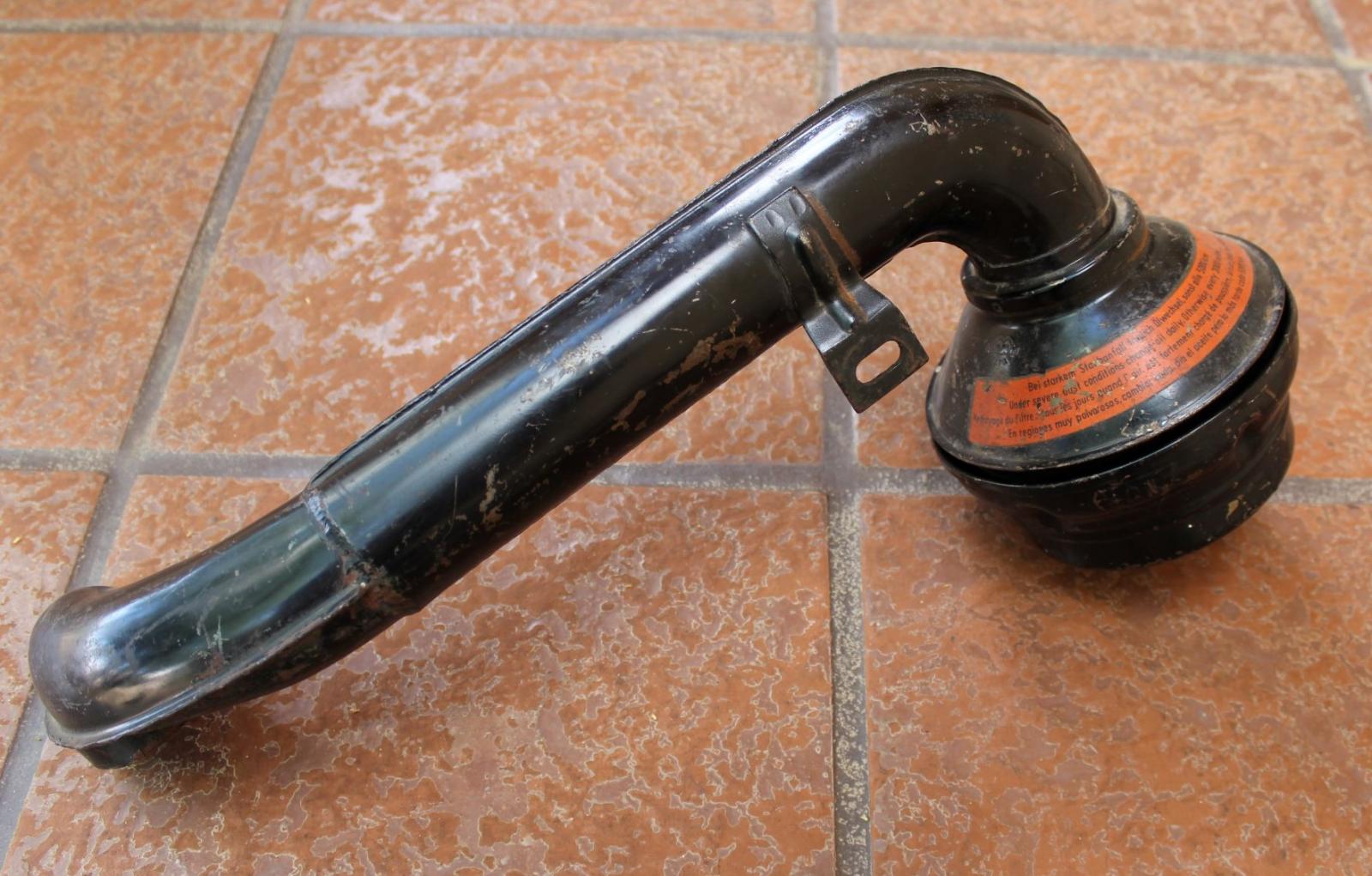

'63/Early '64 1500cc engines used a left-mounted air cleaner with a unique left-side carburetor elbow as well as an oil bath section with the breather hose on the right side instead of the left (as seen below in the 64-67 section)
Part # 211 129 613
Left-side elbow:
http://www.thesamba.com/vw/forum/album_page.php?pic_id=420317
http://www.thesamba.com/vw/forum/album_page.php?pic_id=420318
Right-side breather connection:
http://www.thesamba.com/vw/forum/album_page.php?pic_id=430089

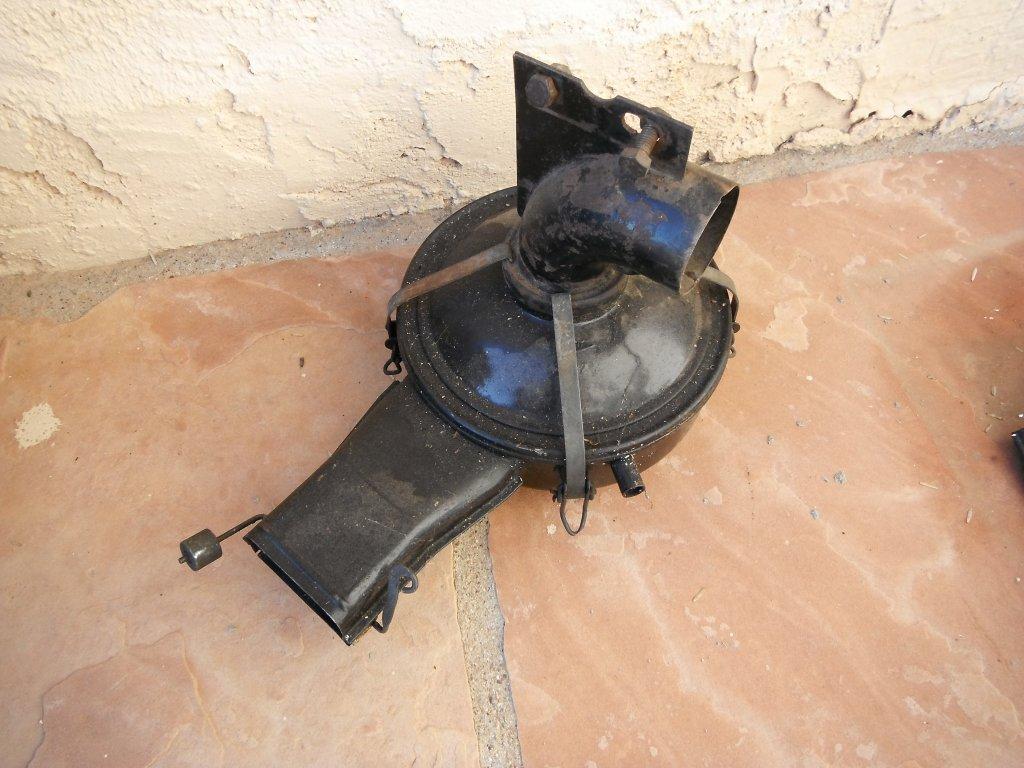

Left-side mount:
http://www.thesamba.com/vw/forum/album_page.php?pic_id=430090
http://www.thesamba.com/vw/forum/album_page.php?pic_id=1023258

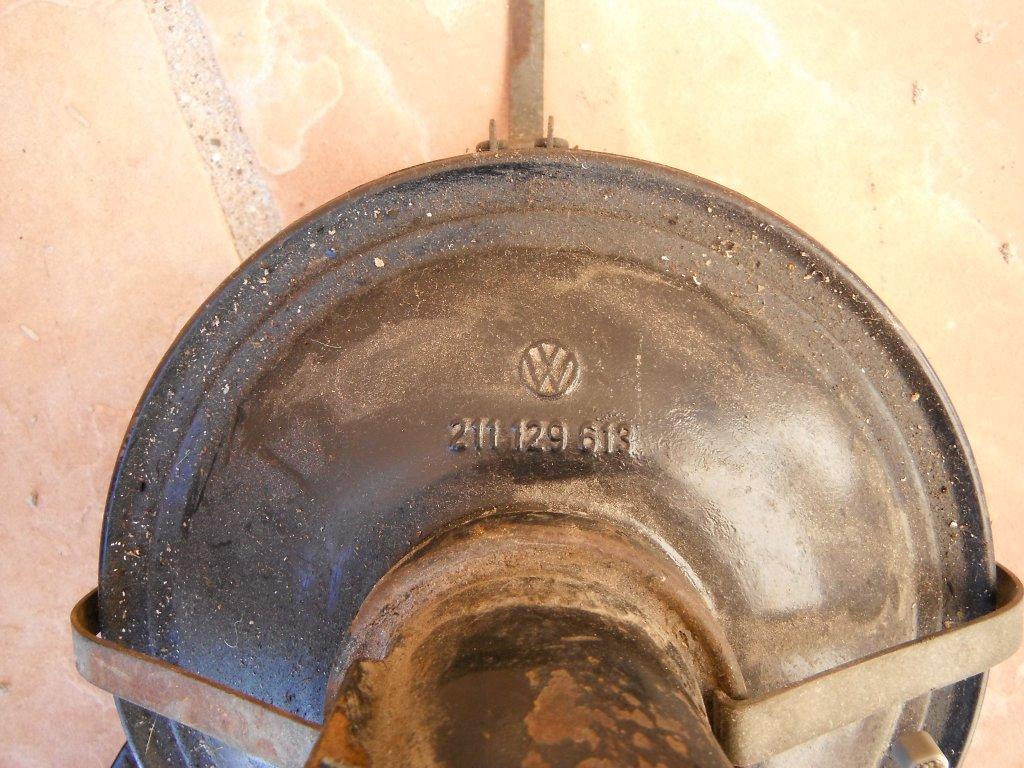

Oil bowl photos:
http://www.thesamba.com/vw/forum/album_page.php?pic_id=1023257
'64-'67 1500cc engines used this air cleaner, mounted on the right side of the engine compartment
Part # 211 129 613B
http://www.thesamba.com/vw/forum/album_page.php?pic_id=232555
http://www.thesamba.com/vw/forum/album_page.php?pic_id=252171
Other parts and points of interest

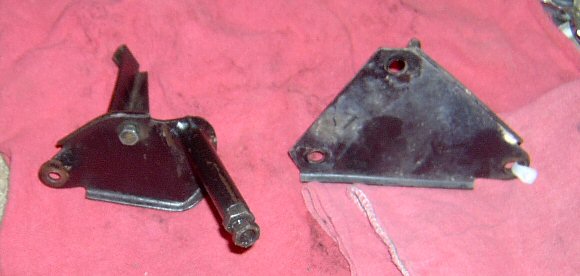

Eberspacher mount for mounting an Eberspacher gas heater on the left side of the engine compartment and moving the air cleaner to the right side:
http://www.thesamba.com/vw/forum/album_page.php?pic_id=238273
http://www.thesamba.com/vw/forum/album_page.php?pic_id=235451
http://www.thesamba.com/vw/forum/album_page.php?pic_id=235449
40hp Fresh-air air cleaner mounting triangles
http://www.thesamba.com/vw/forum/album_page.php?pic_id=400776
36hp engines used similar triangles but without the cut-out seen for the fresh-air heater tubes.
(seen on right side)

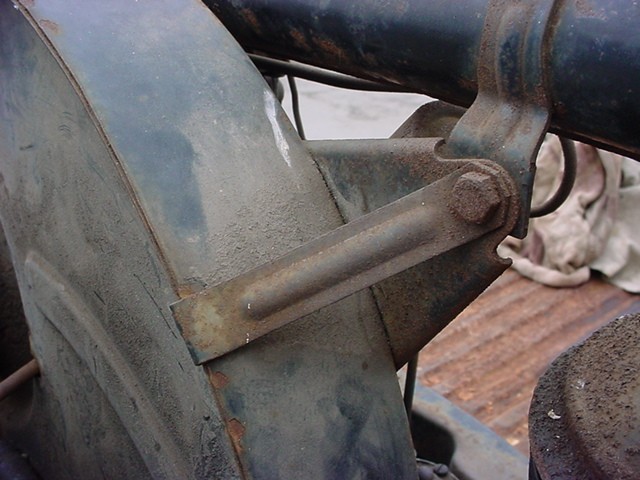

All 36hp and 40hp engines used the above triangle in conjunction with this mounting bracket that mounted to the rear of the fan shroud
http://www.thesamba.com/vw/forum/album_page.php?pic_id=215192

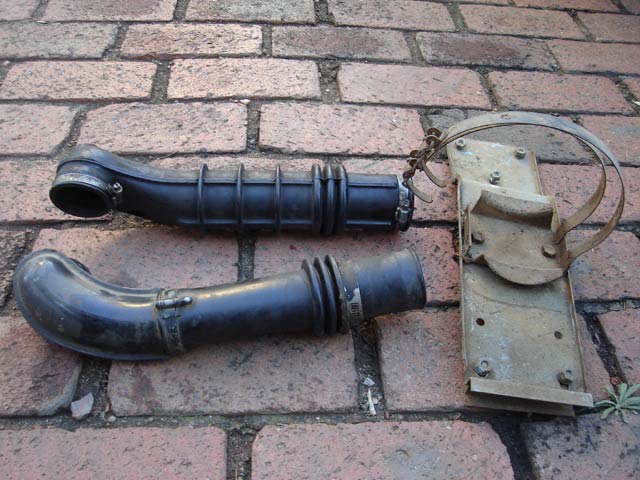

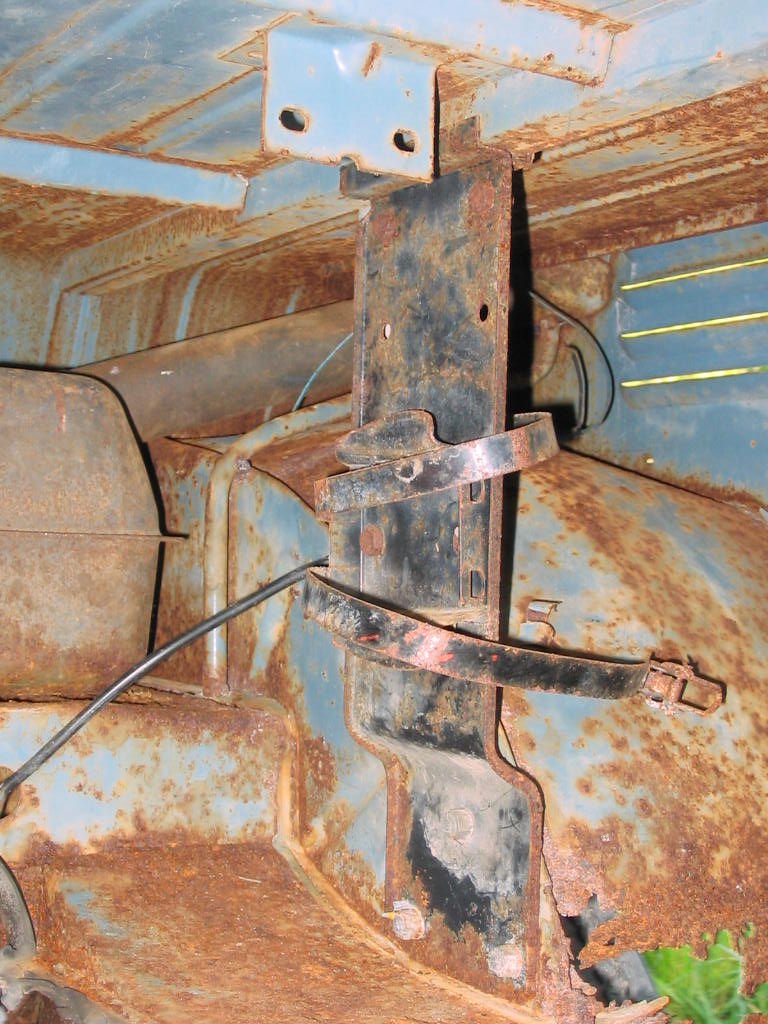

Heavy duty oil bath air cleaner and mount
http://www.thesamba.com/vw/forum/album_page.php?pic_id=293883
http://www.thesamba.com/vw/forum/album_page.php?pic_id=354120
Dual air cleaner for dusty regions - 113 129 612 and 113 129 611D
http://www.thesamba.com/vw/forum/album_page.php?pic_id=1163294

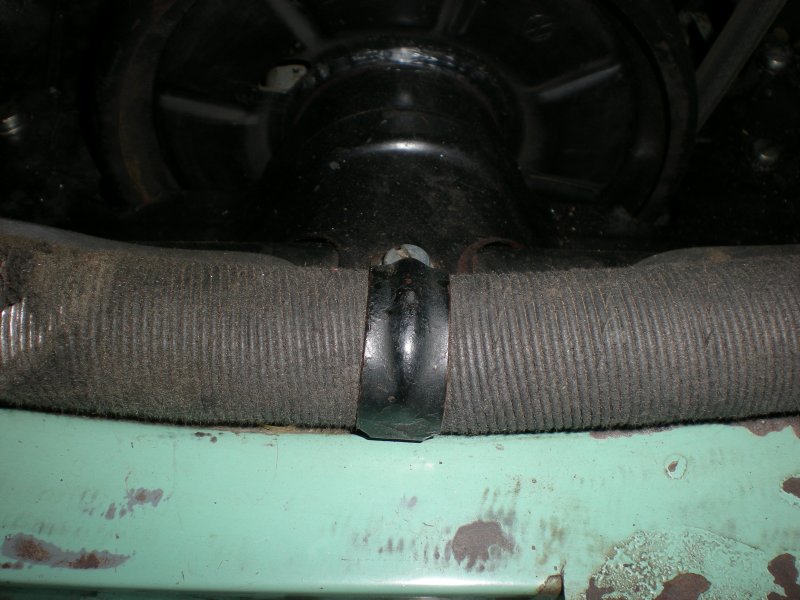

'64-'65 Buses where the air cleaner was on the right but the pre-heat connection was on the left use a special clamp to hold the pre-heat hose in place
http://www.thesamba.com/vw/forum/album_page.php?pic_id=430091
Date stamps:
Air cleaners are often date-stamped. Sometimes in the underside of the bowl, sometimes near the air intake.

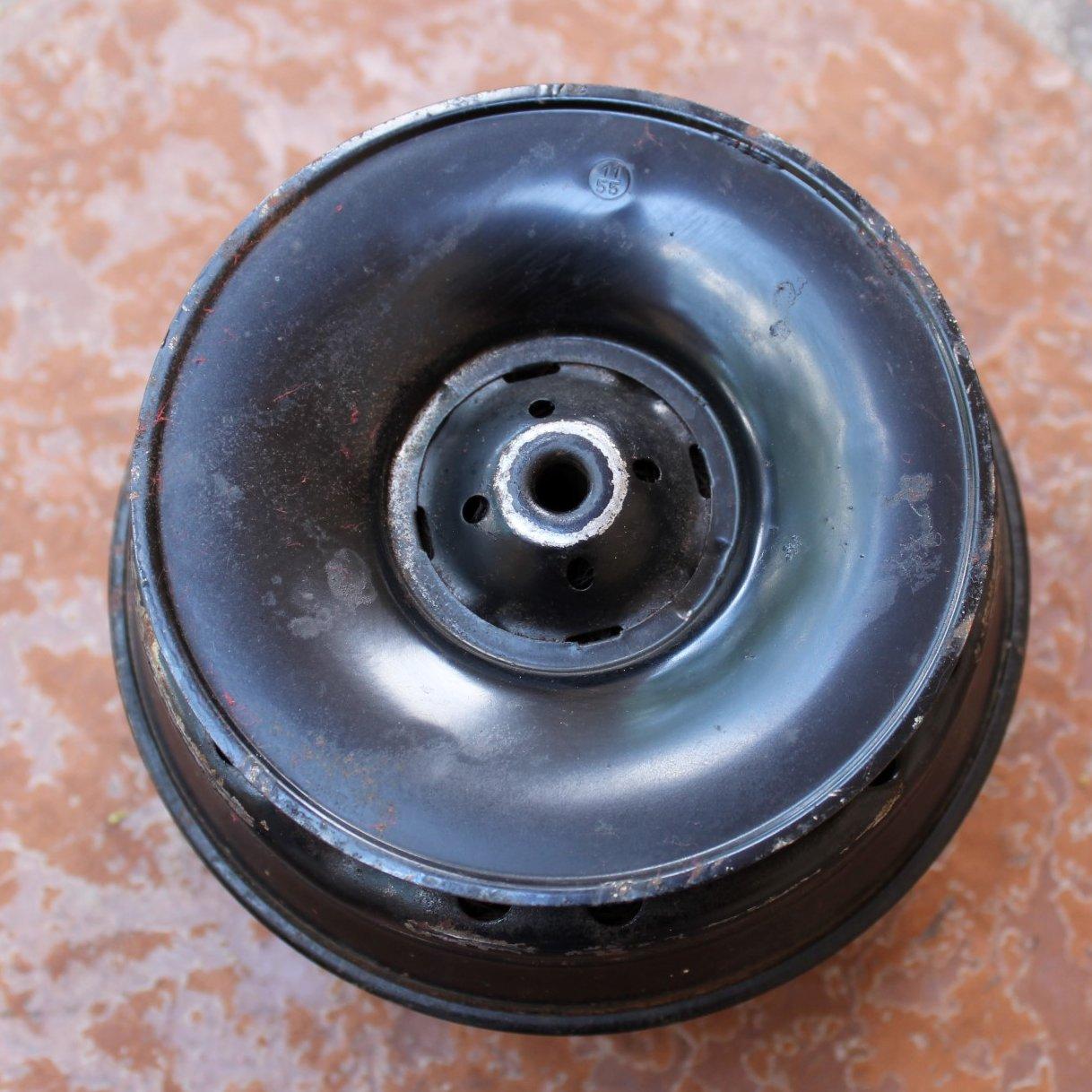

One example from an 11/55 36hp air cleaner is below.
Location: Underside of air cleaner top, seen by removing the bowl as if changing the oil
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!
Last edited by EverettB on Mon Jan 11, 2021 6:05 pm; edited 18 times in total |
|
| Back to top |
|
 |
vwrus66
Samba Member
Joined: February 08, 2006
Posts: 141
Location: Spokane Washington
|
| Posted: Mon Apr 07, 2008 5:56 pm Post subject: |
|
|
Nice now I can tell which ones I have.
_________________
60 Mango
64 13 Window
66 Beetle |
|
| Back to top |
|
|
hazetguy
Samba Member
Joined: April 06, 2001
Posts: 10756
Location: iT StiNgeD iTseLf tO dEAd
|
| Posted: Mon Apr 07, 2008 6:02 pm Post subject: Re: VW Bus air cleaners |
|
|
i have owned a couple wing nut air cleaners that have concentric circles on the bottom, as opposed to radial lines. i do not have any pics, i am sure someone does.
anyone know the reason or date that would explain the difference? |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 69084
Location: Phoenix, AZ
|
| Posted: Mon Apr 07, 2008 6:10 pm Post subject: Re: VW Bus air cleaners |
|
|
| hazetguy wrote: |
i have owned a couple wing nut air cleaners that have concentric circles on the bottom, as opposed to radial lines. i do not have any pics, i am sure someone does.
anyone know the reason or date that would explain the difference? |
I've seen those as well and I think they are Barndoor, maybe 1953?
I have both a 29A and a 261 air cleaner and they appear identical to the above except for the part #.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
obus
Samba Member
Joined: March 08, 2001
Posts: 10801
Location: just off Garden State Parkway Exit 81
|
|
| Back to top |
|
|
miscreantgnomie
Samba Member
Joined: October 15, 2005
Posts: 637
Location: Near lackland AFB come and visit
|
| Posted: Mon Apr 07, 2008 7:50 pm Post subject: |
|
|
This should be sticked !
very good information that heavy duty looks like a thing oil bath mount holder
_________________
62 sc, 62 SO 34, 61 mango, (2) 67 deluxe in crappy shape, 73 thing, 64 ghia,
and some embarassing bays. shhh, I just use them for storage. (hides)
San Antonio (SAAC/VOSA) |
|
| Back to top |
|
|
hazetguy
Samba Member
Joined: April 06, 2001
Posts: 10756
Location: iT StiNgeD iTseLf tO dEAd
|
| Posted: Mon Apr 07, 2008 7:54 pm Post subject: |
|
|
dusty conditions/cyclone filter
i'm sure RickC has more pics/info of this set up. |
|
| Back to top |
|
|
campingbox
Samba Member
Joined: November 14, 2000
Posts: 10180
Location: Petaluma, CA
|
| Posted: Mon Apr 07, 2008 8:08 pm Post subject: |
|
|
| hazetguy wrote: |
dusty conditions/cyclone filter
i'm sure RickC has more pics/info of this set up. |
Whats with the 1500 sp and the 36hp fan shroud? |
|
| Back to top |
|
|
j.pickens
Samba Member
Joined: December 03, 2002
Posts: 9745
Location: Exit 7, New Jersey
|
| Posted: Mon Apr 07, 2008 8:09 pm Post subject: Re: VW Bus air cleaners |
|
|
| hazetguy wrote: |
i have owned a couple wing nut air cleaners that have concentric circles on the bottom, as opposed to radial lines. i do not have any pics, i am sure someone does.
anyone know the reason or date that would explain the difference? |
I have one very similar to the wingnut style, but without the wingnut. The base screws into the top, and has bumps on the interiror which lock onto matching grooves on the top. As you tighten it up, the bump to groove matching gets tighter and tighter until it is secure. I assume it is a late '50's item, and I show it here mounted on my '59 swivelseat engine. Very convenient, but it has no breather intake, which would be nice.
_________________
Founder and Chairman Emeritus, ECMSAS
BBX BBXII and BBXXI Long Distance Award Winner
| BeaterBarndoor wrote: |
i wish more people would actually drive their vws rather than just talking about what they have in the garage. |
| Red Fau Veh wrote: |
If you've seen one sunroof swivel seat kombi, you've seen them all!  |
|
|
| Back to top |
|
|
campingbox
Samba Member
Joined: November 14, 2000
Posts: 10180
Location: Petaluma, CA
|
| Posted: Mon Apr 07, 2008 8:12 pm Post subject: Re: VW Bus air cleaners |
|
|
| j.pickens wrote: |
| hazetguy wrote: |
i have owned a couple wing nut air cleaners that have concentric circles on the bottom, as opposed to radial lines. i do not have any pics, i am sure someone does.
anyone know the reason or date that would explain the difference? |
I have one very similar to the wingnut style, but without the wingnut. The base screws into the top, and has bumps on the interiror which lock onto matching grooves on the top. As you tighten it up, the bump to groove matching gets tighter and tighter until it is secure. I assume it is a late '50's item, and I show it here mounted on my '59 swivelseat engine. Very convenient, but it has no breather intake, which would be nice.
|
That looks like a normal 36hp air cleaner. I wonder if the engine breaths enough through it? |
|
| Back to top |
|
|
hazetguy
Samba Member
Joined: April 06, 2001
Posts: 10756
Location: iT StiNgeD iTseLf tO dEAd
|
| Posted: Mon Apr 07, 2008 8:28 pm Post subject: |
|
|
| campingbox wrote: |
| hazetguy wrote: |
dusty conditions/cyclone filter
i'm sure RickC has more pics/info of this set up. |
Whats with the 1500 sp and the 36hp fan shroud? |
it's a stale air 40hp shroud. the engine is a later engine, tinned up to look like a '61 stale 40. surely you have seen this bus in person by now and have talked to rick about it, no?
Last edited by hazetguy on Mon Apr 07, 2008 8:30 pm; edited 2 times in total |
|
| Back to top |
|
|
j.pickens
Samba Member
Joined: December 03, 2002
Posts: 9745
Location: Exit 7, New Jersey
|
| Posted: Mon Apr 07, 2008 8:29 pm Post subject: Re: VW Bus air cleaners |
|
|
| campingbox wrote: |
That looks like a normal 36hp air cleaner. I wonder if the engine breaths enough through it? |
I know it looks restrictive, but it is open around the circmference, and I calculated the open area. Turns out to be bigger than the nozzle opening on the '64-'67 style. Seems to work just fine with my single port 1600. I have the small exhaust exit as well. I guess it could be constipated, but it runs great. Drove it with this setup to Bullibrigade and back in record time this year.
_________________
Founder and Chairman Emeritus, ECMSAS
BBX BBXII and BBXXI Long Distance Award Winner
| BeaterBarndoor wrote: |
i wish more people would actually drive their vws rather than just talking about what they have in the garage. |
| Red Fau Veh wrote: |
| If you've seen one sunroof swivel seat kombi, you've seen them all! |
|
|
| Back to top |
|
|
j.pickens
Samba Member
Joined: December 03, 2002
Posts: 9745
Location: Exit 7, New Jersey
|
| Posted: Mon Apr 07, 2008 8:33 pm Post subject: |
|
|
| hazetguy wrote: |
| campingbox wrote: |
| hazetguy wrote: |
dusty conditions/cyclone filter
i'm sure RickC has more pics/info of this set up. |
Whats with the 1500 sp and the 36hp fan shroud? |
it's a stale air 40hp shroud. the engine is a later engine, tinned up to look like a '61 stale 40. surely you have seen this bus in person by now and have talked to rick about it, no? |
Me thinks Greggy be yanking your chain...
_________________
Founder and Chairman Emeritus, ECMSAS
BBX BBXII and BBXXI Long Distance Award Winner
| BeaterBarndoor wrote: |
i wish more people would actually drive their vws rather than just talking about what they have in the garage. |
| Red Fau Veh wrote: |
| If you've seen one sunroof swivel seat kombi, you've seen them all! |
|
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 69084
Location: Phoenix, AZ
|
|
| Back to top |
|
|
BDWannaB
Samba Member
Joined: February 07, 2008
Posts: 423
Location: California
|
| Posted: Mon Apr 28, 2008 6:59 am Post subject: |
|
|
I've got a '56 Kombi Wolfsburg (Feb. '56). Should I be looking for a wingnut air cleaner?
_________________
'56 Sunroof Kombi
'67 Deluxe |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 69084
Location: Phoenix, AZ
|
|
| Back to top |
|
|
gatorwyatt
Samba Member
Joined: April 24, 2002
Posts: 1865
Location: Clearwater Fl.
|
| Posted: Mon Apr 28, 2008 8:40 am Post subject: |
|
|
i think there is also a wing nut air cleaner that seperates the tube from the elbow and is the same in all other aspects.dropgates has a good picture of it.
i need a complete wing nut that seperates for my truck if anyone has one...
_________________
www.blastserv.com
wanted:
RHD Barndoor floor mat..reproduction is fine |
|
| Back to top |
|
|
Rick
Samba Member
Joined: December 17, 2003
Posts: 1539
Location: Soquel, California
|
| Posted: Mon Apr 28, 2008 9:00 am Post subject: |
|
|
| hazetguy wrote: |
dusty conditions/cyclone filter
i'm sure RickC has more pics/info of this set up. |
That one is sweet. The whole setup is just impressive. I like the cutout under the filter section that lets the dust collected fall out of the engine compartment and onto the road. I'd like to put something under there so I can see how much dust it really collects. It's just like the cyclone dust collector in my cabinet shop, only about 40 times smaller  |
|
| Back to top |
|
|
Anniehum
Samba Member
Joined: November 23, 2003
Posts: 1197
Location: Kingston, Washington
|
| Posted: Mon Apr 28, 2008 9:44 am Post subject: |
|
|

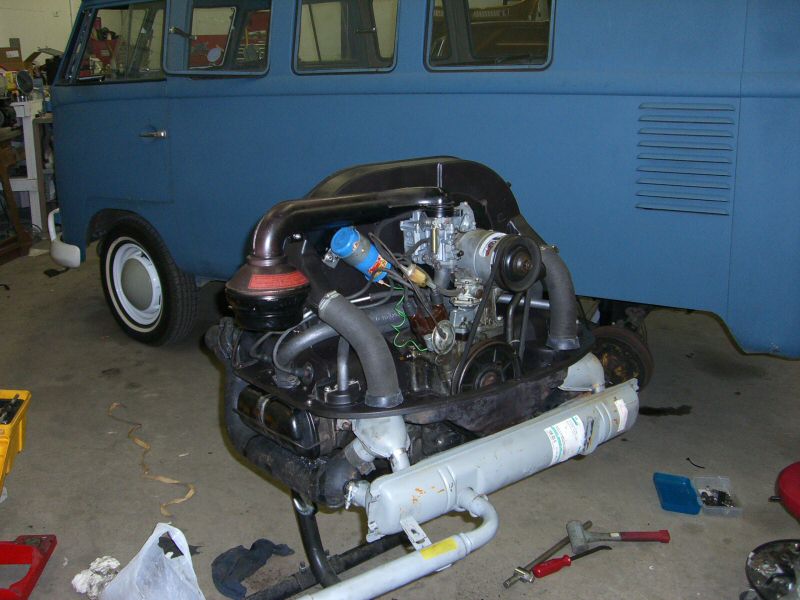

This came with my bus and is original. It isn't a cyclone but it is for dusty areas. I am keeping it for the 1600 dp.
Cheers
_________________
Ho'oponopono |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 69084
Location: Phoenix, AZ
|
| Posted: Mon Apr 28, 2008 4:54 pm Post subject: |
|
|
| gatorwyatt wrote: |
i think there is also a wing nut air cleaner that seperates the tube from the elbow and is the same in all other aspects.dropgates has a good picture of it.
i need a complete wing nut that seperates for my truck if anyone has one... |
I believe that is for the super early trucks, like 1952 only.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
|
