PostPosted: Fri Jan 27, 2012 4:08 pm    Post subject: Beetle Air Cleaners - picture reference thread Reply with quote

If you have an updates or photos to add here, please PM EverettB with the information

----------------------

I've scoured the forums and can't find a thread that breaks down the aircleaners for aircooled upright motor vw's by model and year.

it would be nice to have a picture of each air cleaner type and what years it was used. I know in 36hp era, there was some overlap with manufacturers like knecht and mann both supplying 2 different air cleaners to the factory at the same time.uio9
so lets post up some pictures under each section in order by year with a picture and part number

Ghia air cleaner picture reference thread:
http://www.thesamba.com/vw/forum/viewtopic.php?t=497253

Discussion of 40hp-era air cleaners:
http://www.thesamba.com/vw/forum/viewtopic.php?t=389108

I'll get it started with some known years, please feel free to edit and add what you know for Beetles:

BEETLE AIR CLEANERS BY YEAR:

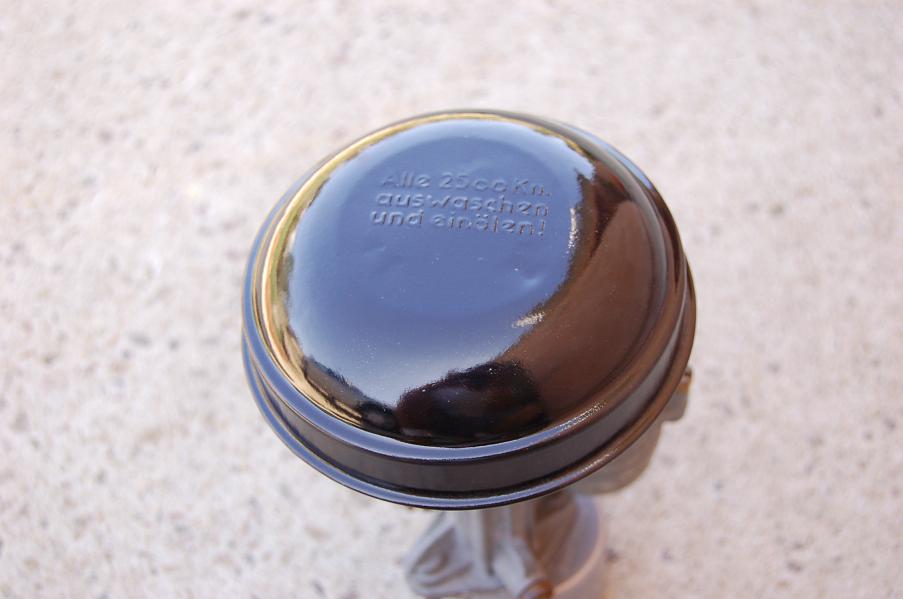

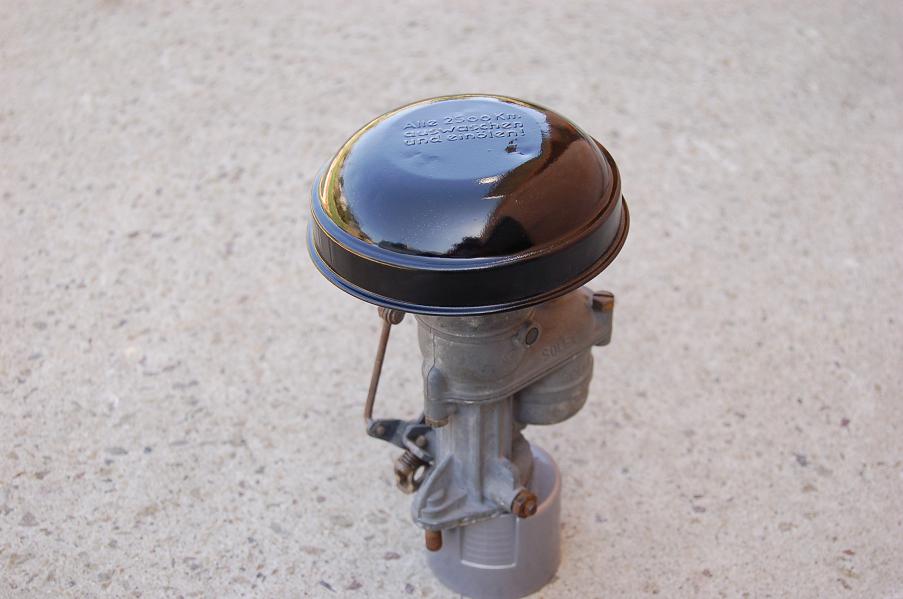

1949 and possibly earlier air cleaner:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

1950 ? PART #?
1951-1952 "T - Coffee Can" dual drilled end pieces, non serviceable gauze element . no oil bath PART #?
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

late 52-early 53 with wingnut

Image may have been reduced in size. Click image to view fullscreen.

1953 Lipless dome top with split strap , start of oil bath base PART # 08.25.5
Image may have been reduced in size. Click image to view fullscreen.


1954 -1955 round tall mushroom top with split strap - PRE preheater tube & rebreathing tube PART # 111 129 611
Image may have been reduced in size. Click image to view fullscreen.

Or
54-58 Mann 2-clip air cleaner, 111 129 611A
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

1956-58 Knecht 2-clip air cleaner
Image may have been reduced in size. Click image to view fullscreen.

1958-1960 KNECHT dual clip Round, Pointy top "Witch hat" -PRE preheater tube & rebreathing tube OLSTAND oil line stamping(with sticker shown is 59-60) PART #LB 609/2 # 113 129 611
Image may have been reduced in size. Click image to view fullscreen.

MANN round 2 strap Mushroom top with and water slide decal PART #113 129 611A
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

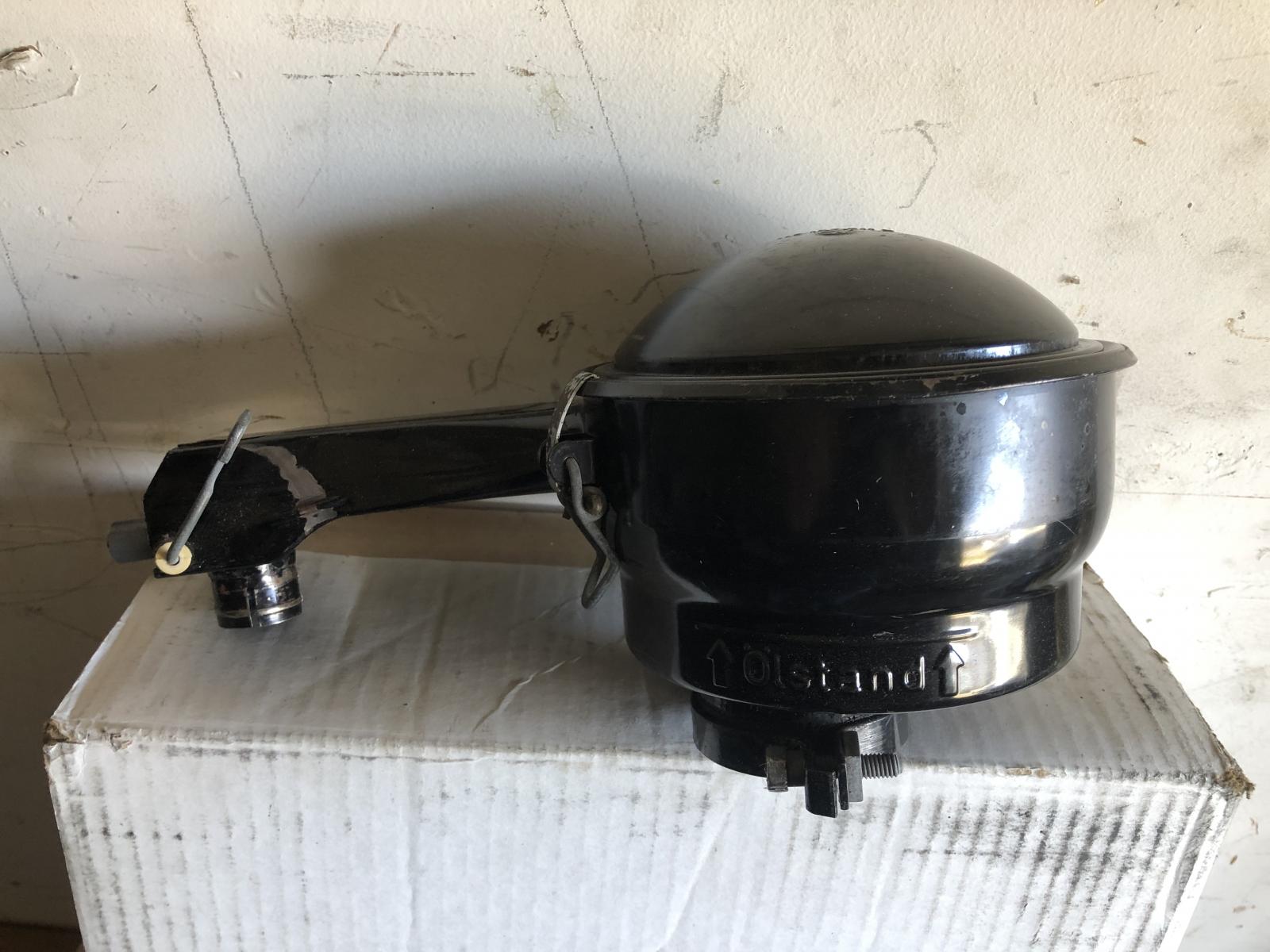

MANN round 2 strap Mushroom top with OLSTAND oil line stamping PART # 111-129-611E
Image may have been reduced in size. Click image to view fullscreen.


1961 - There is an early and late filter.
Details:
Image may have been reduced in size. Click image to view fullscreen.

(Early on top)
Late '61 details:

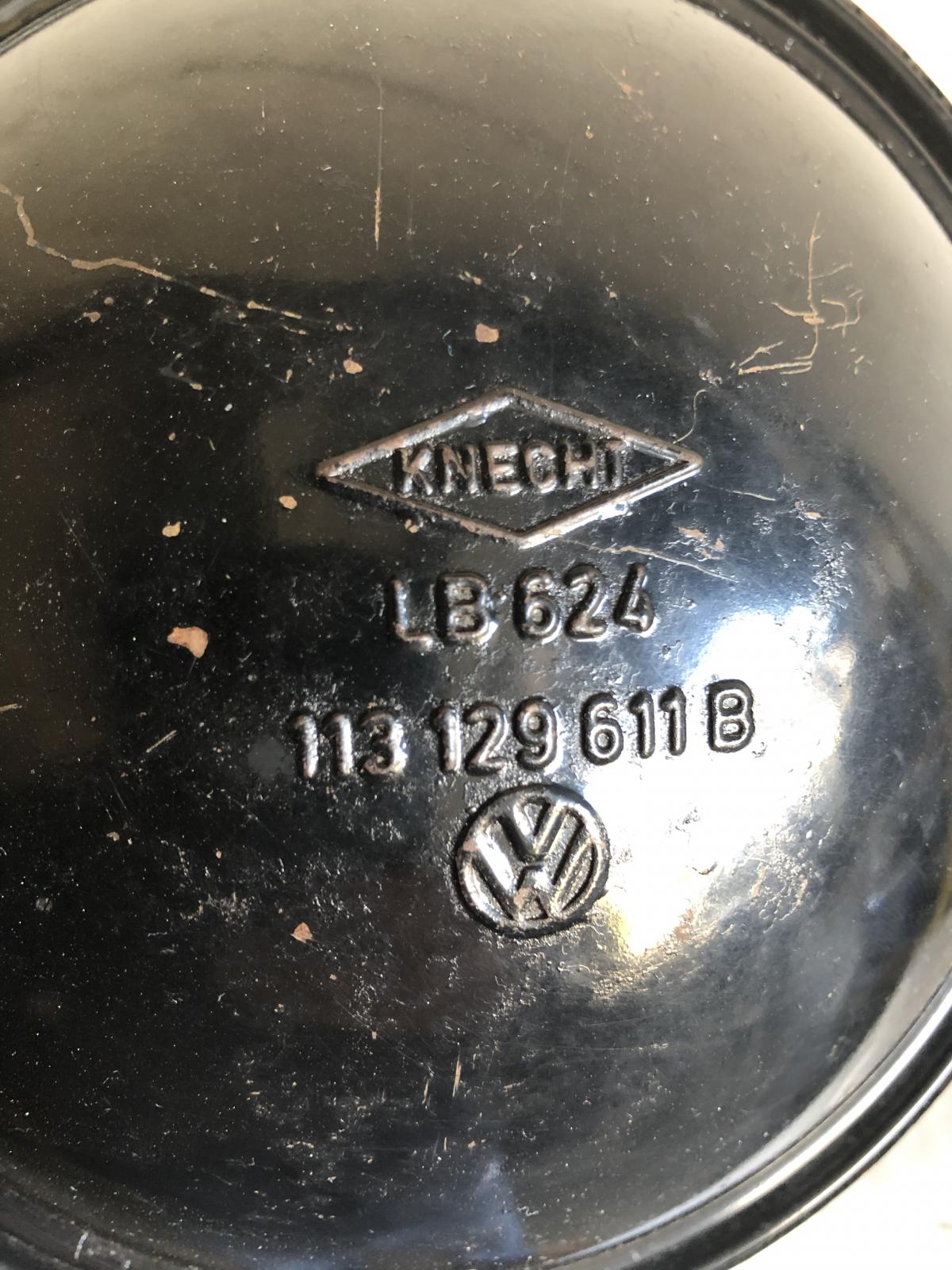

KNECHT
LB 624/1
113 129 613 B
(VW)
Image may have been reduced in size. Click image to view fullscreen.

1962 round base and 2 clip domed top, left side snout with preheat flap, small preheat tube fedding from apron tin, rebreathing tube on snout not cleaner base PART #?
Image may have been reduced in size. Click image to view fullscreen.

1963 ? PART #?
1964 ? PART #?
http://www.thesamba.com/vw/forum/album_page.php?pic_id=1067716
Image may have been reduced in size. Click image to view fullscreen.

More:
http://www.thesamba.com/vw/forum/album_page.php?pic_id=1067713
http://www.thesamba.com/vw/forum/album_page.php?pic_id=1067714
http://www.thesamba.com/vw/forum/album_page.php?pic_id=1067715

1965 Left snout offset round top, single preheat hose, with rebreather hose PART #?
Image may have been reduced in size. Click image to view fullscreen.

1966 round base, flattened dome top with oval end snout , pre heat flap, single pre heat hose and rebreathing hose
The 1966 1300 Air Cleaner is part number 113-129-613F
113 129 613 E is the correct air cleaner for 1300cc engines up to F 1 790 008.
It was only used in 1966 for the US market, but in Europe a '67 1300 Deluxe was still available, and it continued to use the same 1300 Air Cleaner for one more year.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

1967 Dual snout oval top, dual preheat hose, with rebreather hose
Image may have been reduced in size. Click image to view fullscreen.

1968 Left snout oval top, single preheat hose, with rebreather hose PART #?
Image may have been reduced in size. Click image to view fullscreen.

1969 4 clip oval base and top, oil bath, right side snout with preheat flap, large preheat tube and rebreathing tube PART #113 129 613R
Image may have been reduced in size. Click image to view fullscreen.

1970 ? PART #?
1971 ? PART #?
1972 ? PART #?
1973 ? PART #?
1974 ? PART #?
1975 ? PART #?
1976 ? PART #?
1977 ? PART #?
1978 ? PART #?
1979 ? PART #?

Parts book images
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Air cleaner insides:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Official 58-60 "Early Big Window" Convertible Thread & Registry
http://www.thesamba.com/vw/forum/viewtopic.php?t=426481
F&S Saxomat Automatic Clutch System Thread
http://www.thesamba.com/vw/forum/viewtopic.php?t=462533
61-67 Delanair Air conditioning Thread
http://www.thesamba.com/vw/forum/viewtopic.php?t=457944&highlight=air+conditioning

PUNCTUATION CHANGES THE WORLD: "I need to help my uncle, Jack, off a horse" is way better than, "I need to help my uncle jack off a horse"


Last edited by GüteAndTite on Sat Jan 28, 2012 6:11 pm; edited 20 times in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Alexey
Samba Member


Joined: September 07, 2009
Posts: 98
Location: San José, Costa Rica
Alexey is offline

PostPosted: Fri Jan 27, 2012 4:13 pm    Post subject: Reply with quote

Hey cool!!! A topic like this is what a needed a couple of days ago Wink You read my mind
_________________
Alexey Sanchez
Back to top
View user's profile Send private message Classifieds Feedback
58Dub
Samba Member


Joined: June 02, 2004
Posts: 1713
Location: Davison, MI
58Dub is offline

PostPosted: Fri Jan 27, 2012 4:40 pm    Post subject: Reply with quote

Here is the original on my '60
Knecht LB 609/2 # 113 129 611
Image may have been reduced in size. Click image to view fullscreen.

_________________
58 Beetle (now just a pile of parts in the corner)
60 Beetle (2221 turbo under construction)
70 Beetle Baja project


Last edited by 58Dub on Fri Jan 27, 2012 5:03 pm; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Facebook Gallery Classifieds Feedback
Miklo
¡Chale!


Joined: August 27, 2008
Posts: 1997
Location: Southern California
Miklo is offline

PostPosted: Fri Jan 27, 2012 5:00 pm    Post subject: Reply with quote

Here's the OG one I took off my 1966 Type 1.

It's a Knecht
Part# 113 129 613B

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Antelope Valley Air-Coolers
'55 Type1 "Ozma"
'70 Type2 "Hannah"
'66 Type1 "Charlotte" RIP

Aftermarket sucks!

Dr OnHolliday wrote:
As I remember it, lowriding was not one of the criteria that Adolf gave to Dr. Porsche...
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
old DKP driver
Samba Member


Joined: March 30, 2005
Posts: 3802
Location: Los Gatos,Ca.
old DKP driver is offline

PostPosted: Fri Jan 27, 2012 5:26 pm    Post subject: air filter Reply with quote

Here is another one to add that is now being sold by
aircooled.net 113 129 607 L

For replacing all oil bath from 1967
_________________
V.W.owner since 1967
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Agave58
Samba Member


Joined: March 14, 2008
Posts: 1190
Location: Central California
Agave58 is offline

PostPosted: Fri Jan 27, 2012 8:34 pm    Post subject: Reply with quote

Here is a Mann, part# 111-129-611E The date stamp is 12/57 and my VW is a Jan 58 build.

Image may have been reduced in size. Click image to view fullscreen.

_________________
1958 Agave Beetle (0\_!_/0)
Stateside Motors Inc
501 Foote Ave
Jamestown, New York 14701
Stateside Imported Cars/Motors Items Wanted

Sunland Motors
2030 Fremont St Las Vegas, Nevada
Sunland Motors Items Wanted
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Eric&Barb
Samba Member


Joined: September 19, 2004
Posts: 21141
Location: Olympia Wash Rinse & Repeat
Eric&Barb is offline

PostPosted: Fri Jan 27, 2012 9:33 pm    Post subject: Reply with quote

Here are some more found in the gallery!

1943-49

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


1953 only air cleaner.

Image may have been reduced in size. Click image to view fullscreen.


1951-52 T-air cleaner.

Image may have been reduced in size. Click image to view fullscreen.


Side view of above

Image may have been reduced in size. Click image to view fullscreen.


This one looks like a 1953 air cleaner, but has the wing nut holding on the top.

Image may have been reduced in size. Click image to view fullscreen.


1966 only air cleaner.

Image may have been reduced in size. Click image to view fullscreen.


This one looks like it is for installing 1600 engines in pre-1967 Beetle. Note large preheat connection for the later engines. Part number 113 129 613Q.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
In Stereo, Where Available!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Aynthm
Samba Member


Joined: July 07, 2010
Posts: 1311
Location: Beaverton, Oregon
Aynthm is offline

PostPosted: Fri Jan 27, 2012 11:26 pm    Post subject: Reply with quote

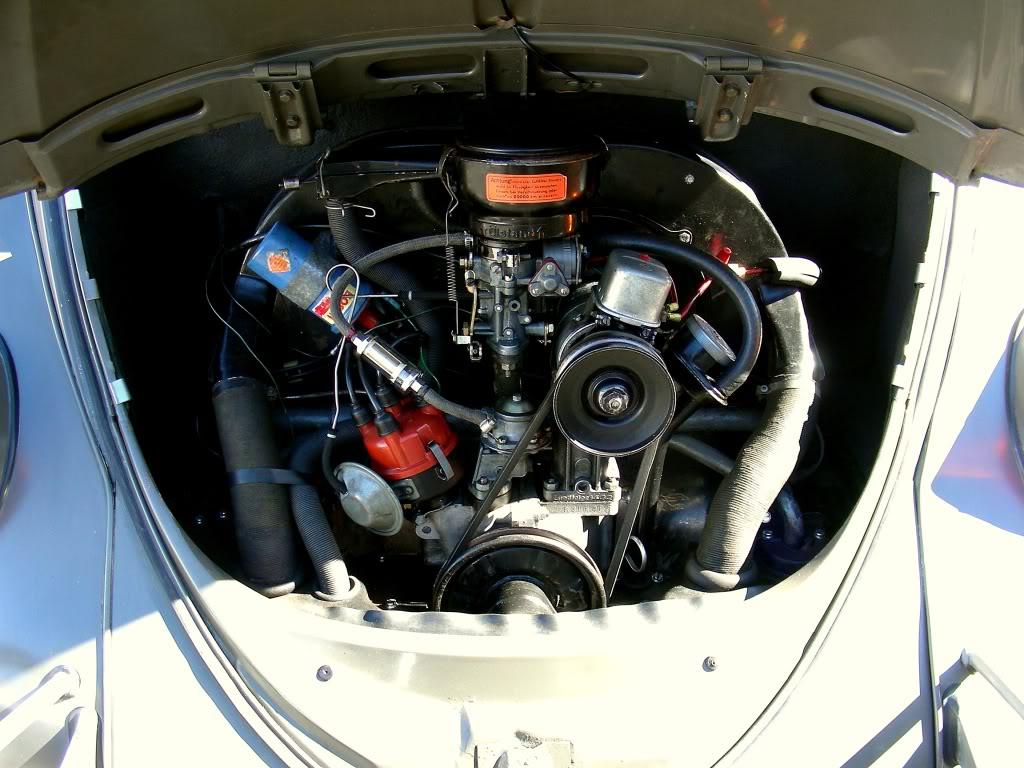

'66
Image may have been reduced in size. Click image to view fullscreen.

_________________
'66 Beetle
FACEBOOK PHOTO ALBUM:
http://www.facebook.com/john.marr.9237/photos_albums
Back to top
View user's profile Send private message Send e-mail MSN Messenger Facebook Gallery Classifieds Feedback
Helfen
Samba Member


Joined: January 19, 2009
Posts: 3115
Location: Vulcania
Helfen is offline

PostPosted: Fri Jan 27, 2012 11:30 pm    Post subject: Reply with quote

This is the original matching # engine for my 65, 111, 1200A (standard)
Note; there is no crankcase devise or tube to the air cleaner.
https://www.thesamba.com/vw/gallery/pix/516081.jpg

D.
Back to top
View user's profile Send private message Classifieds Feedback
Agave58
Samba Member


Joined: March 14, 2008
Posts: 1190
Location: Central California
Agave58 is offline

PostPosted: Fri Jan 27, 2012 11:54 pm    Post subject: Reply with quote

Helfen wrote:
This is the original matching # engine for my 65, 111, 1200A (standard)
Note; there is no crankcase devise or tube to the air cleaner.
https://www.thesamba.com/vw/gallery/pix/516081.jpg
D.


is there a date stamp on the bottom?
_________________
1958 Agave Beetle (0\_!_/0)
Stateside Motors Inc
501 Foote Ave
Jamestown, New York 14701
Stateside Imported Cars/Motors Items Wanted

Sunland Motors
2030 Fremont St Las Vegas, Nevada
Sunland Motors Items Wanted
Back to top
View user's profile Send private message Gallery Classifieds Feedback
8287111
Samba Member


Joined: January 02, 2010
Posts: 141
Location: Finland
8287111 is offline

PostPosted: Sat Jan 28, 2012 3:50 am    Post subject: Reply with quote

The wingnut model is the earliest,late-52 early-53.
Back to top
View user's profile Send private message Classifieds Feedback
bruce jones
Samba Member


Joined: July 17, 2003
Posts: 308
Location: South Carolina
bruce jones is offline

PostPosted: Sat Jan 28, 2012 4:30 am    Post subject: Reply with quote

Here is the 1969 air cleaner (113 129 613R).

Image may have been reduced in size. Click image to view fullscreen.

_________________
Driving in the slow lane since 1969.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
carcass
Samba Member


Joined: June 25, 2011
Posts: 302
Location: Santa Maria,Ca.
carcass is offline

PostPosted: Sat Jan 28, 2012 7:04 am    Post subject: Reply with quote

1962 with crankcase breather fitting on the air horn.
(64 shroud/fresh air system)

Knecht LB624-1 / VW# 113 129613B

Image may have been reduced in size. Click image to view fullscreen.


(edited to add part#)


Last edited by carcass on Sat Jan 28, 2012 7:02 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
wayne1230cars
Samba Member


Joined: April 05, 2010
Posts: 2481
Location: Canada
wayne1230cars is offline

PostPosted: Sat Jan 28, 2012 7:28 am    Post subject: Reply with quote

Agave58 wrote:
Here is a Mann, part# 111-129-611E The date stamp is 12/57 and my VW is a Jan 58 build.

Image may have been reduced in size. Click image to view fullscreen.


Where is the date stamp found on a Mann air cleaner?
_________________
1960 beetle
1970 beetle convertible
Back to top
View user's profile Send private message Gallery Classifieds Feedback
EverettB Premium Member
Administrator


Joined: April 11, 2000
Posts: 62449
Location: Phoenix, AZ
EverettB is offline

PostPosted: Sat Jan 28, 2012 8:36 am    Post subject: Reply with quote

1953/54/55 air cleaner Gallery search
(Part #s are visible)

Wing nut air cleaner:
Read this thread:
http://www.thesamba.com/vw/forum/viewtopic.php?t=325822

Also read this for some VIN # info on the early cars:
http://www.thesamba.com/vw/forum/viewtopic.php?p=5537576#5537576
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Instagram Gallery Classifieds Feedback
Agave58
Samba Member


Joined: March 14, 2008
Posts: 1190
Location: Central California
Agave58 is offline

PostPosted: Sat Jan 28, 2012 11:38 am    Post subject: Reply with quote

wayne1230cars wrote:

Where is the date stamp found on a Mann air cleaner?



Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
1958 Agave Beetle (0\_!_/0)
Stateside Motors Inc
501 Foote Ave
Jamestown, New York 14701
Stateside Imported Cars/Motors Items Wanted

Sunland Motors
2030 Fremont St Las Vegas, Nevada
Sunland Motors Items Wanted
Back to top
View user's profile Send private message Gallery Classifieds Feedback
wayne1230cars
Samba Member


Joined: April 05, 2010
Posts: 2481
Location: Canada
wayne1230cars is offline

PostPosted: Sat Jan 28, 2012 1:08 pm    Post subject: Reply with quote

Thanks Agave58. That is exactly what I wanted to know.
_________________
1960 beetle
1970 beetle convertible
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Agave58
Samba Member


Joined: March 14, 2008
Posts: 1190
Location: Central California
Agave58 is offline

PostPosted: Sat Jan 28, 2012 1:12 pm    Post subject: Reply with quote

wayne1230cars wrote:
Thanks Agave58. That is exactly what I wanted to know.


No problem, let us know what you find.. Very Happy
_________________
1958 Agave Beetle (0\_!_/0)
Stateside Motors Inc
501 Foote Ave
Jamestown, New York 14701
Stateside Imported Cars/Motors Items Wanted

Sunland Motors
2030 Fremont St Las Vegas, Nevada
Sunland Motors Items Wanted
Back to top
View user's profile Send private message Gallery Classifieds Feedback
wayne1230cars
Samba Member


Joined: April 05, 2010
Posts: 2481
Location: Canada
wayne1230cars is offline

PostPosted: Sat Jan 28, 2012 3:07 pm    Post subject: Reply with quote

This is the Mann air cleaner on my 1960 bug with a build date of Feb.23, 1960. The photo does not show the part # very well but I used some chalk to be sure and the number is 113 129 611A. I did find the date stamp on the bottom and it is 01/60. The car is very original so this may well be the original air cleaner. The May 1960 parts list that I looked at does agree with that part number.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
1960 beetle
1970 beetle convertible
Back to top
View user's profile Send private message Gallery Classifieds Feedback
GüteAndTite
Early Convertible Güru


Joined: June 16, 2005
Posts: 2143
Location: Low So Cal
GüteAndTite is offline

PostPosted: Sat Jan 28, 2012 5:59 pm    Post subject: Reply with quote

Helfen wrote:
This is the original matching # engine for my 65, 111, 1200A (standard)
Note; there is no crankcase devise or tube to the air cleaner.
https://www.thesamba.com/vw/gallery/pix/516081.jpg

D.


i hate to say it but thats an earlier cleaner. is your car from australia or canada?
_________________
Official 58-60 "Early Big Window" Convertible Thread & Registry
http://www.thesamba.com/vw/forum/viewtopic.php?t=426481
F&S Saxomat Automatic Clutch System Thread
http://www.thesamba.com/vw/forum/viewtopic.php?t=462533
61-67 Delanair Air conditioning Thread
http://www.thesamba.com/vw/forum/viewtopic.php?t=457944&highlight=air+conditioning

PUNCTUATION CHANGES THE WORLD: "I need to help my uncle, Jack, off a horse" is way better than, "I need to help my uncle jack off a horse"
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Beetle - 1958-1967 All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4, 5, 6, 7  Next
Page 1 of 7


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
