 Posted: Wed Feb 19, 2025 6:48 pm Post subject: Toggle switch function? |
 |
|

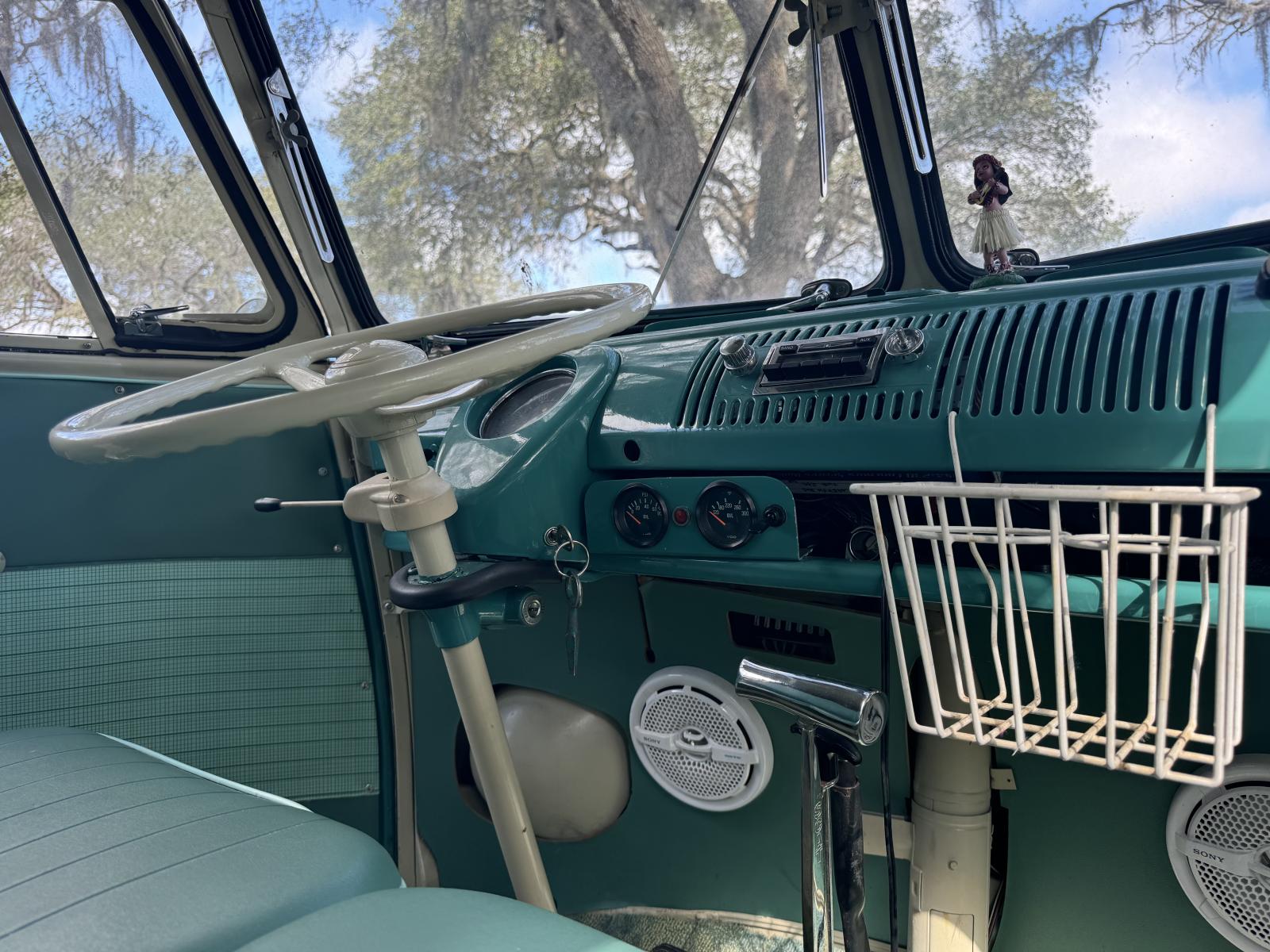

Anybody know the function of the toggle on the left side of speedo housing?
|
|
| Back to top |
|
 |
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15242
Location: Casa de Oro, California
|
| Posted: Wed Feb 19, 2025 6:59 pm Post subject: Re: Toggle switch function? |
|
|
Your toggle is a replacement. The original was plastic. It turns on the dome light normally if you leave the dome light switch that is on the dome light "on".
Too confusing? It's a dome light switch. |
|
| Back to top |
|
|
Mbetti59
Samba Member
Joined: November 05, 2023
Posts: 22
Location: Upper MI
|
| Posted: Wed Feb 19, 2025 7:09 pm Post subject: Re: Toggle switch function? |
|
|
| Ok great, thanks! |
|
| Back to top |
|
|
BonTonRoulet
Samba Member
Joined: September 29, 2020
Posts: 472
Location: Mississippi
|
| Posted: Wed Feb 19, 2025 7:33 pm Post subject: Re: Toggle switch function? |
|
|
I think more specifically, if a bus, it controls the rear dome light. The front dome light above the front seatbacks/ forward cargo area use the switch on the light itself.
All bets are off if a truck and not a bus as far as I'm experienced.
_________________
Never argue with an Idiot. They'll only bring you down to their level and beat you with experience. |
|
| Back to top |
|
|
Malokin Martin
Samba Member
Joined: August 19, 2007
Posts: 3281
Location: E-burg
|
| Posted: Wed Feb 19, 2025 9:24 pm Post subject: Re: Toggle switch function? |
|
|
If you polished it, it would actually be more quality than stock
Shame what they did to your steering column/bracket there with the paint |
|
| Back to top |
|
|
mdege
Samba Member
Joined: January 16, 2018
Posts: 1059
Location: Niederkruechten, Germany
|
|
| Back to top |
|
|
70bus
Samba Member
Joined: July 15, 2004
Posts: 1416
Location: P.O.
|
| Posted: Wed Feb 19, 2025 11:48 pm Post subject: Re: Toggle switch function? |
|
|
That's a nice switch - many stock ones have the ridiculous plastic handle snapped off. I'd keep that one.
In my truck, there was a switch, but no idea if it was original since many say a truck had a plastic hole plug there. Did have the handle snapped off! It was wired to the cab dome light, and I gotta say it is easier to reach over and flip the speedo switch than reach up and behind to flip dome light switch - especially if looking for what you dropped on floor at night. Just gotta remember to leave dome light switch 'on.'
I have mine also wired to a second dome light in the treasure chest; that way I don't leave the t/c light on and drain the battery.
_________________
Craig K
70 Neunsitzer
65 Pritschenwagen
"If Von Dutch was alive, he'd walk in there with a pistol and shoot these people." - Robert Williams
Raul the 65 singlecab
Karl the 70 nine-seater |
|
| Back to top |
|
|
pyrOman
Fire Master
Joined: July 21, 2003
Posts: 12546
Location: Over 2002 posts deleted!
|
| Posted: Thu Feb 20, 2025 12:11 pm Post subject: Re: Toggle switch function? |
|
|
My original '65 vintage plastic switch is still intact! But having hacked off the roof to install the Dormy top, I use the switch to power up the radio.
_________________
Some people are so busy being clever they don't have time enough to be wise. |
|
| Back to top |
|
|
velvetgreen
Samba Member
Joined: August 17, 2004
Posts: 2893
Location: Canada
|
| Posted: Thu Feb 20, 2025 2:42 pm Post subject: Re: Toggle switch function? |
|
|
| Looks like your bus came with a factory steering lock which appears to be disconnected. What sort of ignition are you rocking? |
|
| Back to top |
|
|
swharris
Samba Member
Joined: September 10, 2010
Posts: 641
Location: N. Orange County
|
| Posted: Fri Feb 28, 2025 4:07 pm Post subject: Re: Toggle switch function? |
|
|
| BonTonRoulet wrote: |
All bets are off if a truck and not a bus as far as I'm experienced. |
Trucks(SC for sure but I think DC's too) did not have the switch, as you can just reach up and turn it on. There will be a plastic plug(like a door screw plug) in the hole. BTW if you're not going to use that ignition lock, I'll take it off your hands  |
|
| Back to top |
|
|
Mbetti59
Samba Member
Joined: November 05, 2023
Posts: 22
Location: Upper MI
|
| Posted: Sun Mar 02, 2025 5:20 pm Post subject: Re: Toggle switch function? |
|
|
The switch controls just the cargo light.
The ignition switch was questioned here, can be seen in pic, looks original. The bus was delivered to Germany with the steering lock option, not sure if it could of retained the original ignition also in this situation? |
|
| Back to top |
|
|
70bus
Samba Member
Joined: July 15, 2004
Posts: 1416
Location: P.O.
|
| Posted: Sun Mar 02, 2025 5:48 pm Post subject: Re: Toggle switch function? |
|
|
How do you turn on your headlights with no dash switch? And what are the small round items next to the guages, warning lights or buttons?
_________________
Craig K
70 Neunsitzer
65 Pritschenwagen
"If Von Dutch was alive, he'd walk in there with a pistol and shoot these people." - Robert Williams
Raul the 65 singlecab
Karl the 70 nine-seater |
|
| Back to top |
|
|
Mbetti59
Samba Member
Joined: November 05, 2023
Posts: 22
Location: Upper MI
|
| Posted: Sun Mar 02, 2025 7:41 pm Post subject: Re: Toggle switch function? |
|
|
Next to gauges are an indicator light and switch for the fan on a remote oil cooler.
The headlight switch is missing in this picture as I was in middle of replacing it. |
|
| Back to top |
|
|
swharris
Samba Member
Joined: September 10, 2010
Posts: 641
Location: N. Orange County
|
| Posted: Mon Mar 03, 2025 6:27 pm Post subject: Re: Toggle switch function? |
|
|
| Mbetti59 wrote: |
The switch controls just the cargo light.
The ignition switch was questioned here; can be seen in pic, looks original. The bus was delivered to Germany with the steering lock option; not sure if it could of retained the original ignition also in this situation. |
If the steering column lock SWITCH is there and functions and you have the key and the lock/cyl WORK, then yes, you can use it...that is how it was designed to work. On the opposite side of the lock cylinder is a switch with, I think 3 terminals(it fits within the lock housing).
You could actually use the column lock without the switch in the housing, but it would just be a COLUMN lock. You would need two keys(unless you keyed them alike...but you would still have two key actions, one to unlock the column and one to start the bus). Looks like the OG column SWITCH broke, and someone could not find a replacement and just put a regular one in the normal pod position. Typically, if it were an M-plate option, no POD switch would be equipped and a blank plug would be there in its place. Hope I'm not being too simple here; maybe you know all this already. Good luck finding a switch
Switch:
Housing without switch installed:
|
|
| Back to top |
|
|
swharris
Samba Member
Joined: September 10, 2010
Posts: 641
Location: N. Orange County
|
| Posted: Mon Mar 03, 2025 6:33 pm Post subject: Re: Toggle switch function? |
|
|
I just looked at your first pic and I can see that the switch is there. No proof it is working, but it is in the housing. It could be a replacement as it has zinc plated terminals, and usually, they are brass...I'm no expert though. Hook a continuity tester to it and turn the key...you have the key, yes? |
|
| Back to top |
|
|
Mbetti59
Samba Member
Joined: November 05, 2023
Posts: 22
Location: Upper MI
|
| Posted: Tue Mar 04, 2025 6:20 pm Post subject: Re: Toggle switch function? |
|
|
| I got a bunch of keys with this bus but none will go in the steering lock. Is the key similar cut or size of a normal ignition key? |
|
| Back to top |
|
|
swharris
Samba Member
Joined: September 10, 2010
Posts: 641
Location: N. Orange County
|
| Posted: Tue Mar 04, 2025 6:46 pm Post subject: Re: Toggle switch function? |
|
|
| 70bus wrote: |
That's a nice switch - many stock ones have the ridiculous plastic handle snapped off. I'd keep that one.
In my truck, there was a switch, but no idea if it was original since many say a truck had a plastic hole plug there. Did have the handle snapped off! It was wired to the cab dome light, and I gotta say it is easier to reach over and flip the speedo switch than reach up and behind to flip dome light switch - especially if looking for what you dropped on floor at night. Just gotta remember to leave dome light switch 'on.'
I have mine also wired to a second dome light in the treasure chest; that way I don't leave the t/c light on and drain the battery. |
Cool idea! |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71543
Location: Phoenix 602
|
| Posted: Tue Mar 04, 2025 9:15 pm Post subject: Re: Toggle switch function? |
|
|
| Mbetti59 wrote: |
| I got a bunch of keys with this bus but none will go in the steering lock. Is the key similar cut or size of a normal ignition key? |
It's different.
Here's the original steering lock with the key in it from my old '64 13-Window Bus:
