Restoration of a former '65 firetruck (21F)
Page: 1, 2, 3, 4, 5, 6, 7  Next
Forum Index -> Split Bus Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
mdege
Samba Member


Joined: January 16, 2018
Posts: 289
Location: Niederkruechten, Germany
mdege is offline

PostPosted: Tue Jul 31, 2018 1:53 pm    Post subject: Restoration of a former '65 firetruck (21F) Reply with quote

I started recently to restore my first VW bus. I am now on 6th bus (T1, T2, 2x T3, T5, T3)

I am starting this thread to document what I am doing to it. But, I will start out with a brief history of the van.

It started out as a Firetruck (VW-Feuerlöschfahrzeug TSF-T or 21F) on September 10th, 1964. Unfortunately I don't have any pictures from when it was still in service.

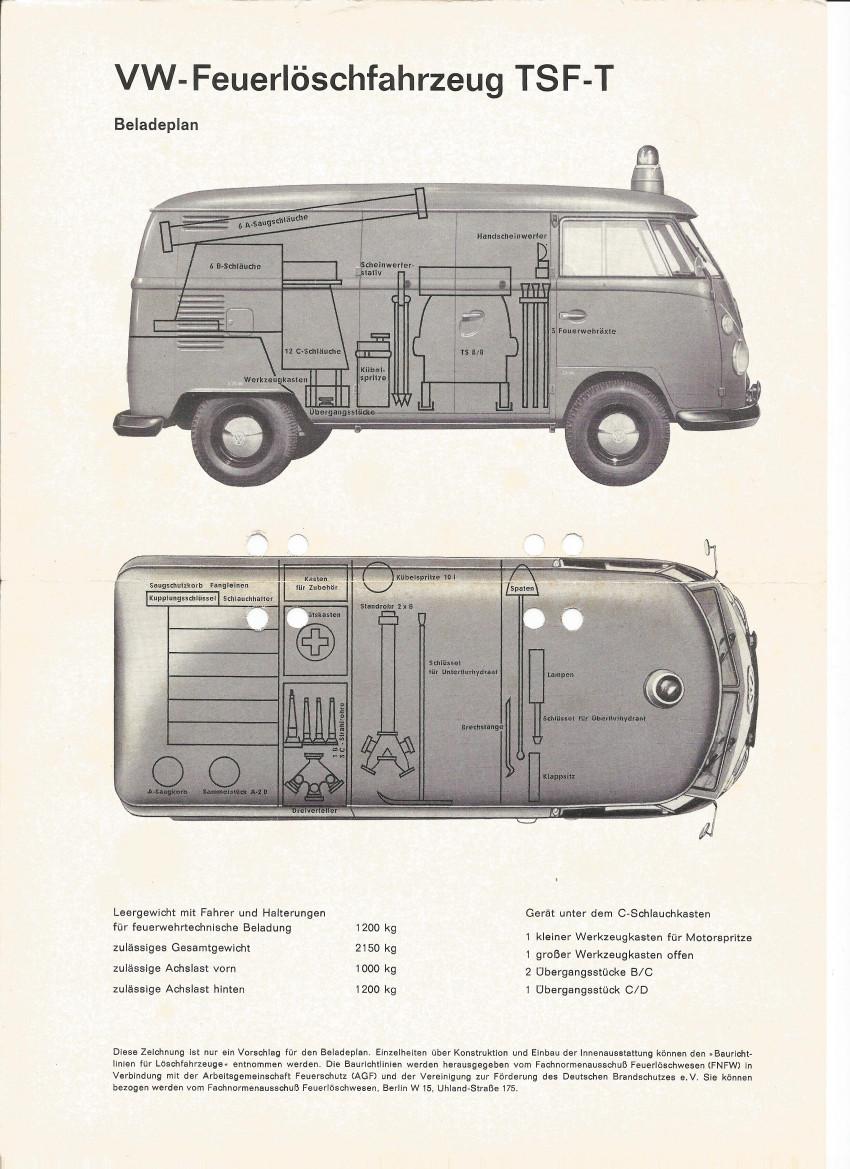

Image may have been reduced in size. Click image to view fullscreen.


The date on the M-plate is 27.8. The original registration papers were stamped 1.9.1964 and first date of registration was 10.9.1964.

The van was stationed in Niederstöcken which is a small Village 30km north of the VW factory in Hannover-Stöcken. Officially it had two owners before I got it. But, in reality it was only the Village volunteer fire department. the village was incorporated with Neustadt am Rübenberge in September 1979. The original Registration was NRÜ-J 551 and at this point in time it changed to H-H 63.

I was told, that it had only been to two emergencies in the 24 years of service. The only other use it got was for the yearly festivities in the village and the mandatory 50km per month drive (Bewegungsfahrt) to keep everything moving.

I bought the van in December 1988 with 14500km on the odometer.

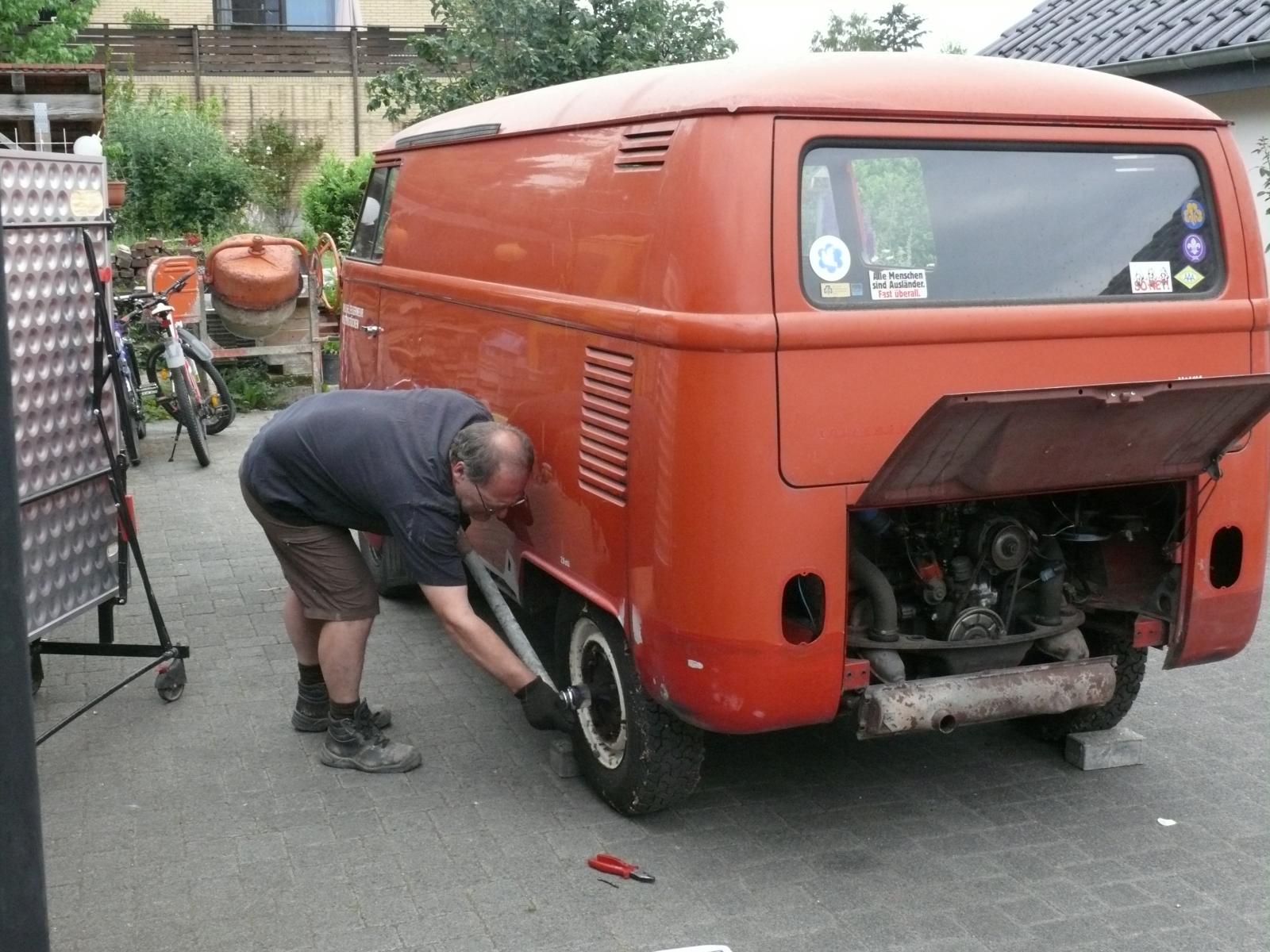

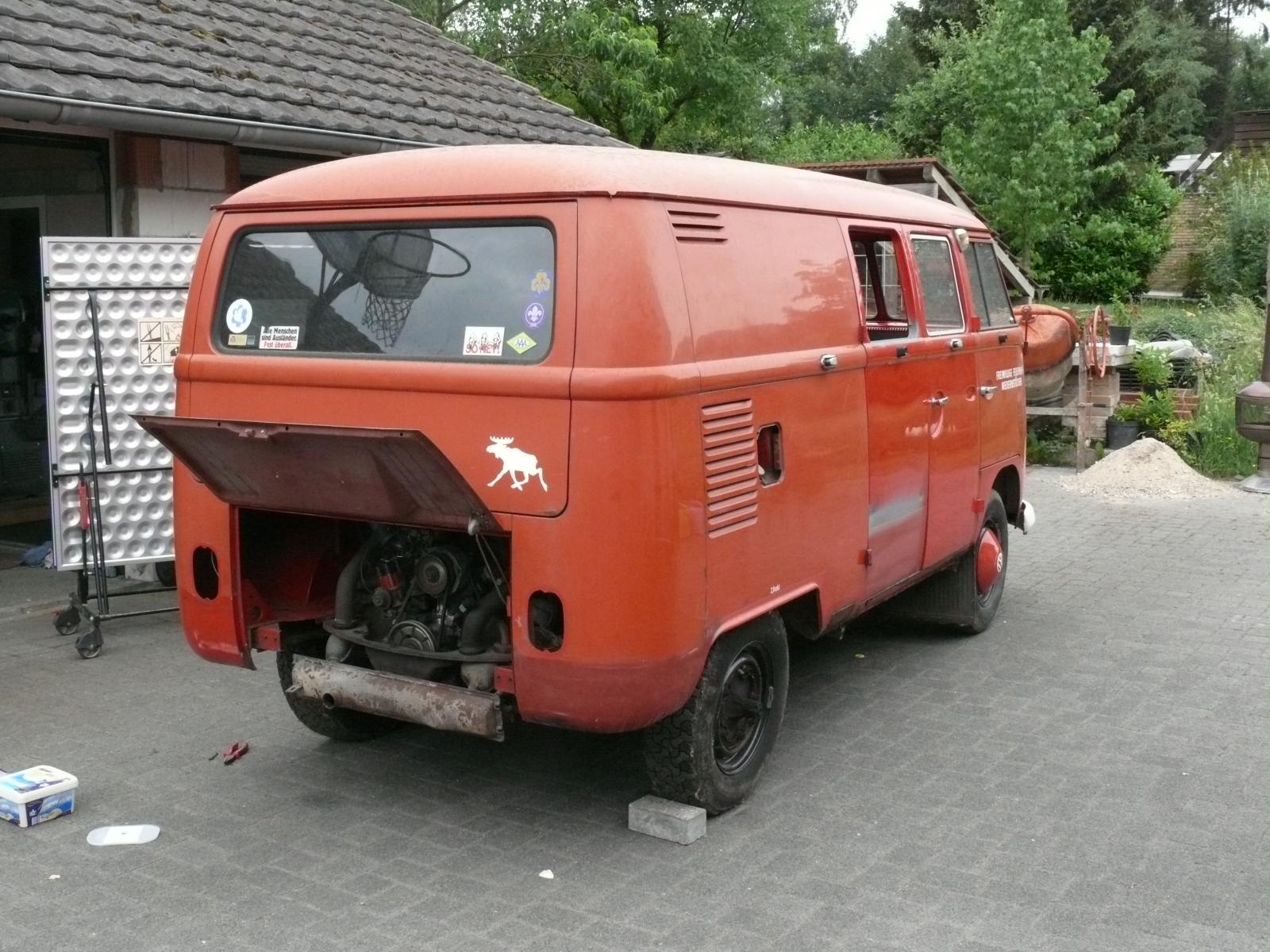

The following pictures were taken the day I bought it.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


On March 6th, 1989 I registered it to myself, after doing some rust repair and the conversion to a very simple camper. I removed what was left of the fire departments fixture to hold their equipment. And added a bed and a cupboard, the bare minimum to get a registration as a camper at the time. The insurance premium was much lower for campers at the time.

To be continued ...
_________________
- Michael

Restoration of a former '65 firetruck (21F)


1988 Multivan Magnum 112i
2006 T5 (sold)
1986 Caravelle C (sold)
1987 Caravelle Coach (R.I.P)
1972 T2ab Bay Window (sold)
1965 21F
1971 & 1969 Variant LE (sold)


Last edited by mdege on Sun Aug 19, 2018 5:07 am; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mdege
Samba Member


Joined: January 16, 2018
Posts: 289
Location: Niederkruechten, Germany
mdege is offline

PostPosted: Sun Aug 05, 2018 12:59 am    Post subject: Re: Restauration of a former '65 firetruck (21F) Reply with quote

This will be the last post on the history of my van before I start on the restoration, I promise.

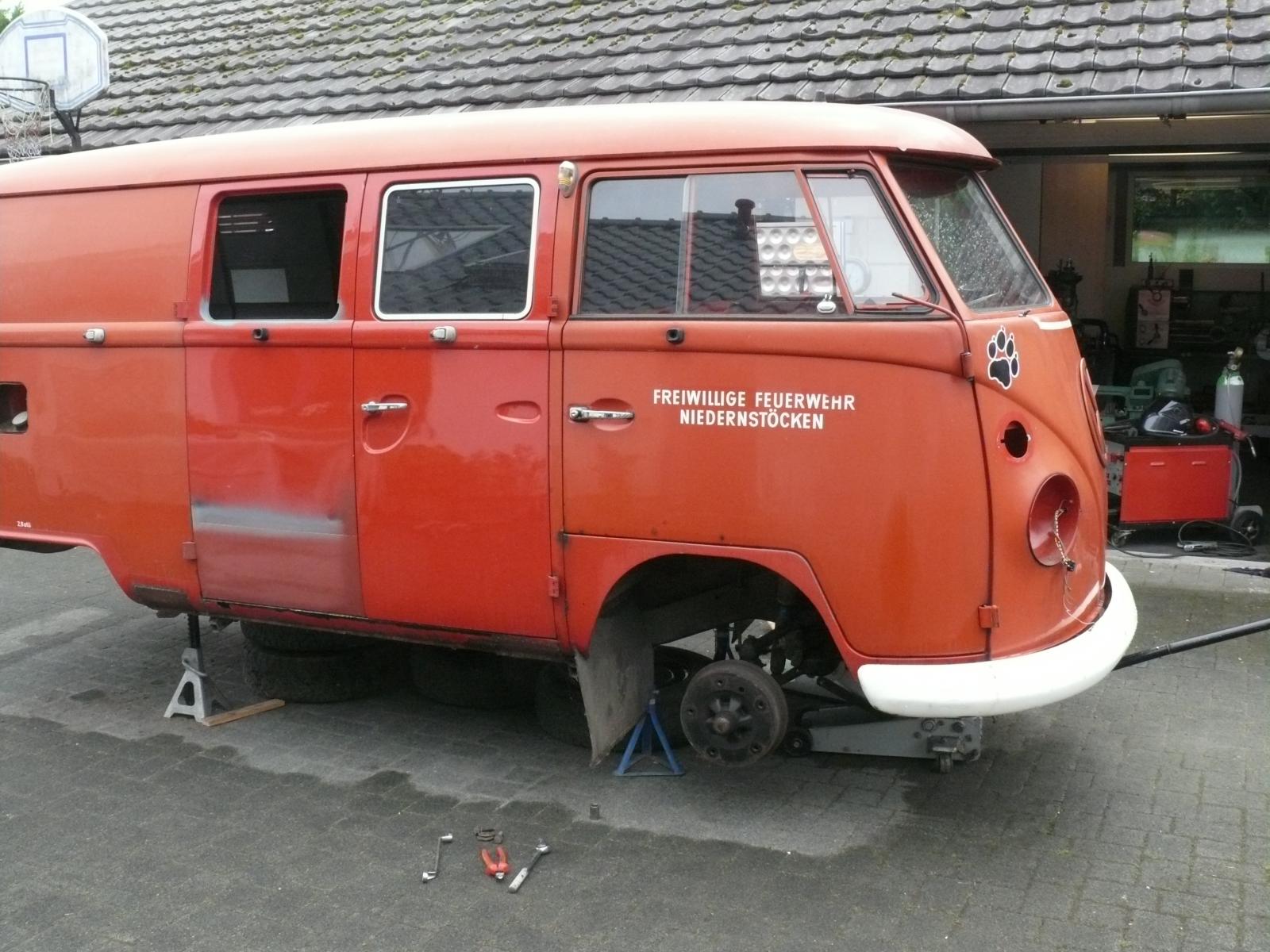

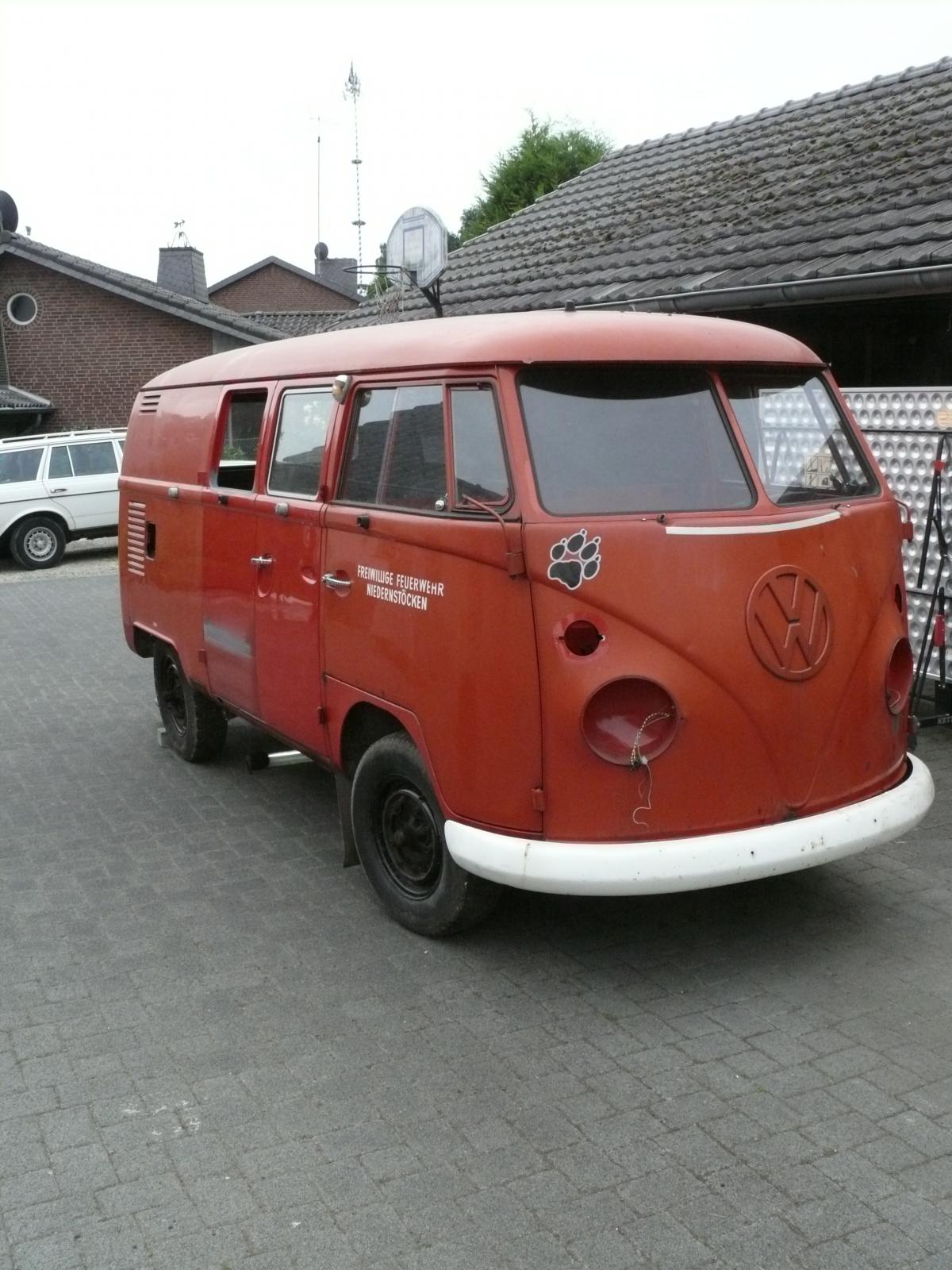

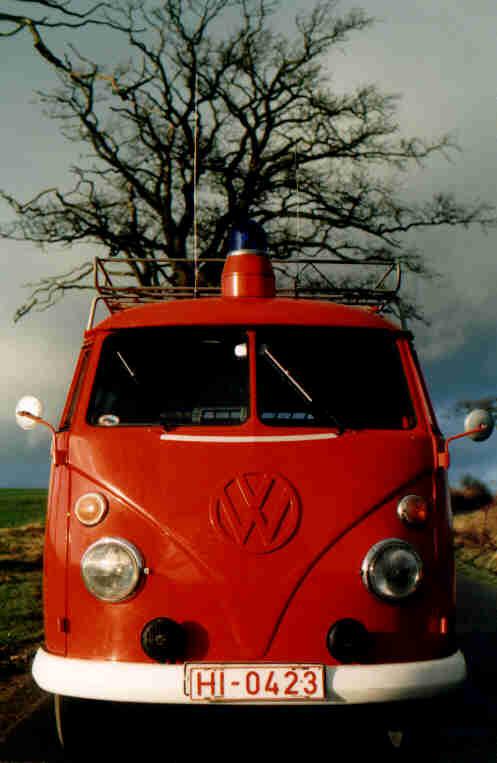

One more picture from the original state:
Image may have been reduced in size. Click image to view fullscreen.


I drove the van as my daily driver for 9 years, all trough my alternate (civilian) service and studies. Germany still had mandatory military/civilian service for the male population. I served with one of the German scout organizations and got heavily involved in scouting. Of course my van got involved too.

Getting ready for a hike:
Image may have been reduced in size. Click image to view fullscreen.

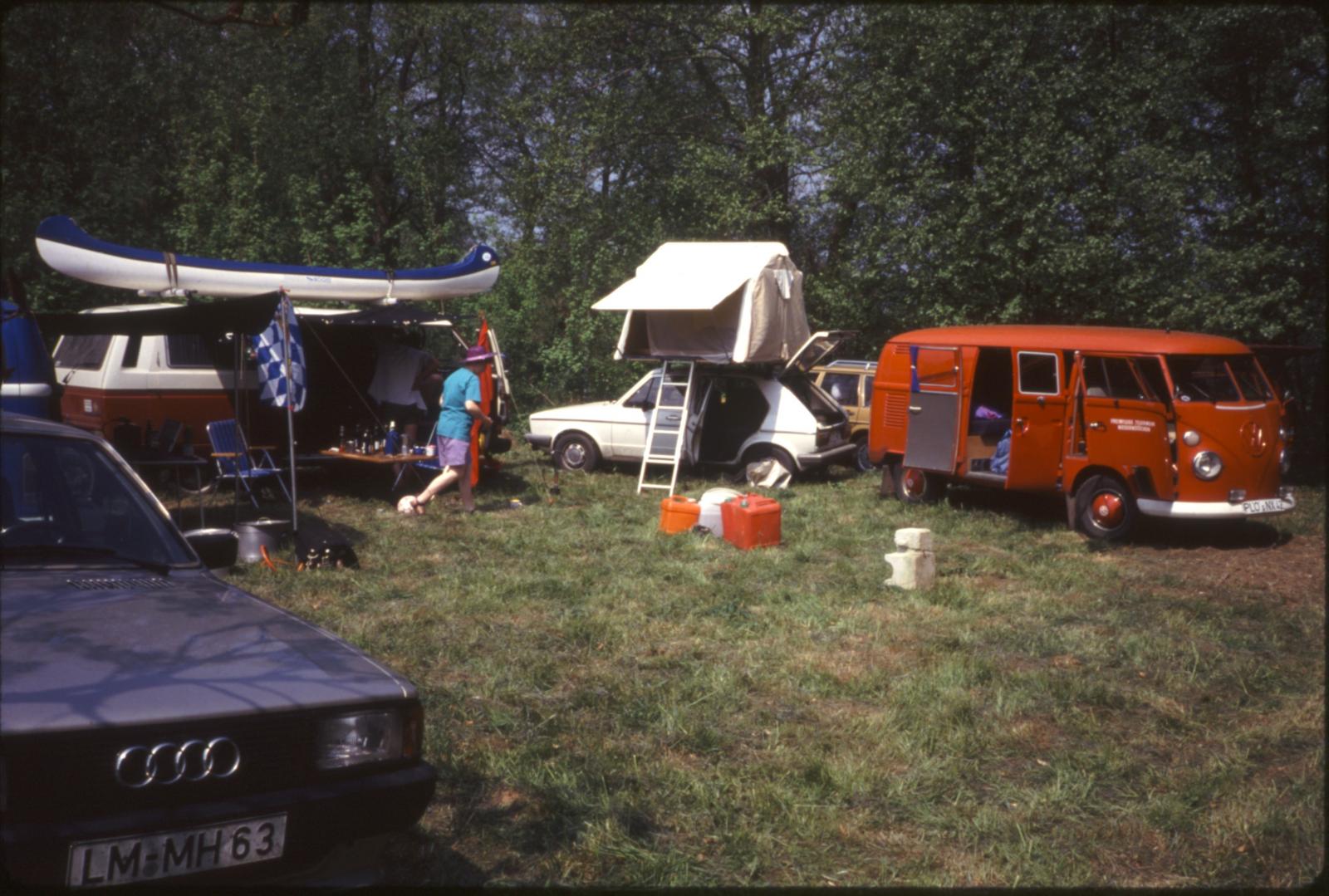

Small scout camp in Leun just leaders and young adults:
Image may have been reduced in size. Click image to view fullscreen.


In 1994 I went on a three week camping trip to Sweden:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Unfortunately there was no more gas sold at this station:
Image may have been reduced in size. Click image to view fullscreen.


During the course of time I converted the van to 12V, rebuilt the front axle, replace the 42hp 1500ccm motor with a 50hp 1600ccm. In '91 and '93 I spent my summers working in San Jose, CA and I used the occasion to do parts hunting. One year I cut the lower rear corners from two different buses in a Sacramento wrecking yard and the other year I found some cargo doors with windows in a Pick&Pull yard in San Jose. I managed to take all of the parts back as normal luggage. I miss those days when you were entitled to pieces of luggage 32kg each.

When I got my first job I had to move to Düsseldorf and I ended up with no place to work on my van anymore. And it was getting to a state where it would not pass the bi-yearly inspections anymore. I decided to keep it until I have a place where I can work on it.

In the meantime we bought an old house which needed a lot of work, got married, had kids and the van had to wait.

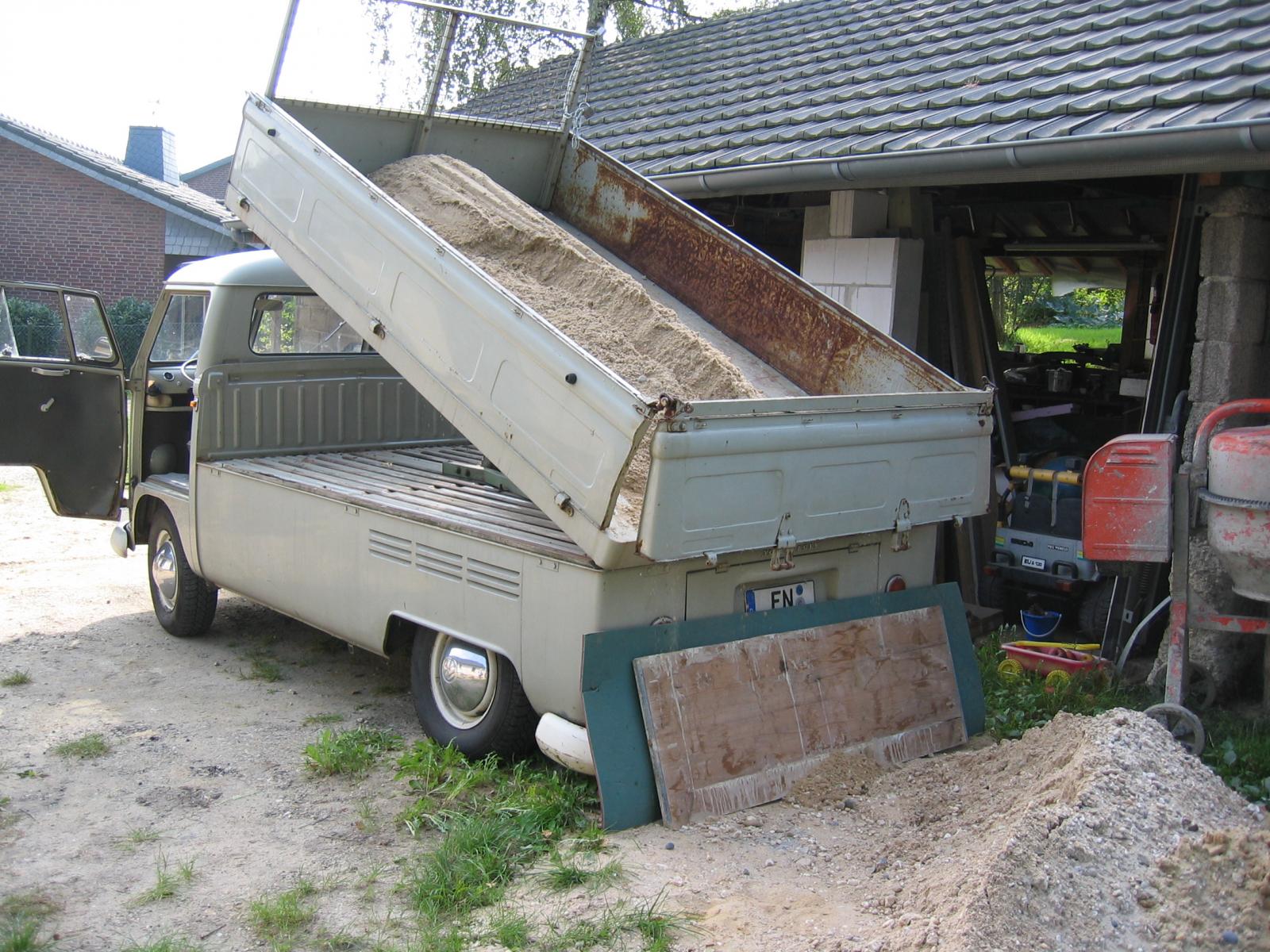

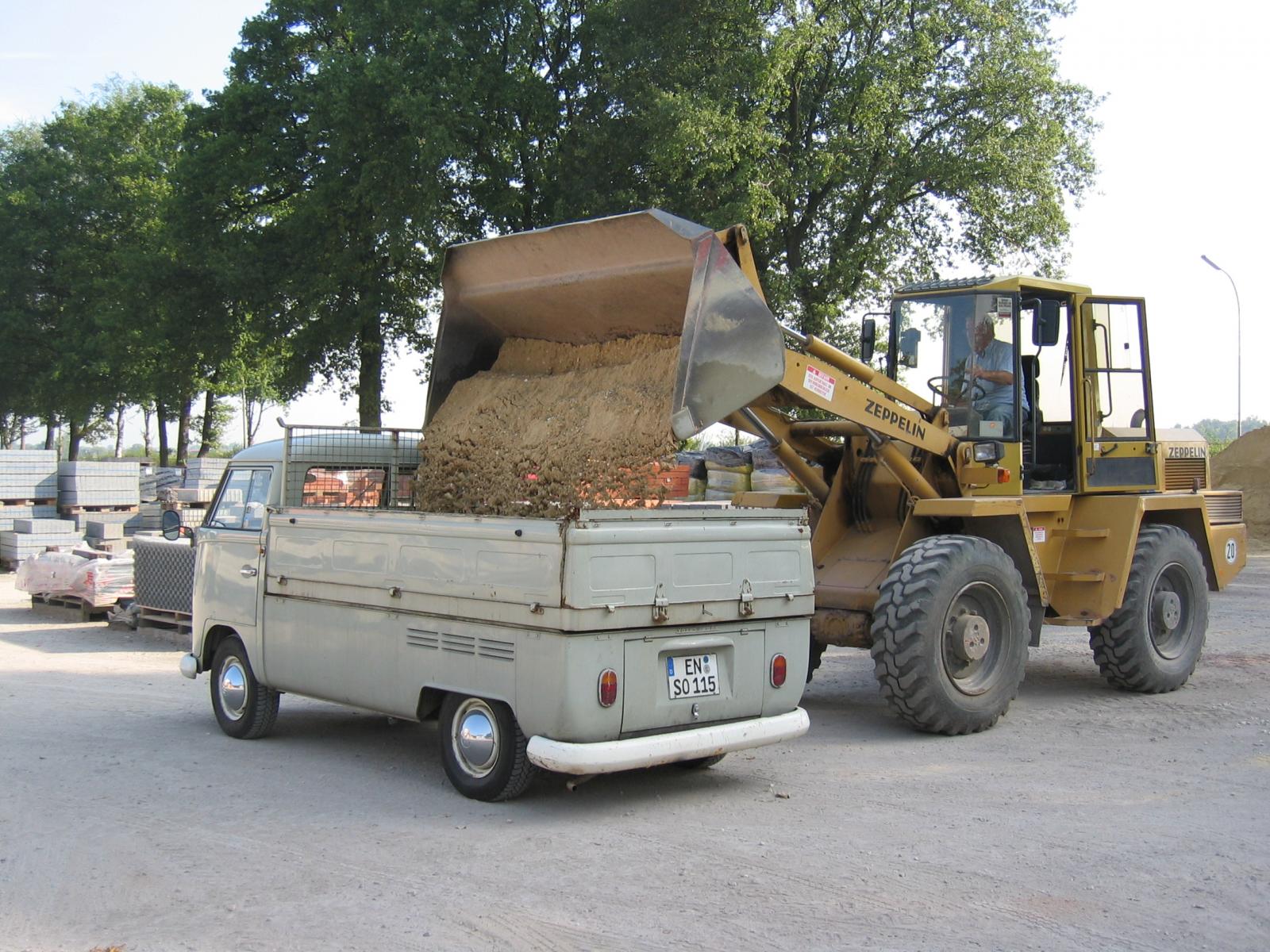

I was able to borrow this VW dump truck for some of my work on the house:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

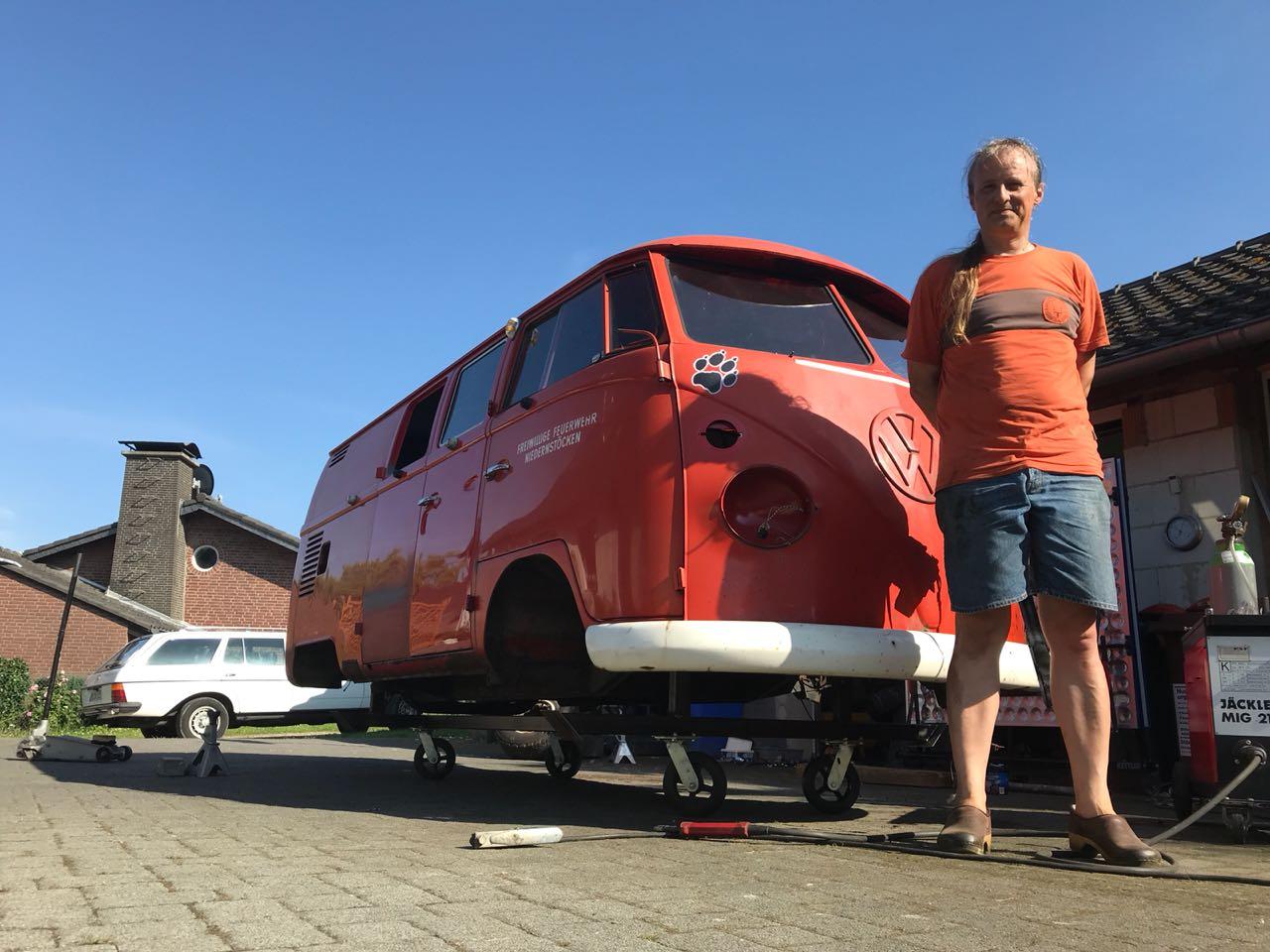

But, now more than twenty years later the time has come. Last winter I started to make some tools which I would use for the disassembly:

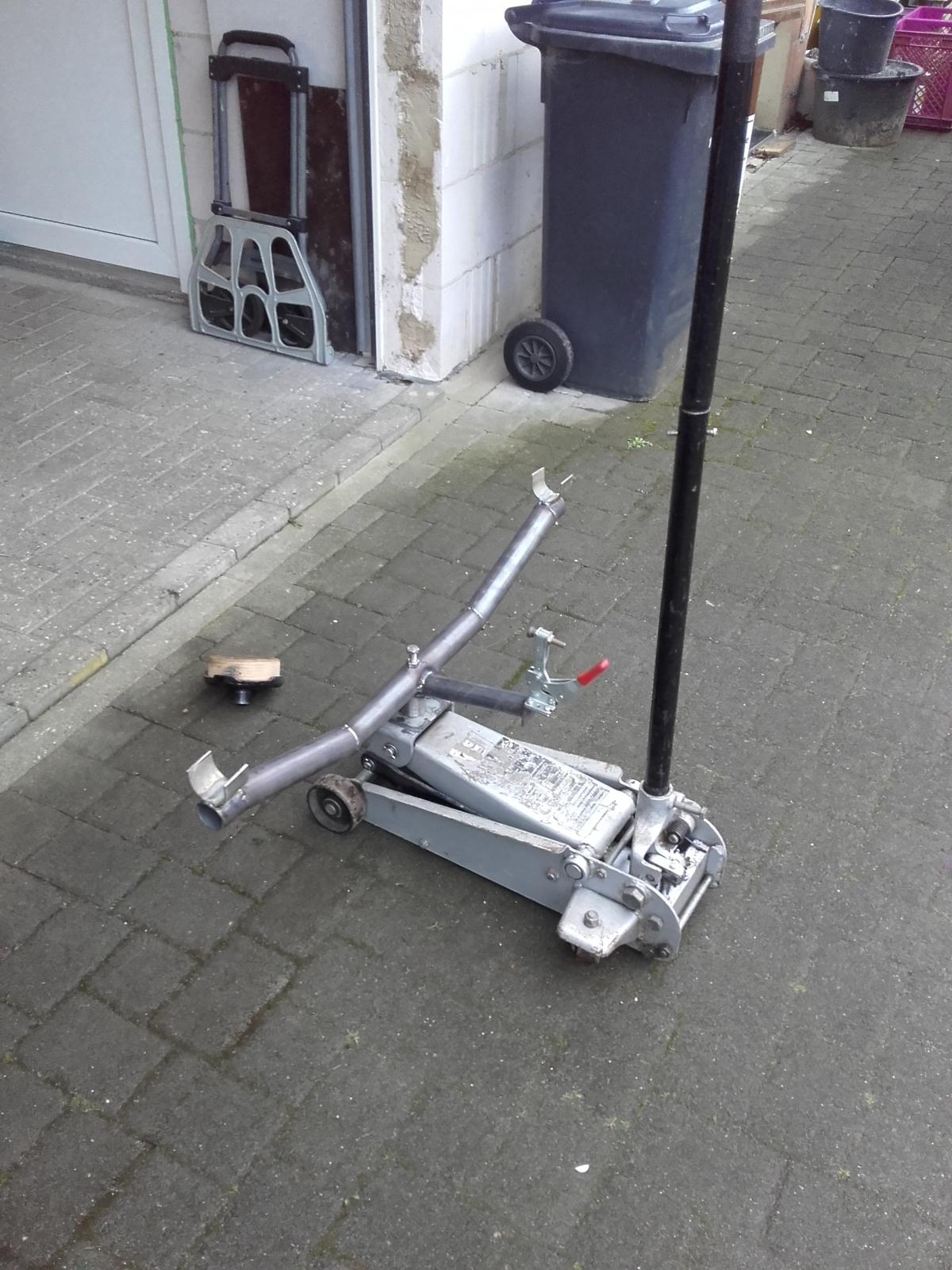

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

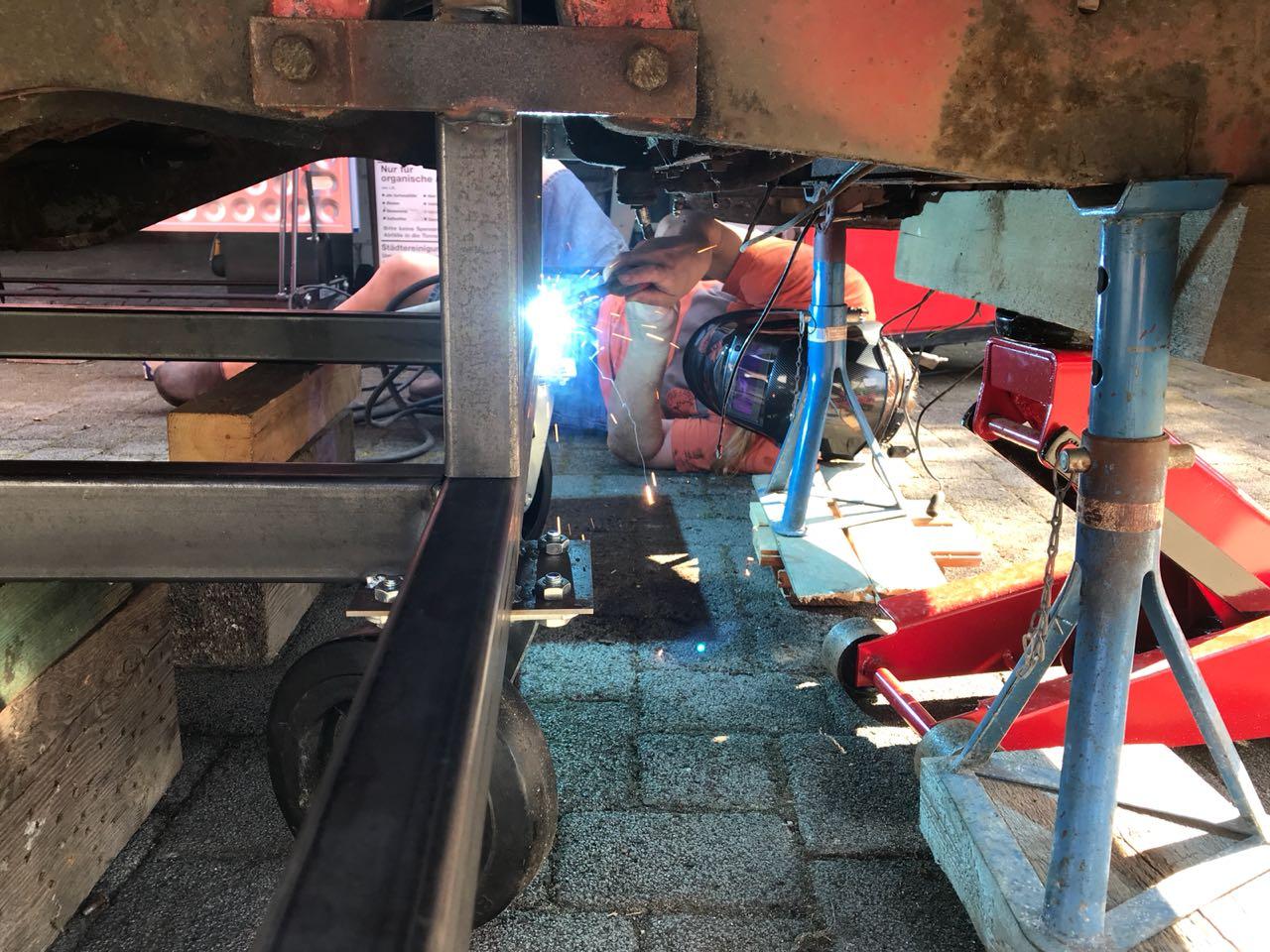

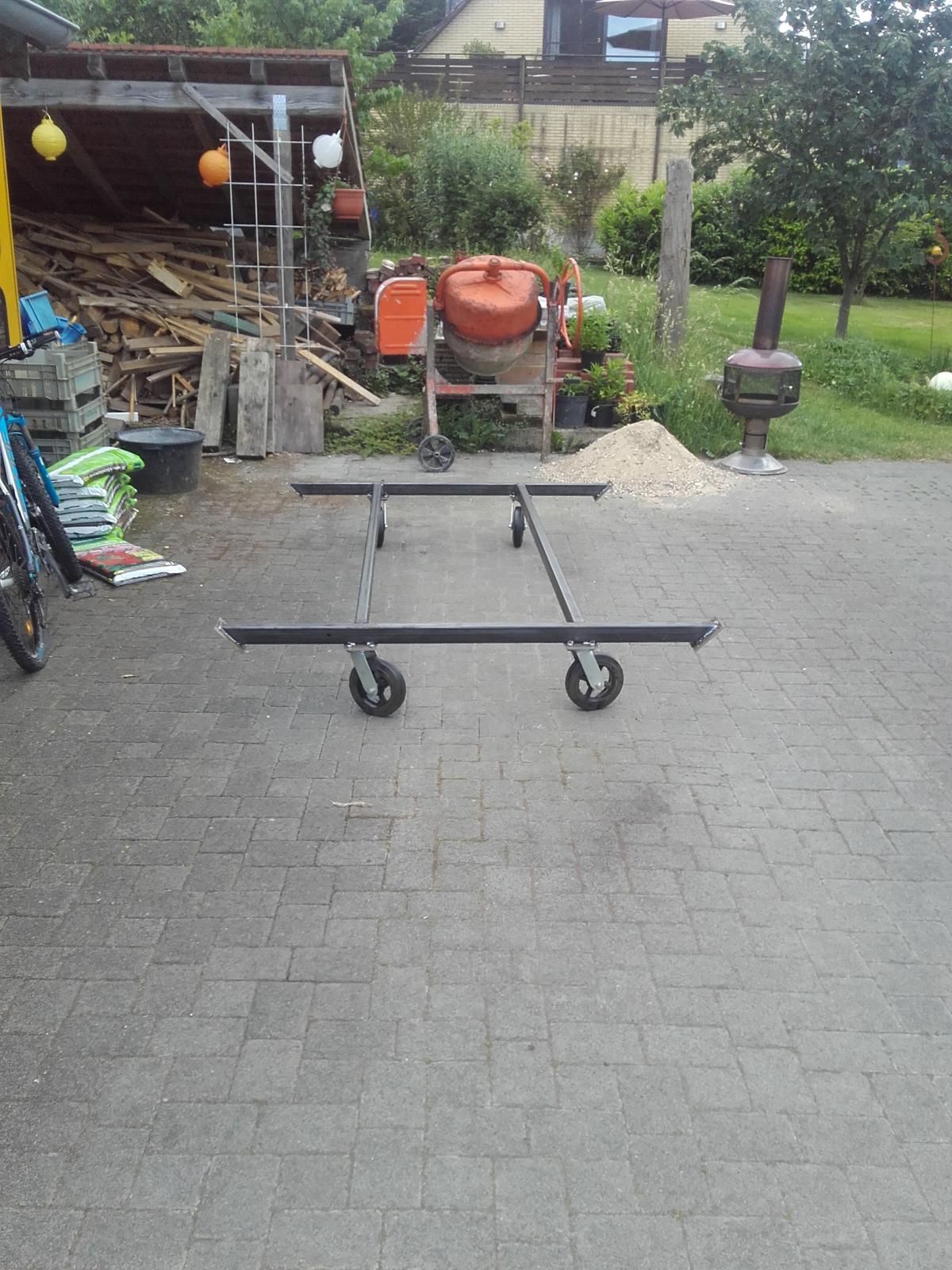

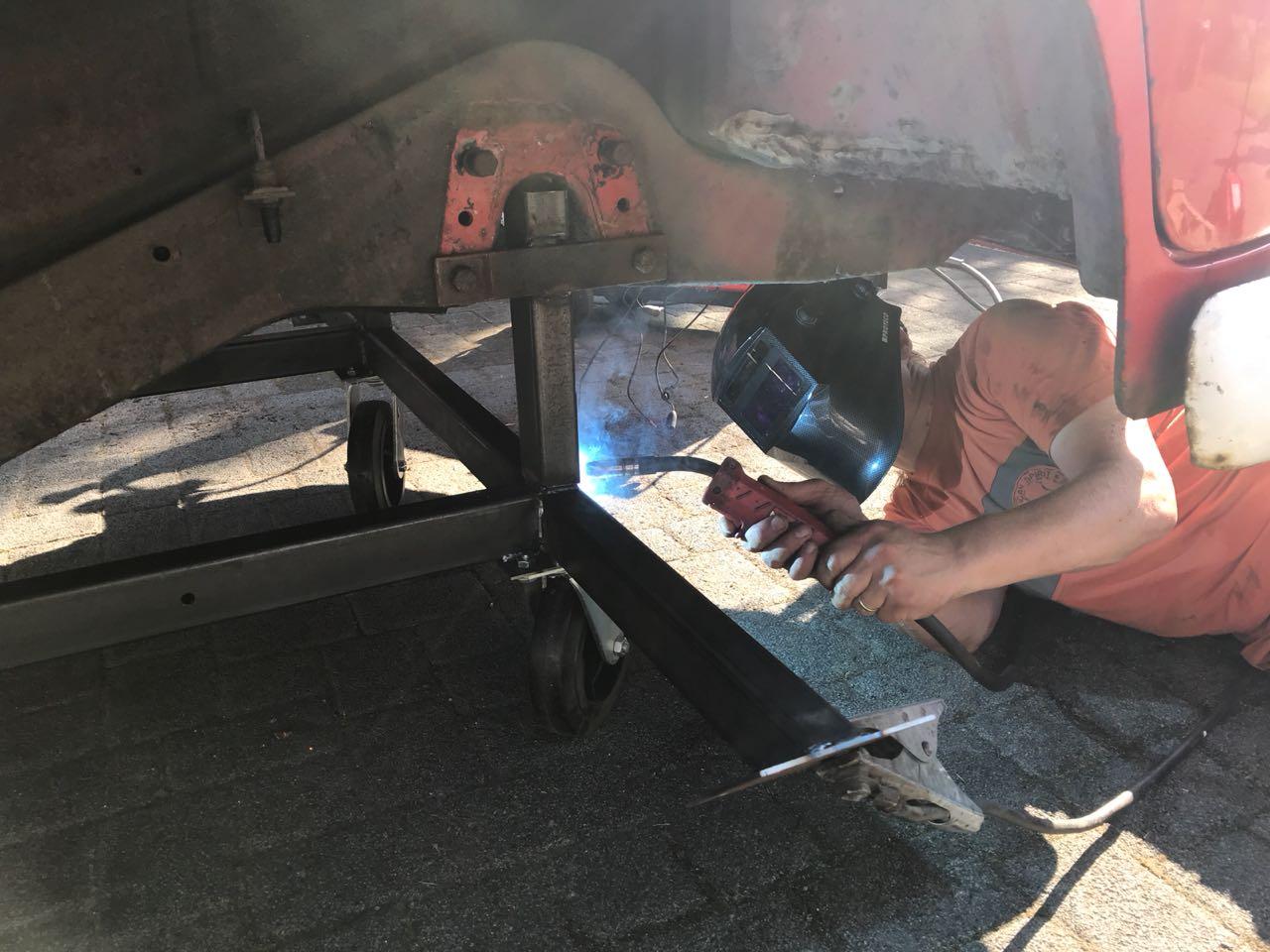

Then end of may I built the frame which I mounted the chassis on:
Image may have been reduced in size. Click image to view fullscreen.

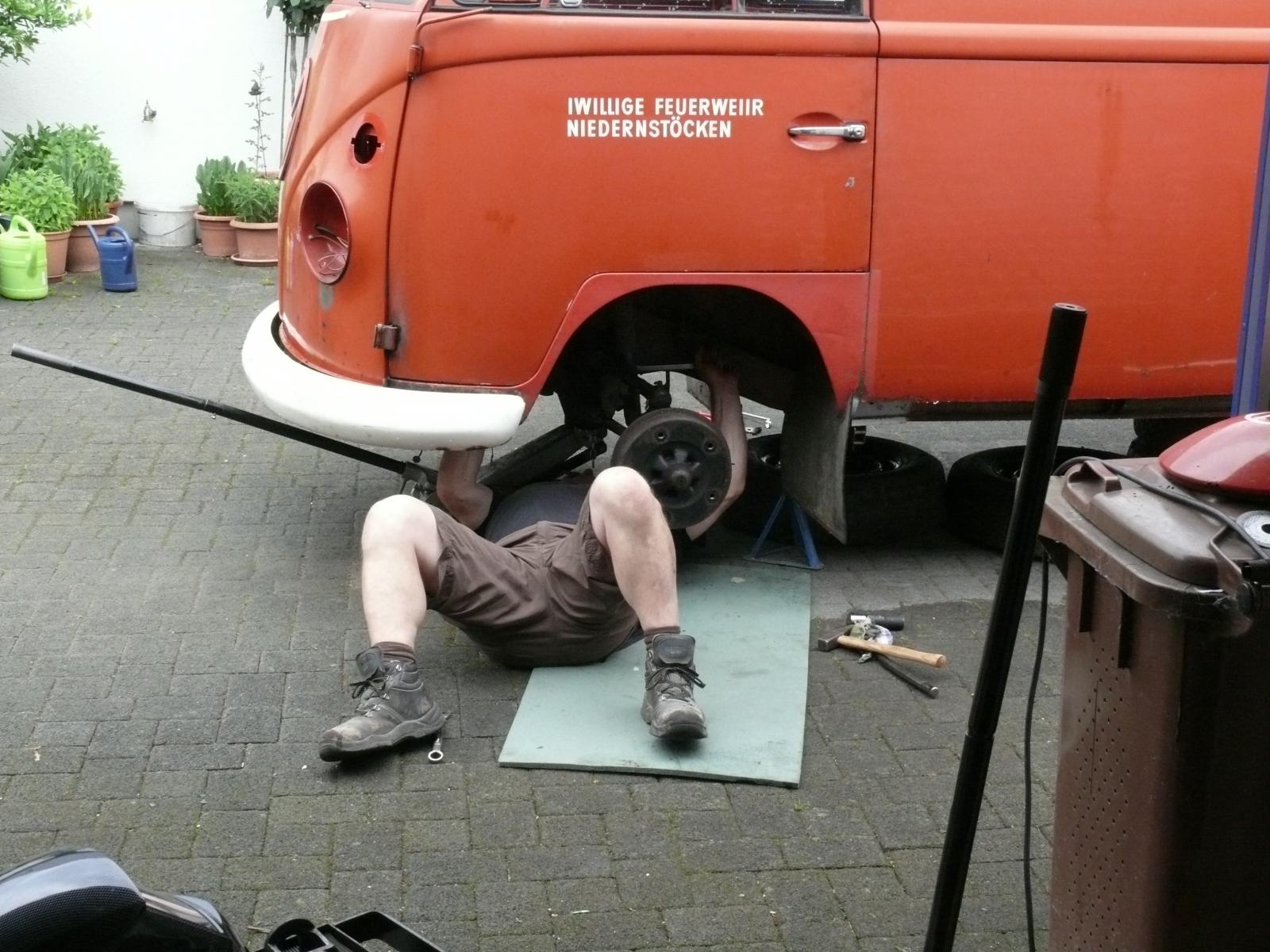

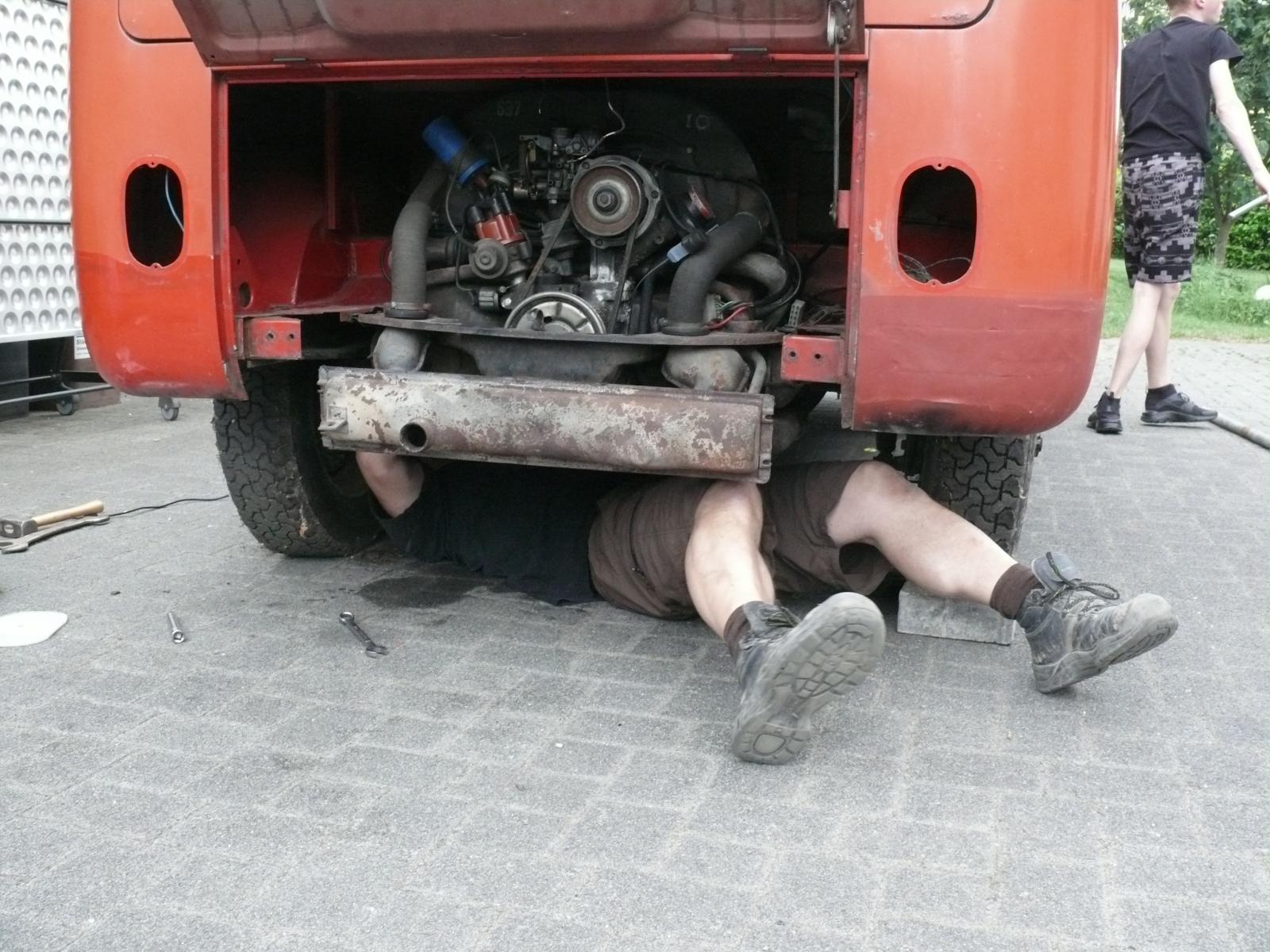

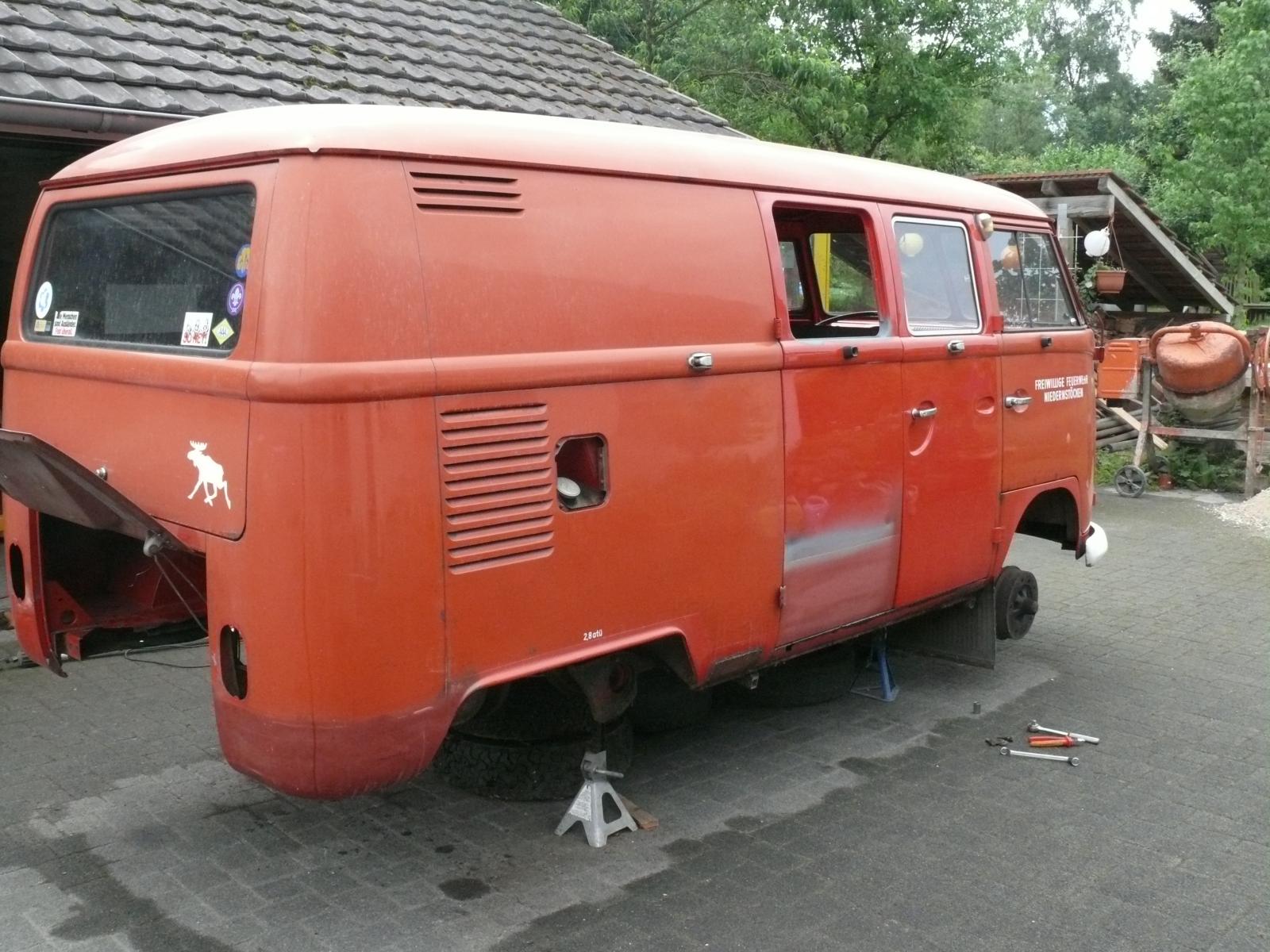

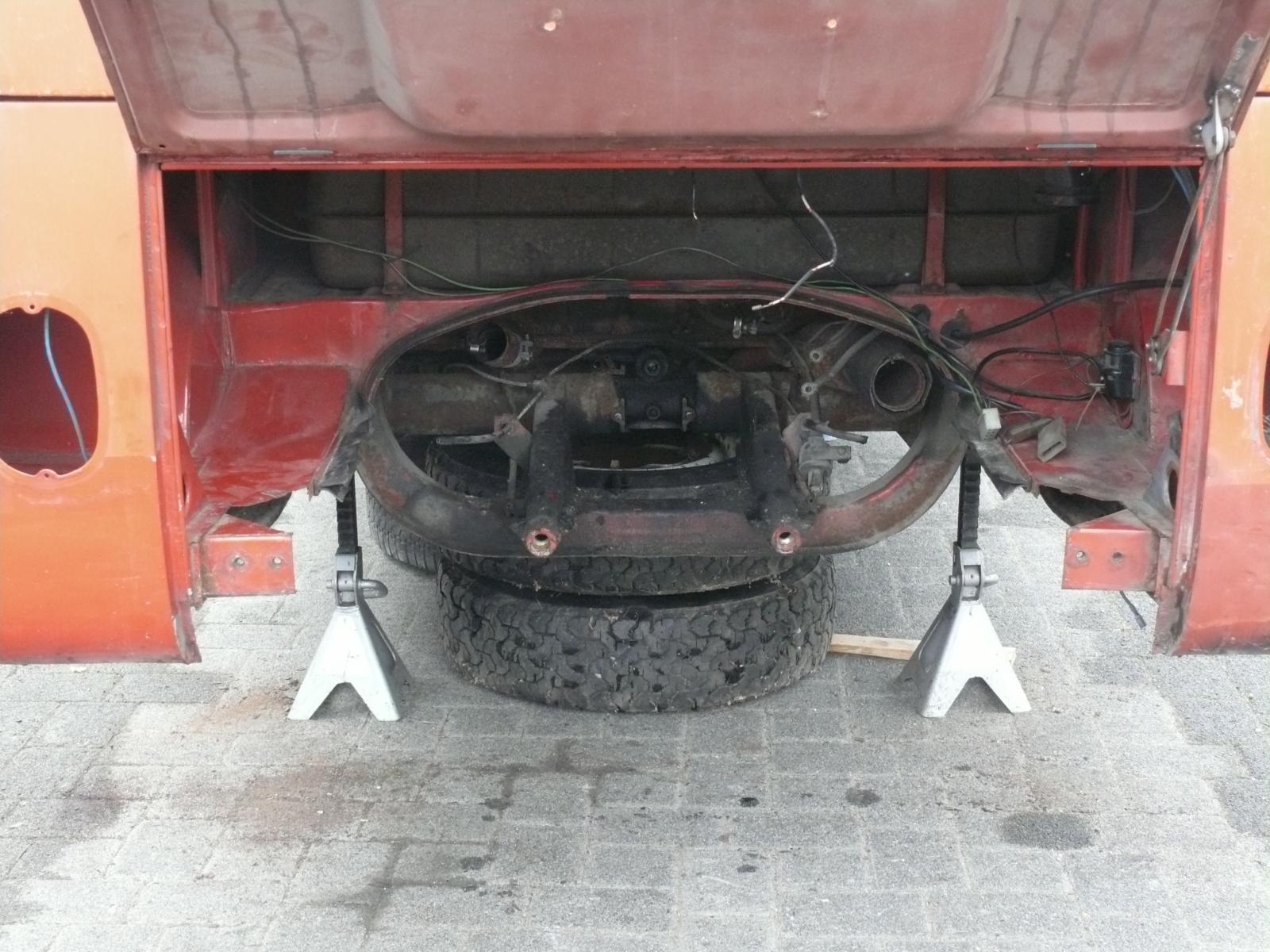

And a friend came to help me disassemble the van:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


To be continued ...
_________________
- Michael

Restoration of a former '65 firetruck (21F)


1988 Multivan Magnum 112i
2006 T5 (sold)
1986 Caravelle C (sold)
1987 Caravelle Coach (R.I.P)
1972 T2ab Bay Window (sold)
1965 21F
1971 & 1969 Variant LE (sold)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Skim
Rants Master


Joined: April 15, 2001
Posts: 16943
Location: GFK 27 Year Vet
Skim is offline

PostPosted: Sun Aug 05, 2018 1:51 am    Post subject: Re: Restauration of a former '65 firetruck (21F) Reply with quote

Wow. Such a cool story thanks for sharing it. I enjoyed the part you told about when you cut off the corners from a bus in a Sacramento junkyard. Or that bus at the San Jose Pick n Pull you snagged the cargo doors from. I remember that era well. A bus wouldn’t last 10 minutes at a P n P yard nowadays.
Look forward to the progress.
_________________
GFK
Samba since before the towers collapsed. Still here.

1954 Sunroof
1960 Lt Grey Double Cab SMZ LEGIT
1961 Deluxe SWR / BG 15 Window
1963 Deluxe Turkis Walk Thru 15 Window OG Paint
Back to top
View user's profile Send private message Visit poster's website Instagram Gallery Classifieds Feedback
mdege
Samba Member


Joined: January 16, 2018
Posts: 289
Location: Niederkruechten, Germany
mdege is offline

PostPosted: Fri Aug 10, 2018 1:22 pm    Post subject: Re: Restauration of a former '65 firetruck (21F) Reply with quote

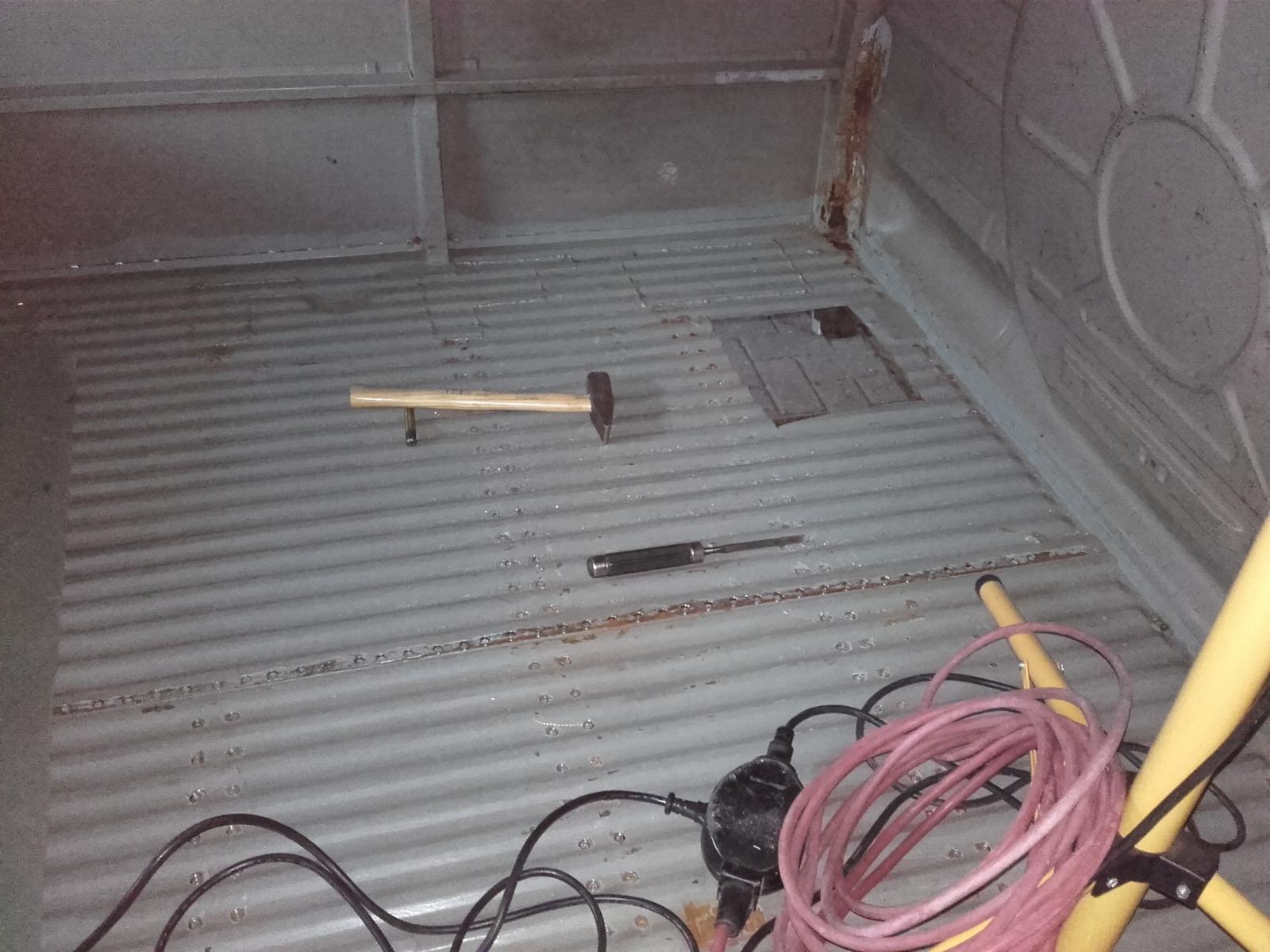

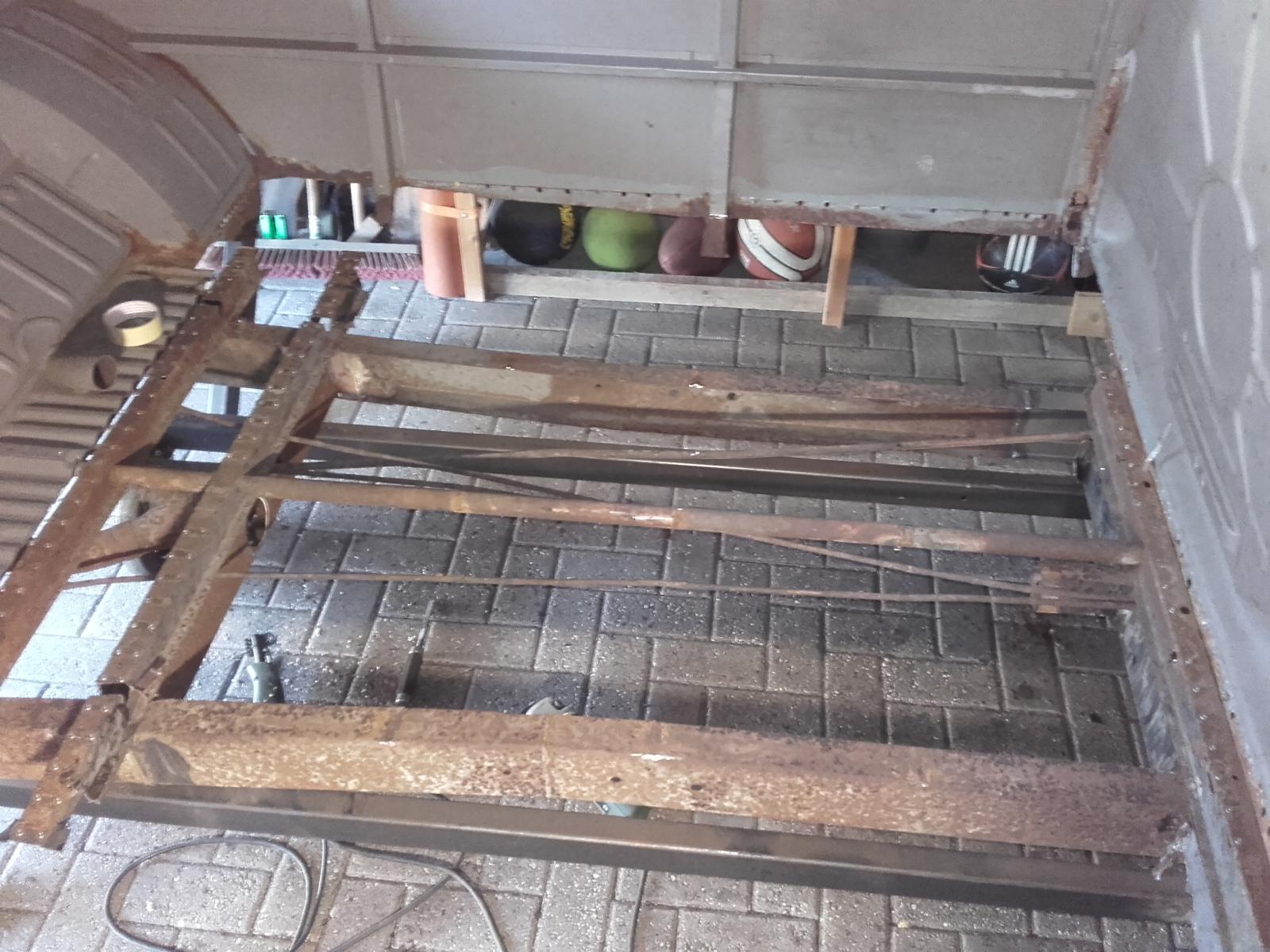

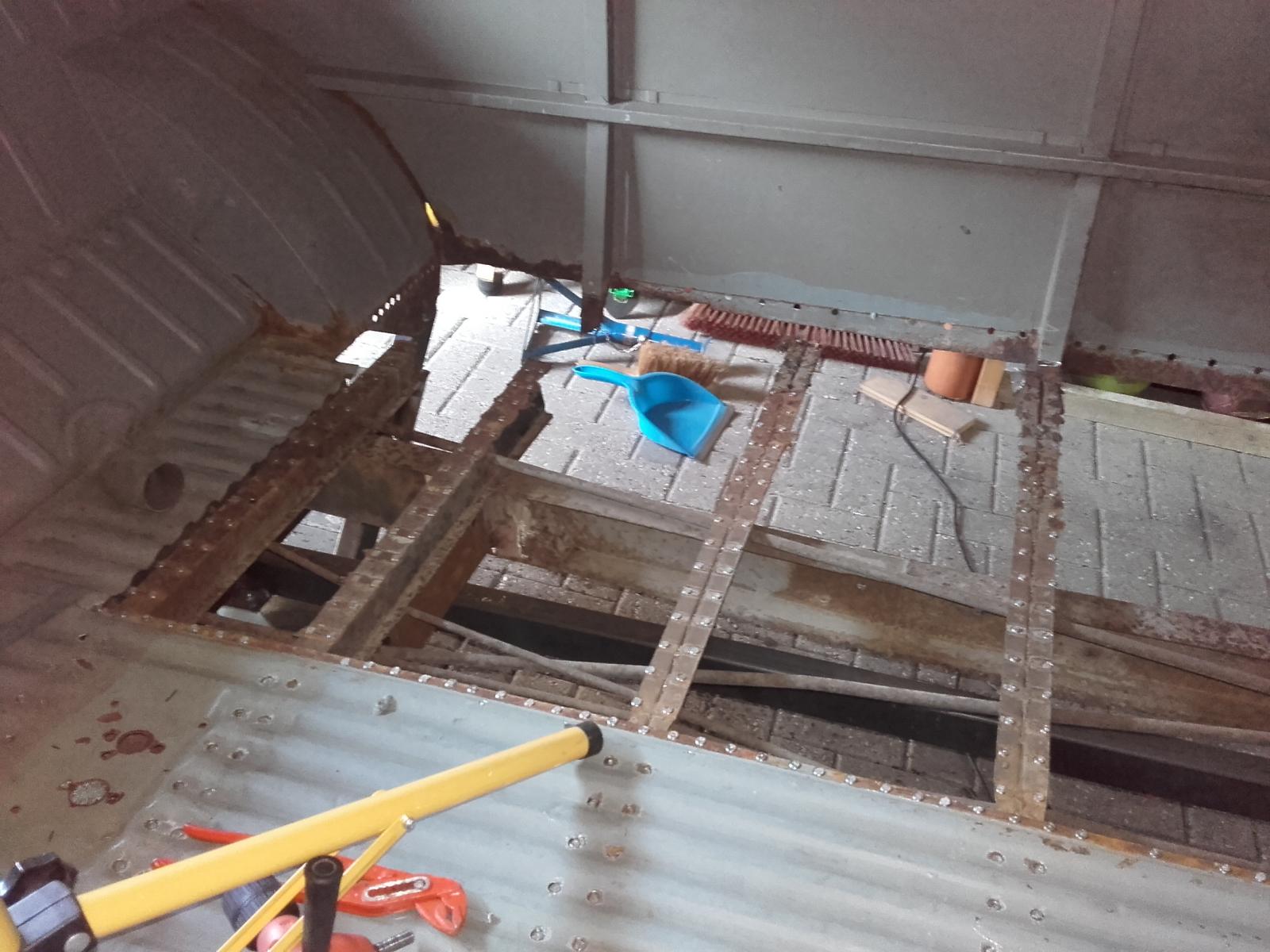

Next I continued to remove the cargo floor and the sub-frame members underneath. First I drilled out all of the spot-welds I could get at
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Left side is out:
Image may have been reduced in size. Click image to view fullscreen.

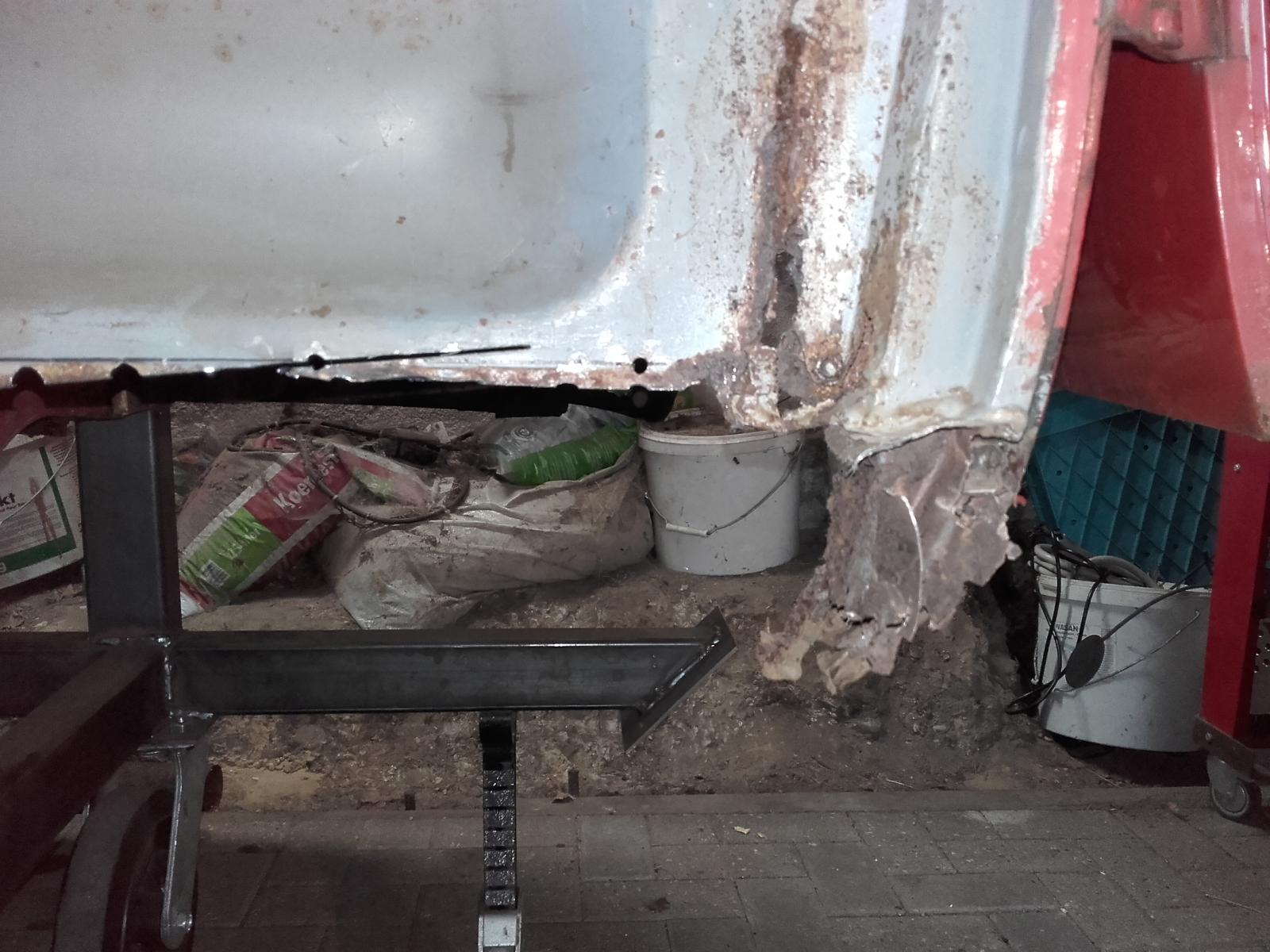

Both sides gone:
Image may have been reduced in size. Click image to view fullscreen.

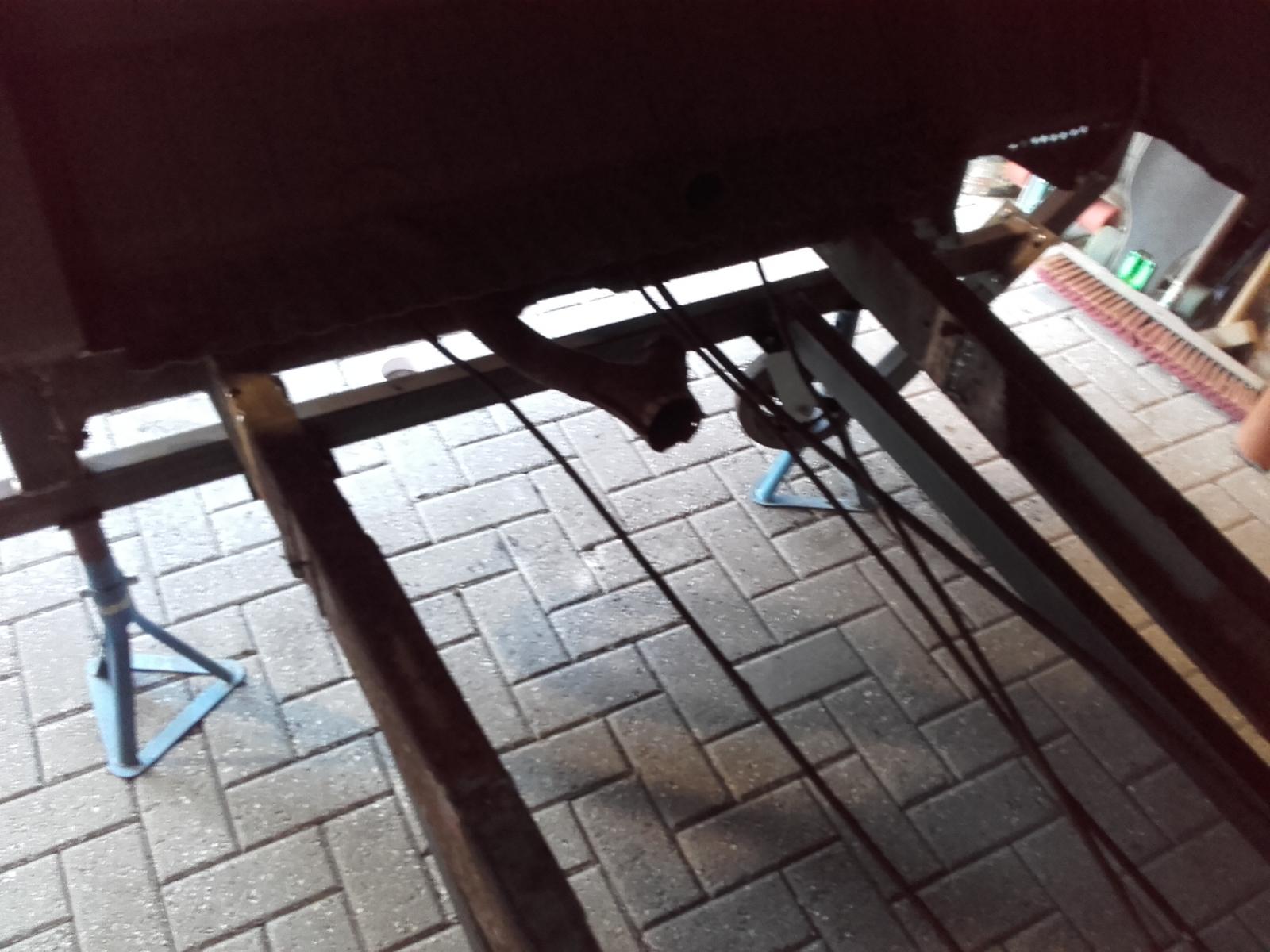

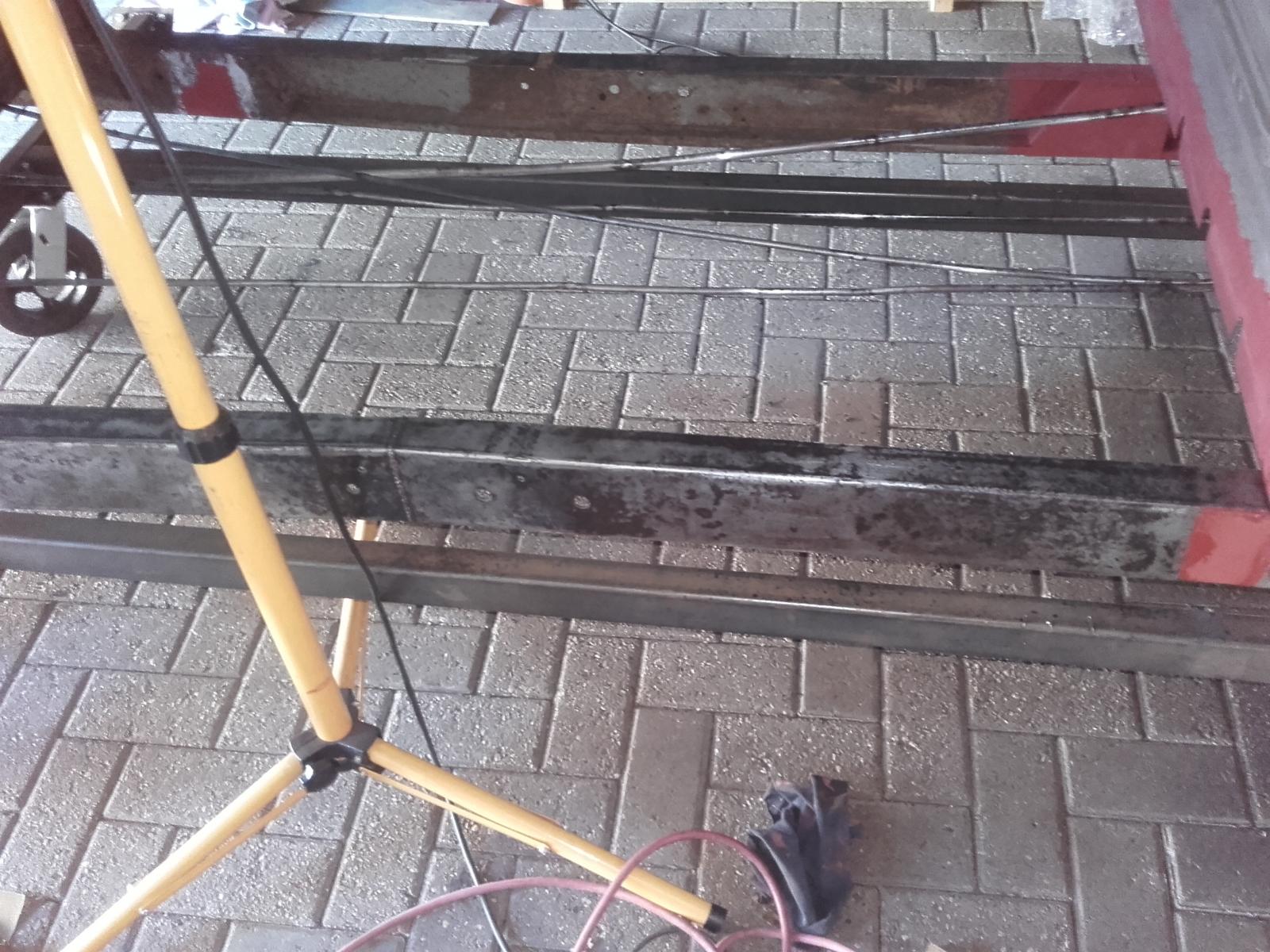

sub-frame members removed
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

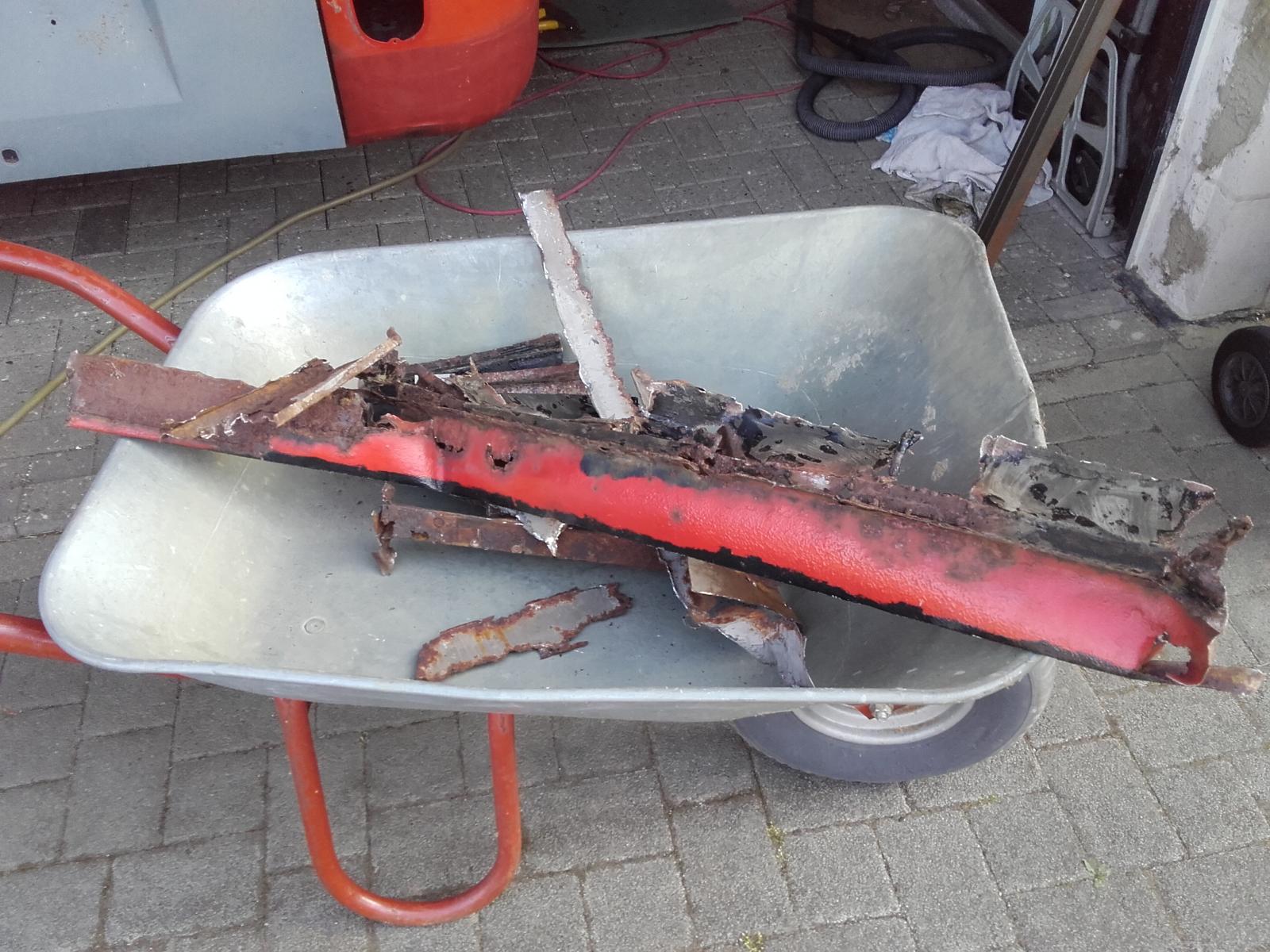

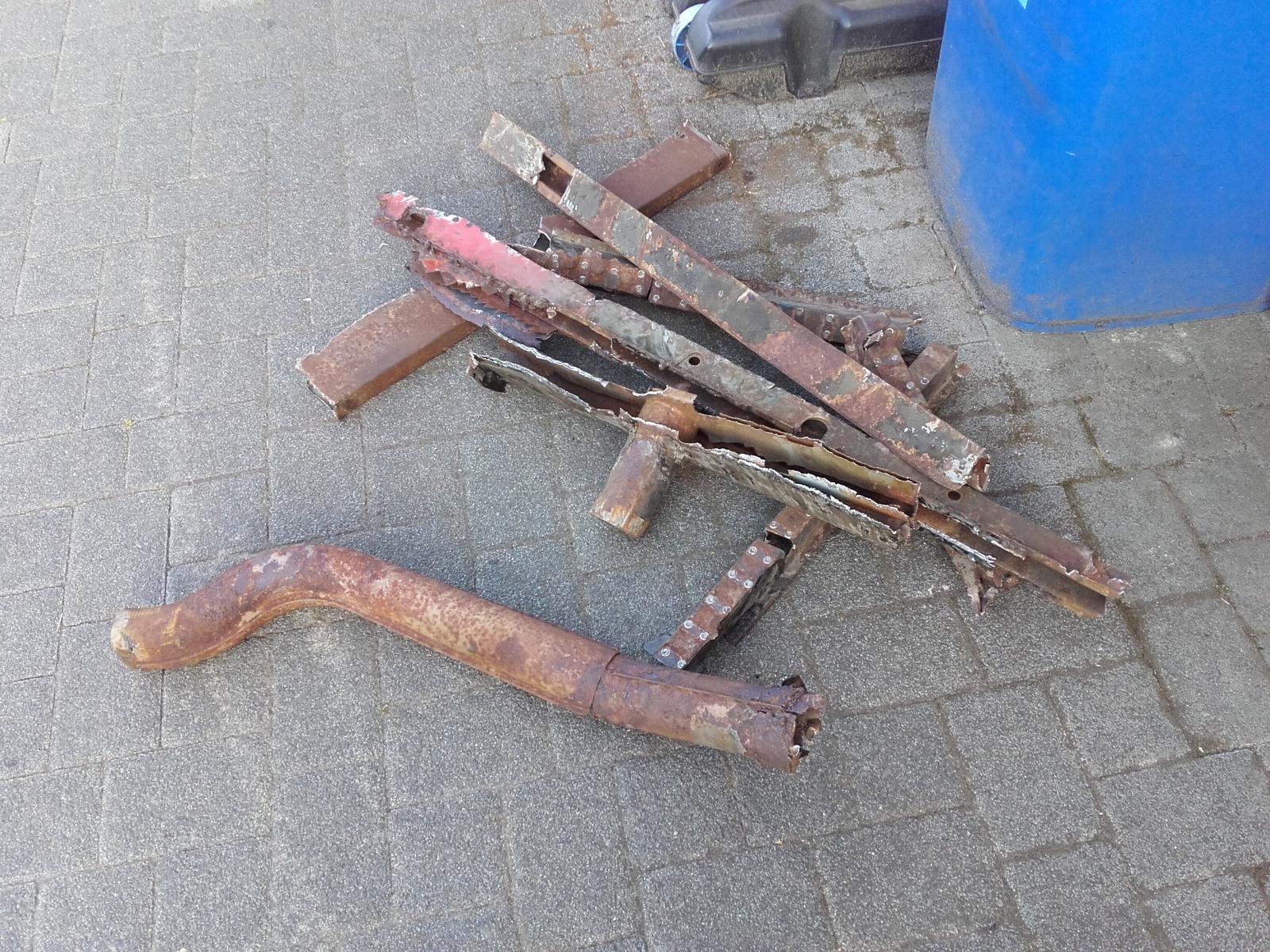

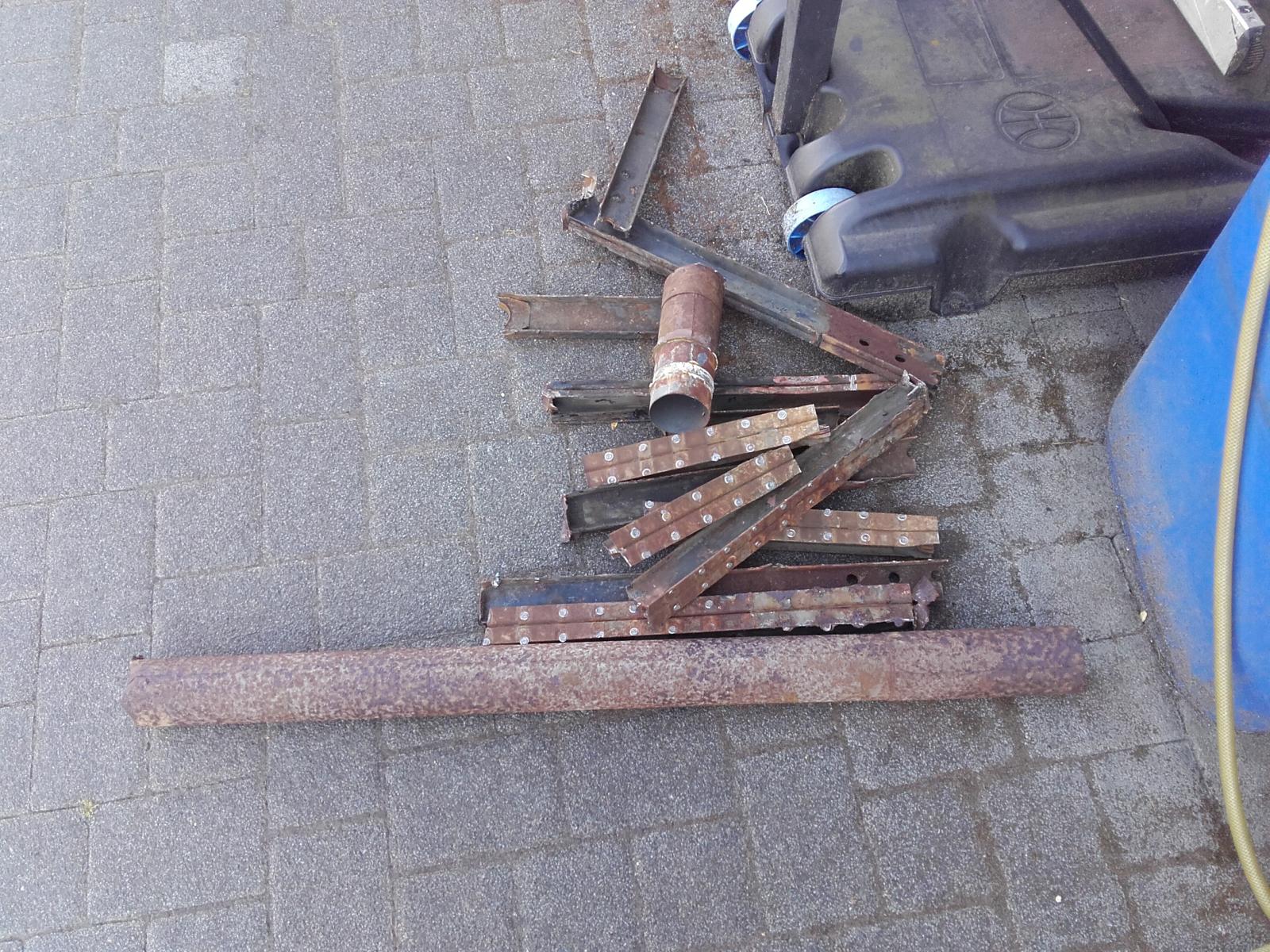

scrap:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

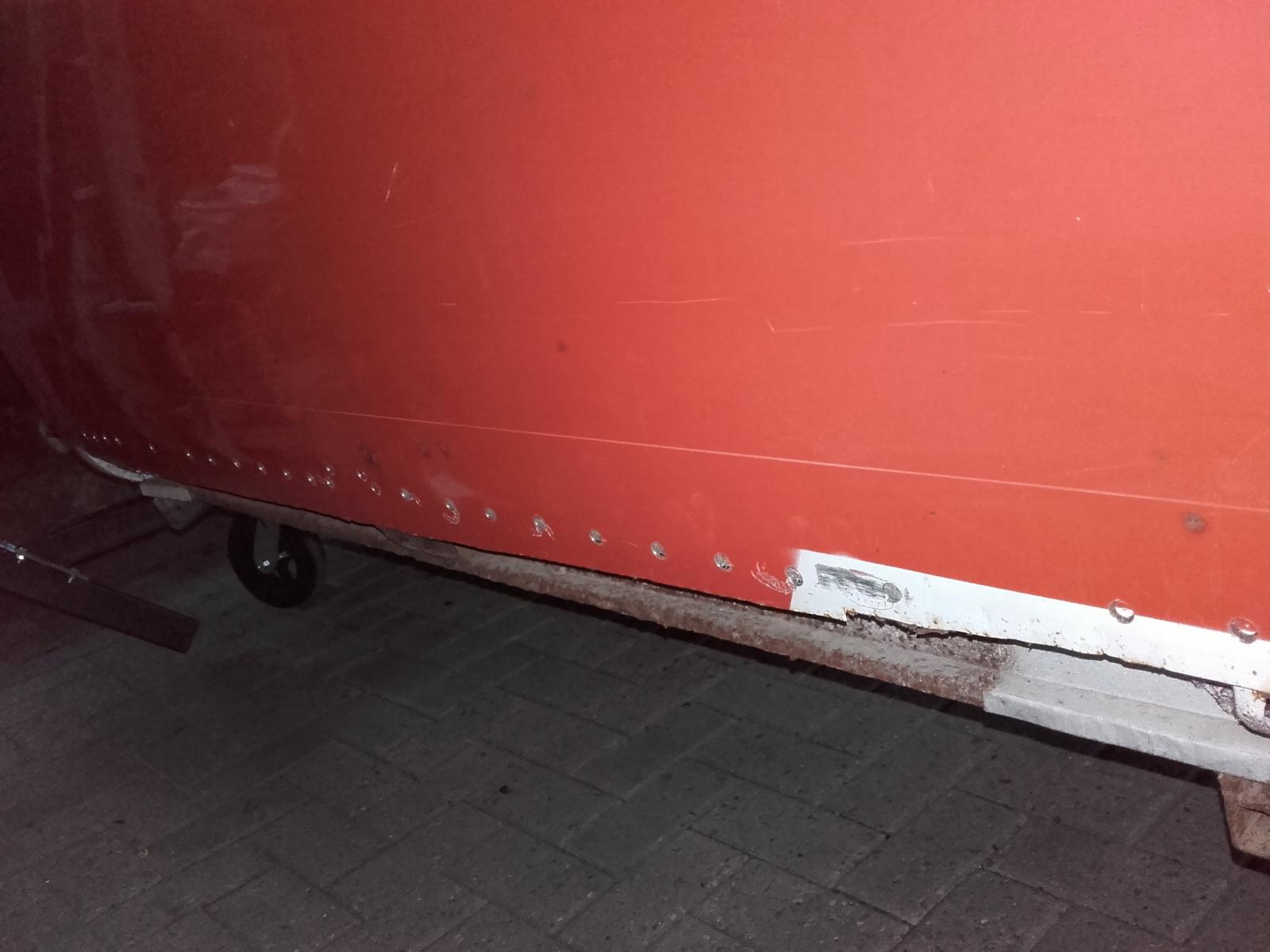

[removed the right rocker:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

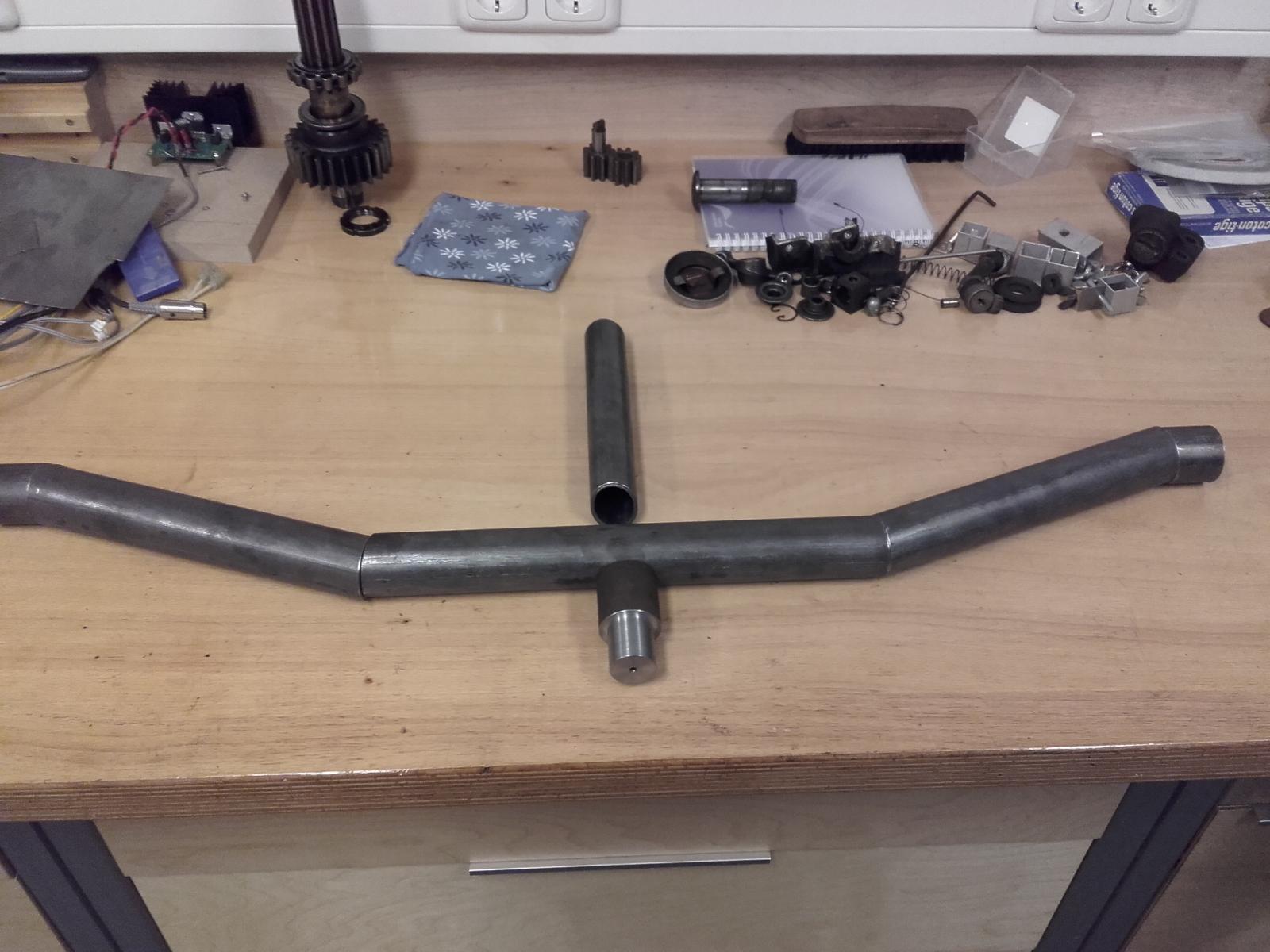

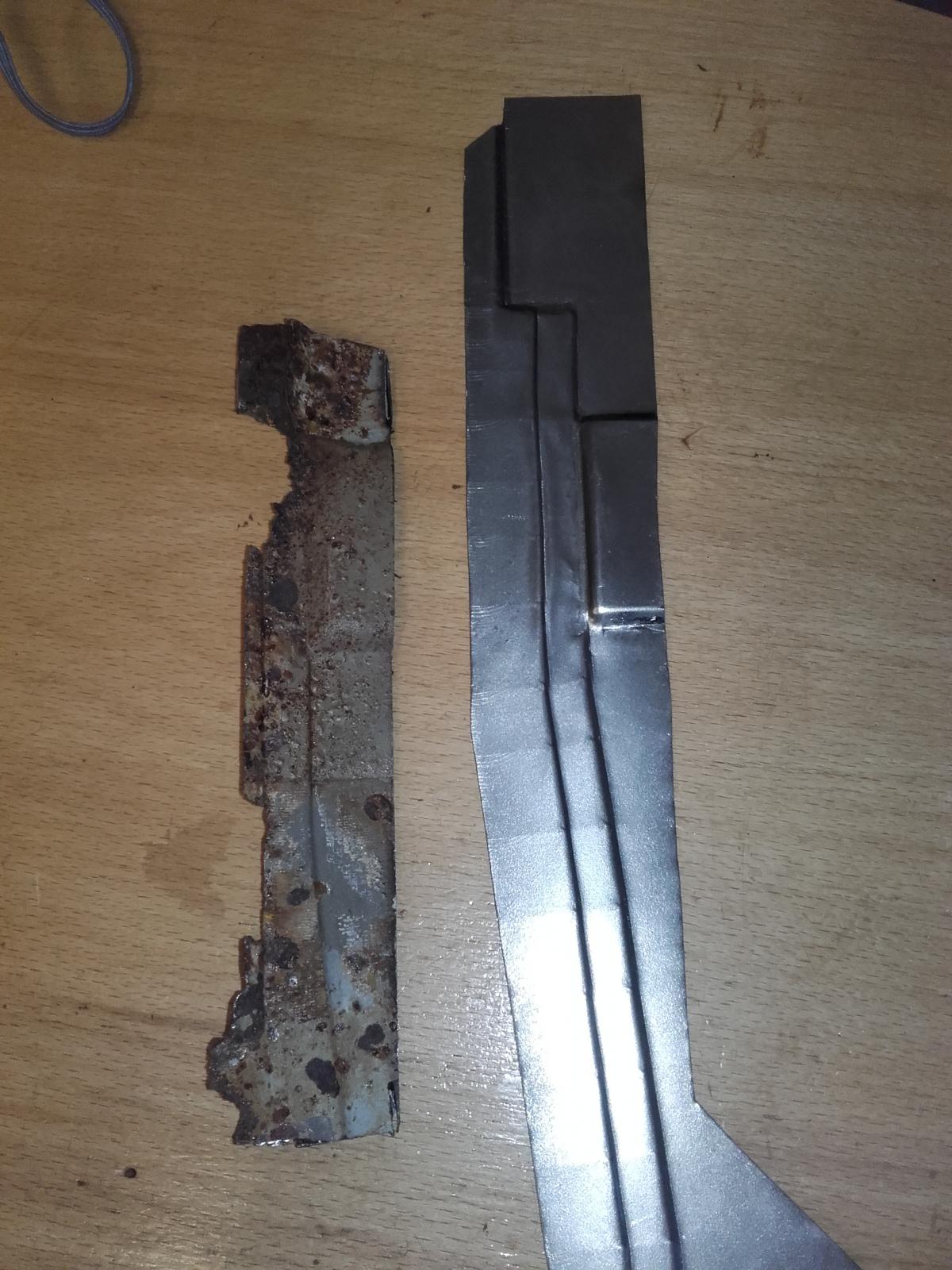

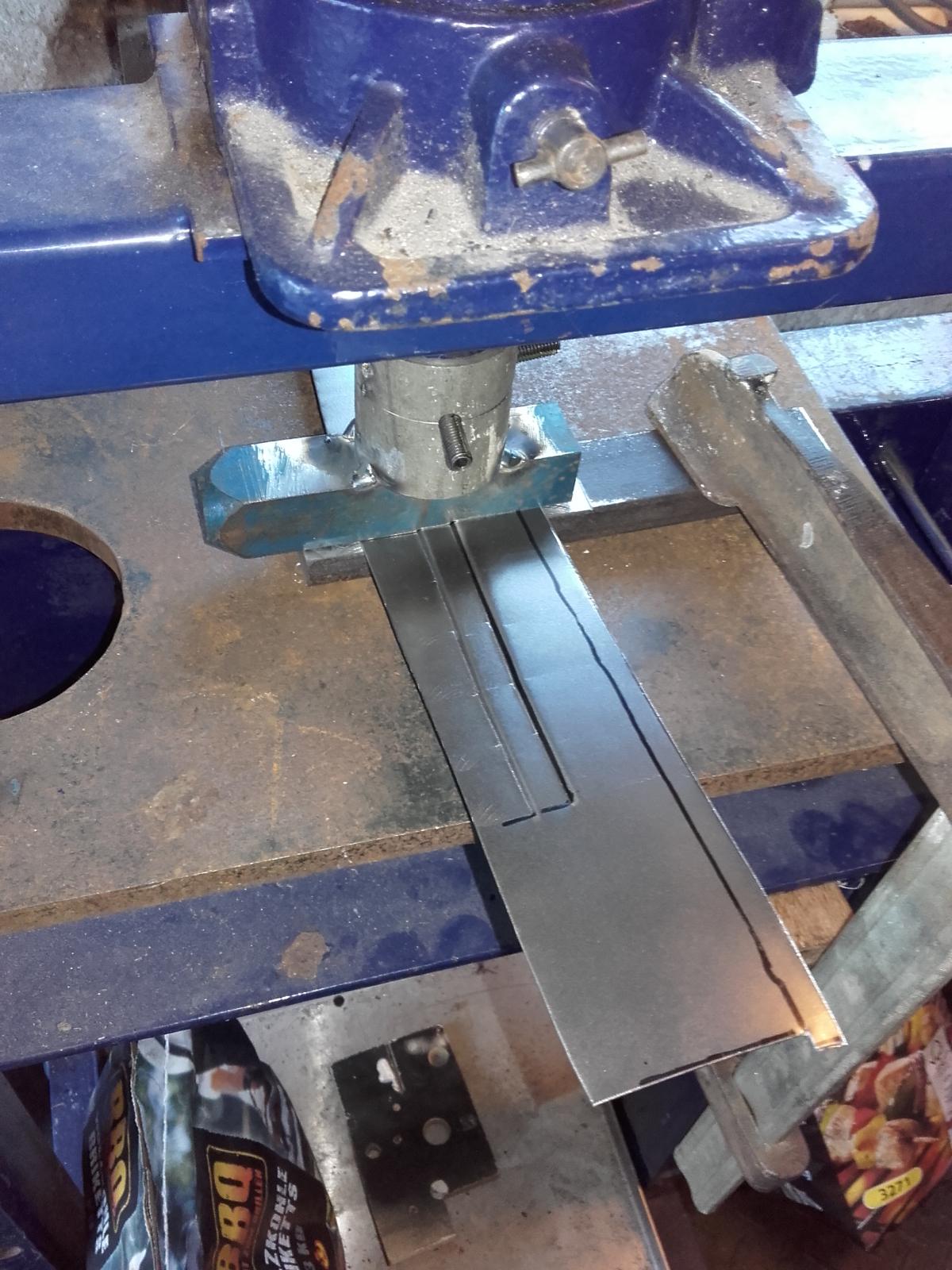

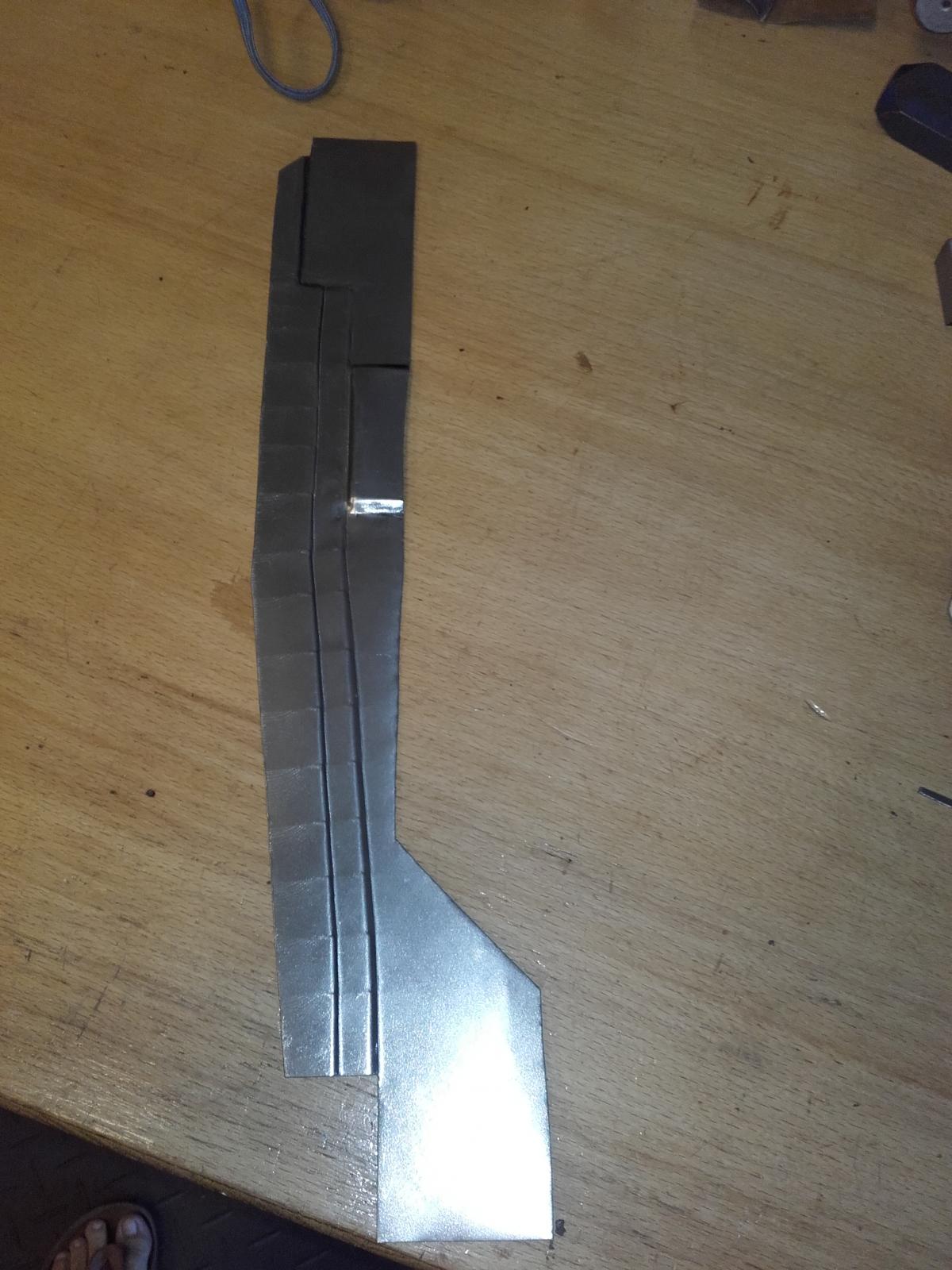

I also made some new parts.
Lower sections of the rear wheel arches and the lower section of the left hand side pillars:
Image may have been reduced in size. Click image to view fullscreen.

Lower section of the left B-pillar:
Image may have been reduced in size. Click image to view fullscreen.

_________________
- Michael

Restoration of a former '65 firetruck (21F)


1988 Multivan Magnum 112i
2006 T5 (sold)
1986 Caravelle C (sold)
1987 Caravelle Coach (R.I.P)
1972 T2ab Bay Window (sold)
1965 21F
1971 & 1969 Variant LE (sold)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mdege
Samba Member


Joined: January 16, 2018
Posts: 289
Location: Niederkruechten, Germany
mdege is offline

PostPosted: Sun Aug 19, 2018 1:43 am    Post subject: Re: Restauration of a former '65 firetruck (21F) Reply with quote

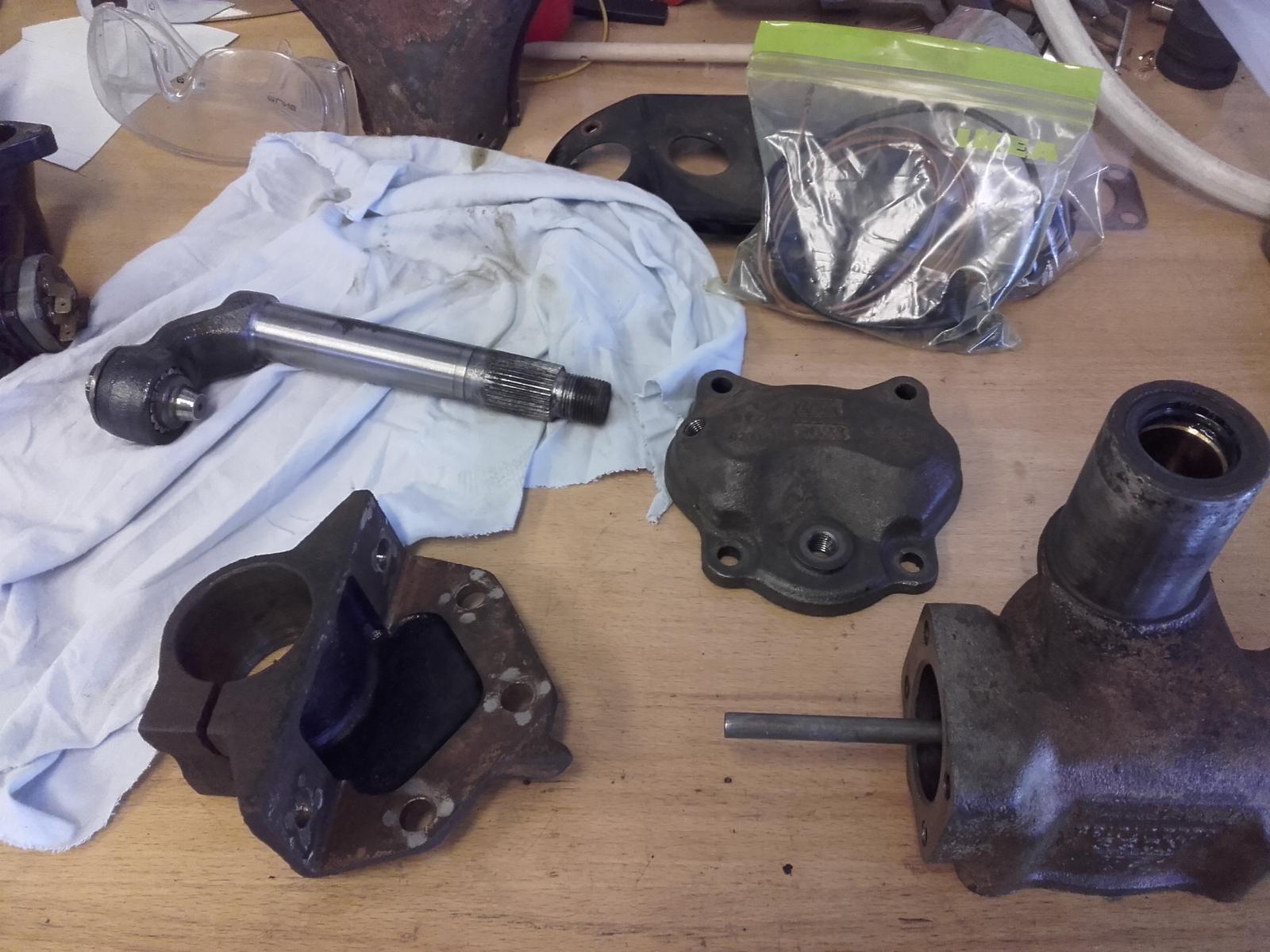

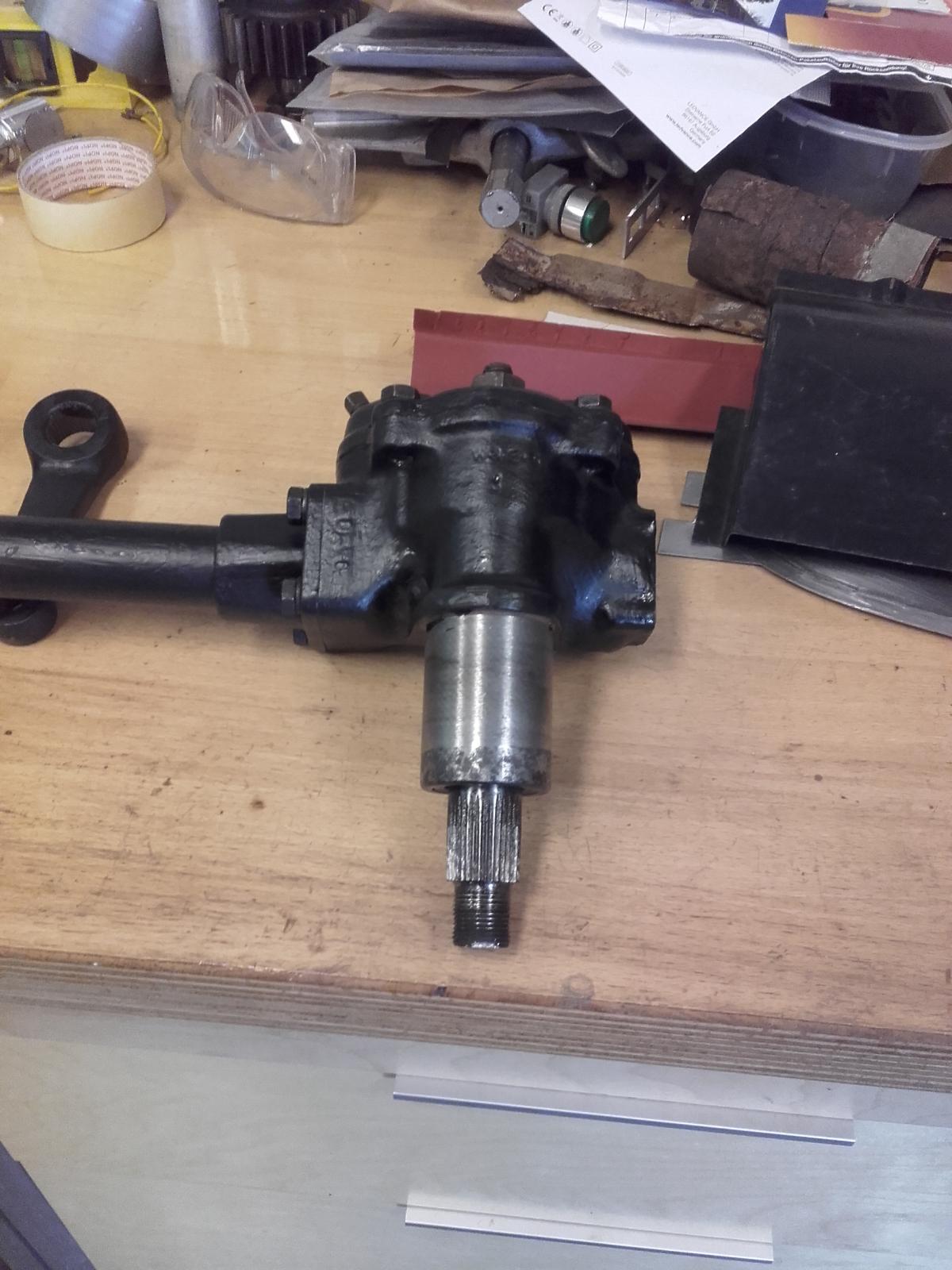

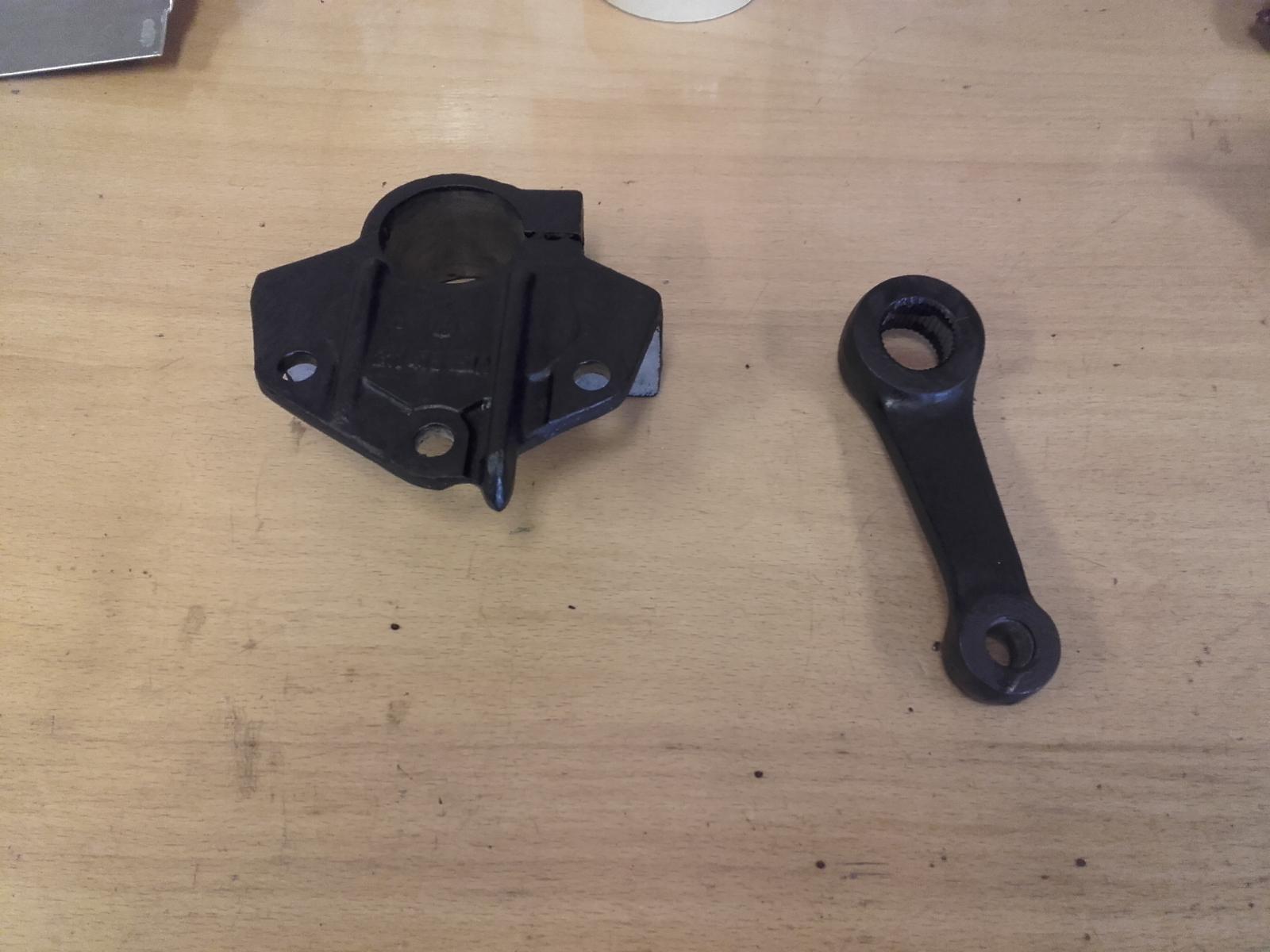

I finally pulled the steering box from the car and cleaned it up.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

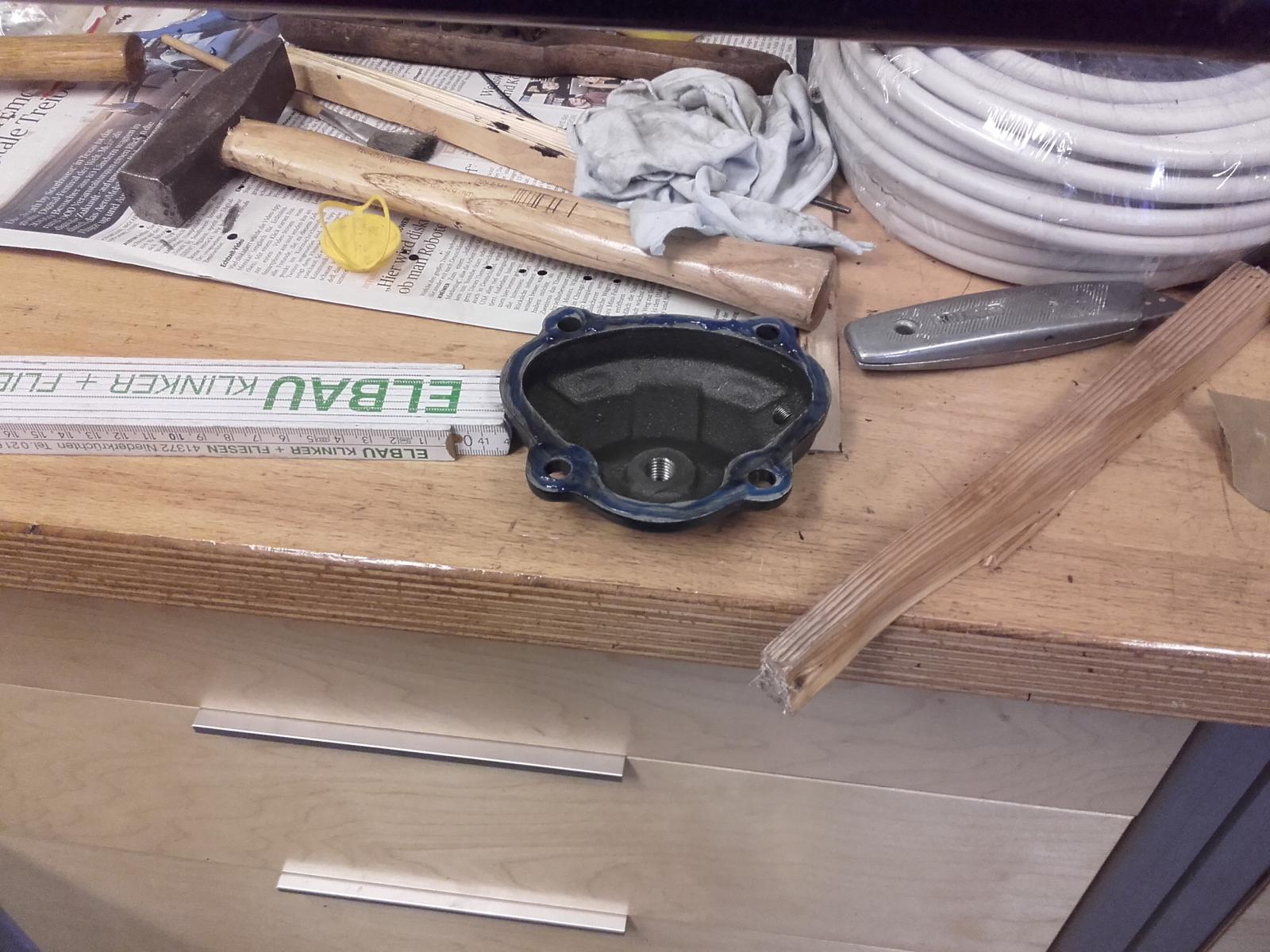

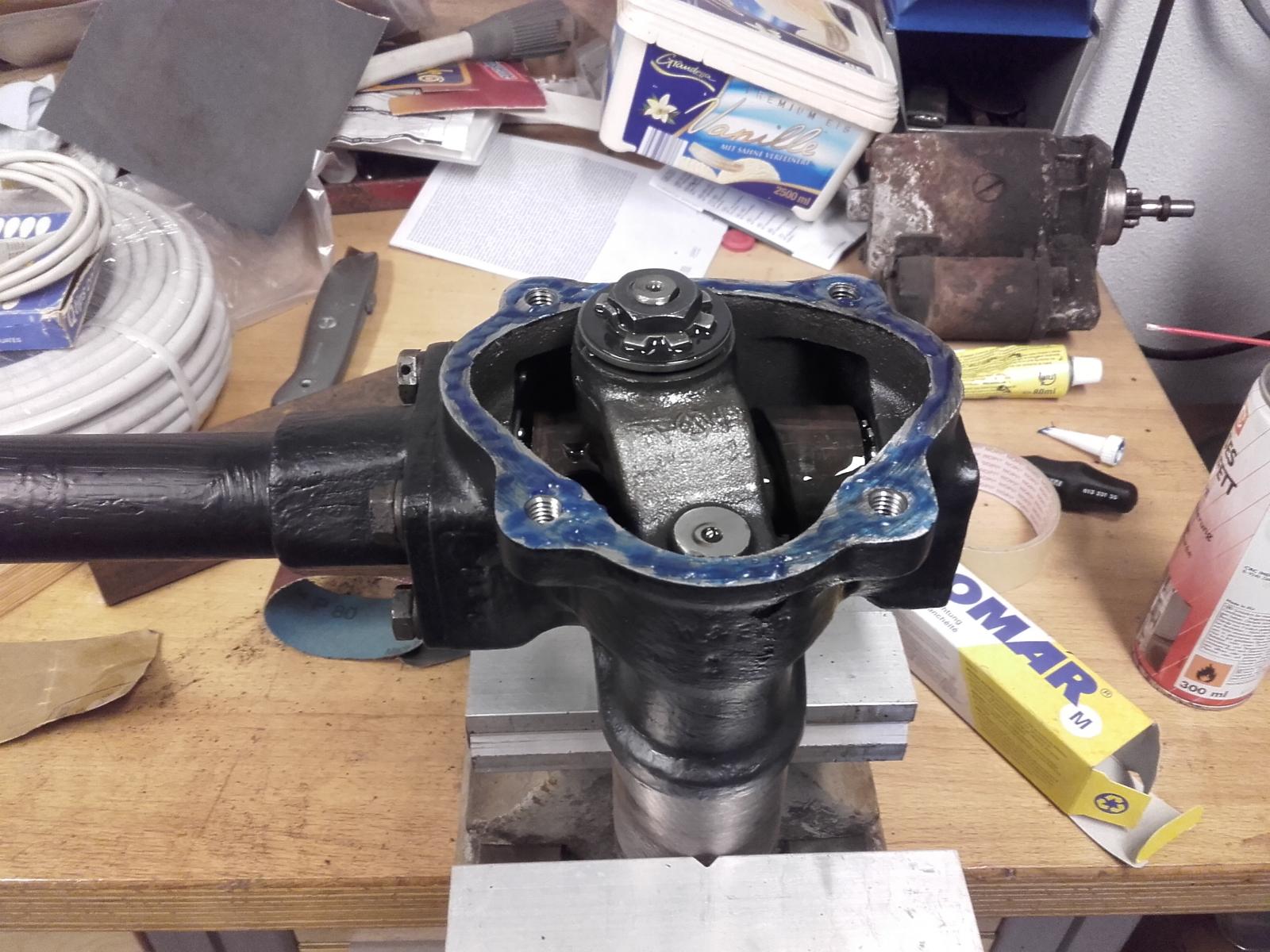

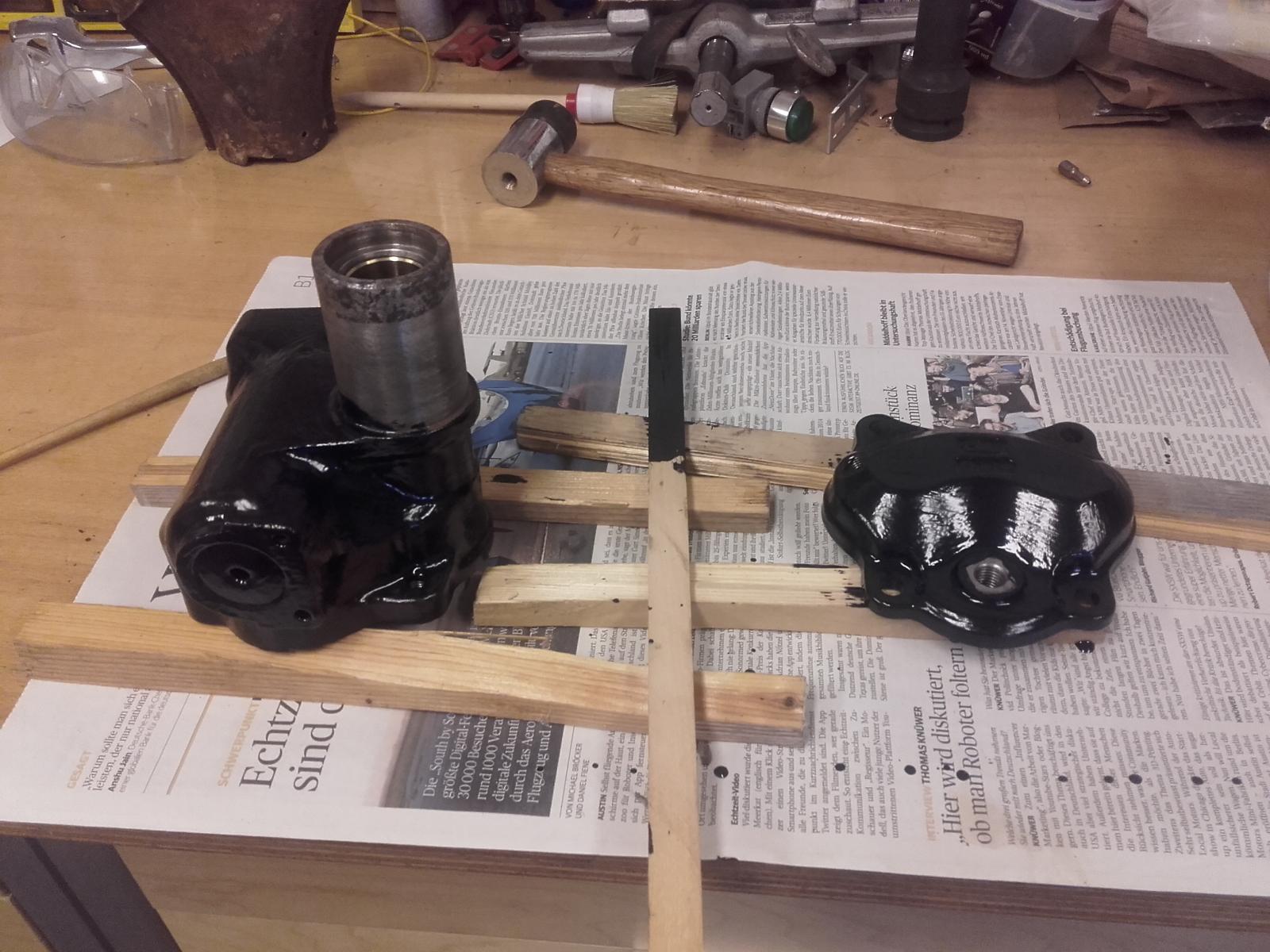

It hat virtually no wear, therefore I just cleaned it and repainted the part which is under the car. I haven't decided whether I will repaint all of it.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
- Michael

Restoration of a former '65 firetruck (21F)


1988 Multivan Magnum 112i
2006 T5 (sold)
1986 Caravelle C (sold)
1987 Caravelle Coach (R.I.P)
1972 T2ab Bay Window (sold)
1965 21F
1971 & 1969 Variant LE (sold)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mdege
Samba Member


Joined: January 16, 2018
Posts: 289
Location: Niederkruechten, Germany
mdege is offline

PostPosted: Sun Aug 19, 2018 1:53 am    Post subject: Re: Restauration of a former '65 firetruck (21F) Reply with quote

I continued the work on the sheet metal too.

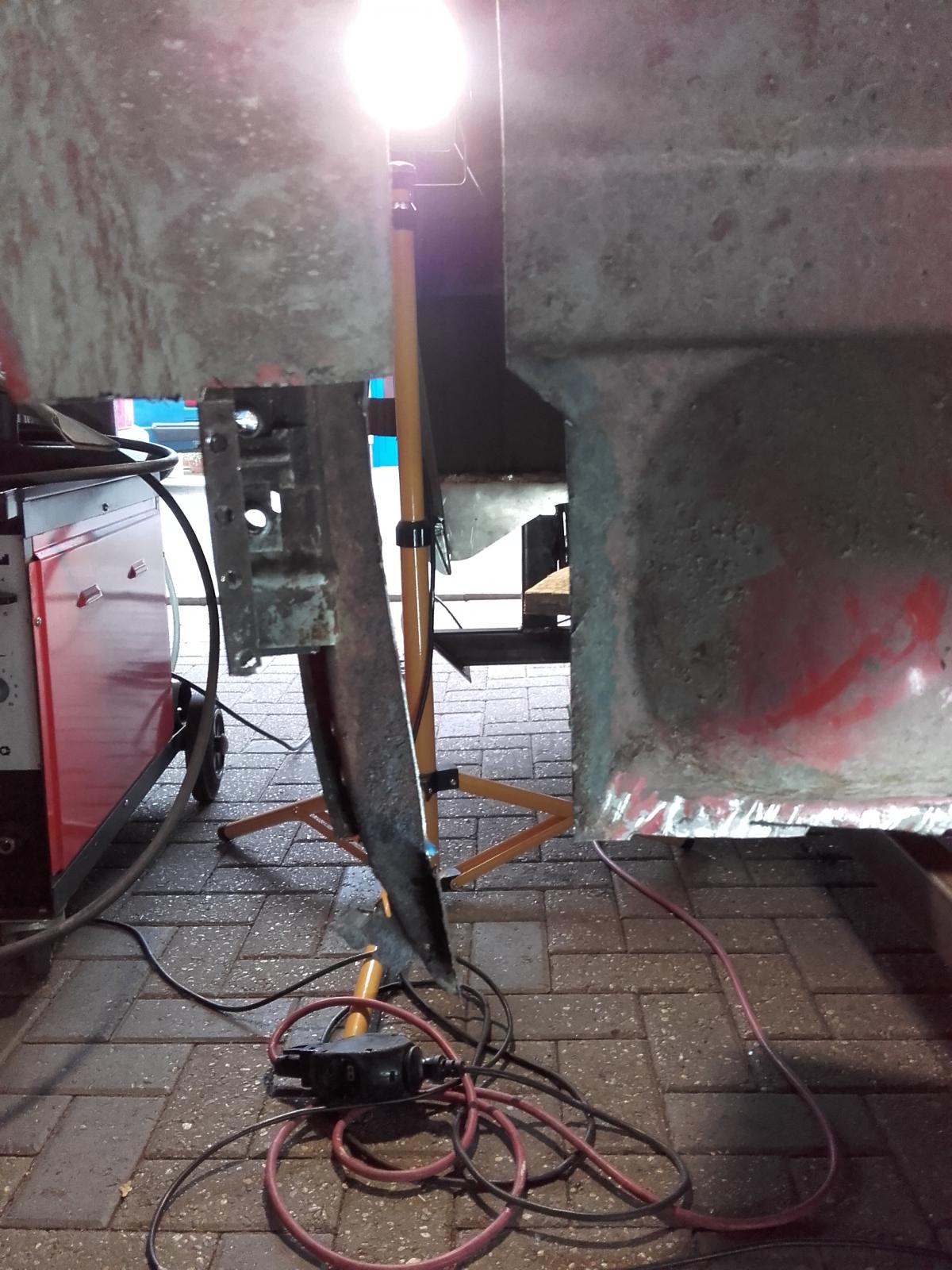

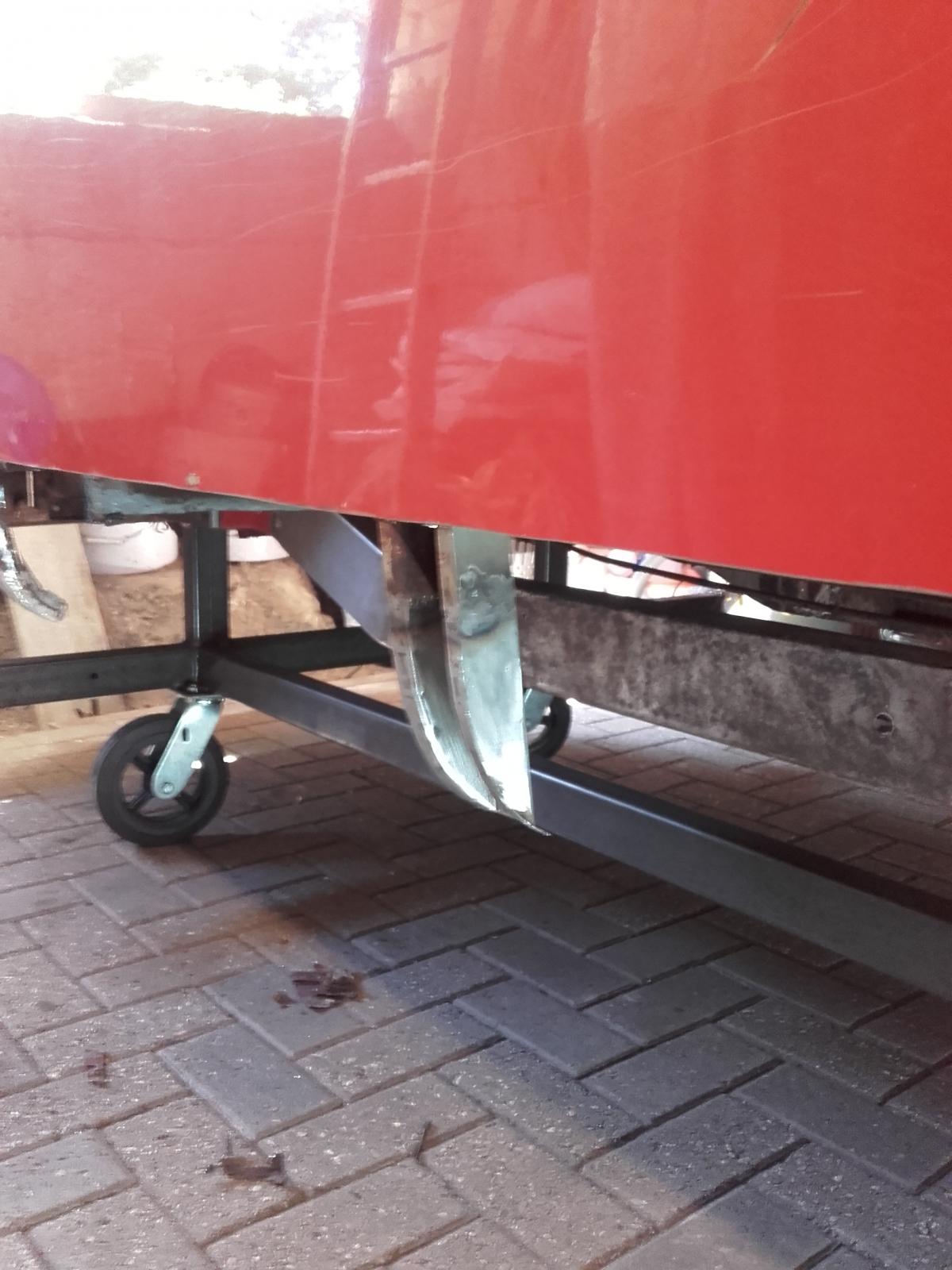

Her I pulled the car out from the garage, because I had to raise it up to pull out the steering box.
Image may have been reduced in size. Click image to view fullscreen.

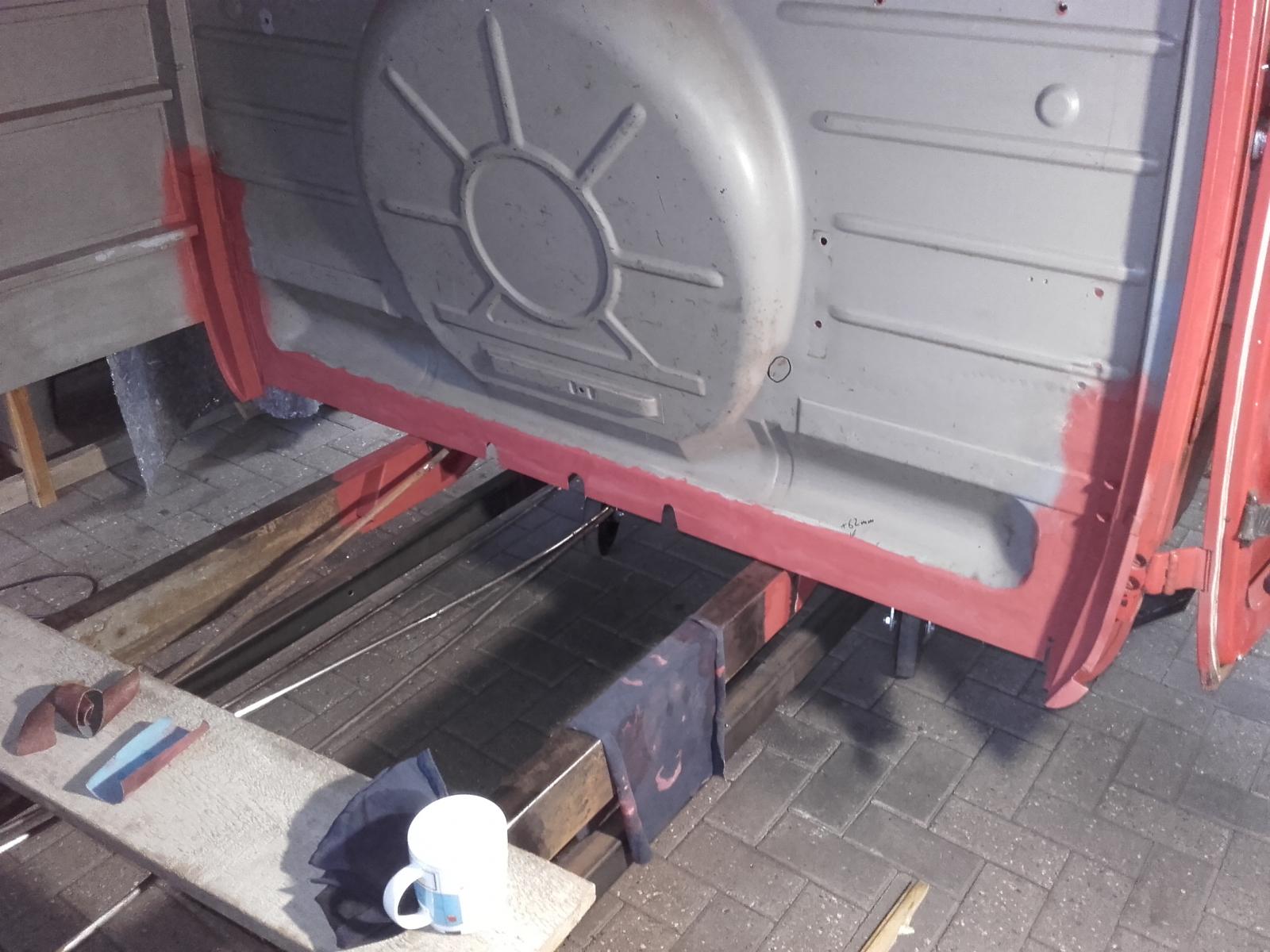

Lower sections of the wheelwells are done:
Image may have been reduced in size. Click image to view fullscreen.

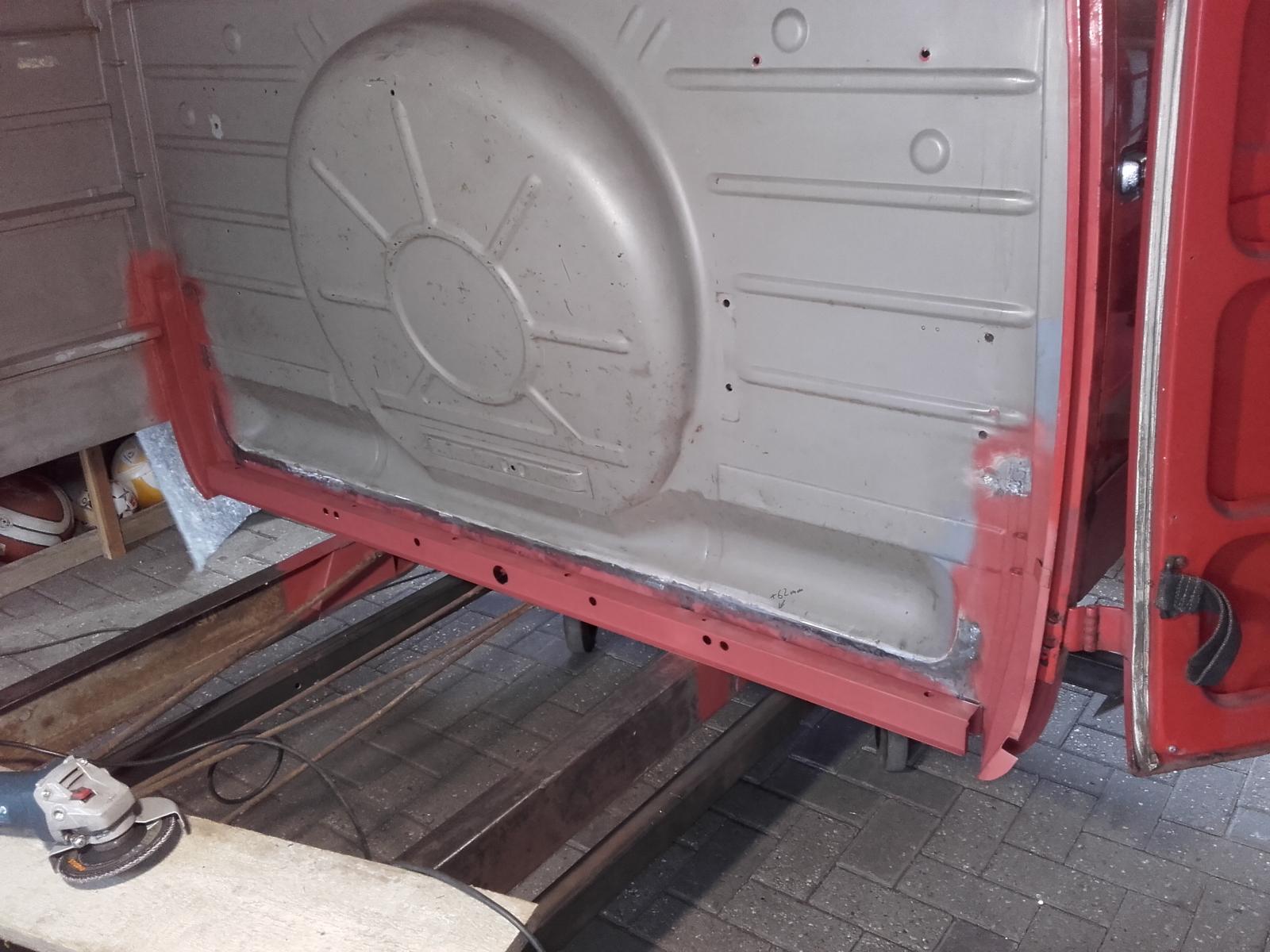

And also the lower parts here:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

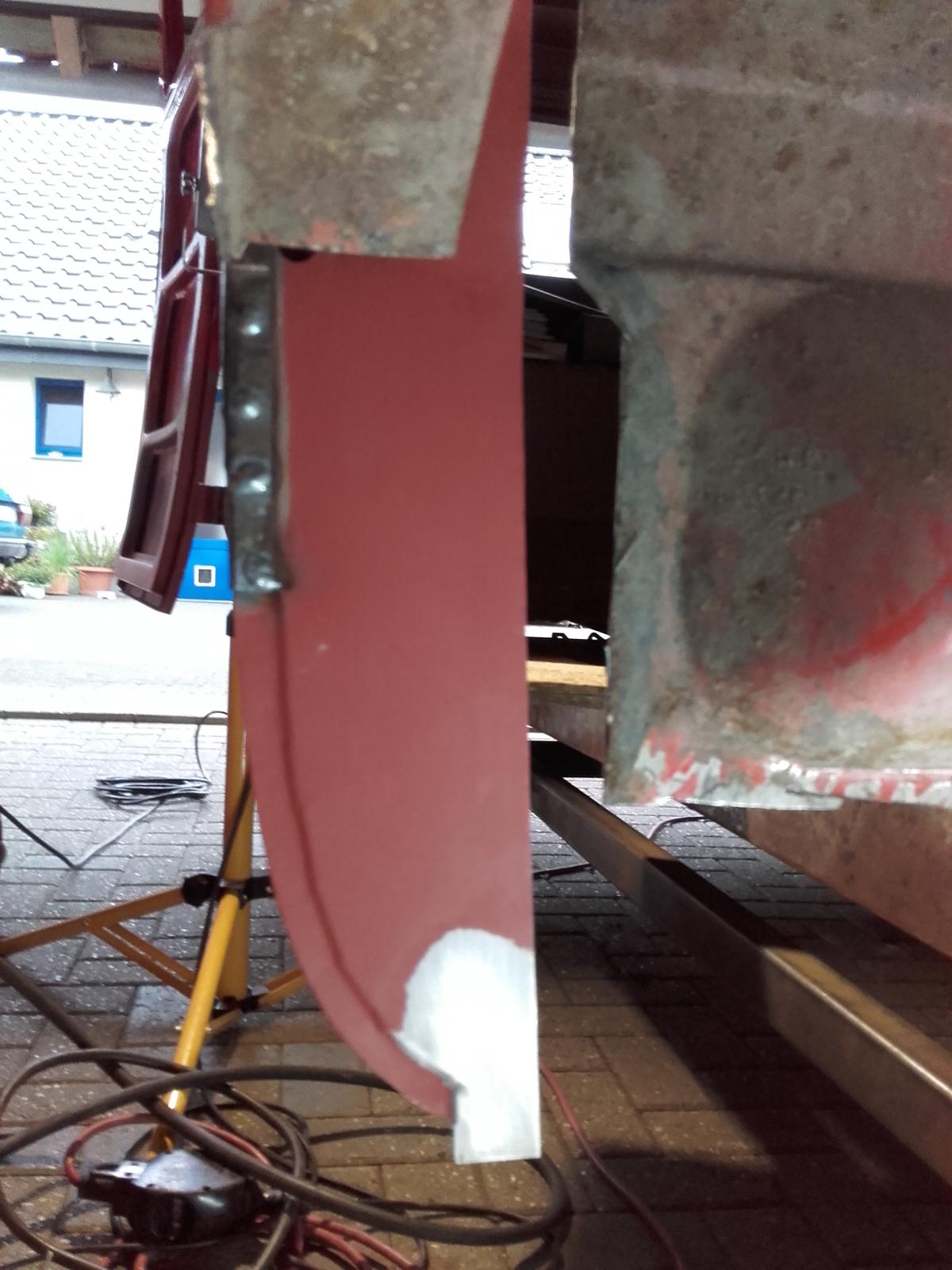

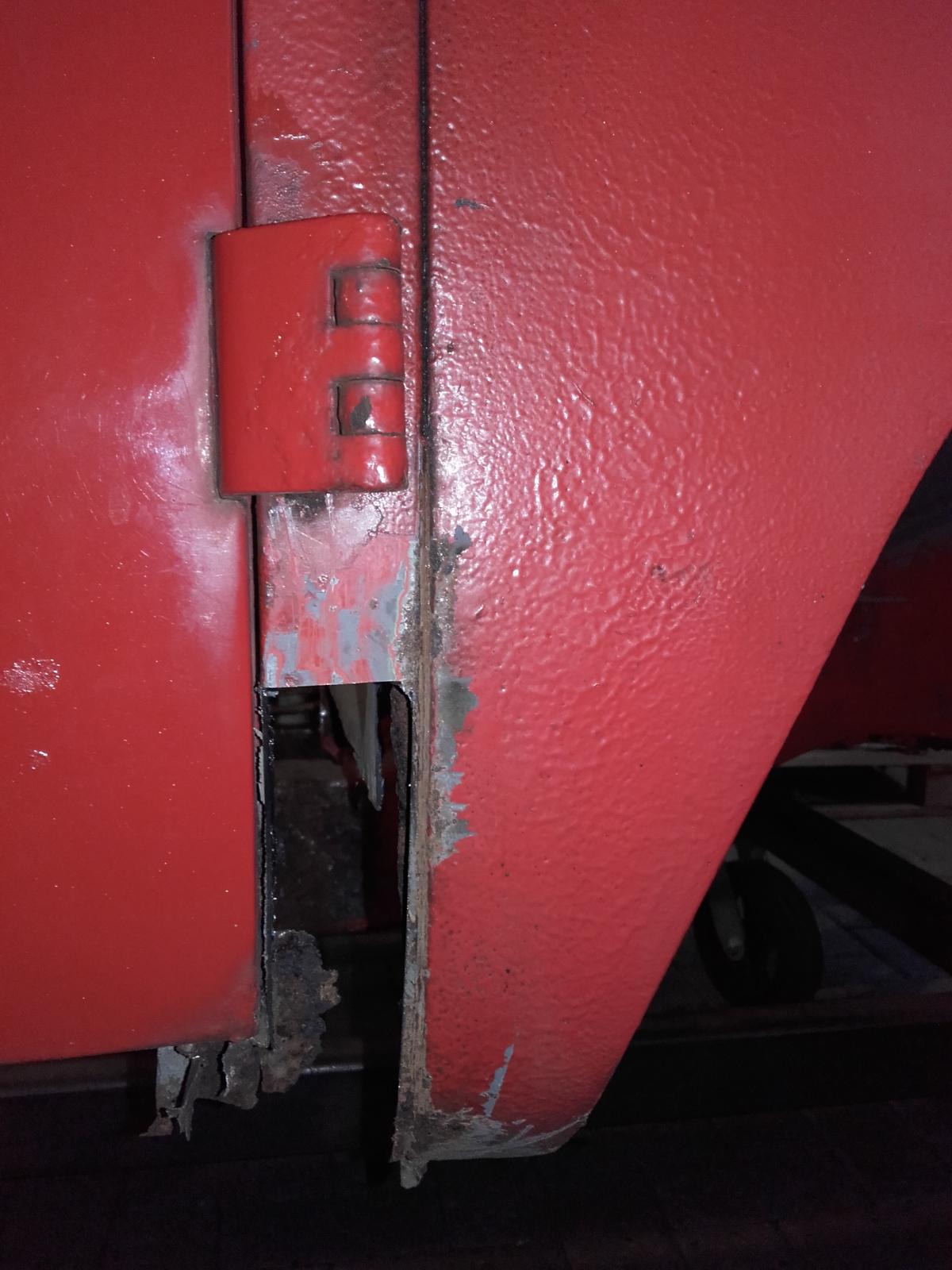

Next up is the left B-pillar:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

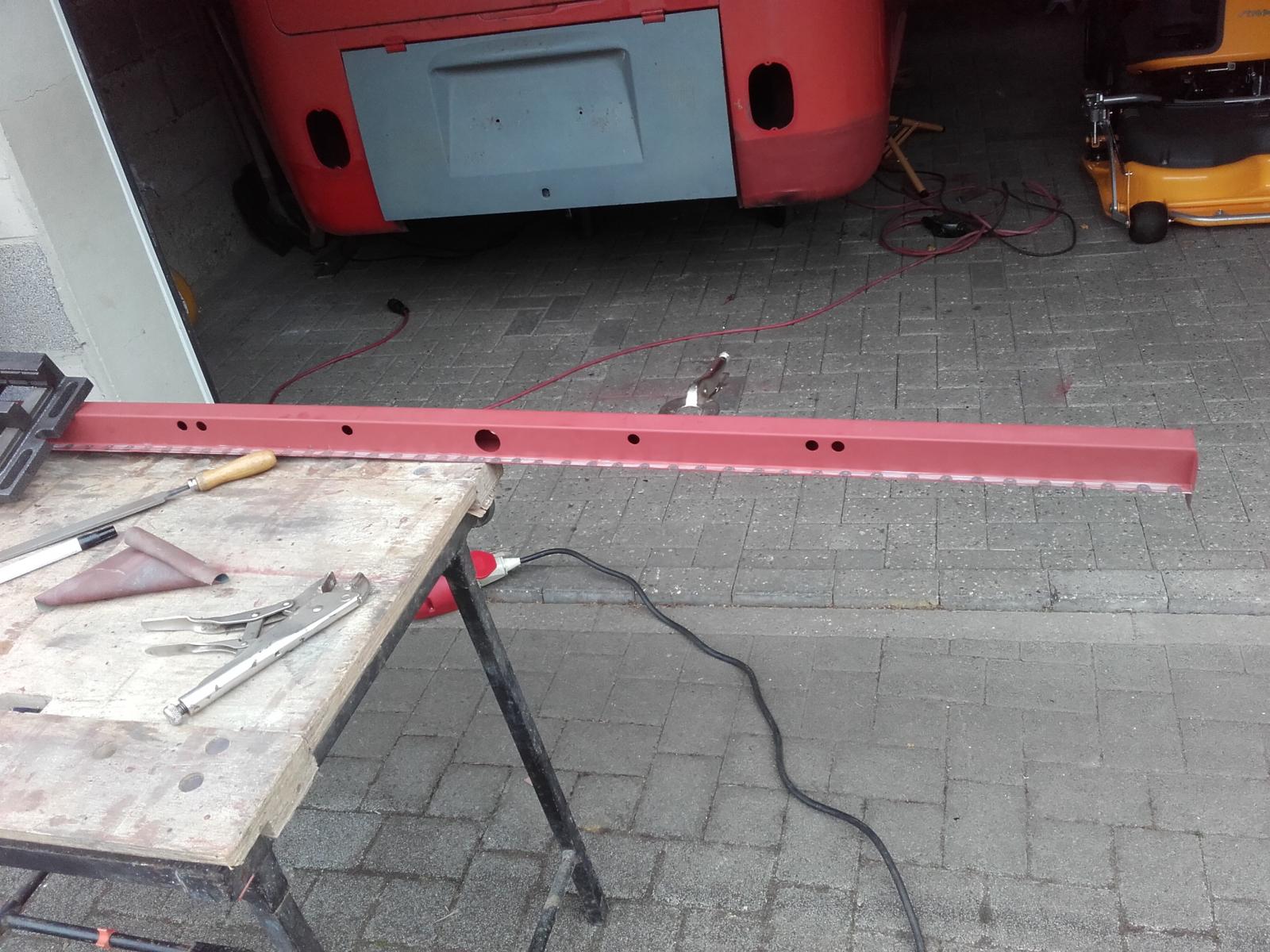

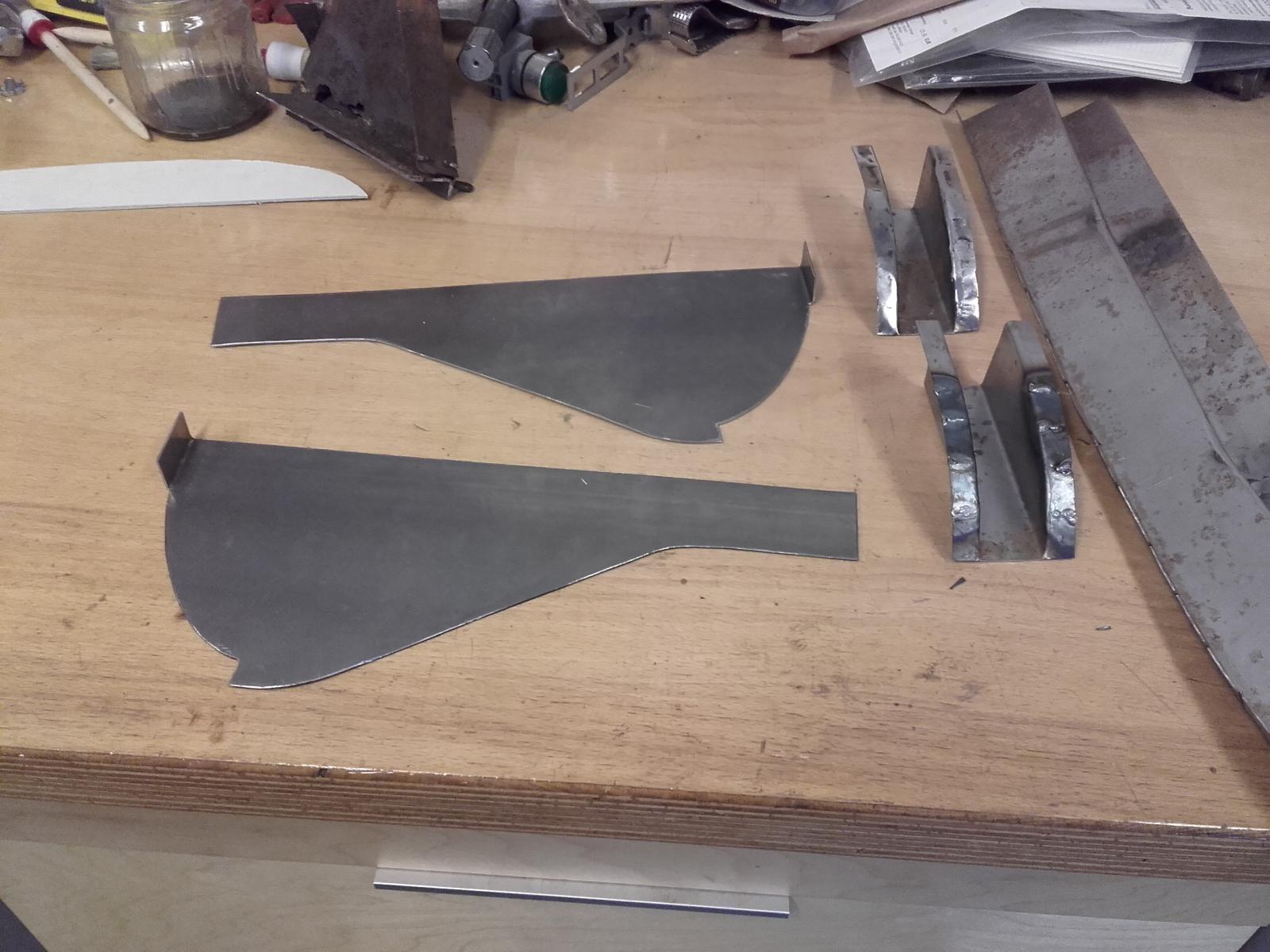

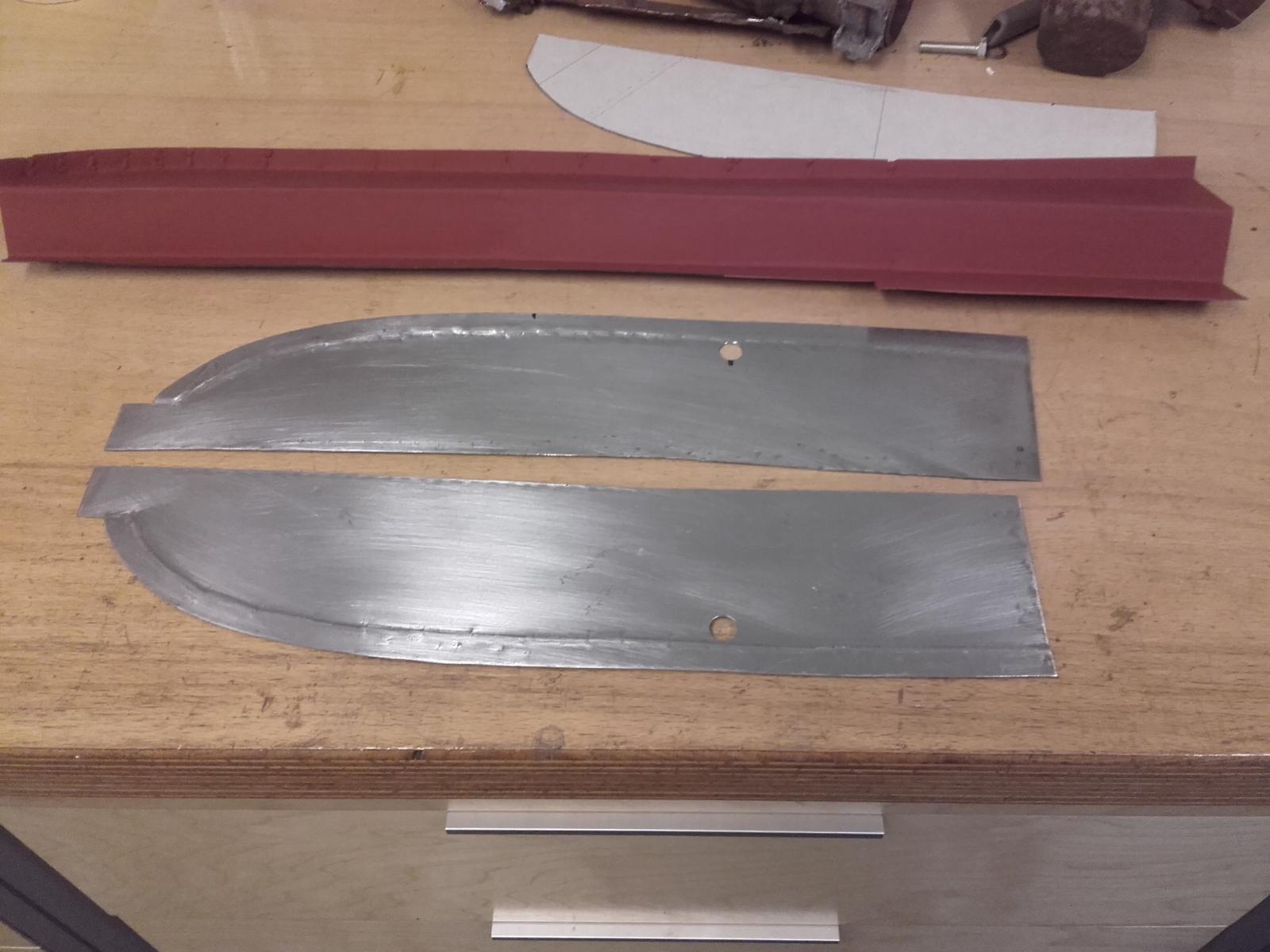

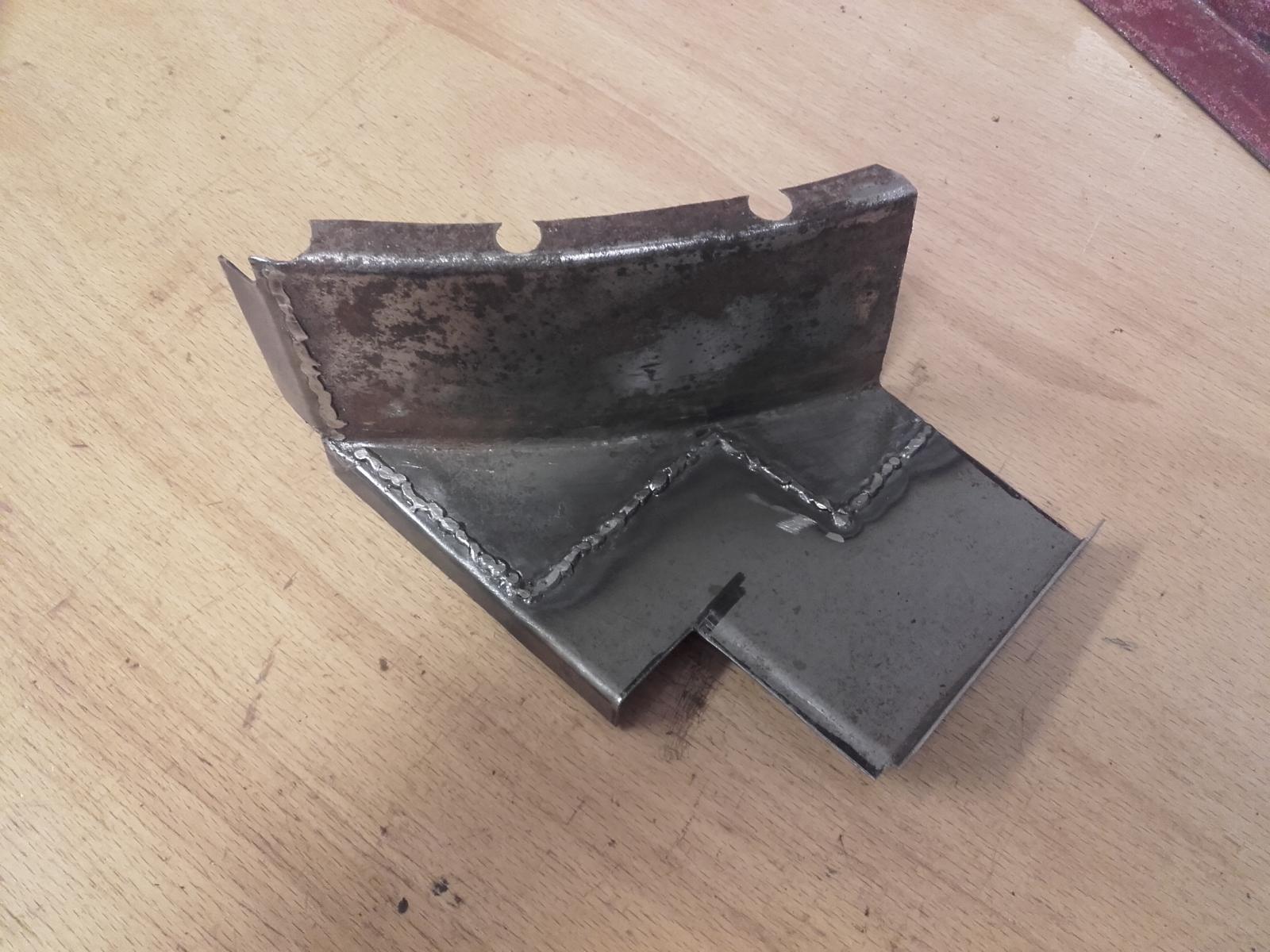

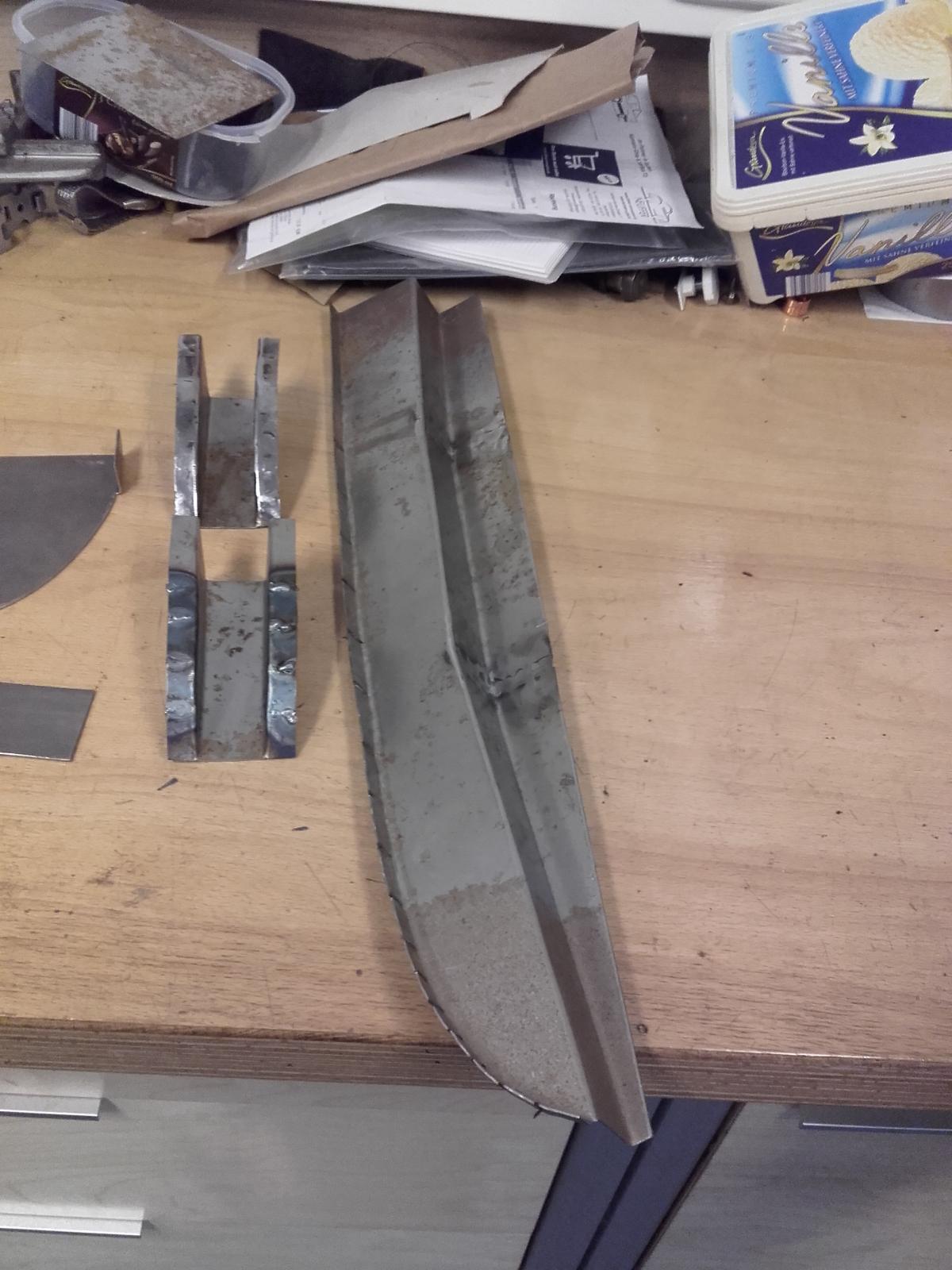

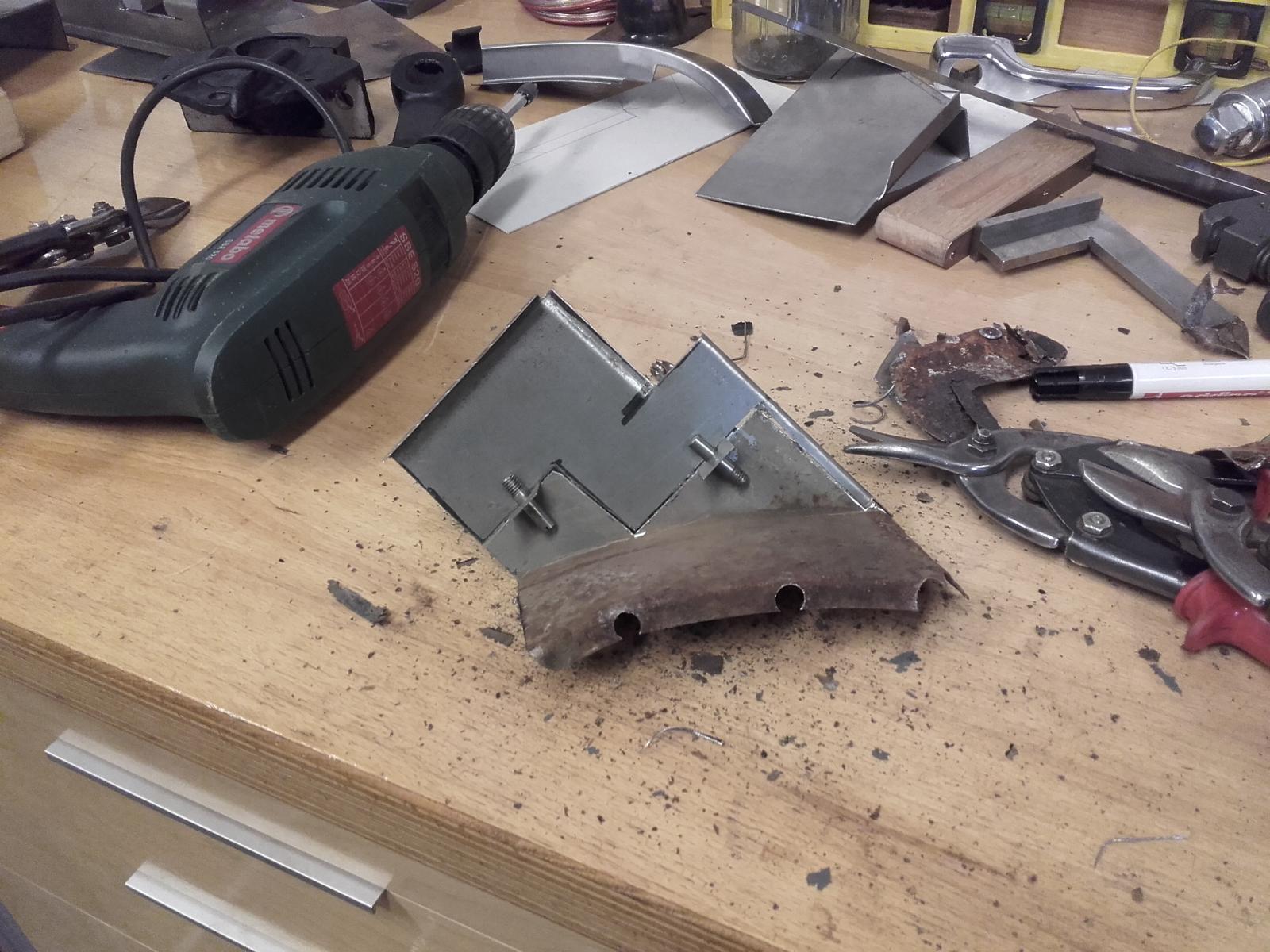

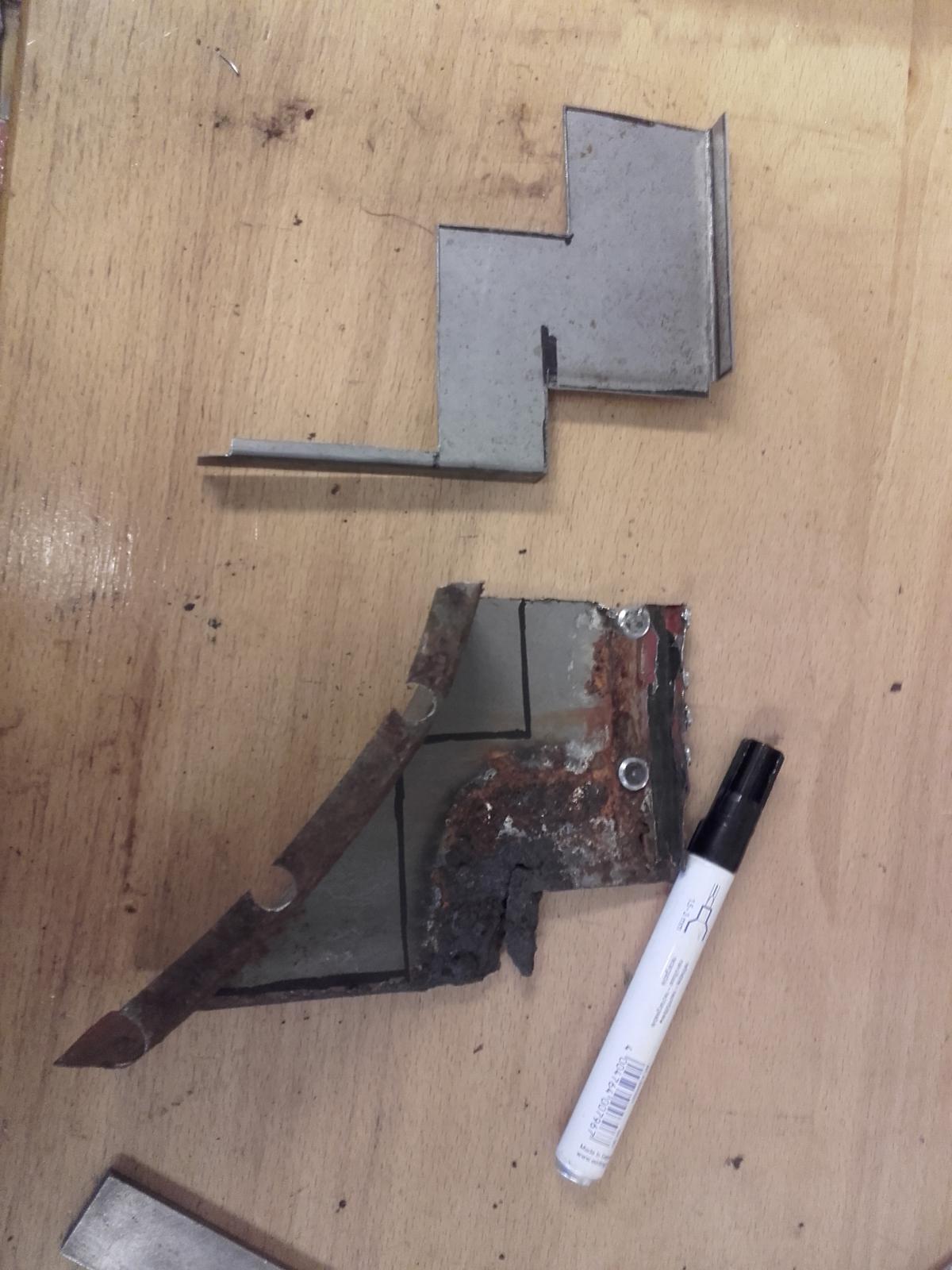

Made some spare parts:
Image may have been reduced in size. Click image to view fullscreen.

_________________
- Michael

Restoration of a former '65 firetruck (21F)


1988 Multivan Magnum 112i
2006 T5 (sold)
1986 Caravelle C (sold)
1987 Caravelle Coach (R.I.P)
1972 T2ab Bay Window (sold)
1965 21F
1971 & 1969 Variant LE (sold)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mdege
Samba Member


Joined: January 16, 2018
Posts: 289
Location: Niederkruechten, Germany
mdege is offline

PostPosted: Sun Aug 26, 2018 10:54 am    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

I removed the rear part of the inner dogleg and patched it up with some new metal:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

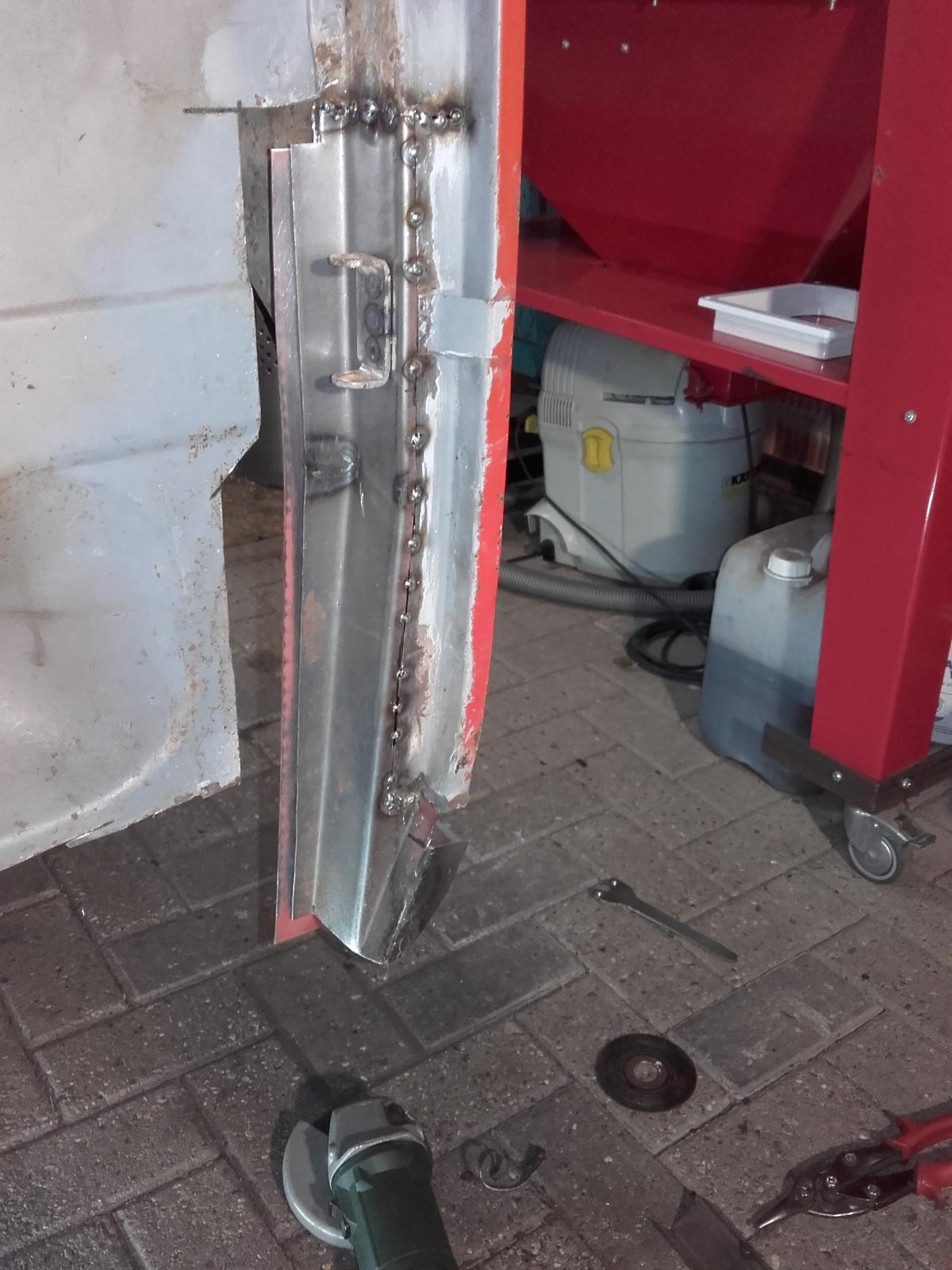

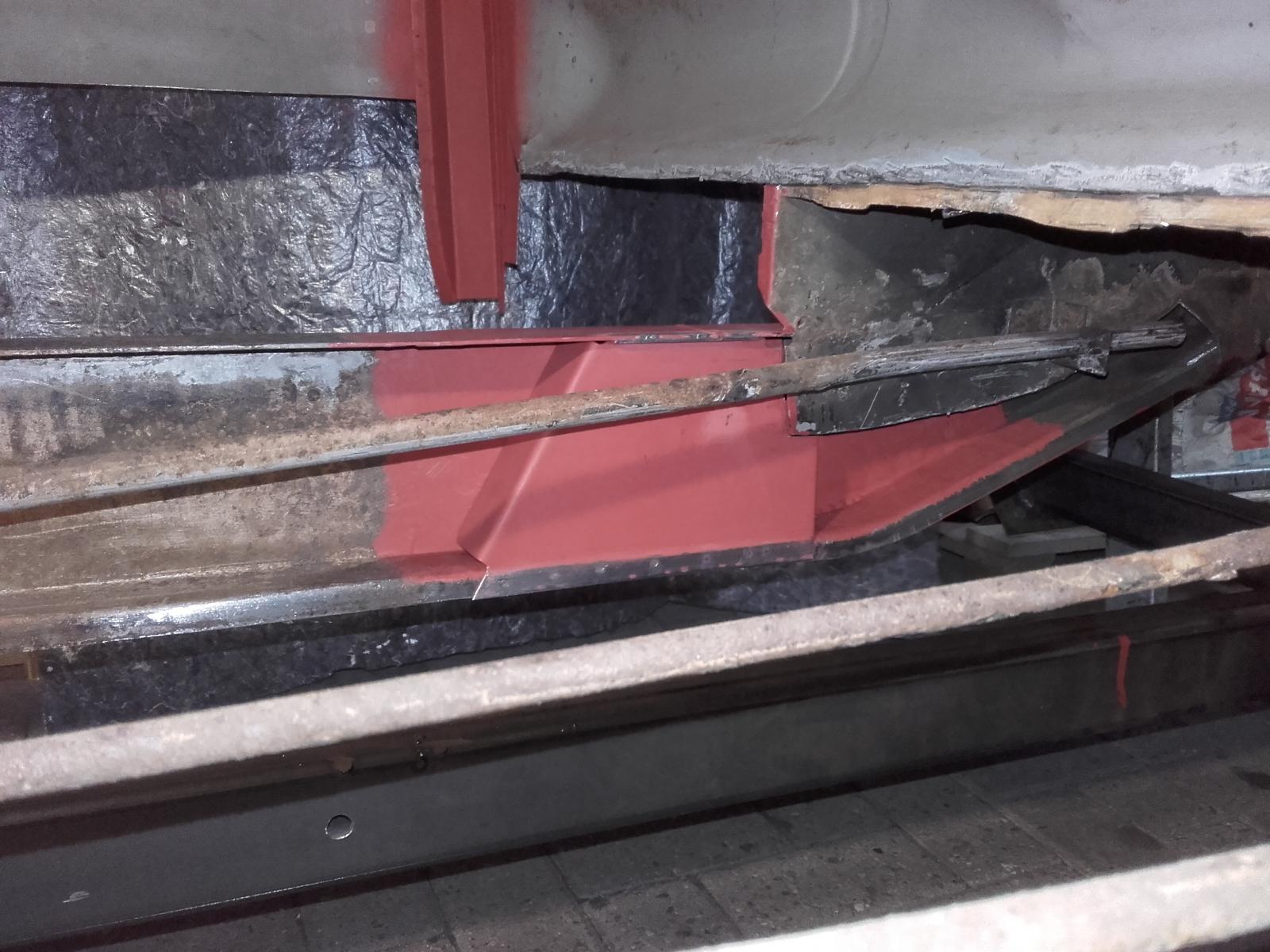

Then I started rebuilding the B-pillar:
Image may have been reduced in size. Click image to view fullscreen.

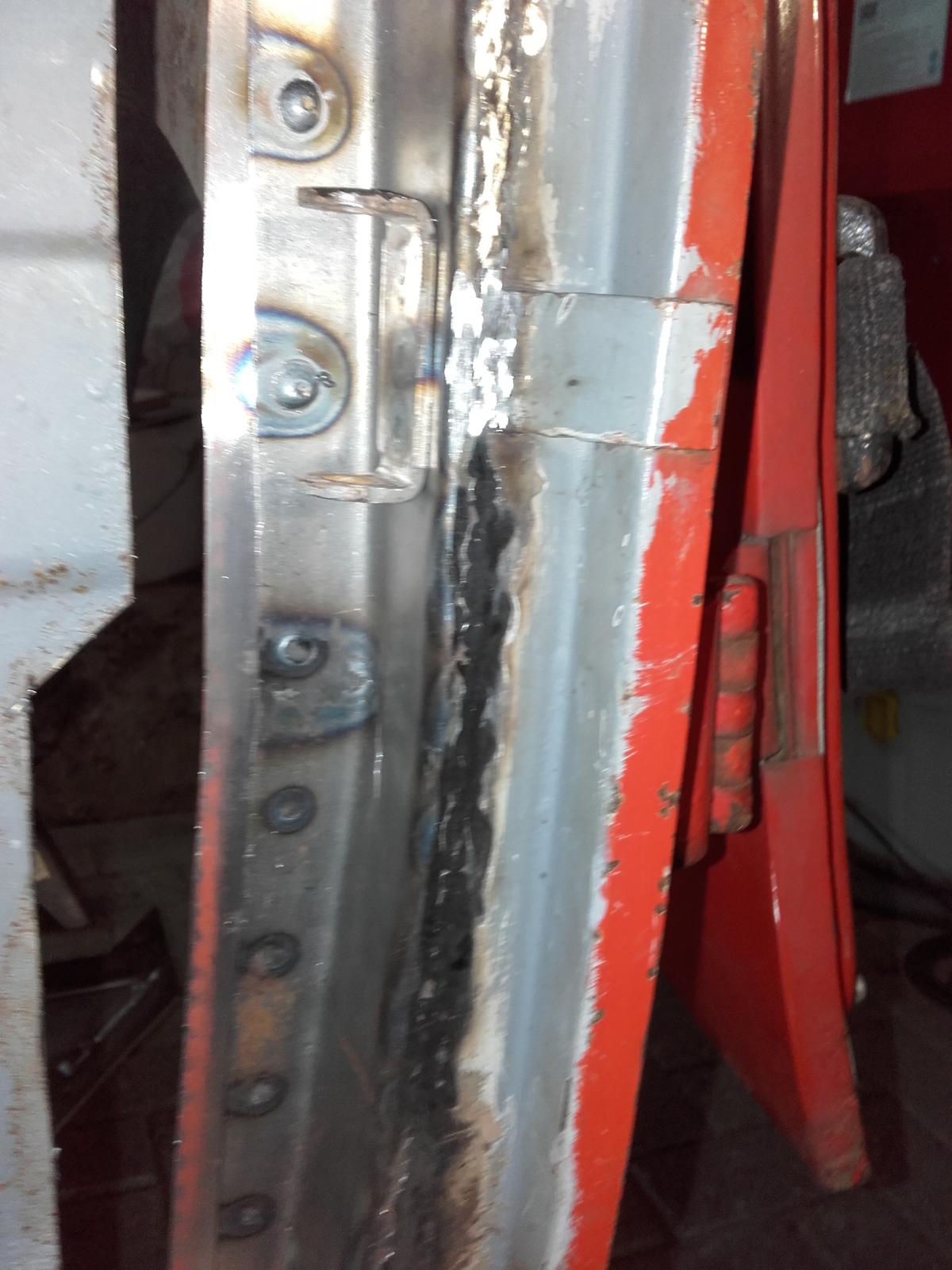

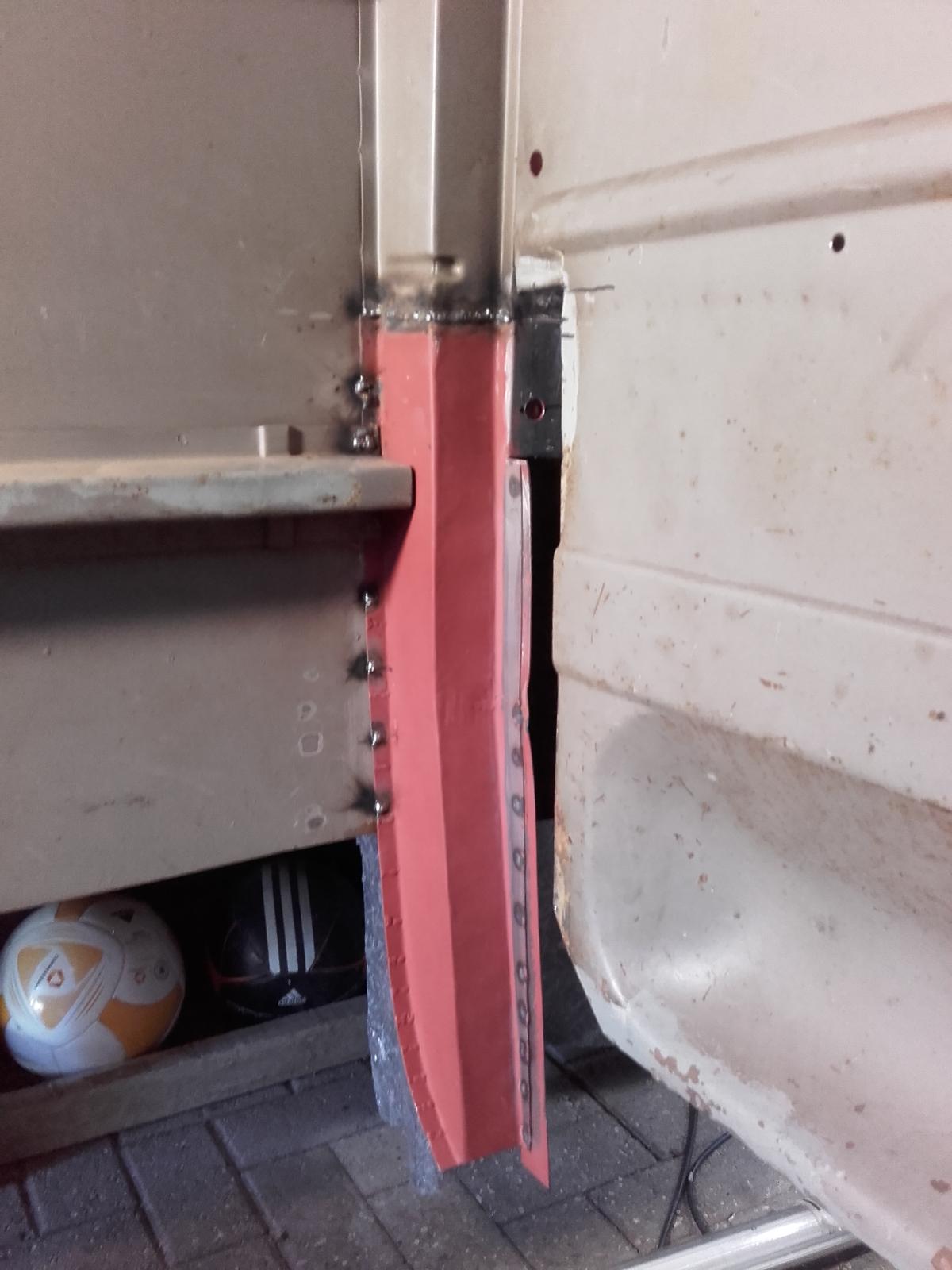

Checking that it fits:
Image may have been reduced in size. Click image to view fullscreen.

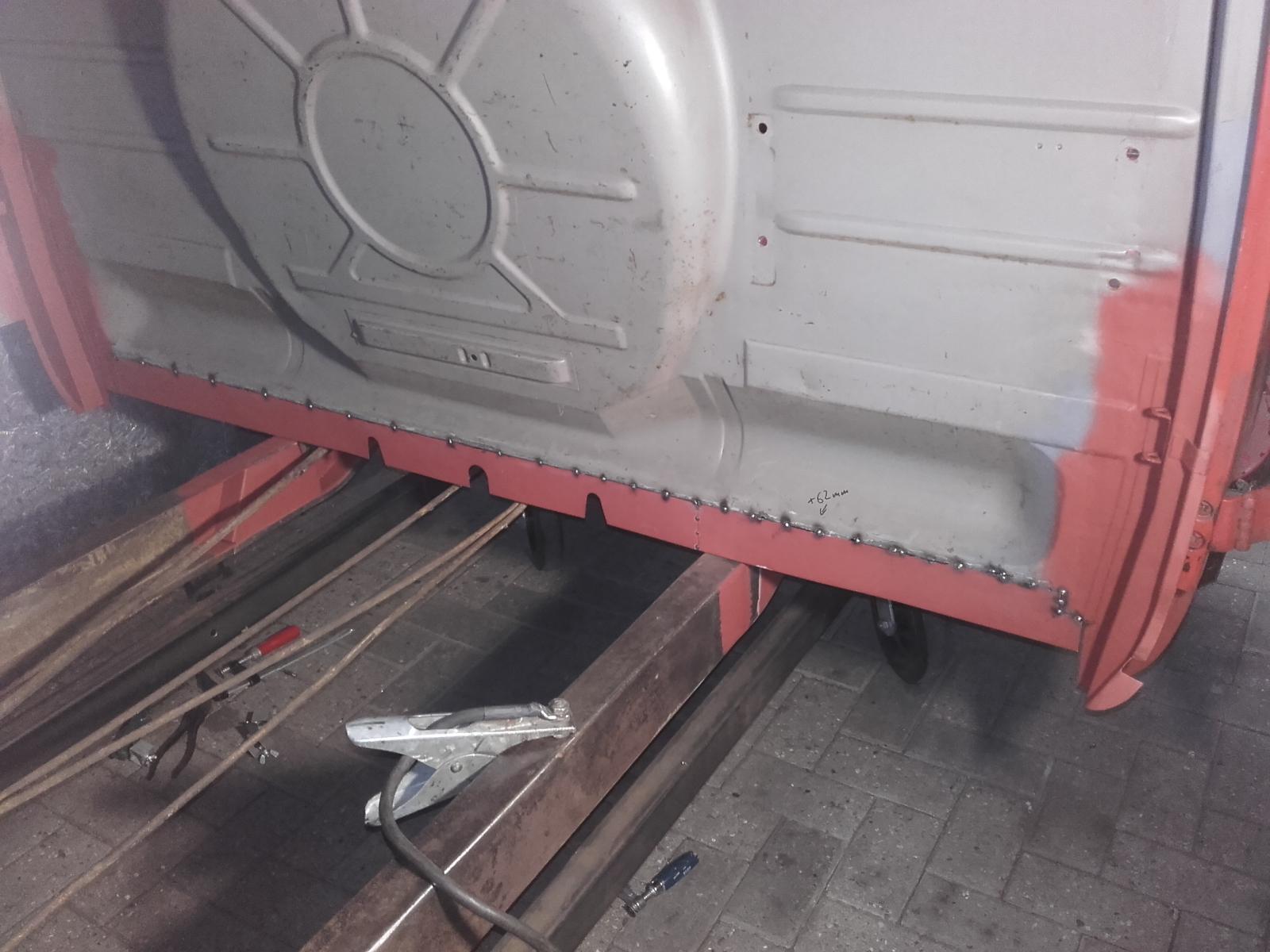

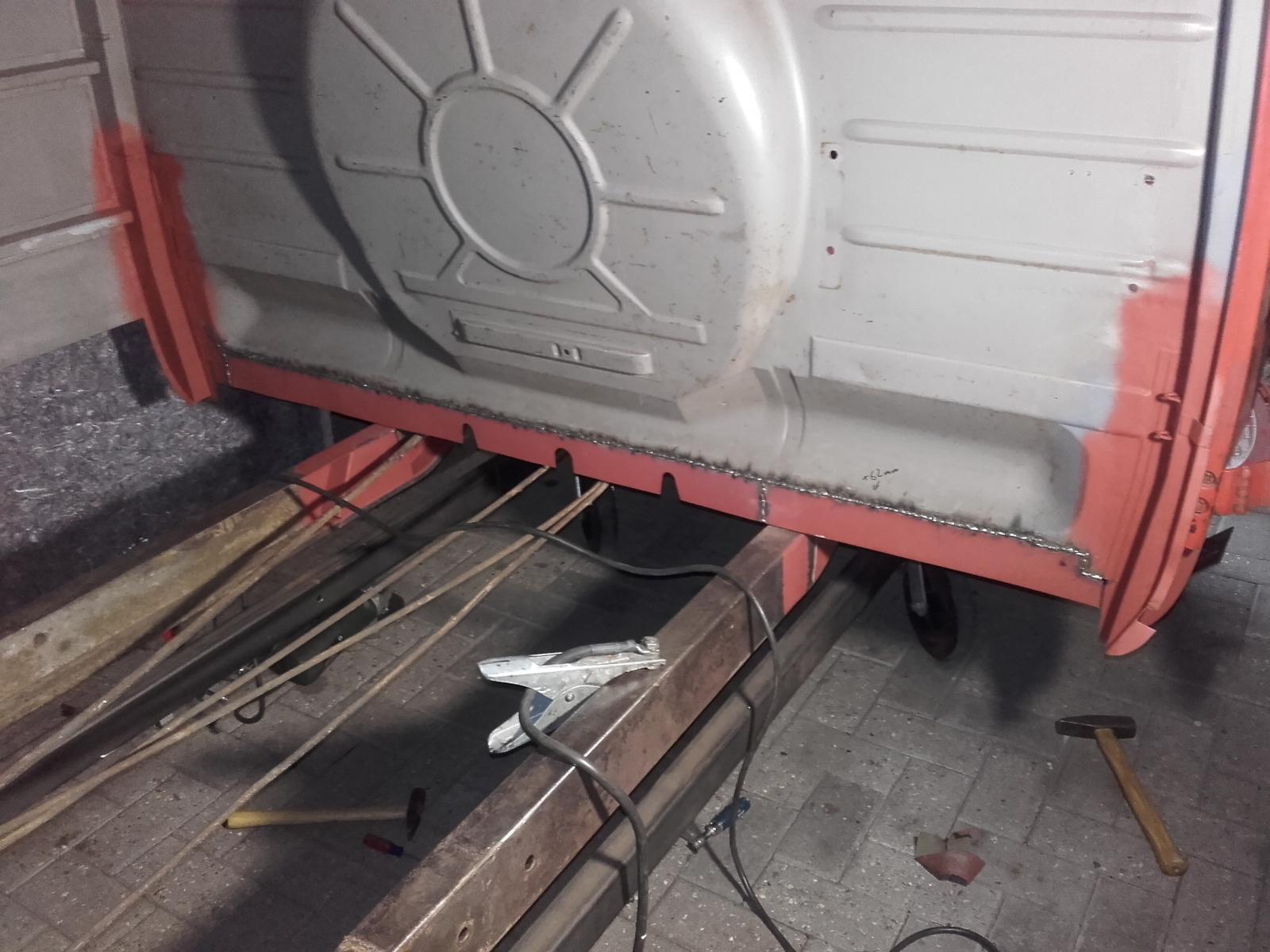

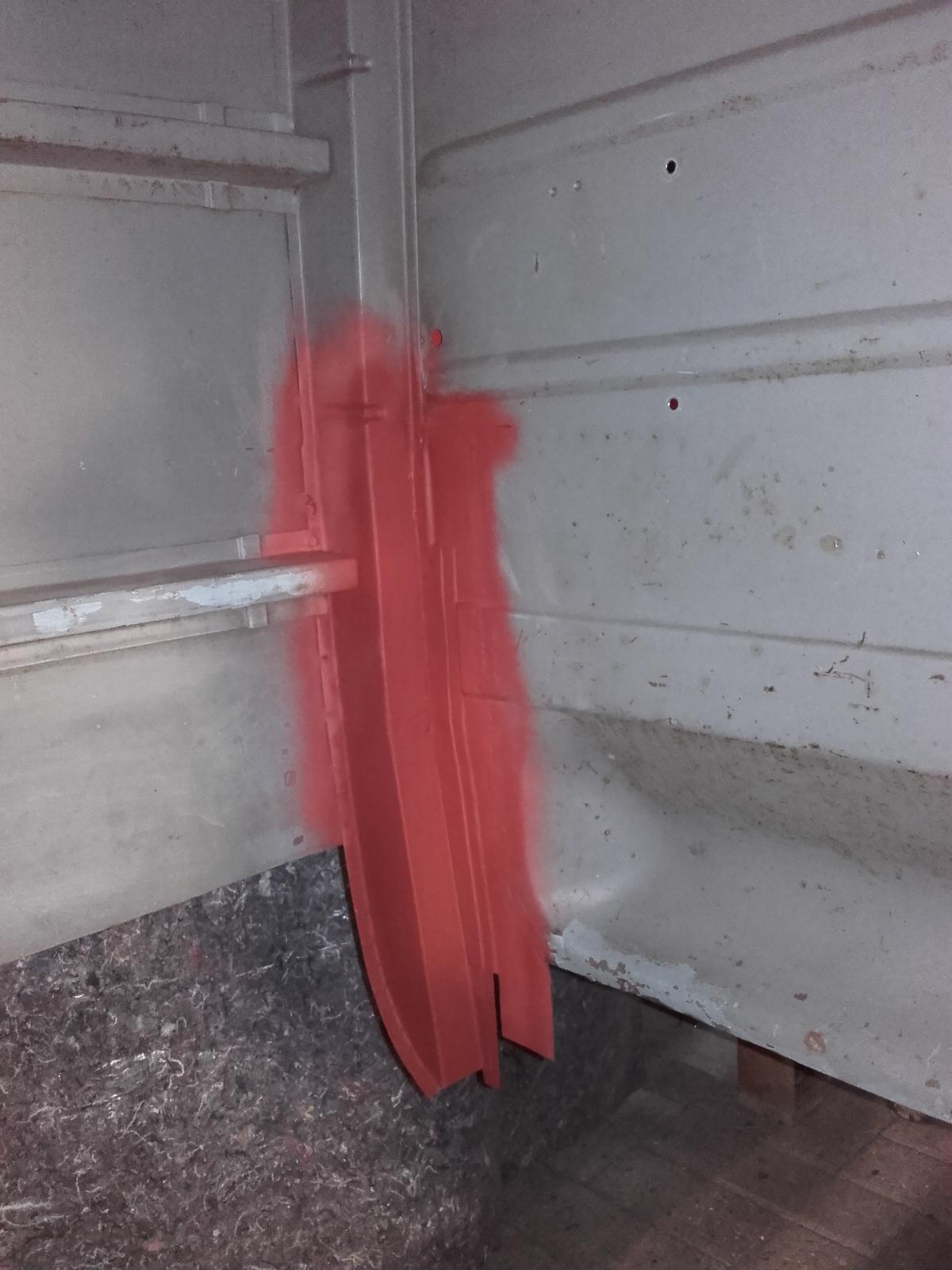

Putting thing back together:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

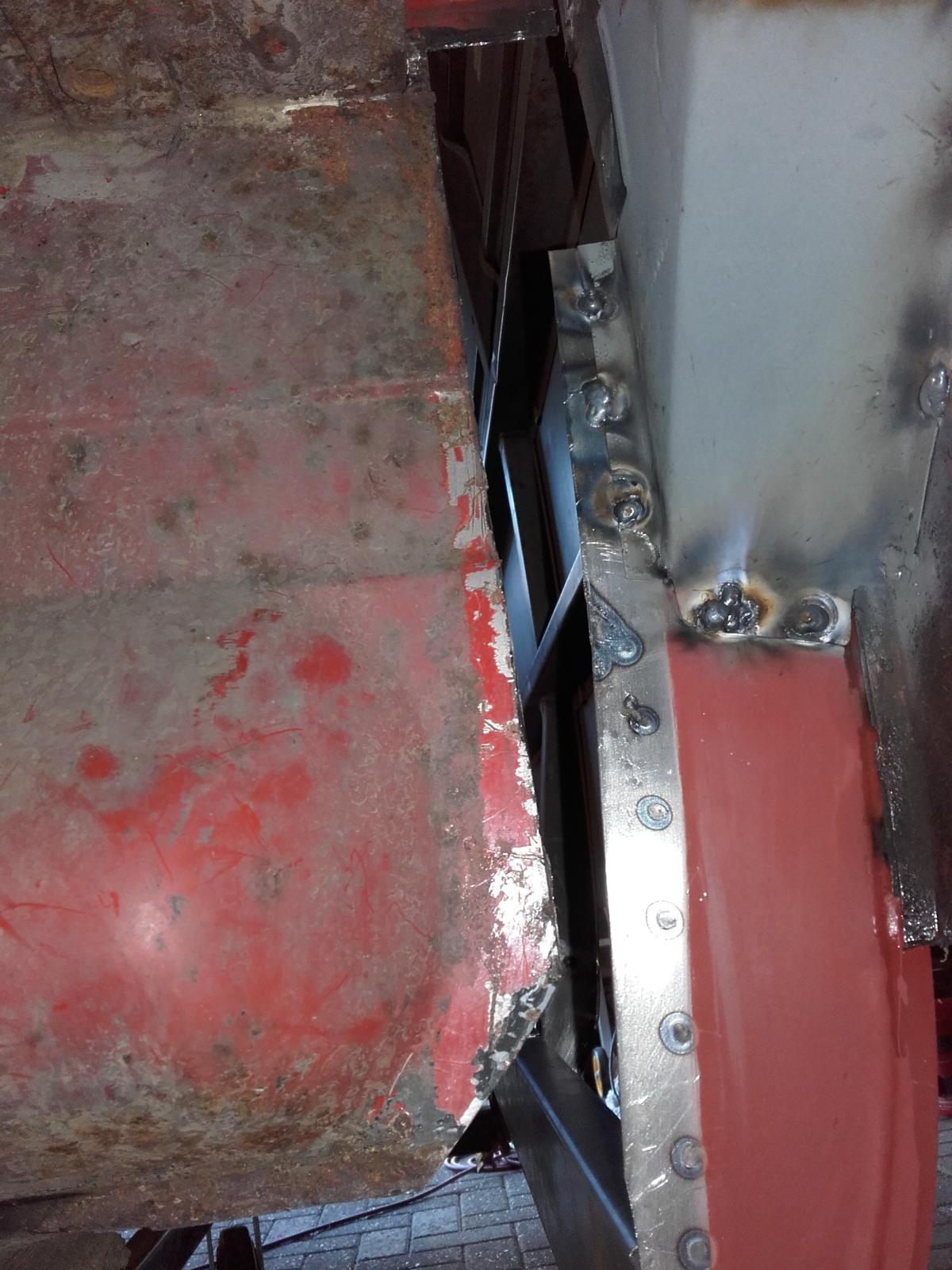

Learned the painful way, that you don't want to paint parts before you weld them, this needs to be cleaned up.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

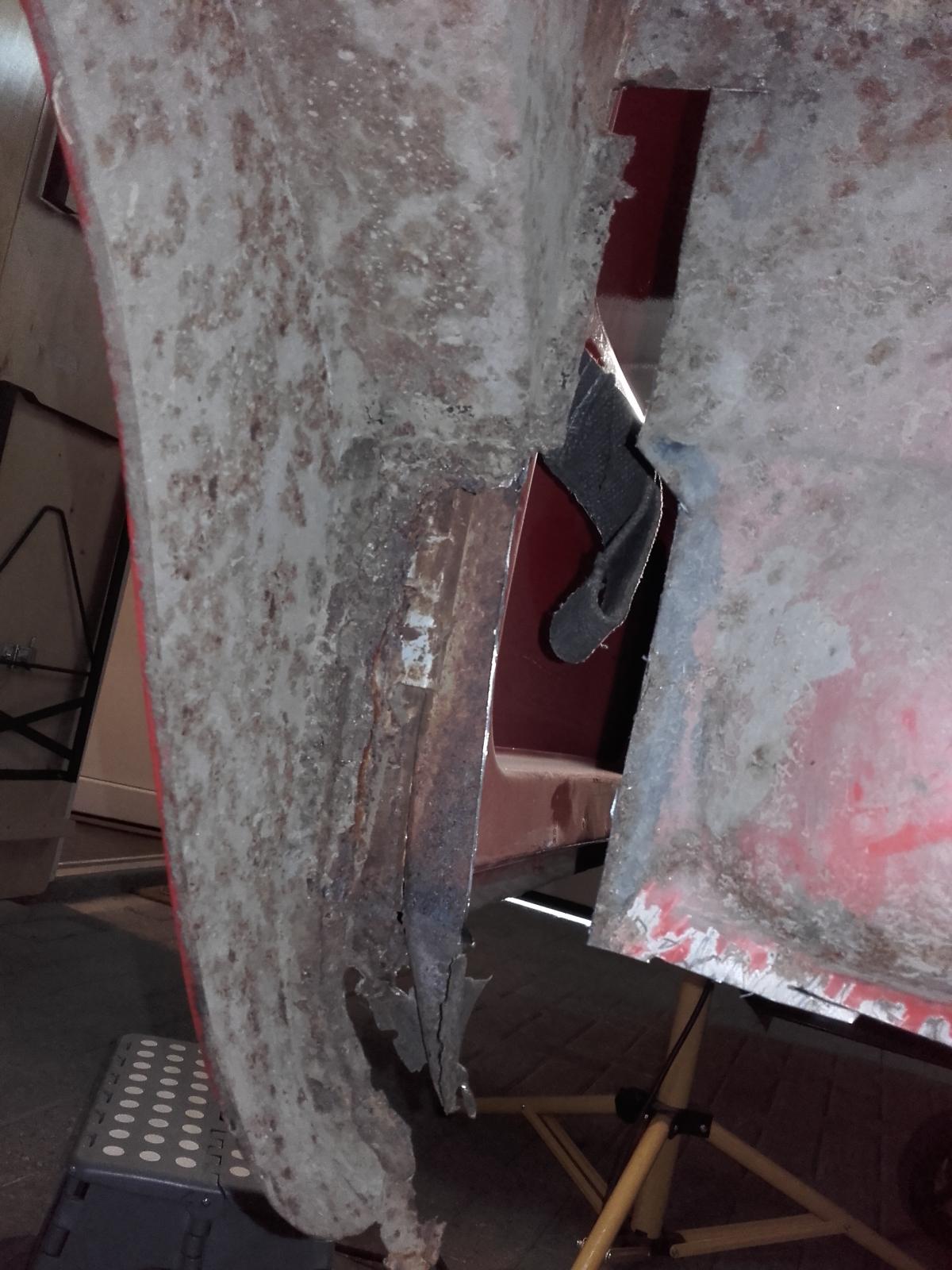

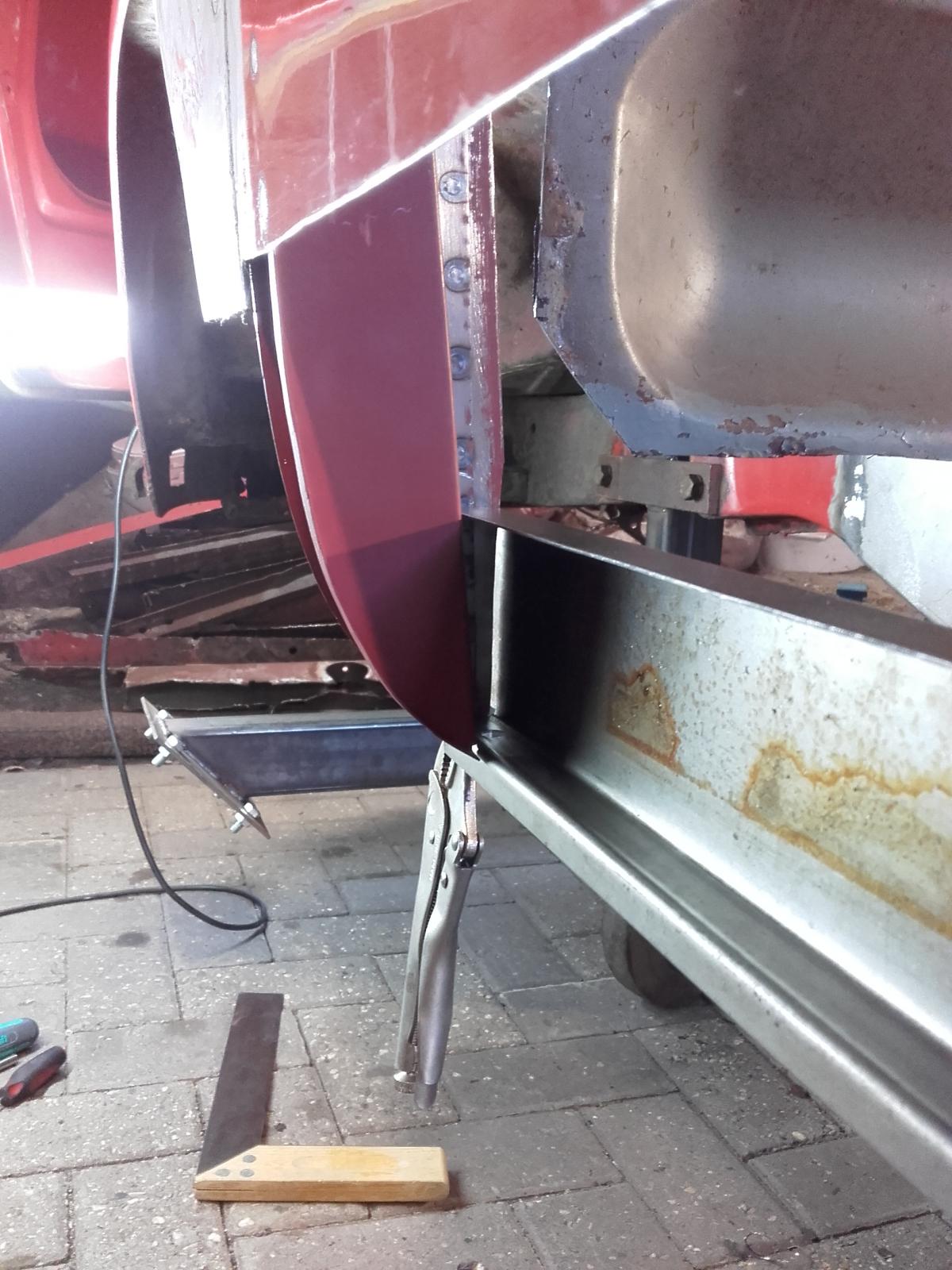

Checking that the inner sill fits:
Image may have been reduced in size. Click image to view fullscreen.

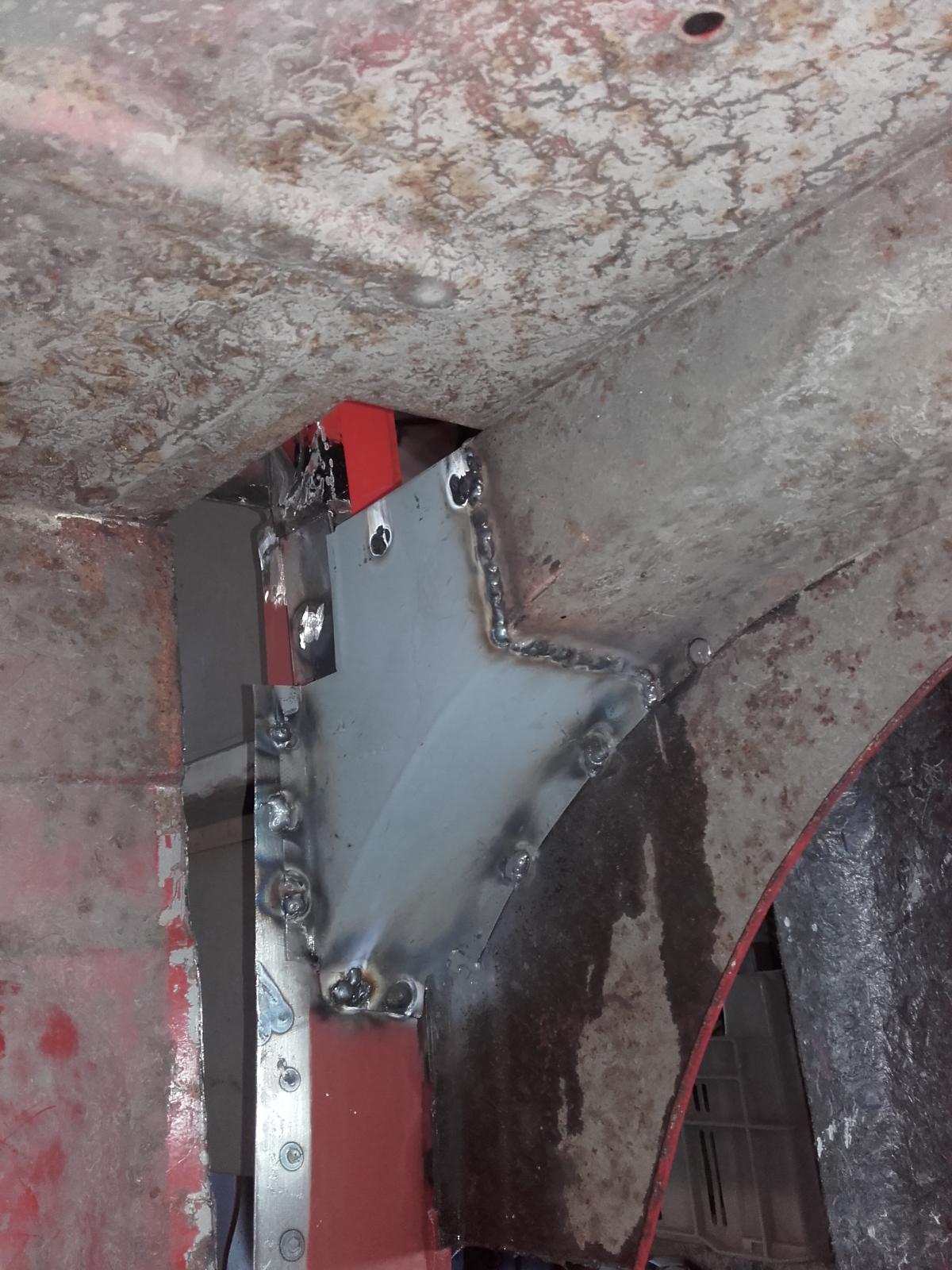

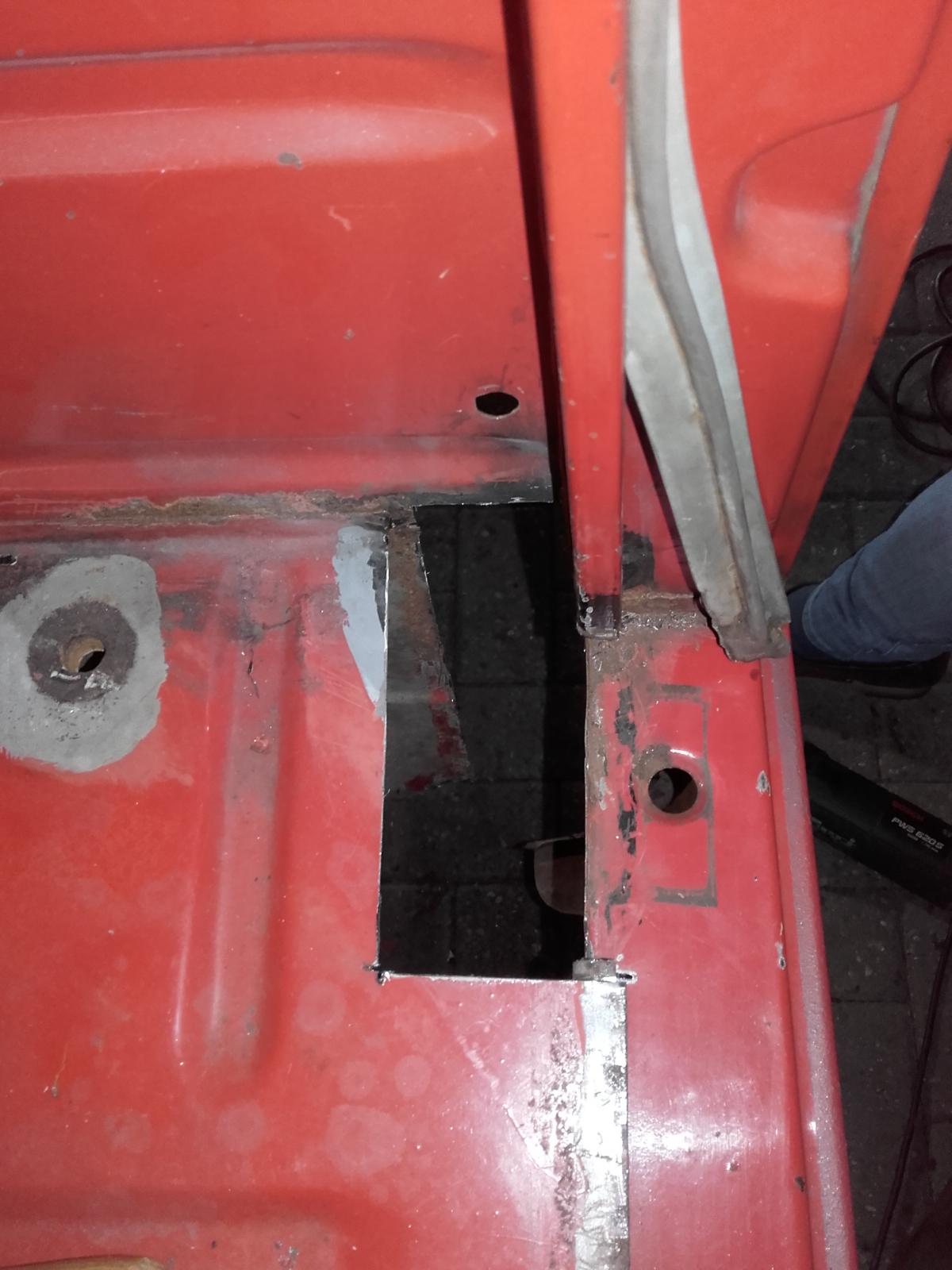

Still need to close this hole:
Image may have been reduced in size. Click image to view fullscreen.

_________________
- Michael

Restoration of a former '65 firetruck (21F)


1988 Multivan Magnum 112i
2006 T5 (sold)
1986 Caravelle C (sold)
1987 Caravelle Coach (R.I.P)
1972 T2ab Bay Window (sold)
1965 21F
1971 & 1969 Variant LE (sold)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mdege
Samba Member


Joined: January 16, 2018
Posts: 289
Location: Niederkruechten, Germany
mdege is offline

PostPosted: Sun Sep 02, 2018 10:09 am    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

Yesterdays progress, made a repair section for the bulkhead. The part which attaches to the left B-pillar.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Comparing new and old, not perfect but as close as I'll get. and much better than the flat stuff which is sold as repair panel:
Image may have been reduced in size. Click image to view fullscreen.

In the process of welding it in:
Image may have been reduced in size. Click image to view fullscreen.

_________________
- Michael

Restoration of a former '65 firetruck (21F)


1988 Multivan Magnum 112i
2006 T5 (sold)
1986 Caravelle C (sold)
1987 Caravelle Coach (R.I.P)
1972 T2ab Bay Window (sold)
1965 21F
1971 & 1969 Variant LE (sold)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
easy e
Samba Member


Joined: May 28, 2008
Posts: 3611
Location: Five Cities, CA
easy e is offline

PostPosted: Mon Sep 03, 2018 10:30 am    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

Your bus coming along great!... nice work!... and tool making.
Thanks for sharing the history too.
e
_________________
aka: Evan
Spreadsheet for Bus RPM, based on gearing & tire size (Excel format)
Searchable, click-navigable 1958 Bus Parts List
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
mdege
Samba Member


Joined: January 16, 2018
Posts: 289
Location: Niederkruechten, Germany
mdege is offline

PostPosted: Mon Sep 03, 2018 11:14 am    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

Thank you for your encouraging words. I have set myself a goal. I would like to be on the road for the next "Splits at the Lake" in one year. http://www.spijlbustreffen.nl
_________________
- Michael

Restoration of a former '65 firetruck (21F)


1988 Multivan Magnum 112i
2006 T5 (sold)
1986 Caravelle C (sold)
1987 Caravelle Coach (R.I.P)
1972 T2ab Bay Window (sold)
1965 21F
1971 & 1969 Variant LE (sold)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
wcfvw69
Samba Purist


Joined: June 10, 2004
Posts: 12899
Location: Arizona
wcfvw69 is offline

PostPosted: Mon Sep 03, 2018 12:22 pm    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

Popcorn
_________________
[email protected]
Decades of VW and VW parts restoration experience.
The Samba member since 2004.


**Restored German Bosch distributors for sale or I can restore yours**

**Restored German Pierburg fuel pumps for sale or I can restore yours**



1970 Westfalia Bus
1969 Convertible Bug
1967 Standard Bug
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Jaybus
Samba Member


Joined: February 06, 2012
Posts: 150

Jaybus is offline

PostPosted: Tue Sep 04, 2018 5:57 pm    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

This thread reminds me of visiting a guys house who is an amazing guitar player. And you just quit playing out of shame.

NICE WORK!!!! Embarassed
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Manfred58sc
Samba Member


Joined: October 05, 2009
Posts: 2519

Manfred58sc is offline

PostPosted: Wed Sep 05, 2018 9:05 am    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

Ganz Fliesig!
_________________
Drivin' a split and a fat chick!!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Jimb0w
Samba Member


Joined: September 08, 2016
Posts: 33
Location: France, Clermont-Ferrand
Jimb0w is offline

PostPosted: Sun Sep 09, 2018 2:50 am    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

just doing the same work on my 65 panel Wink but you've already posted on it
https://www.thesamba.com/vw/forum/viewtopic.php?p=8877568#8877568

Keep going ! Wink
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
mdege
Samba Member


Joined: January 16, 2018
Posts: 289
Location: Niederkruechten, Germany
mdege is offline

PostPosted: Sun Sep 09, 2018 11:53 am    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

Same procedure with the right side B-pillar:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

I have to start painting stuff before it starts to rust again:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
- Michael

Restoration of a former '65 firetruck (21F)


1988 Multivan Magnum 112i
2006 T5 (sold)
1986 Caravelle C (sold)
1987 Caravelle Coach (R.I.P)
1972 T2ab Bay Window (sold)
1965 21F
1971 & 1969 Variant LE (sold)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Jimb0w
Samba Member


Joined: September 08, 2016
Posts: 33
Location: France, Clermont-Ferrand
Jimb0w is offline

PostPosted: Mon Sep 10, 2018 1:13 am    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

nice to see that flanges instead of the common flat panel repair... You use a press and a template to shape it ?
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
mdege
Samba Member


Joined: January 16, 2018
Posts: 289
Location: Niederkruechten, Germany
mdege is offline

PostPosted: Mon Sep 10, 2018 11:27 am    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

Yea, I made a stamp to shape the two steps as you can see here:

Image may have been reduced in size. Click image to view fullscreen.


I then shaped the rest by hand:
Image may have been reduced in size. Click image to view fullscreen.

_________________
- Michael

Restoration of a former '65 firetruck (21F)


1988 Multivan Magnum 112i
2006 T5 (sold)
1986 Caravelle C (sold)
1987 Caravelle Coach (R.I.P)
1972 T2ab Bay Window (sold)
1965 21F
1971 & 1969 Variant LE (sold)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mandraks
Samba Member


Joined: November 28, 2004
Posts: 5563
Location: Lawrenceville, Ga
mandraks is offline

PostPosted: Mon Sep 10, 2018 5:51 pm    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

mdege wrote:
Yea, I made a stamp to shape the two steps as you can see here:

I then shaped the rest by hand:
Image may have been reduced in size. Click image to view fullscreen.


are those safety flip-flops?
_________________
regards

Uli

----------------------------------------
'53 3-Fold Oval, L35 Metallic Blue, looking for a narrow hatch panel
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mdege
Samba Member


Joined: January 16, 2018
Posts: 289
Location: Niederkruechten, Germany
mdege is offline

PostPosted: Tue Sep 11, 2018 12:51 pm    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

Yep, south east Asian safety shoes Very Happy
_________________
- Michael

Restoration of a former '65 firetruck (21F)


1988 Multivan Magnum 112i
2006 T5 (sold)
1986 Caravelle C (sold)
1987 Caravelle Coach (R.I.P)
1972 T2ab Bay Window (sold)
1965 21F
1971 & 1969 Variant LE (sold)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mdege
Samba Member


Joined: January 16, 2018
Posts: 289
Location: Niederkruechten, Germany
mdege is offline

PostPosted: Tue Sep 18, 2018 5:30 am    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

I need to get back to documenting. Here's what I have done the last couple of weeks.

I welded in the lower edge of the bulkhead. I did have some warppage at the end.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Grinding the welds down is the worst part of the job. I hope my neighbors aren't going to hate me Embarassed

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


I was able to get rid of the warppage by hammering the welded area after I finished grinding the welds.

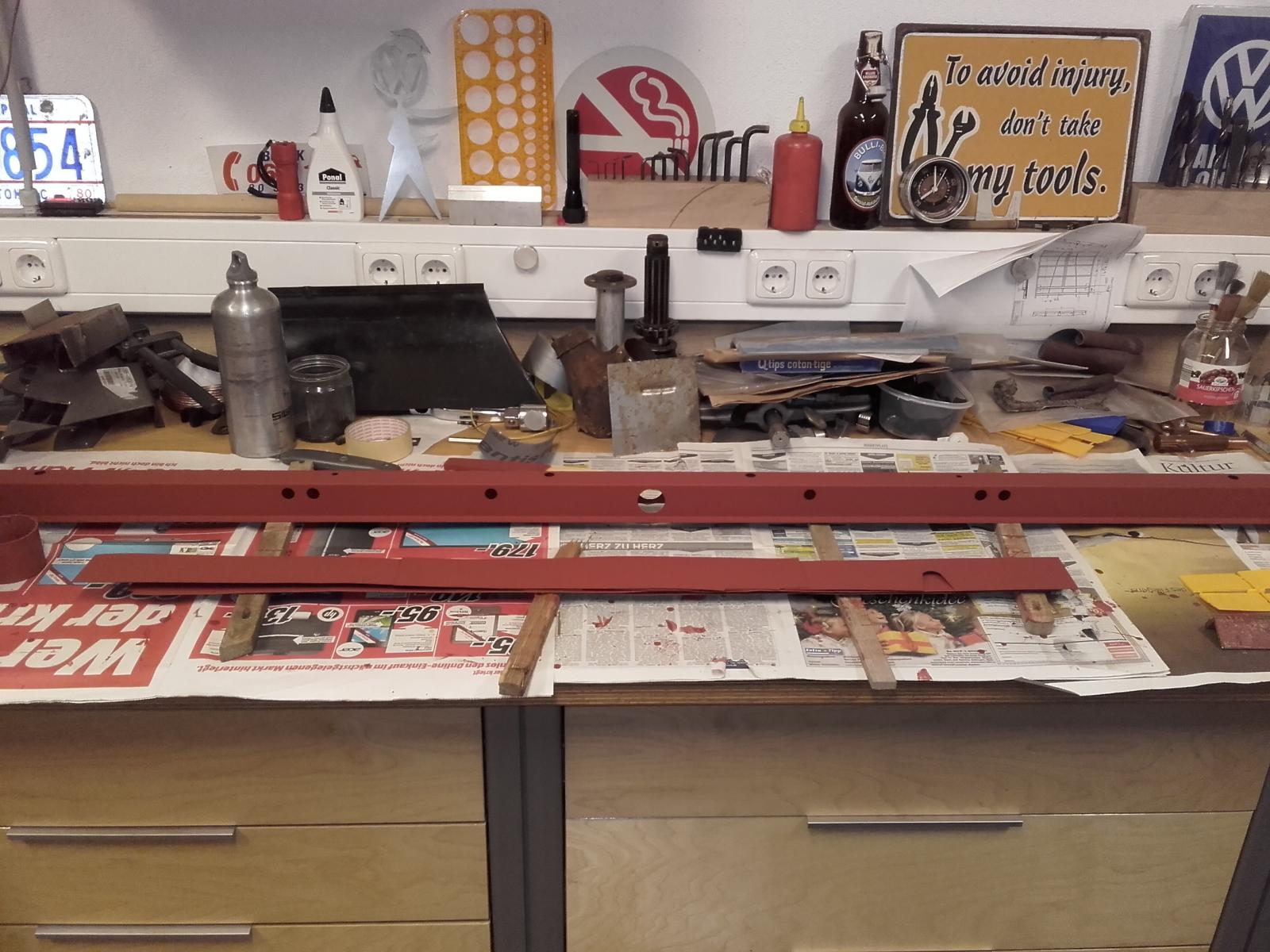

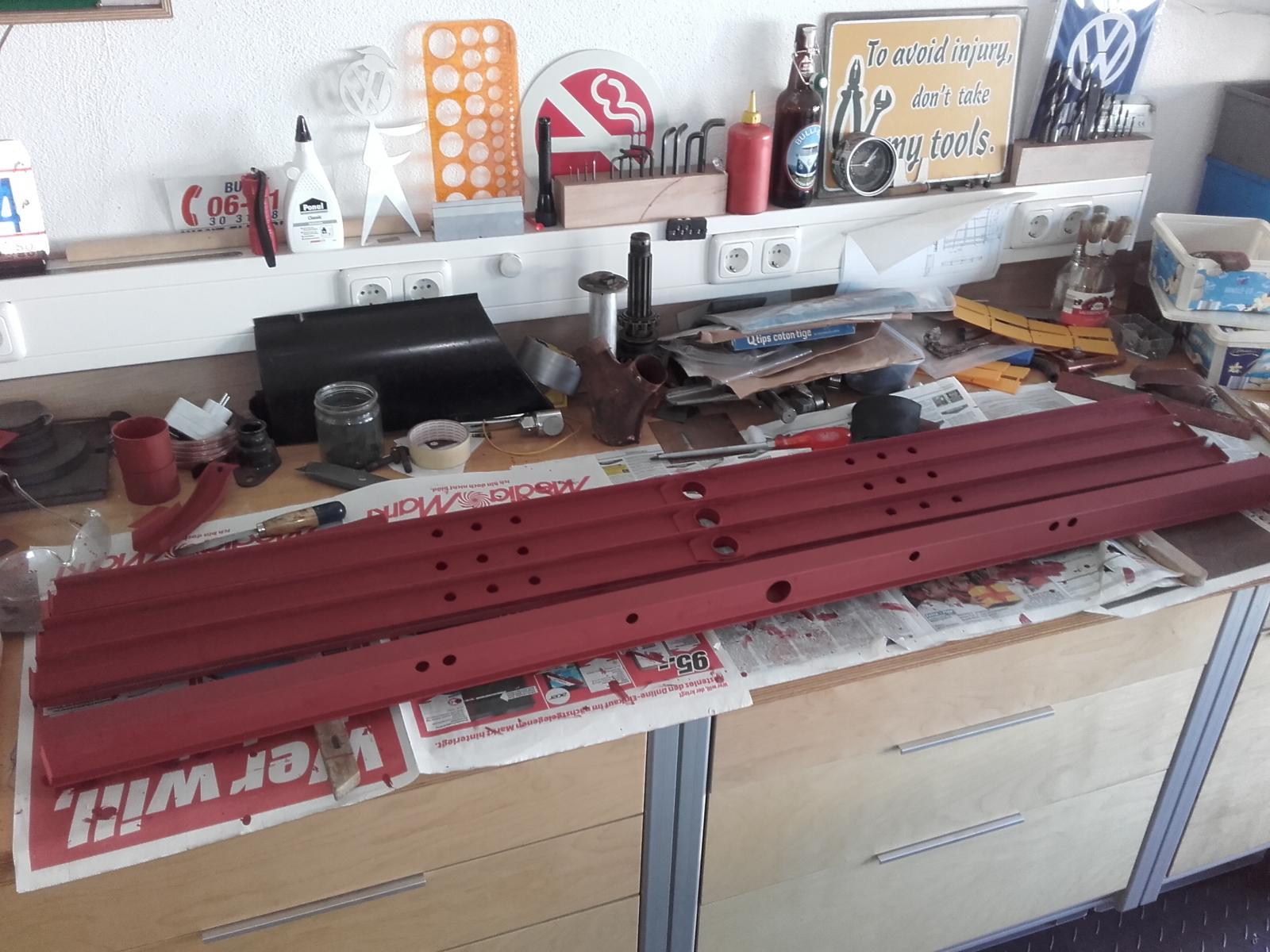

Most of the work isn't very spectacular. Just cleaning/sanding the main frame rails and the tubes. I painted them with Ovatrol, which is an oil which seeps into the left over rust. It keeps the rust from continuing it's destructive work. I also primed the new cross members.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


And sometimes you need to take a break. There was a small VW meeting in Haan and I went with a friend and his family. I got to drive their "new" bug. It is freshly imported from Sweden. No turn signals yet, just semaphores Cool

Image may have been reduced in size. Click image to view fullscreen.


It is kind of scary to drive because nobody expects cars to have semaphores these days. But then again many people don't use turn signals over here.
_________________
- Michael

Restoration of a former '65 firetruck (21F)


1988 Multivan Magnum 112i
2006 T5 (sold)
1986 Caravelle C (sold)
1987 Caravelle Coach (R.I.P)
1972 T2ab Bay Window (sold)
1965 21F
1971 & 1969 Variant LE (sold)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Split Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4, 5, 6, 7  Next
Page 1 of 7


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
