Found my Blaupunkt and faceplate!

[Pepperbilly]

OMG! Found my original radio and faceplate stored away in my mom’s 1973 412 wagon I still have. Got the retainers, knobs and all the original noise suppression stuff that came with it...and all the instructions for parts and installation. Actually bought this radio in Germany while on summer vacation in 1970. It is a “Frankfurt USA “ model and I even have the original bill of sale. Placed it in the dash real quick just to see it again.
A happy Samba Bill

[srfndoc]

Looks good in there!
_________________
RPM=(MPH*336* (R&P*4th*1.26))/Tire Diameter in inches

[BarryL]

What he said ^^^^.

Does it have the snap-in part behind that faceplate?

[Pepperbilly]

Never had a snap in piece. The faceplate mounts directly to the control shafts. Then I use the blind plastic chrome nuts. Then the install is complete with the really important rear angle support. It was installed like that for as long the bus was driven. I installed this radio in the fall of 1970 after bringing it back from Germany and it never gave me problems.

[BarryL]

[herbie1200]

I'm not sure this is the right faceplate for a bus.

The faceplate in the photo is the one for the bug, that has a vertical dashboard and that faceplate has a "slope" to mount the radio not perfectly horizontal, with a better positions for knobs and to not interfering (in a bug) with the windshield wiper motor.

The back part of the faceplate is very important because is the part that uses the "wings" in the rear of the dashboard to give a secure lock to the whole assembly.

[ozinbc]

Its a "67- so looks OK to me
_________________
the invisible and the non existent look very much alike

[Pepperbilly]

Back in the day this is what I ordered for a ‘67 bus from Blaupunkt. My Westfalia camper was originally delivered without a radio and picked up in Hannover as part of the american tourist program...then after spending a summer in Europe was delivered to Seattle. So this is not an install by any dealer...I installed it. But this in 1970 is what came with this model radio. It may or may not be correct for a bus but fits perfectly and worked great all those years. I have all the install instructions and also for the antenna mounting. Still works like new! Wonder if any other Samba people have a sloped ‘67 faceplate like this? Would be interesting to find out.

[Erik G]

I've been saying that for a while, lots of people didn't have the money to buy a radio when they bought their car. Lots of people bought the radio a year or two later when the car was paid off. Or when they brought their VW to the states from Europe. A 2-3 year later radio is absolutely period correct IMO
_________________
Stop dead photo links! Post your photos to The Samba Gallery!

[Box on Wheels]

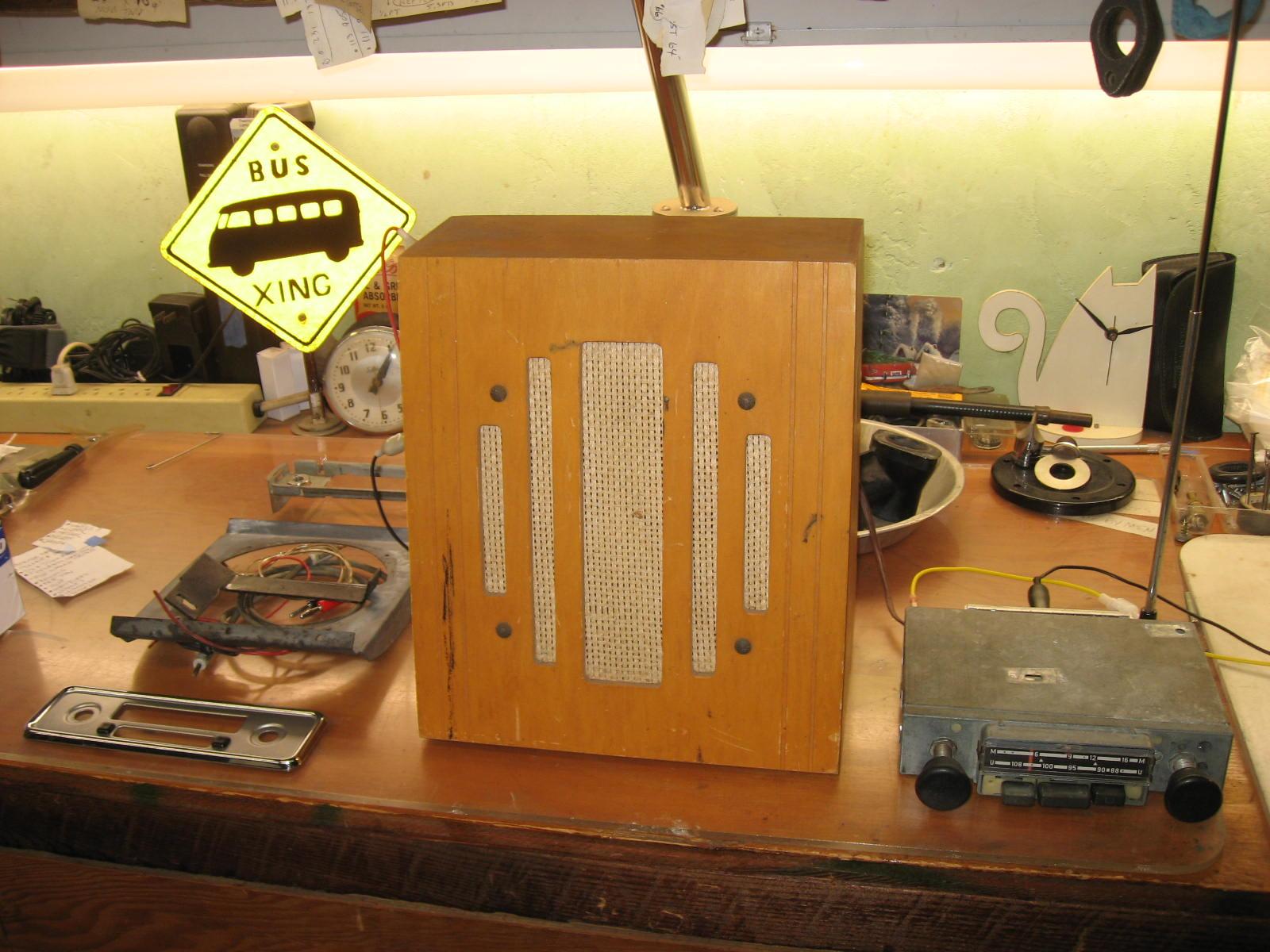

This is the original Blaupunkt AM/FM/SW radio that was in my 1967 European SO42 Westfalia camper when I got it from the original owners family. Looks like the same face plate. Don't remember if it works. I haven't driven this Bus since 2001.
_________________
58 PGSG Westfalia
64 Türkis SO-35 Flip seat Westfalia
66 Pearl White SO-42 Pop-Top Westfalia
67 Titian Red SO-42 Pop-Top walk-thru Westfalia
64 Safari Beige Sunroof Notchback
97 993 S Coupe
97 993 Cabriolet
04 996 C4S Coupe

God, guts, and guns made America great!
Live free or Die

[Pepperbilly]

Box on Wheels,
There it is! Looks like the same faceplate. Wish I had your radio because it is the german version. By the way, is your antenna mounted on the driver’s side like mine? I do not see many like that. Thanks for that wonderful photo.
Bill

[Box on Wheels]

Yes, my antenna is mounted on the drivers side also. It had the curved antenna with the Red tip. Unfortunately, it broke off years ago.
_________________
58 PGSG Westfalia
64 Türkis SO-35 Flip seat Westfalia
66 Pearl White SO-42 Pop-Top Westfalia
67 Titian Red SO-42 Pop-Top walk-thru Westfalia
64 Safari Beige Sunroof Notchback
97 993 S Coupe
97 993 Cabriolet
04 996 C4S Coupe

God, guts, and guns made America great!
Live free or Die

[Pepperbilly]

That is what Blaupunkt called for on the mounting. My antenna has the black base with all else chrome. Straight with the chrome ball at the tip.

[BarryL]

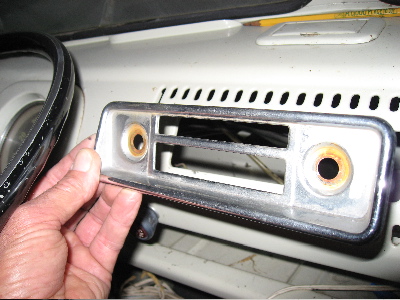

This is mine without the radio.

Now I know which way it really goes.

[Pepperbilly]

BarryL
Hey you got one too! Now you need to fill it with a radio.

[LAGrunthaner]

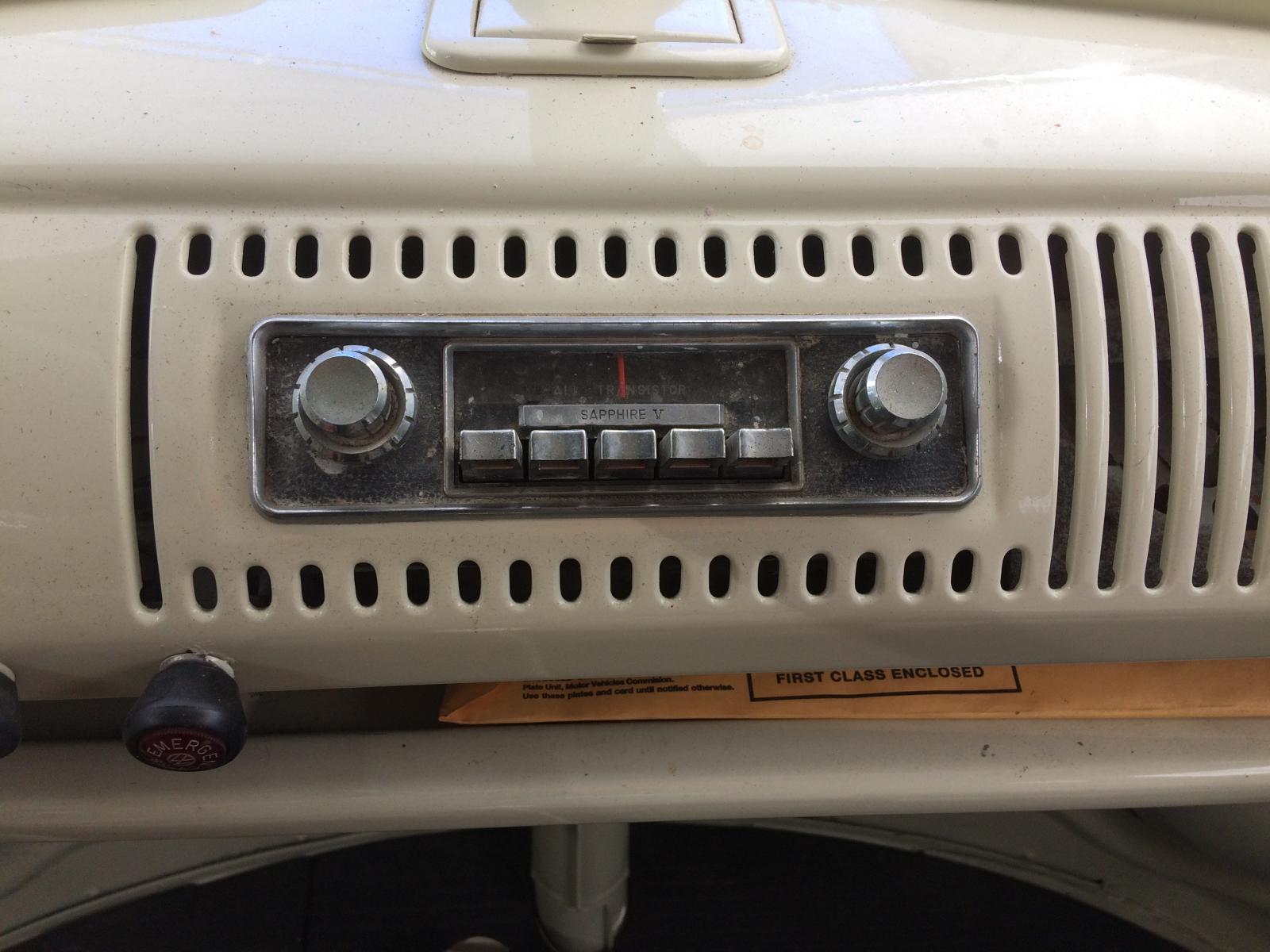

Is the Blaupunkt radio the superior sound vs the Sapphire V I have in my bus?

_________________
American Red Cross Safe And Well:
https://www.redcross.org/about-us/news-and-events/...bsite.html
Maui Roadsters
www.mauiroadsters.com
http://www.oacdp.org

[BulliBill]

It kinda depends on the functionality of the radio after 53 years of use. The difference is that the Blaupunkt radios they are showing are multi-band (AM/FM/SW) radios and that your Sapphire V is an AM only radio. The sound comparison between their radios on AM band and yours are probably pretty much the same.

FYI, I just had a highly desired (by me) but weak performing (poor volume level) 12 volt Sapphire VI AM/FM radio monaural radio for my '67 Campemobile serviced by radio Guru Rich Langenwalter in Colorado who did an AWESOME job and it came back looking and sounding and tuning like new (it received a new sound transformer. or some shit like that). Mine was old and troubled but a good technician can fix them up!

Bill Bowman
_________________
I'm looking for these license plate frames from old Volkswagen dealerships for my fleet:
Coeur D'Alene - Lake Shore Volkswagen
Mission VW - San Fernando
Thornton VW - Stockton

Thanks for any help!

[BarryL]

[Pepperbilly]

Barry L,

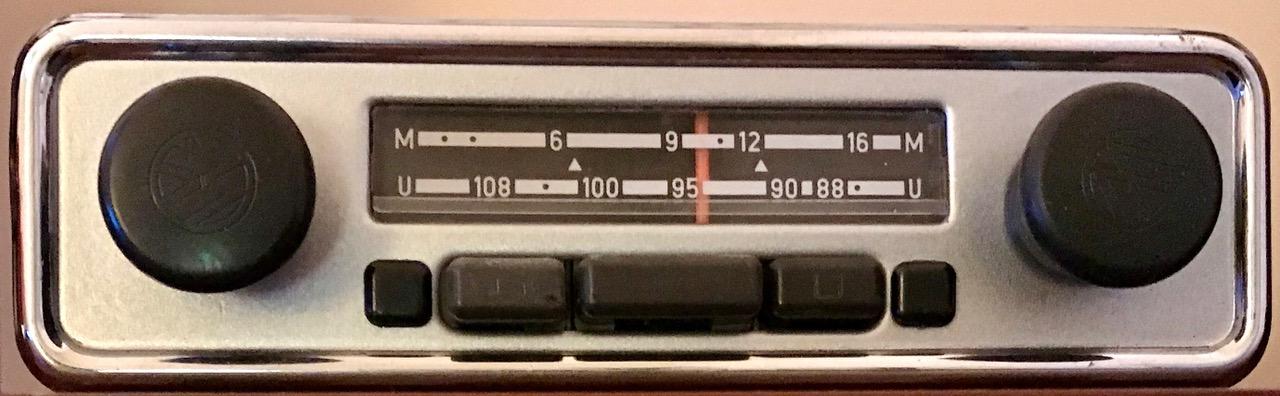

Now thats a cool looking radio...wonder what brand? Love the embossed VW logo on the controls.
Bill

[mdege]

That is a Blaupunkt Emden for Volkswagen. VW pn. 111 035 103

It could also be made by Grundig and possibly also Philips.
_________________
- Michael

1965 21F: Restoration of a former '65 firetruck
1963 Typ3 Notchback project
1988 Multivan Magnum 112i
1984 Standard: My son wanted a bug for his first car
