Just installed a new throw out bearing.
I want to make sure that the clips will not pop off the bearing.

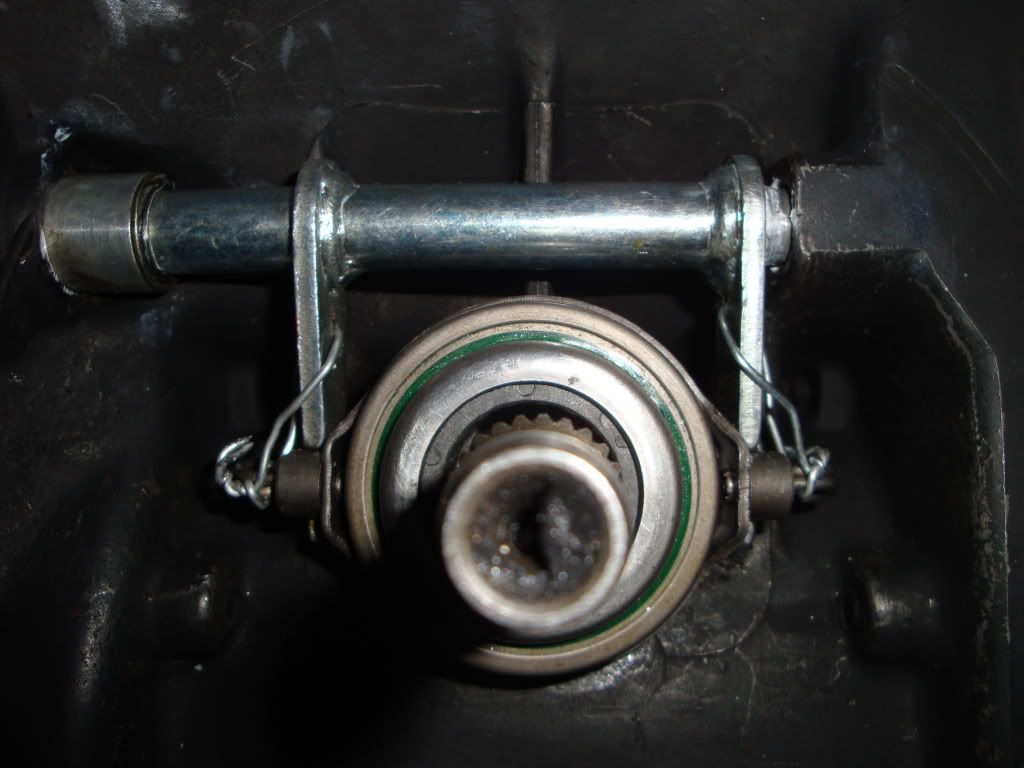

I installed this safety wire.
The wire does not touch the bearing and shaft is any way .
The bearing also pivots without hitting the wire.
Not to many pictures on how to best install this wire....
So I am not sure if my install is done correctly.
Just want to make sure that this safety measure will not create a different problem.
Thank you for your input MATT
