Stanw3
Samba Member
Joined: September 26, 2003
Posts: 1077
Location: Albuquerque, NM
|
 Posted: Wed Apr 01, 2009 9:29 am Post subject: Ragtop Rebuild |
 |
|
I'm rebuilding the ragtop assembly for my 65.
For refernce: I also had to replace my "sex screws". I couldn't bring myself to pay the $5.00 each that the replacements cost so I went to ACE hardware and put my own together for about $1.50 each.
I used loctite on one end so it adjusts like the original.
I flipped them so the beveled end is on bottom - no heads pushing out on the headliner:
OG
Flipped
Before:
After:
Last edited by Stanw3 on Fri Apr 03, 2009 7:41 pm; edited 1 time in total |
|
| Back to top |
|
 |
Ian
Samba Moderator
Joined: August 28, 2002
Posts: 4961
Location: 713
|
| Posted: Thu Apr 02, 2009 11:36 am Post subject: |
|
|
I have no clue but what you've done so far looks real nice.
_________________
All your Buses are belong to us.
Love and good roads!
IN LOVING MEMORY OF ROB CRESS 1968-2012 & KEN CRIMMINS 1957-2024 |
|
| Back to top |
|
|
2Pack
Samba Member
Joined: September 20, 2005
Posts: 813
Location: Virginia
|
|
| Back to top |
|
|
Okie Adam
Samba Member
Joined: November 07, 2003
Posts: 1349
Location: OOOOOOOOOOOOOOOOOklahoma
|
| Posted: Thu Apr 02, 2009 11:40 am Post subject: |
|
|
I know your frustration. I redid my roof a few years back and ended up reusing my original foam instead of the door seal foam WW sends. Didn't like having to do it but it worked.
_________________
Oil Capital Air Cooled
55 Wolfsburg Kombi
60 Walkthrough Kombi
62 Single Cab
66 21window
67 so42
76 Westy
64 Karmann Ghia |
|
| Back to top |
|
|
Stanw3
Samba Member
Joined: September 26, 2003
Posts: 1077
Location: Albuquerque, NM
|
| Posted: Fri Apr 03, 2009 7:54 pm Post subject: |
|
|
I see that VW Sunroofs sells the foam blocks for $11 each plus shipping. Uh, yah - mine aren't bad enough to warrant that. I added a layer of camper-top foam seal to get things back to a decent height. All good.
I also had to replace the tack strip on the header bow. Rust just plain sucks. :
_________________
Sanborn7
www.facebook.com/Sanborn7 |
|
| Back to top |
|
|
Stanw3
Samba Member
Joined: September 26, 2003
Posts: 1077
Location: Albuquerque, NM
|
| Posted: Sun Apr 05, 2009 8:12 pm Post subject: |
|
|
All done. Three trailing bows and one header bow - ready for install.
Out of the 6 blocks on the trailing bows only one was missing. The other five were all in nice shape. I rouned the corners of the replacement block to mimic the originals.
The internal mechanism works much better without the extra rust.
I found these in my bag of spare parts but I have no idea what they are. Anyone recognize them??
_________________
Sanborn7
www.facebook.com/Sanborn7 |
|
| Back to top |
|
|
Ian
Samba Moderator
Joined: August 28, 2002
Posts: 4961
Location: 713
|
| Posted: Sun Apr 05, 2009 8:25 pm Post subject: |
|
|
I believe the three on the left are for mounting the rear splash pans, they are reinforcement inside the corner. I think.
_________________
All your Buses are belong to us.
Love and good roads!
IN LOVING MEMORY OF ROB CRESS 1968-2012 & KEN CRIMMINS 1957-2024 |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 72013
Location: Phoenix 602
|
|
| Back to top |
|
|
Kelly
Samba Member
Joined: November 25, 2003
Posts: 2437
Location: Olympia, WA
|
| Posted: Mon Apr 06, 2009 5:27 am Post subject: |
|
|
great job with the sunroof bows!
The only thing I did different was I added black heat shrink on the ends of the bows to finish it off.
_________________
It's not how wide your hatch is, it's what you do with it.
Eriba Puck Sticky |
|
| Back to top |
|
|
Stanw3
Samba Member
Joined: September 26, 2003
Posts: 1077
Location: Albuquerque, NM
|
| Posted: Mon Apr 06, 2009 6:19 am Post subject: |
|
|
Thanks Ian and Jack. I need to find something for the ends before it allgoes together.
Ev - any idea on the pieces on the right? The screw hole is beveled.
_________________
Sanborn7
www.facebook.com/Sanborn7 |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 72013
Location: Phoenix 602
|
|
| Back to top |
|
|
Stanw3
Samba Member
Joined: September 26, 2003
Posts: 1077
Location: Albuquerque, NM
|
| Posted: Sat Sep 05, 2009 2:50 pm Post subject: |
|
|
Mostly done - pics for posterity.
First - color sand the roof with 800, 1000, 1200
Buff it till it's chiney!
Lay out the bones - get everything even
Put in the webbing to help everything close up nice:
Look at that front lip!!! I can hardly believe it came out so straight!
MAJOR props to the Master himself, Senor Jorge Coblentz for letting me watch him do his and answering all my phone calls when I did mine! I could never have done it without his help!
_________________
Sanborn7
www.facebook.com/Sanborn7 |
|
| Back to top |
|
|
royDHPNM
Samba Member
Joined: June 02, 2007
Posts: 359
Location: Albuquerque
|
| Posted: Sat Sep 05, 2009 4:24 pm Post subject: |
|
|
it is one sweet bus man. great work all around
if I can ever afford it you will be my first choice for a painter
_________________
DHP, bringing the Dry Heat
WHAT?!
http://www.dhpvw.com/
El Roy Pinstriping on Facebook |
|
| Back to top |
|
|
Vermeulen
Samba Member
Joined: October 30, 2005
Posts: 250
Location: Belgium
|
|
| Back to top |
|
|
Kelly
Samba Member
Joined: November 25, 2003
Posts: 2437
Location: Olympia, WA
|
| Posted: Sun Sep 06, 2009 5:04 am Post subject: |
|
|
nice job!
Lays flat and the front looks perfect.
I noticed when your rag is back it lays flat on itself, and I've seen this on several other buses. Mine seems to puff up. I wonder, is there a particular order in which the bows go to prevent this?
_________________
It's not how wide your hatch is, it's what you do with it.
Eriba Puck Sticky |
|
| Back to top |
|
|
Stanw3
Samba Member
Joined: September 26, 2003
Posts: 1077
Location: Albuquerque, NM
|
| Posted: Sun Sep 06, 2009 7:47 am Post subject: |
|
|
Nah, the three rear bows are all identical. I'd guess it has more to do with the spacing of the bows and the bend/angle of the rear of the bows (how it pushes the material as it goes back).
_________________
Sanborn7
www.facebook.com/Sanborn7 |
|
| Back to top |
|
|
npbusguy
Samba Member
Joined: February 08, 2006
Posts: 1666
Location: Budapest, Hungary
|
| Posted: Sun Sep 06, 2009 8:36 am Post subject: |
|
|
| Nice job, I like informative threads like this. |
|
| Back to top |
|
|
Vermeulen
Samba Member
Joined: October 30, 2005
Posts: 250
Location: Belgium
|
|
| Back to top |
|
|
Stanw3
Samba Member
Joined: September 26, 2003
Posts: 1077
Location: Albuquerque, NM
|
| Posted: Sun Sep 06, 2009 1:10 pm Post subject: |
|
|

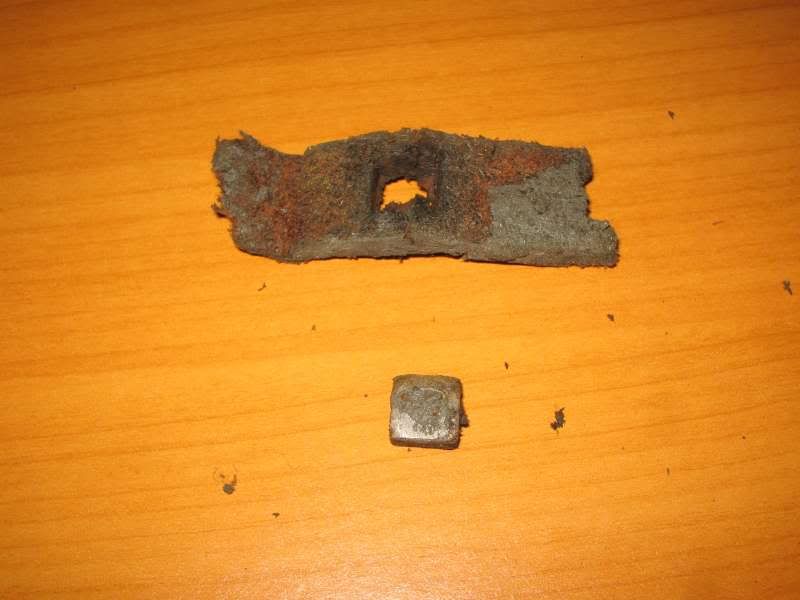

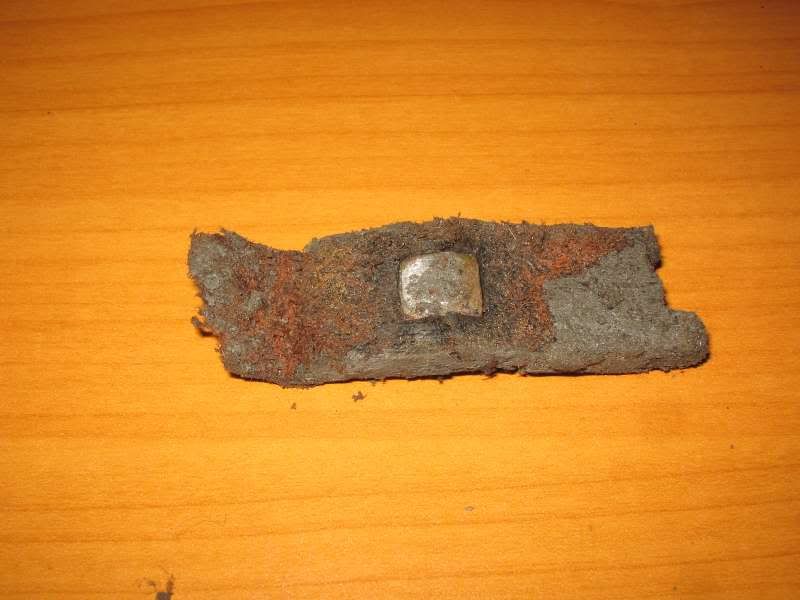

I don't recognize that. Looks like some padding - not sure about the square in the center. Neither were in my sunroof.
_________________
Sanborn7
www.facebook.com/Sanborn7 |
|
| Back to top |
|
|
Vermeulen
Samba Member
Joined: October 30, 2005
Posts: 250
