PostPosted: Sun Oct 18, 2009 6:01 pm    Post subject: German look '69 beetle project - NH (now class 11) Reply with quote

My dad and I have been all over new england in search of a bug for me. After a long time looking I've managed to find what I believe to be a real decent one. I've got a thing for late bugs, and I'm glad I held out until I found a solid one within my price range.

It's a 1969 Auto-stick. Semi-auto was definitely not my first choice, but I'm more interested in body structure than mechanics... that's the easy part.

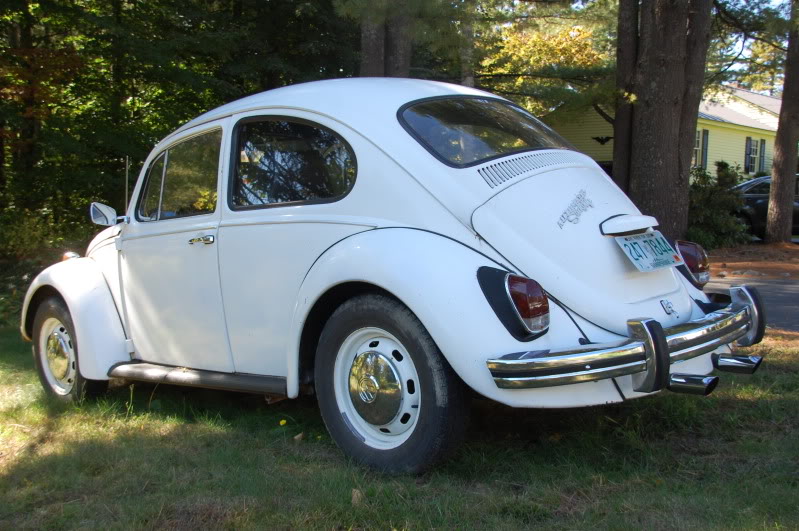

As we found it yesterday:
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

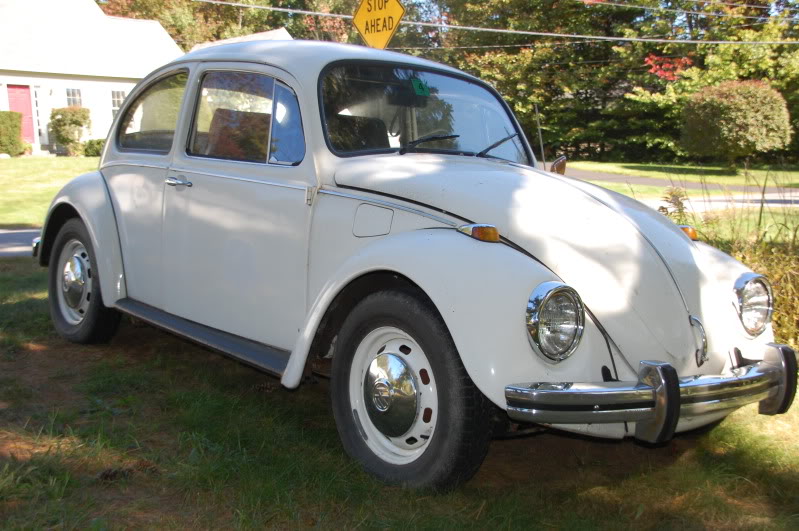

After a little fluff and buff today:
Image may have been reduced in size. Click image to view fullscreen.

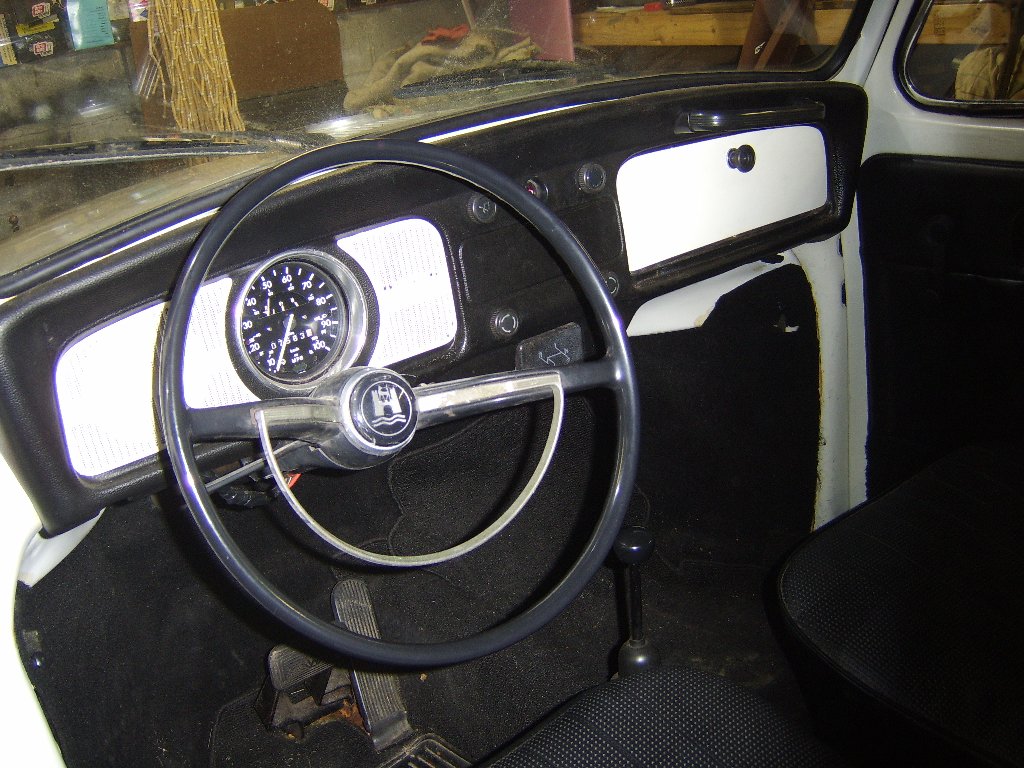

Interior:
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


The car was parked under a pine tree for a while by the previous owner. It was covered in small specks of pitch and sap, which took a lot of scrubbing to get out.
From what we can tell, the car underwent a comprehensive restoration at some point. The interior is all new-ish. It came out of the factory blue, but was resprayed white. Only indication of the car ever being blue is some chipping in the trunk and on the door hinge. The paint was very thoroughly done. Even all factory stickers are in place over the new paint.

My current plan for this car is to go the German Look road, or just drop it, but I just might roll it as is for a while. It's most likely going to get a 4 speed put in. And once that happens, it will probably get the 1776 we've had on the bench.
It runs, but only on three cylinders. The previous owner claimed the transmission doesn't shift into 1st (real first, not low). My dad believes once we get the engine tuned, it will boost the vacuum and maybe resolve some transmission issues... but like I said, mechanics are the easy parts.
We may or may not pull the body off and re-do the floors. My dad seems to want to. I'd love to have the whole chassis rhino-lined Cool

So that's my bug... I'm so pumped to get it on the road, I just hope it doesn't snow again for a while Shocked
_________________
'69 Bug,'71 Bus,'61 Bug ,'56 Bug, '66 Panel


Last edited by 4Doora on Sun Nov 15, 2009 7:38 pm; edited 2 times in total
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
Jerry Hundley
Samba Member


Joined: April 20, 2006
Posts: 1180
Location: Chester, Va
Jerry Hundley is offline

PostPosted: Sun Oct 18, 2009 6:16 pm    Post subject: Reply with quote

Looks like a nice car
_________________
Jerry Hundley (AKA Slammed 66)

Because Stock Sucks!!!!
70 baywindow deluxe
65 slammed bug
69 bug
64 drag buggy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jmw1982
Samba Member


Joined: May 19, 2008
Posts: 298
Location: Weymouth, MA
jmw1982 is offline

PostPosted: Sun Oct 18, 2009 7:27 pm    Post subject: Reply with quote

Nice score-looks really clean! keep us updated with the progress
_________________
________________________________________

'60 Beetle Indigo Blue
Back to top
View user's profile Send private message AIM Address Classifieds Feedback
Zach Thomas
Samba Member


Joined: August 12, 2008
Posts: 929
Location: Lake Stevens, WA
Zach Thomas is offline

PostPosted: Sun Oct 18, 2009 8:46 pm    Post subject: Reply with quote

I'd leave it an autostick, just cause I think they're cool Laughing

But there's definitely nothing wrong with German look cars Cool Regardless, looks like a pretty decent car!
_________________
62 Rag - a little crusty
Back to top
View user's profile Send private message Gallery Classifieds Feedback
RomanBug
Samba Member


Joined: October 10, 2009
Posts: 44
Location: Rome, Ga
RomanBug is offline

PostPosted: Sun Oct 18, 2009 9:58 pm    Post subject: Reply with quote

I can see a German look Auto stick. Dare to be different, dont swap it out.
Back to top
View user's profile Send private message Classifieds Feedback
4Doora
Samba Member


Joined: November 13, 2006
Posts: 1153
Location: Hudson, NH
4Doora is offline

PostPosted: Mon Oct 19, 2009 4:28 am    Post subject: Reply with quote

Honestly, the auto stick is kind of cool. It's just got a certain novelty to it. I've already have had a couple friends look at the decklid badge and say, "wtf is an automatic-stickshift?", lol.
Image may have been reduced in size. Click image to view fullscreen.

_________________
'69 Bug,'71 Bus,'61 Bug ,'56 Bug, '66 Panel
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
Freak182
Samba Member


Joined: February 25, 2008
Posts: 244

Freak182 is offline

PostPosted: Mon Oct 19, 2009 6:35 am    Post subject: Reply with quote

Nice ride! Good to see more NH VW people around, I know there was a group over Nashua way that was getting together on Fridays during the summer.
Looks like you have a really good platform to work from.
_________________
johnnypan wrote:
I also happen to believe people who roll fatties have prettier women,smarter children and are truly the uber mensch of volkswagen society..and their beer is colder and tastes better


Supporters:
http://www.thesamba.com/vw/classifieds/search.php?username=Viande
Decal restoration by bryanbrutherford
www.CooperTires.com
http://www.oeveedub.com/
Back to top
View user's profile Send private message Gallery Classifieds Feedback
4Doora
Samba Member


Joined: November 13, 2006
Posts: 1153
Location: Hudson, NH
4Doora is offline

PostPosted: Tue Oct 27, 2009 2:03 pm    Post subject: Reply with quote

I got my beam in the mail today Cool Very Happy (thanks to Matthew Tylka)
Image may have been reduced in size. Click image to view fullscreen.


3" narrowed adjustable beam
I'm debating whether or not to get some drop spindles too. I've got two good pairs of ghia disk stock spindles, I had planned to run a pair of those (for the disk brake conversion of course).
I still need tie rods and all that fun stuff, so car is gonna ride stock height for a while

Last weekend I tuned up the engine with some new spark plugs and genuine bosch wires. That #3 plug is a bitch to get to with the auto-stick vacuum valve in the way Shocked , but I managed and now she's running great on all fours.
Image may have been reduced in size. Click image to view fullscreen.

It will suffice for keeping it mobile for the mean time. Once we start the transmission swap, the new 1776 is goin' in there.

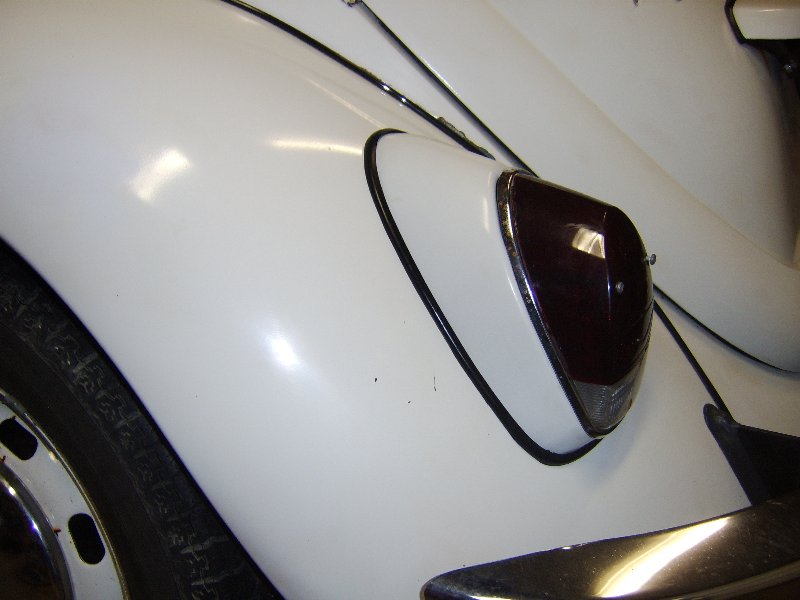

My dad painted those ugly black tail light housings for me (duplicolor matched quite nicely).
Image may have been reduced in size. Click image to view fullscreen.


My dad and I have also concluded that 1st gear is completely gone from the trans, so 4 speed conversion is definitely on the list. I spotted a guy advertising rebuilt transmission here on the samba just up the road in Manchester for reasonable dough, so my dad and I are taking a ride up there Saturday morning to check it out.

Image may have been reduced in size. Click image to view fullscreen.

^ here 's what the rims my dad had laying in the attic of the garage look like. They were for my moms scion, but never mounted tires to them. They're 17x7" with a 4x100 bolt pattern.
I'd love to get them on the bug, but that's not at the top of the list right now.

That's all for now Cool
_________________
'69 Bug,'71 Bus,'61 Bug ,'56 Bug, '66 Panel
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
Doogles
Samba Member


Joined: October 26, 2009
Posts: 16
Location: Maine
Doogles is offline

PostPosted: Sun Nov 01, 2009 2:51 pm    Post subject: Reply with quote

Hey,

Funny story:
I was going to look at that car the morning that you bought it. I live in Maine.. I caled the guy and e said it had just sold.

Congratulations! Very Happy
Nice looking car.

Anyway, I know where there is an autoshift in downeast Maine, and I am going to be up there next weekend. If you want I can take a look at it for you. It may be easier to replace the autoshift than to witch to standard.
let me know!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Hakka
Samba Member


Joined: November 21, 2004
Posts: 573
Location: PNW
Hakka is offline

PostPosted: Sun Nov 01, 2009 3:11 pm    Post subject: Reply with quote

4Doora wrote:
Honestly, the auto stick is kind of cool. It's just got a certain novelty to it. I've already have had a couple friends look at the decklid badge and say, "wtf is an automatic-stickshift?", lol.
Image may have been reduced in size. Click image to view fullscreen.


I love that badge. I hope you will leave it on there. Nice find.
Back to top
View user's profile Send private message Classifieds Feedback
4Doora
Samba Member


Joined: November 13, 2006
Posts: 1153
Location: Hudson, NH
4Doora is offline

PostPosted: Sun Nov 01, 2009 6:42 pm    Post subject: Reply with quote

Doogles wrote:
Hey,

Funny story:
I was going to look at that car the morning that you bought it. I live in Maine.. I caled the guy and e said it had just sold.

Congratulations! Very Happy
Nice looking car.

Anyway, I know where there is an autoshift in downeast Maine, and I am going to be up there next weekend. If you want I can take a look at it for you. It may be easier to replace the autoshift than to witch to standard.
let me know!

Glad I made it up there first Laughing Wink
Thanks for the offer on the trans, but it's definitely getting swapped for a 4 speed. My dad said he did a few back in the 70s, and that it's a pretty cut and dry procedure.

...With the trans swap will be the inevitable rear decklid script swap too Razz


Anywho... while I've been in school during the day, my dad can't help but do some work on the bug.
He managed to get the front beam out, framehead cleaned up/ painted, and installed the new beam

Image may have been reduced in size. Click image to view fullscreen.

^firewall painted with brush on rustoleum (wicked solid too)

Image may have been reduced in size. Click image to view fullscreen.

^painted the framehead with POR-15... for some reason it dried flat Question

Image may have been reduced in size. Click image to view fullscreen.

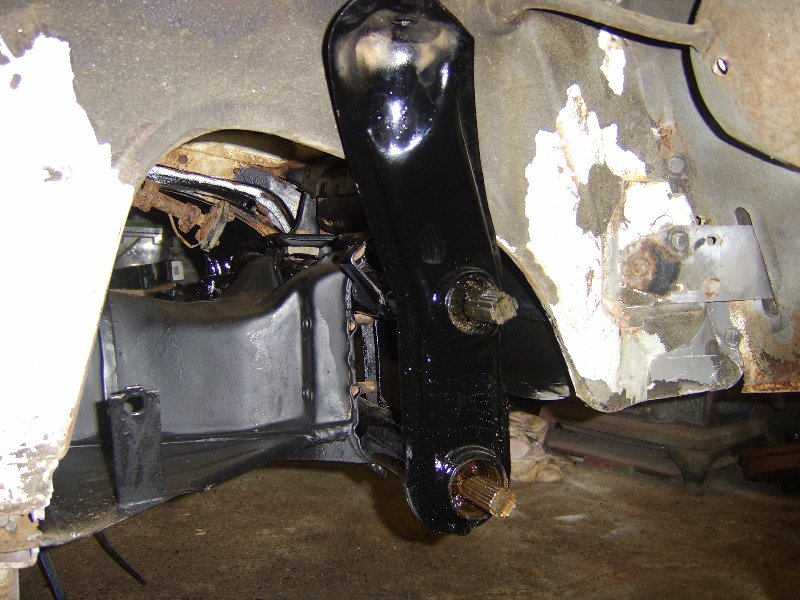

Beam mounted up, very tight clearance but fit without a hitch.

Image may have been reduced in size. Click image to view fullscreen.

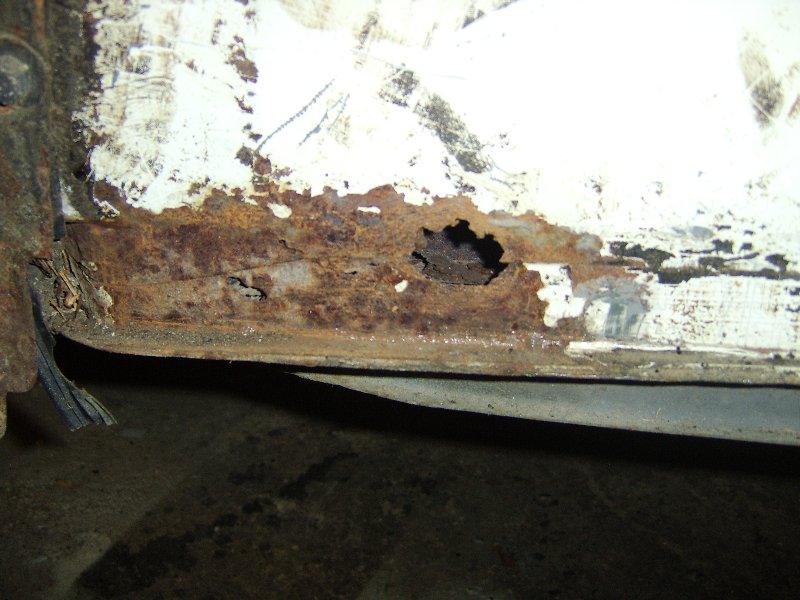

We discovered a little rust... if that's what you want to call it Laughing ... to be expected here in new england. I'll get that cleaned up and patched.

Currently just waiting on front end parts from California, which should arrive by the end of the week. Until then....
_________________
'69 Bug,'71 Bus,'61 Bug ,'56 Bug, '66 Panel
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
Doogles
Samba Member


Joined: October 26, 2009
Posts: 16
Location: Maine
Doogles is offline

PostPosted: Sun Nov 01, 2009 7:32 pm    Post subject: Reply with quote

keep me posted on the 4 speed changeout.

Car looks good so far!

Now for winter........... Confused
Back to top
View user's profile Send private message Gallery Classifieds Feedback
olson1955
Samba Member


Joined: November 16, 2007
Posts: 177
Location: salem,oregon
olson1955 is offline

PostPosted: Sun Nov 01, 2009 8:23 pm    Post subject: Reply with quote

pretty clean!!

good work so far.. keep it up!
_________________
www.myspace.com/vwcody to see pics of my 66 Bug Project
Back to top
View user's profile Send private message Gallery Classifieds Feedback
4Doora
Samba Member


Joined: November 13, 2006
Posts: 1153
Location: Hudson, NH
4Doora is offline

PostPosted: Sat Nov 07, 2009 7:31 pm    Post subject: Reply with quote

I've got a few updates for tonight...
Yesterday we got a pile of parts in the mail, and today was like Christmas, getting to open them all and install them.

Image may have been reduced in size. Click image to view fullscreen.

There's my dad, pressing the new ball joints into the control arms. It's the first time the press has got any use since we brought home from my grandmother's garage over the summer... great tool to have.

Image may have been reduced in size. Click image to view fullscreen.

Once all the ball joints were pressed in, we got the control arms on the beam. The lower ones were a little tricky, but we managed to get them in with a little persuasion.

Image may have been reduced in size. Click image to view fullscreen.

Here's the spindle mounted up to the passenger side, as well as new lowered shocks. Also notice the hole that was in the inner fender has been patched, puttied, and the whole thing gone over with por-15.

Image may have been reduced in size. Click image to view fullscreen.

Disks with 4x100 bolt pattern

These next two shots were inevitable Drool
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


as far as the front end goes, we still need to:
-clean up/rebuild the calipers and install new pads before they're mounted
-get some studs for the rotors
-mount the tires
-narrow the tie rods
-few other misc things...

until next time Very Happy
-Peace
_________________
'69 Bug,'71 Bus,'61 Bug ,'56 Bug, '66 Panel
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
4Doora
Samba Member


Joined: November 13, 2006
Posts: 1153
Location: Hudson, NH
4Doora is offline

PostPosted: Tue Nov 10, 2009 7:31 pm    Post subject: Reply with quote

We were pretty busy on monday...

Cleaned up the trunk:

Before (well, before paint, after rust was cleaned up)
Image may have been reduced in size. Click image to view fullscreen.


after paint
Image may have been reduced in size. Click image to view fullscreen.


It's got a few runs, and it's not the best match to the original white that was still intact in the trunk, but it looks better than the rust.

We cleaned and painted the calipers:
Image may have been reduced in size. Click image to view fullscreen.

they still need pads, but they looked too good to just leave hanging around Laughing

Wheel on:
Image may have been reduced in size. Click image to view fullscreen.

Should have the tires by thursday

next on the agenda is to get the tie rods tapped out. my dad already cut them down, but we don't have a big enough tap to do the job.
+ still have to narrow the sway bar.
We'll probably have it off the jack stands by Sunday.

-peace

Image may have been reduced in size. Click image to view fullscreen.

_________________
'69 Bug,'71 Bus,'61 Bug ,'56 Bug, '66 Panel
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
Freak182
Samba Member


Joined: February 25, 2008
Posts: 244

Freak182 is offline

PostPosted: Wed Nov 11, 2009 3:57 am    Post subject: Reply with quote

Nice! You've gotten more done in a month than most of us do in a year. I like the rims, nice choice.
_________________
johnnypan wrote:
I also happen to believe people who roll fatties have prettier women,smarter children and are truly the uber mensch of volkswagen society..and their beer is colder and tastes better


Supporters:
http://www.thesamba.com/vw/classifieds/search.php?username=Viande
Decal restoration by bryanbrutherford
www.CooperTires.com
http://www.oeveedub.com/
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Hoodrat
Samba Member


Joined: April 02, 2006
Posts: 111
Location: Louisiana
Hoodrat is offline

PostPosted: Wed Nov 11, 2009 5:34 am    Post subject: Reply with quote

looking good keep up the work
_________________
Run it Till it Pukes!!!!!
Back to top
View user's profile Send private message Classifieds Feedback
Green_Lantern
Samba Member


Joined: June 16, 2009
Posts: 83
Location: Seminole, FL
Green_Lantern is offline

PostPosted: Wed Nov 11, 2009 7:11 am    Post subject: Reply with quote

I'm very interested to see how the wheels look once you have the stance dialed in and your on the ground. Great build so far!
Back to top
View user's profile Send private message Classifieds Feedback
Lord Helmet
Samba Member


Joined: October 10, 2007
Posts: 120
Location: Denver Metro, CO
Lord Helmet is offline

PostPosted: Wed Nov 11, 2009 5:28 pm    Post subject: Reply with quote

Green_Lantern wrote:
I'm very interested to see how the wheels look once you have the stance dialed in and your on the ground. Great build so far!


Same here, lookin good too. Cool
_________________
1966 Beetle project
Back to top
View user's profile Send private message Gallery Classifieds Feedback
4Doora
Samba Member


Joined: November 13, 2006
Posts: 1153
Location: Hudson, NH
4Doora is offline

PostPosted: Thu Nov 12, 2009 7:32 pm    Post subject: Reply with quote

Thanks all for the props and support!
The tires came in the mail today. I tried to mount one onto a rim, but my puny little tire irons were no match for those stubborn low profile tires Mad . my dad's taking them into work tomorrow to mount them with the proper equipment.

since we don't have the drums for the back, we'll only be able to mount the front rims. The ass end is probably gonna be riding high until after we're through with the transmission swap. We also don't have a transmission yet... I think the trans guy from Manch-vegas bailed or died Confused .
The tie rods have been successfully shortened and tapped also.

With nothing much to do while we wait for parts from California, I was just messing around the in garage and tried this on for size:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Just some red pinstripe tape I had laying around... opinions? I like it Cool

-peace
_________________
'69 Bug,'71 Bus,'61 Bug ,'56 Bug, '66 Panel
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Reader's Rides All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4, 5, 6, 7, 8  Next
Page 1 of 8


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
