 Posted: Sun Feb 27, 2011 10:06 am Post subject: Bigger Front Torsions |
 |
|
Sooo, were there any cars that had bigger front torsions than the others?
The square has bigger rears, but what about the front?
Do different years make any difference?
Was there ever a 'country' or 'severe duty' option?
Any other vehicles that use a similar bar, but thicker?
Maybe they could have a sleeve welded on to stiffen?
ANything but a T1 beam! LOL...
_________________
Bus Motor Build
I have excellent news for the world...
There is no such thing as patina.
It does not exist! |
|
| Back to top |
|
 |
Critter1
Samba Member
Joined: August 04, 2004
Posts: 1579
Location: Sacramento
|
| Posted: Sun Feb 27, 2011 10:37 am Post subject: |
|
|

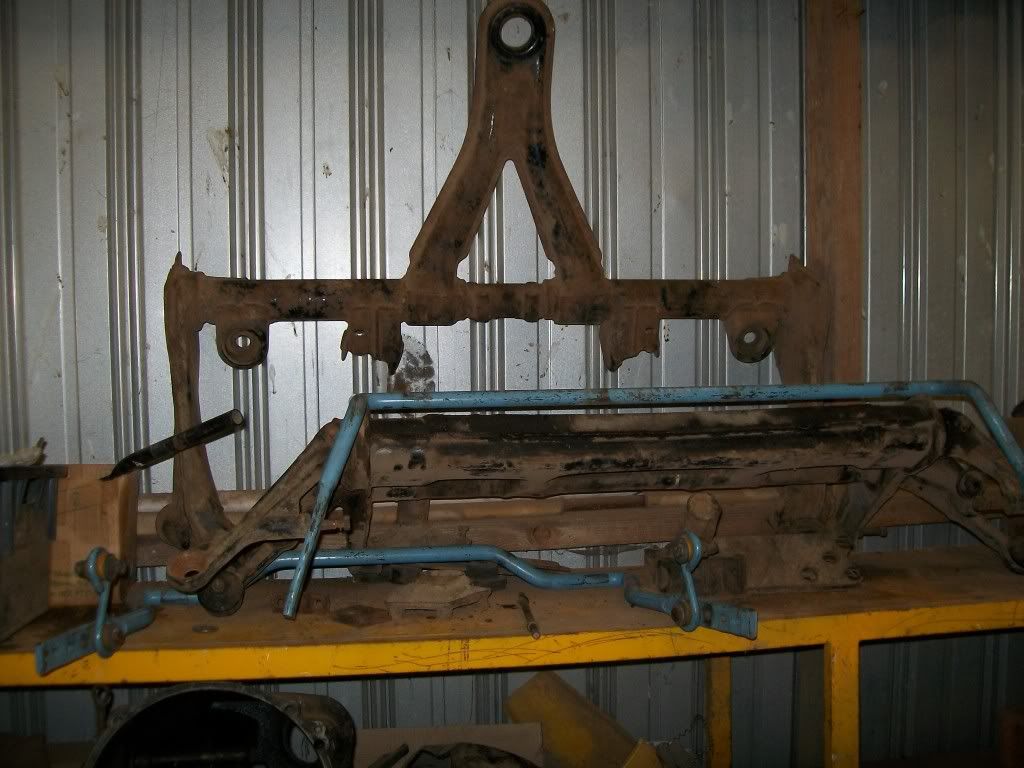

Yes. There is a 10mm and a 13mm front tortion bar (left two in picture). I believe the 13mm came on late model squares.
_________________
Justin |
|
| Back to top |
|
|
KTPhil
Samba Member
Joined: April 06, 2006
Posts: 35878
Location: Conejo Valley, CA
|
| Posted: Sun Feb 27, 2011 10:48 am Post subject: |
|
|
Can they be retrofitted? In other words, are the ends identical?
Also, do you have measurements for both the roll bar and the torsion bars? |
|
| Back to top |
|
|
flyinglow94
Samba Member
Joined: January 17, 2005
Posts: 1173
Location: Las Vegas, Nevada
|
| Posted: Sun Feb 27, 2011 11:58 am Post subject: |
|
|
The two on the left of the picture are the upper sway bars of a type 3. both of them fit in the same beam the 13mm is from a late model and will fit in a early front beam. They have the same ends just a larger shaft in a late model.
_________________
"What we obtain too cheap, we esteem too lightly: 'tis dearness only that gives everything its value. Heaven knows how to put a proper price upon its goods; and it would be strange indeed if so celestial an article as FREEDOM should not be highly rated."
"Socialism is a philosophy of failure,the creed of ignorance, and the gospel of envy,its inherent virtue is the equal sharing of misery.." |
|
| Back to top |
|
|
supaninja
Samba Member
Joined: July 03, 2010
Posts: 4020
Location: houston
|
|
| Back to top |
|
|
jimmynotch
Samba Member
Joined: February 11, 2003
Posts: 2901
Location: sacramento
|
| Posted: Sun Feb 27, 2011 4:20 pm Post subject: |
|
|
So the 13mm can be swapped into an earlier beam and will work with any spindles? How much difference is there in ride between 10 and 13mm?
_________________
Jim in Sacto -
| my wonderful loving supportive wife wrote: |
| You guys are dorks. |
1965 1500-S Notchback --"Maggy"
1971 Type 2 Double Cab --"George"
TOOB member #2 |
|
| Back to top |
|
|
KTPhil
Samba Member
Joined: April 06, 2006
Posts: 35878
Location: Conejo Valley, CA
|
| Posted: Sun Feb 27, 2011 6:16 pm Post subject: |
|
|
| Should be almost no difference in ride, since it's just the sway bar. On hard cornering, it will be a little rougher since it is resisting body roll harder. A great trade-off. |
|
| Back to top |
|
|
vlad01
Samba Member
Joined: October 27, 2010
Posts: 3069
Location: Australia
|
| Posted: Sun Feb 27, 2011 6:33 pm Post subject: |
|
|
| supaninja wrote: |
| sweet, my front beam came out of a late square! |
I have a White Line prototype 24? mm swaybar kit  |
|
| Back to top |
|
|
vlad01
Samba Member
Joined: October 27, 2010
Posts: 3069
Location: Australia
|
| Posted: Sun Feb 27, 2011 6:37 pm Post subject: |
|
|
| KTPhil wrote: |
| Should be almost no difference in ride, since it's just the sway bar. On hard cornering, it will be a little rougher since it is resisting body roll harder. A great trade-off. |
No it's not a trade off. It improves cornering stability and reduces body roll. This was intended for payloads in squares.
Rougher ride???  with that small difference in bar diameter, I think not. |
|
| Back to top |
|
|
supaninja
Samba Member
Joined: July 03, 2010
Posts: 4020
Location: houston
|
|
| Back to top |
|
|
jimmynotch
Samba Member
Joined: February 11, 2003
Posts: 2901
Location: sacramento
|
| Posted: Sun Feb 27, 2011 10:04 pm Post subject: |
|
|
So by "upgrading" to larger torsion bars, I can improve the way my notch handles on my favorite twisty roads?
_________________
Jim in Sacto -
| my wonderful loving supportive wife wrote: |
| You guys are dorks. |
1965 1500-S Notchback --"Maggy"
1971 Type 2 Double Cab --"George"
TOOB member #2 |
|
| Back to top |
|
|
vlad01
Samba Member
Joined: October 27, 2010
Posts: 3069
Location: Australia
|
| Posted: Sun Feb 27, 2011 10:10 pm Post subject: |
|
|
They are adjustable from 22-24-26? I think? or it might be 20-22-24mm?
The 22-24-26mm might be the rear now that I think about it.
|
|
| Back to top |
|
|
vlad01
Samba Member
Joined: October 27, 2010
Posts: 3069
Location: Australia
|
| Posted: Sun Feb 27, 2011 10:15 pm Post subject: |
|
|
| jimmynotch wrote: |
| So by "upgrading" to larger torsion bars, I can improve the way my notch handles on my favorite twisty roads? |
yes and no.
torrions bars are the springs in VWs, swaybars is what I think you are talking about?
I stiffer swaybar will generally improve handling if selected properly. The car WILL need better and wider tyres. Both front and rear swaybars need to be added and need to be adjustable so you can tune over and under steer.
Having too stiff will cause crap handling as well as having none or too light. |
|
