Proper dipstick for a 25hp

[Splitdog]

What is the proper dipstick for a 25hp? I have 3 and they look alike but are different lengths.
_________________
CH³NO²

Z = z² + C

Der Blitzkrieg Kafers

#notacallooker

[johnshenry]

Jim already has his answer as I went out to the storage building last night in a thunderstorm to measure mine for him (!), but I'll post here for reference. I too noticed there were several different length dipsticks in 25 and 36 hp engines.

I believe the one in my '50 is correct. It measures 6 31/32" from the (sump end) tip to the bottom flange of the "hat" that goes over the top of the dipstick tube. So just a hair under 7"
_________________
John Henry

'57 Deluxe
'56 Single Cab

[Splitdog]

Thanks again, John. This man went out in the rain to measure this for me as I was wrapping up a problem on my car. Kudos!!
_________________
CH³NO²

Z = z² + C

Der Blitzkrieg Kafers

#notacallooker

[nlorntson]

Not to add confusion, but I think the difference between a 36hp and 25 hp is the top part that holds the dipstick in the tube.

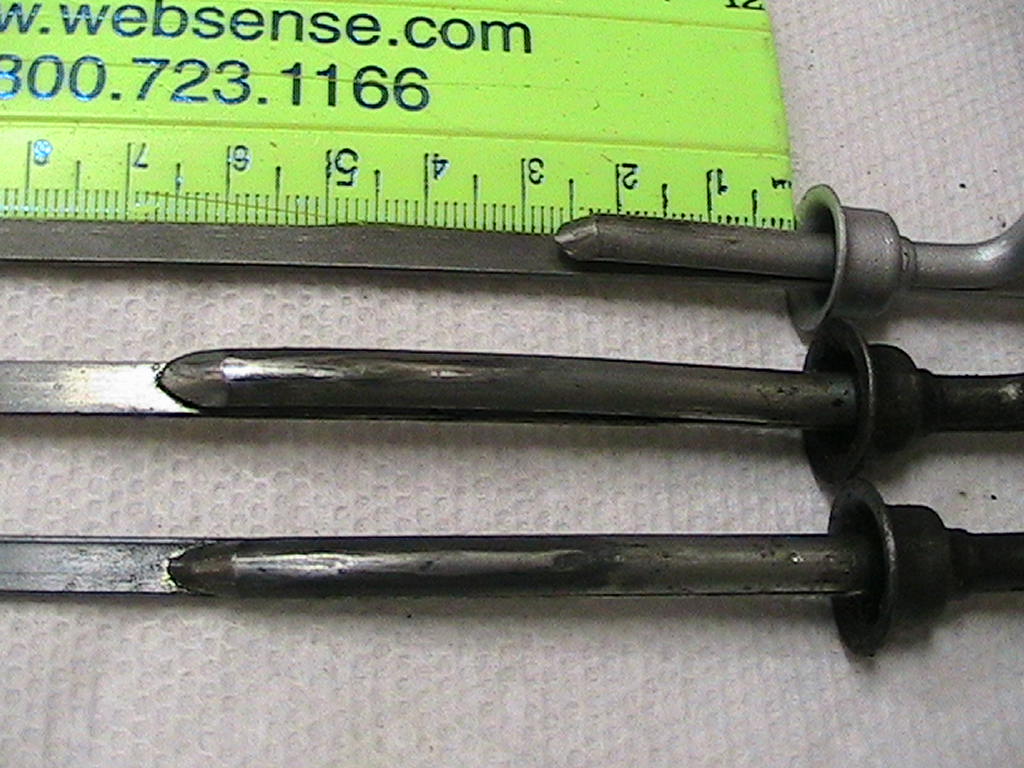

In these pictures the length is identical as are the position of the marks, but notice the length of the part below the "hat"

25hp is the silver one on top, 36hp is the one on the bottom. I'm not sure what the one in the middle is (maybe just broken off?) but it looks original.

[Bruce]

[janerick3]

Progressive Refinements shows the "dipstick tube located higher" on 7 June 1952, at Engine no. 1-0436414. This suggests a longer dipstick on later 25hp engines, so could the center dipstick may be correct for engines built before then?

For the 1960-only, red-handled 36hp dipstick (because the power train angle changed 2 degrees relative to the ground), Progressive Refinements only lists the changes in distance from the tip to the upper mark (from 44 to 40mm).
_________________
Thanks,
Jan K.

[nlorntson]

The top one, came out of an August 49 engine. One identical to it came out of a rebuilt (in 1956) 25hp engine. The others came from different 36 HP engines.

I have one of those red handled ones and IIRC it's identical to the 36hp. I'll post up a picture.

[Kais Collection]

[nlorntson]

[sweden]

Old post, but useful for future.

_________________
Me and my sons cars Typ1 -49 -50 -51 -52 -52 -53 -53 -54 -55 -55 -56 -56 -57 -58 cab -64 cab
T3 TriStar airride with Audi 1,8T engine and Porsche 996 gearbox.

[ZENVWDRIVER]

[splitjunkie]

60 dipstick on the left. 59 and earlier 36hp and 25hp on the right.
The engine angle was changed in '60 thus changing the oil level at the rear of the engine. The '60 dipstick has the marks lower to compensate for this. The '60 dipstick was red to make it stand out.

There were differences in the hat and other details but as far as measuring the oil and '59 or earlier dipstick will work just fine.
_________________
Chris

You know, a lot of these scratches will buff right out... Jerry Seinfeld

[BulliBill]

As noted in the chart shown above, there were TWO different different oil level dipsticks with "red painted" handles, one with a 111 115 611A part number for the 30bhp 2% inclination engines and a unique 211 115 611 part number dipstick for the "Bastard" Type 2 engines starting in May 1959 and ending about a year and a half later or so.

Bill Bowman
_________________
I'm looking for these license plate frames for my fleet:
Coeur D'Alene - Lake Shore Volkswagen
Mission VW - San Fernando
Thornton VW - Stockton

Thanks for any help!

[T2_681]

Now - how did the early (WW2) dipstick look? It did not nave the typical cap but there was only a "wave" on one side serving the same purpose as the cap. What were the dimensions and where were the level marks?

[ZENVWDRIVER]

… am learning more about human-nature on these split forums, these days - because I am much more into practical-function, then correctness - is why I rely on Mr. JT Garwood so heavily... just to know what is correct and what is not - Have to ask, why is everyone so hell-bent on originality? Is that just all the fun for you guys? Is that just the sport of the game?

Dipsticks > yikes! i'd just empty my crankcase of oil - look up the quantity of oil my 25 holds (thought all type ones held 2.7 US quarts) grab any dipstick and put it in the hole - add 1.7 quarts if oil - let it settle and check the dipstick - file a little line at 1.7 and add the final quart - file another little line, indicating full and live by my marks (bet the existing lines on the sticks would be close enough anyway and no additional lines would be necessary)…

… if I was aware that 25 horse oil-dipsticks were so special, idda' never gotten rid of any, over the years - have a few 36 and 40 horse sticks, in my stash...marked as such.

… Not debating or looking to argue - everyone should just 'do their own- thing' and i'm cool with that. I have come to respect Mr. Splitdog, finster (and others) very much - So, just wanting to understand other opinions, is all - many thanks - z
_________________
5/50, pastel green 11G - SOLD
8/50, gray 11A Beetle
6/52, pastel green 11C - SOLD
11/4/52, black Zwitter - SOLD to my little bro.
1954 Porsche, pre A, with VW 36 horse- SOLD
1/54, black 11C Beetle - TRADED
2/55 Iceland green Beetle, on a 1965 pan
3/55 113 Beetle, stratos silver
1955 Messerschmitt KR175 - SOLD, sadly
1960 single cab
1962 SO33, with SO 42 interior
9/63 Pacific blue, Ghia
'87 Toyota MR2
'02 WestFORDia E-150, GAVE TO OUR SON

All super-heroes, wear a MASK

[pastellgreen]

There are two things coming to my mind speaking about the originalty delusion:

The first point is a certain suspense on historical and archeological kind of research. If there would nobody interested in our past and in old ruins found, there wouldn't be any further investigation and connected knowledge about where we came from. Archeologists are very fussy at work and so are we here, learning every day something new about our little cars, how the've been made and changed. We also try to retrace and understand the engineers work at the VW factory in the past.

The second point is the uprising worth of our vehicles (that I hate actually). People selling their cars have to argue why they want that much money. Historical corectness is one good point to discuss the asking price. And for knowing all the details, we study it on the samba. I also want to buy a expensive car only, when the details are correct.

[ZENVWDRIVER]
