TinCanFab
Samba Member


Joined: April 04, 2006
Posts: 2550
Location: Waterford, California
TinCanFab is offline

PostPosted: Sun Aug 16, 2015 8:35 am    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Here's a good use for a scrounged up broken carb jet- inline vacuum restrictor. I can take it out or change it if needed. This will even out vacuum pulses for the MAP.
_________________
Check out my truck brought back from the dead... http://www.thesamba.com/vw/forum/viewtopic.php?t=420762&highlight=sprayed+blood

They're never really ever finished 58 rag build...
http://www.thesamba.com/vw/forum/viewtopic.php?t=658092
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
TinCanFab
Samba Member


Joined: April 04, 2006
Posts: 2550
Location: Waterford, California
TinCanFab is offline

PostPosted: Sun Sep 06, 2015 7:05 am    Post subject: Reply with quote

10 micron filter to left side rail-

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

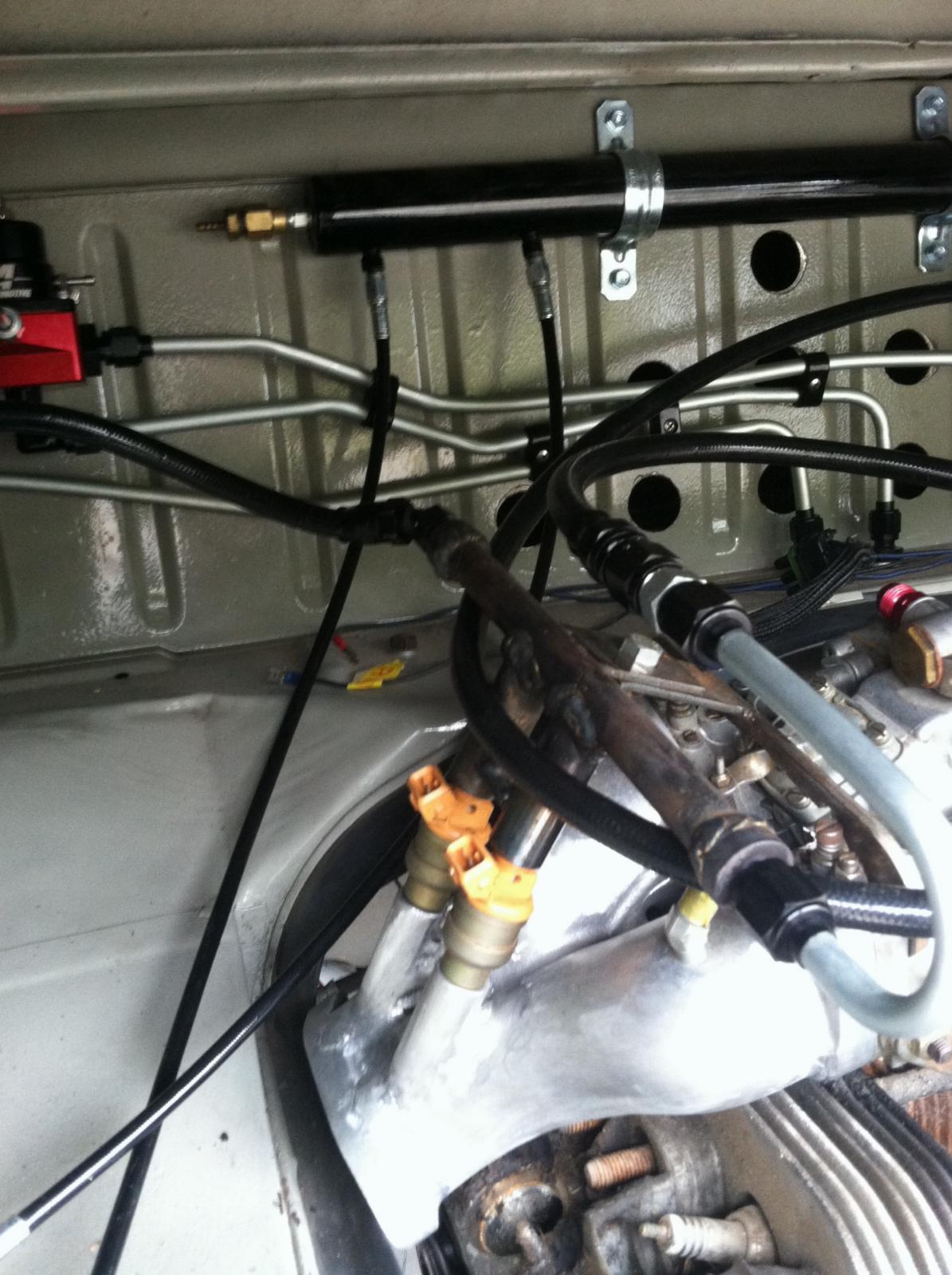

Here you can see how both carb and injector inlets hook up pretty much the same, depending what I'm running at the moment.

Image may have been reduced in size. Click image to view fullscreen.

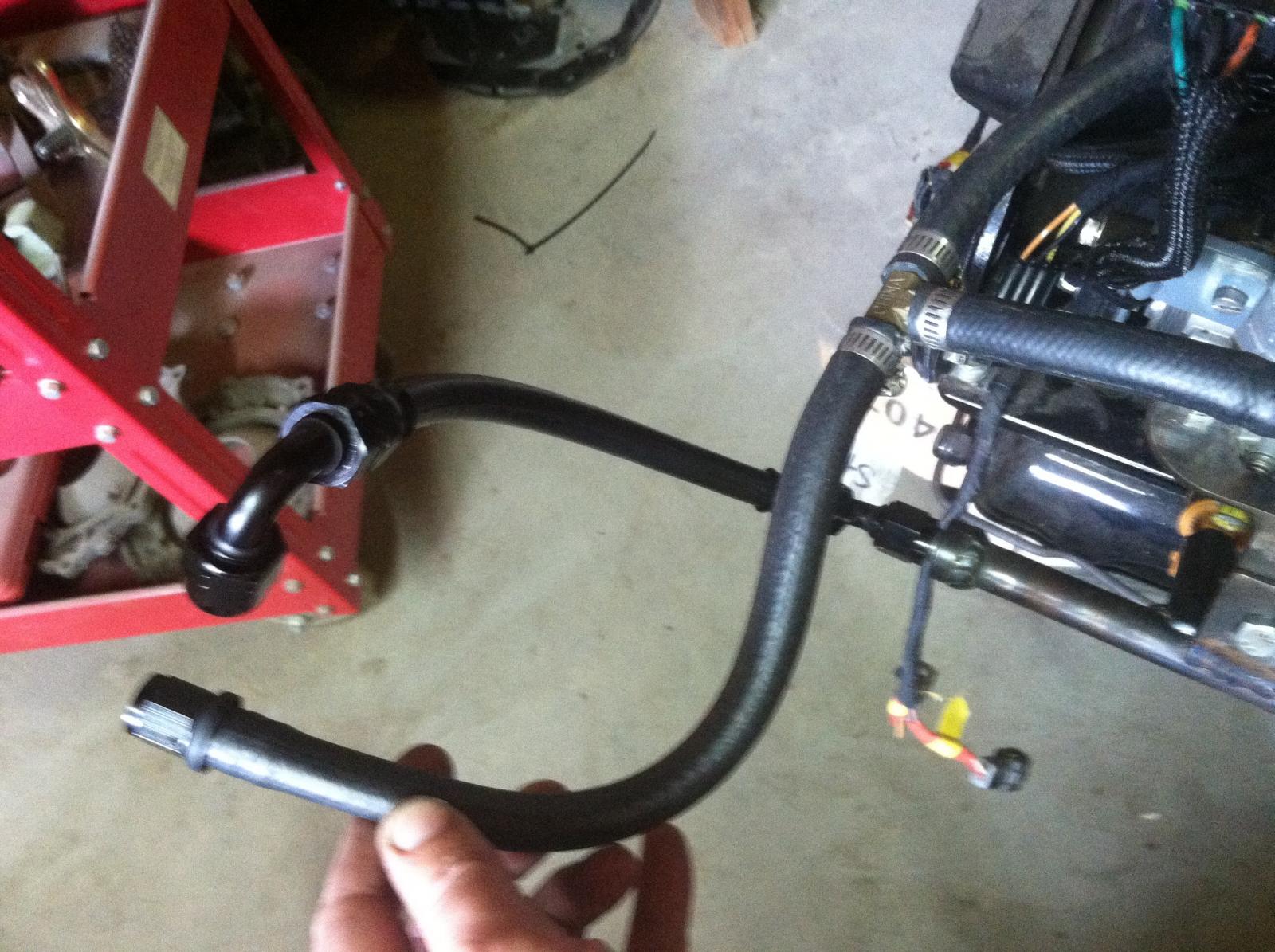

Setting the hoses up to run behind the engine-

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Check out my truck brought back from the dead... http://www.thesamba.com/vw/forum/viewtopic.php?t=420762&highlight=sprayed+blood

They're never really ever finished 58 rag build...
http://www.thesamba.com/vw/forum/viewtopic.php?t=658092
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
TinCanFab
Samba Member


Joined: April 04, 2006
Posts: 2550
Location: Waterford, California
TinCanFab is offline

PostPosted: Sun Sep 06, 2015 11:34 am    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.

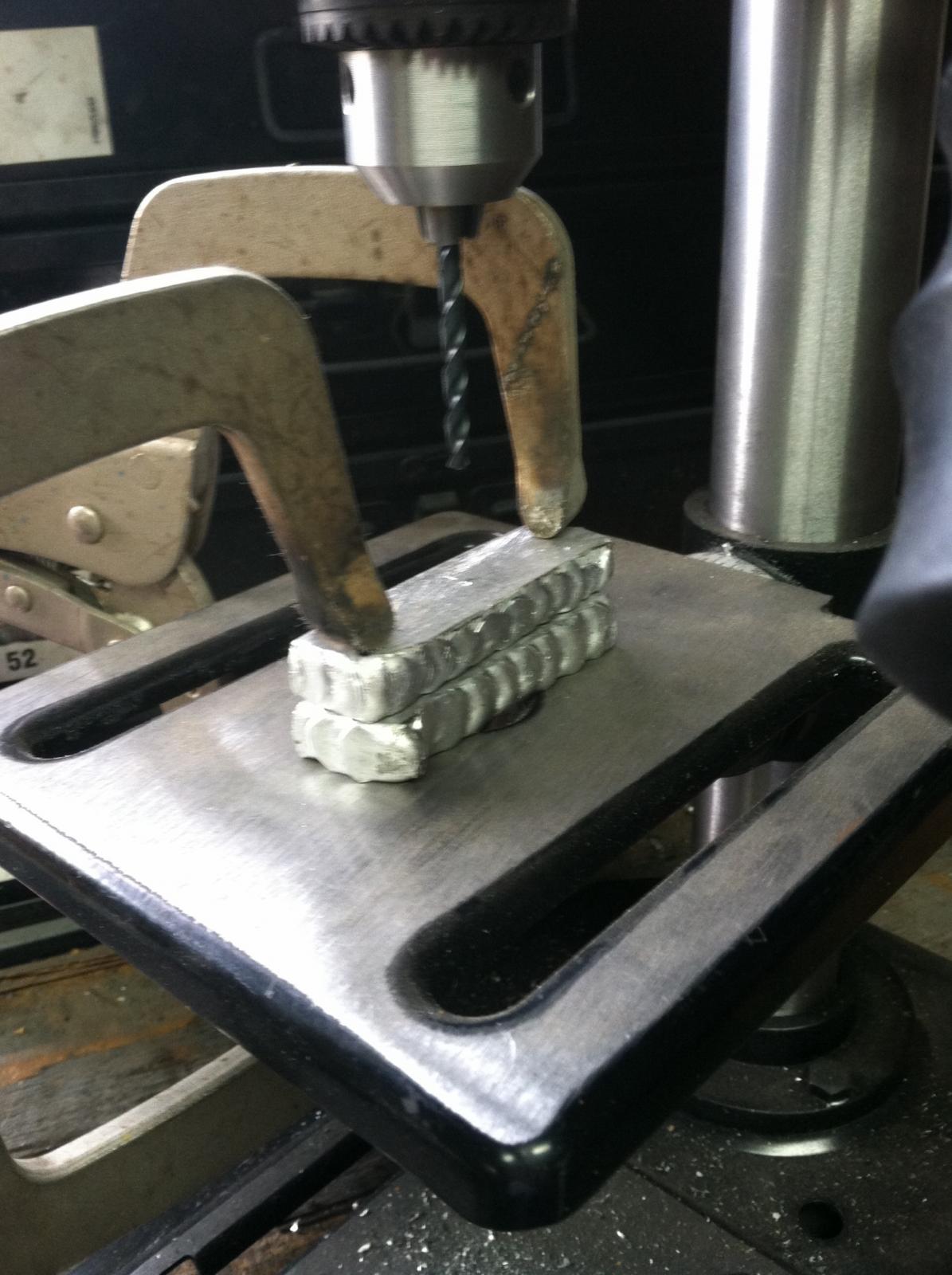

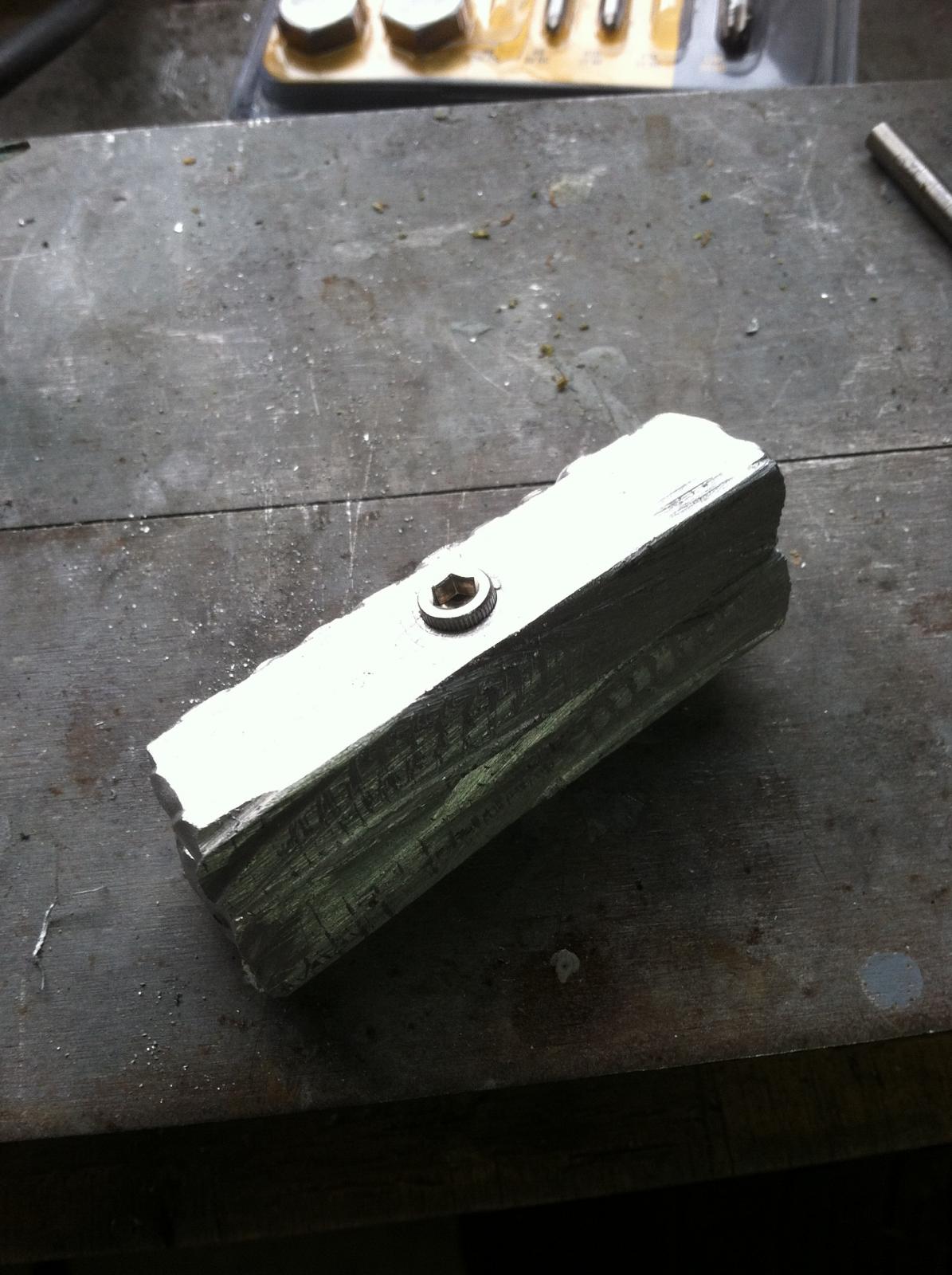

To continue my tradition of making something usefull out of junk, I decided I could make some fuel line clamps out of pieces of aluminum trailer frame in the scrap bin at work. First I welded plates together to come up with a top and bottom piece that was thick enough to sandwich a 5/8" tube.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Check out my truck brought back from the dead... http://www.thesamba.com/vw/forum/viewtopic.php?t=420762&highlight=sprayed+blood

They're never really ever finished 58 rag build...
http://www.thesamba.com/vw/forum/viewtopic.php?t=658092


Last edited by TinCanFab on Mon Sep 07, 2015 6:40 am; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
TinCanFab
Samba Member


Joined: April 04, 2006
Posts: 2550
Location: Waterford, California
TinCanFab is offline

PostPosted: Sun Sep 06, 2015 11:38 am    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Here are some socket cap 10-24 thread stainless screws also pulled from the trash at work. They come in replacement fuel sensor kits and 99% of the time not needed so I started collecting them for projects like this. If you keep your eyes peeled, there's a lot if nice raw materials getting tossed all the time...... Stainless hardware and high grade billet aluminum? I'm no cheap ass, but if I can save $10+ each and spend that on something else, it keeps my budget in check. On a tight monthly budget I may only have $50-$100 extra to spend on my truck when bills pop up.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Check out my truck brought back from the dead... http://www.thesamba.com/vw/forum/viewtopic.php?t=420762&highlight=sprayed+blood

They're never really ever finished 58 rag build...
http://www.thesamba.com/vw/forum/viewtopic.php?t=658092


Last edited by TinCanFab on Mon Sep 07, 2015 6:49 am; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
TinCanFab
Samba Member


Joined: April 04, 2006
Posts: 2550
Location: Waterford, California
TinCanFab is offline

PostPosted: Sun Sep 06, 2015 11:40 am    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Of course, the real benefit of fabbing your own stuff is having exactly what you want to fit custom parts together. This one is 5/8" and 1/2" in one clamp AND extended length between the holes. I'm always preaching the benefits of learning and buying tools that will pay for themselves.

Image may have been reduced in size. Click image to view fullscreen.


They fit awesome, I just need to give them a more finished look with a sander.
_________________
Check out my truck brought back from the dead... http://www.thesamba.com/vw/forum/viewtopic.php?t=420762&highlight=sprayed+blood

They're never really ever finished 58 rag build...
http://www.thesamba.com/vw/forum/viewtopic.php?t=658092
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
TinCanFab
Samba Member


Joined: April 04, 2006
Posts: 2550
Location: Waterford, California
TinCanFab is offline

PostPosted: Mon Nov 16, 2015 3:19 pm    Post subject: Re: 60 Single Cab Build-Pics Reply with quote

Image may have been reduced in size. Click image to view fullscreen.

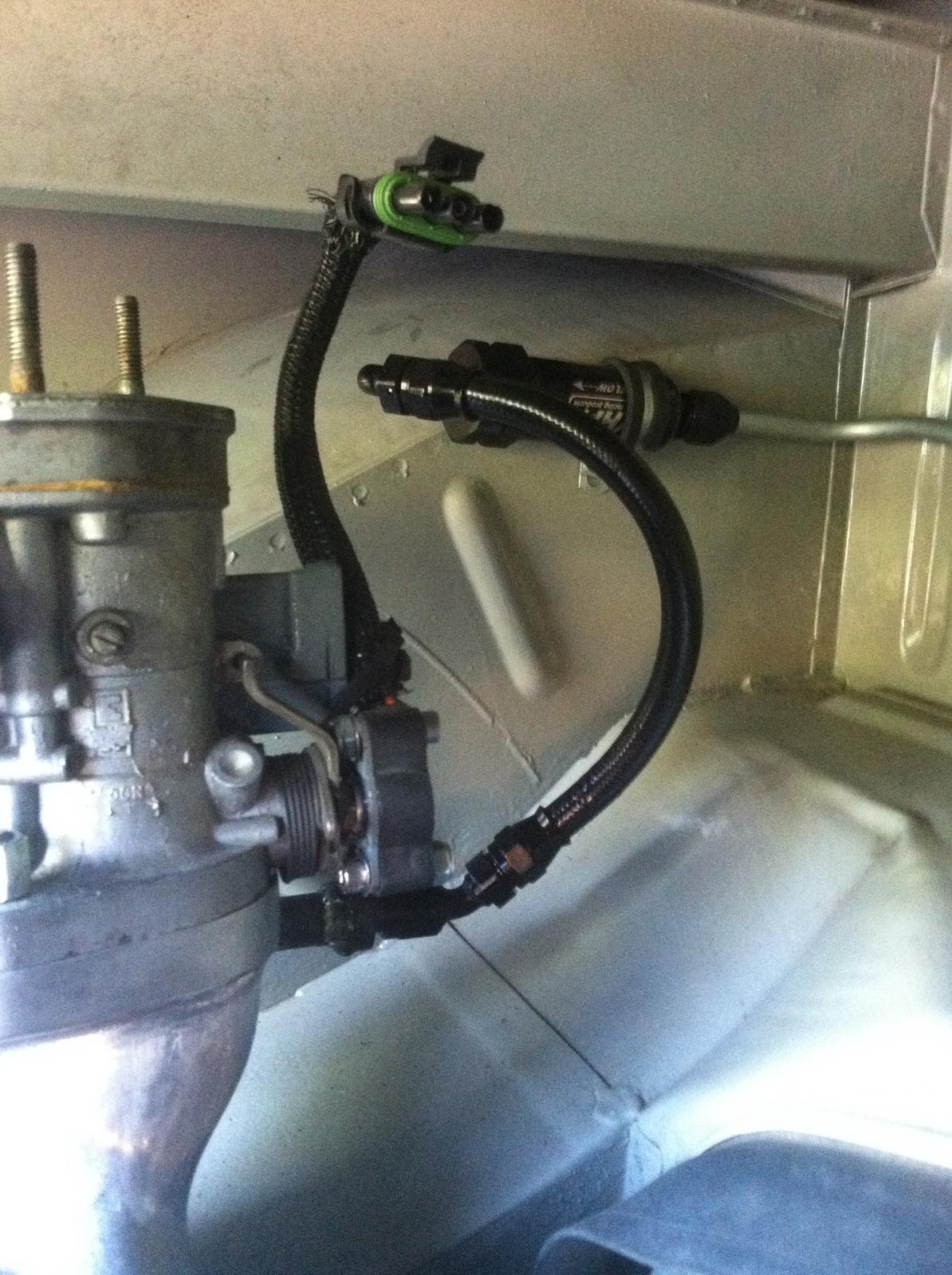

All the hard lines are finished, just need to pressure check for leaks. I used the black line clamps to minimize vibration and number of holes drilled in the firewall.
_________________
Check out my truck brought back from the dead... http://www.thesamba.com/vw/forum/viewtopic.php?t=420762&highlight=sprayed+blood

They're never really ever finished 58 rag build...
http://www.thesamba.com/vw/forum/viewtopic.php?t=658092


Last edited by TinCanFab on Mon Nov 16, 2015 3:31 pm; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
TinCanFab
Samba Member


Joined: April 04, 2006
Posts: 2550
Location: Waterford, California
TinCanFab is offline

PostPosted: Mon Nov 16, 2015 3:20 pm    Post subject: Re: 60 Single Cab Build-Pics Reply with quote

Image may have been reduced in size. Click image to view fullscreen.

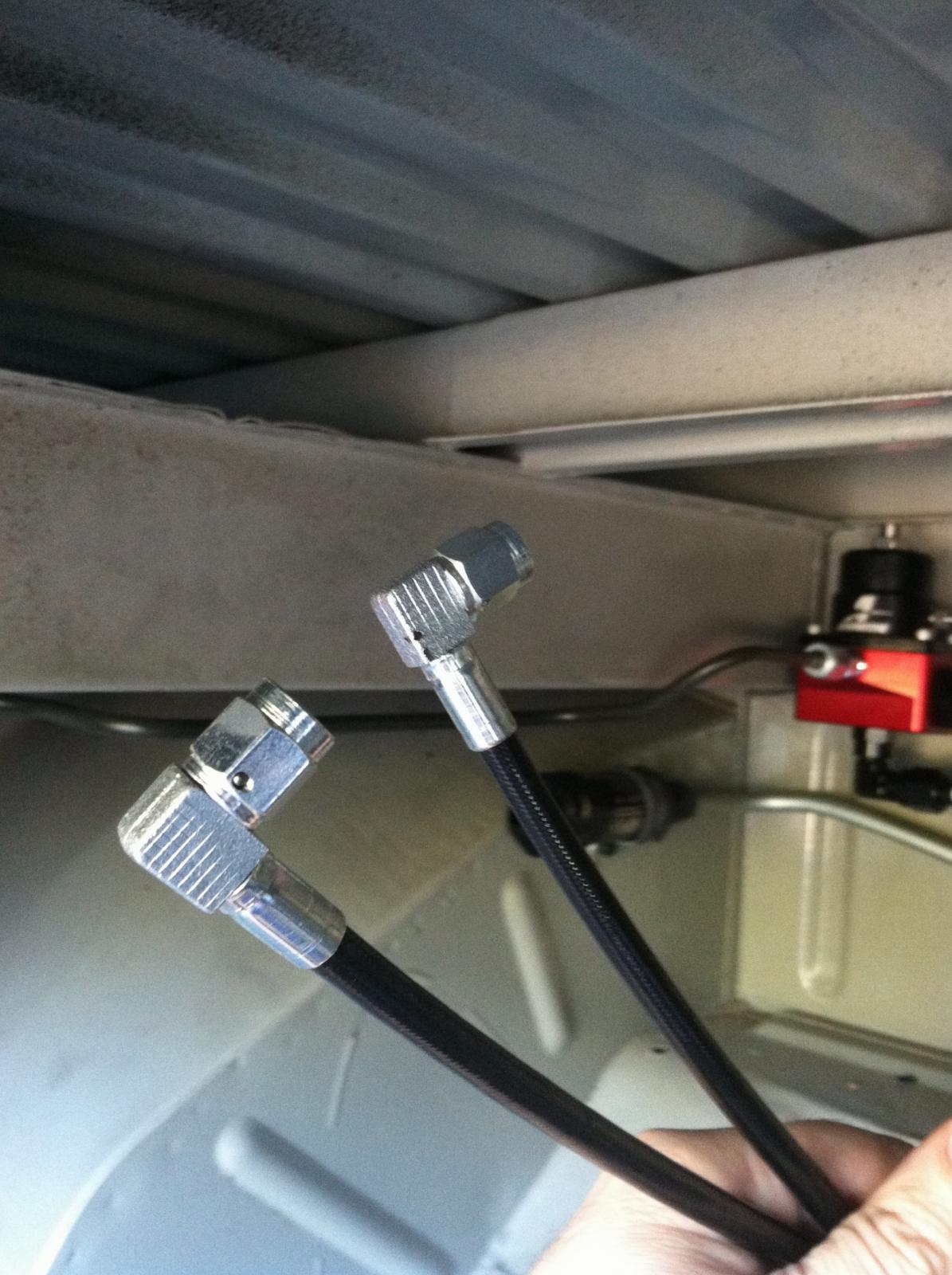

Fuel rail to regulator short hose for flexibility.
_________________
Check out my truck brought back from the dead... http://www.thesamba.com/vw/forum/viewtopic.php?t=420762&highlight=sprayed+blood

They're never really ever finished 58 rag build...
http://www.thesamba.com/vw/forum/viewtopic.php?t=658092


Last edited by TinCanFab on Mon Nov 16, 2015 3:27 pm; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
TinCanFab
Samba Member


Joined: April 04, 2006
Posts: 2550
Location: Waterford, California
TinCanFab is offline

PostPosted: Mon Nov 16, 2015 3:21 pm    Post subject: Re: 60 Single Cab Build-Pics Reply with quote

Image may have been reduced in size. Click image to view fullscreen.

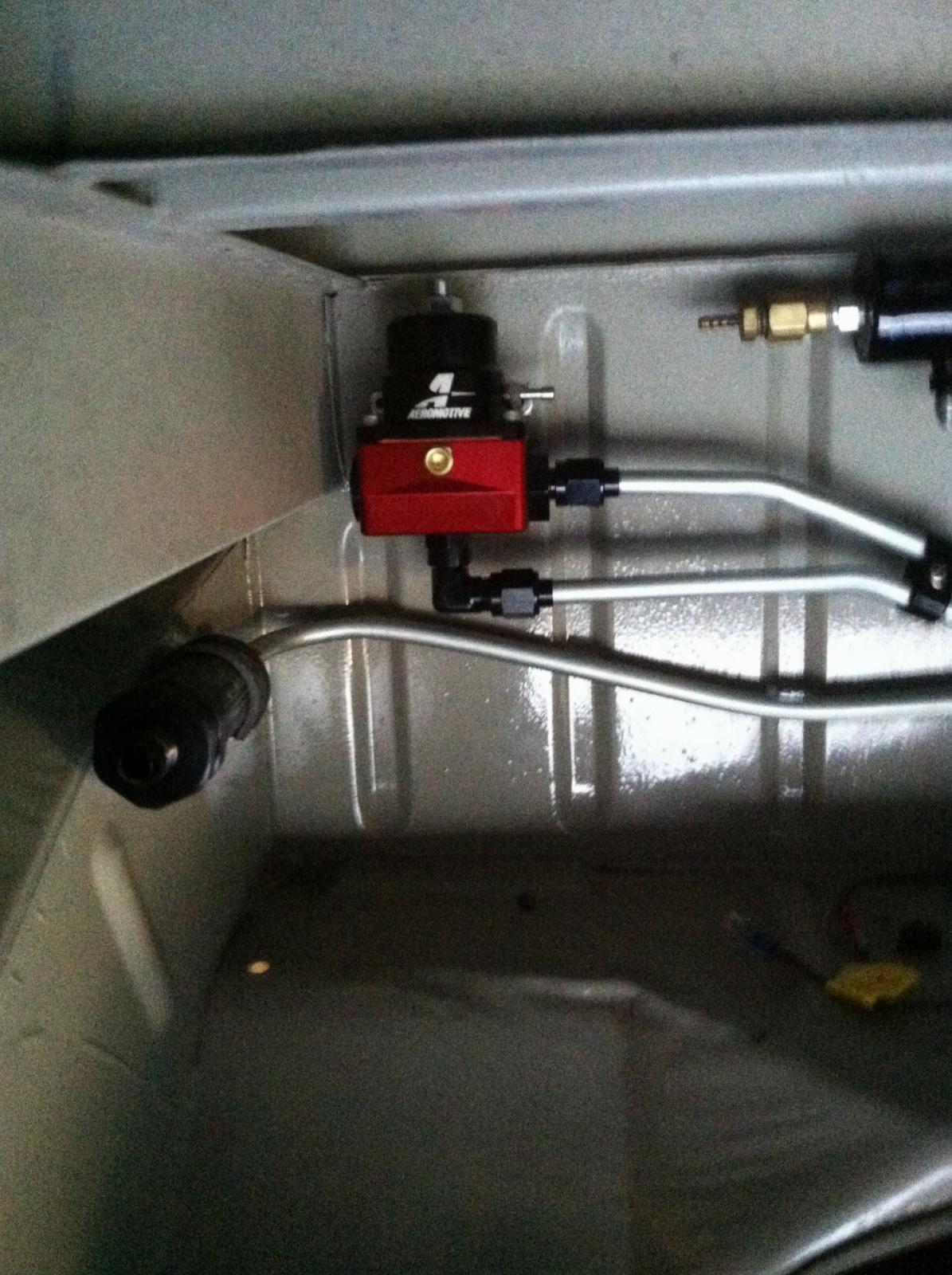

Aeromotive fuel pressure regulator. Left port is -10 hex plug, bottom return port is swivel -6 90 degree, right pressure inlet port is -10 to -6 straight.
_________________
Check out my truck brought back from the dead... http://www.thesamba.com/vw/forum/viewtopic.php?t=420762&highlight=sprayed+blood

They're never really ever finished 58 rag build...
http://www.thesamba.com/vw/forum/viewtopic.php?t=658092
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
OTO X58
Samba Member


Joined: March 27, 2004
Posts: 2988
Location: Santa Cruz, CA
OTO X58 is offline

PostPosted: Wed Nov 18, 2015 6:05 pm    Post subject: Re: 60 Single Cab Build-Pics Reply with quote

so much awesome in this thread.
_________________
-Thomas

RIP HBB 10.10.84 - 12.25.09
Autocross 1958 Rag Build - Subaru Swap!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
TinCanFab
Samba Member


Joined: April 04, 2006
Posts: 2550
Location: Waterford, California
TinCanFab is offline

PostPosted: Thu Nov 19, 2015 4:02 pm    Post subject: Re: 60 Single Cab Build-Pics Reply with quote

OTO X58 wrote:
so much awesome in this thread.


Thanks Thomas, I'll definatly be taking it to Kelly Park and Bugarama when ready. I'm sure you'll get to check it out eventually.
_________________
Check out my truck brought back from the dead... http://www.thesamba.com/vw/forum/viewtopic.php?t=420762&highlight=sprayed+blood

They're never really ever finished 58 rag build...
http://www.thesamba.com/vw/forum/viewtopic.php?t=658092
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Huetti_1989
Samba Member


Joined: February 13, 2011
Posts: 590
Location: Austria
Huetti_1989 is offline

PostPosted: Thu Nov 19, 2015 4:08 pm    Post subject: Re: 60 Single Cab Build-Pics Reply with quote

good ideas here Very Happy
_________________
My 1957 semaphore Single Cab:
http://www.thesamba.com/vw/forum/viewtopic.php?t=605363&postdays=0&postorder=asc&start=0
My 1954 Deutsche Bundespost Barndoor:
http://www.thesamba.com/vw/forum/viewtopic.php?t=621802
My 1961 SO34 Flipseat Westfalia:
https://www.thesamba.com/vw/forum/viewtopic.php?t=716285
My 1991 Westfalia California:
http://www.thesamba.com/vw/forum/viewtopic.php?t=650751
Back to top
View user's profile Send private message Gallery Classifieds Feedback
TinCanFab
Samba Member


Joined: April 04, 2006
Posts: 2550
Location: Waterford, California
TinCanFab is offline

PostPosted: Thu Nov 19, 2015 4:15 pm    Post subject: Re: 60 Single Cab Build-Pics Reply with quote

Image may have been reduced in size. Click image to view fullscreen.

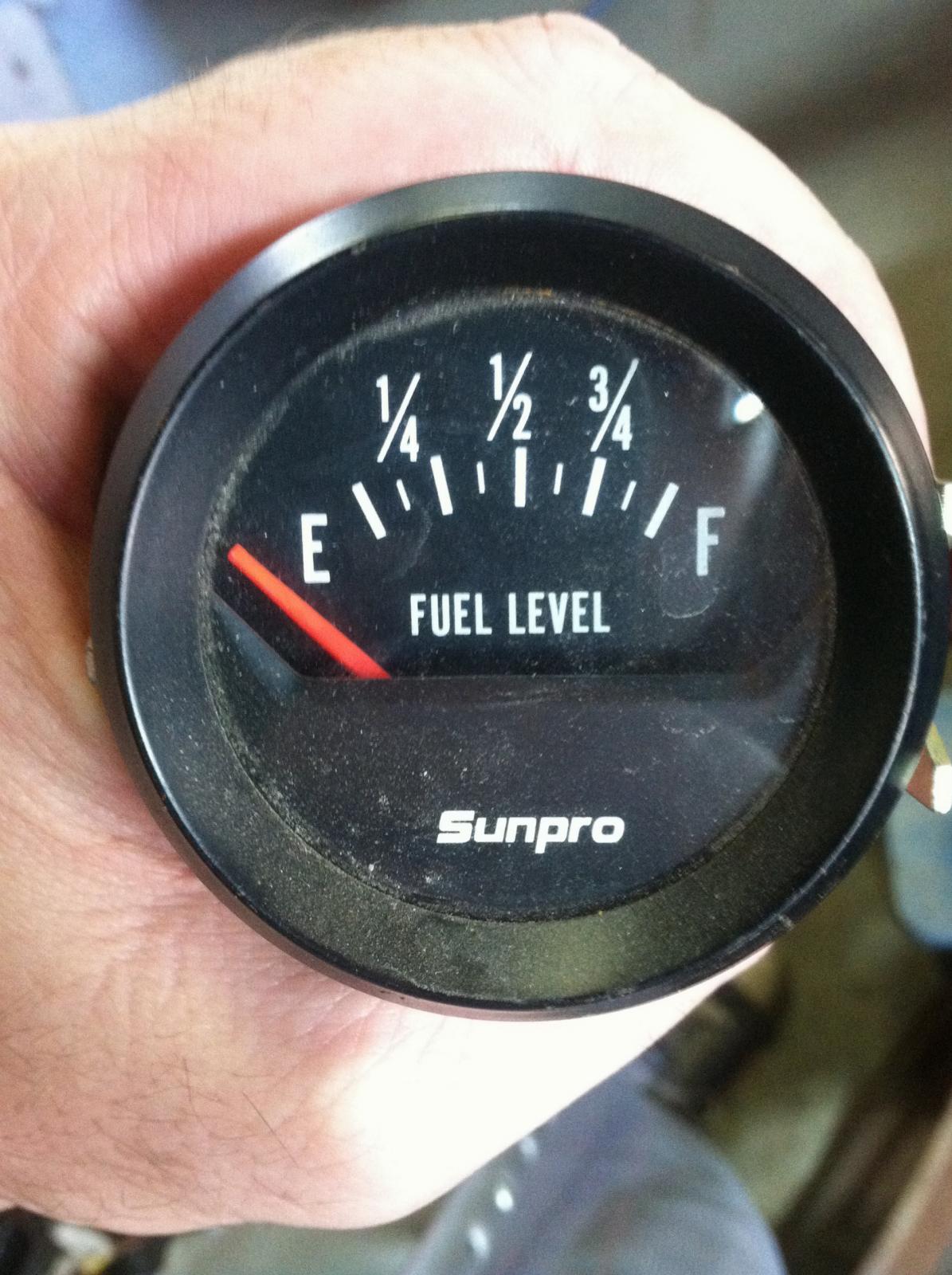

Here's the fuel gauge I've been running that came with the truck. I've always planned on changing it.
_________________
Check out my truck brought back from the dead... http://www.thesamba.com/vw/forum/viewtopic.php?t=420762&highlight=sprayed+blood

They're never really ever finished 58 rag build...
http://www.thesamba.com/vw/forum/viewtopic.php?t=658092
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
TinCanFab
Samba Member


Joined: April 04, 2006
Posts: 2550
Location: Waterford, California
TinCanFab is offline

PostPosted: Thu Nov 19, 2015 4:18 pm    Post subject: Re: 60 Single Cab Build-Pics Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


I needed a gauge that works with the "universal" fuel sender ohm range. You can't go wrong with Autometer. Camera flash makes it look real light, but the color isn't bad with the VW gray.
_________________
Check out my truck brought back from the dead... http://www.thesamba.com/vw/forum/viewtopic.php?t=420762&highlight=sprayed+blood

They're never really ever finished 58 rag build...
http://www.thesamba.com/vw/forum/viewtopic.php?t=658092


Last edited by TinCanFab on Thu Nov 19, 2015 4:21 pm; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
TinCanFab
Samba Member


Joined: April 04, 2006
Posts: 2550
Location: Waterford, California
TinCanFab is offline

PostPosted: Thu Nov 19, 2015 4:20 pm    Post subject: Re: 60 Single Cab Build-Pics Reply with quote

Huetti_1989 wrote:
good ideas here Very Happy


Feel free to use or improve on anything you see. Wink
_________________
Check out my truck brought back from the dead... http://www.thesamba.com/vw/forum/viewtopic.php?t=420762&highlight=sprayed+blood

They're never really ever finished 58 rag build...
http://www.thesamba.com/vw/forum/viewtopic.php?t=658092
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
TinCanFab
Samba Member


Joined: April 04, 2006
Posts: 2550
Location: Waterford, California
TinCanFab is offline

PostPosted: Thu Nov 19, 2015 4:25 pm    Post subject: Re: 60 Single Cab Build-Pics Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

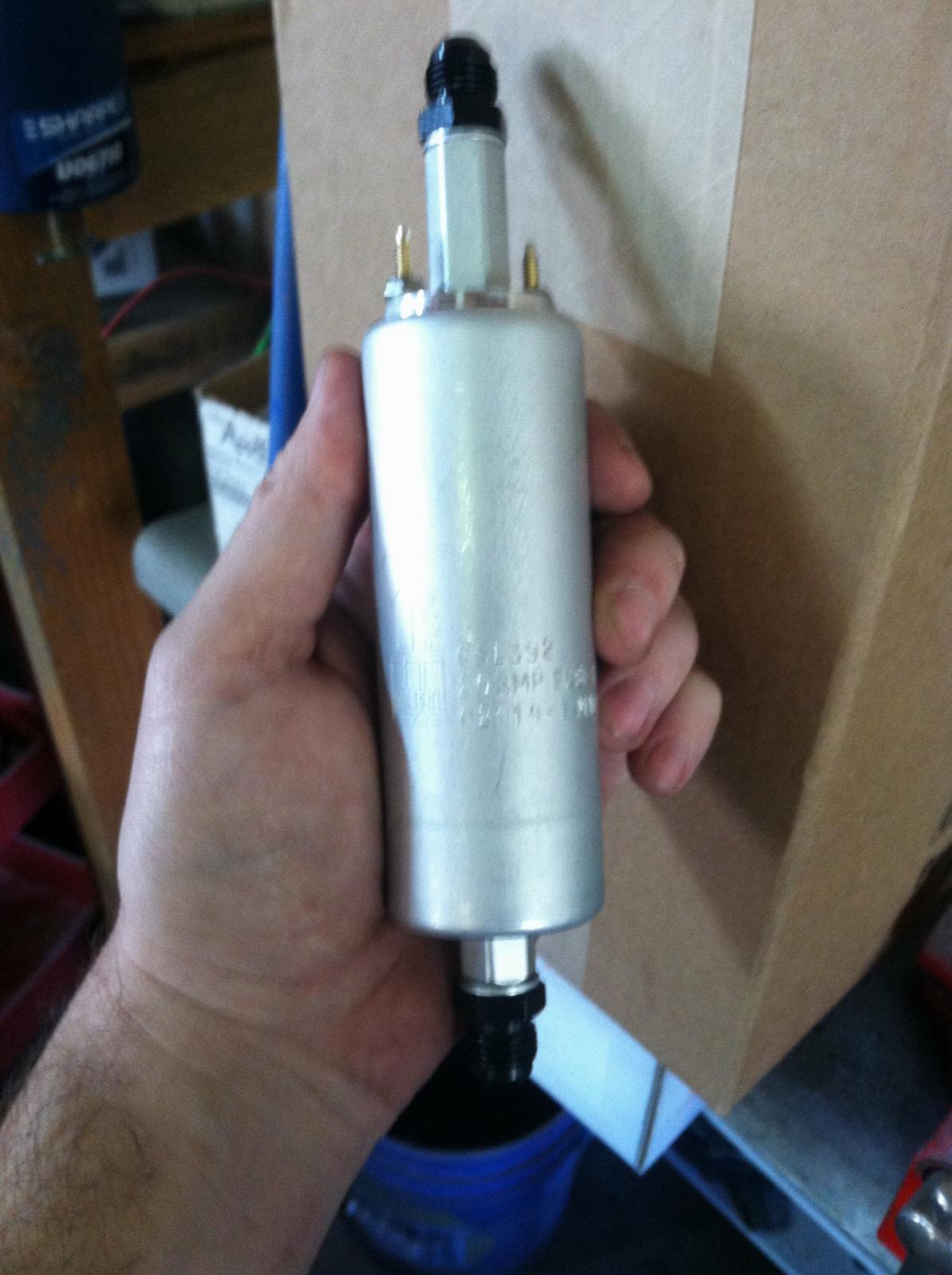

Walbro high flow EFI pump. I didn't need this high performance of flow, but I figure it will handle any engine combo I throw at it. Turbo in the future maybe? -6 AN fittings are 10mmx1.0 crush washer seal. This is the same fitting a Weber IDF takes.
_________________
Check out my truck brought back from the dead... http://www.thesamba.com/vw/forum/viewtopic.php?t=420762&highlight=sprayed+blood

They're never really ever finished 58 rag build...
http://www.thesamba.com/vw/forum/viewtopic.php?t=658092
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
TinCanFab
Samba Member


Joined: April 04, 2006
Posts: 2550
Location: Waterford, California
TinCanFab is offline

PostPosted: Thu Nov 19, 2015 4:28 pm    Post subject: Re: 60 Single Cab Build-Pics Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Autometer is/was doing a rebate on orders of $100 or more, so I bought the pressure gauge with the fuel level gauge in the cab. I meant to to get one with a male 1/8" NPT and mount it right at the regulator. Like a dumbass, I ordered the one to remote mount. They want you to buy a hose kit, the gauge has a -4 AN male nipple on the back. So, I made a bracket and mounted the round hole bracket to it. A pain in the ass to drill a few holes on the backside of the crossmember. I didn't bother wiring up the gauge light though. If i ever change my mind, I can easily tap into the license plate light wire a few inches away.
_________________
Check out my truck brought back from the dead... http://www.thesamba.com/vw/forum/viewtopic.php?t=420762&highlight=sprayed+blood

They're never really ever finished 58 rag build...
http://www.thesamba.com/vw/forum/viewtopic.php?t=658092
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
TinCanFab
Samba Member


Joined: April 04, 2006
Posts: 2550
Location: Waterford, California
TinCanFab is offline

PostPosted: Thu Nov 19, 2015 4:37 pm    Post subject: Re: 60 Single Cab Build-Pics Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Here are my MAP vacuum hoses. Teflon with -3 straight and 90 degree ends. I'll have to get the clocking correct before engine install, because getting to the rear hose fittings will be a bitch with the fan shroud in the way.

I CAN'T believe I'm so close to putting the engine in!!
Twisted Evil Razz Very Happy Cool
_________________
Check out my truck brought back from the dead... http://www.thesamba.com/vw/forum/viewtopic.php?t=420762&highlight=sprayed+blood

They're never really ever finished 58 rag build...
http://www.thesamba.com/vw/forum/viewtopic.php?t=658092
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
VeeDubWolf
Samba Member


Joined: July 12, 2010
Posts: 477
Location: Yakima, WA
VeeDubWolf is offline

PostPosted: Fri Nov 20, 2015 1:10 am    Post subject: Re: 60 Single Cab Build-Pics Reply with quote

roachdub58 wrote:
Image may have been reduced in size. Click image to view fullscreen.


Love that old-style look, and nice work on making parts from discards and scraps! Cool
_________________
Two Bugs-
'70 rust-bucket sunroof sedan
'69 PO hack-job special
-Plus a wide assortment of various parts'n'junk
Back to top
View user's profile Send private message Gallery Classifieds Feedback
TinCanFab
Samba Member


Joined: April 04, 2006
Posts: 2550
Location: Waterford, California
TinCanFab is offline

PostPosted: Tue Nov 24, 2015 1:44 pm    Post subject: Re: 60 Single Cab Build-Pics Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


Leak checking everything. So far so good. I had one very slight drip starting at the pump crush washer. I tightened them up a bit more, seems good now.

Image may have been reduced in size. Click image to view fullscreen.


My biggest concern was leaking at the fuel rail welds. I'll keep pressure on them and keep checking them periodically. I want them leak free before paint.

Image may have been reduced in size. Click image to view fullscreen.


Regulator adjusts nicely and pump is working great! She holds 40+ psi for two days, then falls to about 25 after another 2 days. It's actually pretty handy with the gauge mounted where it is . I won't have to try and eyeball the pressure from behind the air filter.

I've been cycling the pump on and off, but there's still a lot of gurgling and other noises at the regulator. You can feel the air bubbles as fuel pulses through. I don't have my return line dumping into the top of the tank, so I'm not sure, but I think the air will blow out while the injectors spray.

I changed the spin on filter from a 10 micron to a 140 micron. I forgot to do this before running the pump and glad I remembered now. This pump flows like a garden hose, you can feel it. It's just too hard flowing through a 10 micron filter on both ends.

Old filter- Wix 33091/NAPA 3091
New filter- Wix 33691/NAPA 3691

These fit a 1"-14 thread filter adapter. They are both ag or big truck filters. 3691 comes from ISX Cummins, it is not cheap, it's heavy- found out it has a metal media inside. I got mine for $29 at the local NAPA.
_________________
Check out my truck brought back from the dead... http://www.thesamba.com/vw/forum/viewtopic.php?t=420762&highlight=sprayed+blood

They're never really ever finished 58 rag build...
http://www.thesamba.com/vw/forum/viewtopic.php?t=658092
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
TinCanFab
Samba Member


Joined: April 04, 2006
Posts: 2550
Location: Waterford, California
TinCanFab is offline

PostPosted: Wed Dec 02, 2015 7:31 am    Post subject: Re: 60 Single Cab Build-Pics Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


I hated the shine of manifolds and also strange texture that looks like donut sprinkles. So, I did a quicky polish job and sprayed them with high build primer. My leak checks are done- one injector leaks horribly at a seam in it's body at any pressure. Another leaks at around 50 psi, so I know it will get worse. So I'm going to get a new set and have 2 spares.
_________________
Check out my truck brought back from the dead... http://www.thesamba.com/vw/forum/viewtopic.php?t=420762&highlight=sprayed+blood

They're never really ever finished 58 rag build...
http://www.thesamba.com/vw/forum/viewtopic.php?t=658092
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Split Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3 ... 23, 24, 25, 26  Next
Jump to:
Page 24 of 26


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
