 Posted: Fri Sep 15, 2023 3:46 pm Post subject: Steering Coupler Gap |
 |
|
I had the front end tore apart for repairs to the front beam and tie rods and stuff. When I put it all back together and go to attach the steering shaft to the coupler, there is a gap. Is the steering shaft adjustable? What am I missing?

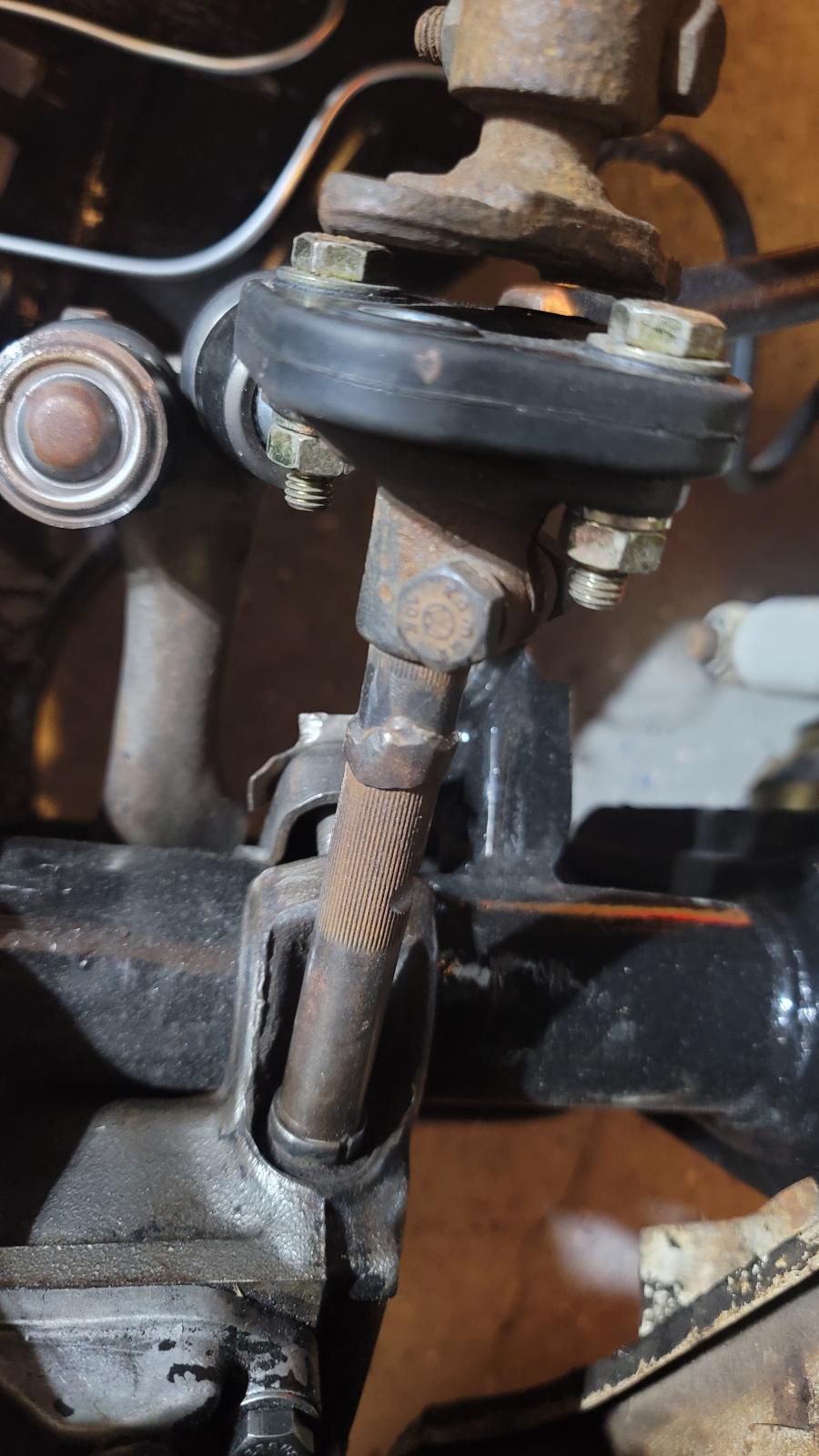

Here is a picture of the gap.
|
|
| Back to top |
|
 |
Q-Dog
Samba Member
Joined: April 05, 2010
Posts: 8868
Location: Sunset, Louisiana
|
| Posted: Fri Sep 15, 2023 5:29 pm Post subject: Re: Steering Coupler Gap |
|
|
What happens if you loosen up the steering box bolts and rotate it towards the steering shaft?
_________________
Brian
'69 Dune Buggy
'69 Beetle Convertible
'70 Beetle |
|
| Back to top |
|
|
TDCTDI
Samba Advocatus Diaboli
Joined: August 31, 2013
Posts: 13344
Location: North Carolina
|
| Posted: Fri Sep 15, 2023 5:35 pm Post subject: Re: Steering Coupler Gap |
|
|
What sorta heinous fuckery is going on that made someone weld an extension onto the steering box?!?
_________________
Everybody born before 1975 has a story, good, bad, or indifferent, about a VW.
GOFUNDYOURSELF, quit asking everyone to do it for you!
An air cooled VW will make you a hoarder.
Do something, anything, to your project every day, and you will eventually complete it. |
|
| Back to top |
|
|
fieldsdj7
Samba Member
Joined: August 10, 2022
Posts: 80
Location: Florida
|
| Posted: Fri Sep 15, 2023 5:40 pm Post subject: Re: Steering Coupler Gap |
|
|
| TDCTDI wrote: |
| What sorta heinous fuckery is going on that made someone weld an extension onto the steering box?!? |
I literally never noticed that until now. I have no idea. It's a stock beam as far as I can tell. The steering was fine before I decided to redo the front end. I had a sorta bent steering dampener but other than that it was fine. |
|
| Back to top |
|
|
fieldsdj7
Samba Member
Joined: August 10, 2022
Posts: 80
Location: Florida
|
| Posted: Fri Sep 15, 2023 5:41 pm Post subject: Re: Steering Coupler Gap |
|
|
| Q-Dog wrote: |
| What happens if you loosen up the steering box bolts and rotate it towards the steering shaft? |
I haven't tried that. I thought the steering box is "locked" into position by some kind of bracket or something. Am I wrong? |
|
| Back to top |
|
|
TDCTDI
Samba Advocatus Diaboli
Joined: August 31, 2013
Posts: 13344
Location: North Carolina
|
| Posted: Fri Sep 15, 2023 6:02 pm Post subject: Re: Steering Coupler Gap |
|
|
Go inside the cabin & see if there is an abnormally large gap between the steering wheel & lock housing, it may just need to be centered & pushed back down
_________________
Everybody born before 1975 has a story, good, bad, or indifferent, about a VW.
GOFUNDYOURSELF, quit asking everyone to do it for you!
An air cooled VW will make you a hoarder.
Do something, anything, to your project every day, and you will eventually complete it. |
|
| Back to top |
|
|
fieldsdj7
Samba Member
Joined: August 10, 2022
Posts: 80
Location: Florida
|
| Posted: Fri Sep 15, 2023 6:07 pm Post subject: Re: Steering Coupler Gap |
|
|
| TDCTDI wrote: |
| Go inside the cabin & see if there is an abnormally large gap between the steering wheel & lock housing, it may just need to be centered & pushed back down |
That was it!! I had to use a rubber mallet and I have no idea how it moved in the first place, but thank you! |
|
