 Posted: Wed Sep 08, 2010 4:59 pm Post subject: Best way to remove door hinge screws |
 |
|
These just had to go

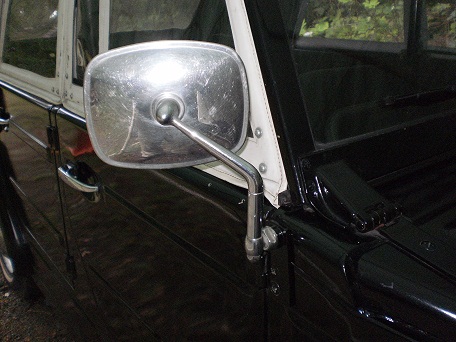

Ok, So I found a pair of brass door hinges with mirror mounts and I need to remove and replace the existing hinges.
Try as as I might, I can't get the screws to even budge. Placed the screwdriver on the screw and gave it a few raps with a hammer in an effort to lossen things up. Still no movement. I don't want to bung up the screwhead too much.
Ideas?
_________________
Walküre Restoration Thread: https://www.thesamba.com/vw/forum/viewtopic.php?t=737492
Last edited by Semper_Dad on Wed Sep 08, 2010 5:18 pm; edited 2 times in total |
|
| Back to top |
|
 |
hank0306
Samba Member
Joined: January 18, 2010
Posts: 96
Location: Los Angeles, CA
|
| Posted: Wed Sep 08, 2010 5:17 pm Post subject: |
|
|
| I can't remember if it is a #4 phillips, like the hood; if it is, I bet it comes off the same way. Go buy a #4 phillips bit for your ratchet, whack the phillips bit with a mallat then ratchet the screw off. I doubt you could produce enough force or torque with just a screw driver. There is another thread somewhere on the 181 samba thread that identifies the correct screwdriver head size.... |
|
| Back to top |
|
|
vws-microcars4jim
Samba Member
Joined: September 25, 2005
Posts: 387
Location: Chicago
|
| Posted: Wed Sep 08, 2010 5:30 pm Post subject: Re: Best way to remove door hinge screws |
|
|
| Semper_Dad wrote: |
I don't want to bung up the screwhead too much.
|
hehe
My #3 Snap-On phillips screwdriver fits nicely, however those body screws can be stuck pretty good. I would use an impact driver to get it turning, just a screwdriver with a wrench on it may "bung it up."
If you don't have an impact driver an auto parts store might rent/lend you one.
Jim |
|
| Back to top |
|
|
77kafer
Samba Member
Joined: April 08, 2008
Posts: 845
Location: New Windsor, NY
|
| Posted: Wed Sep 08, 2010 5:46 pm Post subject: |
|
|
They look like they are already a little bunged up.
What I used years ago was one of these. http://cgi.ebay.com/Professional-3-8-Impact-Driver...43a16f0d34
Works great for doing stuff like that.
_________________
Supposed to be 77käfer, but there are no umlauts on an american keyboard
Overheard on 27 June 07, one lady to another when they saw my Harli in a parking lot at West Point, "maybe he found it on the clearance aisle at the Volkswagen dealer" |
|
| Back to top |
|
|
sixty9fasty
Samba Member
Joined: April 12, 2004
Posts: 1066
Location: crockett, ca
|
| Posted: Wed Sep 08, 2010 5:52 pm Post subject: |
|
|
| hmmmm, mine came off just fine with a large screw driver.... soaked them a bit with penetrating oil first.. |
|
| Back to top |
|
|
Semper_Dad
Samba Member
Joined: May 14, 2005
Posts: 3535
Location: Indiana
|
| Posted: Wed Sep 08, 2010 5:54 pm Post subject: |
|
|
| 77kafer wrote: |
They look like they are already a little bunged up.
Works great for doing stuff like that. |

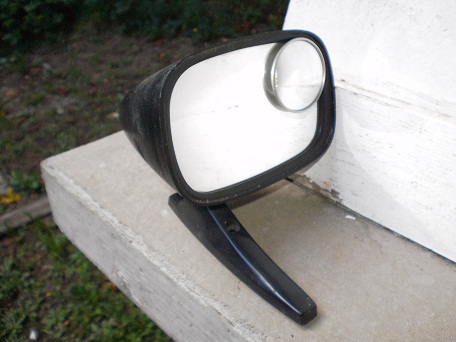

They're really not all that bad,....yet. Original color was yellow and now it has a crappy black one. Thanks for the idea. Looks like I need to take a trip to Sears tomorrow.
_________________
Walküre Restoration Thread: https://www.thesamba.com/vw/forum/viewtopic.php?t=737492 |
|
| Back to top |
|
|
Bugs4Life
Samba Member
Joined: February 17, 2007
Posts: 232
Location: Nor-Cal
|
|
| Back to top |
|
|
Semper_Dad
Samba Member
Joined: May 14, 2005
Posts: 3535
Location: Indiana
|
| Posted: Wed Sep 08, 2010 10:49 pm Post subject: |
|
|
Yeh, I've used a easyout before. (Ironically it was on a Mk 48 Torpedo hanging halfway out of a torpedo tube). Needless to say it still brings on a little PTSD
_________________
Walküre Restoration Thread: https://www.thesamba.com/vw/forum/viewtopic.php?t=737492 |
|
| Back to top |
|
|
Chris in Santa Cruz, CA
Samba Member
Joined: May 03, 2010
Posts: 178
Location: See name
|
| Posted: Thu Sep 09, 2010 3:20 pm Post subject: |
|
|
http://www.ryobitools.com/catalog/18v_oneplus/drills_drivers/P230
This tool is the best thing I have purchased in a long time and is useful for driving deck screws as well as auto stuff. It works well for things like this.
_________________
current:Bugatti Type 35 kit car (74 beetle), 1972 Thing
previous: 1965 1500 Variant S (first car), 1976 Westfalia, 1978 Bus, 1982 Vanagon |
|
| Back to top |
|
|
Semper_Dad
Samba Member
Joined: May 14, 2005
Posts: 3535
Location: Indiana
|
|
| Back to top |
|
|
kubelmann
Samba Member
Joined: April 13, 2003
Posts: 3268
|
| Posted: Thu Sep 09, 2010 4:00 pm Post subject: |
|
|
This is mostly a review of others posts but I offer it as a list.
1. I start with my #4 phillips socket on a ratchet handle.
2. If it does not come out, I attach the #4 to my battery powered impact gun.
3. If this does not work I apply PB blaster and wait. Then I try tool one and two again.
4. If still no luck a second application of PB blaster is applied and a longer wait is given. Finally I use my manual impact driver and that has gotten out every stuck hinge bolt I have attempted to remove.
I use the manual impact driver as a last resort because you can risk body damage when you strike the impact driver with the mini sledge hammer. |
|
| Back to top |
|
|
77kafer
Samba Member
Joined: April 08, 2008
Posts: 845
Location: New Windsor, NY
|
| Posted: Thu Sep 09, 2010 6:27 pm Post subject: |
|
|
| Semper_Dad wrote: |

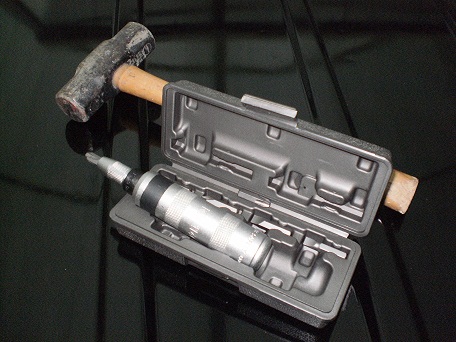

BFH + KD 1140 + #4 Bit
= Success
|
Good job.  Keep in mind that a 2 lb. ball peen hammer would have worked also instead of the mini sledge.
_________________
Supposed to be 77käfer, but there are no umlauts on an american keyboard
Overheard on 27 June 07, one lady to another when they saw my Harli in a parking lot at West Point, "maybe he found it on the clearance aisle at the Volkswagen dealer" |
|
| Back to top |
|
|
kubelmann
Samba Member
Joined: April 13, 2003
Posts: 3268
|
| Posted: Thu Sep 09, 2010 6:49 pm Post subject: |
|
|
| My mini sledge weighs 24 oz. and looks like the pic you posted.... I guess I might have used the wrong word for the tool. |
|
| Back to top |
|
|
Semper_Dad
Samba Member
Joined: May 14, 2005
Posts: 3535
Location: Indiana
|
| Posted: Thu Sep 09, 2010 8:35 pm Post subject: |
|
|
| kubelmann wrote: |
This is mostly a review of others posts but I offer it as a list.
1. I start with my #4 phillips socket on a ratchet handle.
2. If it does not come out, I attach the #4 to my battery powered impact gun.
3. If this does not work I apply PB blaster and wait. Then I try tool one and two again.
4. If still no luck a second application of PB blaster is applied and a longer wait is given. Finally I use my manual impact driver and that has gotten out every stuck hinge bolt I have attempted to remove.
I use the manual impact driver as a last resort because you can risk body damage when you strike the impact driver with the mini sledge hammer. |
I was biting my lip on each whack. Didn't put full force into it.
I pretty much followed your level of force with the exception of the PB Blaster.
In my case the car had been repainted with the hinges still on and effectively "sealed" the screw into the countersink of the hinge. PB blaster or any other penetrate would have never made it in.
I took a sharp awl and scribed around the screwhead to break the shell. I also scored around the hinge with a razor blade so when I pulled it off the hinge there would be less chance the paint would peel off around hinge area. It worked.
_________________
Walküre Restoration Thread: https://www.thesamba.com/vw/forum/viewtopic.php?t=737492 |
|
| Back to top |
|
|
kubelmann
Samba Member
Joined: April 13, 2003
Posts: 3268
|
| Posted: Thu Sep 09, 2010 8:43 pm Post subject: |
|
|
| totally understand the "no PB" zone I know exactly what you mean about the hand held impact tool. I have seen others do damage with it. As a result I use it very gently and sparingly on our precious vintage bath tubs. |
|
| Back to top |
|
|
[email protected]
Samba Member
Joined: February 21, 2003
Posts: 879
Location: Clifton Park NY Saratoga County
|
| Posted: Sat Sep 11, 2010 11:34 am Post subject: |
|
|
I would recommend using only a #4 philips tip on those
When you remove the screw whack that impact tool on forward first, this will free it up and then back it out.
I would use some pb blaster also.
_________________
Michael Basso
http://www.thingparts.com
New and Used VW Thing Parts Free advice
CALL 518 630 0173 |
|
| Back to top |
|
|
Ferretkona
Samba Member
Joined: December 03, 2005
Posts: 1306
Location: Columbia, CA
|
| Posted: Sun Sep 12, 2010 12:11 pm Post subject: |
|
|
I used a #4 in my cordless impact and they backed out nice and clean. I had tried my 10V Bosch but it was not enough, I used a Hitachi 18V and it backed out. Have to keep the bit in tight so you do not mess up the screw.
_________________
74 181 Thing
2008 Ford Sport Trac V8 4x4
2008 Ford Escape V6 |
|
| Back to top |
|
|
|
