 Posted: Fri Aug 04, 2023 1:25 pm Post subject: Custom Vanagon Interior Buildout |
 |
|
Hey Friends and Freaks,
my day job is a Sprinter van builder here in the PNW. I'm super lucky to have a unique job and love what I do. So I was incredibly stoked when we had a Vanagon come through the door for what we call a full build.
I just wanted to show you guys what we did. I think everyone will appreciate it whether you like the design or just appreciate the craftsmanship.

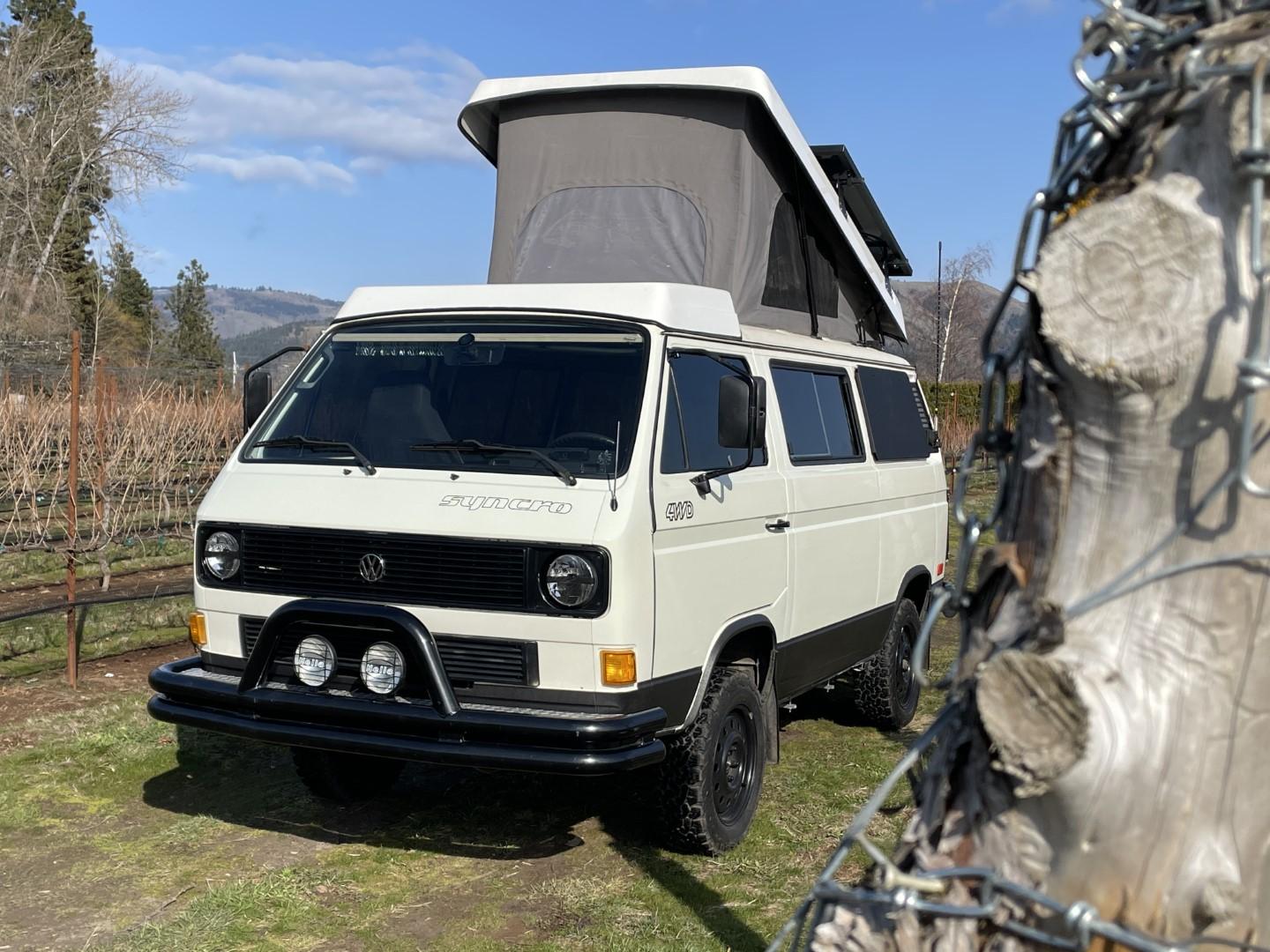

Its a Syncro with a fresh 2.5 subaru swap.
We also added a lithium electrical setup with solar and espar heater.
I have tons of photos so let me know if you want more.
We are Vanlife Collective in Hood River, Oregon for those that are curious.
If i'm not allowed to say that please just let me know, I am happy to remove that information.
_________________
Low Voltage Electrical Expert
ask me questions about your electrical setup!
if i was an eagle, i'd dress like a duck
crawl like a lizard and honk like a truck
- Jerome Garcia |
|
| Back to top |
|
 |
jimf909
Samba Member
Joined: April 03, 2014
Posts: 8245
Location: WA/ID
|
| Posted: Fri Aug 04, 2023 1:43 pm Post subject: Re: Custom Vanagon Interior Buildout |
|
|

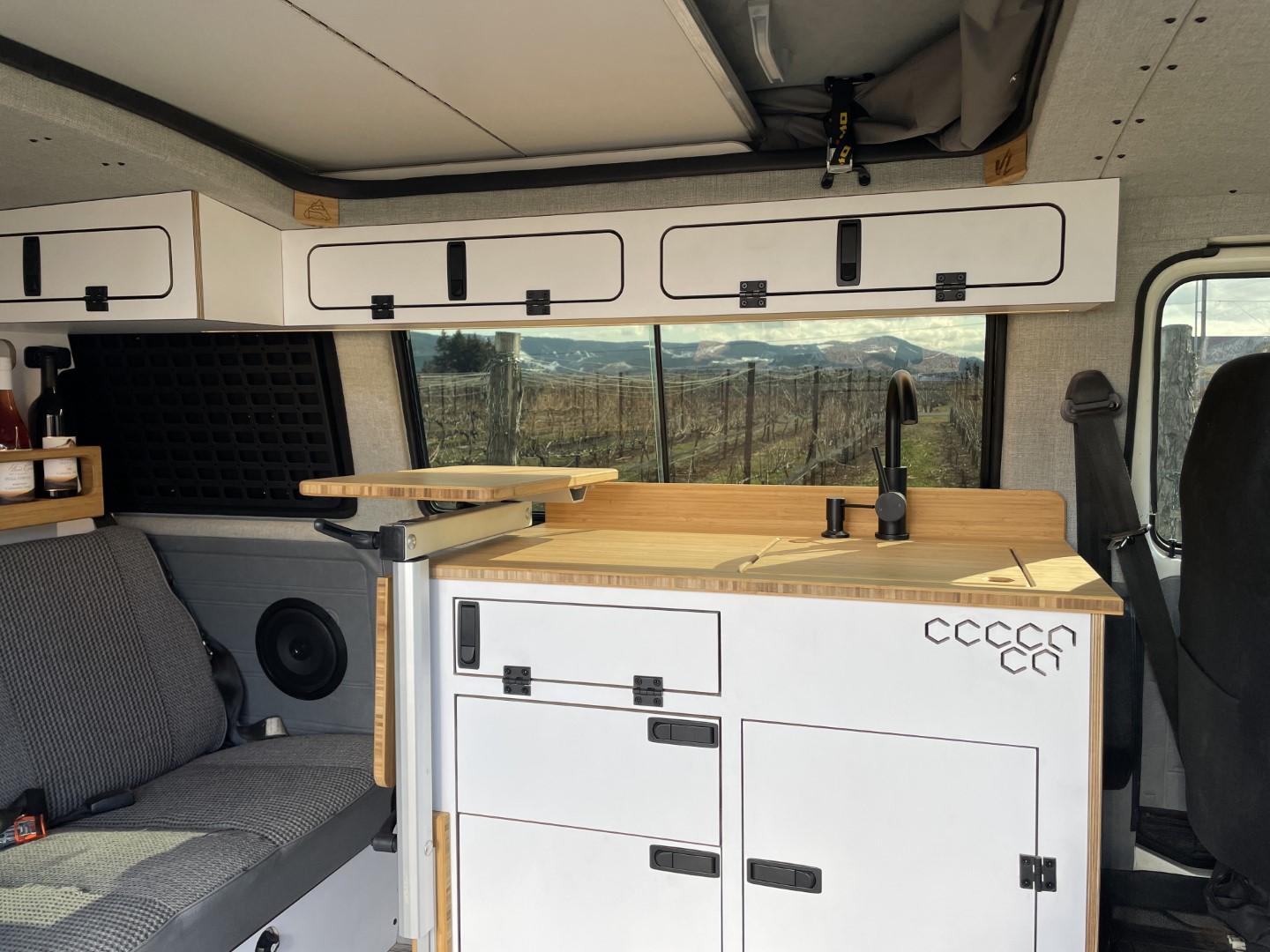

Neato. I really like the cabinets where the spice rack is in a Westy.
What's the round port in the lower left of the last photo. Is there a shower in that cabinet? How many ah in the LiFePo4 batteries?
_________________
- Jim
| Butcher wrote: |
| This is the main fault with DIY'ers, they get together on these forums and pat themselves on their backs spreading bad information. |
Guilty as charged.
Current: 1990 Westy Camper - Bostig RG4, 2wd, manual trans w/Peloquin, NAHT high-top, 280 ah LFP battery, 160 watts solar, Flash Silver, seam rust, bondo, etc., etc.
Past: 1985 Westy Camper - 1.9 wbx, 2wd, manual trans, Merian Brown, (sold after 17 years to Northwesty who converted it to a Syncro). |
|
| Back to top |
|
|
campism
Samba Member
Joined: September 07, 2007
Posts: 4710
Location: Richmond VA
|
| Posted: Fri Aug 04, 2023 3:56 pm Post subject: Re: Custom Vanagon Interior Buildout |
|
|
Welcome! Nice piece of work.
_________________
'87 Westy in Wolfram Grey Metallic, tragically crushed by a falling hickory tree in my own driveway and now gone, leaving me Vanagonless and with no plans to replace it, alas. |
|
| Back to top |
|
|
Alaskaberrys
Samba Member
Joined: June 19, 2016
Posts: 1085
Location: SE Alaska
|
| Posted: Sat Aug 05, 2023 10:43 am Post subject: Re: Custom Vanagon Interior Buildout |
|
|
Nice work! Looks great.
_________________
'91 Westfalia, Bordeaux Red Pearl 2.1L 2wd Auto
'91 T3 Syncro Doka, Escorial Green 1.9L TD AAZ “Gremian” (to provoke, irritate, exasperate, vex...) |
|
| Back to top |
|
|
MsTaboo
Samba Member
Joined: June 02, 2006
Posts: 4613
Location: East Kootenay, British Columbia
|
| Posted: Sat Aug 05, 2023 11:30 am Post subject: Re: Custom Vanagon Interior Buildout |
|
|
Very nice!
Just one critique, all those sharp corners! With the tight space in a Westy banging into hard edges can get old  .
_________________
Currently:
'90 Syncro Westy 3 knob w/Zetec
The information age has morphed into the age of disinformation and willful ignorance. Agnotology!
When you stir up shit you're bound to get some on yourself.
Resist Kleptocratic Oligarchy (and Idiocracy)! |
|
| Back to top |
|
|
vik
Samba Member
Joined: January 13, 2005
Posts: 240
Location: back in Czech
|
| Posted: Sat Aug 05, 2023 11:39 am Post subject: Re: Custom Vanagon Interior Buildout |
|
|
| jimf909 wrote: |
Neato. I really like the cabinets where the spice rack is in a Westy.
|
+1 on that detail.
May I ask how you attach them to the body? Rivnuts?
_________________
T3 Syncro camper in progress |
|
| Back to top |
|
|
Tobias Duncan
Samba Member
Joined: January 15, 2013
Posts: 1413
Location: Taos NM
|
| Posted: Sat Aug 05, 2023 12:41 pm Post subject: Re: Custom Vanagon Interior Buildout |
|
|
| Any shots of the beds? Does it have one up top and one below? |
|
| Back to top |
|
|
pnwkayaker
Samba Member
Joined: April 01, 2008
Posts: 987
Location: Sammamish, WA
|
| Posted: Sat Aug 05, 2023 1:34 pm Post subject: Re: Custom Vanagon Interior Buildout |
|
|
Looks very nice and practical, great job!
I'm not sure if it's an optical illusion or not, but the rear end of the cabinet looks like it's cut-off (I'm referring to the section between the 2 vertical doors, above the round connection). Do you have any close-ups of that section, or just explain me what I'm seeing?
_________________
87 Syncro Westy EJ25 ("Tardis")
Seattle Meetup at Marymoor (link)
A collection of Simple Useful Mods (SUM) (link) |
|
| Back to top |
|
|
wes.outside
Samba Member
Joined: September 08, 2008
Posts: 121
Location: Cody, WY
|
| Posted: Mon Aug 07, 2023 3:25 pm Post subject: Re: Custom Vanagon Interior Buildout |
|
|
wow. Nicely done
_________________
'73 Thing
'86 Vanagon Syncro with Westfalia Poptop  |
|
| Back to top |
|
|
vwlukas
Samba Member
Joined: April 01, 2020
Posts: 43
Location: hood river
|
| Posted: Mon Aug 07, 2023 4:37 pm Post subject: Re: Custom Vanagon Interior Buildout |
|
|
| jimf909 wrote: |
Neato. I really like the cabinets where the spice rack is in a Westy.
What's the round port in the lower left of the last photo. Is there a shower in that cabinet? How many ah in the LiFePo4 batteries? |

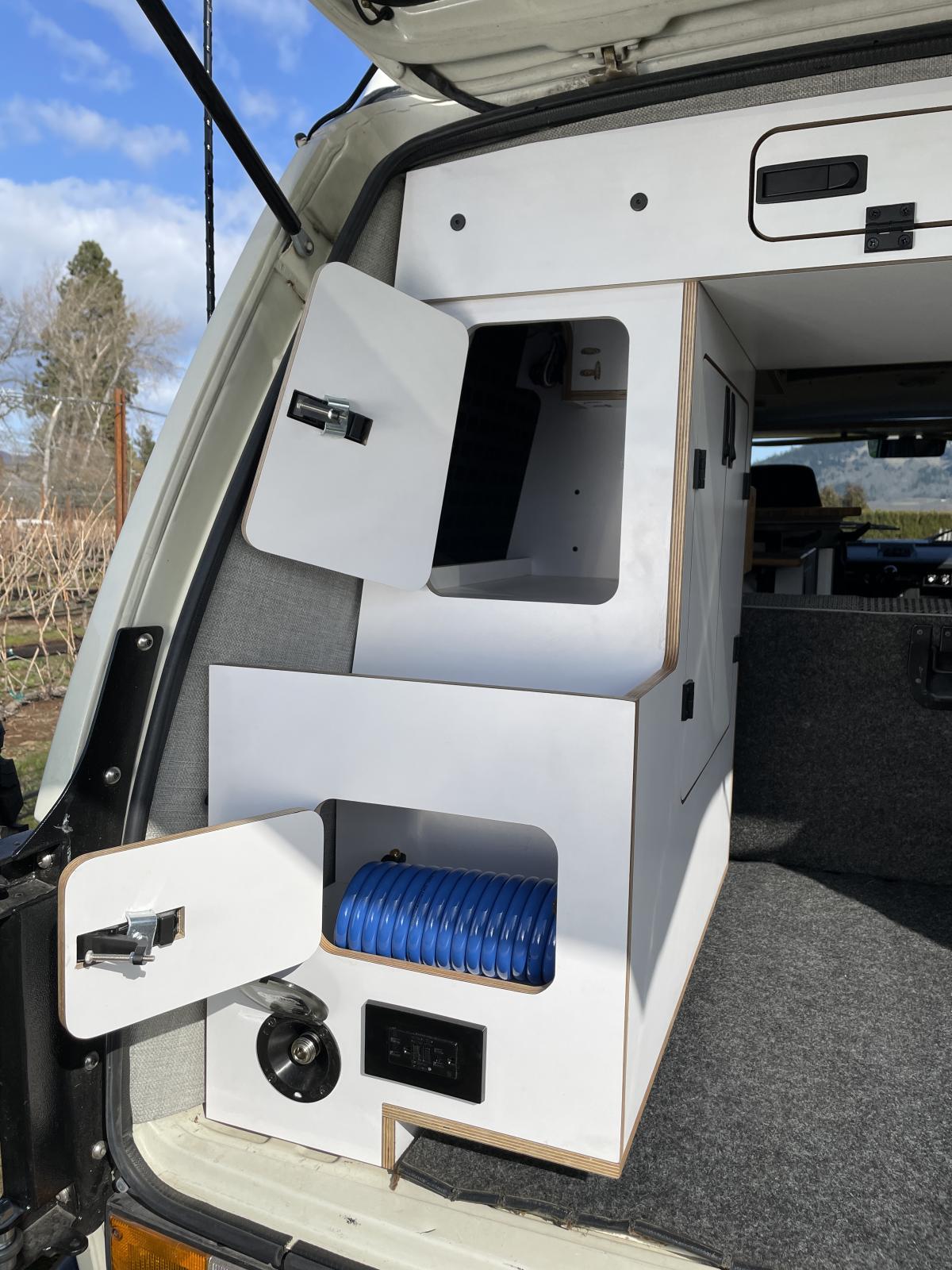

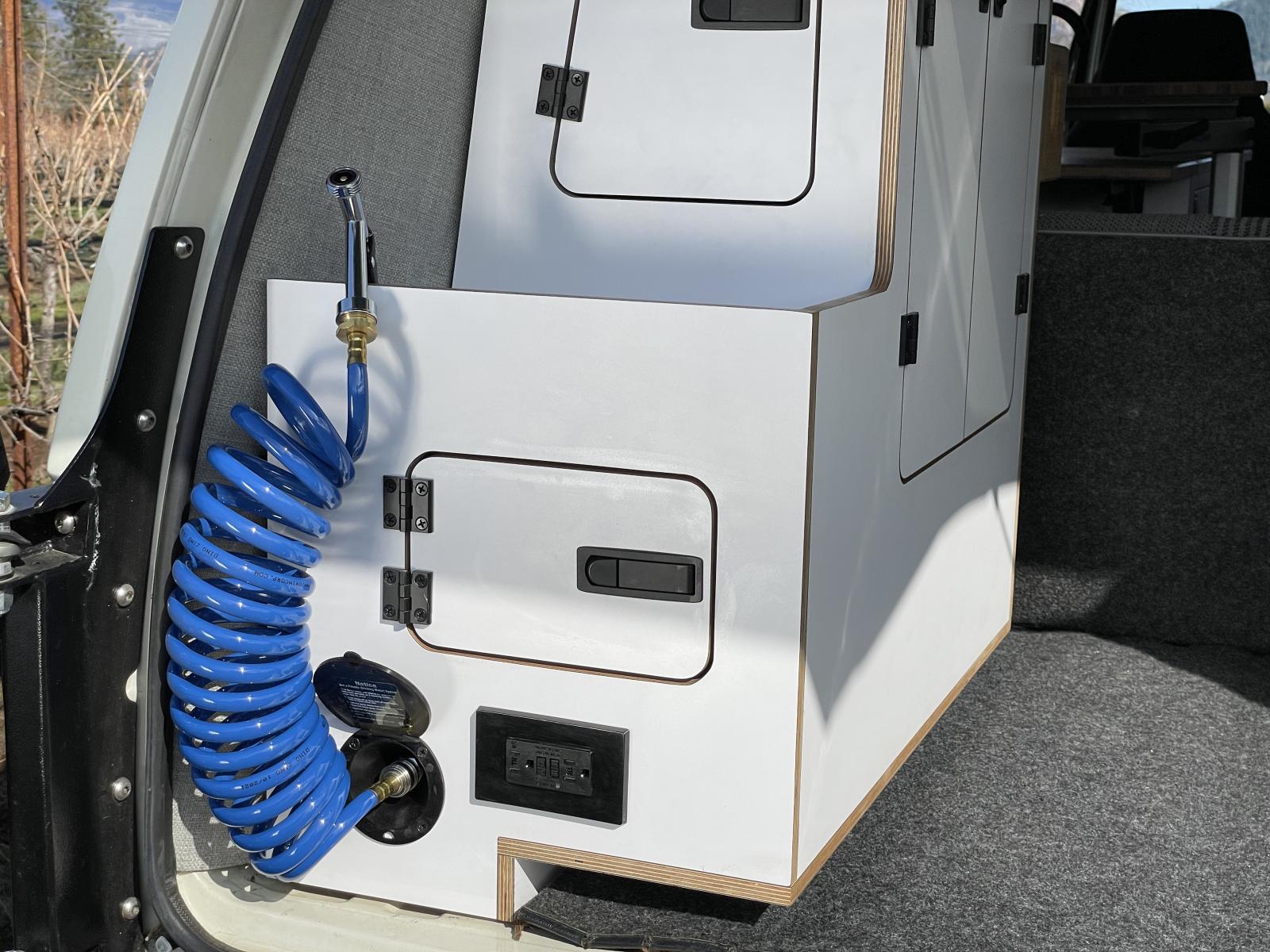

That is the shower port, we did a dual jerry can fresh water system under the galley so its easy to winterize and fill / empty with a grey water tank mounted underneath.
I am bummed i didn't grab a photo of the electrical system. Lots of high quality work with no proof!
100ah heated Battleborn with a 50a charger
_________________
Low Voltage Electrical Expert
ask me questions about your electrical setup!
if i was an eagle, i'd dress like a duck
crawl like a lizard and honk like a truck
- Jerome Garcia |
|
| Back to top |
|
|
vwlukas
Samba Member
Joined: April 01, 2020
Posts: 43
Location: hood river
|
| Posted: Mon Aug 07, 2023 5:06 pm Post subject: Re: Custom Vanagon Interior Buildout |
|
|
| Alaskaberrys wrote: |
| Nice work! Looks great. |
Thank you!
| MsTaboo wrote: |
Very nice!
Just one critique, all those sharp corners! With the tight space in a Westy banging into hard edges can get old . |
Just don't take your helmet off after your bike ride and your in the clear
| vik wrote: |
| jimf909 wrote: |
Neato. I really like the cabinets where the spice rack is in a Westy.
|
+1 on that detail.
May I ask how you attach them to the body? Rivnuts? |
I wasn't crazy about it at first but I ended up really liking it. Yes we used Rivnuts and made some nice brackets as well.
_________________
Low Voltage Electrical Expert
ask me questions about your electrical setup!
if i was an eagle, i'd dress like a duck
crawl like a lizard and honk like a truck
- Jerome Garcia |
|
| Back to top |
|
|
vanagonjr
Samba Member
Joined: October 07, 2010
Posts: 3669
Location: Dartmouth, Mass.
|
|
| Back to top |
|
|
dublife13
Samba Member
Joined: March 08, 2021
Posts: 138
Location: washington
|
| Posted: Mon Aug 07, 2023 7:50 pm Post subject: Re: Custom Vanagon Interior Buildout |
|
|
| DO/will yall sell any of those cabinets as a flat pack for self install? |
|
| Back to top |
|
|
vanis13
Samba Member
Joined: August 15, 2010
Posts: 4585
Location: ABQ NM USA.... Except when not
|
| Posted: Mon Aug 07, 2023 8:27 pm Post subject: Re: Custom Vanagon Interior Buildout |
|
|
| MsTaboo wrote: |
Very nice!
Just one critique, all those sharp corners! With the tight space in a Westy banging into hard edges can get old . |
+1 om both of those statements
_________________
83.5 Westy with Subaru 2.5, 4 spd manual, center seat, COLD A/C on 134a!, Winter camp heated with an Espar B4 gasoline furnace
www.SuperVanagon.com - some stuff I make |
|
| Back to top |
|
|
vwlukas
Samba Member
Joined: April 01, 2020
Posts: 43
Location: hood river
|
| Posted: Tue Aug 08, 2023 10:01 am Post subject: Re: Custom Vanagon Interior Buildout |
|
|
| Tobias Duncan wrote: |
| Any shots of the beds? Does it have one up top and one below? |

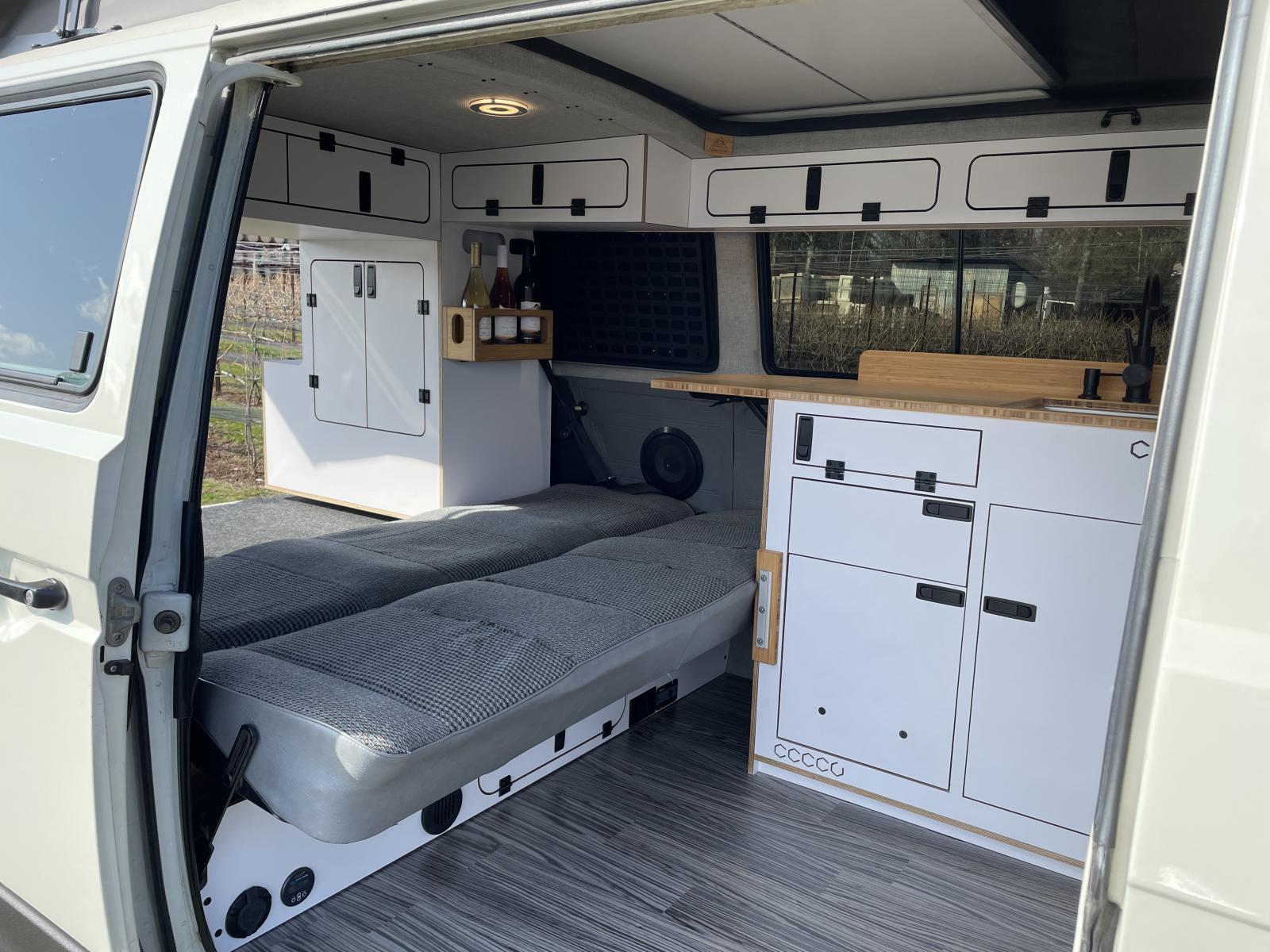

we went for an exact fit to maximize out space
[quote="pnwkayaker"]Looks very nice and practical, great job!

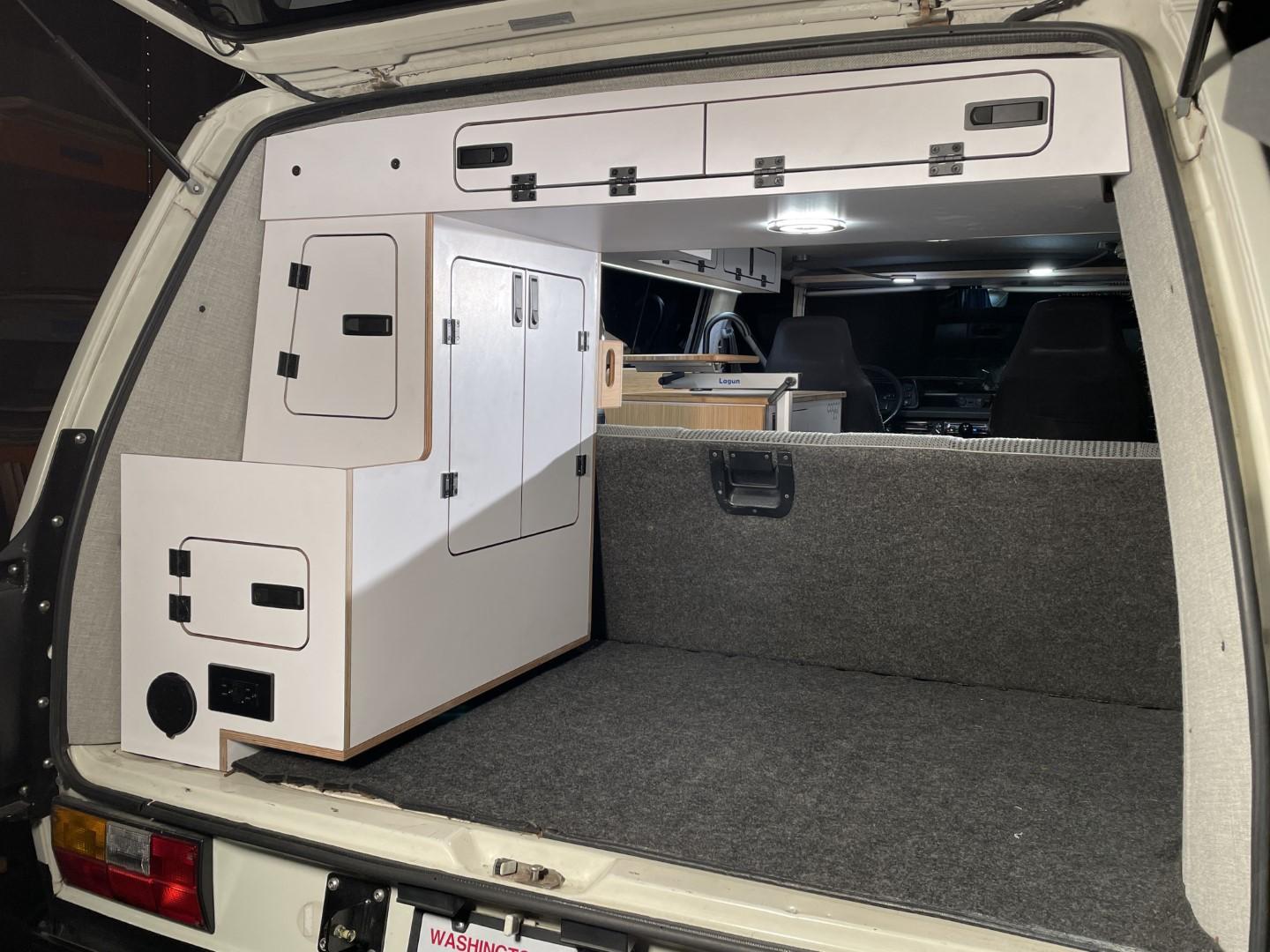

I'm not sure if it's an optical illusion or not, but the rear end of the cabinet looks like it's cut-off (I'm referring to the section between the 2 vertical doors, above the round connection). Do you have any close-ups of that section, or just explain me what I'm seeing?

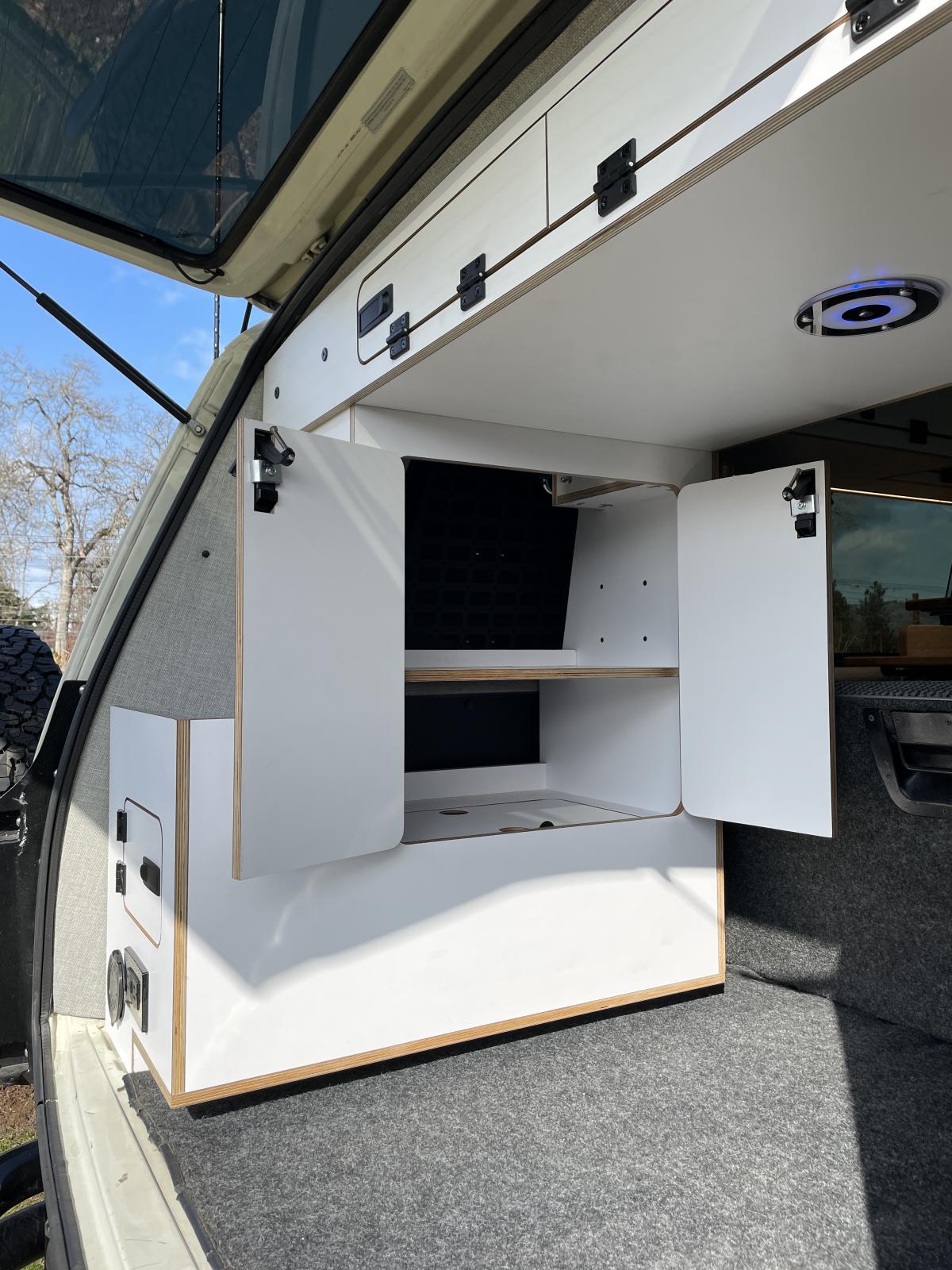

here is what you're seeing!
the rear cabinet also has a false floor so you can really fill up the bottom of the cabinet with your secret necessities
_________________
Low Voltage Electrical Expert
ask me questions about your electrical setup!
if i was an eagle, i'd dress like a duck
crawl like a lizard and honk like a truck
- Jerome Garcia |
|
| Back to top |
|
|
vwlukas
Samba Member
Joined: April 01, 2020
Posts: 43
Location: hood river
|
| Posted: Tue Aug 08, 2023 10:04 am Post subject: Re: Custom Vanagon Interior Buildout |
|
|
| dublife13 wrote: |
| DO/will yall sell any of those cabinets as a flat pack for self install? |
yes we would absolutely do that. we have access to basically any color you want and can make modifications you want.
We are in Hood River, Oregon as well so it may not be that long of a drive for you to save on shipping / work to assemble
_________________
Low Voltage Electrical Expert
ask me questions about your electrical setup!
if i was an eagle, i'd dress like a duck
crawl like a lizard and honk like a truck
- Jerome Garcia |
|
