mystery part

Yarkle · Posted: Wed Dec 07, 2011 8:13 pm Post subject: mystery part

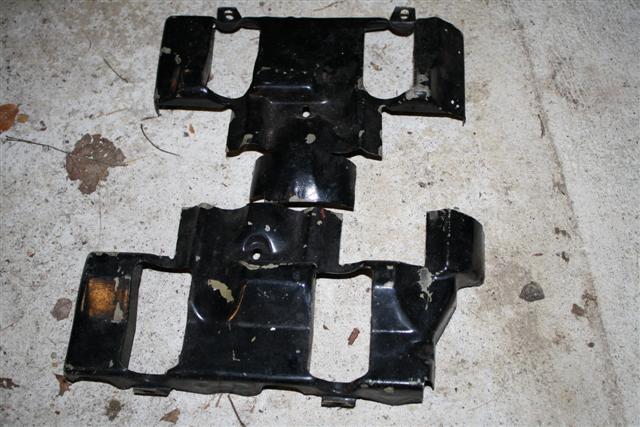

I found this in a box that came with my thing, but I cannot figure out where it goes, or even if its thing specific(cant find a match in the parts book). It looks like some sort of engine tin

Image may have been reduced in size. Click image to view fullscreen.

[/img]

Semper_Dad · Posted: Wed Dec 07, 2011 8:53 pm Post subject:

Type IV engine tin?

http://www.ronleclerc.net/engine.html
about halfway down the page
_________________
Walküre Restoration Thread: https://www.thesamba.com/vw/forum/viewtopic.php?t=737492

analogmax · Posted: Wed Dec 07, 2011 10:24 pm Post subject:

looks like the cooling tins between the push rod tubes and the heads

jsturtlebuggy · Posted: Wed Dec 07, 2011 10:43 pm Post subject:

Yes those are heat deflectors for a type IV engine.
They bolt on to the head and case unlike the type I that just snap in between the head studs.
_________________
Joseph
Fair Oaks/Orangevale, CA
Elrod Motorsports
Motion Tire Motorsports
Having fun with Dune Buggies since 1970
Into Volkswagens since 1960

Yarkle · Posted: Thu Dec 08, 2011 3:10 pm Post subject:

thanks for all of the quick responses! They just came in the box with a bunch of thing parts, but i didnt recognize them.
