 Posted: Fri Jan 11, 2019 6:30 am Post subject: Common Leak Point? |
 |
|
I'm getting rain water on the passenger side front floor of our '87 Westfalia. I have one of those rubber mats there, and the edge near the door accumulates water, then eventually soaks the carpet. I see no obvious place that it enters. Is this a common leak? I fixed the one on the driver side that was coming from the radio antenna. Judging from where water sits on the mat, this leak would seem to drip from above....?
_________________
1987 Westfalia 2.1 WBX Manual |
|
| Back to top |
|
 |
shagginwagon83
Samba Member
Joined: February 07, 2016
Posts: 4331
Location: SWVA
|
| Posted: Fri Jan 11, 2019 6:31 am Post subject: Re: Common Leak Point? |
|
|
How did you get the radio antenna leak fixed? I have a similar leak.
_________________
"Jo Ann" - '83.5 Westfalia EJ22e w/Peloquin
Instagram: @joannthevan |
|
| Back to top |
|
|
Igeo
Samba Member
Joined: September 25, 2018
Posts: 898
Location: Oakland, CA
|
| Posted: Fri Jan 11, 2019 6:33 am Post subject: Re: Common Leak Point? |
|
|
I applied a film of RTV to the antenna base.
_________________
1987 Westfalia 2.1 WBX Manual |
|
| Back to top |
|
|
metropoj
Samba Member
Joined: April 23, 2004
Posts: 1343
|
| Posted: Fri Jan 11, 2019 6:38 am Post subject: Re: Common Leak Point? |
|
|
Usually old window rubber allowing water to leak under or rust under the window rubber seal. The rust is pretty common.
_________________
John.
86 TiiCo powered Westy. |
|
| Back to top |
|
|
dobryan
Samba Member
Joined: March 24, 2006
Posts: 17152
Location: Brookeville, MD
|
| Posted: Fri Jan 11, 2019 6:43 am Post subject: Re: Common Leak Point? |
|
|
Likely your windshield seal is leaking at the bottom corner. The water can get under the seal anywhere above there. On a dry day have a friend take a garden hose to the windshield and front end while you carefully watch inside and you may be able to see where the drip is. Many have had success by using some sort of sealant under the seal around the windshield.
_________________
Dave O
'87 Westy w/ 2010 Subaru EJ25 (Vanaru) and Peloquin TBD
"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson
MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646
Building a bus for travel in Europe (euroBus)
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371
The Western Syncro build
https://www.thesamba.com/vw/forum/viewtopic.php?t=746794 |
|
| Back to top |
|
|
djkeev
Samba Moderator
Joined: September 30, 2007
Posts: 32989
Location: Reading Pennsylvania
|
|
| Back to top |
|
|
Igeo
Samba Member
Joined: September 25, 2018
Posts: 898
Location: Oakland, CA
|
| Posted: Fri Jan 11, 2019 4:21 pm Post subject: Re: Common Leak Point? |
|
|
Thanks for the ideas! The telltale puddle on the mat seems too far back for it to be windshield, and too far in to be from the door. (I think).
Maybe it gets in through the luggage pit in the roof.
I'll look into all these. Plenty of rain in the forecast here!
_________________
1987 Westfalia 2.1 WBX Manual |
|
| Back to top |
|
|
childofthewind
Samba Member
Joined: October 19, 2010
Posts: 771
Location: Eastern Sierra
|
| Posted: Fri Jan 11, 2019 6:04 pm Post subject: Re: Common Leak Point? |
|
|
I second the windshield. Had a leak in the same place, replaced the windshield seal (third time's a charm!) and it went away. Mine was from the upper passenger side corner of the seal. I know this because I duct-taped the sh*t out of said corner and the leak went away. Get the oem windshield seal from van cafe. Don't waste your time or money on anything less.
_________________
1987.5 wolfsburg hardtop; 2.1
“As for me, I am tormented with an everlasting itch for things remote." - Melville |
|
| Back to top |
|
|
ledogboy
Samba Member
Joined: September 19, 2005
Posts: 599
Location: Scappoose, OR / Oakland, CA
|
| Posted: Fri Jan 11, 2019 6:09 pm Post subject: Re: Common Leak Point? |
|
|
| Igeo wrote: |
Thanks for the ideas! The telltale puddle on the mat seems too far back for it to be windshield, and too far in to be from the door. (I think).
Maybe it gets in through the luggage pit in the roof.
I'll look into all these. Plenty of rain in the forecast here! |
It is easy for water to follow a path (part of the structure, wiring, etc) and end up somewhere quite unexpected. I would say your windshield is vastly more likely to be the culprit than the luggage rack.
_________________
1986 Westy Weekender
Now a full camper
1.8t Syncro conversion
Some people call him Maurice... |
|
| Back to top |
|
|
Igeo
Samba Member
Joined: September 25, 2018
Posts: 898
Location: Oakland, CA
|
| Posted: Sat Jan 12, 2019 12:11 pm Post subject: Re: Common Leak Point? |
|
|
Ok I'm an idiot.
It's the windshield as suggested. Presumably the central slot that the "trim" piece fits into is not an entry point in places where the trim doesn't cover it.

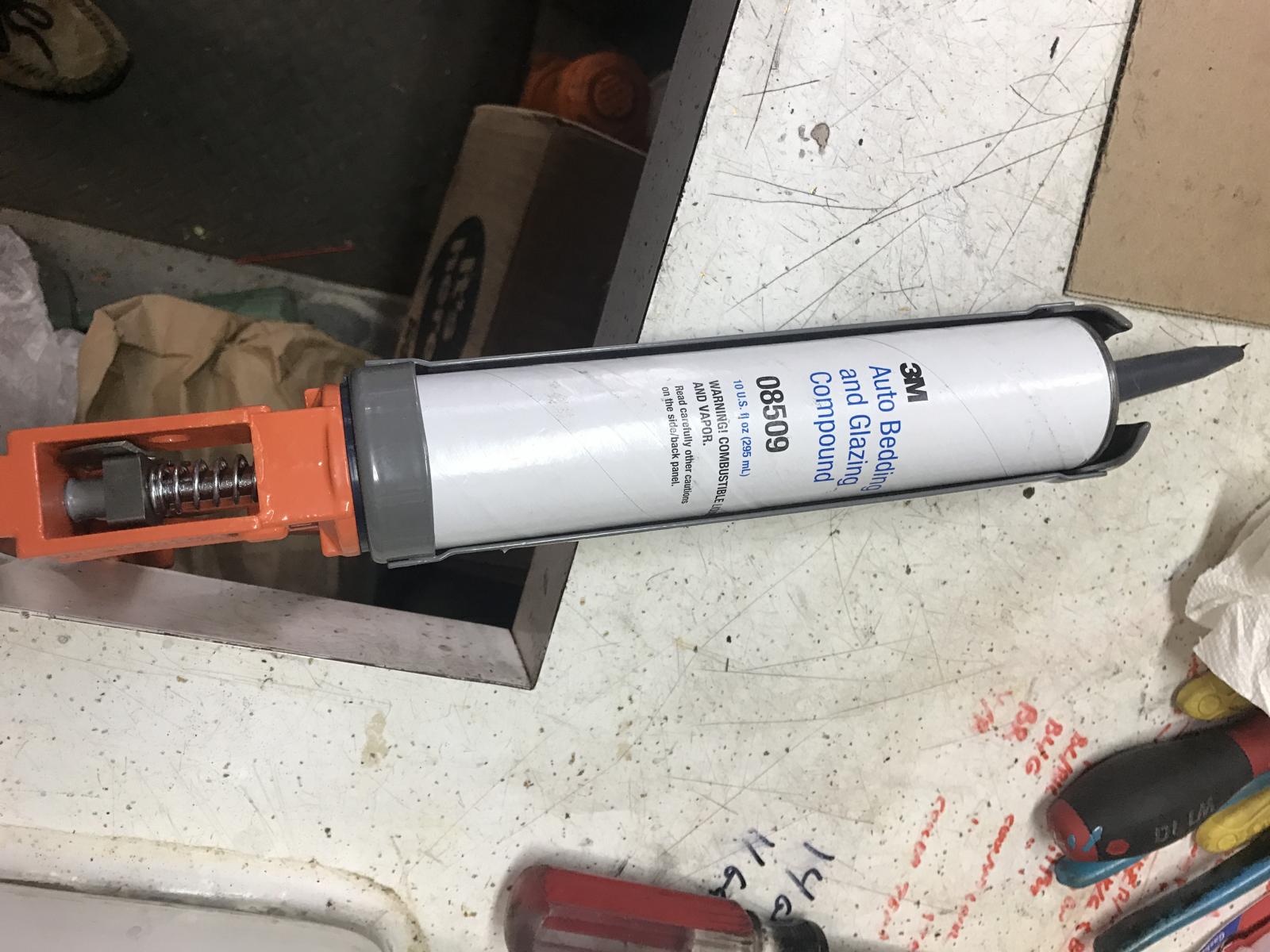

So Dave, if I want to try and seal the windshield, can the 3M product you suggest be injected under the gasket, or do I need to remove the glass?
