Dash Trim Pieces

jackro · Posted: Wed Jan 02, 2013 11:21 am Post subject: Dash Trim Pieces

Does anyone know who supplies the correct size chrome dash trim for a '64 Bug? The ones I ordered are too narrow compared to the ears on the fuel gauge.

Thanks
Jack

VOLKSWAGNUT · Posted: Wed Jan 02, 2013 11:22 am Post subject:

Who supplied your trim?
_________________
aka Ken {o\!/o}
Its your vehicle- stop askin' for approval-do what YOU like for cryin' out loud
Better to roll em' how you want and wear em' out-than lettin' em' rot out
Its about the going not the showing
Rebuilt to drive not decorate
WANTED: Local Eatin' Joints, Triple D for TheSamba contributions here http://www.thesamba.com/vw/forum/viewtopic.php?t=570510
Search "VOLKSWAGNUT" on YouTube since you cant watch a "certain" BELT change video round here
Usually and often edited

jackro · Posted: Wed Jan 02, 2013 11:24 am Post subject:

Wolfsburg West

Hugo Stiglitz · Posted: Wed Jan 02, 2013 11:27 am Post subject:

Did you get the right year? I have the set from WW and everything matches with the gas gauge.
_________________
'63 slow n low build thread...

Jay Leno's Garage

(o\ ! /o) | o \/ o | (o)=|=(o) [o\|_|_|/o]

jackro · Posted: Wed Jan 02, 2013 11:33 am Post subject:

I just spoke to WW & they said they only carry the one size (which doesn't match my gauge or my orig dented trim pieces?????)

VOLKSWAGNUT · Posted: Wed Jan 02, 2013 11:48 am Post subject:

How much difference are they?

Maybe you got a bad batch.. of repops...
_________________
aka Ken {o\!/o}
Its your vehicle- stop askin' for approval-do what YOU like for cryin' out loud
Better to roll em' how you want and wear em' out-than lettin' em' rot out
Its about the going not the showing
Rebuilt to drive not decorate
WANTED: Local Eatin' Joints, Triple D for TheSamba contributions here http://www.thesamba.com/vw/forum/viewtopic.php?t=570510
Search "VOLKSWAGNUT" on YouTube since you cant watch a "certain" BELT change video round here
Usually and often edited

jackro · Posted: Wed Jan 02, 2013 11:50 am Post subject:

I'll measure when I get home.

tb03830 · Posted: Wed Jan 02, 2013 1:06 pm Post subject:

I have a 64 vert and had to get the chrome for the glove compartment. It was correct. Normally WW is a good company. Do not know what to tell you except you can find OE parts on Samba from tie to time.
_________________
"Sic Vic Pacem, Para bellum - Pray for peace, prepare for war."

1964 Convertible Bug - 1600cc SP engine with a stock H30/31 Carb and SVDA Distributor - Swing Arm Highway Flyer Tranny, Gene Berg's Temperature Dipstick, 2.5" drop spindles, 2" narrowed adjustable front end. Chromed OEM fan tower.

stale air · Posted: Wed Jan 02, 2013 2:12 pm Post subject:

Do you have a pic of what WW sent you?
_________________
WANTED: Henry Veale Santa Rosa plate frames
WANTED: Brittsan Motors Fresno plate frames
WANTED: Any Georgia plate frames

jackro · Posted: Wed Jan 02, 2013 3:25 pm Post subject:

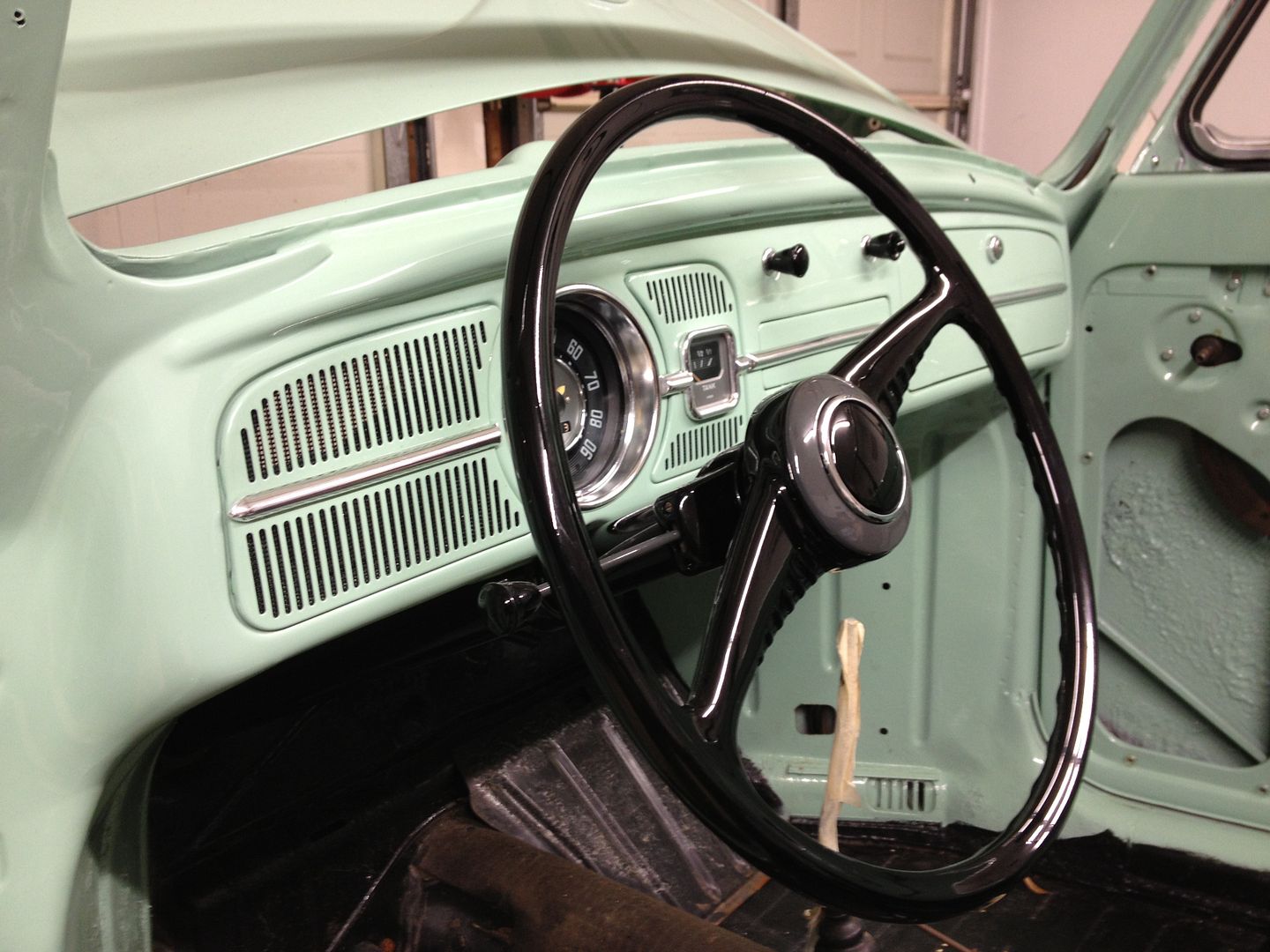

Image may have been reduced in size. Click image to view fullscreen.

the fuel gauge ear measures 13mm wide x 8mm high
the WW trim measures 11mm wide x 6mm high

part # 113853240

VOLKSWAGNUT · Posted: Wed Jan 02, 2013 3:29 pm Post subject:

Welcome to the repop world...
Seriously.... do you really think that will be noticeable when placed on the dash with gaps in between....

I've had NOS pieces vary in height and width and shape that much right out of the German boxes...
_________________
aka Ken {o\!/o}
Its your vehicle- stop askin' for approval-do what YOU like for cryin' out loud
Better to roll em' how you want and wear em' out-than lettin' em' rot out
Its about the going not the showing
Rebuilt to drive not decorate
WANTED: Local Eatin' Joints, Triple D for TheSamba contributions here http://www.thesamba.com/vw/forum/viewtopic.php?t=570510
Search "VOLKSWAGNUT" on YouTube since you cant watch a "certain" BELT change video round here
Usually and often edited

jackro · Posted: Wed Jan 02, 2013 3:31 pm Post subject:

In a word - yes

VOLKSWAGNUT · Posted: Wed Jan 02, 2013 3:44 pm Post subject:

jackro · Posted: Wed Jan 02, 2013 3:50 pm Post subject:

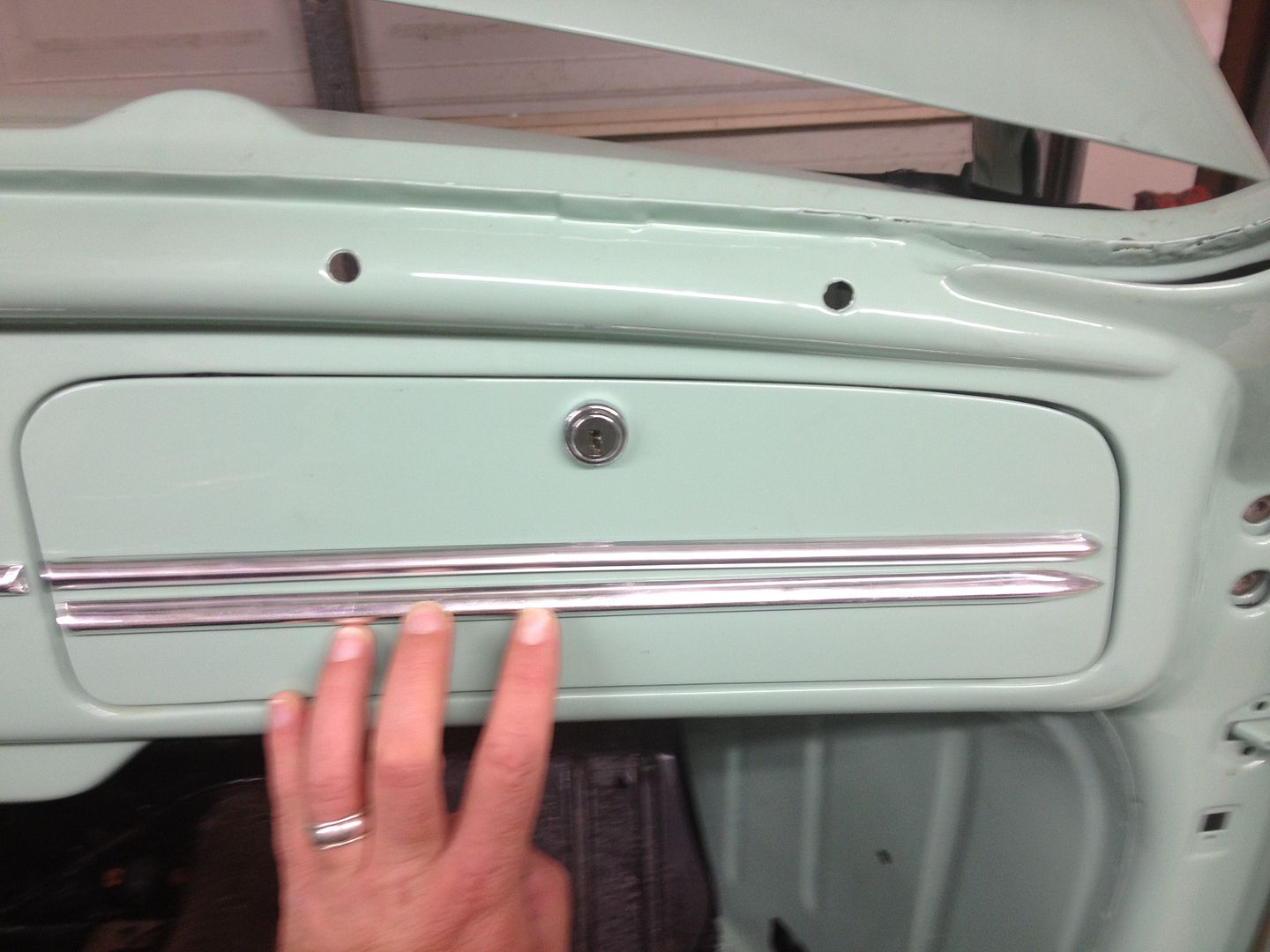

Actually all I really need is the glove box trim. I thought I'd buy the whole setup new to make it easier. I guess I wasnt expecting this - I've restored a 356C & a bunch of Alfas so I've seen repro issues.

I just hope people are honest on the condition of their used stuff.

VOLKSWAGNUT · Posted: Wed Jan 02, 2013 4:03 pm Post subject:

Yeah Volkswagens... are a whole nother class when it comes to parts...and cars in general.
You obviously know ... by your above statement.
Try.... re....building or resurrecting, a really rare or odd car...
Vw's are a breeze to find parts, and find parts cheap, even the good parts are cheap.. just maybe not the best. Quality control is a joke...
Im just thankful parts ARE available, so I'm not too critical on these little tin beaters.
Vw's are merely only one of my specialties.. Wink

_________________
aka Ken {o\!/o}
Its your vehicle- stop askin' for approval-do what YOU like for cryin' out loud
Better to roll em' how you want and wear em' out-than lettin' em' rot out
Its about the going not the showing
Rebuilt to drive not decorate
WANTED: Local Eatin' Joints, Triple D for TheSamba contributions here http://www.thesamba.com/vw/forum/viewtopic.php?t=570510
Search "VOLKSWAGNUT" on YouTube since you cant watch a "certain" BELT change video round here
Usually and often edited

jackro · Posted: Wed Jan 02, 2013 4:16 pm Post subject:

Quality---thats why I went to WW for $35.00 instead of Jbugs for $20.00 Crying or Very sad

wayne1230cars · Posted: Wed Jan 02, 2013 4:31 pm Post subject:

I purchased the dash trim from WW for my '60. (CIP also sells it and describes it as being German.). I just was not really happy with it so I ended up getting all my original pieces rechromed. They were fairly pitted so it was not cheap. However they came out beautiful and I am glad I went that route. Hopefully you can find some glovebox trim that does not need replating. If not and you do have to replate it, it may make the other trim pieces look a bit shabby if they are not perfect. Just depends on how much you want to spend.
_________________
1960 beetle
1970 beetle convertible

VOLKSWAGNUT · Posted: Wed Jan 02, 2013 7:00 pm Post subject:

The tin trim after 1960 are not chrome but more like anodized . They are not the heavy chromed pot metal trim like found in the 58-60's.

wayne1230cars · Posted: Thu Jan 03, 2013 2:41 pm Post subject:

[quote="VOLKSWAGNUT"]The tin trim after 1960 are not chrome but more like anodized . They are not the heavy chromed pot metal trim like found in the 58-60's.

Good point VOLKSWAGNUT. A couple of other points -

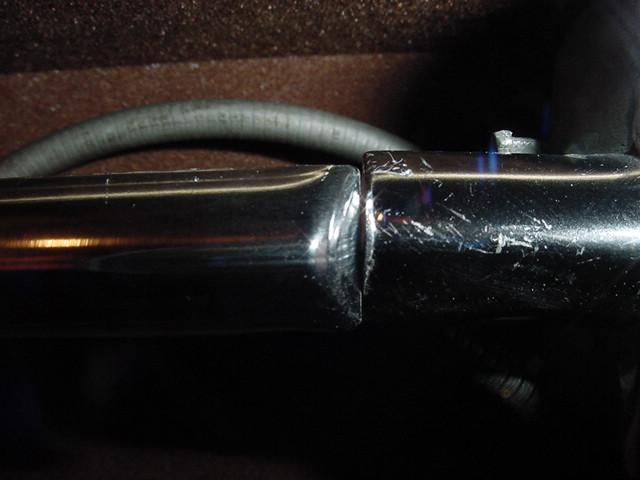

1) This is a pic of the WW repro trim I ordered in 2010 and decided not to use. Measurements are the same as those posted by jackro. - 11 mm

2) Measuring an original trim piece(1960) it also corresponds to jackro's measurement of an original 1964 piece - 13mm . This would indicate that even though the material composition of the trim changed in 1961, the dimensions did not.

[img]

[/img]
This thread also seems to confirm that the repro trim is about 2 mm narrower than original. Sounds like if you want a perfect match you are going to have to find a good original.

I measured the radio trim plate ears on my car and they also measure 13 mm. So all the original pieces are very consistent in width.

http://www.thesamba.com/vw/forum/viewtopic.php?t=375424&highlight=dash+trim
_________________
1960 beetle
1970 beetle convertible

ConcreteAce · Posted: Thu Jan 10, 2013 3:31 pm Post subject:

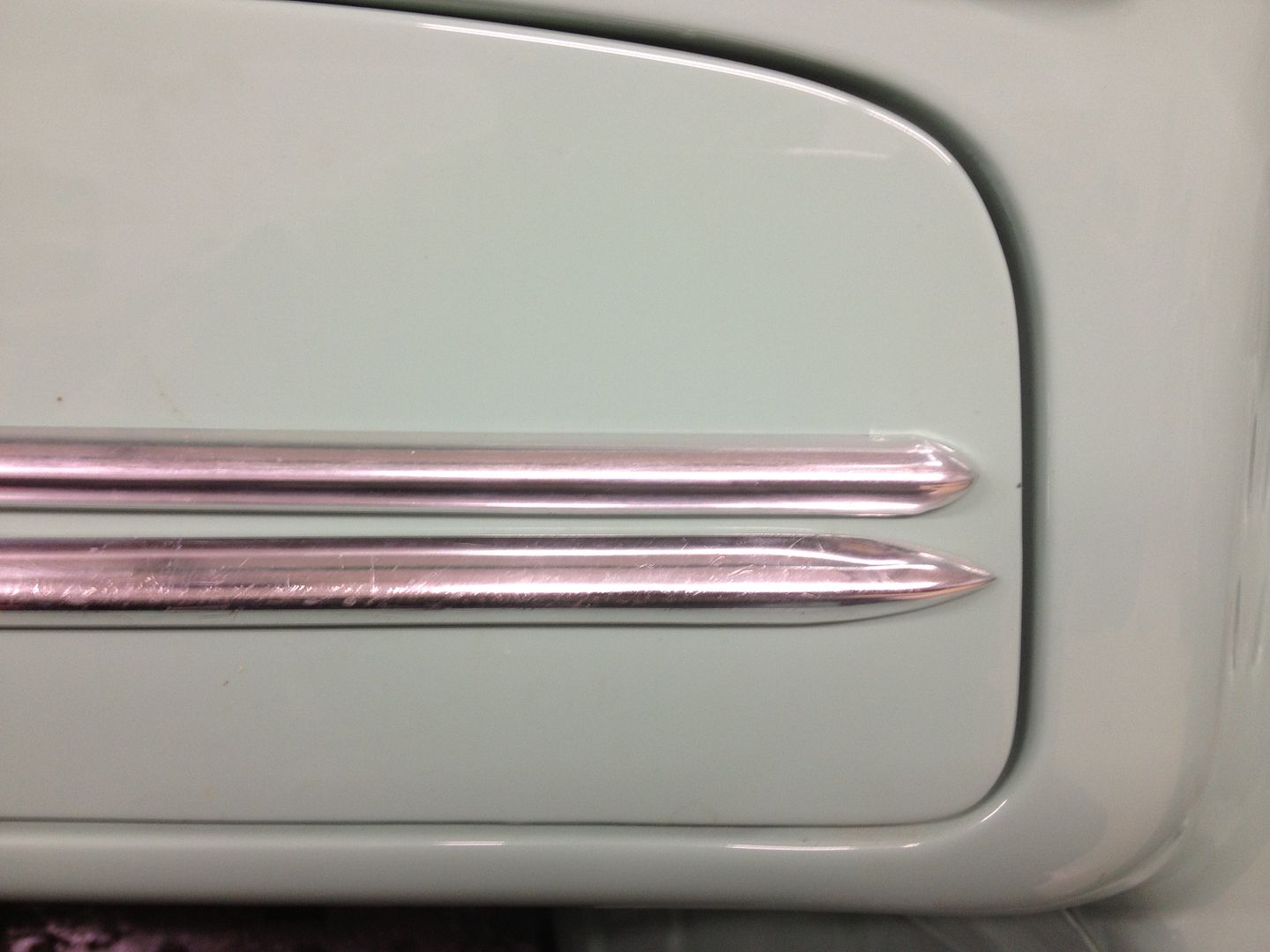

I was not to pleased with the repop trim from WW either. I think I could deal with the size difference if it at least looked like the factory. It has a rounded edge and the factory comes to a point. Seams weird that they couldn't get that right.

Factory trim is the bottom one

_________________
Ethan Dunlap
Spring, Texas

'51 Deluxe
'61 Build
'68 Turbo Diesel Baja
'64 Ghia Vert
'61 Baja Build
