 Posted: Fri Mar 12, 2010 12:04 am Post subject: Smoothies + Beauty rings ? |
 |
|
I was lookin at Cipi1.com and checkin out their beauty rings (made by empi... i suppose  ) and thought It might be fun to pick up a set for my smoothies. Has anyone ever fit them on a set of stock smoothies and would they just snap in?? Any pics or info would be appreciated.
Pictures From Website:
Link to Rings ----> https://www2.cip1.com/ProductDetails.asp?ProductCode=C13%2D10%2D1069
_________________
Daily- '63 Beetle, Restoring- '71 Super
Rare for sale - Ask for details - Limited time only! |
|
| Back to top |
|
 |
RareAir
Samba Member
Joined: May 11, 2002
Posts: 14577
Location: 18 miles North of the border
|
|
| Back to top |
|
|
63Shagginwagen
Samba Member
Joined: December 19, 2009
Posts: 130
Location: Annapolis
|
| Posted: Fri Mar 12, 2010 12:28 am Post subject: |
|
|
| RareAir wrote: |
| Kabriolett models came standard with beauty rings installed on their smoothie wheels |
Well I guess more importantly, I wanted to see if anyone has fitted these actual rings?
_________________
Daily- '63 Beetle, Restoring- '71 Super
Rare for sale - Ask for details - Limited time only! |
|
| Back to top |
|
|
AlteWagen
Troll
Joined: February 23, 2007
Posts: 8739
Location: PNW
|
| Posted: Fri Mar 12, 2010 11:46 am Post subject: |
|
|
I purchased a set, put them on the rims, almost threw up, removed them and sold them. They look like crap and do not even come close to what the original profile was.
The closest to original rings are available from House of Ghia. I believe they are rings for an old ford.

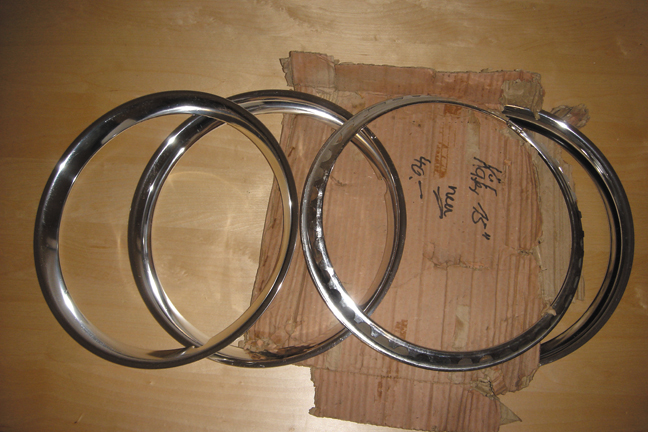

Karmann Ghia, Karmann Kabriolett, and Deluxe buses used the same trim ring
NOS rings
Original
HOG
Here is a link to a ford supplier which are the same rings sold at HOG
http://store.bobdrake.com/19forsmootco2.html |
|
| Back to top |
|
|
63Shagginwagen
Samba Member
Joined: December 19, 2009
Posts: 130
Location: Annapolis
|
| Posted: Fri Mar 12, 2010 12:49 pm Post subject: |
|
|
| derluftwagen wrote: |
I purchased a set, put them on the rims, almost threw up, removed them and sold them. They look like crap and do not even come close to what the original profile was.
The closest to original rings are available from House of Ghia. I believe they are rings for an old ford.
|
Those look great man. The one thing is a significant price difference. Are those aftermarket ones really that crappy?? I just kinda want to throw them on and off for fun. Obviously, I'm aware that you get what you pay for but are the differences that big?
Thanks,
-Rob
_________________
Daily- '63 Beetle, Restoring- '71 Super
Rare for sale - Ask for details - Limited time only! |
|
| Back to top |
|
|
AlteWagen
Troll
Joined: February 23, 2007
Posts: 8739
Location: PNW
|
| Posted: Fri Mar 12, 2010 1:09 pm Post subject: |
|
|
I used to work in a parts store and they would always shoot off the car so people would want to buy one. Since they only came in a set they would have to buy all 4. It was so common I broke up a set just to keep the customers happy.
The other thing I didnt like about them was the profile. A 1 inch flat spot at the edge with a HUGE radius on the inside. They are also pretty thin, so when putting them on if you dont put equal pressure they bend quite easily. One customer bought one, went to put it on his bug, the ring taco'd and he walked right back in to buy another. By the time you give up on them and have purchased a few "replacements" you could have had a quality piece that looked correct in first place.

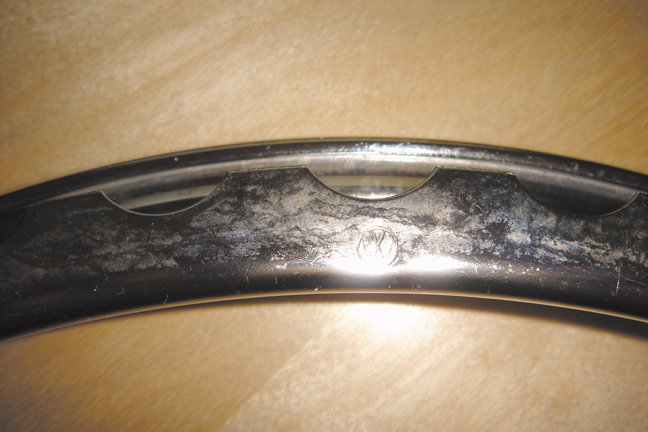

Here is a pic from the gallery of the aftermarket ring.
If you look closely you can see the waves/dents in the outer ring, that is not from a curb that is from installation. |
|
| Back to top |
|
|
RareAir
Samba Member
Joined: May 11, 2002
Posts: 14577
Location: 18 miles North of the border
|
|
| Back to top |
|
|
carlostam
Samba Member
Joined: September 16, 2009
Posts: 414
Location: Pembroke Pines,FL
|
| Posted: Fri Mar 12, 2010 3:49 pm Post subject: |
|
|
| derluftwagen wrote: |
I purchased a set, put them on the rims, almost threw up, removed them and sold them. They look like crap and do not even come close to what the original profile was.
The closest to original rings are available from House of Ghia. I believe they are rings for an old ford.
Karmann Ghia, Karmann Kabriolett, and Deluxe buses used the same trim ring
NOS rings
Original
HOG
Here is a link to a ford supplier which are the same rings sold at HOG
http://store.bobdrake.com/19forsmootco2.html |
Let me ask you, these ford beauty rings, would they fit on a 66 beetle (stock rim)? $35.00 is not bad for 4 |
|
| Back to top |
|
|
ConcreteAce
Samba Member
Joined: May 19, 2005
Posts: 862
Location: Spring, Texas
|
|
| Back to top |
|
|
AlteWagen
Troll
Joined: February 23, 2007
Posts: 8739
Location: PNW
|
| Posted: Fri Mar 12, 2010 5:08 pm Post subject: |
|
|
| carlostam wrote: |
| Let me ask you, these ford beauty rings, would they fit on a 66 beetle (stock rim)? $35.00 is not bad for 4 |
That is $35 EACH. I think House Of Ghia is cheaper than the ford site.
I have only used them on stock 15 inch bus rims and 65 and earlier smoothie rims. If you have the correct slotted 66-67 rim you should use the slotted beauty rings. I think Vintage Parts in Canyon Country CA has some nice slotted rings for sale. |
|
| Back to top |
|
|
JEER42
Samba Member
Joined: June 29, 2008
Posts: 138
Location: South Florida
|
| Posted: Fri Mar 12, 2010 6:43 pm Post subject: |
|
|
| I have those from CIP1 on a set of stock smoothies and I really like them. I had to bend the tabs a bit to get a good fit though. |
|
| Back to top |
|
|
Tenor66
Samba Member
Joined: April 04, 2011
Posts: 25
Location: Berlin, Germany
|
| Posted: Fri Oct 07, 2011 3:58 pm Post subject: |
|
|
I know this topic is a bit old now, but I was wondering about these particular trim or beauty rings. I'm looking for rings for my rims that are like the original smoothie rings that do not come all the way to the edge of the rim. The reason why is because I'd like the very edge of the rim to be painted a different color than the center as in the picture below. Also, to add another twist, if these rings are available somewhere, would they fit a stock 15" 4-lug rim from 72? I'm trying to paint my rims and dress them up with a retro look.
Many thanks,
Martin---
_________________
Martin---
'72 1302 |
|
| Back to top |
|
|
bugmandave
Samba Member
Joined: December 30, 2005
Posts: 642
Location: Illinois
|
|
| Back to top |
|
|
TateG
Samba Member
Joined: November 14, 2005
Posts: 16
|
| Posted: Thu Oct 20, 2011 11:45 pm Post subject: |
|
|
I was also looking for some trim rings that did not cover the whole outer rim. I had tried some that a local VW shop sells and hated them, they wouldn't even seat all the way in a stock wide 5 smoothie, covered the whole outer and were really hard to get on at all.
So I bought some trim rings from Amazon, $90 for the set, chrome plated stainless. I am very happy with them, they fit really nice.
http://www.amazon.com/Style-Smooth-Beauty-Trim-Rin...amp;sr=1-1
These that I got from Amazon don't have the same profile as the stock VW rings, but aren't as expensive as the new repops. I guess it depends on what you are after and how much you want to spend; they were perfect for my criteria, not too expensive and still showed the outer lip of the rim. I apologize that I can't take a photo, but the car is tucked away and I am out of town for a week. |
|
| Back to top |
|
|
smitty24
Samba Member
Joined: April 28, 2008
Posts: 2734
Location: Salem, Oregon
|
| Posted: Fri Oct 21, 2011 3:56 pm Post subject: |
|
|
| DO NOT buy the ones on the very top of the post!!! I bought them a few years ago (from EIsparts, I believe) and the sharp tabs on the back DESTROYED my newly painted smoothies. They are a very poor design and work nothing like stock. I couldnt even get them to seat into the wheel all the way. They are not worth 1/4 of the money they cost. The ones Mike gets are far better and actually look nice. |
|
| Back to top |
|
|
TateG
Samba Member
Joined: November 14, 2005
Posts: 16
|
| Posted: Mon Apr 02, 2012 3:44 pm Post subject: |
|
|
Finally able to update this old thread with some nice weather. These are the beauty rings I bought from an Amazon vendor, while not like the originals they do let the outer part of the rim be seen. Had the rims been the original colors I wouldn't have bothered, but I like the way they break up the all-red rims. And please forgive the crappy iPhone pics (original iPhone).
|
|
| Back to top |
|
|
Keith
Samba Member
Joined: August 15, 2005
Posts: 3632
Location: Brodheadsville, PA
|
| Posted: Mon Apr 02, 2012 3:58 pm Post subject: |
|
|
| TateG wrote: |
Finally able to update this old thread with some nice weather. These are the beauty rings I bought from an Amazon vendor, while not like the originals they do let the outer part of the rim be seen. Had the rims been the original colors I wouldn't have bothered, but I like the way they break up the all-red rims. And please forgive the crappy iPhone pics (original iPhone).
|
Do you have the info for who you purchased them from?
_________________
Formerly known in the forums as "OVALTEEN"
"I firmly believe that some villagers from Botswana could probably build a better road than PennDot."- Splitty
"If you do anything to your car someone will hate on you for it. People absolutely love to complain and find fault with others. Don't let it bother you. Just live and have fun."- Lind |
|
| Back to top |
|
|
TateG
Samba Member
Joined: November 14, 2005
Posts: 16
|
| Posted: Mon Apr 02, 2012 4:26 pm Post subject: |
|
|
| There is a link in my earlier post just a few posts above, hopefully it stil works. |
|
| Back to top |
|
|
johnnypan
Samba Member
Joined: October 24, 2007
Posts: 7431
Location: sackamenna
|
| Posted: Mon Apr 02, 2012 4:39 pm Post subject: |
|
|
15" Xer's,perfect for smoothies |
|
| Back to top |
|
|
vanagonswede
Samba Member
Joined: February 08, 2008
Posts: 51
Location: Sweden
|
| Posted: Mon Apr 02, 2012 4:42 pm Post subject: |
|
|
Hi!
Old volvo cars had those. There was a model that were called volvo amason and volvo pv that had them on. People in Sweden use them alot on their cars.
They use to be priced about 50 dollars for 4 pieces.
Hakan from sweden |
|
