PostPosted: Tue Aug 13, 2013 9:18 am    Post subject: homemade false gutter : a bit more versatile Reply with quote

Hi,

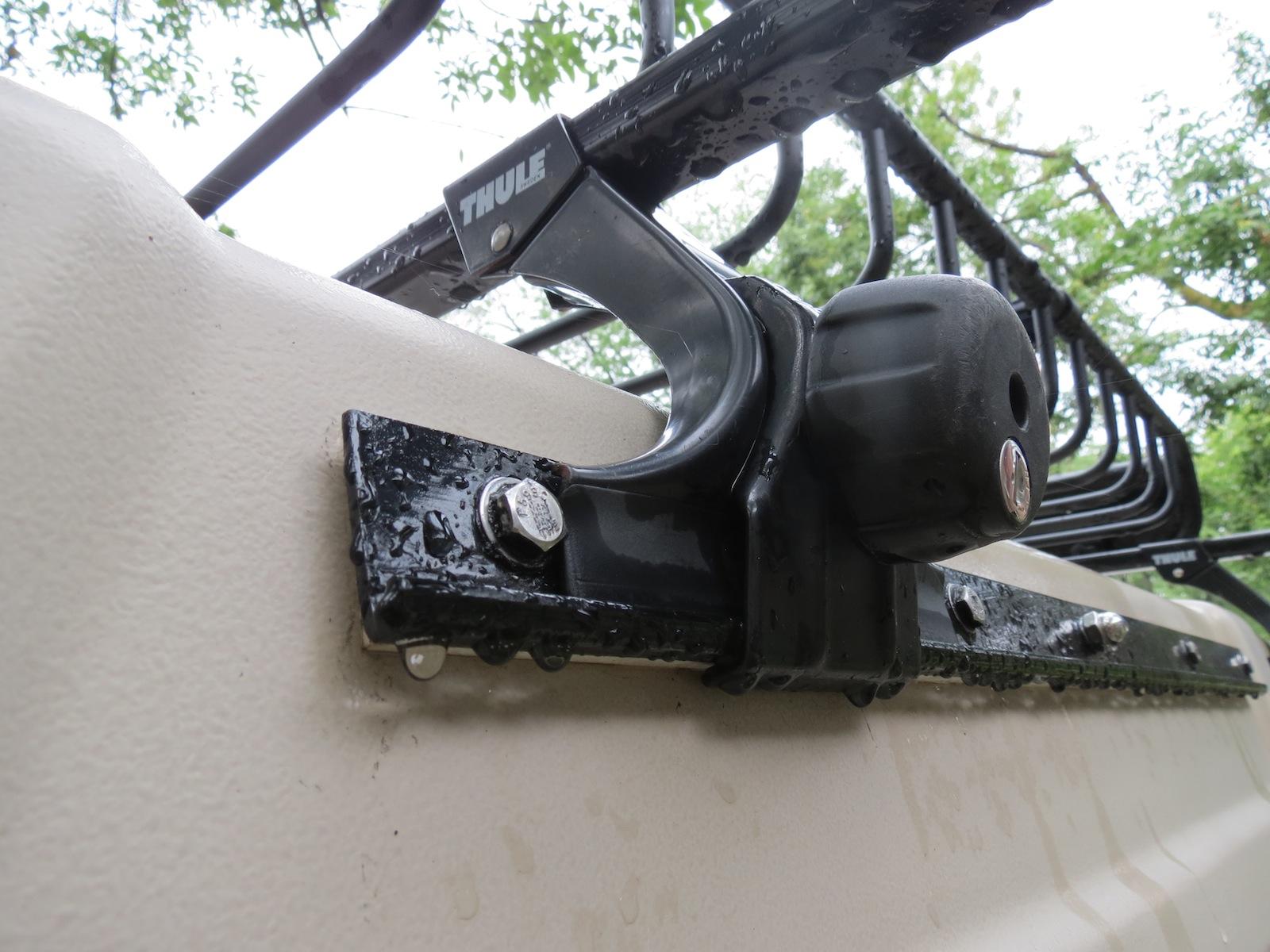

I just wish to share my last project: homemade flase gutter, which just give a little bit more versatility in the location of the feet and the load bars.

Then, i could change the location of the feet, depend on what i wish to load on the poptop.

I hope it could be useful for someones.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Martin from Montréal

1986 Vanagon GL full camper westfalia
(brown/tan interior)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
woggs1
Samba Member


Joined: February 22, 2007
Posts: 531
Location: South Pacifica California
woggs1 is offline

PostPosted: Tue Aug 13, 2013 9:28 am    Post subject: Re: homemade false gutter : a bit more versatile Reply with quote

Nice, will it work with Thule products?
_________________
4 speed 88 Westy
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
ragnarhairybreeks
Samba Member


Joined: October 26, 2009
Posts: 1888
Location: Sidney B.C. Canada
ragnarhairybreeks is offline

PostPosted: Tue Aug 13, 2013 9:36 am    Post subject: Reply with quote

Nice job Martin. I did something similar (for same reasons) but as I have different racks I only needed to put up a simple rail.

Image may have been reduced in size. Click image to view fullscreen.


(couple more pics here: http://shufti.wordpress.com/2013/07/27/vanagon-kludgy-roof-rack-rail/)

alistair
_________________
'86 7 passenger syncro, converted to westy pop top, project still in progress
'82 westy, diesel converted to gas in '94, now gone...
https://shufti.blog/
Old address still works...
http://shufti.wordpress.com
Back to top
View user's profile Send private message Gallery Classifieds Feedback
maco70
Samba Member


Joined: March 16, 2011
Posts: 453
Location: Montréal, Québec
maco70 is offline

PostPosted: Tue Aug 13, 2013 9:59 am    Post subject: Reply with quote

yes, my feet are Thule 300 and my understanding is that Yakima and Thule fit on the false gutter of each one, so either yakima and Thule can fit.
_________________
Martin from Montréal

1986 Vanagon GL full camper westfalia
(brown/tan interior)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
nemobuscaptain
Samba Member


Joined: March 07, 2002
Posts: 3874

nemobuscaptain is offline

PostPosted: Fri Aug 16, 2013 5:14 pm    Post subject: Reply with quote

Nice, but what is it exactly (it's not a common piece I see at my hardware store) and how did you modify it?
_________________
Ohio Valley Tribe, Full Moon Bus Club https://www.facebook.com/groups/294422277314227/

https://www.facebook.com/groups/FullMoonBusClub

RIP Bob Hoover https://www.thesamba.com/vw/forum/viewtopic.php?t=427791
Hoover Sermons: https://www.vwsage.com/images/vwsage/Bob%20Hoovers%20Sermons.pdf
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jackbombay
Samba Member


Joined: October 19, 2007
Posts: 2723
Location: Eastern Idaho
jackbombay is offline

PostPosted: Fri Aug 16, 2013 5:22 pm    Post subject: Reply with quote

That is a nice setup!
_________________

Gas struts to pop your top easily!

Pop Top strut kits now available for late Bay window Westies Smile


Samba ad here.


DIY artificial rain gutters (ARGs)
Back to top
View user's profile Send private message Classifieds Feedback
maco70
Samba Member


Joined: March 16, 2011
Posts: 453
Location: Montréal, Québec
maco70 is offline

PostPosted: Fri Aug 16, 2013 7:00 pm    Post subject: Reply with quote

... i don't know the name of the shape, sorry.
Common use is a bracket for the installation of electric components. Then, they are used two at the time.

In fact, we cut the "bridge" part of the shape, then we got two future false gutter at the same time.

After that, we planned that we have to add something behind the bracket, for the lower part of the Thule feet. Then, we add a vinyl bar of 1/4 inch (this is the white bar behind the false gutter.

For the hole, i asked many questions as some to jack bombay, to put enough screw, with a big enough diameter. They are roughly at 8", except where the jack bombay strut arrive and the diameter of the screw is 1/4 inch.

I hope it can help.
_________________
Martin from Montréal

1986 Vanagon GL full camper westfalia
(brown/tan interior)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tristessa
Samba Member


Joined: April 07, 2004
Posts: 3992
Location: Portland, OR
tristessa is offline

PostPosted: Sat Aug 17, 2013 10:32 pm    Post subject: Reply with quote

That stuff is called strut channel (SuperStrut, FlexStrut, etc). It looks like the version used is solid half-height. My local Depot only carries the slotted & punched varieties, might have to go to Grainger...

http://en.wikipedia.org/wiki/Strut_channel
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bjrogers86auto
Samba Member


Joined: March 26, 2009
Posts: 1375
Location: Halifax, N.S.
bjrogers86auto is offline

PostPosted: Sun Aug 18, 2013 4:48 am    Post subject: channel Reply with quote

Nice find Martin! That looks like a great application for gutters!! Would have done that! Too late. Sad

Brian
_________________
86 Vanagon GL Westfalia 2.1
18 Nissan Frontier Pro 4X
19 Honda Civic Hatchback

A little rudeness and disrespect can elevate a meaningless interaction to a battle of wills and add drama to an otherwise dull day. Calvin and Hobbes.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
maco70
Samba Member


Joined: March 16, 2011
Posts: 453
Location: Montréal, Québec
maco70 is offline

PostPosted: Sun Aug 18, 2013 5:59 am    Post subject: Reply with quote

thanks Brian!

i understood that you have been to Labrador and i believe that you haven't come until Montreal, but have you been to the Magdalen Island?
_________________
Martin from Montréal

1986 Vanagon GL full camper westfalia
(brown/tan interior)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bjrogers86auto
Samba Member


Joined: March 26, 2009
Posts: 1375
Location: Halifax, N.S.
bjrogers86auto is offline

PostPosted: Sun Aug 18, 2013 6:02 am    Post subject: gutters Reply with quote

Hey Martin,

We drew trip ideas out of a hat and Newfoundland won! Madeline will have to wait for another year! Smile

We spent 3 weeks on the west coast and made it over to Labrador as well! A great trip!

Brian
_________________
86 Vanagon GL Westfalia 2.1
18 Nissan Frontier Pro 4X
19 Honda Civic Hatchback

A little rudeness and disrespect can elevate a meaningless interaction to a battle of wills and add drama to an otherwise dull day. Calvin and Hobbes.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
furrylittleotter
Samba Member


Joined: May 19, 2008
Posts: 1506
Location: West Seattle
furrylittleotter is offline

PostPosted: Sun Aug 18, 2013 11:53 am    Post subject: Reply with quote

I love this mod. thank you for posting. It looks great and is very versatile. I am confused as to how you were able to cut it in half and get two? It looks like the top lip was cut off, which wouldn't leave a flat surface for mounting the second one. Did you mean you chopped it in half or ripped it in half?

Neil2
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
maco70
Samba Member


Joined: March 16, 2011
Posts: 453
Location: Montréal, Québec
maco70 is offline

PostPosted: Mon Aug 19, 2013 5:07 am    Post subject: Reply with quote

it is the bridge that connects the two parties that have a hook that I took to get two identical pieces. I did it in two successive times on the table saw.

just ensure you have to right blade for steel.
_________________
Martin from Montréal

1986 Vanagon GL full camper westfalia
(brown/tan interior)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jimeg
Samba Member


Joined: May 14, 2007
Posts: 510
Location: PNW
jimeg is offline

PostPosted: Mon Aug 19, 2013 7:51 am    Post subject: Reply with quote

Cool. It's also available in stainless.
_________________
1986 Root Beer Syncro Tin Top....so many plans.

Here: http://www.thesamba.com/vw/forum/viewtopic.php?t=578490
Back to top
View user's profile Send private message Gallery Classifieds Feedback
maco70
Samba Member


Joined: March 16, 2011
Posts: 453
Location: Montréal, Québec
maco70 is offline

PostPosted: Mon Aug 19, 2013 9:09 am    Post subject: Reply with quote

.... i didn't know it, it would be my first choice, if i knew.

good to know and tanks for the share.
_________________
Martin from Montréal

1986 Vanagon GL full camper westfalia
(brown/tan interior)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Steelhead
Samba Member


Joined: February 25, 2007
Posts: 1791
Location: Kentfield, CA
Steelhead is offline

PostPosted: Mon Aug 19, 2013 9:46 am    Post subject: Reply with quote

Slick work. The added benefit of this design - for those of us with non-fiberglass tops (CHC or ASI), is that this long bar and backing plate would distribute the weight well and allow us to actually use a rack on our lighter and more brittle ABS shells.
_________________
'77 Bay Window / '89 Caratsburg (aka. the Stormtrooper)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
pathao
Samba Member


Joined: November 01, 2012
Posts: 287
Location: Montreal, Canada
pathao is offline

PostPosted: Sat May 28, 2016 1:10 pm    Post subject: Re: homemade false gutter : a bit more versatile Reply with quote

maco70 wrote:
Hi,

I just wish to share my last project: homemade flase gutter, which just give a little bit more versatility in the location of the feet and the load bars.

Then, i could change the location of the feet, depend on what i wish to load on the poptop.

I hope it could be useful for someones.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.



3 years has gone by ... do you care to share your experience with that setup ?

I think I will shamelessly copy your idea Rolling Eyes
_________________
1982 AC P27 - 2.0 FI FED - 091 - BA6


English is a second language to me
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bluebus86
Banned


Joined: September 02, 2010
Posts: 11075

bluebus86 is offline

PostPosted: Sat May 28, 2016 5:49 pm    Post subject: Reply with quote

tristessa wrote:
That stuff is called strut channel (SuperStrut, FlexStrut, etc). It looks like the version used is solid half-height. My local Depot only carries the slotted & punched varieties, might have to go to Grainger...

http://en.wikipedia.org/wiki/Strut_channel



unistrut is another brand name of this gutter material
_________________
Help Prevent VW Engine Fires, see this link.....Engine safety wire information

Stop introducing dirt into your oil when adjusting valves ... https://www.thesamba.com/vw/forum/viewtopic.php?t=683022
