PostPosted: Tue Oct 01, 2013 11:13 am    Post subject: Alternator Mounting, lower arm breakage Reply with quote

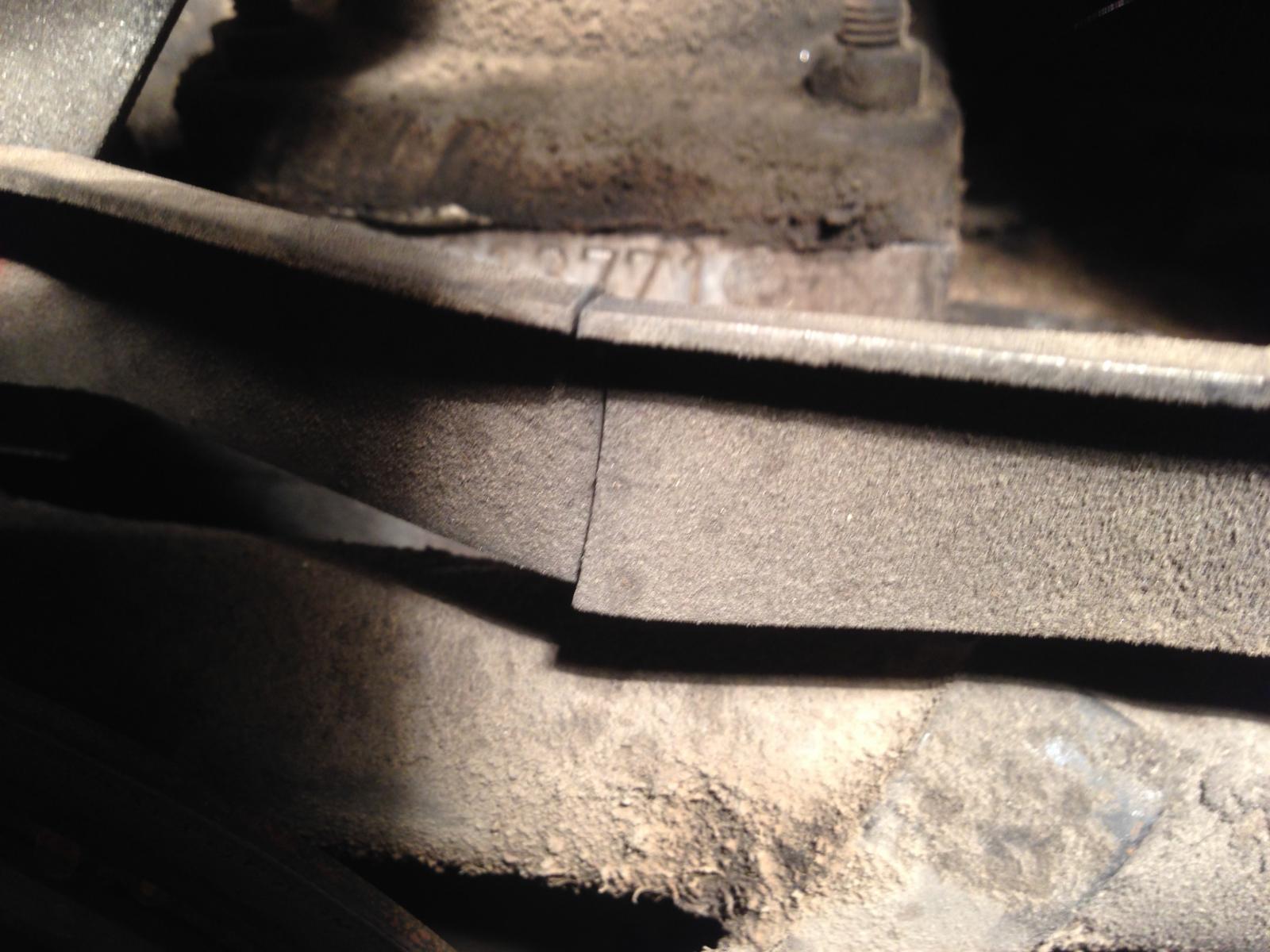

I've searched here extensively for help with the lower arm of the alternator mounting, and nothing turned up.

Should I be looking for a replacement part, or is there a repair that anyone could suggest?

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
[email protected]
Samba Member


Joined: April 06, 2013
Posts: 114
Location: INDEPENDENCE, MO 64057
cnburks@aol.com is offline

PostPosted: Tue Oct 01, 2013 11:48 am    Post subject: damaged alternator bracket Reply with quote

If you look long and hard enough you should be able to fine a bracket like the one that is broken. I personally would recommend finding a skilled welder, and repair the bracket. An additional piece of steel could be used to lap the crack. Good luck
Back to top
View user's profile Send private message Gallery Classifieds Feedback
PDXWesty
Samba Member


Joined: April 11, 2006
Posts: 5718
Location: Portland OR
PDXWesty is offline

PostPosted: Tue Oct 01, 2013 11:56 am    Post subject: Reply with quote

http://www.gowesty.com/library_article.php?id=1201
_________________
89 Westy 2.1 Auto
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 23590
Location: North West New Jersey
djkeev is offline

PostPosted: Tue Oct 01, 2013 1:06 pm    Post subject: Reply with quote

You've got a 2nd crck up by the nut behind the crank pulley.......... Just saying......

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
61Scout
Samba Member


Joined: November 06, 2011
Posts: 1294
Location: Shoreline/Yakima WA
61Scout is offline

PostPosted: Tue Oct 01, 2013 3:06 pm    Post subject: Reply with quote

That's just the piece that holds the dipstick tube. It's super thin and doesn't really support anything besides the dipstick. Tack it up with some reinforcement and you're done. And also do take care of the alternator bracket.
_________________
1986 Westfalia Weekender Wolfsburg, RJE 2.3
1985 Tin Top, Subie 2.2 + 5MT
Floppy Mirrors no more: http://www.thesamba.com/vw/forum/viewtopic.php?t=653018&highlight=
Remove the front spindle nut with ease: https://www.thesamba.com/vw/forum/viewtopic.php?t=679567&highlight=
Remove the rear wheel bearing housing without messing with the big 46mm nut: https://www.thesamba.com/vw/forum/viewtopic.php?t=679507&highlight=

-Nec Spe, Nec Metu
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 23590
Location: North West New Jersey
djkeev is offline

PostPosted: Tue Oct 01, 2013 3:18 pm    Post subject: Reply with quote

61Scout wrote:
That's just the piece that holds the dipstick tube. It's super thin and doesn't really support anything besides the dipstick. Tack it up with some reinforcement and you're done. And also do take care of the alternator bracket.


Yeah...... But.......
It fastens to the outer lower Alternator mount which is KNOWN to have breaking issues.

Most likely, if you were to remove the Alternator you WOULD find serious issues with the Lower mount.........

http://www.thesamba.com/vw/forum/viewtopic.php?t=571070&highlight=

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
61Scout
Samba Member


Joined: November 06, 2011
Posts: 1294
Location: Shoreline/Yakima WA
61Scout is offline

PostPosted: Tue Oct 01, 2013 6:27 pm    Post subject: Reply with quote

Djkeev, you are correct sir, further inspection is required. The picture from the OP doesn't even have the alternator removed so we can't say for sure what has caused the fracture of the dipstick support... but, yes, it's likely that the alternator bracket itself has failed. Hence my suggestion, in agreement with the others, that the alternator bracket also needs to be addressed. And beyond that Ohhorob should also very carefully inspect the block for damage. So Ohhorob, take that alternator off, take the bracket for the alternator off, and let's see what it looks like under there.
_________________
1986 Westfalia Weekender Wolfsburg, RJE 2.3
1985 Tin Top, Subie 2.2 + 5MT
Floppy Mirrors no more: http://www.thesamba.com/vw/forum/viewtopic.php?t=653018&highlight=
Remove the front spindle nut with ease: https://www.thesamba.com/vw/forum/viewtopic.php?t=679567&highlight=
Remove the rear wheel bearing housing without messing with the big 46mm nut: https://www.thesamba.com/vw/forum/viewtopic.php?t=679507&highlight=

-Nec Spe, Nec Metu
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Crankey
Samba Member


Joined: July 11, 2004
Posts: 2043

Crankey is offline

PostPosted: Tue Oct 01, 2013 7:40 pm    Post subject: Reply with quote

I welded mine back together.
while I was at it I welded the nut for bolt the alt mounts and pivots on to the front (towards flywheel) side of the bracket so you can install the bolt from the rear of the alt. (rear of alt/rear of car) I don't get why the factory bracket was set up the opposite way. maybe as a safety so the bolt couldn't rattle free if it was loose. but it was a PITA to install as originally built.
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
tencentlife
Samba Member


Joined: May 02, 2006
Posts: 9654
Location: Abiquiu, NM, USA
tencentlife is offline

PostPosted: Wed Oct 02, 2013 7:03 am    Post subject: Reply with quote

It's a 1.9. That piece isn't even used. It's probably broken because someone first ground off the tube support tab, then had to force it to fit. Dipstick tube support is part of the upper crossover pipe.
_________________
Check out my Vanagon accessories at the Vanistan shop at https://intrepidoverland.com/vanistan/

and be sure to visit my blog at https://intrepidoverland.com/news

"Official" IntrepidOverland thread for news and discussion:
https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

I will not see your Samba PM. Please use the contact link at www.intrepidoverland.com
Product inquiries only please!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
ohhorob
Samba Member


Joined: September 26, 2013
Posts: 193
Location: Santa Cruz
ohhorob is offline

PostPosted: Wed Oct 02, 2013 9:14 am    Post subject: Reply with quote

Thanks all.

I trawled through the parts links, but nobody lists that component (alternator mounting arm?).. well at least in the various categories that those catalogues tend to be split up into.

Ended up emailing Van Cafe, and although they don't list it online, they were able to locate one for me.

61Scout wrote:
So Ohhorob, take that alternator off, take the bracket for the alternator off, and let's see what it looks like under there.


I'll remove the Alt and if it's not already there, grab a new mounting bracket kit too.

tencentlife wrote:
It's a 1.9. ...


The engine is a 2300cc from Go-Westy that the PO had installed. It's not clear to me, would that block have started life as a 2.1 or 1.9?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ohhorob
Samba Member


Joined: September 26, 2013
Posts: 193
Location: Santa Cruz
ohhorob is offline

PostPosted: Mon Oct 07, 2013 10:32 am    Post subject: Reply with quote

The cracked arm had it's dip-stick holder part cut off. I did the same with the replacement part and fitted it in the same way.

Visited Van-Cafe last week, and and picked up the GoWesty bracket fix, and will install it this week.
