FRONT Trailer Hitch, how to make one
Page: 1, 2  Next
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 24772
Location: North West New Jersey
djkeev is offline

PostPosted: Mon Sep 29, 2014 6:05 am    Post subject: FRONT Trailer Hitch, how to make one Reply with quote

I was recently given a front 2" Reciever Hitch which I'll use forbikes or a carry basket.

I was asked if I'd measure it up before I mount it so others can duplicate it.

It's easy enough to make, especially if you start with a Reciever off of almost any car out there.
As a matter of fact mine looks "home made" from a hitch that was cut and the mounting bits welded onto the cut ends of the used hitch.

My builder used 3/16 diamond plate but I'd prefer 1/4" steel plate if I were to do the same task.

Anyway......

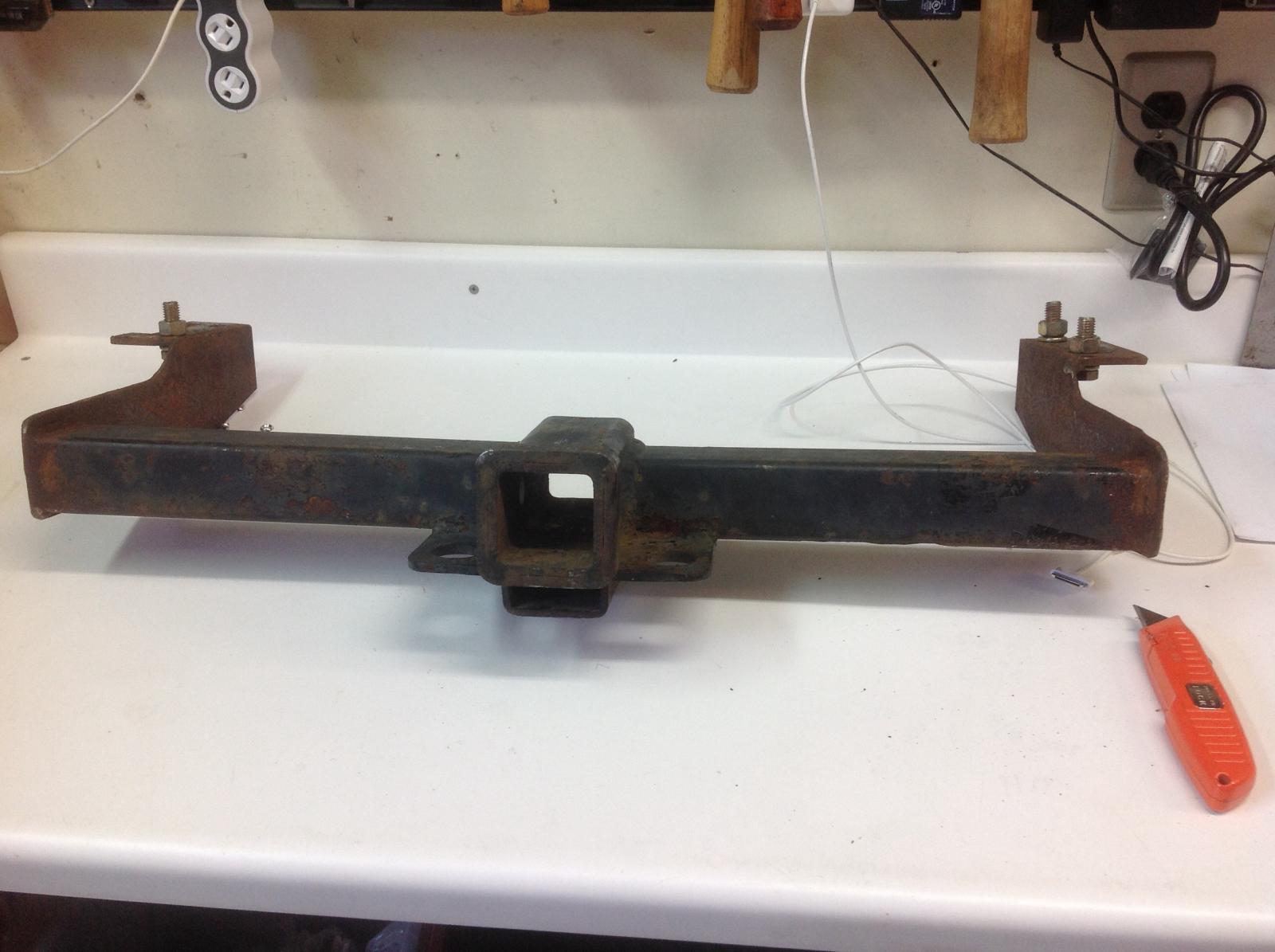

The Hitch!

Image may have been reduced in size. Click image to view fullscreen.

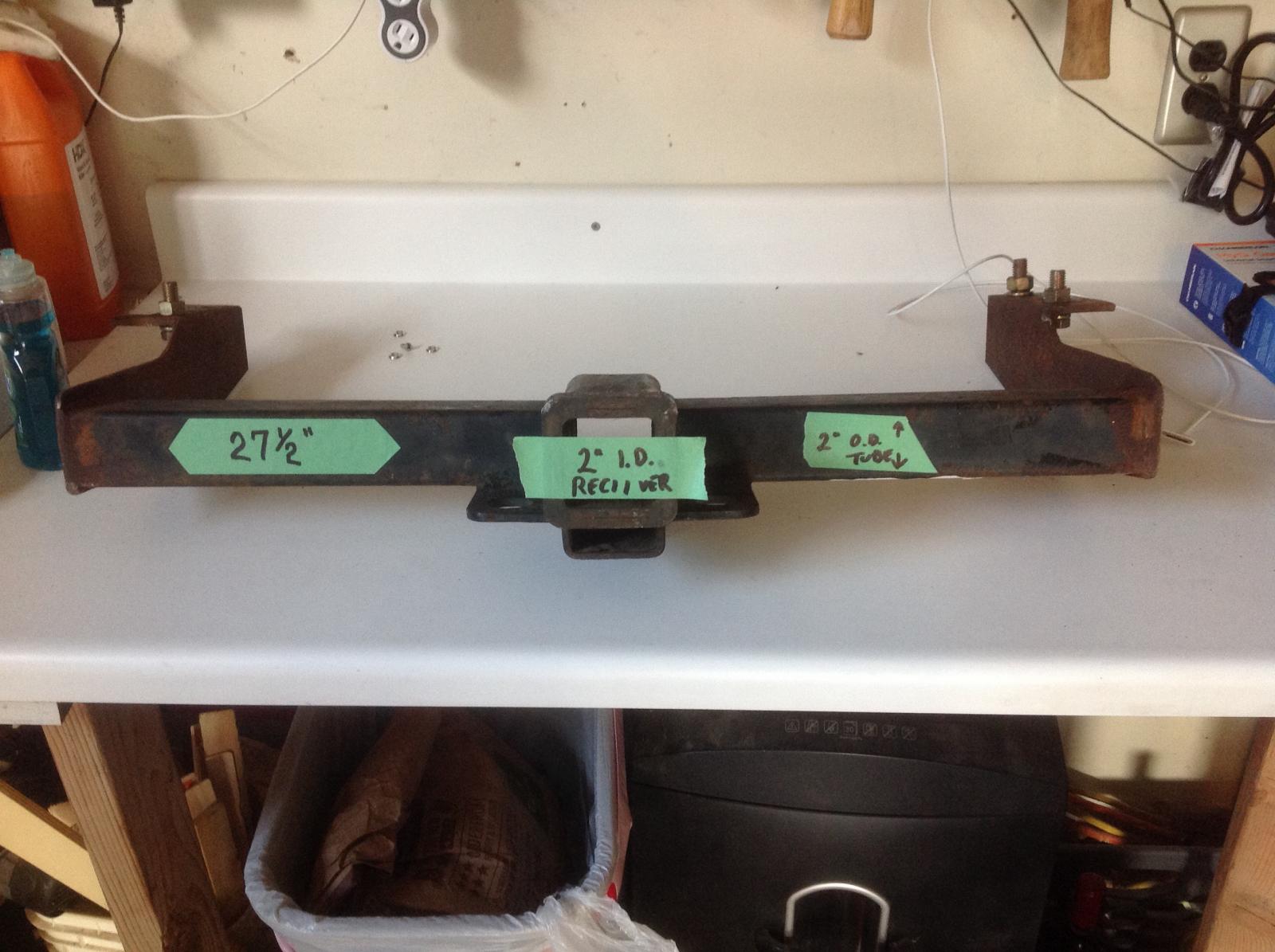

This photo has the overall length of 27 1/2" from end to end, outside of the support plates.
I also noted the sizes of the hitch itself if you were to manufacture your own entirely........
Image may have been reduced in size. Click image to view fullscreen.

_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 24772
Location: North West New Jersey
djkeev is offline

PostPosted: Mon Sep 29, 2014 6:14 am    Post subject: Reply with quote

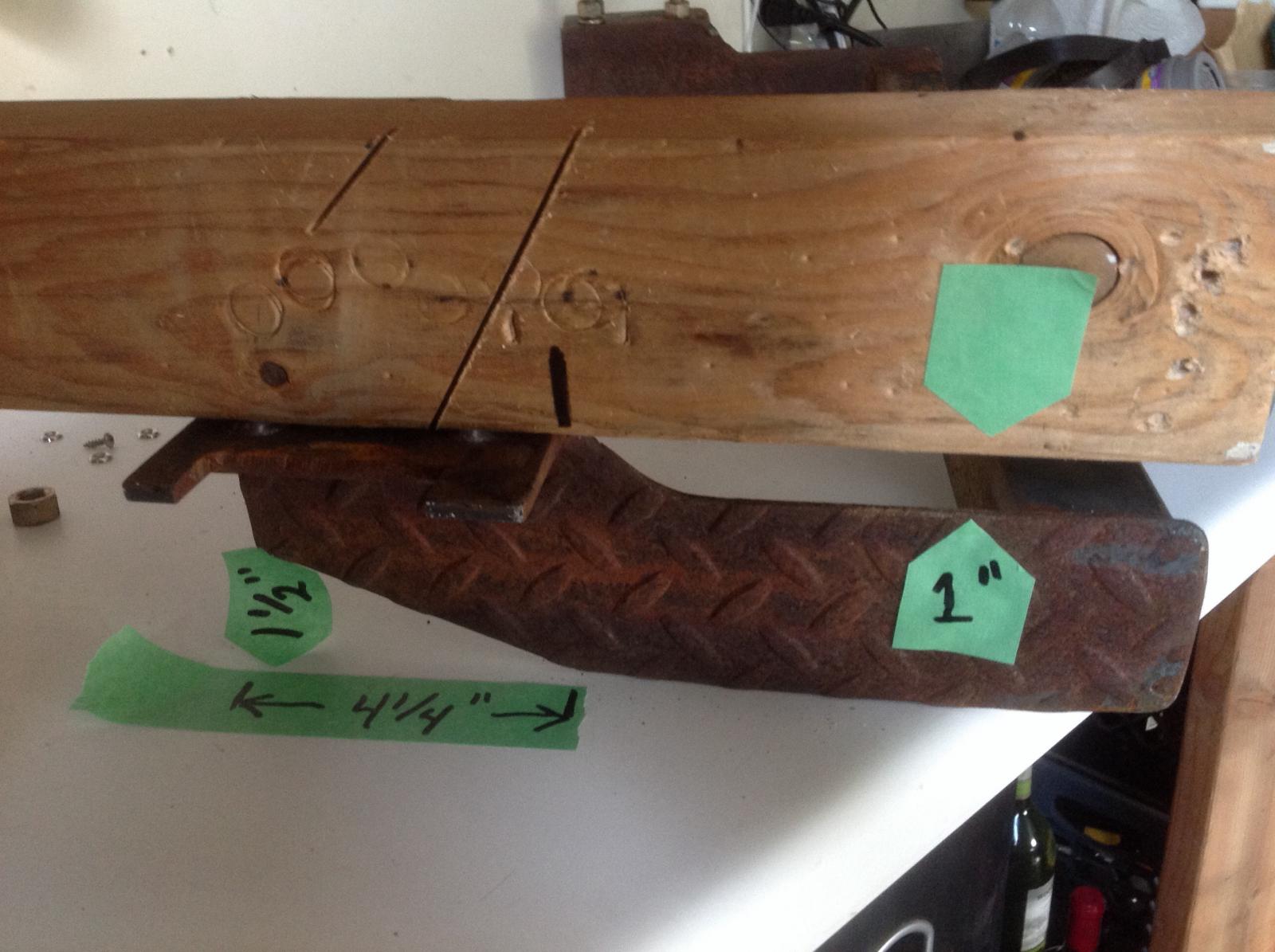

The mounting arms are 11 5/8" x 3 5/8" you'll need two of these......
Image may have been reduced in size. Click image to view fullscreen.


The mounting arms are modified to fit around body bits.

The top drops down an inch (1") to clear,
The rear shoots up 1 1/2" not to clear but to remove a jagged point that woud seriously hurt your head! ........
Image may have been reduced in size. Click image to view fullscreen.


On top of the mounting arm at the rear is a flat piece of steel welded on at a 90* angle. This is the mounting plate to the body.
The steel is 4 1/2" x 2" x 1/4" again you'll need two of these.
The LF mounting plate has no modifications except for bolt holes,
The RF mounting plate is cut to fit around the tie down loop welded onto the chassis....... Dimensions are noted for this cut out......
3/4" deep,
5/8" from the back end and
2 7/8" long cutout....

Image may have been reduced in size. Click image to view fullscreen.

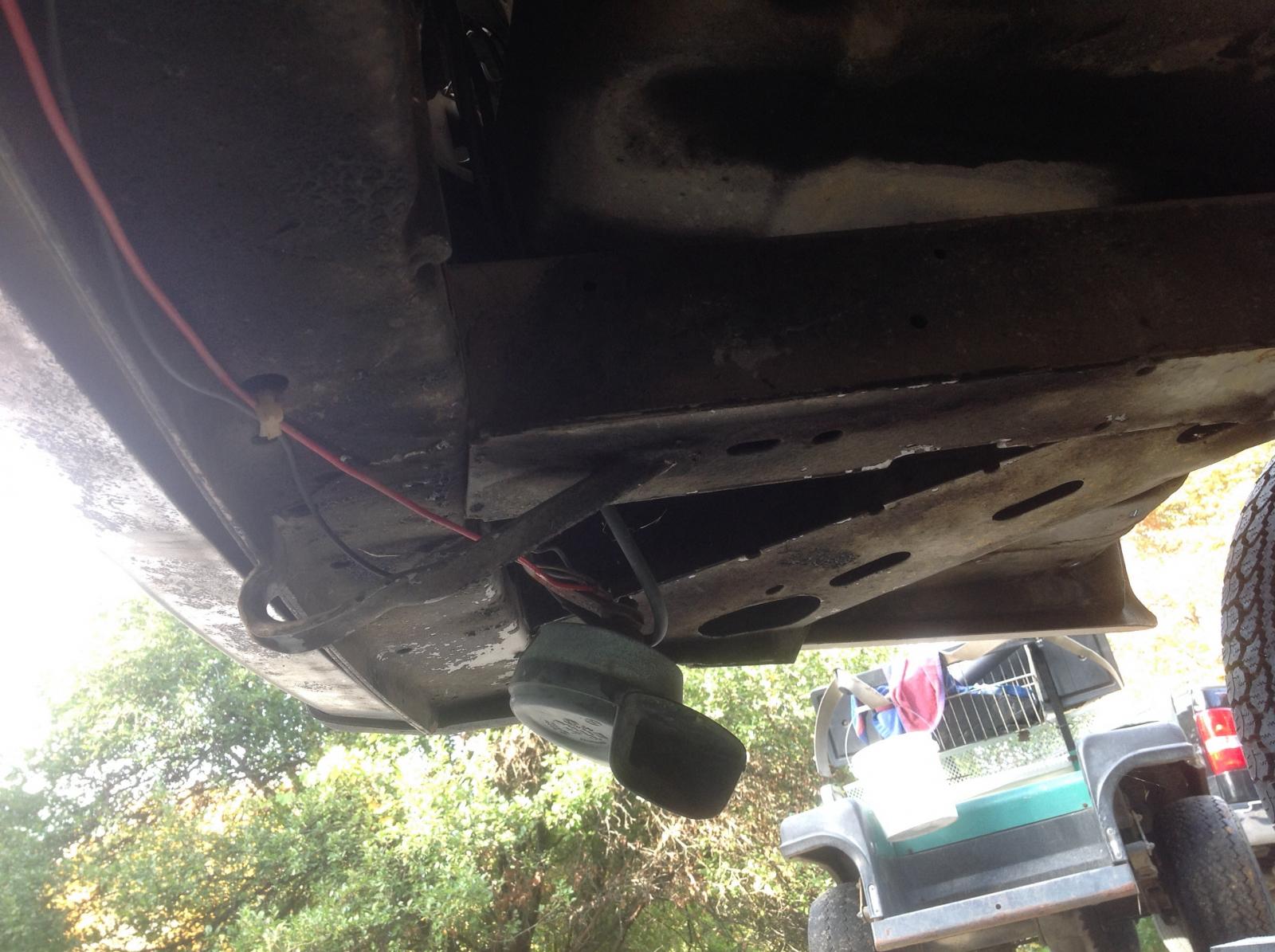

The tie down.......
Image may have been reduced in size. Click image to view fullscreen.

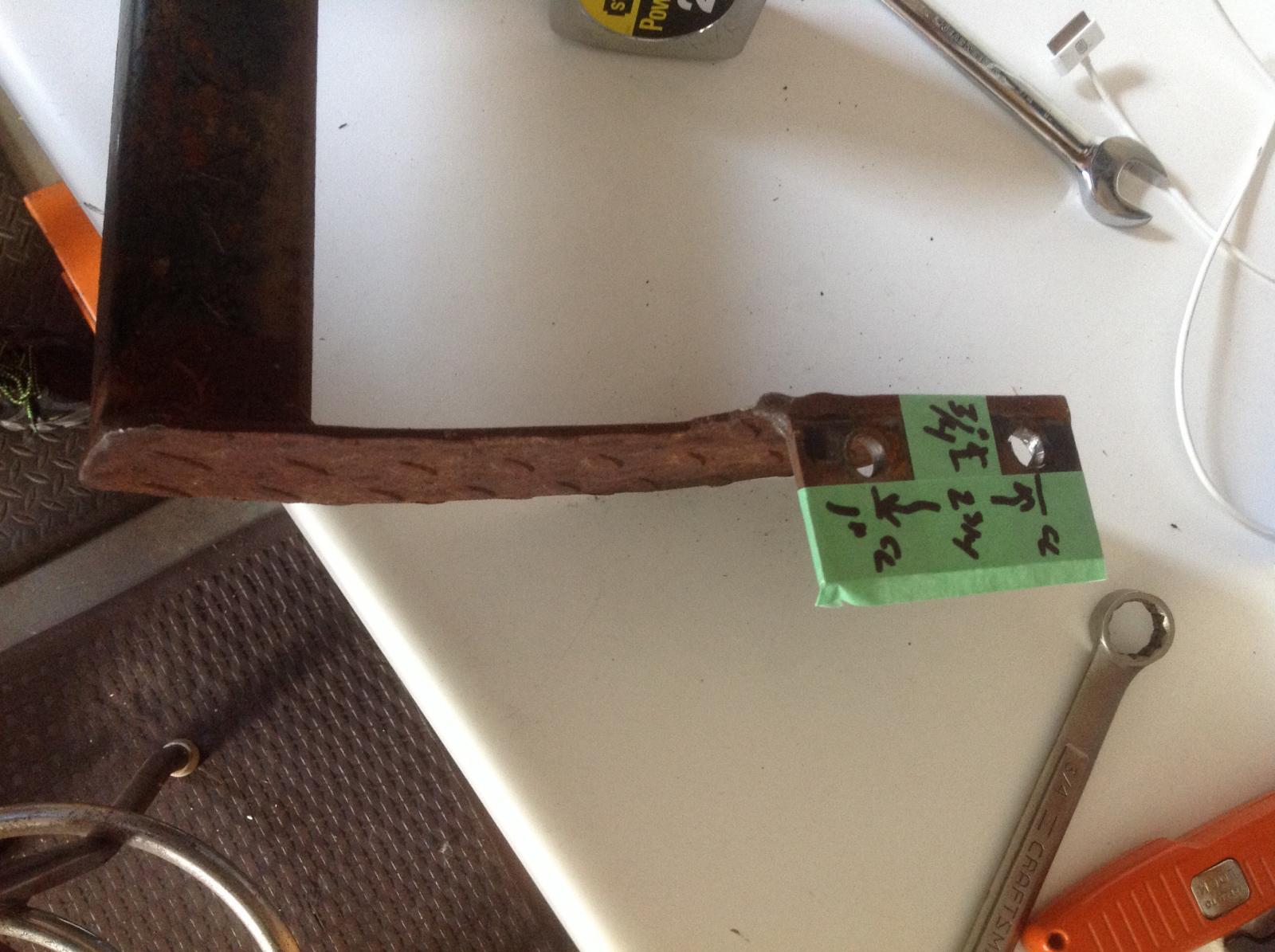

Where are the mounting holes?

Easy!

Center line is 3/4" from the inner side of the mounting plate,
1" back from the front of the mounting plate
And are spaced
2 3/4" on center

Image may have been reduced in size. Click image to view fullscreen.


Easy!
Now get busy!!

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 24772
Location: North West New Jersey
djkeev is offline

PostPosted: Mon Sep 29, 2014 6:29 am    Post subject: Reply with quote

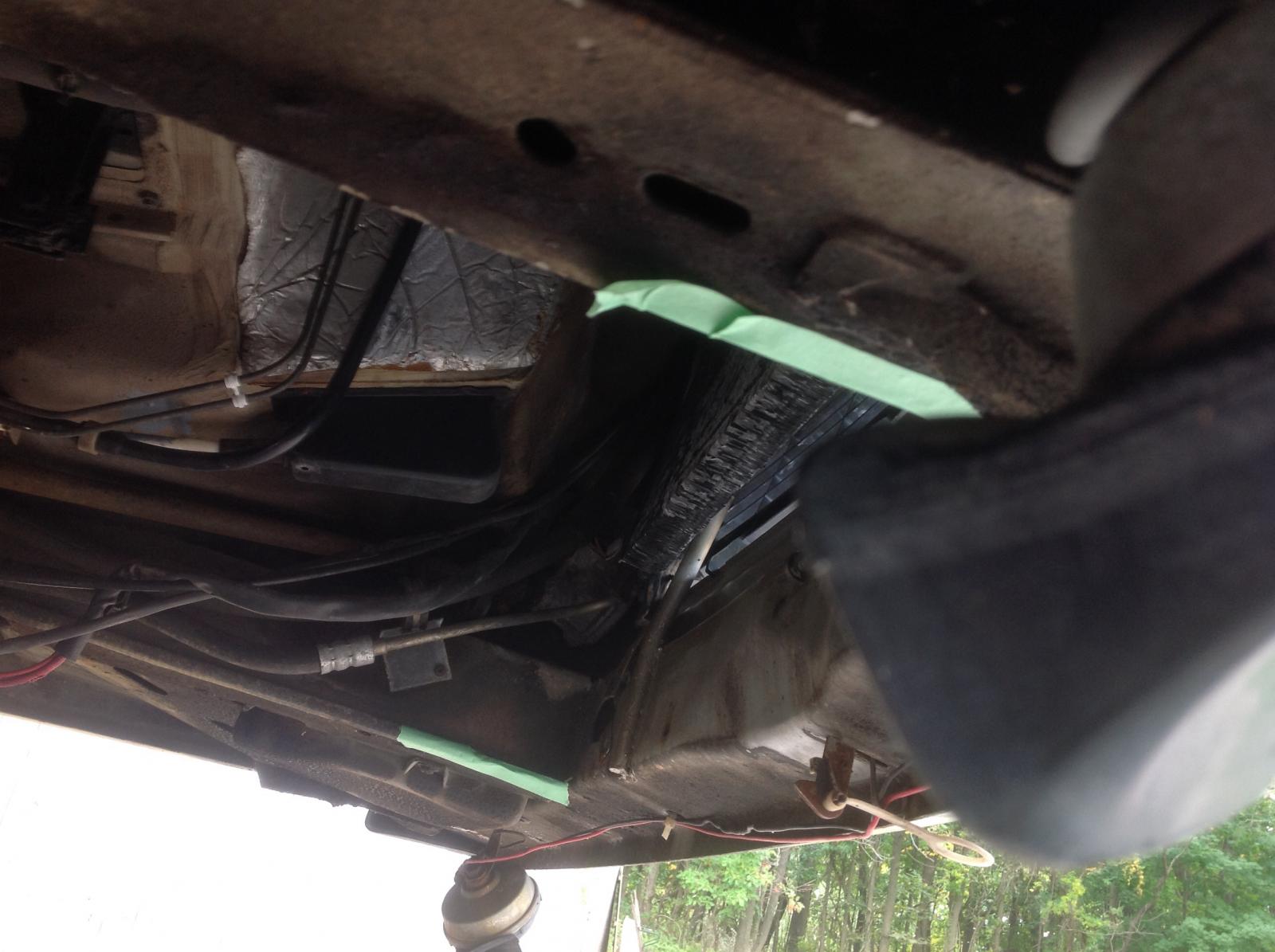

Where does it mount?

While I haven't yet mounted mine it goes where I put the green tape in this photo.
Just drill through the inner flanges and pop it on with some bolts.

Mine has the rear of the 2" Reciever cut off at an angle, I'm presuming to clear the spare tire carrier when you lower it.

Image may have been reduced in size. Click image to view fullscreen.


Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Hammy1
Samba Member


Joined: May 08, 2012
Posts: 181
Location: OTTAWA, ON
Hammy1 is offline

PostPosted: Mon Sep 29, 2014 12:55 pm    Post subject: Reply with quote

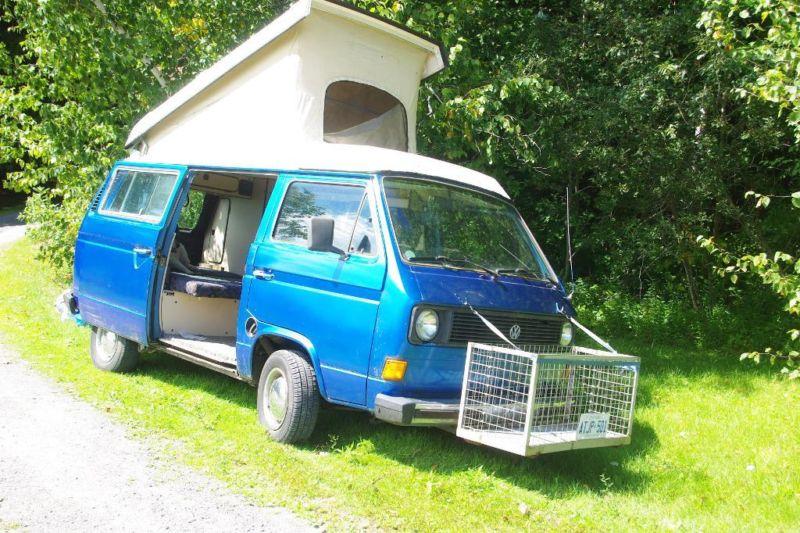

You could just put your bikes in a basket?

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vanis13
Samba Member


Joined: August 15, 2010
Posts: 989
Location: ABQ NM
vanis13 is offline

PostPosted: Mon Sep 29, 2014 2:02 pm    Post subject: Reply with quote

djkeev wrote:
Where does it mount?


cool, on the flanges, cool. didn't think of that. I've always envisioned ini teh channel and figuring out how to put the bolts or nuts on the inside. flanges should work for bikes, etc. Don't know yet how I'd feel about towing the van off that point. Probably ok though.

Really awesome of you to post this up.
_________________
83.5 Westy with Subaru 2.5, 4 spd manual, center seat, COLD A/C on 134a!, Winter camp heated with an Espar B4 gasoline furnace

I can send you the capacitor to Fix/prevent Vanagon Syndrome and/or smooth out idle - See here - http://www.thesamba.com/vw/forum/viewtopic.php?p=5445671#5445671
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 24772
Location: North West New Jersey
djkeev is offline

PostPosted: Mon Sep 29, 2014 2:31 pm    Post subject: Reply with quote

vanis13 wrote:
djkeev wrote:
Where does it mount?


cool, on the flanges, cool. didn't think of that. I've always envisioned ini teh channel and figuring out how to put the bolts or nuts on the inside. flanges should work for bikes, etc. Don't know yet how I'd feel about towing the van off that point. Probably ok though.

Really awesome of you to post this up.


I enjoy documenting things!
That's why I have so many posts! Embarassed

Anyway,
Easy to make stronger!

I would first increase the width to 30 1/2" wide, this puts the ends of the hitch centered on each beam.

I'd make the mounting plate 4 1/2" X 4". This extra width covers the entire bottom of the beam and you can bolt in both flanges on a beam.

By making the hitch wider you now weld the end plates centered on the mounting plates.

To mount this hitch you now need to hack off the tie down loop...... No biggie!

Doing this would make it plenty strong.
IF I were making one or having one made, I for sure would do what I've just suggested.

A rough sketch of what I mean.......
Image may have been reduced in size. Click image to view fullscreen.


Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 24772
Location: North West New Jersey
djkeev is offline

PostPosted: Tue Sep 30, 2014 4:00 am    Post subject: Reply with quote

Thinking about you wanting to tow your Van using the 2" reciever hitch, I'm not sure that I would do so.

I'd much prefer making stout tow bar fastening points on the outer edge of the 30 1/2" length, right at the forward frame rails.

There is a lot of stress on the tow bar mounting points when towing a vehicle, personally I'd want two mounting points.

Something like this.........
http://www.etrailer.com/Base-Plates/Volkswagen/Vanagon/1986/1208-1.html?vehicleid=19861006947
Image may have been reduced in size. Click image to view fullscreen.


Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 24772
Location: North West New Jersey
djkeev is offline

PostPosted: Wed Oct 01, 2014 1:19 pm    Post subject: Reply with quote

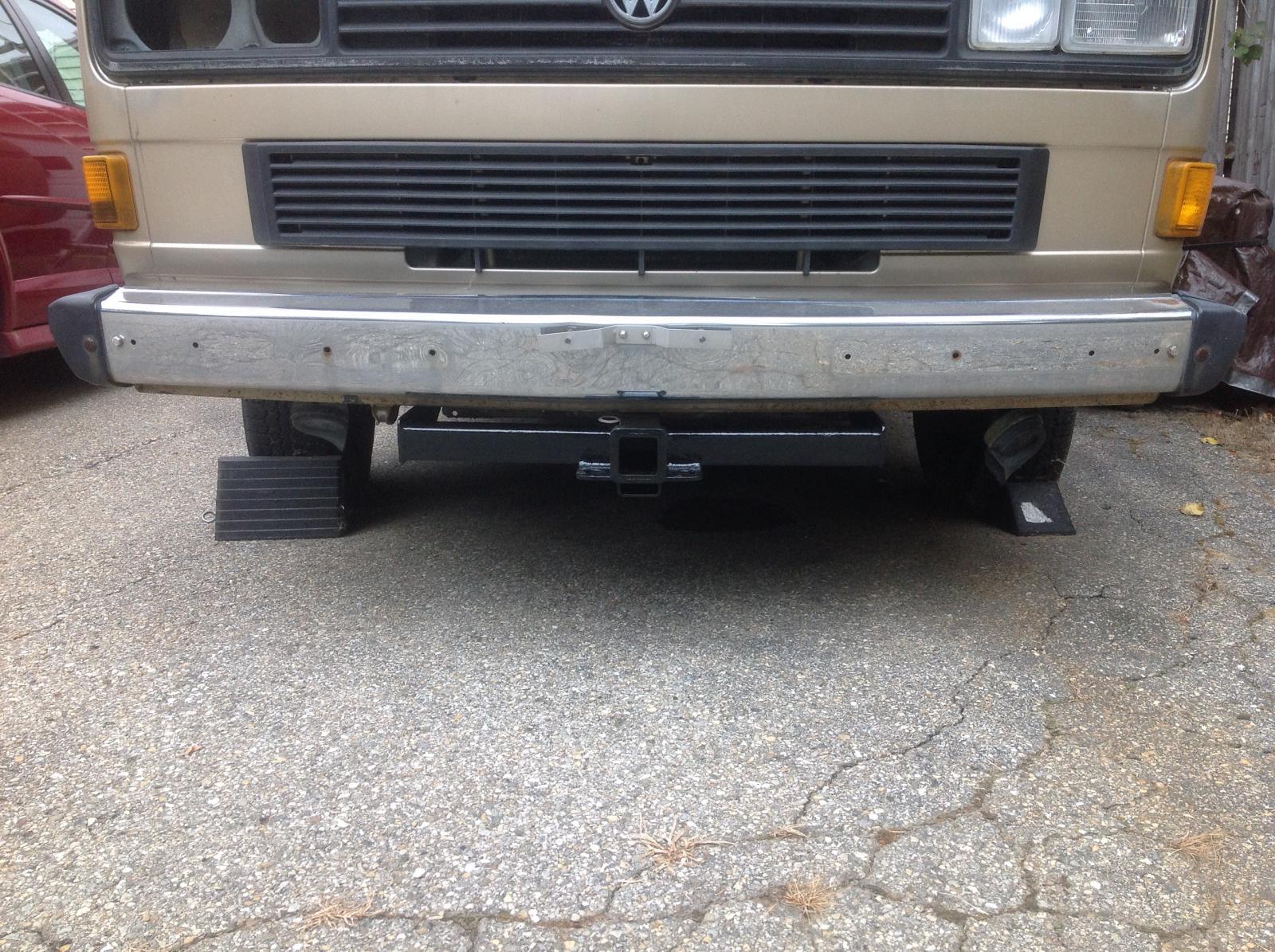

Hitch Mounted......

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
h00drat
Samba Member


Joined: May 31, 2016
Posts: 881
Location: Hood River
h00drat is offline

PostPosted: Wed Feb 15, 2017 12:22 pm    Post subject: Re: FRONT Trailer Hitch, how to make one Reply with quote

Resurrecting this thread for a minute. I did my due diligence and did a search before starting a front bumper, how to build one thread. Good for me!

I talked to Dave about the capacity of this front hitch design, and he tends to think it would handle a small motorcycle just fine. My bike weighs about 300lb wet, so it's not exactly a "small" motorcycle, but it's not large either.

This got me to thinking...how could this hitch design be strengthened even more? I'm not an engineer, but I have some mechanical know how. So I drew up a revised plan. Wondering if anybody wants to chime in?

Essentially it would be a triple hitch mount for a custom made motorcycle tray.

The advantages I see are:

1. 3 x 2" mounting points (3 is better than 1, right?)
2. Better balance left to right (no twisting on the single hitch mount)

Concerns:

1. Can the frame mounting points withstand this kind of weight? (300lb)
2. Can two pieces of 1/4" steel handle this kind of weight?
3. I know these vans don't handle well as is, but will my handling go to hell with an extra 300lb on the front of the van? Considering the majority of the vans weight is in the back, it seams like adding 300lb to the front would be better than adding 300lb to the back, but I could be wrong.

Van is a 1987 Tin Top 2.1 liter.

Second picture is a rough version of the motorcycle tray template.

Alternate option would be Dave's design with a single hitch tray (images 3 and 4).

Note - some of my measurements may be off. This is all preliminary/brain storming.

I also know that single hitch mounted motorcycle carriers are super common, so maybe I'm overthinking this and the single mount with Dave's design will do justice. In which case, all of my rambling can be ignored.

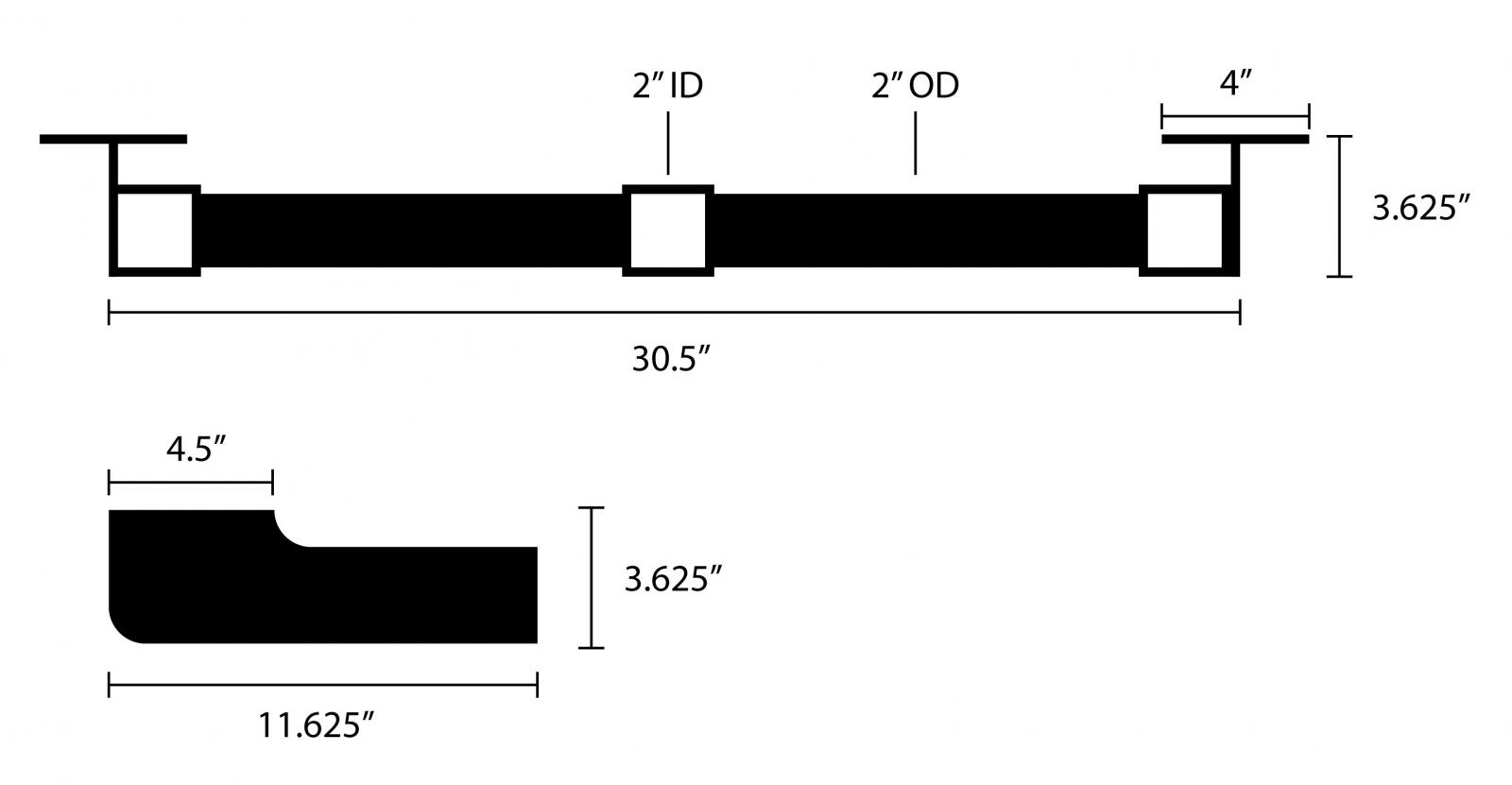

Modified Hitch Design
Image may have been reduced in size. Click image to view fullscreen.

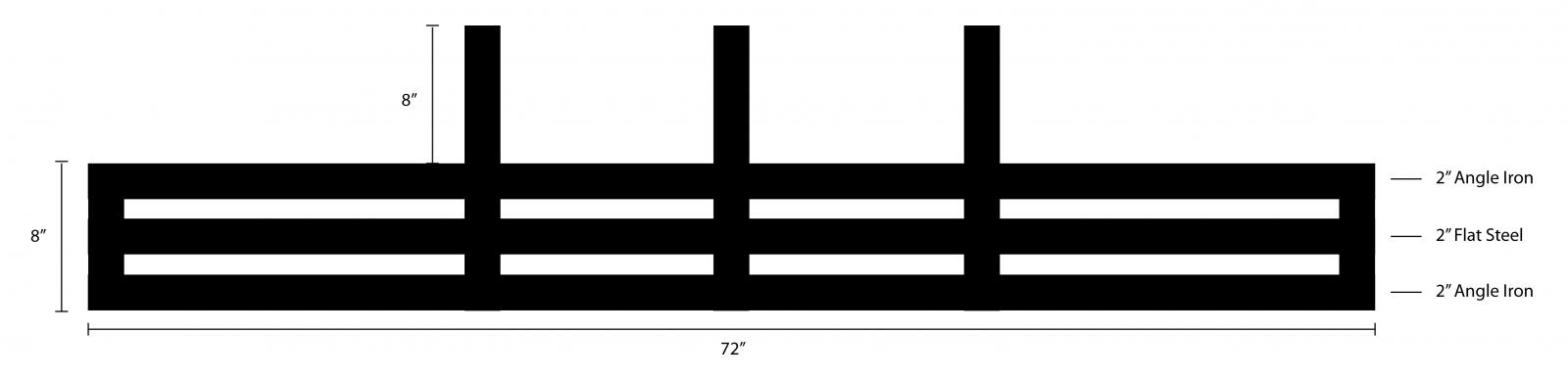

Triple hitch tray
Image may have been reduced in size. Click image to view fullscreen.


Original hitch design
Image may have been reduced in size. Click image to view fullscreen.


Single hitch tray
Image may have been reduced in size. Click image to view fullscreen.

_________________
<<Tyler>>
1987.5 Wolfsburg Weekender / CHC / 2.0 ABA
CHC Top Thread
Engine Conversion Thread (2.0 ABA Swap)
ABA Swap - Image Gallery
Auto Trans Rebuild - Image Gallery
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vanis13
Samba Member


Joined: August 15, 2010
Posts: 989
Location: ABQ NM
vanis13 is offline

PostPosted: Wed Feb 15, 2017 1:31 pm    Post subject: Re: FRONT Trailer Hitch, how to make one Reply with quote

FWIW, I've recently created a front hitch direct-bolt-on prototype with multiple secure points. Has these three receiver mounting points per idea above specifically for motorcycle rack or brush guard install. Stout. Am considering a production run. If anyone interested send me a PM or email [email protected] and I'll keep you posted how it goes along.
_________________
83.5 Westy with Subaru 2.5, 4 spd manual, center seat, COLD A/C on 134a!, Winter camp heated with an Espar B4 gasoline furnace

I can send you the capacitor to Fix/prevent Vanagon Syndrome and/or smooth out idle - See here - http://www.thesamba.com/vw/forum/viewtopic.php?p=5445671#5445671
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Sodo
Samba Member


Joined: July 06, 2007
Posts: 5680
Location: Western WA
Sodo is offline

PostPosted: Wed Feb 15, 2017 1:44 pm    Post subject: Re: FRONT Trailer Hitch, how to make one Reply with quote

I built this one 6 years ago. It never once had the impression it wasn't up to the job of carrying a 160lb motorcycle (80 lbs per wheel). If I stand on just one of the mounts (165 lbs) and bounce up and down there is zero movement, zero flex. It would not be difficult to use a compact mounting design similar to this and double the strength, for a higher level of safety.

Point being, if that's just to carry a front basket with less than 200 lbs, the structure does not require a 5,000lb hitch up front (& hanging down).

I've since removed the carrier (so I could do some 4WD stuff) but intend to build a new one out of Aluminum someday....
_________________


EJ25, Peloquin diff, locker, transaxle oil cooler/filtration system
....KTMs, GasGas, and a Stumpjumper
One apple every 8 hours will keep 3 doctors away - B Kliban
Back to top
View user's profile Send private message Gallery Classifieds Feedback
h00drat
Samba Member


Joined: May 31, 2016
Posts: 881
Location: Hood River
h00drat is offline

PostPosted: Thu Feb 16, 2017 9:57 am    Post subject: Re: FRONT Trailer Hitch, how to make one Reply with quote

Sodo wrote:
I built this one 6 years ago. It never once had the impression it wasn't up to the job of carrying a 160lb motorcycle (80 lbs per wheel). If I stand on just one of the mounts (165 lbs) and bounce up and down there is zero movement, zero flex. It would not be difficult to use a compact mounting design similar to this and double the strength, for a higher level of safety.

Point being, if that's just to carry a front basket with less than 200 lbs, the structure does not require a 5,000lb hitch up front (& hanging down).

I've since removed the carrier (so I could do some 4WD stuff) but intend to build a new one out of Aluminum someday....


Interesting. I did consider that if I am going to build the motorcycle rack anyway, why not just make it bolt directly to the van and forget the hitches? But I figured having at least one hitch up front would allow for more opportunities in the future. Bike rack, cargo rack, etc.

At any rate, this is a nice simple design that could be considered if I decide against the hitch or hitches.
_________________
<<Tyler>>
1987.5 Wolfsburg Weekender / CHC / 2.0 ABA
CHC Top Thread
Engine Conversion Thread (2.0 ABA Swap)
ABA Swap - Image Gallery
Auto Trans Rebuild - Image Gallery
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Sodo
Samba Member


Joined: July 06, 2007
Posts: 5680
Location: Western WA
Sodo is offline

PostPosted: Thu Feb 16, 2017 2:56 pm    Post subject: Re: FRONT Trailer Hitch, how to make one Reply with quote

h00drat wrote:
Interesting. I did consider that if I am going to build the motorcycle rack anyway, why not just make it bolt directly to the van and forget the hitches?


My plan is to put a "socket" on each side, and then build two "wheel shelves" that plug into these sockets. Knowing how easy it is to support 165 lbs per side, it's not hard to increase that capacity. I don't need to (for a 160lb trials bike) but you might.

You want it "in tight," consequently not allowing much triangulation of your tie-down straps. Then you need an "upright" to hold the bike up, and a strong mounting for that too. It can be done but think about it.

A word of caution. I wish I had a photo of what the driver seat visibility looks like with a trials bike on the front. Its bothersome, and look how sparse a trials bike is, (no seat). The visibility loss with an enduro bike on the front will be significant. You should drive up to a bumper-high retaining wall or something..... And park an enduro bike on that wall, in front, as if it's sitting on the shelf. And decide from that if you want to proceed, or what height your shelf will be.
_________________


EJ25, Peloquin diff, locker, transaxle oil cooler/filtration system
....KTMs, GasGas, and a Stumpjumper
One apple every 8 hours will keep 3 doctors away - B Kliban
Back to top
View user's profile Send private message Gallery Classifieds Feedback
h00drat
Samba Member


Joined: May 31, 2016
Posts: 881
Location: Hood River
h00drat is offline

PostPosted: Thu Feb 16, 2017 3:13 pm    Post subject: Re: FRONT Trailer Hitch, how to make one Reply with quote

Sodo wrote:

My plan is to put a "socket" on each side, and then build two "wheel shelves" that plug into these sockets. Knowing how easy it is to support 165 lbs per side, it's not hard to increase that capacity. I don't need to (for a 160lb trials bike) but you might.


Smart! Although the weight of my bike would make it hard to get one wheel up at a time on said "wheel shelves". This is a good simplistic approach though!

Sodo wrote:

A word of caution. I wish I had a photo of what the driver seat visibility looks like with a trials bike on the front. Its bothersome, and look how sparse a trials bike is, (no seat). The visibility loss with an enduro bike on the front will be significant. You should drive up to a bumper-high retaining wall or something..... And park an enduro bike on that wall, in front, as if it's sitting on the shelf. And decide from that if you want to proceed, or what height your shelf will be.


Very good point! I will have to take some measurements. The size of my bike is attached. Definitely might have some issues...

Image may have been reduced in size. Click image to view fullscreen.

_________________
<<Tyler>>
1987.5 Wolfsburg Weekender / CHC / 2.0 ABA
CHC Top Thread
Engine Conversion Thread (2.0 ABA Swap)
ABA Swap - Image Gallery
Auto Trans Rebuild - Image Gallery
Back to top
View user's profile Send private message Gallery Classifieds Feedback
rmcd
Samba Member


Joined: October 29, 2010
Posts: 1073
Location: PNW - its a dry rain.
rmcd is offline

PostPosted: Thu Feb 16, 2017 11:30 pm    Post subject: Re: FRONT Trailer Hitch, how to make one Reply with quote

Here is the route I'm going.

Moto-mules website is down.

http://dualsport-sd.com/forums/index.php?/topic/11963-moto-mule-hitch-carrier/
_________________
Syncro panel van camper build
http://www.thesamba.com/vw/forum/viewtopic.php?t=575458&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
h00drat
Samba Member


Joined: May 31, 2016
Posts: 881
Location: Hood River
h00drat is offline

PostPosted: Fri Feb 17, 2017 9:17 am    Post subject: Re: FRONT Trailer Hitch, how to make one Reply with quote

rmcd wrote:
Here is the route I'm going.

Moto-mules website is down.

http://dualsport-sd.com/forums/index.php?/topic/11963-moto-mule-hitch-carrier/


Yeah, those lifts are awesome. I actually borrowed one from a friend to get my motorcycle home. However on the front of the van, I'm pretty sure it would put the motorcycle right in your line of vision.
_________________
<<Tyler>>
1987.5 Wolfsburg Weekender / CHC / 2.0 ABA
CHC Top Thread
Engine Conversion Thread (2.0 ABA Swap)
ABA Swap - Image Gallery
Auto Trans Rebuild - Image Gallery
Back to top
View user's profile Send private message Gallery Classifieds Feedback
danfromsyr
Samba Member


Joined: March 01, 2004
Posts: 12667
Location: Syracuse, NY
danfromsyr is offline

PostPosted: Fri Feb 17, 2017 9:33 am    Post subject: Re: FRONT Trailer Hitch, how to make one Reply with quote

for handling and general drivability you want that added weight as close to the vehicle and as low as possible.. inches WILL effect handling in serious ways.
prepare to upgrade the van suspension to suit the increased cantilevered working load of a motorcycle.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Sodo
Samba Member


Joined: July 06, 2007
Posts: 5680
Location: Western WA
Sodo is offline

PostPosted: Fri Feb 17, 2017 9:54 am    Post subject: Re: FRONT Trailer Hitch, how to make one Reply with quote

Would be useful to hang 300 lbs up front with a quickie test rig somehow & see how it drives. Whenever I was "forced" to use the front rack its cuz I had a bike on the rear. And my 160lbs up front was "in tight". Sorry I can't offer any guidance.
_________________


EJ25, Peloquin diff, locker, transaxle oil cooler/filtration system
....KTMs, GasGas, and a Stumpjumper
One apple every 8 hours will keep 3 doctors away - B Kliban
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Bills85Westy
Samba Member


Joined: August 01, 2009
Posts: 385
Location: Napa CA
Bills85Westy is offline

PostPosted: Fri Feb 17, 2017 12:27 pm    Post subject: Re: FRONT Trailer Hitch, how to make one Reply with quote

h00drat wrote:
rmcd wrote:
Here is the route I'm going.

Moto-mules website is down.

http://dualsport-sd.com/forums/index.php?/topic/11963-moto-mule-hitch-carrier/


Yeah, those lifts are awesome. I actually borrowed one from a friend to get my motorcycle home. However on the front of the van, I'm pretty sure it would put the motorcycle right in your line of vision.


I have one of these but use it on the rear of the van. I've seen them used on the front, but yes, with a full size bike, it was right in the field of view.
Image may have been reduced in size. Click image to view fullscreen.


I've driven all over the Sierras with my bike. Love this rack.
(note that the one strap up and two straps down on each side are not supporting the bike, but keeping it from wobbling side to side)
_________________
85 Westfalia Syncro (conversion)
SAH 1.8T Conversion - 2005 AWP 1.8
Front and rear lockers and decoupler
Engine Conversion Thread: http://www.thesamba.com/vw/forum/viewtopic.php?t=612144&highlight=
85 Doka L345 Grey - 1.9L
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
vanis13
Samba Member


Joined: August 15, 2010
Posts: 989
Location: ABQ NM
vanis13 is offline

PostPosted: Fri Feb 17, 2017 12:35 pm    Post subject: Re: FRONT Trailer Hitch, how to make one Reply with quote

Yeah that is a great rack. For the front it is counterproductive since it has to deal with full extension of the shocks. It would almost be beneficial for the front to compress the shocks to improve clearance below and view above.
_________________
83.5 Westy with Subaru 2.5, 4 spd manual, center seat, COLD A/C on 134a!, Winter camp heated with an Espar B4 gasoline furnace

I can send you the capacitor to Fix/prevent Vanagon Syndrome and/or smooth out idle - See here - http://www.thesamba.com/vw/forum/viewtopic.php?p=5445671#5445671
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
