Help! stuck bolt that holds upper control arm on my '89 Van
Page: Previous  1, 2, 3  Next
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
bluebus86
Banned


Joined: September 02, 2010
Posts: 11075

bluebus86 is offline

PostPosted: Mon Feb 23, 2015 8:14 pm    Post subject: Reply with quote

Terry Kay wrote:
While you might think you can buy a gallon of Kroil locally I'm real sorry, not here.
It's mail order only, I buy it direct.

And while your waiting for the Siberian White Yak Sperm oil to loosen up that frozen bushing bolt, I'm all done and back on the road.
The sawzall takes no time at all.
If I got really pissed I would have burnt the skanky bushing outa there.

You guys do enjoy killing time ,surely probably are all bald from scratching out the hair follicles trying to figure out your next move.


Bottom line is Kano Labs is not the only place to get it. Some folks get it at guns stores, auto parts stores, industrial supply stores and of course mail order from many vendors.

No hair scratching required, the first move is to search for it on the internet. There are lots of sources for it other than direct from Kano Labs.

Some of us are not trying to kill time, rather some are trying to come up with and disseminate solutions for others that do not waste time without hair loss. Rolling Eyes Rolling Eyes Rolling Eyes
_________________
Help Prevent VW Engine Fires, see this link.....Engine safety wire information

Stop introducing dirt into your oil when adjusting valves ... https://www.thesamba.com/vw/forum/viewtopic.php?t=683022
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Terry Kay
Banned


Joined: June 22, 2003
Posts: 13331

Terry Kay is offline

PostPosted: Mon Feb 23, 2015 8:57 pm    Post subject: Reply with quote

Pretty small & narrow pickle fork.

Might work.
Instead of looking for that magic deal for penetrating oil,
cut it outa there, beat the bushing out on a bench, get it over with.

Or is this a Union thing?
--"Don't Kill the Job??"--
_________________
T.K.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
jonsonneborn
Samba Member


Joined: January 01, 2015
Posts: 51
Location: San Rafael, Ca
jonsonneborn is offline

PostPosted: Thu Feb 26, 2015 11:09 pm    Post subject: Reply with quote

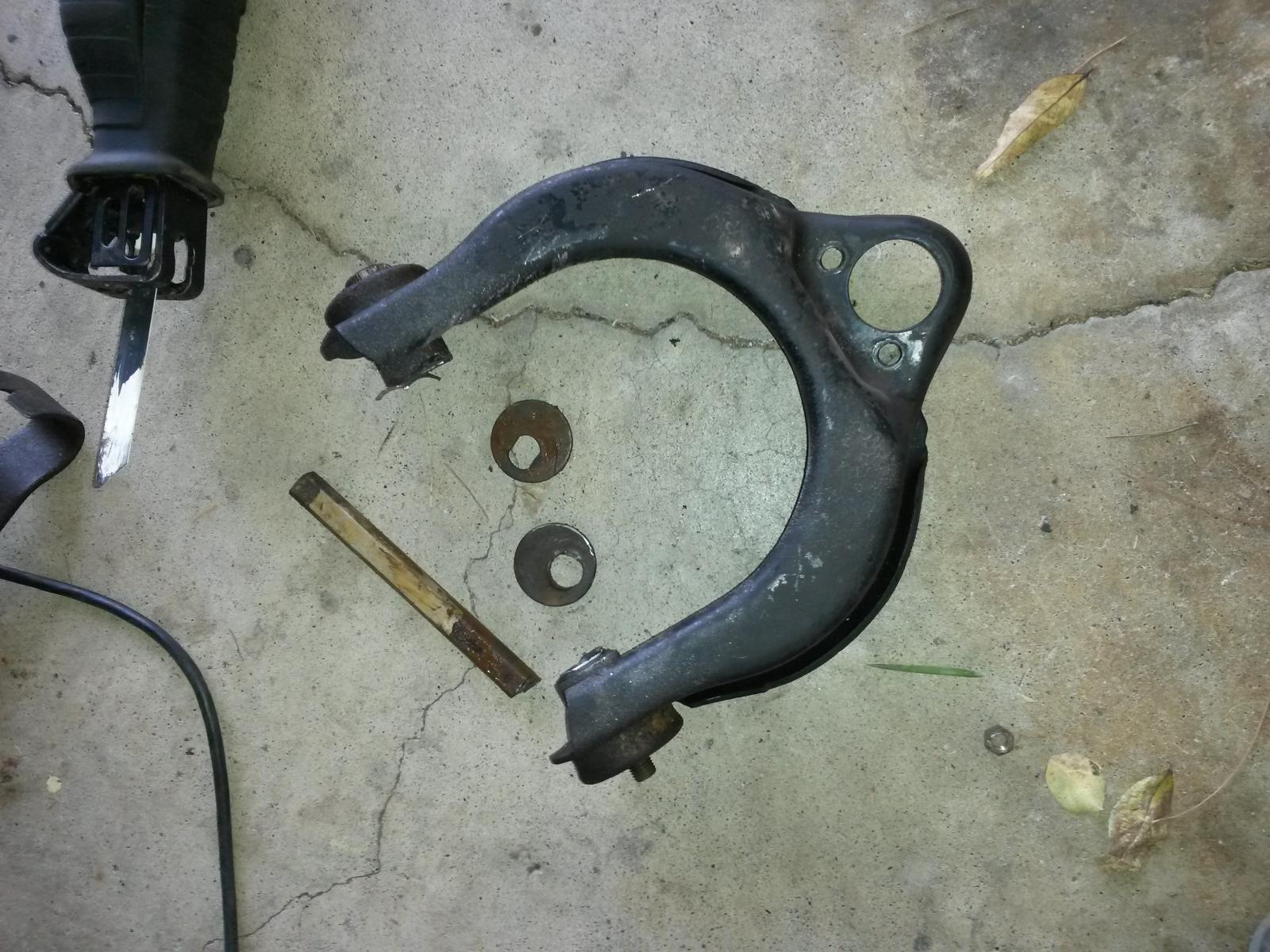

Well I got it out! Turns out the bolt was not bent but the bolt (head side) was rusted to the inner bushing sleeve. I sawzalled the bolt in 2 places; removed the Upper Control Arm & the rest came out easily. Below are a few photos of what's left. In the 2nd photo you can still see the bolt head which is permanently seized to the bushing!

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Now I am curious if the van will ride any better (& quieter) on all new bushings, ball joints, tie rod ends, shocks & struts? Time will tell!
_________________
Luna is a 1989 Vangaon Blue Star Edition with a 2.2L Subaru/Kennedy Conversion. I have grafted a donor Westfalia roof on & now she is a Westy!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Terry Kay
Banned


Joined: June 22, 2003
Posts: 13331

Terry Kay is offline

PostPosted: Thu Feb 26, 2015 11:17 pm    Post subject: Reply with quote

Nice job--
Bada boom , Bada Bing--it's out.

If you had just soaked that bolt for another 6-8 weeks in PB Blaster it would have slid right outa there without wasting any electricity---- Rolling Eyes
_________________
T.K.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
SlalomVan
Samba Member


Joined: March 28, 2006
Posts: 96
Location: Seattle, WA
SlalomVan is offline

PostPosted: Thu Feb 26, 2015 11:18 pm    Post subject: Reply with quote

[quote="Terry Kay"]While you might think you can buy a gallon of Kroil locally I'm real sorry, not here.
It's mail order only, I buy it direct.

I buy Kroil off the shelf locally at Tacoma Screw. You can order it online here:
http://www.tacomascrew.com/Products/Greases-Lubric...kroil-Kano

It is expensive - but works!
_________________
1989 Vanagon GL - 2.1 (White - "Northlake")
1988 Vanagon GL Wolfsburg (Orly Blue - "Poulsbo")
1989 Vanagon G - 2.1 (White - "Kingston") - Full rebuild underway - Last on the road in 1997
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Terry Kay
Banned


Joined: June 22, 2003
Posts: 13331

Terry Kay is offline

PostPosted: Thu Feb 26, 2015 11:22 pm    Post subject: Reply with quote

I don't use aerosol Kroil.
I buy it by the gallon, it goes farther, and nobody here sells gallons.
This is why I buy it direct from Kano.

And I an honestly say that even Kroil after 6 months of soaking wouldn't have broke that bolt & bushing loose from each other.
_________________
T.K.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
jonsonneborn
Samba Member


Joined: January 01, 2015
Posts: 51
Location: San Rafael, Ca
jonsonneborn is offline

PostPosted: Thu Feb 26, 2015 11:25 pm    Post subject: Reply with quote

Terry Kay wrote:

If you had just soaked that bolt for another 6-8 weeks in PB Blaster it would have slid right outa there without wasting any electricity---- Rolling Eyes


Thanks Terry! Yup gonna go buy a whole case of the PB so I can soak & retrieve the remainder of my bolt + reuse the bushing Smile

BTW the smell of thay PB crap is horrible & it seems to linger all over my clothes, hands (even with latex gloves). Must be some nasty stuff.

Very happy to be moving to the reassembly phase:
Go Westy no lift springs
Billstein HD shocks
Polyurethane Lower bushings
All new bushings, tie rods, ball joints, etc throughout.....
_________________
Luna is a 1989 Vangaon Blue Star Edition with a 2.2L Subaru/Kennedy Conversion. I have grafted a donor Westfalia roof on & now she is a Westy!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Terry Kay
Banned


Joined: June 22, 2003
Posts: 13331

Terry Kay is offline

PostPosted: Thu Feb 26, 2015 11:32 pm    Post subject: Reply with quote

AS I mentioned--why screw around with some old Indian hat dance treatment--
The PB is good hair tonic, wart remover, cures chapped lips, hemorrhoid relief--but not much good for anything else-- when you need something done--get serious.

The sawzall was the right way to go on this job.
_________________
T.K.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
jvan
Samba Member


Joined: April 25, 2013
Posts: 162
Location: cascadia
jvan is offline

PostPosted: Mon Feb 01, 2016 11:49 am    Post subject: Re: Help! stuck bolt that holds upper control arm on my '89 Reply with quote

Cutting the upper control arm bolt=new upper control arm required?

Les schawb was unable to do a front alignment because my front left upper control arm bolt is frozen. I asked them if it could be cut out and they said yes but then i would need to replace the UCA.

Also, while my right side is a bit loose, my left side is solid, though they claim both sides inner and outter tides will need to be replaced to complete a proper alignment.

I understand the "while you're in there" philosophy, atleast i think i do. (Where does one stop? Exoxy sprayed undercoating etc... Razz)

Les schawb did not directly claim i should since i will be in there, but i understand if thats what the mechanic is getting at or if thats what is practical. But for the time being i dont want to replace unnecessary parts (I am interested in doing a total front end rebuilt, but currently i am not quite ready to do so.)

Thoughts?



J
_________________
tin top.
Back to top
View user's profile Send private message Classifieds Feedback
jonsonneborn
Samba Member


Joined: January 01, 2015
Posts: 51
Location: San Rafael, Ca
jonsonneborn is offline

PostPosted: Mon Feb 01, 2016 11:59 am    Post subject: Re: Help! stuck bolt that holds upper control arm on my '89 Reply with quote

jvan wrote:
Cutting the upper control arm bolt=new upper control arm required?

Also, while my right side is a bit loose, my left side is solid, though they claim both sides inner and outter tides will need to be replaced to complete a proper alignment.

J


Nope. What rusts together is the bolt to the uca bushing. You can cut out the bolt & bushing & get it out without damaging the upper control arm. I did. went through a few Sawzall blades. Once out a new set of bushings goes in pretty easily. If you do end up damaging the upper control arm I have a spare I could ship you for about $35 shipped.

The tie rod ends wear & develop play. They are pretty inexpensive to replace & are a safety item. These should get done when you do your front end or sooner.

Here is a new tie rod end vs. old
Image may have been reduced in size. Click image to view fullscreen.


New Upper Control Arm Bushing (there are 4 total; 2 per side)
Image may have been reduced in size. Click image to view fullscreen.


Here is my upper control arm just after I cut it out (cut through the bolt & bushing on both sides. Note, the bushing protrudes on both sides so it can be cut out without damaging the arm.
Image may have been reduced in size. Click image to view fullscreen.


Side View of the bushing slightly cut with part of the bolt still rusted to the inside of the bushing. The bushings have metal sleeves on the inside which is why the bolt rusts to the bushing.
Image may have been reduced in size. Click image to view fullscreen.

_________________
Luna is a 1989 Vangaon Blue Star Edition with a 2.2L Subaru/Kennedy Conversion. I have grafted a donor Westfalia roof on & now she is a Westy!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jvan
Samba Member


Joined: April 25, 2013
Posts: 162
Location: cascadia
jvan is offline

PostPosted: Mon Feb 01, 2016 1:08 pm    Post subject: Re: Help! stuck bolt that holds upper control arm on my '89 Reply with quote

jonsonneborn...great and thanks for the write up. So simply cut off and replace bolt with bushings, though what am i looking at in terms of putting back together?
_________________
tin top.
Back to top
View user's profile Send private message Classifieds Feedback
jonsonneborn
Samba Member


Joined: January 01, 2015
Posts: 51
Location: San Rafael, Ca
jonsonneborn is offline

PostPosted: Mon Feb 01, 2016 1:15 pm    Post subject: Re: Help! stuck bolt that holds upper control arm on my '89 Reply with quote

jvan wrote:
jonsonneborn...great and thanks for the write up. So simply cut off and replace bolt with bushings, though what am i looking at in terms of putting back together?


Yes, Order a new set of bushings. You will also need to source a new bolt. Cut through the bushing as close to the arm as possible on the inside on either side(be careful not to damage the eccentric washers that are in there). The control arm should come off. Remove anything remaining in the chassis (rest of the bolt). The bushings have a small tack weld to the arm which grinds off easily. With a big hammer you should be able to whack the old bushings out of the arms (once tack weld is ground off). The new ones go in about as easy as the old ones came out except protect them from the blunt force of the hammer (block of wood, etc). I believe that I used a big C clamp to press mine in. Everything gets bolted back together & torqued properly. Send back to the alignment shop!

P.S. The eccentric washers are pictured in my 3rd photo above; they are large round washers with the hole off center. The hole is also a perfect fit for the squared edge of the long bolt you'll be destroying & replacing.
_________________
Luna is a 1989 Vangaon Blue Star Edition with a 2.2L Subaru/Kennedy Conversion. I have grafted a donor Westfalia roof on & now she is a Westy!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Christopher Schimke
Samba Member


Joined: August 03, 2005
Posts: 5174
Location: PNW
Christopher Schimke is offline

PostPosted: Mon Feb 01, 2016 2:52 pm    Post subject: Re: Help! stuck bolt that holds upper control arm on my '89 Reply with quote

jonsonneborn wrote:
Send back to the alignment shop!


And preferably not Les Schwab. Seriously! I'm not being glib. Your tag line says you are in Cascadia, so if you want to let us know where you live, maybe we can help you find a good alignment shop that is familiar with Vanagons. More Vanagon alignments have been screwed up by shops who either don't care or don't have the proper knowledge to work on a Vanagon. For whatever odd reason, the Vanagon tends to spin the typical alignment tech's brains to mush. It's worth your time to find and use a good, reputable shop.
_________________
Christopher

*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected]
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
jvan
Samba Member


Joined: April 25, 2013
Posts: 162
Location: cascadia
jvan is offline

PostPosted: Mon Feb 01, 2016 5:05 pm    Post subject: Re: Help! stuck bolt that holds upper control arm on my '89 Reply with quote

Great..thanks again. Recommended bushings? I see go westy sells a set of four for $179.99...worth the cost or how about Rocky mountain at one for $20?

I am in the Seattle area...a recommended alignment shop that knows vanagons would be great and beyond there too, I am willing to travel.
_________________
tin top.
Back to top
View user's profile Send private message Classifieds Feedback
Christopher Schimke
Samba Member


Joined: August 03, 2005
Posts: 5174
Location: PNW
Christopher Schimke is offline

PostPosted: Mon Feb 01, 2016 5:10 pm    Post subject: Re: Help! stuck bolt that holds upper control arm on my '89 Reply with quote

jvan wrote:
Great..thanks again. Recommended bushings? I see go westy sells a set of four for $179.99...worth the cost or how about Rocky mountain at one for $20?

I am in the Seattle area...a recommended alignment shop that knows vanagons would be great and beyond there too, I am willing to travel.


There are others that I can recommend if this doesn't work out, but give Pete a call at Truline in Bellevue (425 462 0013). Pete is a Syncro owner and enthusiast. He sees LOTS of Vanagons and does excellent work. Ask him his opinion of bushings before purchasing anything.
_________________
Christopher

*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected]
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
jvan
Samba Member


Joined: April 25, 2013
Posts: 162
Location: cascadia
jvan is offline

PostPosted: Fri Feb 05, 2016 7:10 pm    Post subject: Re: Help! stuck bolt that holds upper control arm on my '89 Reply with quote

i assume one would cut right between the bushing and the washer to the right?

Image may have been reduced in size. Click image to view fullscreen.


Any tips for doing this?

Jack up, remove wheel and....carefully cut away? Sugesstions?

Also, anyone in the seattle or westren washington area have a used or new control arm bolt? I may also be down in the nw area of Oregon this weekend if anyone in that area has one.

thanks,

J
_________________
tin top.
Back to top
View user's profile Send private message Classifieds Feedback
Christopher Schimke
Samba Member


Joined: August 03, 2005
Posts: 5174
Location: PNW
Christopher Schimke is offline

PostPosted: Fri Feb 05, 2016 7:52 pm    Post subject: Re: Help! stuck bolt that holds upper control arm on my '89 Reply with quote

I have new bolts in stock and I'm over in Redmond. http://www.t3technique.com/suspension-and-drivetra...-bolt.html

As for cutting, yes that's the area to cut. Nothing more to mention other than to be sure that you only cut through the bolt and bushing.
_________________
Christopher

*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected]
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
jvan
Samba Member


Joined: April 25, 2013
Posts: 162
Location: cascadia
jvan is offline

PostPosted: Fri Feb 05, 2016 10:16 pm    Post subject: Re: Help! stuck bolt that holds upper control arm on my '89 Reply with quote

Christopher Schimke wrote:
I have new bolts in stock and I'm over in Redmond. http://www.t3technique.com/suspension-and-drivetra...-bolt.html

As for cutting, yes that's the area to cut. Nothing more to mention other than to be sure that you only cut through the bolt and bushing.


great, thank you...i will be stopping by.
_________________
tin top.
Back to top
View user's profile Send private message Classifieds Feedback
epowell
Samba Member


Joined: September 23, 2015
Posts: 4383
Location: Czech (mostly) Vancouver (sometimes)
epowell is offline

PostPosted: Fri Mar 24, 2017 1:06 pm    Post subject: Re: Help! stuck bolt that holds upper control arm on my '89 Van Reply with quote

jonsonneborn wrote:
I am in the middle of a full suspension rebuild on my '89 Vanagon & I got everything out except the front driver's side Upper Control Arm. The long bolt (with the funny shaped washers ) does not want to come out:
Nut has been removed!
Bolt can be turned a 1/2 turn or more in either direction but then locks up.


This is normal right? Because of the eccentric washers the bolt can not turn more than 1/2 a turn?

I think I have the same situation, but really don't want to start cutting. My guess is that having it THAT loose means that somehow it SHOULD be free-able without starting WW3 on the poor thing.
_________________
www.edwardpowell.com
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
jonsonneborn
Samba Member


Joined: January 01, 2015
Posts: 51
Location: San Rafael, Ca
jonsonneborn is offline

PostPosted: Fri Mar 24, 2017 1:12 pm    Post subject: Re: Help! stuck bolt that holds upper control arm on my '89 Van Reply with quote

epowell wrote:
jonsonneborn wrote:
I am in the middle of a full suspension rebuild on my '89 Vanagon & I got everything out except the front driver's side Upper Control Arm. The long bolt (with the funny shaped washers ) does not want to come out:
Nut has been removed!
Bolt can be turned a 1/2 turn or more in either direction but then locks up.


This is normal right? Because of the eccentric washers the bolt can not turn more than 1/2 a turn?

I think I have the same situation, but really don't want to start cutting. My guess is that having it THAT loose means that somehow it SHOULD be free-able without starting WW3 on the poor thing.


In my case it turned out that the bolt had rusted & attached itself to the inside side of the bushings (which are metal at the contact points). It was necessary to cut the bolt in 2 places. I still have the bushings with bolt pieces frozen inside. Obviously the bolt had to be replaced but the only other damage from cutting was to the bushing housing which was completely replaced.
_________________
Luna is a 1989 Vangaon Blue Star Edition with a 2.2L Subaru/Kennedy Conversion. I have grafted a donor Westfalia roof on & now she is a Westy!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3  Next
Page 2 of 3


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
