So, my wife wanted to drive my bus. I gave her the tutorial, she's driven it before but its been a few years so I wasnt too worried. But when I was a concert with my daughters she called me and said she couldnt get the parking brake to release. I didnt think you could screw that up but I talked her through how to disengage it. I became a little worried when she said "I've pulled on it as hard as I can and it still wont release" I then told her to leave it alone and I'd fix it when I got home. This is what I found.
As you can see, she pulled on it so hard that the retaining pawl is now past the end of the shaft. I thought that I could just lift the pawl with a screwdriver or pry bar and allow the shaft to go back to its normal position, but that is not working. Has this ever happened to anyone else or any ideas on how to fix it? |
|
| Back to top |
|
 |
airschooled
Air-Schooled
Joined: April 04, 2012
Posts: 13628
Location: West Coast, USA
|
| Posted: Sat Apr 18, 2015 9:44 am Post subject: |
|
|
That's a good'un you have there. So a screwdriver, when wedged in there and rotated against the pawl doesn't release it?
A BFScrewdriver wiggled just the right way would get it out quick, but it will porbably bang up your mechanism, so let's think of a more elegant solution...
Yeah I've got nothing.....
_________________
WTB: 215mm Type 4 flywheel. Cash in hand.
One-on-one tech help for your vintage Volkswagen:
www.airschooled.com
Road trip reports and tech blog:
https://www.patreon.com/airschooled |
|
| Back to top |
|
|
bikeboy480
Samba Member
Joined: November 11, 2008
Posts: 105
Location: Houston,tx
|
| Posted: Sat Apr 18, 2015 9:48 am Post subject: |
|
|
| I wrestled with a BF screwdriver for about 20 minutes and made no progress, that's usually my limit. I dont want to apply to much pressure for fear of damaging the unit. This old girl is my daily driver and cant afford for her to be down for too long. That and replacing the parking brake assembly is a *&%$ without removing the dash. |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 53214
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Sat Apr 18, 2015 9:51 am Post subject: |
|
|
Have someone pull like hell on the handle while you lift the pawl and hold it up while they let it back in. Once it's free you'll have to remove the coil spring and unscrew the handle assy from that threaded rod to get the pawl flipped back over.
Have you ever considered adjusting your brakes?
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
richparker
Samba Member
Joined: November 24, 2011
Posts: 7782
Location: Durango, CO
|
| Posted: Sat Apr 18, 2015 10:04 am Post subject: |
|
|
Take out the pin that holds the shaft to the black part. (Sorry for the bad discription, brain fart). That's how I repaired my pawl. As Bd said, adjust your brakes and that will not happen.
_________________
__________
’71 Westy build
Adventure thread
’65 Deluxe Build
’71 Double Cab |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
|
| Posted: Sat Apr 18, 2015 11:33 am Post subject: Adjust your parking brake |
|
|
After you adjust your brakes. Adjust your Parking brake and tell your wife it wasn't her fault.
Good Luck
Tcash |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
|
| Posted: Sat Apr 18, 2015 11:38 am Post subject: |
|
|
| busdaddy wrote: |
Have someone pull like hell on the handle while you lift the pawl and hold it up while they let it back in. Once it's free you'll have to remove the coil spring and unscrew the handle assy from that threaded rod to get the pawl flipped back over.
Have you ever considered adjusting your brakes? |
The Pawl needs to be in the position it is in the picture. When you are done.
Tcash |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
|
| Posted: Sat Apr 18, 2015 11:49 am Post subject: |
|
|

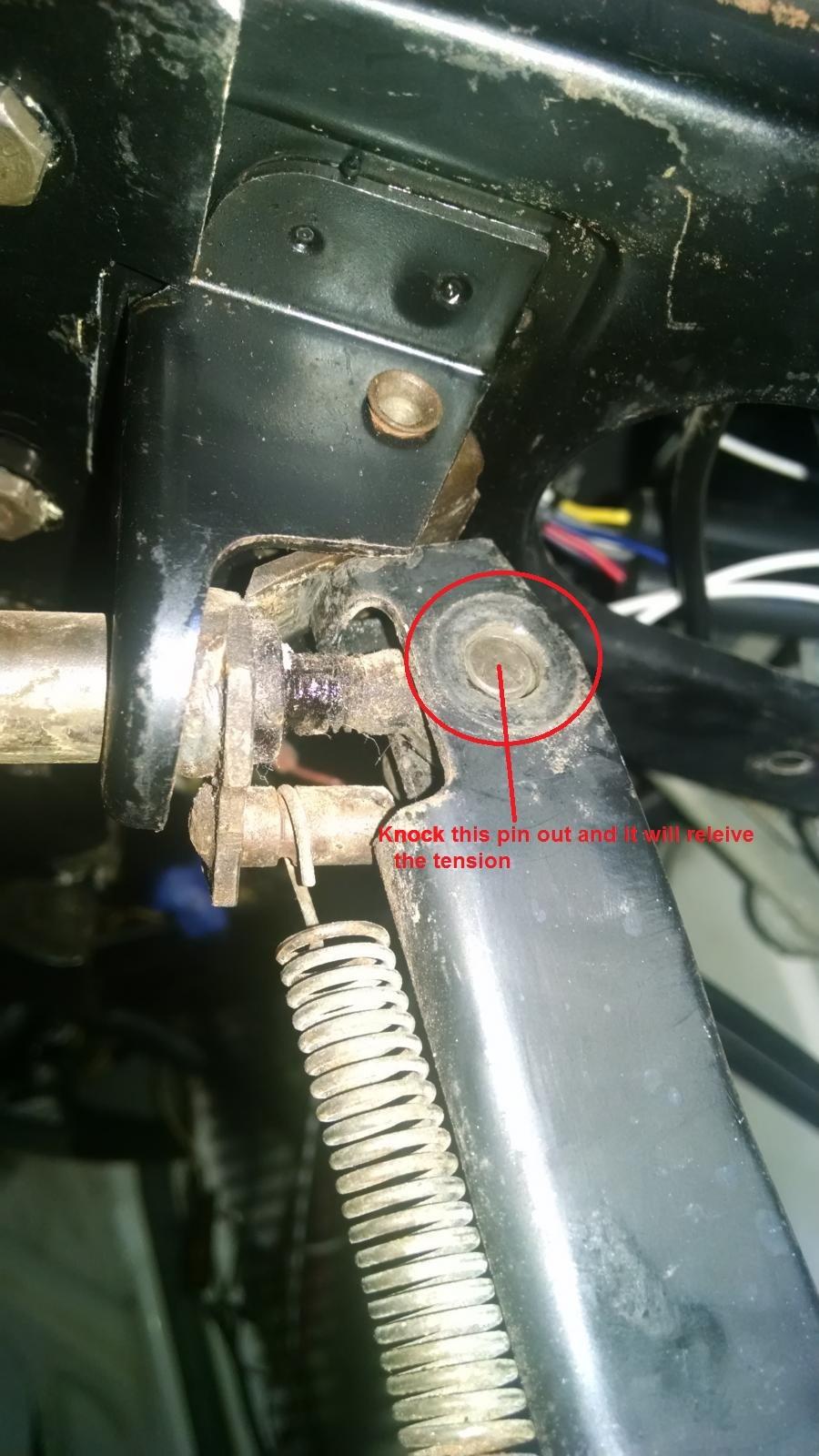

Knock pin #19 out.
thanks to jerseylooker
Good Luck
Tcash |
|
| Back to top |
|
|
richparker
Samba Member
Joined: November 24, 2011
Posts: 7782
Location: Durango, CO
|
| Posted: Sat Apr 18, 2015 12:05 pm Post subject: |
|
|
That's the pin I was talking about.
Here's a pic of how far your e-brake should move when properly adjusted.
_________________
__________
’71 Westy build
Adventure thread
’65 Deluxe Build
’71 Double Cab
