 Posted: Sun Sep 20, 2015 11:57 am Post subject: Front in dash AC evaporator as a rear system "Booster" |
 |
|
As I've documented, i rebuilt my primary "factory" Rear mounted AC system in my Westy "Weekender".
http://www.thesamba.com/vw/forum/viewtopic.php?t=622520&highlight=
http://www.thesamba.com/vw/forum/viewtopic.php?t=583818&postdays=0&postorder=asc&start=0
After an early stumble (bad new Expansion Valve) the system performs admirably.
Currently 42* exiting the vent and that can be improved to be in the 30's.
Having the rear based system really cools off the Van on hot days very well.
The problem is getting adequate cool air up to us in the front seats.
I purchased a cheap clip on fan that blows air up front between the Driver and Passenger, it did just OK.
There are warm but cooler days that my wife did complain about being COLD!!! And put on a sweater  I done good!
But......
Between the sun beating in, which can be lessened with window tint and then add the Hot Foot syndrone around the entire front center "hump" (no, it's not "that"...... there is Zero uncontrolled hot water flow into the heater core and also Zero air leakage past the flaps because of my Heater box modification and fresh air shut off control)
http://www.thesamba.com/vw/forum/viewtopic.php?t=605822&highlight=
The front hump gets terrible hot, I mean so hot that you don't want to touch the side of the Auto Shift Lever box!
I had an early Triumph Spitfire Years ago that had zero fresh air to the feet and you literally roasted because the foot wells hugged the engine, it was very similar to this and we did NOT enjoy that Triumph in the Summer at all!
I will do tencents insulation in this area to lessen the heat transfer.....
http://www.thesamba.com/vw/forum/viewtopic.php?t=237271&postdays=0&postorder=asc&start=0
But we've come to realize that we LIKE ice cold air blowing on us as we drive as well as we like to be sitting in a cool room.
We don't need a lot of cold, i dont want to get into a multi 1000's of $$'s Small Car modification.
I just want some cold air blowing on me.
Howesight made a system based in the dash which he has found to be effective. I don't desire to go through that much work.
http://www.thesamba.com/vw/forum/viewtopic.php?t=535444&highlight=diy+front+air+conditioning
This thread has ended up to be a tad useless due to dead links and vanishing photos......
http://www.thesamba.com/vw/forum/viewtopic.php?t=2...p;start=60
What to do?

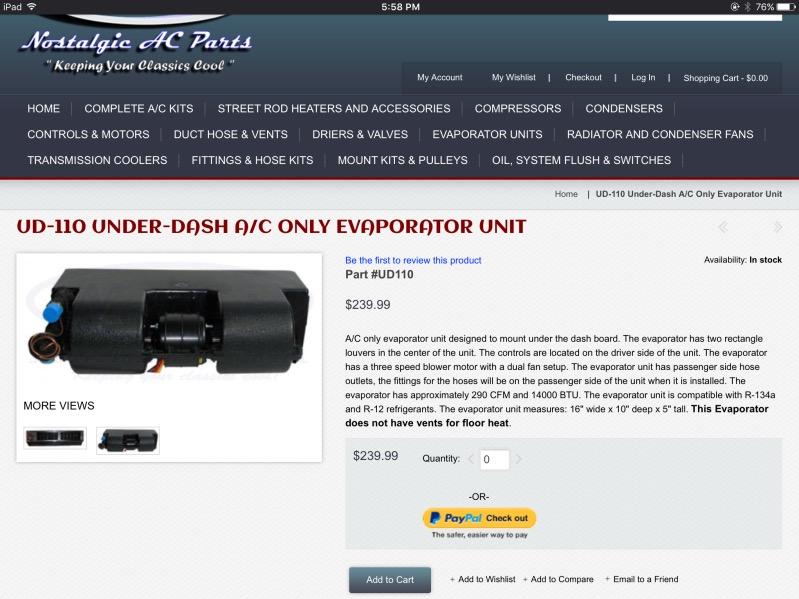

I had borrowed my FLAPS AC Evaporator core catalog Friday looking for small Evaporators that I can make use of, most aren't small at all! They also have long strange piping at all angles!
I was at the All Air Cooled Gathering in Flanders NJ this morning and saw my dream unit sitting in a pile of old VW crap for sale........

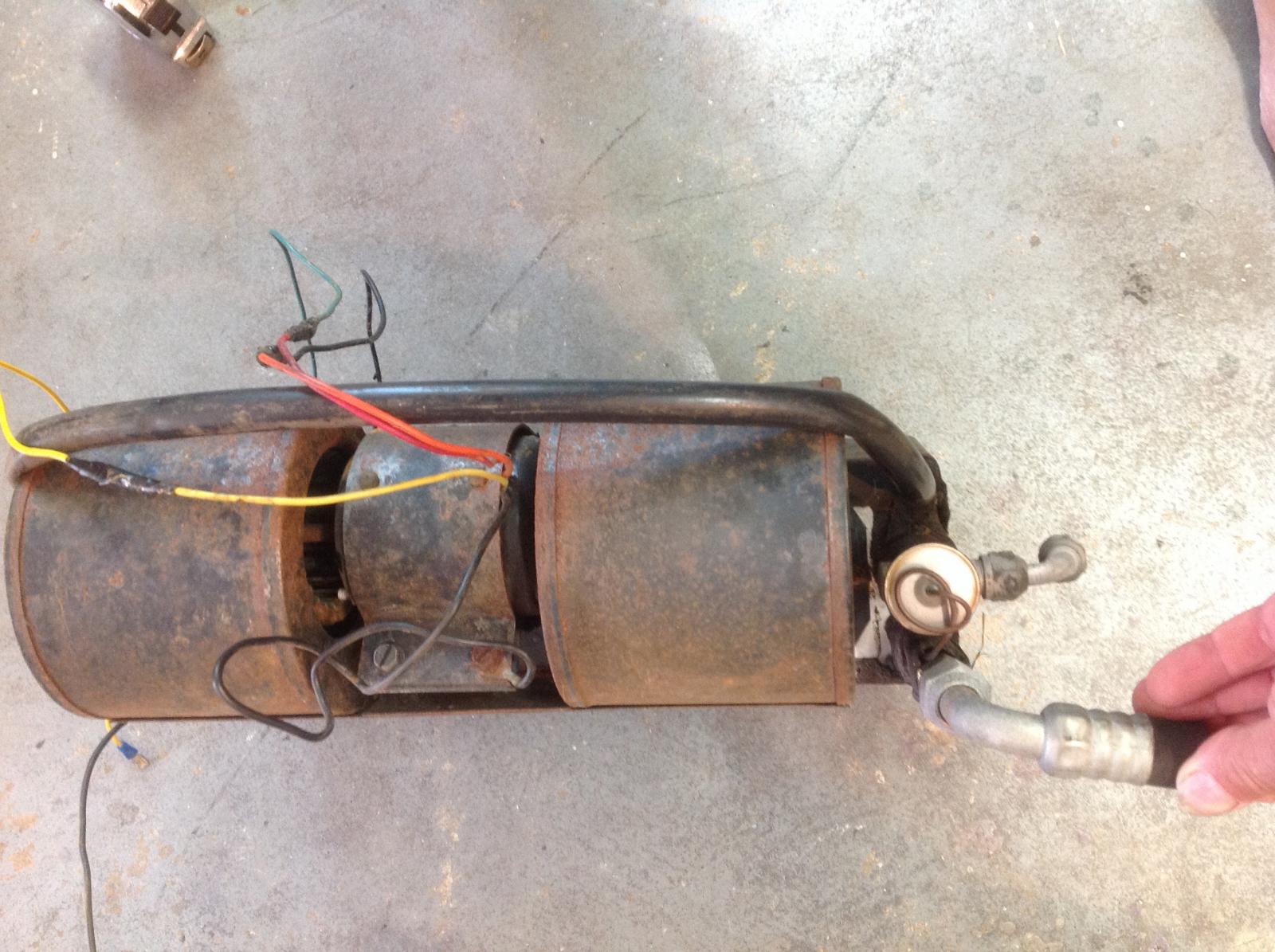

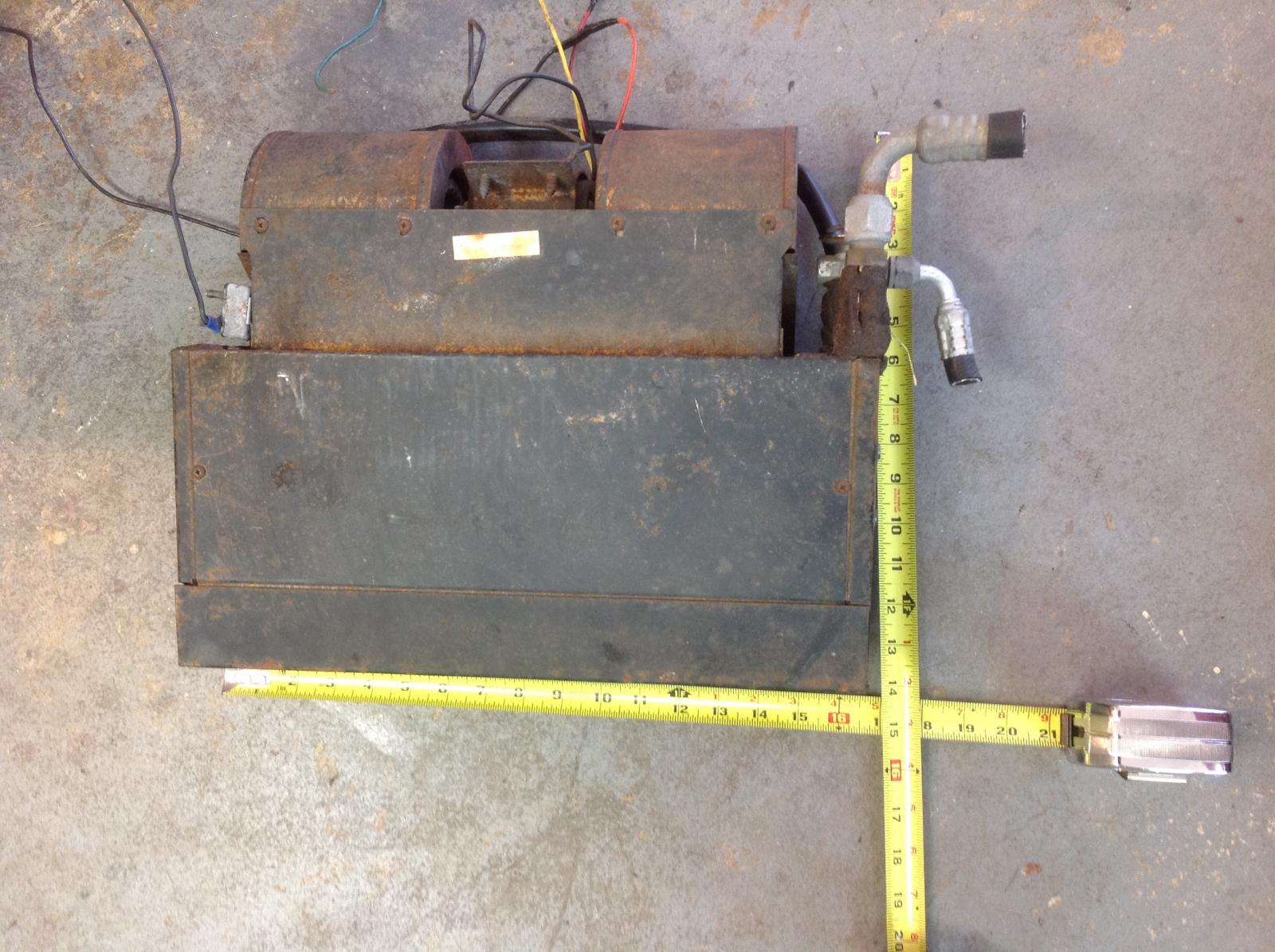

A Small vintage under Dash R12 expansion valve controlled unit......
$20 cash...... MINE!!!!!
The three speed blower works......

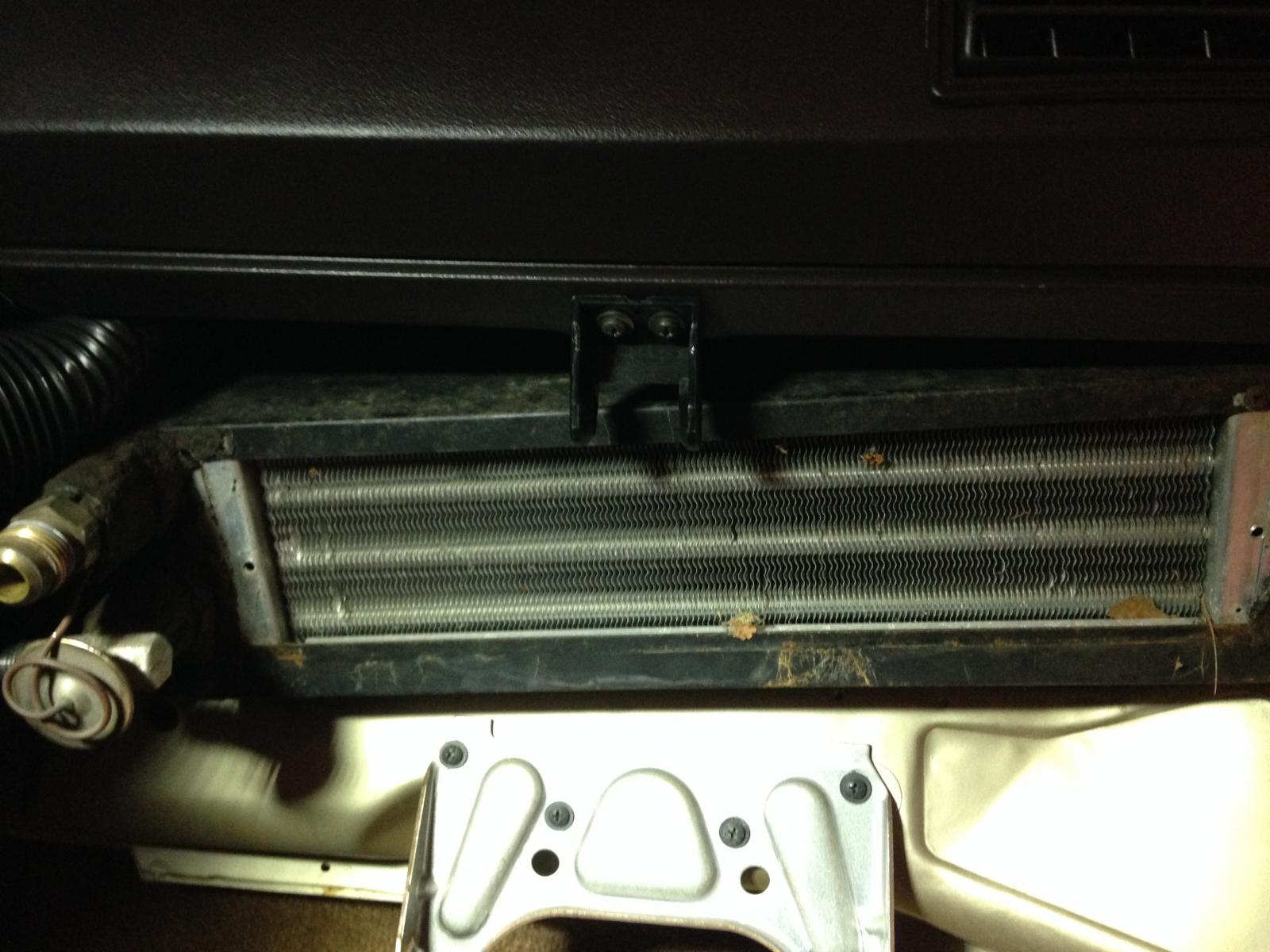

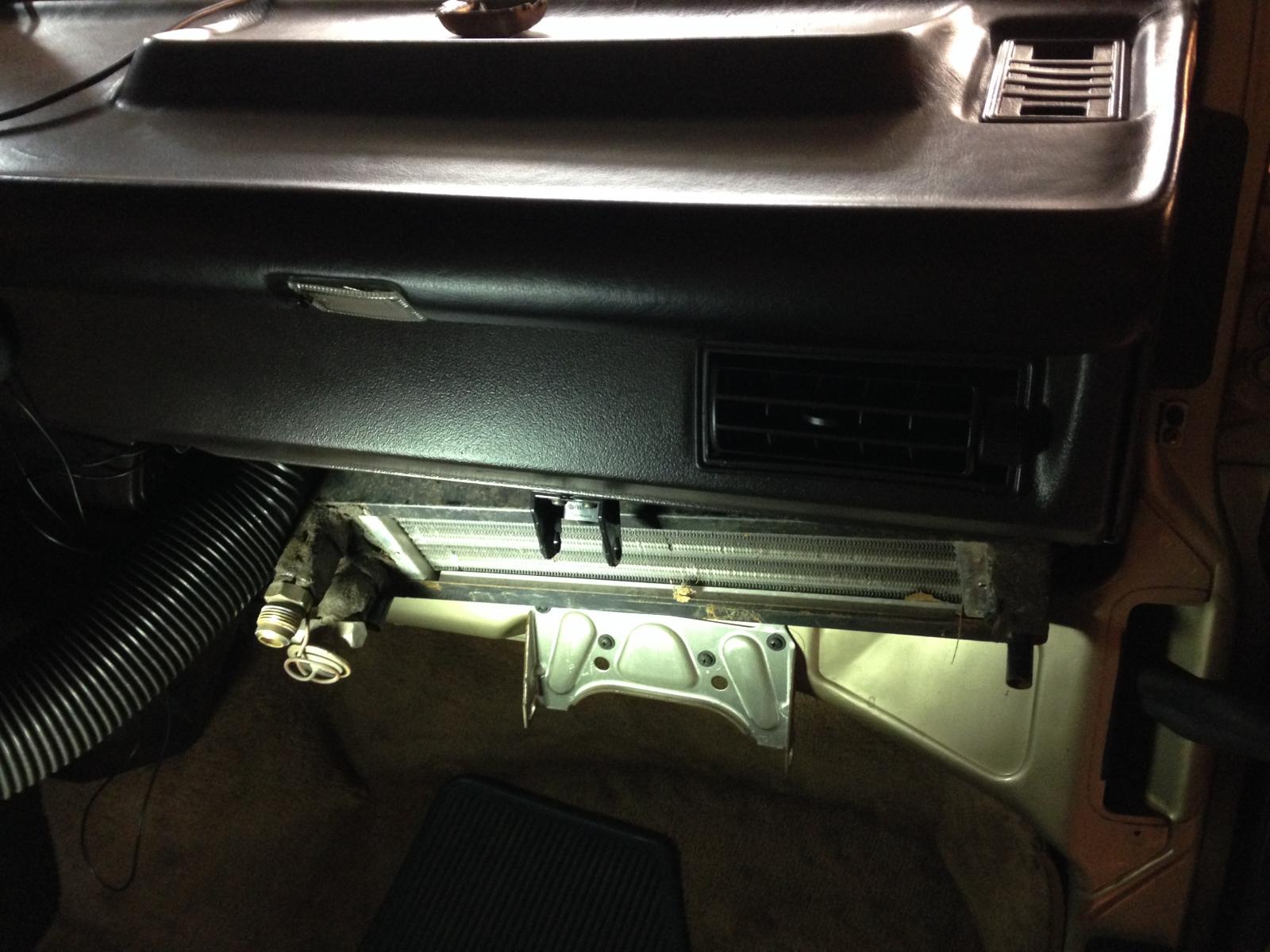

I plan to nestle it in above the Glove Box by the Wiper Motor and fan force feed it into my Cabin Air Recirculation port I created months ago.
Additionally while this small evaporator PUSHES cold air into the Vanagon "stock" heater box .......... the stock VW heater Fan will also be sucking it in because I CAN SHUT OFF THE FRESH AIR RAM FEED AND RECIRCULATE MY CABIN AIR!!!!
I figure that I already upsized my Condenser with the Vintage Air cross flow unit so I've got system capacity.
I know that the Behr two Evaporator system uses a compressor no bigger than what my new SANDEN 508 unit is.
A little creative mounting, two Tee's in my new Refrigerant Lines (one after the Rec/Drier and one at the Compressor Suction port) and I should have AC pouring forth from my existing Dash Vents, defroster vents and foot vents with little effort.
I will use my abandoned rear heater fan switch to control the three working blower speeds on my "new" front AC unit.
I wont worry about a thermostat in the coil for the rear unit will still control the clutch engagement. ......... I hope!
The cold passing through the heater core will also allow me to moderate the cold air with a dash of hot water AND will also provide dehumidified air to a misty windshield!
OK Oh Wise Ones ....... Why can't I do this?
Dave
_________________
Stop Dead Photo Links how to post photos
Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473
Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537
Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Last edited by djkeev on Sat Mar 26, 2016 2:33 pm; edited 2 times in total |
|
