PostPosted: Thu Nov 05, 2015 10:19 pm    Post subject: Vanagon Rear Wheel bearing repacking Help! Reply with quote

Hi everyone,

I keep having my rear outer wheel bearings fail after a few hundred to few thousand kilometres.

I assume I have not packed the outer needle bearing properly? I have looked through discussion of this but no one seems to have good instruction on how to do so. The grease in the palm of hand method will not work because of the design of the needle bearing with the only exposed bearing being in the middle where the inner race sits. the ends are completely close off. Thus bearing is different than a typical needle bearing.

Has anyone done this successfully?

Thanks!
_________________
84 Westy
1.9TD AAZ
5spd manual with Locking Peloquin TBD
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Terry Kay
Banned


Joined: June 22, 2003
Posts: 13331

Terry Kay is offline

PostPosted: Thu Nov 05, 2015 10:32 pm    Post subject: Reply with quote

Use a wheel bearing packer.
_________________
T.K.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 23605
Location: North West New Jersey
djkeev is offline

PostPosted: Fri Nov 06, 2015 3:26 am    Post subject: Reply with quote

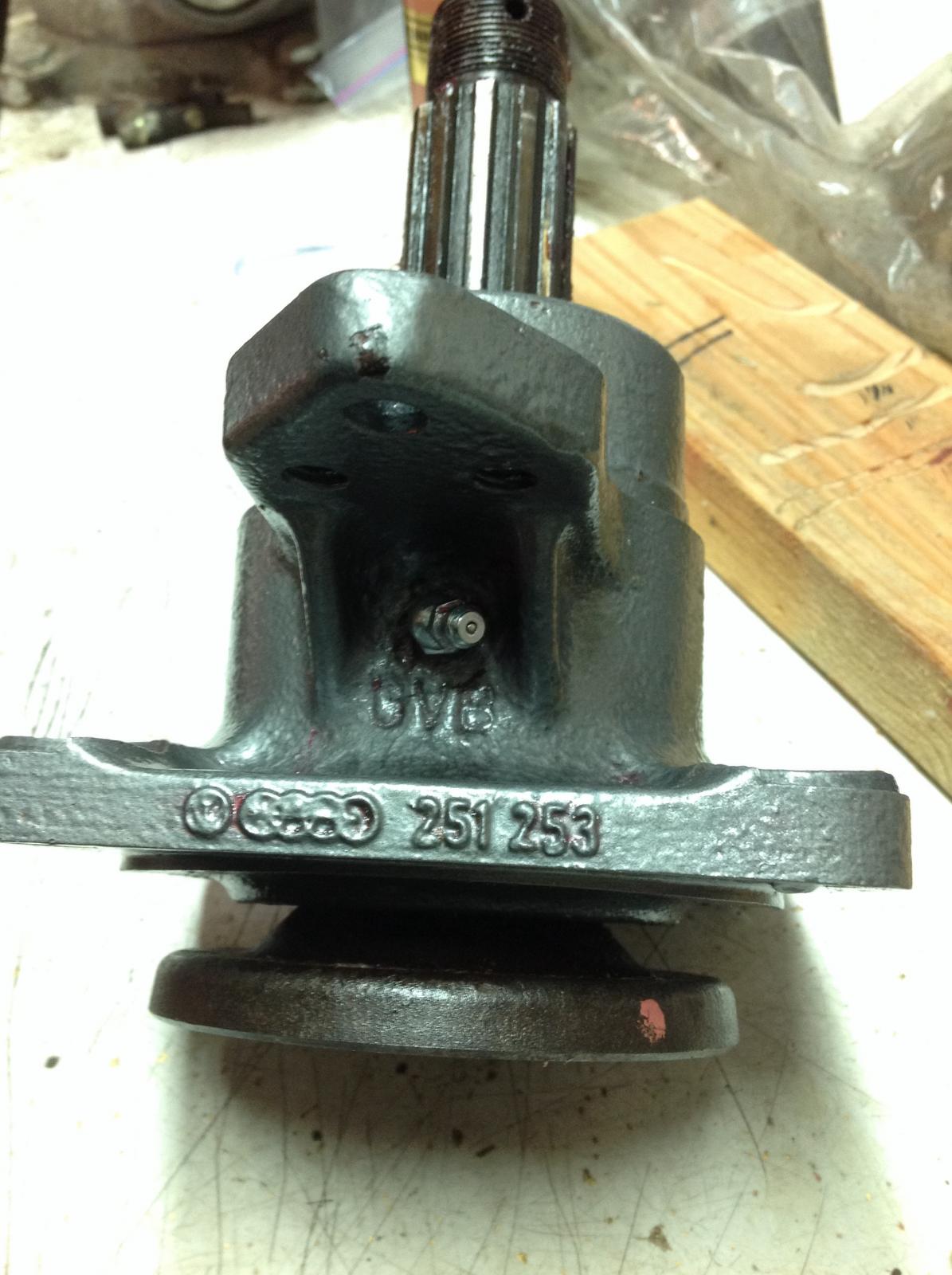

I added grease fittings to my rear hubs,

With the hub off and clamped in a vise, I slip in an Impact socket to fill the axle shaft cavity and pump the unit full of grease. It oozes through the bearings chasing out the old grease.
Or just use the axle itself.

Honestly? It's a horrid mess but the end result is fully lubed bearings.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert


Last edited by djkeev on Fri Nov 06, 2015 8:12 am; edited 2 times in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
insyncro
Banned


Joined: March 07, 2002
Posts: 15087
Location: New York
insyncro is offline

PostPosted: Fri Nov 06, 2015 4:45 am    Post subject: Reply with quote

djkeev wrote:
a horrid mess


I like my Snappy 18v grease gun, 30" hose whip and grease needle.
Very civilized and the grease goes where you want it.
The greaser pulling the trigger determines the mess factor.

Pictures of the setup can be found in the Luxury Tool thread.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 23605
Location: North West New Jersey
djkeev is offline

PostPosted: Fri Nov 06, 2015 6:13 am    Post subject: Reply with quote

No matter what tools you use to insert grease, grease is grease, it's a slimy mess.

But, my Dad always said that using grease is the cleanest way to get dirty.

Yes, the grease is a slimy mess but it has amazing soil removing properties as well. Just look at your hands after handling grease, as clean as clean can be! All of that ground in soil is extracted by the grease.

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
insyncro
Banned


Joined: March 07, 2002
Posts: 15087
Location: New York
insyncro is offline

PostPosted: Fri Nov 06, 2015 6:18 am    Post subject: Reply with quote

Two words Dave...nitrile gloves Wink
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 23605
Location: North West New Jersey
djkeev is offline

PostPosted: Fri Nov 06, 2015 6:22 am    Post subject: Reply with quote

insyncro wrote:
Two words Dave...nitrile gloves Wink


That,s modern technology.

Back in the "Day" there were no gloves. What ever was touched was touched with skin unless it was hot or caustic.

All of us old farts will surely perish from various cancers leached into our body through the skin. Shocked

You younguns........ Rolling Eyes bicycle helmets, elbow pads, gloves, goggles, protective this, protective that....... Wink

I guess we loved all of you kids too much and desired to protect you!

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
insyncro
Banned


Joined: March 07, 2002
Posts: 15087
Location: New York
insyncro is offline

PostPosted: Fri Nov 06, 2015 6:25 am    Post subject: Reply with quote

No glove, no love Exclamation
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dobryan
Samba Member


Joined: March 24, 2006
Posts: 11049
Location: Brookeville, MD
dobryan is offline

PostPosted: Fri Nov 06, 2015 6:57 am    Post subject: Reply with quote

insyncro wrote:
No glove, no love Exclamation


Ok guys, get a room.... Wink Laughing
_________________
Dave O
'87 Westy w/ 2002 Subaru EJ25 and Peloquin TBD

"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson

Join the Vanagon Rescue Squad on the VanAlert app.
http://vanalert.com/

MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646

Building a bus for travel in Europe
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371
Back to top
View user's profile Send private message Gallery Classifieds Feedback
snwbrdr435
Samba Member


Joined: August 10, 2013
Posts: 321
Location: North Of Boston
snwbrdr435 is offline

PostPosted: Fri Nov 06, 2015 6:58 am    Post subject: Reply with quote

Another vote for the 18v grease gun. Love my Milwaukee! Throw a needle fitting on the tip and you can squirt till your hearts content wherever you see fit. Small rag to clean up excess and your good to go.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Sodo
Samba Member


Joined: July 06, 2007
Posts: 5180
Location: Western WA
Sodo is offline

PostPosted: Fri Nov 06, 2015 8:05 am    Post subject: Reply with quote

snwbrdr435 wrote:
squirt till your hearts content wherever you see fit


Ahh yes, a core human need. Perhaps not wherever you see fit though. Wink

Are you saying that with a needle extension you can get fresh grease into the bearings without disassembly? Can you get the inner bearing too?
_________________


EJ25, Peloquin diff, locker, transaxle oil cooler/filtration system
....KTMs, GasGas, and a Stumpjumper
One apple every 8 hours will keep 3 doctors away - B Kliban
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Terry Kay
Banned


Joined: June 22, 2003
Posts: 13331

Terry Kay is offline

PostPosted: Fri Nov 06, 2015 8:30 am    Post subject: Reply with quote

Maybe, Maybe not with a grease gun & a needle.

But I do know that this zerk most certainly will get grease to both bearings pretty easy.



Image may have been reduced in size. Click image to view fullscreen.

_________________
T.K.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Sodo
Samba Member


Joined: July 06, 2007
Posts: 5180
Location: Western WA
Sodo is offline

PostPosted: Fri Nov 06, 2015 12:15 pm    Post subject: Reply with quote

I like that method. A guy could grease that every 100,000 and you'dbe golden. Greasing the bearings every 30 or 50 or even 100 without disassembly is very interesting though.

Mine have 175,000, never greased. It would content my heart to squirt without disassembling (much). A worthy goal I think.
_________________


EJ25, Peloquin diff, locker, transaxle oil cooler/filtration system
....KTMs, GasGas, and a Stumpjumper
One apple every 8 hours will keep 3 doctors away - B Kliban
Back to top
View user's profile Send private message Gallery Classifieds Feedback
insyncro
Banned


Joined: March 07, 2002
Posts: 15087
Location: New York
insyncro is offline

PostPosted: Fri Nov 06, 2015 1:54 pm    Post subject: Reply with quote

snwbrdr435 wrote:
Another vote for the 18v grease gun. Love my Milwaukee! Throw a needle fitting on the tip and you can squirt till your hearts content wherever you see fit. Small rag to clean up excess and your good to go.


Yup.
I zerk when I replace the bearings, but most of my vans still have the originals going strong as I maintain them with a needle.
New are a crap shoot.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
iliketowalk
Samba Member


Joined: April 29, 2011
Posts: 561
Location: Redding, CA
iliketowalk is offline

PostPosted: Fri Nov 06, 2015 1:57 pm    Post subject: Reply with quote

Another possibility it worn out bearing housings, no? I've seen quite a few cores where the bearing will drop/fall into the housing, as opposed to needing some force.
_________________
1984 Westfalia Camper "Westy Pete" - ARB/Solar [Sold but still in the family]
1987 Westfalia Weekender "Big Blue" - EJ22/Burley UCA,Bumper/CLK/215.70.16s [Sold]
1985 Vanagon "Frank" - AAZ/NAHT/Westy [RIP #CarrFire]
1990 Carat "SportVan" [RIP #CarrFire]
1987 Syncro "Miles" [RIP #CarrFire]
1987 Syncro "Boz" - Bostig/FrontRunner/Decoupler/BFG/LED/LMNOP [Sold]
1989 Delica L300 4x4
Back to top
View user's profile Send private message Classifieds Feedback
DwarfVader
Samba Member


Joined: July 28, 2015
Posts: 646
Location: Missoula, MT
DwarfVader is offline

PostPosted: Fri Nov 06, 2015 4:23 pm    Post subject: Reply with quote

djkeev wrote:
insyncro wrote:
Two words Dave...nitrile gloves Wink


That,s modern technology.

Back in the "Day" there were no gloves. What ever was touched was touched with skin unless it was hot or caustic.

All of us old farts will surely perish from various cancers leached into our body through the skin. Shocked

You younguns........ Rolling Eyes bicycle helmets, elbow pads, gloves, goggles, condoms, protective this, protective that....... Wink

I guess we loved all of you kids too much and desired to protect you!

Dave

_________________
- oderint dum metuant -

I'll find my van someday, or it will find me.
Back to top
View user's profile Send private message Visit poster's website Classifieds Feedback
Wildthings
Samba Member


Joined: March 13, 2005
Posts: 40954

Wildthings is offline

PostPosted: Fri Nov 06, 2015 5:02 pm    Post subject: Reply with quote

I grease the outer bearing using a needle every time I do rear brake work. Remove the seal, squirt some grease into each space in the bearing, wipe off any old grease that has been forced out and then install a new seal.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
beach_creature
Samba Member


Joined: April 11, 2014
Posts: 282

beach_creature is offline

PostPosted: Fri Nov 06, 2015 8:05 pm    Post subject: Reply with quote

I picked up my new bearing today and found there is a design difference between the new bearing and the previous one that failed. They are both needle bearings, however; the failed bearing has no way that I can see of actually packing it due to the housing covering all the way around the outer, top, and bottom of the bearing. This left only the inside rollers exposed for greasing.

The new bearing has the ability to be packed from top or bottom. I assume the two previous failed bearings were because of a design flaw.

I will try to post a photo for comparison. Is there a way to upload photos onto this forum? or can you only post from URLs?
_________________
84 Westy
1.9TD AAZ
5spd manual with Locking Peloquin TBD
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Wildthings
Samba Member


Joined: March 13, 2005
Posts: 40954

Wildthings is offline

PostPosted: Fri Nov 06, 2015 8:11 pm    Post subject: Reply with quote

Sounds like your were sold bearing with either seals or shields on one side, instead of being open on both sides.

To learn to post photos: Look at the top of any The Samba page and hover your mouse over the word "Gallery" which will open a drop down box, click the "Help/FAQs" button and you will find the info you desire
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Sodo
Samba Member


Joined: July 06, 2007
Posts: 5180
Location: Western WA
Sodo is offline

PostPosted: Fri Nov 06, 2015 8:24 pm    Post subject: Reply with quote

Wildthings wrote:
I grease the outer bearing using a needle every time I do rear brake work. Remove the seal, squirt some grease into each space....


Is there a way to needlegrease the inner bearing?
_________________


EJ25, Peloquin diff, locker, transaxle oil cooler/filtration system
....KTMs, GasGas, and a Stumpjumper
One apple every 8 hours will keep 3 doctors away - B Kliban
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3  Next
Page 1 of 3


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2018, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
