My 1978 Big Sage Green Giant Westy Build! Lots of Pictures!
Page: 1, 2, 3 ... 10, 11, 12  Next
Jump to:
Forum Index -> Bay Window Bus Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
smitty1976bus
Samba Member


Joined: January 21, 2013
Posts: 251
Location: Wareham, MA
smitty1976bus is offline

PostPosted: Sat Jun 18, 2016 12:23 pm    Post subject: My 1978 Big Sage Green Giant Westy Build! Lots of Pictures! Reply with quote

Hi all! Smile Iíve had my 1978 VW Westy for a little over a year, and you fine folks here at the Samba have really helped me out. Thought Iíd make a project page about my Green Giant and show the restoration process. First a little about me, friends call me Smitty, I live on Cape Cod in Massachusetts, and do accounting to pay for all the VW parts. Iíve never had any formal mechanic training, so some of my work might be a littleÖ. Sub par. Haha. Iíve owned a few antique cars though, and they all needed tons of work, so I was forced to learn how to fix them if I wanted to drive them. Bought a 66í Ford Fairlane when I was 15, this needed motor swaps and body work (the body work I did was not good at all haha). Then had a 65í GTO, which was short lived, I was in over my head, this thing was too rusty, had to sell it before I spent too much $$$. Then I had an 85í Trans Am, then a 97í Mustang Cobra, both just needed basic mechanical work. So I do know a little bit about engines and body work, and am learning more every day. Plus, with this thing called the internet, there is literally nothing you canít learn. Itís like being in the Matrix and just downloading information straight to your brain. Any ways, even with all the cars Iíve had, ever since I was a little kid Iíve wanted a VW Bus. Ideally, a split window 23 window bus, but theyíre all great!

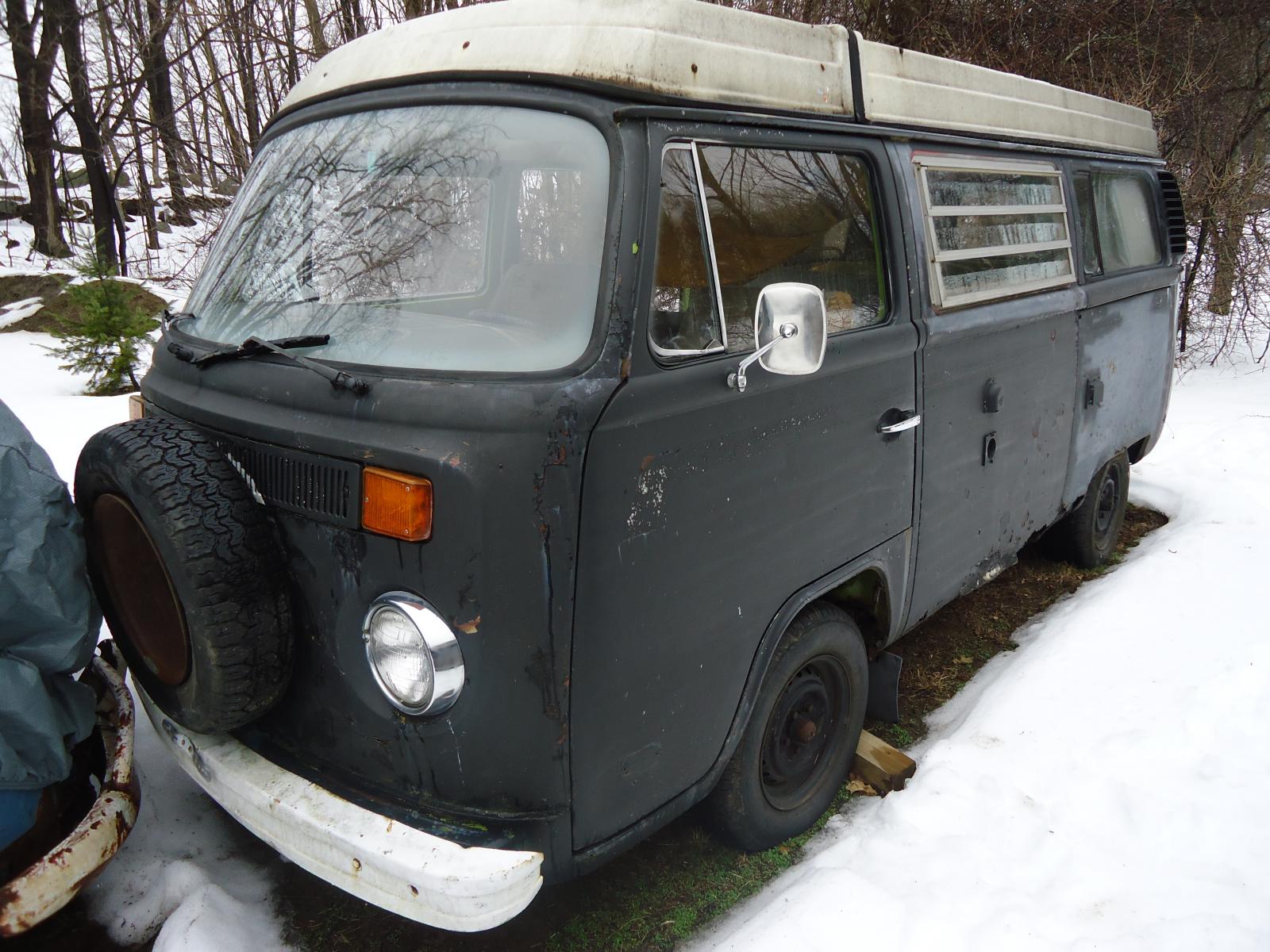

The first bus I bought was 1976 Westy, and unfortunately, she was in a lot worse shape than I had originally thought. When I first looked at it in New Hampshire, up in a couple feet of snow, it looked ok. But once I towed it back to my place, it was more rust than Bus. I stripped what I could and then scrapped it. Crying or Very sad

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


The one cool thing about the 76í bus was that it was air conditioned. I had no idea VW put A/C in some of these buses. Unfortunately, the condenser was totally rusted, completely useless, and the compressor was missing. Still cool though.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Now I needed to find a bus. Luckily bus owners are some of the friendliest people youíll ever meet, and when I was at a local cruise night, I struck up a conversation with an owner of a beautifully restored Westy. He gave me the phone number of a man looking to sell a Bus. It was an amazing score. Thank you guy with the Green Westy at the Gillette Stadium Car Cruise, if youíre on here, I wish I grabbed your phone number! Thank You! And GO PATRIOTS! Cool

I called the dude selling the Bus, and set a date to go up and see the VW. This guy lived on a mountain up in New HampshireÖ No lie, a mountain. Shocked It was crazy driving up it, no idea how he towed all his cars up there. Hereís what the bus looked like up there:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Not bad at all. The owner and I did some talking and I ended up buying it! Very Happy On the condition he tow it down to my place in South East Massachusetts. No way am I towing a bus off a mountain. Ha. He agreed. Awesome guy. And a couple weeks later I had my bus:

Image may have been reduced in size. Click image to view fullscreen.


First thing I did was power wash the entire bus, and watched all that rust fly off, haha. It did make a dramatic difference though, she looked so much better with all the tree sap and dirt off. Now itís time to work on the engine!

The 78í I just purchased had no engine, the seller kept it for a dune buggy project, along with all of the 2.0Lís EFI parts. However, I did keep the 1.8L engine from the 1976 Bus, but it needed a total rebuild. Plus, the fuel injection components were stolen out of the bus before I bought it, so it would need to be carbureted.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Luckily, right before I spent any serious money on the engine rebuild, I received a phone call from the guy who sold me the 78í bus. Heís willing to sell me the 2.0L with all the EFI components from the bus! Surprised Too good of a deal to pass up; I drove up the next day and bought it off him. He even had the heads rebuilt, so it was all ready to go. The engine was just a little dirty, so I spruced it up some:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

^^^Here it is all dirty^^^
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

^^^So fresh and so clean^^^

Now I had to get the engine bay ready for the engine. I cleaned it all up and painted it Sage Green. I pulled all the fuel lines and fuel tank, to clean them thoroughly and/or replace if necessary.

Image may have been reduced in size. Click image to view fullscreen.

^^^The fuel pump looked nasty, but still fired up, so sheíll stay^^^

Image may have been reduced in size. Click image to view fullscreen.

^^^Same with the fuel tank, she was dirty on the outside, but no rust, so sheís was scrubbed clean and given a fresh coat of paint.
Image may have been reduced in size. Click image to view fullscreen.

^^^Here she is all cleaned up and re-installed back into the bus. All the fuel lines were scrapped though, in place for new ones, along with a new filter and pressure regulator.

Installing the engine was far more difficult than actually pulling it out. Embarassed I had to jack up the bus pretty high, just to roll the engine under the rear section. Then the transmission mount had to be loosened up, so I could angle of the transmission input shaft just right, so the clutch splines could fit into it.

Image may have been reduced in size. Click image to view fullscreen.

^^^The engine bay ready for the engine^^^

Image may have been reduced in size. Click image to view fullscreen.

^^^I used an ATV/Motorcycle jack to slide and hoist the engine into place. It worked perfectly

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

^^^In she goes!!^^^

I lined up the input shaft and clutch the best I could, but she just didnít want to slide all the way inÖ I turned the crank, just to make sure the spine was actually in correctly:
Image may have been reduced in size. Click image to view fullscreen.


Once I knew it was in, I just tightened up to engine to transmission bolts, to mate the two entirely:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


I periodically compressed the clutch pedal just to make sure nothing was binding up. Really didnít want to pull it all apart again. But it was all good!

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

^^^Sheís in! Very Happy Very Happy ^^^

Hereís a video of it all happening:

Link


And the forum thread of me struggling to get it in, all in detail:
http://www.thesamba.com/vw/forum/viewtopic.php?p=7900331&highlight=#7900331


Getting the engine to actually start and run was a new challenge all in its self. It was a total pain in the a$$. This is where my lack of mechanical knowledge showed, but since Iím fresh out of college, and student loans are insane Twisted Evil , I had to do all the wrench turning myself. But even if I did have money to have someone else do all the work, I wouldnít. Half the fun is doing all the work yourseld. I have a nice long forum dedicated to getting this 2.0L started, and thank you to all you Samba peeps out there for helping me out:
http://www.thesamba.com/vw/forum/viewtopic.php?t=649039&postdays=0&postorder=asc&start=0

I guess the short storey on why the engine wouldnít start is:
a) The double relay I had was trash
Image may have been reduced in size. Click image to view fullscreen.


So I made one with 4 relays, with the help of this amazing forum threadÖ

http://www.thesamba.com/vw/forum/viewtopic.php?t=334340

Image may have been reduced in size. Click image to view fullscreen.


This did the trick, but was totally unreliable, so I spent some $$ and just purchased a used one.

b) I had no idea what wire went where. This part took a bit to figure out, and the Green Bently book really didnít help me at all, so I had to look at picture of other bus engines. I made this picture too, to help anyone else down the road
Image may have been reduced in size. Click image to view fullscreen.


c) My vacuum lines sucked. Unfortunately I wasnít smart enough to keep my old ones, thought I could just buy new ones. Oh, how wrong I was. Hereís what I started with
Image may have been reduced in size. Click image to view fullscreen.


So much air was getting through these hoses. I ended up wrapping them with some type of rubber tape, and it fixed the issue nicely:
Image may have been reduced in size. Click image to view fullscreen.


D) And finally, the biggest issue I had was the gaskets found on the intake tubes connecting to the cylinder heads, were total y toasted. There was a huge vacuum leak at this location. I used new gaskets when I installed the intake tubes, but I must not have scrapped away all of the old gaskets. I just ended up cutting new gaskets from basic paper gasket materials found at a local parts store.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

^^^It did the trick!

After all of that, she finally runs, and runs nice. I timed it, and got her idling well. Iíll have to have a professional time it, just to get it perfect.


Link


^^^^This is as good as I could get it^^^^

That was about a week or two ago, and Iíve started on the body work now, so Iíll post some updates of that when I can. The more I dive into it, the more rust I find, itís crazy!

Thanks for looking everyone!
Smitty
Back to top
View user's profile Send private message Gallery Classifieds Feedback
notchboy
Samba Member


Joined: April 27, 2002
Posts: 17754
Location: Escondido CA
notchboy is offline

PostPosted: Sat Jun 18, 2016 1:29 pm    Post subject: Re: My 1978 Big Sage Green Giant Westy Build! Lots of Picutres! Reply with quote

Its Alive!

Good work so far. Keep it going.
_________________
t3kg wrote:

OK, this thread is over. You win.

Jason "notchboy" Weigel
1964 1500 S
1964 T34 S Convertible
1974 Westfalia Hardtop Campmobile
1977 Westfalia Camper pop-top
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
smitty1976bus
Samba Member


Joined: January 21, 2013
Posts: 251
Location: Wareham, MA
smitty1976bus is offline

PostPosted: Sun Jun 19, 2016 8:09 pm    Post subject: Re: My 1978 Big Sage Green Giant Westy Build! Lots of Picutres! Reply with quote

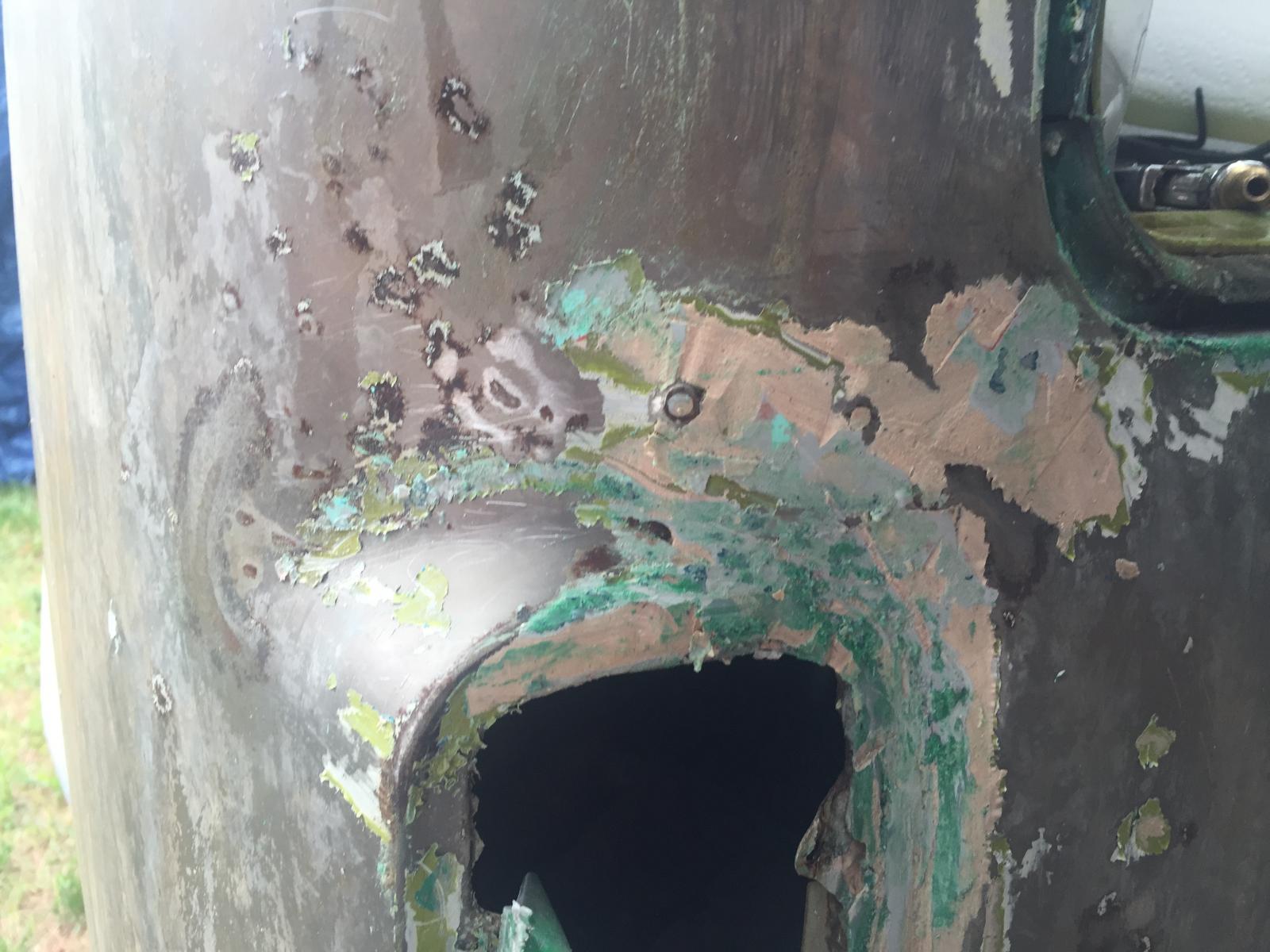

This weekend I started work on the drivers side rocker panels. I'd like to point out that I am very new to welding, and am not that great at it, so please be kind. Also, the welder I'm using is an old Lincoln Electric MIG welder, which I bought for $25 about 5 years off some guy I work with, ha.

Anyways, I tried to remove what was left of the old rusted rockers, but the just did not want to come out. The spot welds were near impossible to find, so I just saws all'd, grinded, and chiseled them out.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


^^^ What I started with^^^


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


^^^ How I removed most of the rockers^^^

It was a pain getting them all out; had to do it in the dirt, on a really hot day. Nothing a few brewski's cant help with though!

The jack points were both pretty rusted too, they def needed attention. The front one was salvageable:

Image may have been reduced in size. Click image to view fullscreen.

Before

Image may have been reduced in size. Click image to view fullscreen.

After

The rear jack point needed to be cut out and replaced though:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


With the jack points all welded up, it was time to put on the inner rocker. I really couldn't figure out a good way to do this, and couldn't find any how-to's online, so I just fit it the best I could, then welded. Here's what happened:

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


I purchased the rockers from BusDepot, and they're a great product, just wasn't sure why the area where the rocker meets the top hat, there was just a void. So I welded on some steel to seal it up. Not sure if that's what the middle rocker was for or not, but did it anyways.

Next I did the middle rocker:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


With all that done up and primed, I moved onto the outer rockers. This was the biggest pain, and were my poor welding skills, and poor welder, came into light. Here's where I'm at right now:


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Now, while I did get most of my sheet metal from Bus Depot, I did get some freebies from a guy I met at a car show, about a year ago. He had a 1971 bus and had a bunch of spare parts; I told him about my, then, 1976 bus. He gave me all the spare parts! It was amazing, he wouldn't even let me give him any money. I did buy him a burger, but still, I couldn't believe it. Anyways, one piece in this box of parts was a rear wheel arch patch. I assumed it would fit my 78', but it doesn't seem to very well:


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


I'm not sure if it truly is different, or it's just the way I mocked it up. There's a huge gap going on! I dont think I'll be able to fix this up, I'll have to grind it off and put a new patch on. Oh well.

So this is where I'm at, I'll have to finish it up tomorrow, and clean it up a bit.

Thanks for looking!
Smitty
Back to top
View user's profile Send private message Gallery Classifieds Feedback
secretsubmariner
Champagne Wrangler


Joined: January 08, 2011
Posts: 2861
Location: Tulsa, OK
secretsubmariner is offline

PostPosted: Sun Jun 19, 2016 9:49 pm    Post subject: Re: My 1978 Big Sage Green Giant Westy Build! Lots of Picutres! Reply with quote

Amazing work!

It looks like the rear quarter rocker is a different profile entirely from the middle rocker... Are you sure they're both for your year of bay window?


Anyway, super nicely done, sir.
_________________
-Tony
1978 Champagne Edition II (Mar)
1978 Champagne Edition II (Feb - sold)
1978 Champagne Edition II (Jan - sold)
1978 Westfalia Auto Deluxe (sold)

78Kombi wrote:
dude but im a nigerian prince
Back to top
View user's profile Send private message Visit poster's website Instagram Gallery Classifieds Feedback
lolight70
Samba Member


Joined: August 22, 2013
Posts: 160
Location: West Australia
lolight70 is offline

PostPosted: Mon Jun 20, 2016 3:04 am    Post subject: Re: My 1978 Big Sage Green Giant Westy Build! Lots of Picutres! Reply with quote

Good build so far
There is a Haynes book called:"Volkswagen bay transporter
Restoration manual "
It shows how to replace inner/outer rockers,basically the whole lower body
section of a bus.
its an English book with lots of colour pix
Well worth getting
Back to top
View user's profile Send private message Classifieds Feedback
Tcash
Samba Member


Joined: July 20, 2011
Posts: 12844
Location: San Jose, California, USA
Tcash is offline

PostPosted: Mon Jun 20, 2016 12:10 pm    Post subject: Re: My 1978 Big Sage Green Giant Westy Build! Lots of Picutres! Reply with quote

Rust Repair
Back to top
View user's profile Send private message Gallery Classifieds Feedback
smitty1976bus
Samba Member


Joined: January 21, 2013
Posts: 251
Location: Wareham, MA
smitty1976bus is offline

PostPosted: Wed Jun 22, 2016 8:03 pm    Post subject: Re: My 1978 Big Sage Green Giant Westy Build! Lots of Picutres! Reply with quote

secretsubmariner wrote:
Quote:
It looks like the rear quarter rocker is a different profile entirely from the middle rocker... Are you sure they're both for your year of bay window?


That is the only piece I did not buy myself, so I'm not 100% sure of what year bus it goes to. But it doesn't look like it goes to a 78', ha. Believe the guy who gave it to me had a 71' bus, so that would make sense. All the other pieces I purchased off of Bus Depot, and are 100% for my year bus.

lolight70 wrote:
Quote:
There is a Haynes book called:"Volkswagen bay transporter
Restoration manual "


How do I not have this book?? I thought I picked up every VW manual there was for my year, but I guess I missed this one. Just ordered it off of amazon. Great tip, thanks man!

I had some time to work on the body after work today, and takled the little gap issue I was having. Before I cut off the wrong rear quarter piece, I tried to fix it a bit. So I welded on some steel to line it up a little bit better:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Actually seems to be ok, definitely better than it was. I'll have to go back and clean it up of course, but if it looks good after that and tons of bondo, I should be ok.

Super!

-Smitty
Back to top
View user's profile Send private message Gallery Classifieds Feedback
smitty1976bus
Samba Member


Joined: January 21, 2013
Posts: 251
Location: Wareham, MA
smitty1976bus is offline

PostPosted: Sun Jun 26, 2016 8:18 pm    Post subject: Re: My 1978 Big Sage Green Giant Westy Build! Lots of Pictures! Reply with quote

Did some more body work this weekend, and after touching up the welds just a bit more, and filling in the gaps with more steel, it was onto the bondo.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


That's just about as good as I could get it. I then sanded away the paint to make room for bondo:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


The paint on this bus is insane. There's about 7-8 layers on there! After sanding an area, it looks like one of those jawbreaker candies! All those different colors for each layer your sand away. And to make it even worse, the top layer is the thick latex house paint type. It sucks to sand off. It clogs up the sand paper so quick. I think I might need to go rent a sand blaster or something...

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Bondo time!

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


The bondo filled into the cracks and the large seams, left by the welding, nicely. They shouldn't be visible any longer. I just have a lot of sanding, and more bondo-ing, ahead of me. Getting there though!

Oh, here's my sweet set up I have going on. Just a simple tent garage thing behind my house. Nothing crazy.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


-Smitty
Back to top
View user's profile Send private message Gallery Classifieds Feedback
smitty1976bus
Samba Member


Joined: January 21, 2013
Posts: 251
Location: Wareham, MA
smitty1976bus is offline

PostPosted: Wed Jul 06, 2016 7:48 pm    Post subject: Re: My 1978 Big Sage Green Giant Westy Build! Lots of Pictures! Reply with quote

Began the paint removal on the drivers side panal, and after talking with some body shop guys, I decided to try out chemical strippers. I went with aircraft remover, and it worked great! Here's the process:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


It's a slow process, but it seems like every time I wipe on a layer of remover, it strips away 1 layer of paint. So, with about 7 layers of paint, it takes some time to remove it all. But, it's cheaper than eating through a bunch of sandpaper.

At the same time, I worked on the drivers side door. I removed it and then stripped the paint away.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


My plan is to prime the entire bus, and get it ready for a professional painter to spray on the green. But, I want to paint all the door jams, and inside peices, so it's just a little easier for the painter, and cheaper for me.

I also found out that the nose of my bus is not the original nose. A new one was welded on some time ago, luckily it looks like who ever did the job did a good one. But, the new nose was a different color, so the door jams and A pillar is a different color, so it'll need to be painted green.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Along with all the jams:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


I'm not to happy with the paint match. I purchased some rattle cans from PaintScratch.com, but it seems to be a more mustard yellow than sage green. I've contacted AutomotiveTouchUp.com to see if they still make Sage Green, since I didn't see it on their website. I know they match the green perfectly. Anyone know anyone else who makes old VW Paint colors?

I also primed my front door with a rattle can, with some basic duplicolor primer:

Image may have been reduced in size. Click image to view fullscreen.


Seems to be a lot of tiger stripping though, any suggestions on what might fix this?

It's slow going when it comes to body work!

-Smitty
Back to top
View user's profile Send private message Gallery Classifieds Feedback
THall
Samba Member


Joined: August 25, 2010
Posts: 275
Location: Verona, WI
THall is offline

PostPosted: Thu Jul 07, 2016 6:19 am    Post subject: Re: My 1978 Big Sage Green Giant Westy Build! Lots of Pictures! Reply with quote

smitty1976bus wrote:
Anyone know anyone else who makes old VW Paint colors?


These folks have done a good job with L63H Sage Green for my bus.

http://www.apstowerpaint.com/
_________________
'78 Westy - 2.0 FI
Back to top
View user's profile Send private message Gallery Classifieds Feedback
smitty1976bus
Samba Member


Joined: January 21, 2013
Posts: 251
Location: Wareham, MA
smitty1976bus is offline

PostPosted: Thu Jul 07, 2016 8:05 pm    Post subject: Re: My 1978 Big Sage Green Giant Westy Build! Lots of Pictures! Reply with quote

THall Wrote:
Quote:
These folks have done a good job with L63H Sage Green for my bus.

http://www.apstowerpaint.com/


I'll give them a try, thanks for the tip! I also went to a local body shop today and asked them if they'd be able to match the color at all. They showed me some swatches, and one green came pretty close:
Image may have been reduced in size. Click image to view fullscreen.

This will be my last case scenario; hell, I'm not even sure who I'm going to have do the final spray anyways.

Also received this sweet book in the mail today:

Image may have been reduced in size. Click image to view fullscreen.

So many good things in there, definitely going to help out down the line. Thanks for the tip lolight70

I started repairs on the sliding door today. My new plan is to fix everything thats keeping the bus from being road legal. I want to get it registered and start driving it around! I'll do repairs while I drive. Hopefully it gets there before summer is over.

The sliding door on the bus now is trash, totally rusted:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Luckily I saved the door from the 76' bus I had before this one. The door is in much better condition:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


I began stripping the paint, but I cannot seem to remove the damn handle from the door. I removed all the bolts, but the thing won't come off.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

I cant find any removal examples in my Haynes book or online anywhere. i feel like its an obvious removal process, and I'm just missing something. Any know how to remove the handle?

-Smitty
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tcash
Samba Member


Joined: July 20, 2011
Posts: 12844
Location: San Jose, California, USA
Tcash is offline

PostPosted: Thu Jul 07, 2016 8:38 pm    Post subject: Re: My 1978 Big Sage Green Giant Westy Build! Lots of Pictures! Reply with quote

Tech Tips

thnx to mayor ratwell
http://www.ratwell.com/technical/SlidingDoor.html

thnx amskeptic
http://www.thesamba.com/vw/forum/viewtopic.php?t=446358&highlight=sliding+door

thnx to eche_bus
http://www.thesamba.com/vw/forum/viewtopic.php?p=7...64#7302764
http://www.thesamba.com/vw/forum/viewtopic.php?p=7302939#7302939

Tcash
Back to top
View user's profile Send private message Gallery Classifieds Feedback
smitty1976bus
Samba Member


Joined: January 21, 2013
Posts: 251
Location: Wareham, MA
smitty1976bus is offline

PostPosted: Tue Jul 19, 2016 7:45 pm    Post subject: Re: My 1978 Big Sage Green Giant Westy Build! Lots of Pictures! Reply with quote

I finally stripped all the paint off of the drivers side body panel:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Once the bare metal was visible, it was clear there was a lot of dings and dents; nothing too bad thankfully. Some bondo was spread over the damaged area, and smoothed out the best it could be. After that dried, some primer was sprayed on.

One major issue I've come across is all of the small scratches, in the bondo and metal, left after I sanded everything down. I start with 80-100 grit, to remove the paint and shape the bondo; then move up to 150 grit, then to 220-250 grit. Once it's smooth, on goes the primer, I first use the DupliColor Primer Filler:
Image may have been reduced in size. Click image to view fullscreen.

I find it fills in all of the swirl and sanding scratchs nicely. But this is as far as I've gotten with priming everyhting. I still need to sand the primer filler, then shoot a nice smooth primer sealer. So hopefully I do that correctly.

Any way, here's the side panels sprayed with primer filler:

Image may have been reduced in size. Click image to view fullscreen.


I did the same with the sliding door:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


That I'm happy with, it was in pretty rough shape under all that paint, but I managed to get it nice and smooth.

I also began work on the passenger side rear quarter. I totally forgot to take a 'before' picture of it, but it was in really rough shape, pretty much more rust than metal. It was cut off and a new one welded on:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Then filled in and smoothed out:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


While working in the area, I saw there was a lot of patching done with fiberglass sheets, down near the bottom of the fender and wheel wells... Every section I move onto there's a new surprise, haha. Well, at least I'm about 1/3 the way done with the body work. Almost there!

-Smitty
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Thrasher22
Samba Member


Joined: October 05, 2010
Posts: 819
Location: Calgary, Canada
Thrasher22 is offline

PostPosted: Wed Jul 20, 2016 9:19 am    Post subject: Re: My 1978 Big Sage Green Giant Westy Build! Lots of Pictures! Reply with quote

That's a big project! Starting to look good though.

I had a couple spray cans of sage green mixed up last week at my local body shop for painting my engine bay. They put the color ratio's on the can in case I needed more, I'll post a photo when I get home if that helps...

If you're painting the outside of the bus, I would spray can it though, you'll need a TON of cans and have worse quality paint. Do some research on turbine HVLP guns if you don't have a compressor. That's what I used and it was okay.
_________________
1975 Westfalia - http://www.thesamba.com/vw/forum/viewtopic.php?t=516701
Back to top
View user's profile Send private message Gallery Classifieds Feedback
smitty1976bus
Samba Member


Joined: January 21, 2013
Posts: 251
Location: Wareham, MA
smitty1976bus is offline

PostPosted: Sun Jul 24, 2016 7:08 pm    Post subject: Re: My 1978 Big Sage Green Giant Westy Build! Lots of Pictures! Reply with quote

Thrasher22 Wrote:
Quote:
I had a couple spray cans of sage green mixed up last week at my local body shop for painting my engine bay. They put the color ratio's on the can in case I needed more, I'll post a photo when I get home if that helps...


That could really help me out man, if you still have it. I did get in contact with Automotive Touchup, and they said they could make me a batch of Sage Green, but it is rather pricey.

Thrasher22 Wrote:
Quote:
If you're painting the outside of the bus, I would spray can it though, you'll need a TON of cans and have worse quality paint. Do some research on turbine HVLP guns if you don't have a compressor. That's what I used and it was okay.


I planned on just using spray cans for the primer layer. I do have a small compressor, but it does power the HVLP guns for short periods of time. I don't have any spray gun at the moment, but I may go buy one, since I am using a ton of primer rattle cans.

When I actually shoot the base coat (If I decide to spray myself) I'm going to go out and rent a big, proper, air compressor. I have a local place that rents them for about $100 a day, which is pretty good. I'll just have to invest in a decent gun, the last HVLP gun i had was purchased from Harbor Freight for like $30, and it sucked. Haha

This weekend I started work on the passanger side rockers. They were pretty bad, not as bad as the drivers side, but still bad. Here's the lovely rust:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Yep, pretty bad. I have all the new metal, just have to rip out all the bad. Started with the jack points. Here's the fronts:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


The old jack point vs. the new one:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


The rest of the metal was really rotted as well, any welding to it would blow it apart. New metal would be needed.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Much better! The rear jack point was actually in better shape, but still needed replacing. I'll have to post pictures later, I have to get them developed at the 1 hour photo hut. Haha, jk. Wonder if those places even exist any more. lol. But, I will post pics later. Have a good week everyone!

-Smitty
Back to top
View user's profile Send private message Gallery Classifieds Feedback
smitty1976bus
Samba Member


Joined: January 21, 2013
Posts: 251
Location: Wareham, MA
smitty1976bus is offline

PostPosted: Sun Jul 31, 2016 7:46 pm    Post subject: Re: My 1978 Big Sage Green Giant Westy Build! Lots of Pictures! Reply with quote

Started the work on the rear jack point; was way to rotted to save, so just cut it all out:
Image may have been reduced in size. Click image to view fullscreen.

Then the new one went in:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Just about everything in this area was rotted beyond saving. I had to cut most of it out. I did leave the inner rocker, my plan is to just add good metal to the little bits left to the rocker. After my experience with the drivers side inner rocker panel, and having it suck so much (finding all the spot welds, and prying it away from all those top hat braces), I didn't want to go through that again. Anyways, I cut most of the rockers away:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


All the remaining metal was cleaned up and prepped for the middle rocker panel to be installed:

Image may have been reduced in size. Click image to view fullscreen.


The top half of the middle rocker was going to tough to reach with a welder, so I used some epoxy and JB weld to bond the two.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


After the epoxy cured, the two pieces were welded together. I did have to cut the middle rocker into a couple parts, due to the old rockers (the one still on the bus) has a smooth curve to it, and the new rocker has ridged angles; so the two wouldn't sit flush. I had to cut the new pieces and bend it until it had the right shape, then in it went:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Next was the outer rocker panel. I used the same basic method, epoxy on top, just to give a clean flush look; that and some spot welds:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


And the bottom welded to the middle rocker:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Now, the inner rocker was next. Since I didn't have a new one, and the fact I kept most of the old one on the bus, I had to cut a new one form sheet metal. I don't have any training in metal work, and have never practiced this amazing artform, so I tried the best I could. I didn't take a picture of my creation before installing, but here it is on the bus:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


It's not the prettiest thing in the world, but it'll do... I guess. Next I wanted to seal it all up, just so no moisture gets inside the rockers:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


After that was done, I cleaned up the rest of the undercarriage, in the area, then prepped it for some primer. Once the primer was sprayed, then dry, I sprayed on some undercoating.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Thankfully that portion of the rockers and undercarriage is done with, because it was horrible to do. I was in the sand, in 85 degree heat with a million percent humidity, under a bus working in an area no taller than a foot. My arms and clothes are covers in burns from welding, haha. Oh well, it's done. I'll look back it and laugh one day.

There's still a ton of things to do in that area of the bus before I can get back to paint stripping and priming. The floors are a mess:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


The fun never ends; till next week end!

-Smitty
Back to top
View user's profile Send private message Gallery Classifieds Feedback
smitty1976bus
Samba Member


Joined: January 21, 2013
Posts: 251
Location: Wareham, MA
smitty1976bus is offline

PostPosted: Sat Aug 06, 2016 11:08 am    Post subject: Re: My 1978 Big Sage Green Giant Westy Build! Lots of Pictures! Reply with quote

Jumped back into stripping paint. Onto the passenger side panels:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Love it when the paint bubbles up, ha. Here it is down to the metal, or mostly metal:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Still have plenty to repair

Stipped the paint off the drivers side rear quarters and rear lower panel as well. There is a ton of body work that needs to be done. There's also evidence of prior body work being done. This bus could have been in a few accidents in its life:




Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


As you can see, lots of bondo, lots of hammered metal , and lots of rust. Goody!

Does anyone know of an easy, well relativly easy, way to remove the paint from inside the cool air inlet ducts?

Image may have been reduced in size. Click image to view fullscreen.


This part is going to be tricky....

-Smitty
Back to top
View user's profile Send private message Gallery Classifieds Feedback
smitty1976bus
Samba Member


Joined: January 21, 2013
Posts: 251
Location: Wareham, MA
smitty1976bus is offline

PostPosted: Sun Aug 21, 2016 7:36 pm    Post subject: Re: My 1978 Big Sage Green Giant Westy Build! Lots of Pictures! Reply with quote

Finally a weekend when I dont have to work and it's not raining out, ha. Tried to do as much as I could. I started with the cool air inlet ducts, and stripping the paint inside of them. Not sure of the best way to do this, so a lot of chemical stripper was sprayed into duct. Once the paint bubbled up, I tried to brush it away:

Image may have been reduced in size. Click image to view fullscreen.

What it started off like ^^^

Image may have been reduced in size. Click image to view fullscreen.

The chemical peeler was working, I just needed something to scrap all the paint away with. I tried just taping a scrapper to a steel rod:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

It didn't work all to well. Way too flimsy. I ended up fabbing up a metal scrapper:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

It was a crude tool, but it did the trick!

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

I managed to get most of the paint off the ducts. I then tried to prep for primer the best I could, then sprayed it on:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

It wasn't as bad as I thought it was going to be. Guess I should just shoot some Sage Green on and be done with it:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

It actually came out pretty good, I was very happy with it. Now I can cover it up and forget about that part of the bus. I don't want to spray any primer or anything else on it, while I'm doing body work on the rest of the bus.

As you can probably tell, I found some Sage Green (L63H) paint. I talked with Automotive Touch Up and they mixed me up a nice batch, and the color is absolutely perfect. This company is awesome, they match the color perfect (as far as I can tell, I am little color blind though, haha) and their prices are very reasonable.

Ok, I also primed up the passenger side rear side panel, but forgot to take a picture of the final product, but here it is all prepped for primer:

Image may have been reduced in size. Click image to view fullscreen.


While I was doing the body work on the rear of the bus, I removed the engine bay door, and stripped it, bondo'd it up, sanded it, then primed it. And it was in really rough shape.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


The drivers side rear quarter was in really really reallyyyy rough shape, as you saw in my last post. I tried to fix it, but it isn't coming out too well. One area was near the fender, it was all rusted away. So I had to cut the rust out, and weld in a new piece. This came out ok:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Then the rear panel, below the engine bay, was totally destroyed, so that needed new metal and a lot of bondo:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


But the area around the tail light was a nightmare, one of the previous owners drilled a ton of holes around it (around the entire quarter panel actually), and I couldn't hammer them flat, and couldn't bondo them up. Seems like they must have used one of those hammer out body working tools to fix some dents; but they did a horrible job. So I tried to get it back to its normal shape:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


After all that, here's what the quarter looks like:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


I was hoping to take my time painting, but it turned out I had some thunderstorms coming my way, so I rushed to paint before I got any rain. I masked and prepped everything, and started spraying; and of course I'm low on primer. Luckily I sprayed mostly everything I needed to, I could go for another coat or two, but I'll have to wait for another day. Here's how it came out:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


One thing about primer, it will show you every single imperfection in your body work; and it was showing me a lot. I'm going to have to sand a lot more, and maybe spread some more bondo. I'm thinking the area around the taillights should be good, the actual taillights should hide everything. If it doesn't, I may have to buy a new skin... Don't want to do that.

Another area of the bus down, onto the next one. My lack of automotive body working skills is starting to become frustrating. I may just do all I can, then have a professional look at it and do some work on it. We'll see. I just can't wait to drive it!

-Smitty
Back to top
View user's profile Send private message Gallery Classifieds Feedback
notchboy
Samba Member


Joined: April 27, 2002
Posts: 17754
Location: Escondido CA
notchboy is offline

PostPosted: Sun Aug 21, 2016 9:19 pm    Post subject: Re: My 1978 Big Sage Green Giant Westy Build! Lots of Pictures! Reply with quote

DAYUM Shocked
_________________
t3kg wrote:

OK, this thread is over. You win.

Jason "notchboy" Weigel
1964 1500 S
1964 T34 S Convertible
1974 Westfalia Hardtop Campmobile
1977 Westfalia Camper pop-top
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
oscarsnapkin
Samba Member


Joined: October 22, 2013
Posts: 265
Location: Bucks County, PA
oscarsnapkin is offline

PostPosted: Mon Aug 22, 2016 2:48 am    Post subject: Re: My 1978 Big Sage Green Giant Westy Build! Lots of Pictures! Reply with quote

Man, you're brave. I always like seeing the pictures of rust repair. It makes you realize that all these things are is a bunch of metal panels that fit together like a giant puzzle. Keep up the great work.
_________________
- 1977 CEI Sunroof Bus 2.0L F.I.

"It's the same mysterious exotic oriental fragrance as what The Beatles get off on."
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Bay Window Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3 ... 10, 11, 12  Next
Jump to:
Page 1 of 12


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2018, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
