Syncro Tool - Front Axle press (trail tool)

[Sodo]

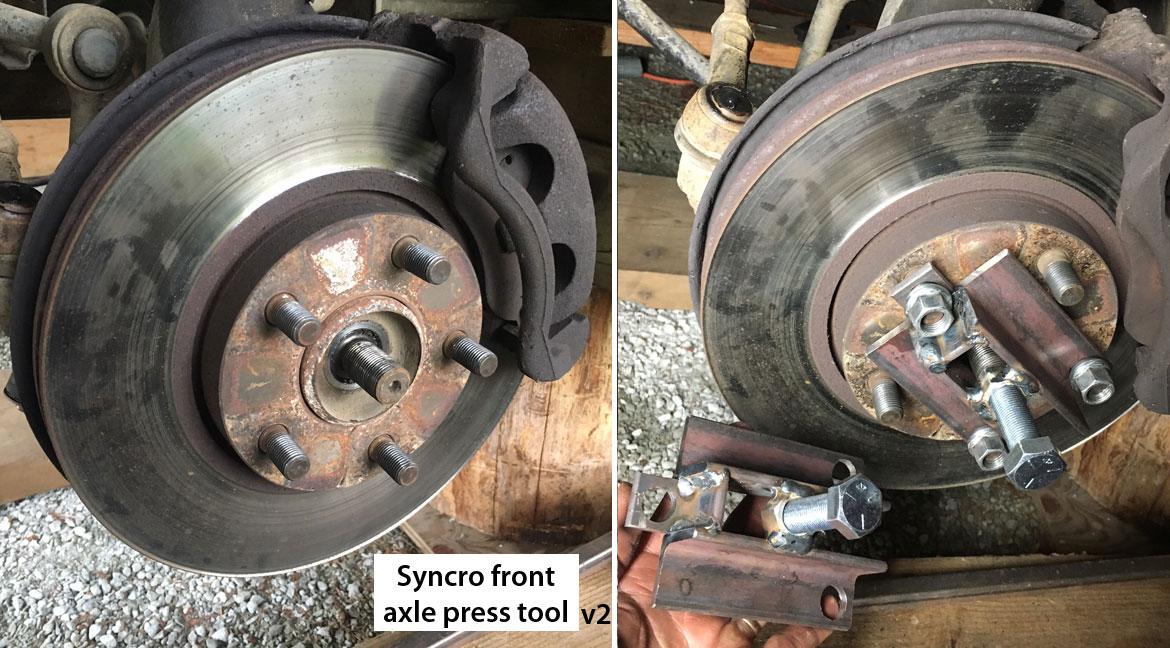

Well there ya have it folks. A tool to press the front axle out in the shop that's small enough for your toybox in the van. Now you can glue the axle in in with the D6 compound that Bentley recommends (pg 40.18 ). If carrying a tool like this, you can change axles out in the boonies or in your driveway.

One for me, one for my Doctor.

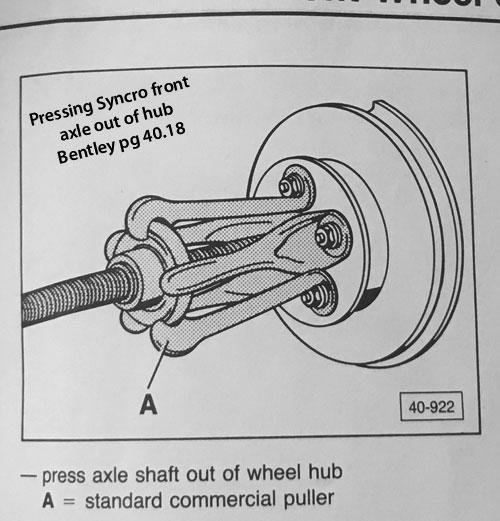

Here's the Bentley manual's method. It's a "standard tool".

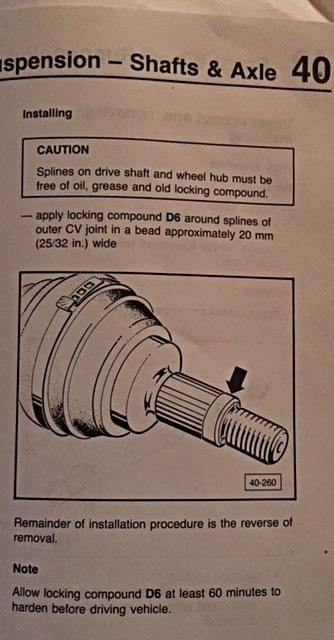

Here's where Bentley recommends a 25/32" band of D6 Compound on the splines. Many syncro owners don't use the locking compound because it seems unnecessary - AND - if they bust a front axle out in the woods, prefer NOT to hammer the wheel bearings to get the axle out. Fair enough!

But I had an axle come loose, which destroyed the hub, possibly the bearing, and it certainly caused a lot "fretting". I'm inclined to use the locking compound this time so I made this little tool to press the axle out.

Anyway that's how it can be done if a guy has a shop and can build tools.
Here's another homemade Syncro tool: Syncro Lower Ball joint puller (on-car) Home made tool

Hope it helps to see pics of it being done on theSamba.
_________________
