PostPosted: Thu Jan 19, 2017 3:43 pm    Post subject: Syncro Lower Ball joint puller (on-car) Home made tool Reply with quote

I made another tool. It pushes the Lower Ball Joint out (LBJ) of a Syncro with the cast arms.
I don't know if it will fit the "other" style of Syncro LCA.
I don't know if it will fit the 2WD. EDIT: Does NOT fit 2WD

Image may have been reduced in size. Click image to view fullscreen.

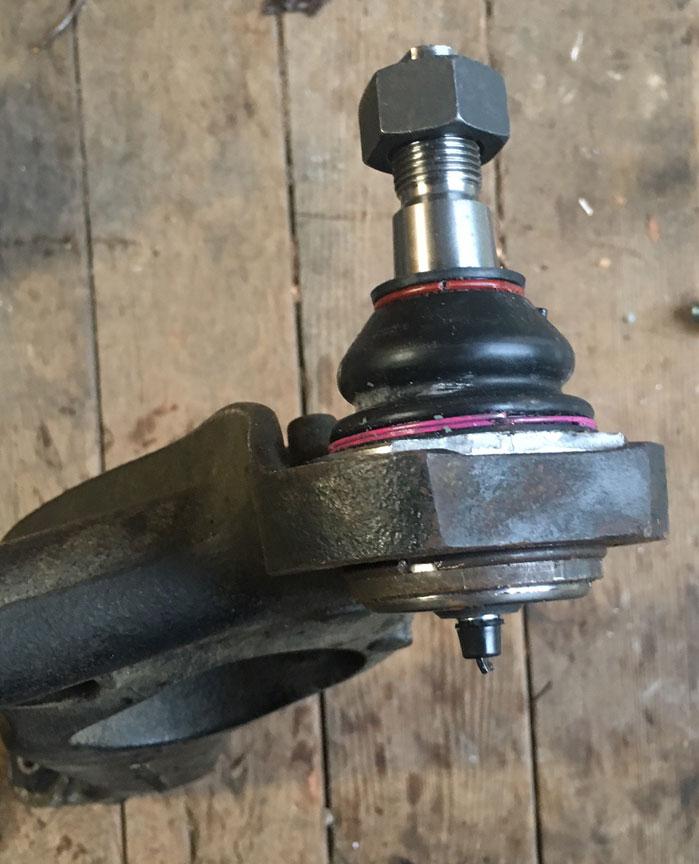

Spray area with penetrating oil prior. Several days prior is best. Pry off this circlip & don't lose it. New LBJs do not include this clip, and I hear they are NLA.

Image may have been reduced in size. Click image to view fullscreen.

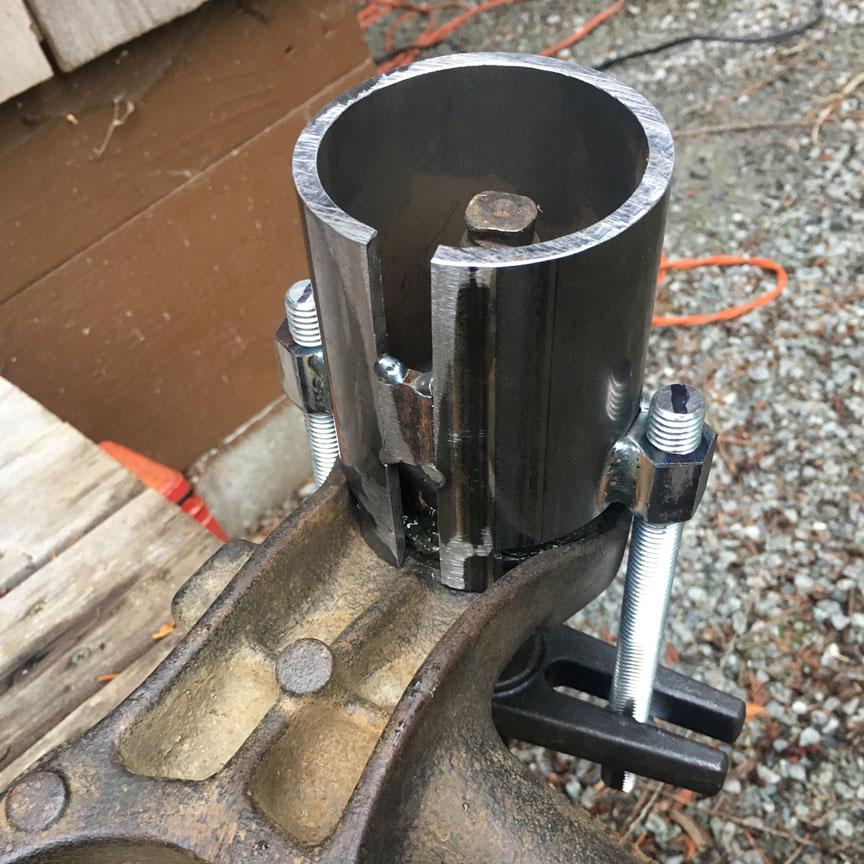

Ready to push. Tool fits on the (cast version, 1990 Syncro) Lower Control Arm (LCA) with the arm installed on the van. I don't know if it fits the stamped/welded version. I don't know if it fits the 2wd LCA.

Image may have been reduced in size. Click image to view fullscreen.


View from the underside (cast LCA, 1990).

Image may have been reduced in size. Click image to view fullscreen.


It's made from a 2 1/2" schedule40 pipe.
Slit, and spread about 0.4" by poundijng a chisel into the gap. It results in an OD appx 3 1/16".
A "plug" welded into the slit holds it apart at the 3 1/16" diameter.

There are some cutaways to clear the ribs in the underside of the cast Syncro Lower Control Arm (LCA).

Image may have been reduced in size. Click image to view fullscreen.

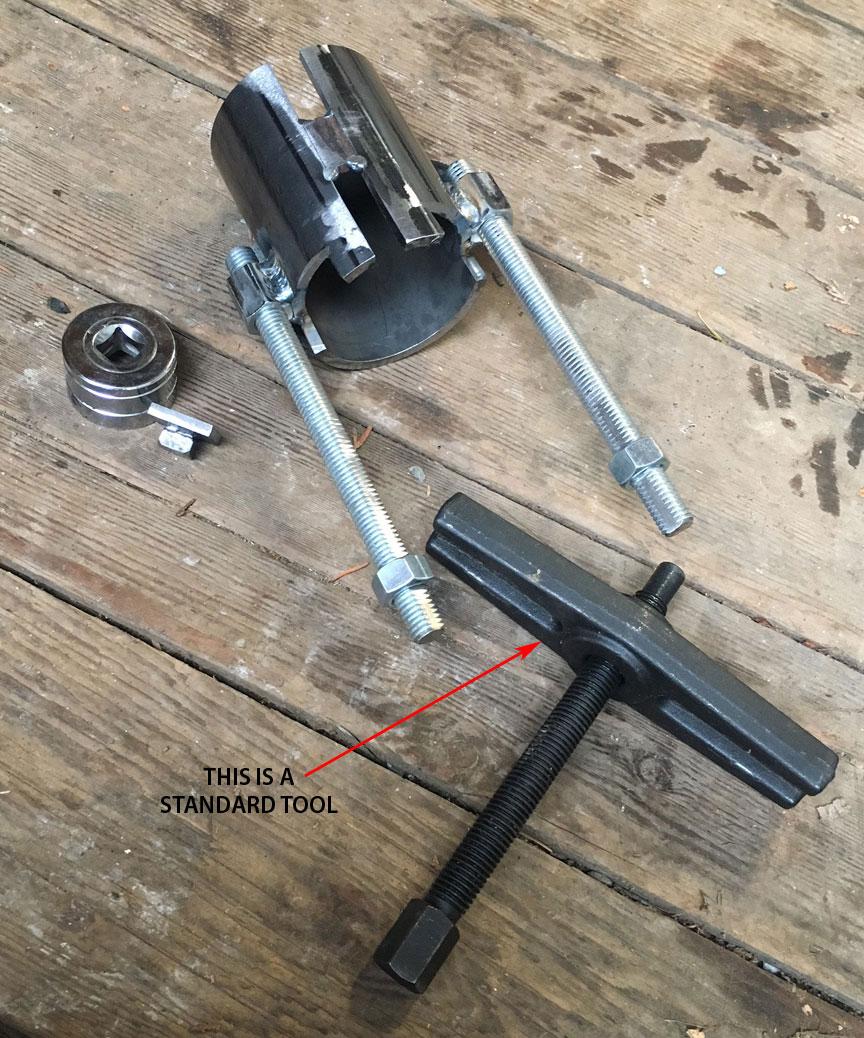

"Standard Tool" is part of this Harbor Freight Bearing puller set.

======= INSTALLING THE NEW BALL JOINT ========

Image may have been reduced in size. Click image to view fullscreen.


A 3 1/2" section of 2 inch electrical conduit.

Image may have been reduced in size. Click image to view fullscreen.


Tightening the (greased) nuts pushing the conduit down, pressing the balljoint into its bore

Image may have been reduced in size. Click image to view fullscreen.


Ready to go! Grease zerk modification is described in THIS THREAD.

Image may have been reduced in size. Click image to view fullscreen.


Incidentally, it also fits in this location as a bushing to press the Syncro Front Wheel bearing out. You will need other components (all-thread rod & spacers etc) to push the bearing out but this is your bushing.

Anyway that's how it can be done if a guy has a shop and can build tools. Here's another homemade Syncro tool: Syncro Tool - Front Axle press (trail tool)
There are lots of ways to build this tool, and if you see pics of one way it helps to understand. And then you can decide how to do it 'your way'. Wink Hope it helps.
