PostPosted: Wed Feb 22, 2017 9:17 am    Post subject: Down the rabbit hole -- 2276 MS3X Turbo build Reply with quote

Thought I'd start my very own build thread cause I'm that excited about it.

This is my first adventure with a turbo -- advice is always welcomed.

I've been planning this for a while, its exciting to see it starting to come together.

I'm trying to size everything so I can eventually use it with E85.


I'll try and keep things updated as I work on it.

Build Specs:

-AS41 mag case, std bore & thrust
-AA 4340 crank
-5.400 h beams w/ ARP2000 bolts
-ACN Squishies
-Web Cams 86b
-Steve Tims' Stage 2 heads, 59cc chambers
-Udo tool steel lifters
-8740 8mm head studs
-total seal gapless 2nd rings


-T3/T4 turbo from Shag, .48 ar
-TiAL 38mm wastegate
-Turbosmart Vee Port PRO blow off valve
-CB's hideaway header

-FiveO motor sports black ops 1000cc injectors
-CB's high flow injected manifolds (matched by Steve Tims & Co)
-intake and intercooler still to be worked out
-single throttle body -- prolly 50mm.

-MS3X ecu
-LS2 coils
-Mario's cam sync
-a whole grip of sensors


Here my 74 super
Image may have been reduced in size. Click image to view fullscreen.

_________________
1985 Vanagon Campmobile w/ 2005 EJ253 SOHC
Turbo 2276 MS3X build http://www.thesamba.com/vw/forum/viewtopic.php?t=673125


Last edited by theDrew on Wed Feb 22, 2017 2:19 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
theDrew
Samba Member


Joined: May 17, 2011
Posts: 1111
Location: Camas, WA
theDrew is offline

PostPosted: Wed Feb 22, 2017 9:23 am    Post subject: Re: Down the rabbit hole -- 2276 MS3X Turbo build Reply with quote

my case back from the parts washer:
Image may have been reduced in size. Click image to view fullscreen.


measuring main bearings
main bearing clearances are .0020 - 0.0025
Image may have been reduced in size. Click image to view fullscreen.


after everything is back from being balanced, cleaning and assembling
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

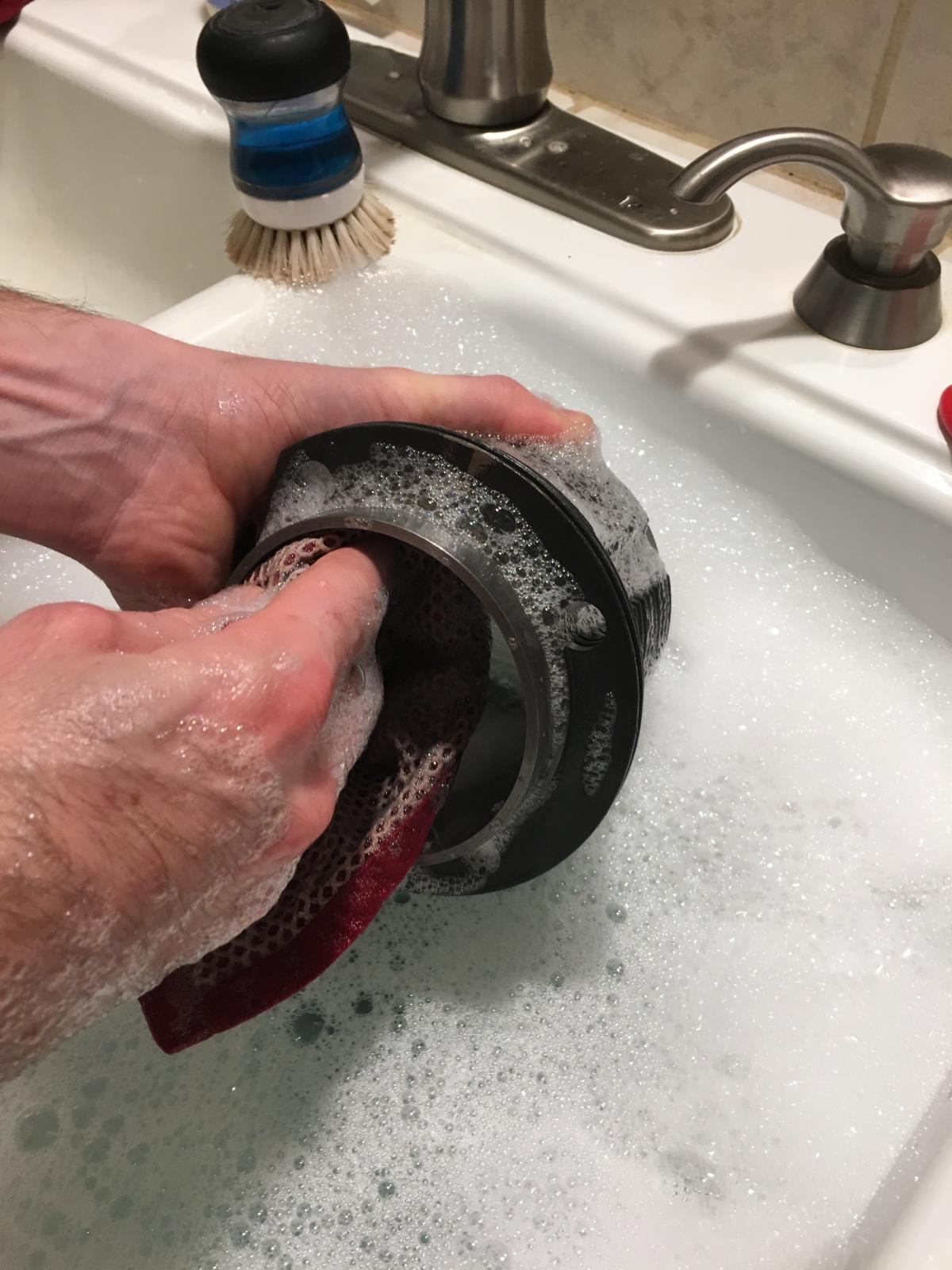

cleaning cylinders over and over and over
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
1985 Vanagon Campmobile w/ 2005 EJ253 SOHC
Turbo 2276 MS3X build http://www.thesamba.com/vw/forum/viewtopic.php?t=673125


Last edited by theDrew on Wed Feb 22, 2017 9:40 am; edited 3 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
theDrew
Samba Member


Joined: May 17, 2011
Posts: 1111
Location: Camas, WA
theDrew is offline

PostPosted: Wed Feb 22, 2017 9:29 am    Post subject: Re: Down the rabbit hole -- 2276 MS3X Turbo build Reply with quote

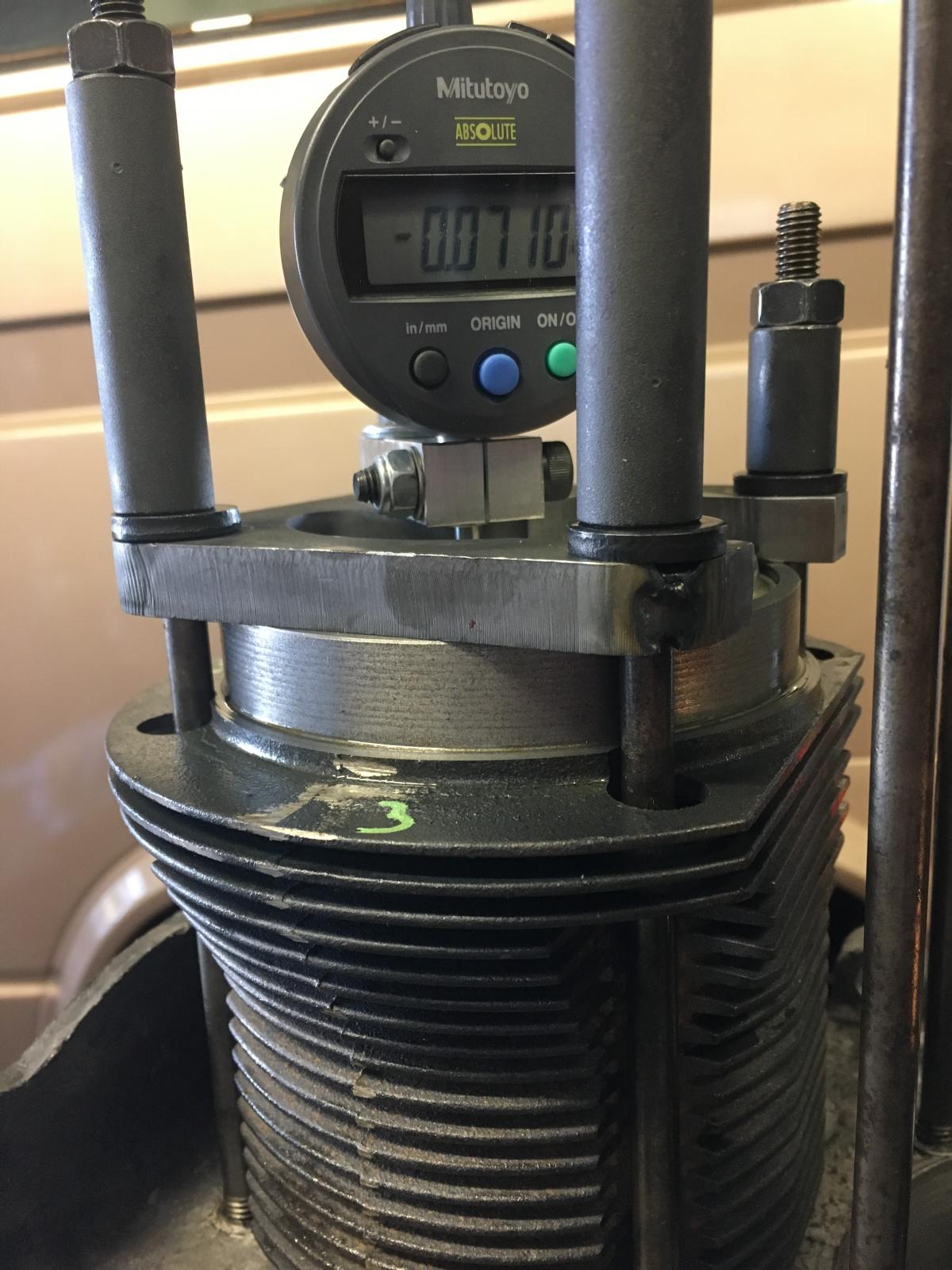

Mocking things up and setting my DH.

With my heads being 59cc, I have to run a bit bigger DH than I'd like.

With the squishes having the 4.3cc hump on it, it makes things a bit interesting, my deck height tool is cut up to accomidate it.

After consulting John @ ACN, I'm shooting for a .070 dh, which puts my static compression at 9.4:1

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
1985 Vanagon Campmobile w/ 2005 EJ253 SOHC
Turbo 2276 MS3X build http://www.thesamba.com/vw/forum/viewtopic.php?t=673125
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jfats808
Samba Member


Joined: December 10, 2007
Posts: 5006
Location: oahu hawaii
jfats808 is offline

PostPosted: Wed Feb 22, 2017 12:02 pm    Post subject: Re: Down the rabbit hole -- 2276 MS3X Turbo build Reply with quote

I hope john doesn't consider the picture part of the NDA. Although it's obscured by the plate and dial. You may want to remove it asap.
_________________
2276 IDA's 86C 11-1 DD !
2017 48 Trijet DRLA's W125

Rockstar Suzuki wrote:

You might as well put 10 year build in your bullshit sig, as it will NEVER run. Also your a dick

You can always learn something new, even from a fool.
Check your oil levels routinely!

http://s187.photobucket.com/user/jkanimal/library/
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
theDrew
Samba Member


Joined: May 17, 2011
Posts: 1111
Location: Camas, WA
theDrew is offline

PostPosted: Wed Feb 22, 2017 12:06 pm    Post subject: Re: Down the rabbit hole -- 2276 MS3X Turbo build Reply with quote

jfats808 wrote:
I hope john doesn't consider the picture part of the NDA. Although it's obscured by the plate and dial. You may want to remove it asap.


the tops are obscured and and I'm really not trying to violate anything
_________________
1985 Vanagon Campmobile w/ 2005 EJ253 SOHC
Turbo 2276 MS3X build http://www.thesamba.com/vw/forum/viewtopic.php?t=673125
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jason
Samba Member


Joined: August 07, 2002
Posts: 3152
Location: Garage
jason is offline

PostPosted: Wed Feb 22, 2017 12:32 pm    Post subject: Re: Down the rabbit hole -- 2276 MS3X Turbo build Reply with quote

Does he still bother? I didnt get one or sign anything with mine. Not saying its alright either.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
UK Luke 72
Samba Member


Joined: September 07, 2011
Posts: 1544
Location: Little Britain
UK Luke 72 is offline

PostPosted: Wed Feb 22, 2017 12:44 pm    Post subject: Re: Down the rabbit hole -- 2276 MS3X Turbo build Reply with quote

Following this Very Happy
What exactly is under the NDA? Just the outline? the angle of the hump? The CCs are widely known, I don't see what he can actually do other than legally protect the name (super-squish)... If EMPI started leaving a dome on the piston that was kind a around 4.3cc and kinda sloped toward the ex side of the chamber not saying it'd be as good as johns but...

Onto bearing clearances is that measure with the bore gauge or Plastigauge?
How come you aren't going for a turbo specific cam grind?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
theDrew
Samba Member


Joined: May 17, 2011
Posts: 1111
Location: Camas, WA
theDrew is offline

PostPosted: Wed Feb 22, 2017 2:02 pm    Post subject: Re: Down the rabbit hole -- 2276 MS3X Turbo build Reply with quote

UK Luke 72 wrote:

Onto bearing clearances is that measure with the bore gauge or Plastigauge?
How come you aren't going for a turbo specific cam grind?


bore gauge

I'm using the mentality that any NA grind will be even better under boost.
_________________
1985 Vanagon Campmobile w/ 2005 EJ253 SOHC
Turbo 2276 MS3X build http://www.thesamba.com/vw/forum/viewtopic.php?t=673125
Back to top
View user's profile Send private message Gallery Classifieds Feedback
theDrew
Samba Member


Joined: May 17, 2011
Posts: 1111
Location: Camas, WA
theDrew is offline

PostPosted: Wed Feb 22, 2017 2:30 pm    Post subject: Re: Down the rabbit hole -- 2276 MS3X Turbo build Reply with quote

few more measurements i'll add:

using total seal gapless 2nd rings

using their guidance, gaped the rings to 0.021
(up to 15lbs = 3.70079in x 0.0055 = 0.0203)

rod side play was 0.010 - 0.011
_________________
1985 Vanagon Campmobile w/ 2005 EJ253 SOHC
Turbo 2276 MS3X build http://www.thesamba.com/vw/forum/viewtopic.php?t=673125
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Dauz
Samba Member


Joined: January 05, 2010
Posts: 1245
Location: San Marcos
Dauz is offline

PostPosted: Wed Feb 22, 2017 4:33 pm    Post subject: Re: Down the rabbit hole -- 2276 MS3X Turbo build Reply with quote

Good luck!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
esde
Samba Member


Joined: October 20, 2007
Posts: 4246
Location: central rust belt
esde is offline

PostPosted: Wed Feb 22, 2017 6:28 pm    Post subject: Re: Down the rabbit hole -- 2276 MS3X Turbo build Reply with quote

I will be watching this, as I am working on a 2232 efi turbo build. Undecided on a header and turbo at this point. Having SL prep a turbo and making the header myself is most likely at this point.
Are those the "thick" 94 cylinders?
_________________
modok wrote:
Bent cranks are silent but gather no moss. I mean, ah, something like that.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
theDrew
Samba Member


Joined: May 17, 2011
Posts: 1111
Location: Camas, WA
theDrew is offline

PostPosted: Thu Feb 23, 2017 9:29 am    Post subject: Re: Down the rabbit hole -- 2276 MS3X Turbo build Reply with quote

Got the block together last night. I'd put it together and taken it apart so many times its nice to finally declare it done.

some highlights:

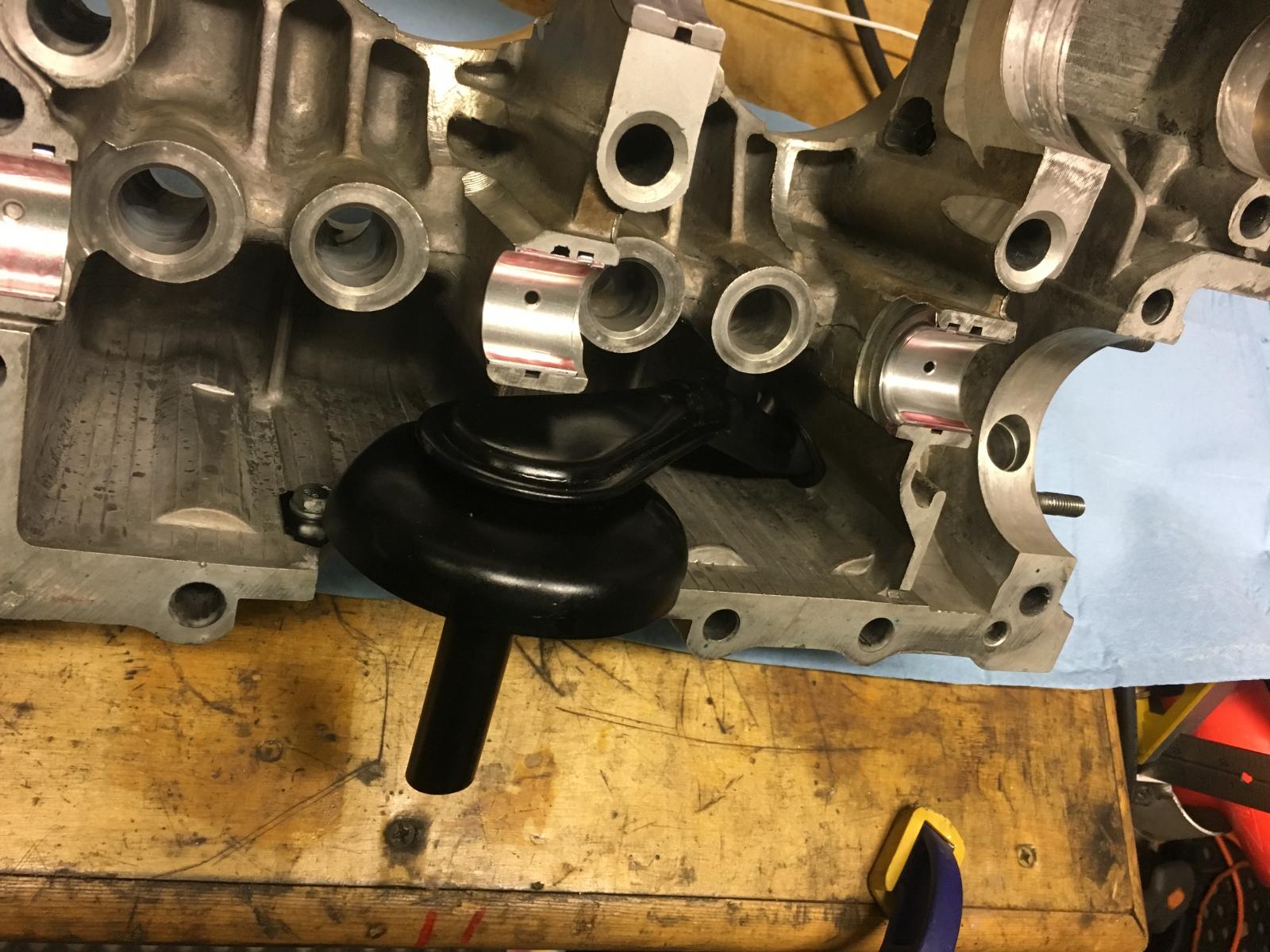

CB's max-flow pickup
Image may have been reduced in size. Click image to view fullscreen.


went over the all the edges on the cam with a smooth file
Image may have been reduced in size. Click image to view fullscreen.

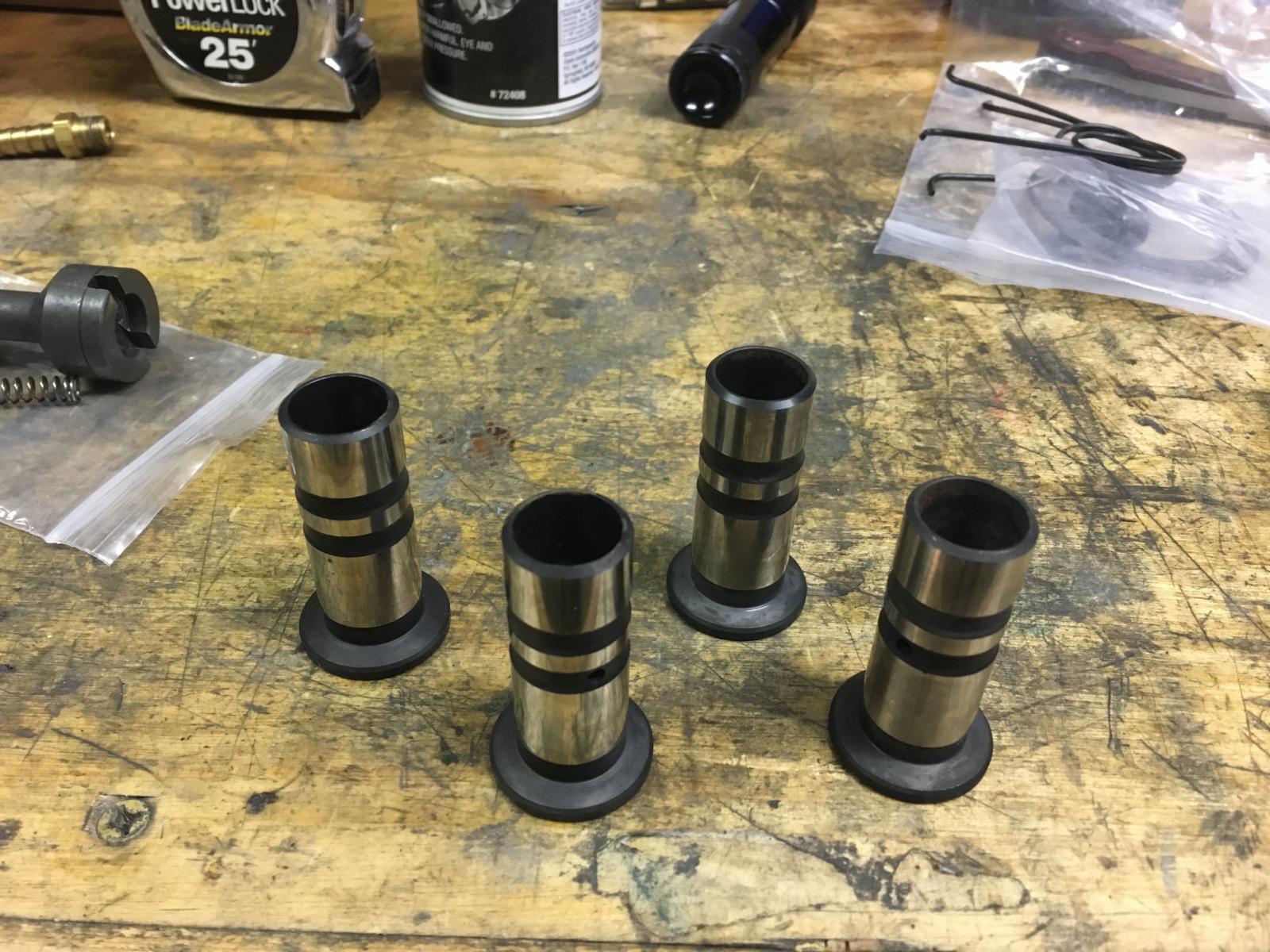

udo becker tool steel lifters
Image may have been reduced in size. Click image to view fullscreen.


CB's pro series straight cut cam gear, running straight up
Image may have been reduced in size. Click image to view fullscreen.


last look at the internals
Image may have been reduced in size. Click image to view fullscreen.


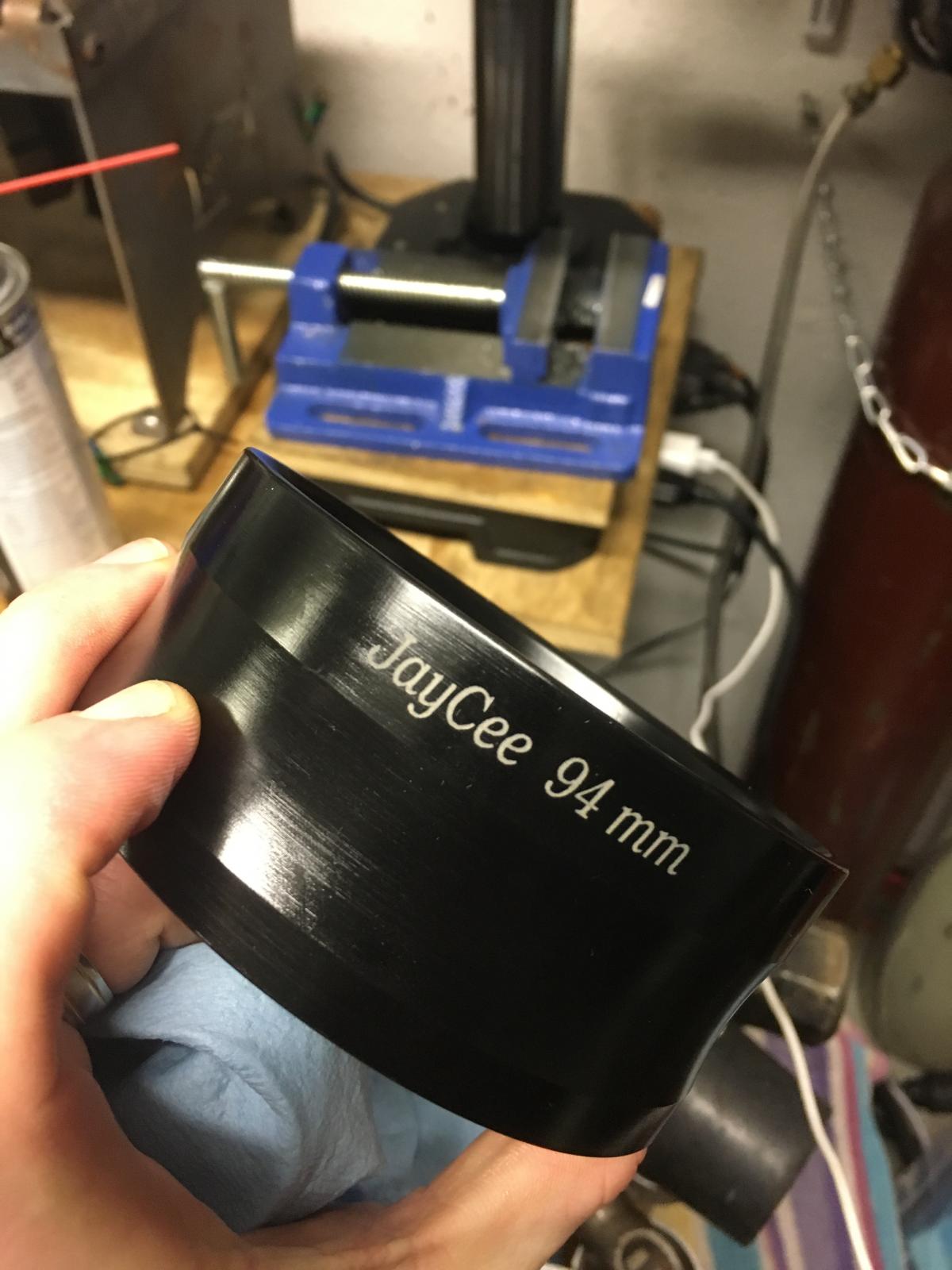

get yourself one of these....makes life much easier
Image may have been reduced in size. Click image to view fullscreen.


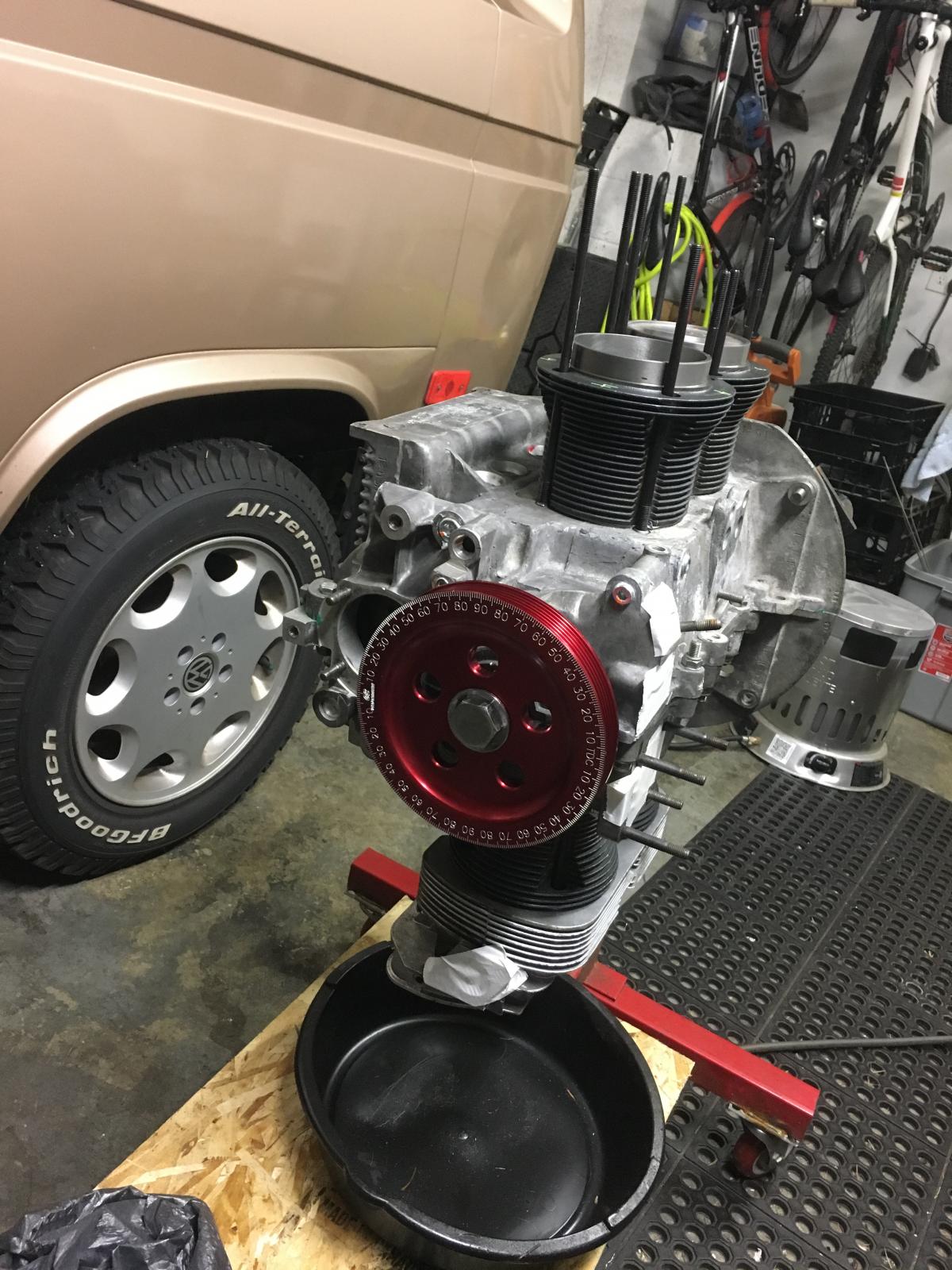

and p&c's in, i clocked all the rings according to total seals guidance
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
1985 Vanagon Campmobile w/ 2005 EJ253 SOHC
Turbo 2276 MS3X build http://www.thesamba.com/vw/forum/viewtopic.php?t=673125
Back to top
View user's profile Send private message Gallery Classifieds Feedback
theDrew
Samba Member


Joined: May 17, 2011
Posts: 1111
Location: Camas, WA
theDrew is offline

PostPosted: Thu Feb 23, 2017 9:47 am    Post subject: Re: Down the rabbit hole -- 2276 MS3X Turbo build Reply with quote

esde wrote:
I will be watching this, as I am working on a 2232 efi turbo build. Undecided on a header and turbo at this point. Having SL prep a turbo and making the header myself is most likely at this point.
Are those the "thick" 94 cylinders?


talk with Shag, he's helpful and extremely knowledgable.

no, standard thickness 94's. Either here or STF's someone was saying the standard AA cylinders are good up till about 300hp, which is higher than what I'm shooting for.
_________________
1985 Vanagon Campmobile w/ 2005 EJ253 SOHC
Turbo 2276 MS3X build http://www.thesamba.com/vw/forum/viewtopic.php?t=673125
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bpritchert87
The Idea Man


Joined: February 26, 2007
Posts: 1507
Location: Wisconsin
bpritchert87 is offline

PostPosted: Thu Feb 23, 2017 11:01 am    Post subject: Re: Down the rabbit hole -- 2276 MS3X Turbo build Reply with quote

Drew,

Love the build! Definitely will be following.

Two quick questions, Did the heads have to be setup
any differently for a turbo build?

I thought I read somewhere that turbos will eat up the
valve guides or something about how heads need to be
setup for turbos (of course lower compression/larger chambers)
but did not know if anything else had to be changed..

Also how was your last build performance wise?
I am looking to run something very very similar and
want to understand how yours ran before..

Thanks!
_________________
Knowledge is Power Read and Learn !!!

The Intelligence of a Man should not be measured by his age....


check out my sand rover t bug build! http://www.thesamba.com/vw/forum/viewtopic.php?t=287204
Back to top
View user's profile Send private message Gallery Classifieds Feedback
theDrew
Samba Member


Joined: May 17, 2011
Posts: 1111
Location: Camas, WA
theDrew is offline

PostPosted: Thu Feb 23, 2017 11:07 am    Post subject: Re: Down the rabbit hole -- 2276 MS3X Turbo build Reply with quote

bpritchert87 wrote:
Drew,

Two quick questions, Did the heads have to be setup
any differently for a turbo build?



no idea -- I'm not doing anything different other than lowering the CR

bpritchert87 wrote:

Also how was your last build performance wise?
I am looking to run something very very similar and
want to understand how yours ran before..


it ripped, I loved it... I ran around with it NA for 3yrs, I want more and love a challange, so here we are.
_________________
1985 Vanagon Campmobile w/ 2005 EJ253 SOHC
Turbo 2276 MS3X build http://www.thesamba.com/vw/forum/viewtopic.php?t=673125
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Dauz
Samba Member


Joined: January 05, 2010
Posts: 1245
Location: San Marcos
Dauz is offline

PostPosted: Thu Feb 23, 2017 1:17 pm    Post subject: Re: Down the rabbit hole -- 2276 MS3X Turbo build Reply with quote

theDrew wrote:
esde wrote:
I will be watching this, as I am working on a 2232 efi turbo build. Undecided on a header and turbo at this point. Having SL prep a turbo and making the header myself is most likely at this point.
Are those the "thick" 94 cylinders?


talk with Shag, he's helpful and extremely knowledgable.

no, standard thickness 94's. Either here or STF's someone was saying the standard AA cylinders are good up till about 300hp, which is higher than what I'm shooting for.


Agreed. I know where he gets his turbochargers built. Of whom will just sell you the turbos and parts. Shag will actually recommend what wheel specs, compressor housing, and turbine to go with based on your specific application. All without marking up the price of the unit.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jason
Samba Member


Joined: August 07, 2002
Posts: 3152
Location: Garage
jason is offline

PostPosted: Thu Feb 23, 2017 2:15 pm    Post subject: Re: Down the rabbit hole -- 2276 MS3X Turbo build Reply with quote

I like to put the oil pump in before torqing, just me. Did you check those cam gears for run out and lash? Mine were so far off it wasn't funny. Like your hidden trigger.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
theDrew
Samba Member


Joined: May 17, 2011
Posts: 1111
Location: Camas, WA
theDrew is offline

PostPosted: Thu Feb 23, 2017 4:00 pm    Post subject: Re: Down the rabbit hole -- 2276 MS3X Turbo build Reply with quote

i checked the cam end play a while back, it was spec, I can't remember what it was.

i couldn't feel any lash, but I didn't actually measure it.

my old AA straight gear set had lash I could feel, so I took this as improvement Smile
_________________
1985 Vanagon Campmobile w/ 2005 EJ253 SOHC
Turbo 2276 MS3X build http://www.thesamba.com/vw/forum/viewtopic.php?t=673125
Back to top
View user's profile Send private message Gallery Classifieds Feedback
theDrew
Samba Member


Joined: May 17, 2011
Posts: 1111
Location: Camas, WA
theDrew is offline

PostPosted: Fri Feb 24, 2017 9:01 am    Post subject: Re: Down the rabbit hole -- 2276 MS3X Turbo build Reply with quote

no work last night, but here's some of the goodies i'm stoked about

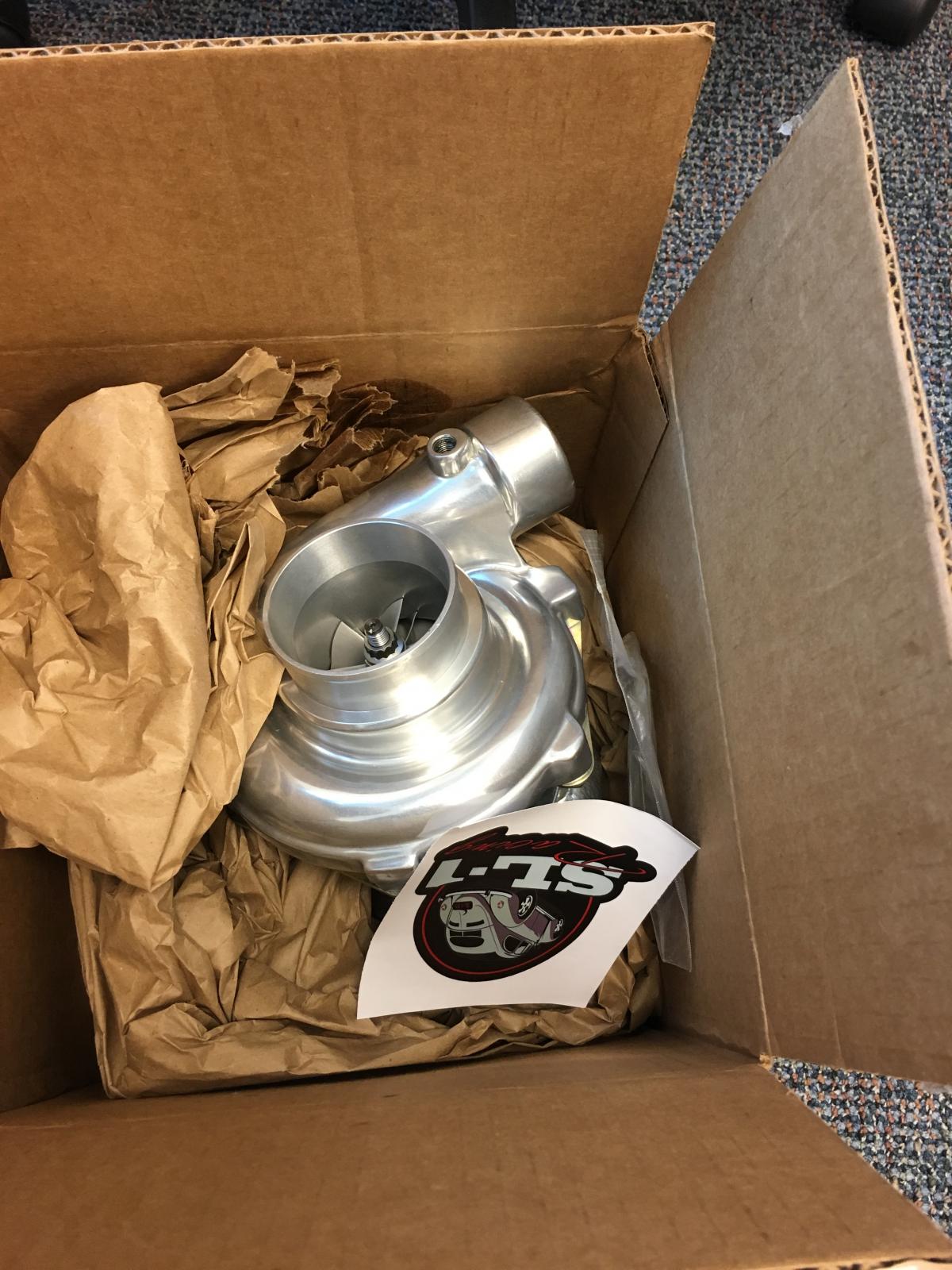

turbo by shag. .48 AR, shag's recommendation since I wont be going over 7k rpm (or for long)
Image may have been reduced in size. Click image to view fullscreen.

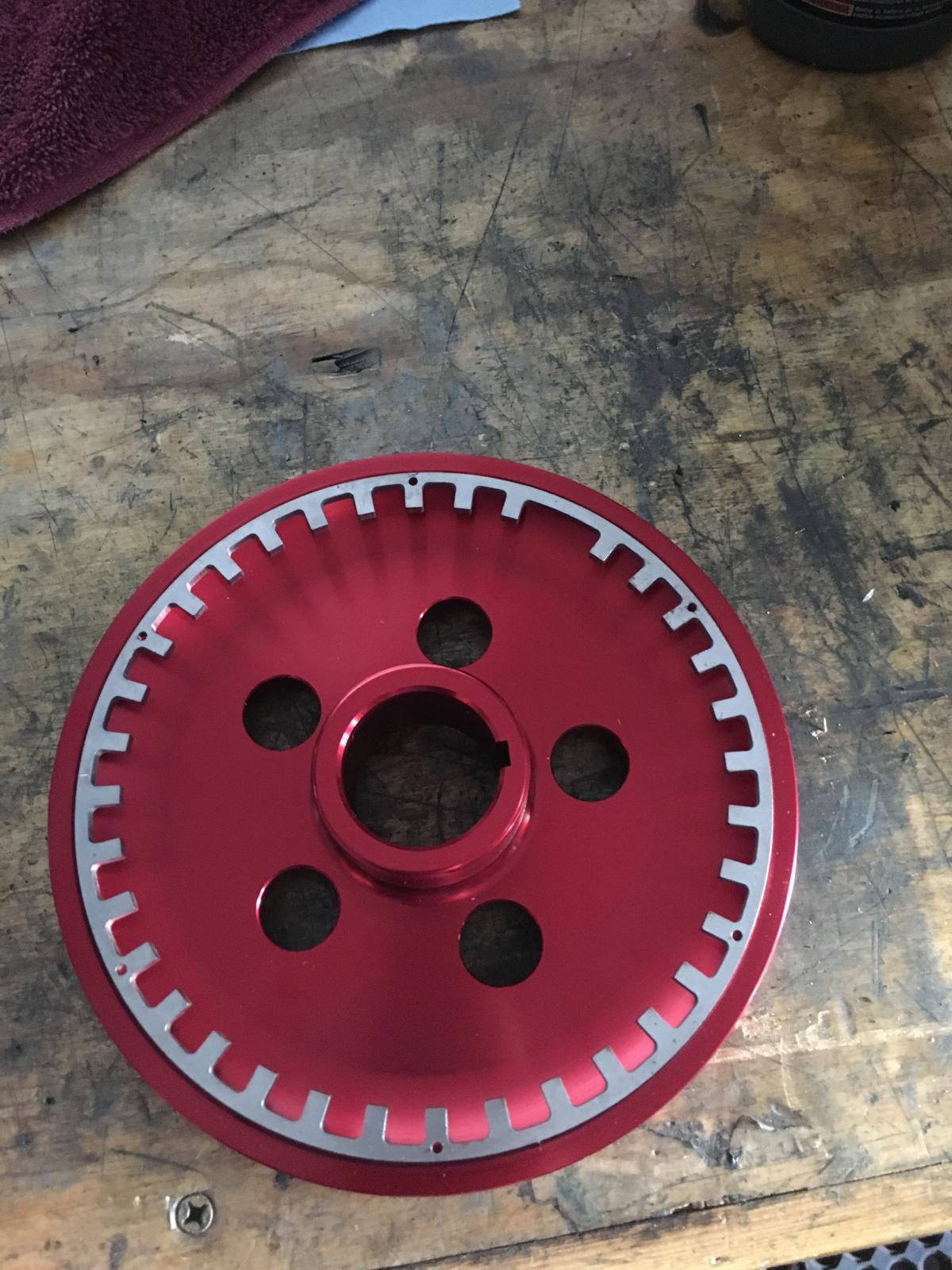

close up of the trigger wheel (from Mario @ dubshop). Some advice, pay him to do the machining. I had to go back to my machine shop 2x to get it just right. CB's serp belt setup.
Image may have been reduced in size. Click image to view fullscreen.


TiAL 38mm wastegate. 7 psi spring in it. I have a boost controller for the MS3 when I'm ready to go higher. I'm a sucker for shiny colored anodized parts
Image may have been reduced in size. Click image to view fullscreen.

_________________
1985 Vanagon Campmobile w/ 2005 EJ253 SOHC
Turbo 2276 MS3X build http://www.thesamba.com/vw/forum/viewtopic.php?t=673125
Back to top
View user's profile Send private message Gallery Classifieds Feedback
67rustavenger Premium Member
Samba Member


Joined: February 24, 2015
Posts: 4639
Location: Hillsboro, Or.
67rustavenger is offline

PostPosted: Fri Feb 24, 2017 11:30 am    Post subject: Re: Down the rabbit hole -- 2276 MS3X Turbo build Reply with quote

Nice build thread. Thanks for this. Though I'll never build something like this, it's interesting to follow along.

Is this beast gonna be ready for the NW Bug Run? I hope so. I'd really like to have a look at your engine.

Keep posting updates.

Good Luck.
_________________
There's never enough time to do it right the first time. But there's always enough time to do it thrice.
GFY's Xevin and VW_Jimbo! Smile
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Performance/Engines/Transmissions All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3 ... 11, 12, 13  Next
Jump to:
Page 1 of 13


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2018, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
