69 road race Ghia rebuild
Page: Previous  1, 2, 3, 4, 5, 6, 7  Next
Forum Index -> Ghia Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
overboost
Samba Member


Joined: June 11, 2021
Posts: 176
Location: Huntersville, NC
overboost is offline

PostPosted: Sat Aug 14, 2021 4:35 am    Post subject: Re: 69 road race Ghia rebuild Reply with quote

Nothing beats the sound of the 48 IDA for sure. That groan leading into WOT is nothing short of a sirens song.
Image may have been reduced in size. Click image to view fullscreen.

_________________
The older I get... The faster I was...
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Rome
Samba Member


Joined: June 02, 2004
Posts: 8803
Location: Pearl River, NY
Rome is offline

PostPosted: Sat Aug 14, 2021 9:18 am    Post subject: Re: 69 road race Ghia rebuild Reply with quote

Very impressive fabrication and assembly work!

Will you add small, short "J" hooks to the rear shocks' bottom mounting studs to hold those handbrake cables steady so that they don't droop or whip when driving over bumps?
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ian Godfrey
Samba Member


Joined: September 25, 2006
Posts: 1006

Ian Godfrey is offline

PostPosted: Sat Aug 14, 2021 2:51 pm    Post subject: Re: 69 road race Ghia rebuild Reply with quote

Rome, yep, I haven't finished them yet, but I was waiting until I get the axles in so I can see how high I can lift them up. I'm thinking of making brackets that with a hole so I can use the lower shock bolt as an anchor.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ian Godfrey
Samba Member


Joined: September 25, 2006
Posts: 1006

Ian Godfrey is offline

PostPosted: Sun Aug 15, 2021 2:35 am    Post subject: Re: 69 road race Ghia rebuild Reply with quote

So, on to the gear box. It's a Berg 5 in a Zig Zag '76 case, with a Quaife torque sensing diff. This kind of diff is very good on acceleration but doesn't work like a ZF clutch style diff while braking. I have a ZF which I would prefer to use but I worry about its strength. Quaifes are guaranteed not to break and have Bus output splines and use Bus 100mm CV's. We'll see how it all works when I drop the clutch. I don't build gearbox's, Dave Butler in Brisbane built mine and took quite a few Kilos out with drilling. Inside is a work of art Very Happy But I did take care of lightening the nose cone and the clutch cable guide, as well as drilling the clutch shaft.
Anyway, the alloy mounts I made

Image may have been reduced in size. Click image to view fullscreen.

mid mount

Image may have been reduced in size. Click image to view fullscreen.

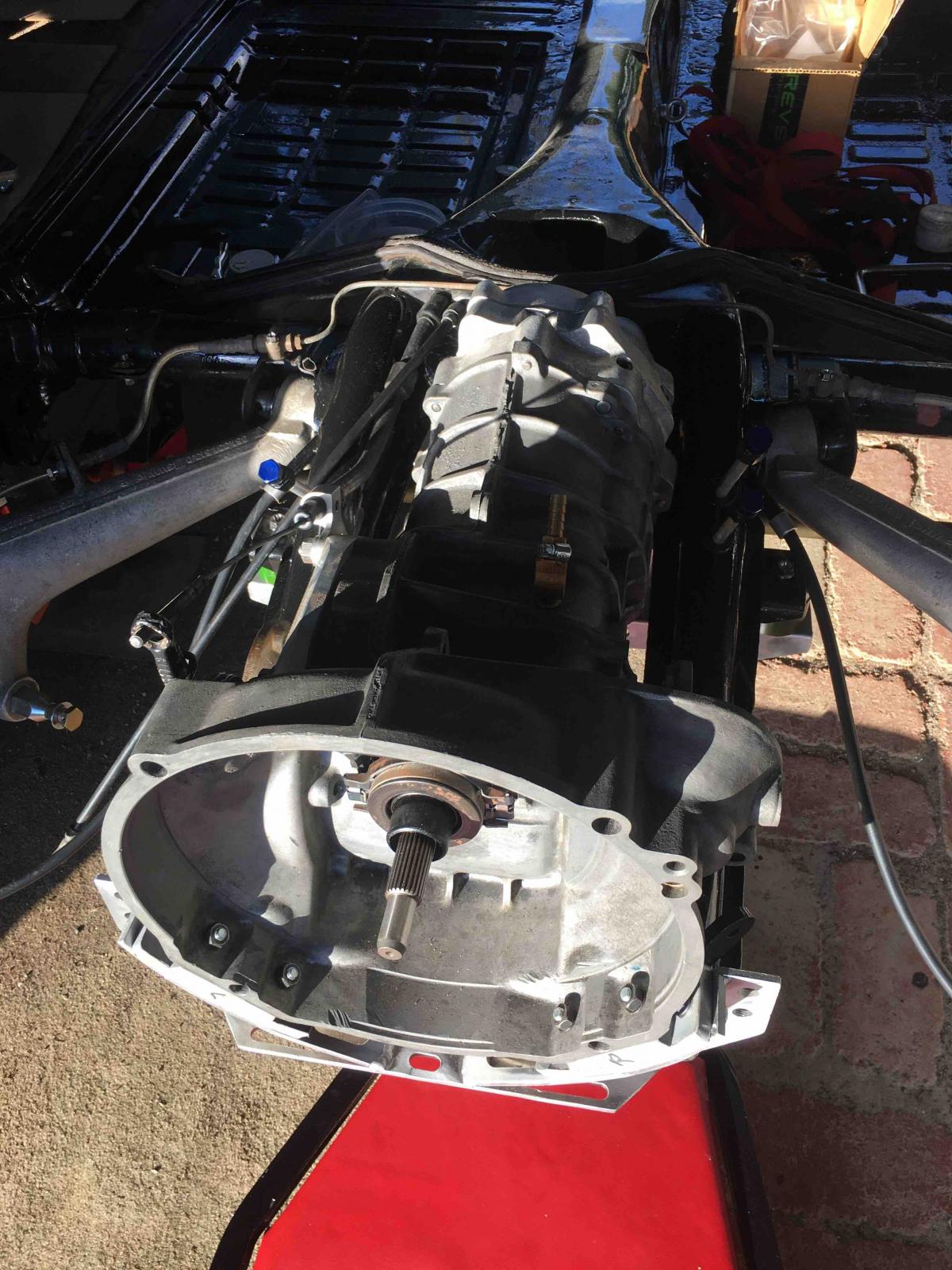

the gear box

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


And the finished mid mount with RevShift BMW urethane mounts with alloy spacer.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Last edited by Ian Godfrey on Sun Aug 15, 2021 2:45 am; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ian Godfrey
Samba Member


Joined: September 25, 2006
Posts: 1006

Ian Godfrey is offline

PostPosted: Sun Aug 15, 2021 2:40 am    Post subject: Re: 69 road race Ghia rebuild Reply with quote

I like original gear shift couplers much better than the aftermarket ones with red urethane. I have had them just crumble with old age Mad


Image may have been reduced in size. Click image to view fullscreen.


And now some gearshift porn, a CAE 5 speed shifter. To fit it you need to weld a plate to the top of the tunnel and 'hack' the opening in the tunnel so you can get 5th and reverse, and make some custom parts but...... it's all worth it

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

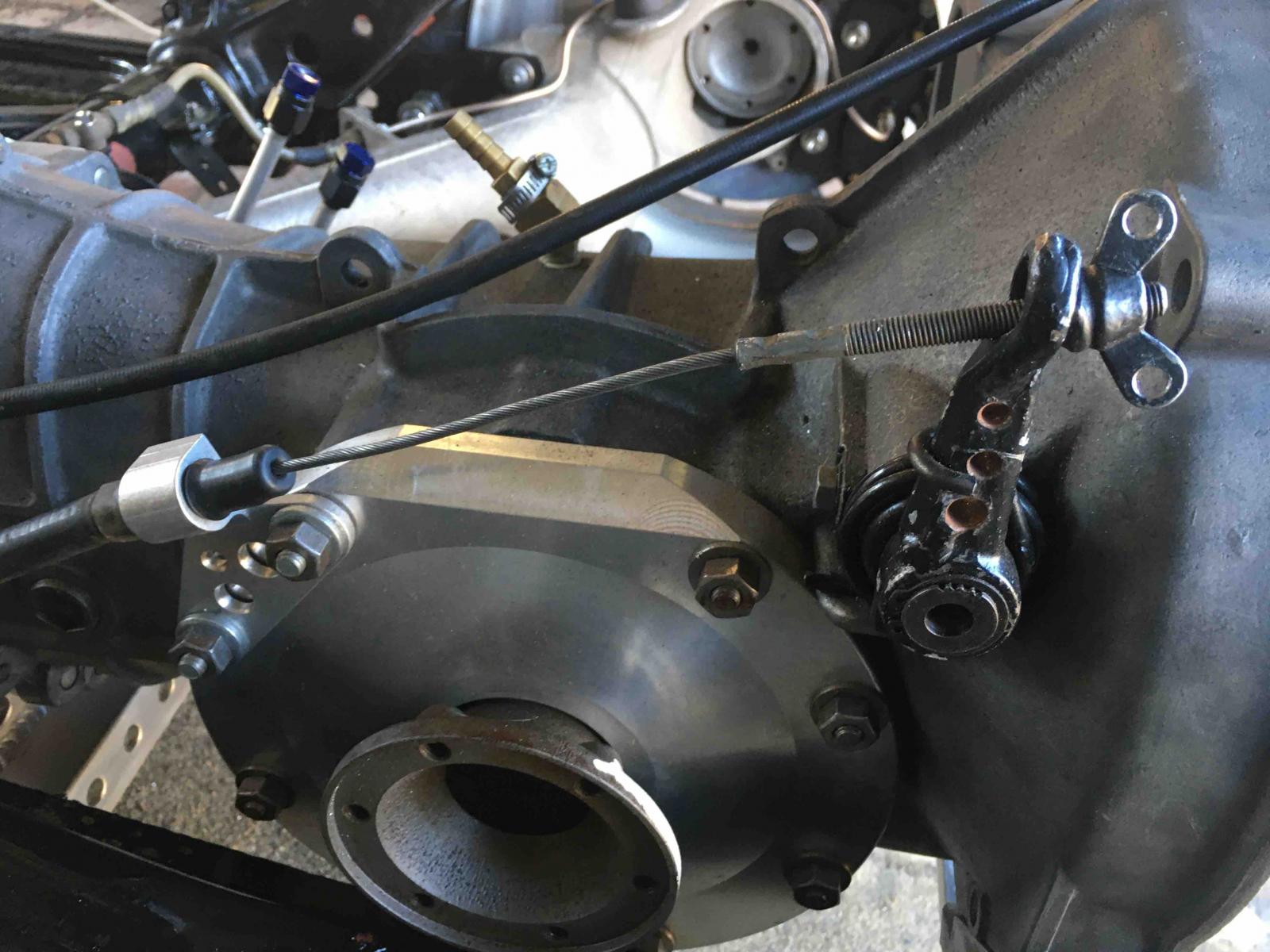

lastly I finished up the clutch cable. I was putting it together and noticed I had no holes drilled in the adjuster so being the 'sick puppy' I am I stopped to drill a couple of holes! Embarassed

Image may have been reduced in size. Click image to view fullscreen.


finished up with a seal on the end of the bowden tube

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
overboost
Samba Member


Joined: June 11, 2021
Posts: 176
Location: Huntersville, NC
overboost is offline

PostPosted: Sun Aug 15, 2021 4:55 am    Post subject: Re: 69 road race Ghia rebuild Reply with quote

This thread is straight up car porn. Love it!
_________________
The older I get... The faster I was...
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
TRS63
Samba Member


Joined: December 17, 2017
Posts: 689
Location: Stuttgart - Germany
TRS63 is offline

PostPosted: Sun Aug 15, 2021 7:08 am    Post subject: Re: 69 road race Ghia rebuild Reply with quote

That thread is amazing, thanks!

Antoine
_________________
Antoine
My 62 ragtop daily driver:
https://www.thesamba.com/vw/forum/viewtopic.php?t=728873
My 914 restoration&lightweight project :
https://www.thesamba.com/vw/forum/viewtopic.php?p=9698432#9698432
Resurrecting a 60 ghia : https://www.thesamba.com/vw/forum/viewtopic.php?t=713906
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ian Godfrey
Samba Member


Joined: September 25, 2006
Posts: 1006

Ian Godfrey is offline

PostPosted: Mon Aug 16, 2021 12:54 am    Post subject: Re: 69 road race Ghia rebuild Reply with quote

Thank you for the comments Smile
Next job was axles/drive shafts, I'm not sure what they get called in the US.
I've used Vanagon axles as they are the right length and way stronger than type 1. I had them drilled out for lightness.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


I've also used type 2, 100mm lightened, race prepped CV's with Stage 8 lock bolts. These are a fiddle, you torque them up, fit the plate, then put on the circlip, and loose a couple of circlips when they fly into space. Rolling Eyes
but the bolts do not come loose and thats what matters, dragging an axle when one end comes off is no fun
the inner

Image may have been reduced in size. Click image to view fullscreen.

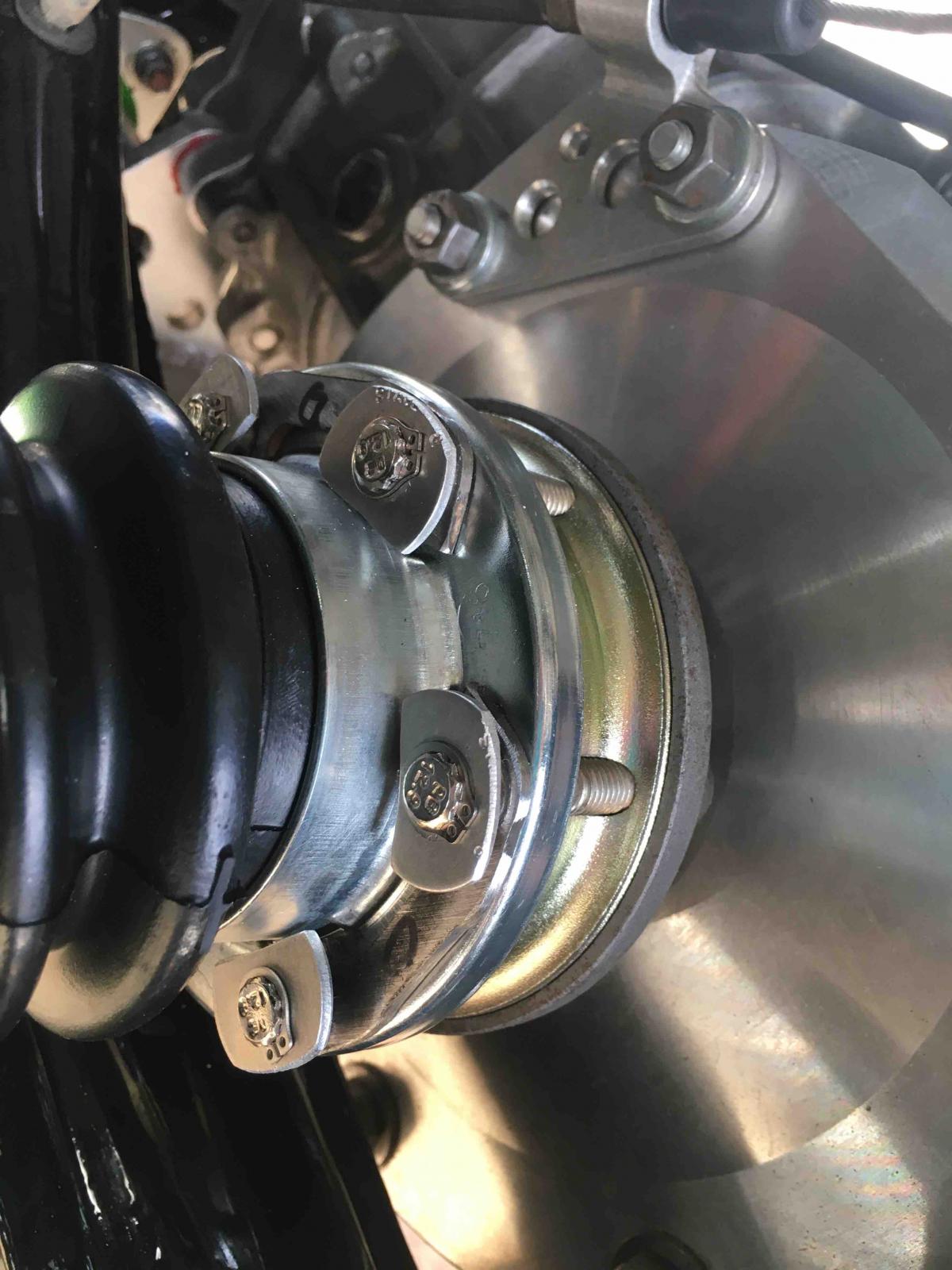

the outer

Image may have been reduced in size. Click image to view fullscreen.

top view

Image may have been reduced in size. Click image to view fullscreen.


and finished both sides

Image may have been reduced in size. Click image to view fullscreen.


now I'll finish of the hand brake cables.... well soon anyway Wink
Back to top
View user's profile Send private message Gallery Classifieds Feedback
slayer61
Samba Member


Joined: June 01, 2021
Posts: 543
Location: CA
slayer61 is offline

PostPosted: Mon Aug 16, 2021 6:56 am    Post subject: Re: 69 road race Ghia rebuild Reply with quote

What an inspiration. Thanks Ian!
Back to top
View user's profile Send private message AIM Address Yahoo Messenger MSN Messenger Facebook Twitter Instagram Gallery Classifieds Feedback
halbug
Samba Member


Joined: March 09, 2006
Posts: 381
Location: Germany
halbug is offline

PostPosted: Tue Aug 17, 2021 12:30 am    Post subject: Re: 69 road race Ghia rebuild Reply with quote

slayer61 wrote:
What an inspiration. Thanks Ian!


Very much agree!

Ian, do you expect the Ghia to become lighter that stock when done, or are you hoping to offset the additional weight of the go fast goddies?

Cheers Lars
_________________
Stealth Ghia Transformation: http://www.thesamba.com/vw/forum/viewtopic.php?p=7226044&highlight=#7226044
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ian Godfrey
Samba Member


Joined: September 25, 2006
Posts: 1006

Ian Godfrey is offline

PostPosted: Tue Aug 17, 2021 1:09 am    Post subject: Re: 69 road race Ghia rebuild Reply with quote

Halbug, I HOPE it will be lighter. A stock '69 coupe is 870Kg i believe,

I'm working towards 800 Kg, so far all my lighter parts offset the heavier parts (5 speed/roll cage), my spread sheet has about a 20 kg saving so far.
I am leaving the body and pan all steel, no holes, but there will be good savings with no sound deadening, radio etc, light weight seats and fiberglass bumpers with aluminium brackets. I will try to make polycarbonate rear quarter windows as well. A fiberglass engine lid would be nice but nobody seems to make one at the moment.
I've also taken weight out of the engine with Nickie cylinders.JP pistons, Carrillo rods, super light pulley, no heat exchangers and aluminium tail pipe/muffler from the collector back. Dry sump tank will be behind the seat bringing that weight nearer the centre of the car
I've focused getting weight out of the back as much as possible.
I think 800Kg is possible, plus me...... I see a diet in my future Rolling Eyes

just for interest a '73 911 RS is 975 Kg, and I want to catch them Question
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ian Godfrey
Samba Member


Joined: September 25, 2006
Posts: 1006

Ian Godfrey is offline

PostPosted: Thu Aug 19, 2021 2:50 am    Post subject: Re: 69 road race Ghia rebuild Reply with quote

on to some last small jobs:

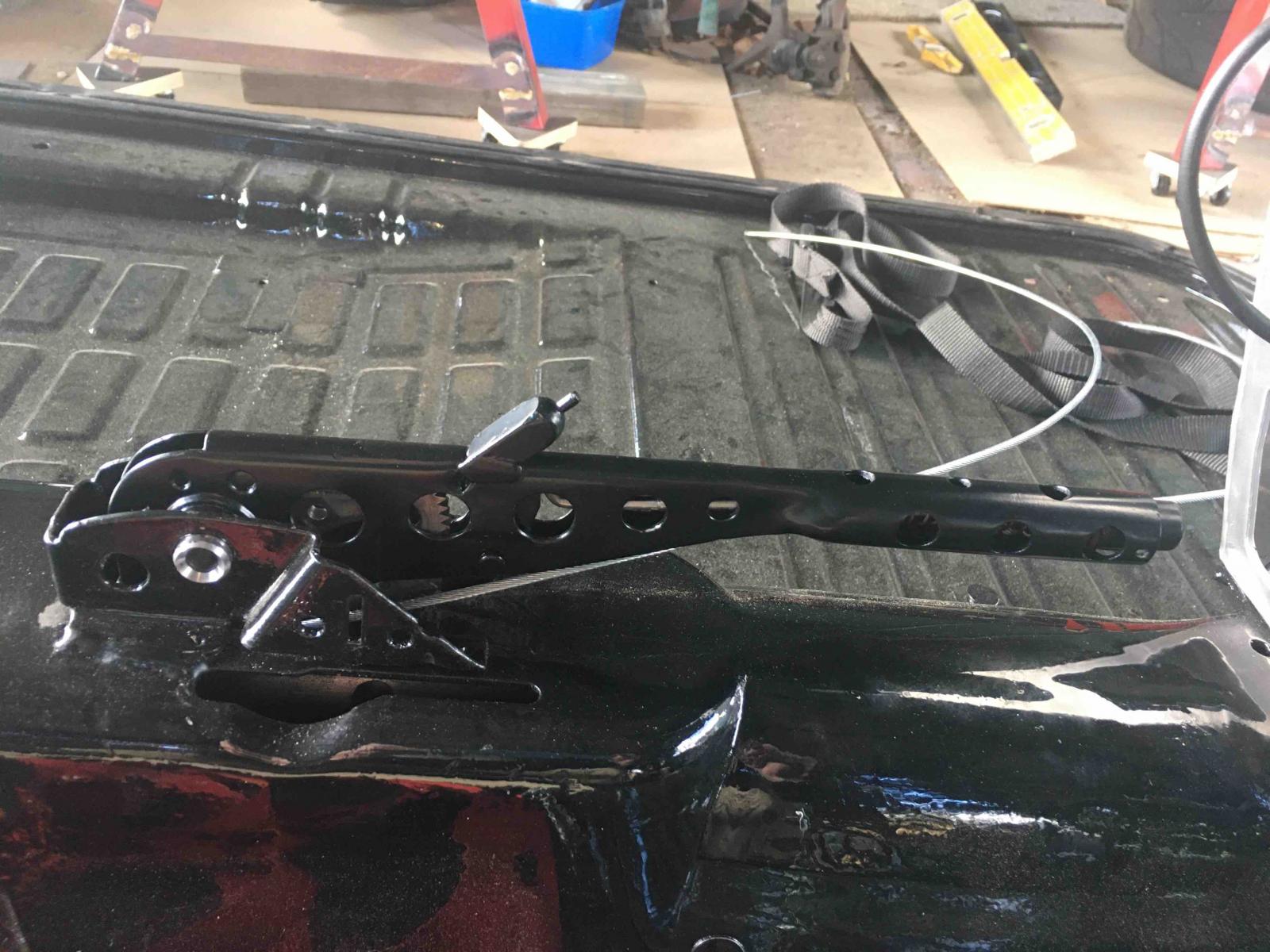

the hand brake need to be shortened because of the large shifter base, so I 'cut and shut' it, taking 2 inches out and drilled a few holes in it and the pivot. I;m waiting on some parts to finish the cables.

Image may have been reduced in size. Click image to view fullscreen.

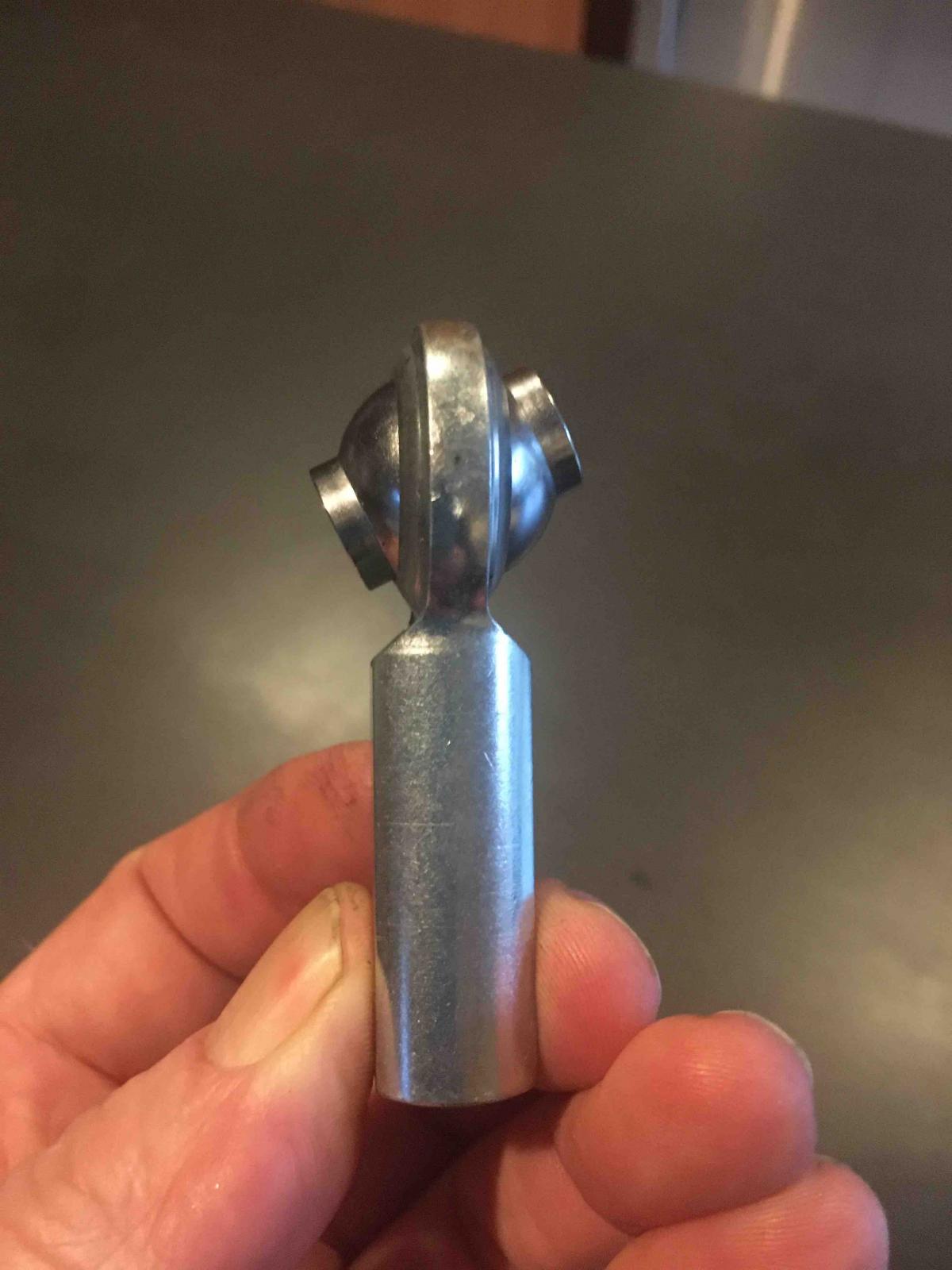

I tidied up the front sway bar with better high misalignment rod ends from QA1.
the ones that came with the front end went into a bind situation as the suspension compressed. the new one give 55 degrees of movement

Image may have been reduced in size. Click image to view fullscreen.

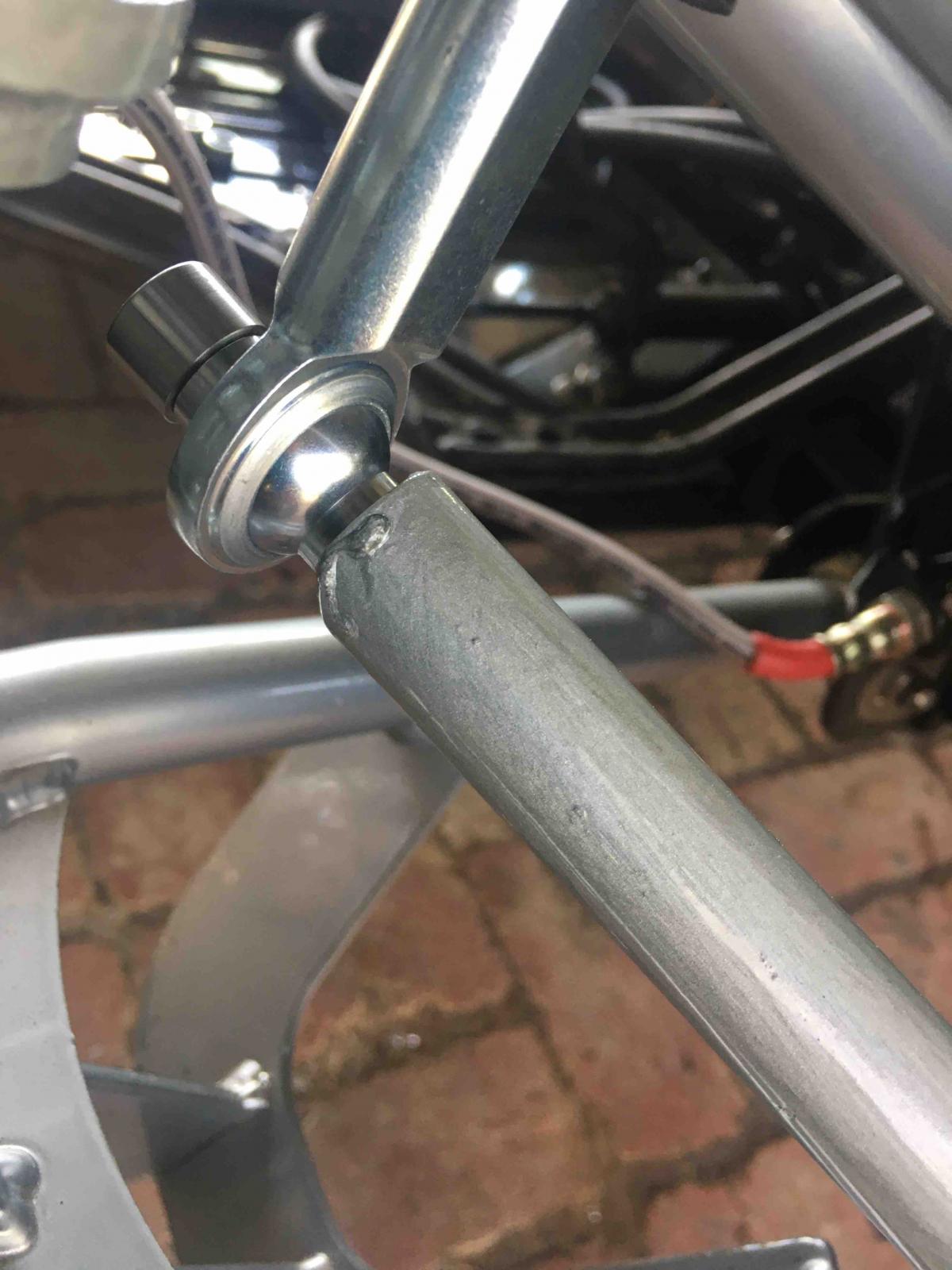

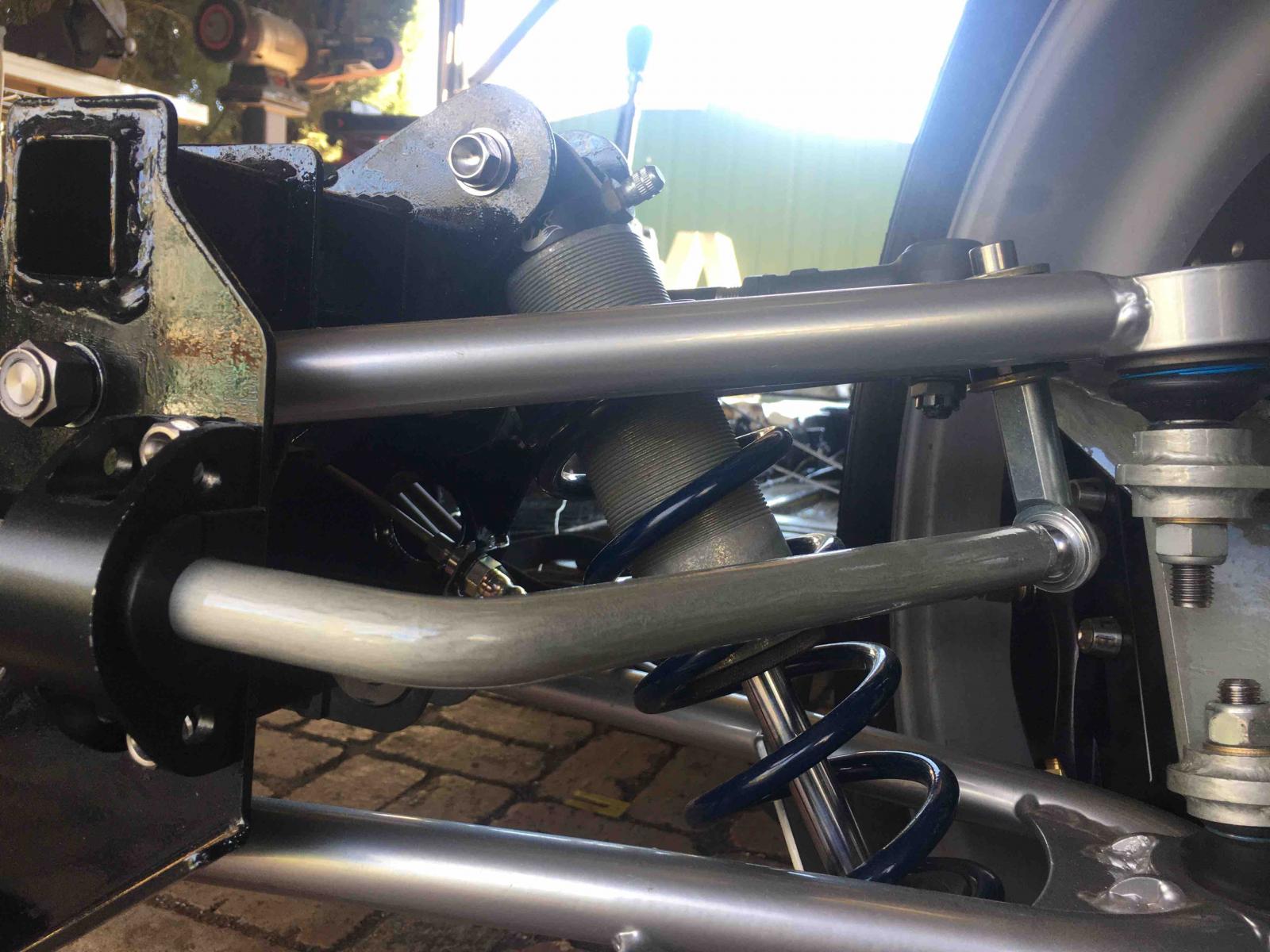

fitted

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ian Godfrey
Samba Member


Joined: September 25, 2006
Posts: 1006

Ian Godfrey is offline

PostPosted: Thu Aug 19, 2021 3:02 am    Post subject: Re: 69 road race Ghia rebuild Reply with quote

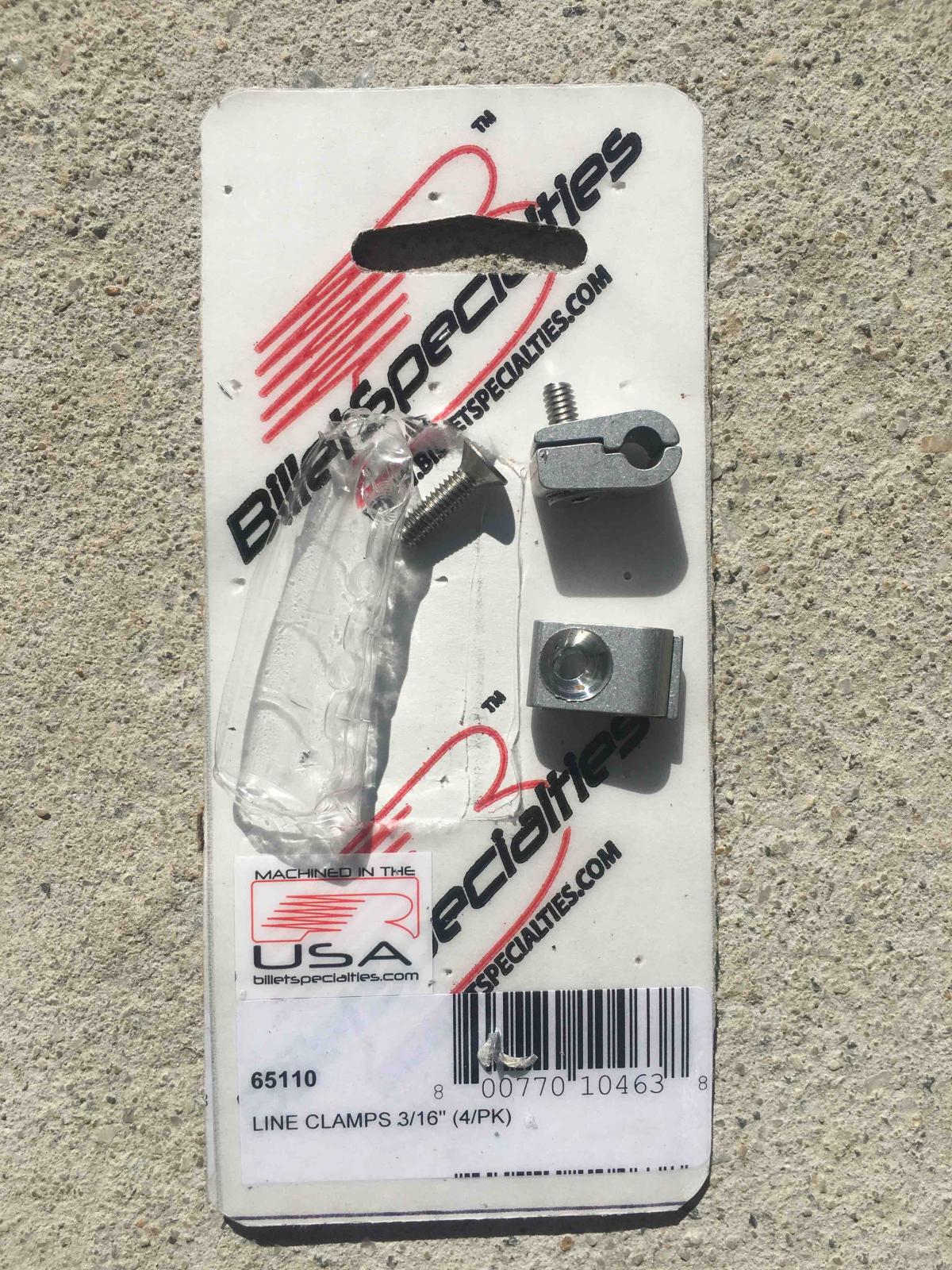

The rear hard lines needed clips because of their length. I found these aluminium ones for the 3/16" (4.75mm) line

Image may have been reduced in size. Click image to view fullscreen.


I drilled and tapped some M5 holes in the arms:

Image may have been reduced in size. Click image to view fullscreen.


these little details make me very happy Laughing

I designed and had machined and anodised some centre caps, the car won't go any faster, the beauty is that this is a hobby

Image may have been reduced in size. Click image to view fullscreen.


and last is a nice view of the pan with unfinished hand brake brackets...... nearly done.
7 years of thinking and a year of work Shocked

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
halbug
Samba Member


Joined: March 09, 2006
Posts: 381
Location: Germany
halbug is offline

PostPosted: Thu Aug 19, 2021 3:56 am    Post subject: Re: 69 road race Ghia rebuild Reply with quote

Ian, I really like your dedication to detail!

I love your handbrake and may copy it. Not because of lightweighting, simply because it is looking so cool Cool

And it will match the handles I made for seat adjustment...

Nice built!!! Let's get it racing! Twisted Evil
_________________
Stealth Ghia Transformation: http://www.thesamba.com/vw/forum/viewtopic.php?p=7226044&highlight=#7226044
Back to top
View user's profile Send private message Gallery Classifieds Feedback
slayer61
Samba Member


Joined: June 01, 2021
Posts: 543
Location: CA
slayer61 is offline

PostPosted: Thu Aug 19, 2021 6:43 am    Post subject: Re: 69 road race Ghia rebuild Reply with quote

Excuse me while I wipe the drool off of my keyboard.... Drool








Very nice.
Back to top
View user's profile Send private message AIM Address Yahoo Messenger MSN Messenger Facebook Twitter Instagram Gallery Classifieds Feedback
Ian Godfrey
Samba Member


Joined: September 25, 2006
Posts: 1006

Ian Godfrey is offline

PostPosted: Sat Sep 04, 2021 8:48 pm    Post subject: Re: 69 road race Ghia rebuild Reply with quote

Time for a big of an update.....
I've been trying to sort out my steering, some stops in the rack so the tyres won't hit the inner body, ordered a new starter, and worked on the fuel tank.
my old set up was a Holley red and matching 'dead head' regulator. Noisy and lots of plumbing so I've gone for a more modern 'in tank' solution.
https://aeromotiveinc.com/product/phantom-200-stealth-fuel-system/

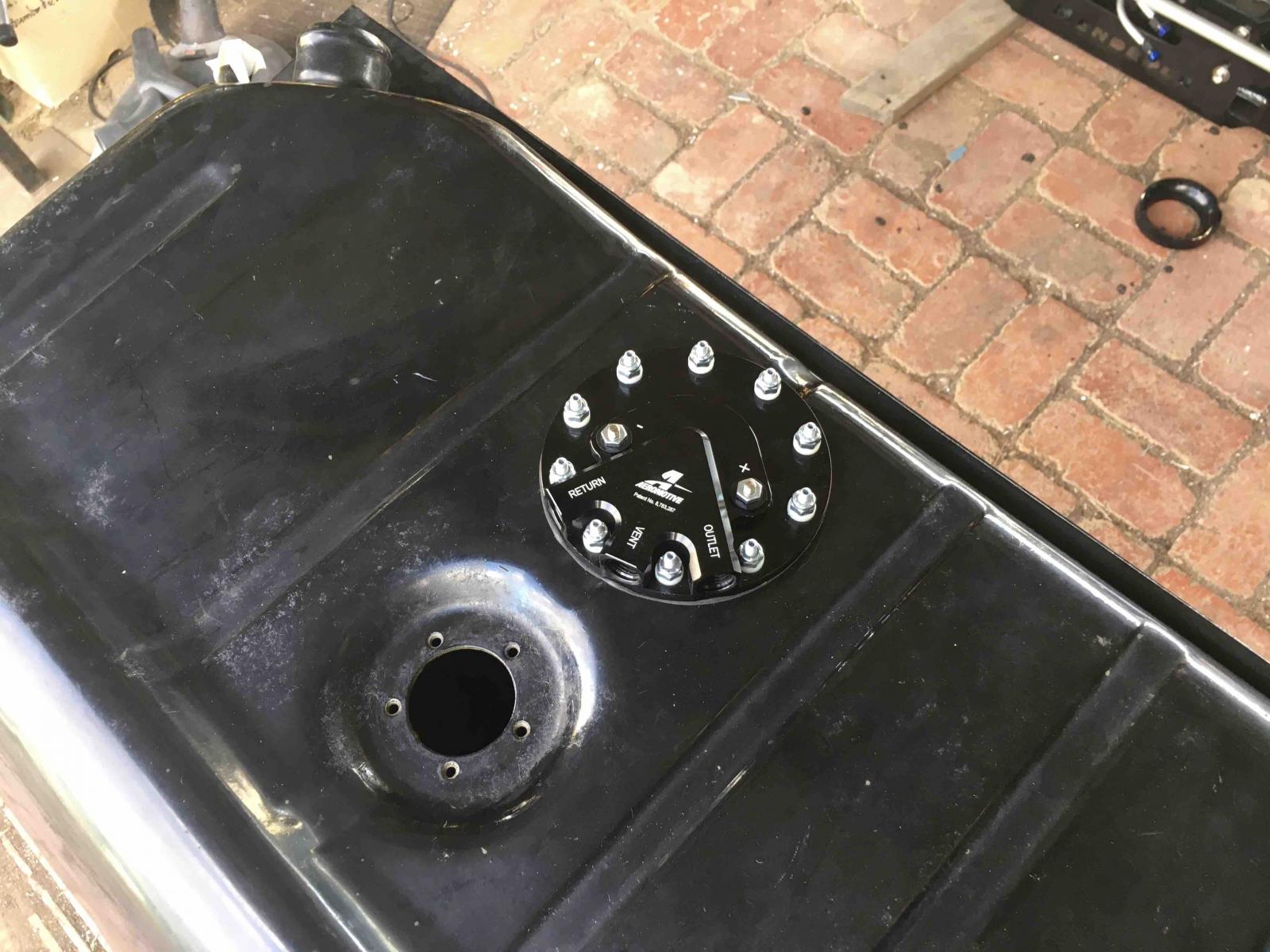

It was not to difficult to fit, it has a compressible gasket that accommodates the uneven top of the tank, as well as the pump, filter and baffle all in the tank.

Image may have been reduced in size. Click image to view fullscreen.


fortunately the fuel gauge float goes sideways

Image may have been reduced in size. Click image to view fullscreen.


and got to use a spanner I hardly ever use Wink

Image may have been reduced in size. Click image to view fullscreen.


I took the this plug out so I could shine a light inside and see what I was doing.
Of interest I coated the inside of this tank over 10 years ago with a POR 15 tank kit and it still looks perfect, no rust.
[/url]
Back to top
View user's profile Send private message Gallery Classifieds Feedback
halbug
Samba Member


Joined: March 09, 2006
Posts: 381
Location: Germany
halbug is offline

PostPosted: Mon Sep 06, 2021 4:35 am    Post subject: Re: 69 road race Ghia rebuild Reply with quote

Hi Ian, very nice Twisted Evil

I was tempted for a moment and looked at your link... but I will stick to my "totally stealth" plans Laughing

Thank you for sharing
Cheers Lars
_________________
Stealth Ghia Transformation: http://www.thesamba.com/vw/forum/viewtopic.php?p=7226044&highlight=#7226044
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Braukuche
Samba Member


Joined: September 03, 2004
Posts: 10125

Braukuche is offline

PostPosted: Mon Sep 06, 2021 6:56 am    Post subject: Re: 69 road race Ghia rebuild Reply with quote

Thread never ceases to amaze.
_________________
Go Reds! Smash state!

Retirement is here!
1956 Ghia
1959 SO-23 Westfalia
1960 double cab
1962 Golde sunroof Ghia
1963 356 B coupe
1963 Ghia coupe
1965 Squareback
1967 Ghia convertible
1967 21 window rust bucket
1970 Ghia convertible
1972 Ghia coupe
1973 Ghia convertible
1974 Ghia convertible x 2
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ian Godfrey
Samba Member


Joined: September 25, 2006
Posts: 1006

Ian Godfrey is offline

PostPosted: Sun Sep 19, 2021 9:02 pm    Post subject: Re: 69 road race Ghia rebuild Reply with quote

I've been waiting on a few parts to arrive, first was modern rear bump stops.
I only have 90mm of rear travel metal to metal and 60mm before the bump stop so I got 2 different heights of foam bump stops and threaded the arm so I could just screw them in. These are the short ones, 32mm

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ian Godfrey
Samba Member


Joined: September 25, 2006
Posts: 1006

Ian Godfrey is offline

PostPosted: Sun Sep 19, 2021 9:14 pm    Post subject: Re: 69 road race Ghia rebuild Reply with quote

The other job was a bit more complicated. The Mendeola front suspension is very good in its adjustability along with a good camber curve, and it fits in with very little trimming of KG steel. But.... it has quite a lot of bump steer, over 3mm across the wheel travel. Halbug solved this by lowering the rack into the tunnel, inverting the tie rod ends and reworking the rack mount. His solution is very elegant and I was tempted Confused
But in the end I went a different way, raising the outer end of the tie rods with spacers.
Unfortunately I couldn't find any 14mm high misalignment rod ends so I opted for 1/2". I drilled out the 1/2" thread and retapped it M14, luckily both tie rods (Golf 1) are RH thread, and then I used 1/2" bolts and spacers to get the 19mm rise.

Image may have been reduced in size. Click image to view fullscreen.


I now have to measure the bump steer to confirm if I need to change the size of the spacer.
Meanwhile I've been woking on my engine upgrades, match porting manifolds to new heads. I'll post some pix in a few days
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Ghia All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3, 4, 5, 6, 7  Next
Page 5 of 7


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
