PostPosted: Wed Nov 14, 2018 3:56 pm    Post subject: Sidewinder Exhaust Fit Reply with quote

Yes, I searched and I don't see the specific answers I am after. I want a basic exhaust for a 65 bus with Type 1 engine. I don't want to cut the rear apron, and I like the way the side winder hide away looks. That said, I see them listed on a dozen sites and they say Fit Bus 68 and later, or Ghia/Bug but I don't see one that claims Split bus fit. At Bulli Brigade this weekend I saw a dozen of them installed. So, who knows what one I should buy that will just bolt on and work?
I don't like the Stainless fat ones by the Taiwan company, I like the sidewinder look hiding away.
Thanks
_________________
TP in the Pack (I am a cyclist)
1968 Manx N.O.S. w/ Barrett Chassis
1990 Doka WBX 2.1
1960 Single Cab 1914 w/ 40 DLRA's
1990 Vanagon CARAT
2007 Rabbit
2007 Passat Wagon 3.6 VR6
Back to top
View user's profile Send private message Send e-mail Facebook Twitter Gallery Classifieds Feedback
easy e
Samba Member


Joined: May 28, 2008
Posts: 3610
Location: Five Cities, CA
easy e is offline

PostPosted: Wed Nov 14, 2018 4:27 pm    Post subject: Re: Sidewinder Exhaust Fit Reply with quote

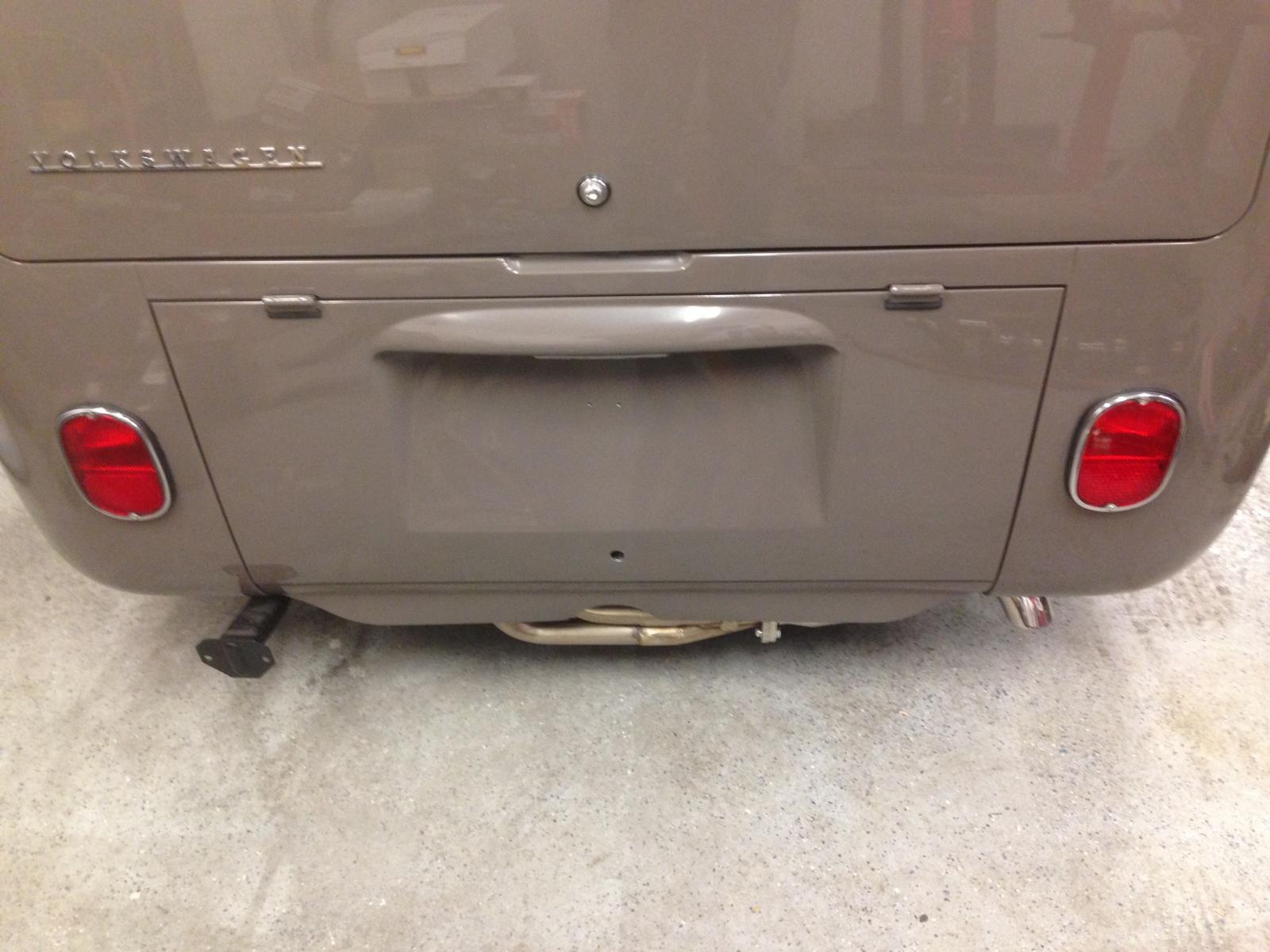

I had to cut an about 2-3" tall piece out of the very bottom edge of my apron to get it to fit... at the lower part of the exhaust's U-bend.

I'm going with the Vintage Speed on a different engine.

Image may have been reduced in size. Click image to view fullscreen.

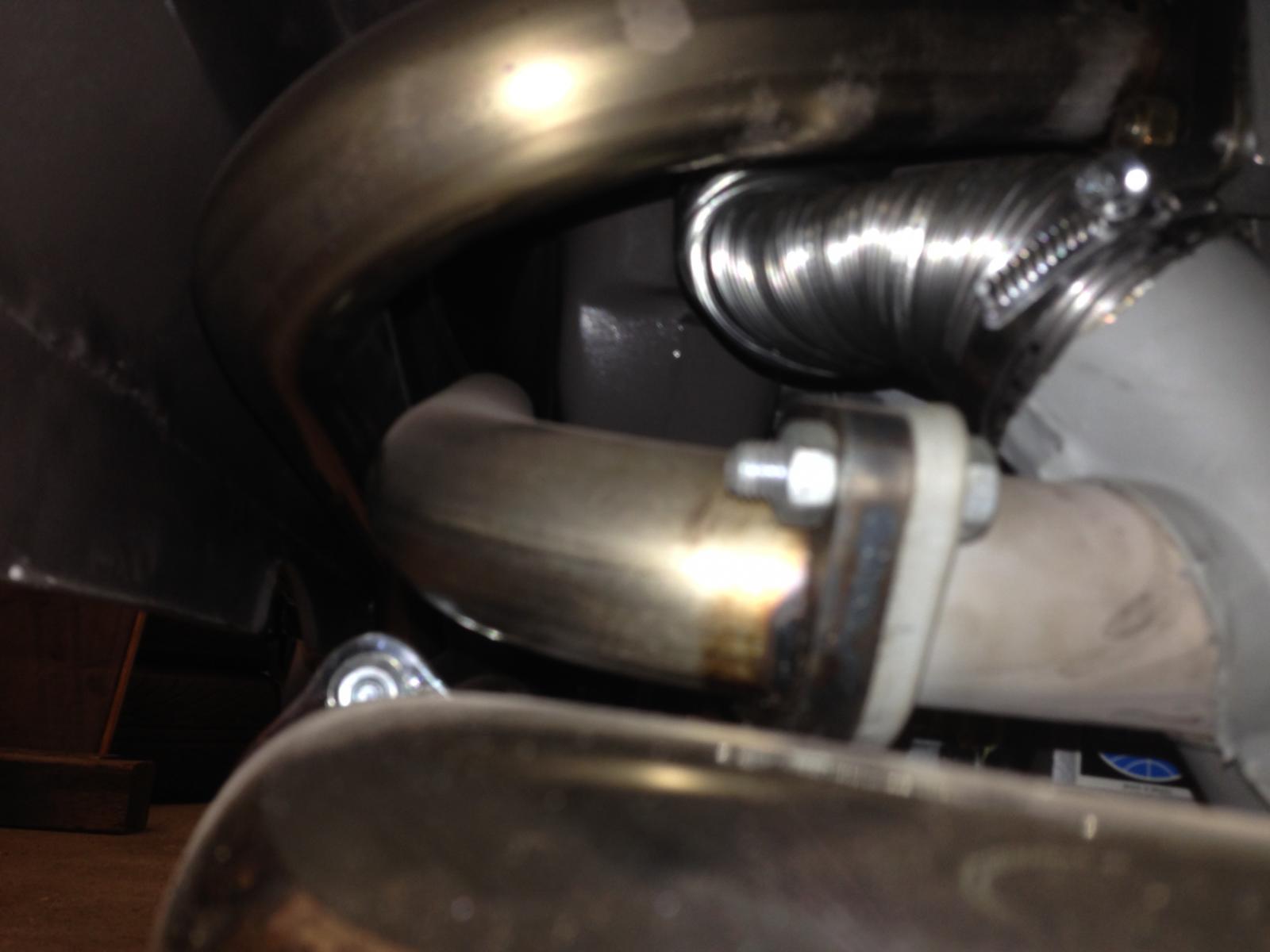

Cut not shown in pic below.. but you can see where the contact point is (over on the left side) and imagine.

Image may have been reduced in size. Click image to view fullscreen.

_________________
aka: Evan
Spreadsheet for Bus RPM, based on gearing & tire size (Excel format)
Searchable, click-navigable 1958 Bus Parts List
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
flemcadiddlehopper
Samba Member


Joined: December 05, 2011
Posts: 2199
Location: Kelowna, BC. Canada.
flemcadiddlehopper is offline

PostPosted: Wed Nov 14, 2018 9:47 pm    Post subject: Re: Sidewinder Exhaust Fit Reply with quote

I've heard that the sidewinders scrape a ton on lowered busses and the drone of them resonates through the bus like mad.

gordo.
_________________
Everybody Dies....Some Never Live.

Retrograde Garage. Vintage Aircooled, and others.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tpinthepack
Samba Member


Joined: July 11, 2004
Posts: 674
Location: clearwater,florida
tpinthepack is offline

PostPosted: Thu Nov 15, 2018 2:26 am    Post subject: Re: Sidewinder Exhaust Fit Reply with quote

Thanks, this is what I was thinking about.
Tony
_________________
TP in the Pack (I am a cyclist)
1968 Manx N.O.S. w/ Barrett Chassis
1990 Doka WBX 2.1
1960 Single Cab 1914 w/ 40 DLRA's
1990 Vanagon CARAT
2007 Rabbit
2007 Passat Wagon 3.6 VR6
Back to top
View user's profile Send private message Send e-mail Facebook Twitter Gallery Classifieds Feedback
azbob
Samba Member


Joined: April 04, 2010
Posts: 687
Location: Phoenix, AZ
azbob is offline

PostPosted: Thu Nov 15, 2018 9:07 pm    Post subject: Re: Sidewinder Exhaust Fit Reply with quote

I have one of these. The left side does touch the apron. I'm not too stoked on that. I think I'll end up with a hole in the exhaust at some point in the future.

Scraping though, haven't had to much problems with that as long as I drive like, you know, like I'm driving a lowered bus.

As for the noise, I have been sound proofing the bus and it is still pretty loud. But I am not completely done yet so that may change. Outside the bus it sounds great. Just the inside is droney like a Sleep concert. With no interior panels or dynamat, hearing your passengers wasn't always easy.
_________________
Bus Builder
Back to top
View user's profile Send private message Gallery Classifieds Feedback
RUSS914
Samba Member


Joined: May 31, 2013
Posts: 85
Location: West Columbia
RUSS914 is offline

PostPosted: Sat Nov 17, 2018 6:47 am    Post subject: Re: Sidewinder Exhaust Fit Reply with quote

I also have a A1 (Tiger Performance) stainless system on my 59 truck. I like the fit but I dont like the drone of the muffler. For some reason every non-stock system seems to be loud and have a deep drone...grrrr...whay can't there just be a muffler that performs okay and have little noise.

I have had no issues with installation or scraping on the ground.

Anyway, Tiger at Tiger Performance is easy to deal with. [email protected]

Russell
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
western auto
Samba Member


Joined: July 20, 2013
Posts: 269
Location: yuma,az
western auto is offline

PostPosted: Sat Nov 17, 2018 8:04 am    Post subject: Re: Sidewinder Exhaust Fit Reply with quote

re routing the tailpipe out the back will help eliminate the drone
Back to top
View user's profile Send private message Gallery Classifieds Feedback
RUSS914
Samba Member


Joined: May 31, 2013
Posts: 85
Location: West Columbia
RUSS914 is offline

PostPosted: Sat Nov 17, 2018 8:10 am    Post subject: Re: Sidewinder Exhaust Fit Reply with quote

Western Auto,
Whaaaaa....really? I'll try anything to help reduce the drone.

Thanks!!
Russ
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
azbob
Samba Member


Joined: April 04, 2010
Posts: 687
Location: Phoenix, AZ
azbob is offline

PostPosted: Sat Nov 17, 2018 8:21 am    Post subject: Re: Sidewinder Exhaust Fit Reply with quote

western auto wrote:
re routing the tailpipe out the back will help eliminate the drone


Cool. Whats your suggested method?
_________________
Bus Builder
Back to top
View user's profile Send private message Gallery Classifieds Feedback
pyrOman
Fire Master


Joined: July 21, 2003
Posts: 11911
Location: Over 2002 posts deleted!
pyrOman is offline

PostPosted: Sat Nov 17, 2018 9:16 am    Post subject: Re: Sidewinder Exhaust Fit Reply with quote

azbob wrote:
western auto wrote:
re routing the tailpipe out the back will help eliminate the drone


Cool. Whats your suggested method?


Hereís what I did! Cool

https://www.thesamba.com/vw/forum/viewtopic.php?p=8509486&highlight=#8509486
_________________
Some people are so busy being clever they don't have time enough to be wise.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
western auto
Samba Member


Joined: July 20, 2013
Posts: 269
Location: yuma,az
western auto is offline

PostPosted: Sat Nov 17, 2018 9:26 am    Post subject: Re: Sidewinder Exhaust Fit Reply with quote

azbob wrote:
western auto wrote:
re routing the tailpipe out the back will help eliminate the drone


Cool. Whats your suggested method?
cut and fab something up or buy the new empi sidewinder for type 2 with long tailpipe side exit, check the epizootic combat bus page 14 in the barndoor forum looks like he just did the same thing with a reroute
Back to top
View user's profile Send private message Gallery Classifieds Feedback
azbob
Samba Member


Joined: April 04, 2010
Posts: 687
Location: Phoenix, AZ
azbob is offline

PostPosted: Sun Nov 18, 2018 9:08 am    Post subject: Re: Sidewinder Exhaust Fit Reply with quote

western auto wrote:

cut and fab something up or buy the new empi sidewinder for type 2 with long tailpipe side exit, check the epizootic combat bus page 14 in the barndoor forum looks like he just did the same thing with a reroute


Looks like I may have to try that!

@pyrOman - cant tell by your pics but did you tack the exhaust on the side of the muffler? I'm assuming so.

I wonder if anyone sells just the empi muffler.
_________________
Bus Builder
Back to top
View user's profile Send private message Gallery Classifieds Feedback
flemcadiddlehopper
Samba Member


Joined: December 05, 2011
Posts: 2199
Location: Kelowna, BC. Canada.
flemcadiddlehopper is offline

PostPosted: Sun Nov 18, 2018 9:46 am    Post subject: Re: Sidewinder Exhaust Fit Reply with quote

There was a thread about this , sort of, here.
https://www.thesamba.com/vw/forum/viewtopic.php?t=620163&highlight=performance+exhaust

The first post shows a sidewinder with 2 mufflers, which looks like the best option, until you have to adjust your valves.


Gordo.
_________________
Everybody Dies....Some Never Live.

Retrograde Garage. Vintage Aircooled, and others.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
pyrOman
Fire Master


Joined: July 21, 2003
Posts: 11911
Location: Over 2002 posts deleted!
pyrOman is offline

PostPosted: Sun Nov 18, 2018 10:17 am    Post subject: Re: Sidewinder Exhaust Fit Reply with quote

azbob wrote:
western auto wrote:

cut and fab something up or buy the new empi sidewinder for type 2 with long tailpipe side exit, check the epizootic combat bus page 14 in the barndoor forum looks like he just did the same thing with a reroute


Looks like I may have to try that!

@pyrOman - cant tell by your pics but did you tack the exhaust on the side of the muffler? I'm assuming so.*

I wonder if anyone sells just the empi muffler.


Only buy an EMPI muffler if youíre okay with replacing it every 6 months or so. Rolling Eyes

Iíve gone to the peep boys and gotten the cheapest and smallest one, then graft the flange pipe and the tail pipe from a blown apart EMPI. Done it quite a few times already for different VWs. However, the latest find Cherrybomb is the best for size and at around $30 it just canít be beat! Cool


* Yes, it is tacked to it but also has the link to the #1 exhaust J-tube. AND itís not in the way of the valve cover! Wink
_________________
Some people are so busy being clever they don't have time enough to be wise.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
wrenchnride247
Samba Member


Joined: August 17, 2010
Posts: 252
Location: Cleveland, TN
wrenchnride247 is offline

PostPosted: Fri Nov 23, 2018 6:35 pm    Post subject: Re: Sidewinder Exhaust Fit Reply with quote

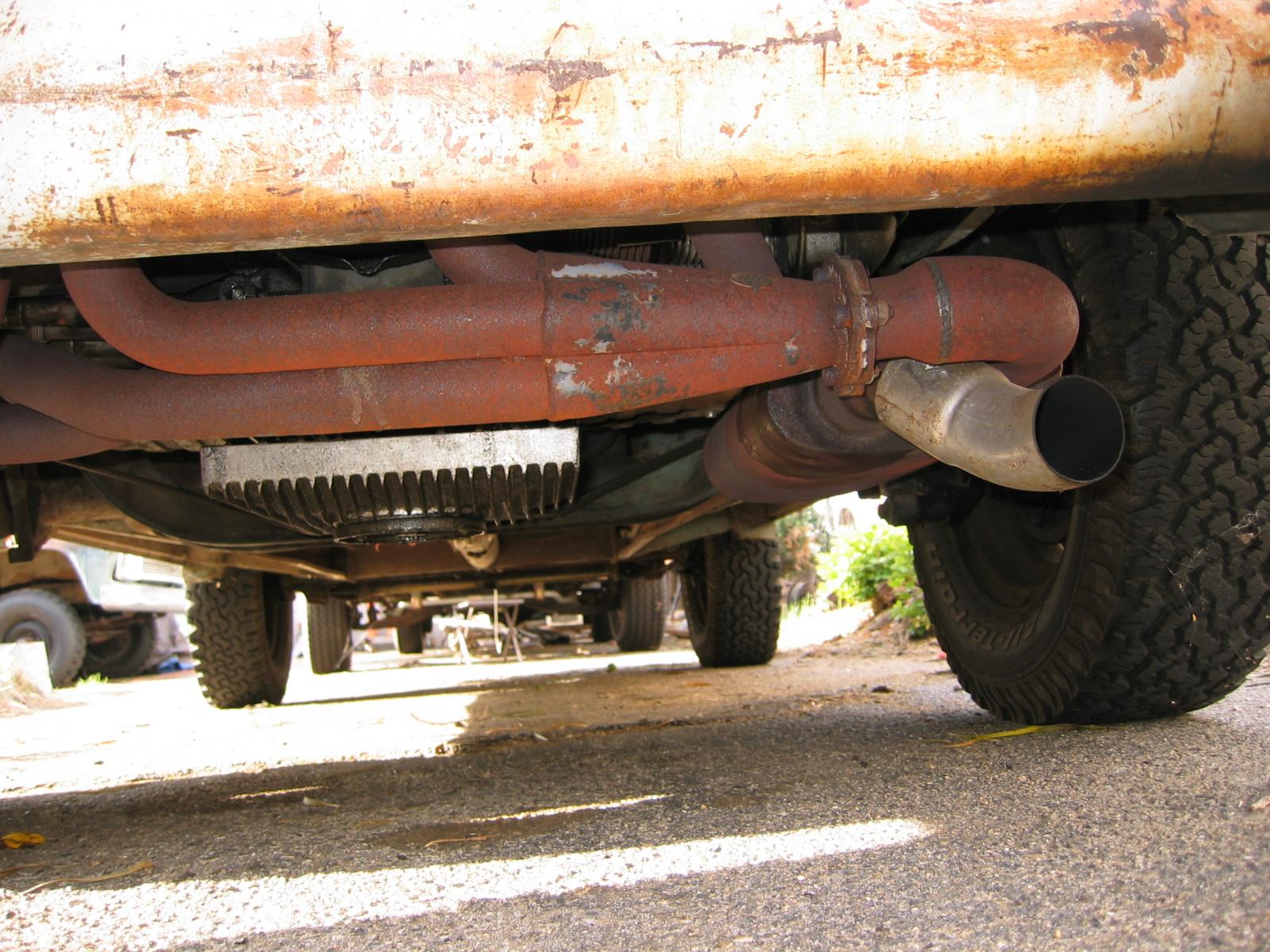

Here's what I did with my "China sidewinder" muffler deal. No, you have to remove muffler to adjust valves, but my driveway will not let mine sit any lower.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
SPL

'62 SC 69x90.5 SP TI
'70 T1 84x105 DP T4
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mr white
Samba Member


Joined: October 02, 2005
Posts: 1133
Location: beautiful Oregon
mr white is offline

PostPosted: Fri Nov 23, 2018 6:50 pm    Post subject: Re: Sidewinder Exhaust Fit Reply with quote

This subject is up to bat in my camp. I have a 2110 in my lowered 60 truck and was thinking about buying one. I thought about a 1 5/8 ceramic coated one. What are folks buying that seemingly lasts awhile? Also how is the tone? I donít mind a 356 four cam tone.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
snuffelupabus
Samba Member


Joined: October 03, 2006
Posts: 56
Location: St. Johns, Newfoundland, Canada
snuffelupabus is offline

PostPosted: Sat Nov 24, 2018 8:02 pm    Post subject: Re: Sidewinder Exhaust Fit Reply with quote

I use a Type 1 sidewinder with a split specific muffler
No clearance issues. Perhaps my 1-1/2" system does not have issues the 1-5/8" version has. Mine is stainless with exchangers and a polished muffler.
Limited use so far but no drone, mostly accelerating or off- throttle. Sounds nice on the 2110.


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
AlteWagen
Troll


Joined: February 23, 2007
Posts: 7820

AlteWagen is offline

PostPosted: Sun Nov 25, 2018 10:31 am    Post subject: Re: Sidewinder Exhaust Fit Reply with quote

I have a 1 1/2 A1 Sidewinder with AA muffler on the bus. I had to put 1/2 spacers between the body and apron to make the tiny amount of clearance you see in the pic. It does cause the apron to pop out a bit but on my beater who cares.

Image may have been reduced in size. Click image to view fullscreen.




To cut down the drone from the muffler I put a piece of scrap tubing with two self tapping screws directing the exhaust out the back. I temporarily extended the pipe past the muffler and the drone was even quieter. I could tell the difference as on the freeway the 'temp' tube shot off and the difference was very noticeable.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Grapes of Wrath $200 Engine Rebuild
Official Dual Carb Thread
Cylinder Head Quick Reference Sheet
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
6sixTinBox
Samba Member


Joined: September 30, 2007
Posts: 529
Location: Tampa Bay
6sixTinBox is offline

PostPosted: Tue Feb 12, 2019 1:06 pm    Post subject: Re: Sidewinder Exhaust Fit Reply with quote

I am considering a sidewinder exhaust, but I'm not 100% sold on it just on the fact that it looks like you can't get to the passenger valve cover easily to adjust the valves. Anyone have first hand knowledge on this concern? Is it a pain or not a big deal? Thanks!
_________________
'66 13 Window Microbus Deluxe
Back to top
View user's profile Send private message Classifieds Feedback
74 Thing
Samba Member


Joined: September 02, 2004
Posts: 5106

74 Thing is offline

PostPosted: Tue Feb 12, 2019 1:59 pm    Post subject: Re: Sidewinder Exhaust Fit Reply with quote

Take off the wheel.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Split Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
