What the flock is flocking?
Forum Index -> Beetle - 1958-1967 Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
harrymarlin
Samba Member


Joined: June 07, 2018
Posts: 249
Location: Washington, DC
harrymarlin is offline

PostPosted: Fri Feb 14, 2020 12:22 pm    Post subject: What the flock is flocking? Reply with quote

As part of restoration, I took a look at the mesh behind my speaker grill, and did a little research on TheSamba. I found out that the mesh was actually flocked, on one side, like an old speaker cover. What the flock is flocking, you ask? Wikipedia says that flocking is the depositing of many small fiber particles (called flock) onto a surface. It was originally there, it's just not noticeable anymore. Here's a pic, I believe, of an original mesh:
Image may have been reduced in size. Click image to view fullscreen.


In a Beetle, flocking is done most obviously in the glove compartment. But it is *also* done on the speaker mesh. This isn't as widely known because 1) it's not as obvious and 2) it falls off over time. After I got my mesh replated and put it in with no flocking, it also became apparent that flocking also helps the mesh not be so "harsh" and noticeable behind the speaker grill. One issue is that the flocking is also only done on *one* side of the mesh (the side facing the driver).

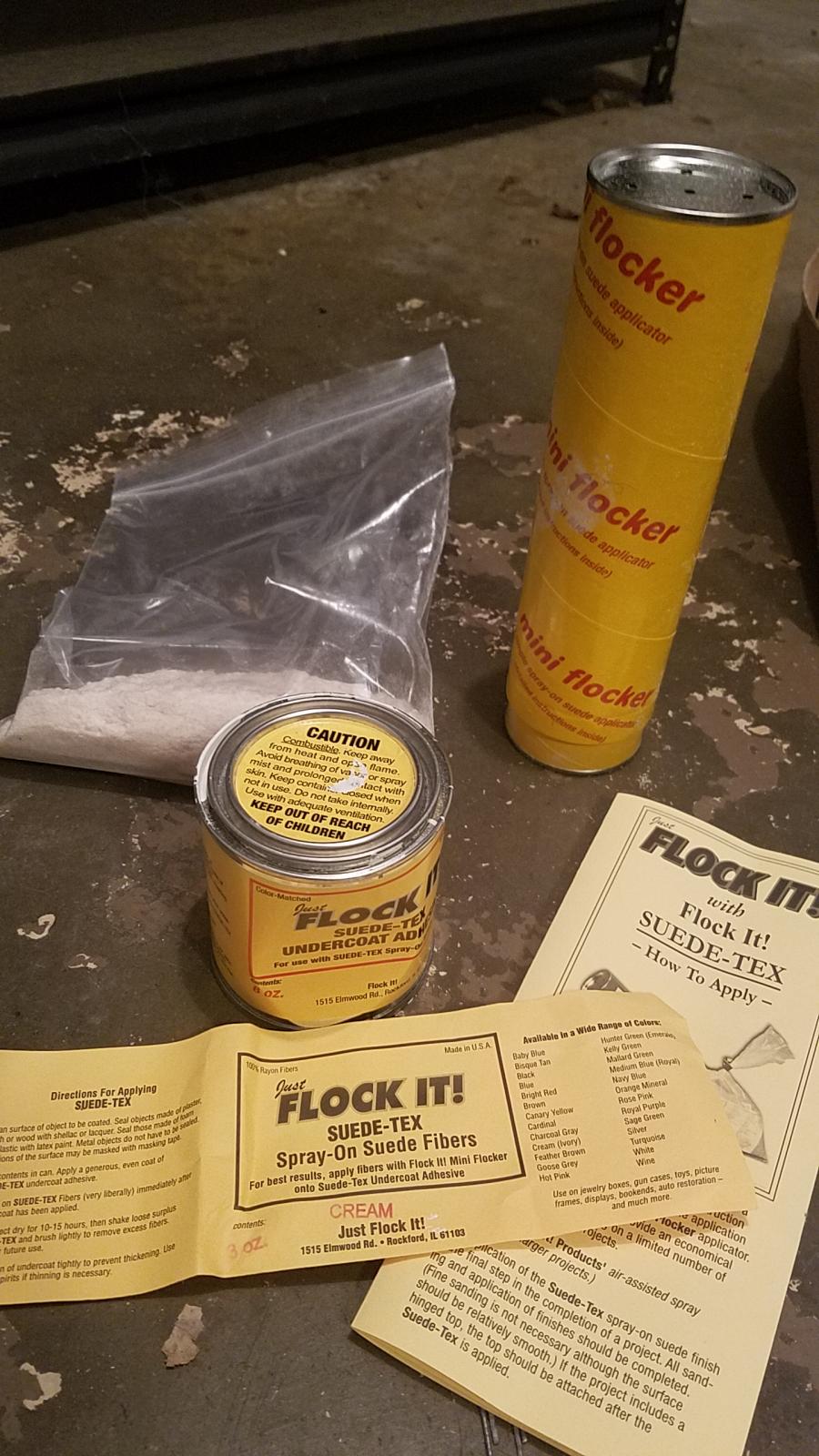

OK - so, I wanted to flock, but what do I do next? Well, TheSamba came to the rescue, and one of the posters suggested a mini-flocker kit from Flock It! (http://www.flockit.com/index.php/products/suede-tex/mini-flocker-kits.html). It looked like they had a good system, so I bought the cream (Ivory) nylon kit, and sent my mesh out to be zinc re-plated.
Image may have been reduced in size. Click image to view fullscreen.


The mesh came back beautifully done, and, interestingly was pretty flexible (the cleaning and re-plating apparently allows the mesh to move against itself much more easily). I'm glad I marked what side went towards the driver, because both sides look good, now!

Before I started with my mesh, I decided to do a few test flockings first. I went to the hardware store and bought some window screen and some chicken wire (the mesh is somewhere in between these two sizes). I'm glad I did, as well, as all did not go as planned!
Image may have been reduced in size. Click image to view fullscreen.


My first few attempts were a disaster. The adhesive (really, very sticky paint) was too thick (you apply it with a brush)! It kept on flowing into the screen holes and my flocking basically would (inconsistently) cover up all of the holes. In addition, it would get on both sides, so I had a completely flocked screen. After a few more frustrating attempts, I decided that the adhesive provided was not meant for screens - it was meant for self-leveling for things like glove boxes. Even using mineral spirits did not make it thin enough (and still work) to not flock the screen holes! I thought I could do it right on the original mesh. Nope! Luckily, it all came off after soaking in nail polish remover and scrubbing with a nylon brush! whew!

My next attempt was to try a spray. I purchased four different spray adhesives: Elmers extra strength spray adhesive, Loctite spray adhesive (general performance), 3M super 77 multipurpose adhesive, and Rust-oleum paint+primer. What's that? Paint is not an adhesive? Well, it has some adhesive qualities, and, since the Flock It! adhesive looked and felt like paint, I thought I would try it. Here's how it went:
* Paint+ Primer: This was a very weak adhesive. It did spray well, and dulled the metal, but it just didn't capture many fibers
* Elmer's: This was slightly better, but was more like the paint without the coloring - it didn't hold the fibers *and* the metal showed through
* Loctite: Slightly better than Elmers - held more fibers, and sprayed fairly well

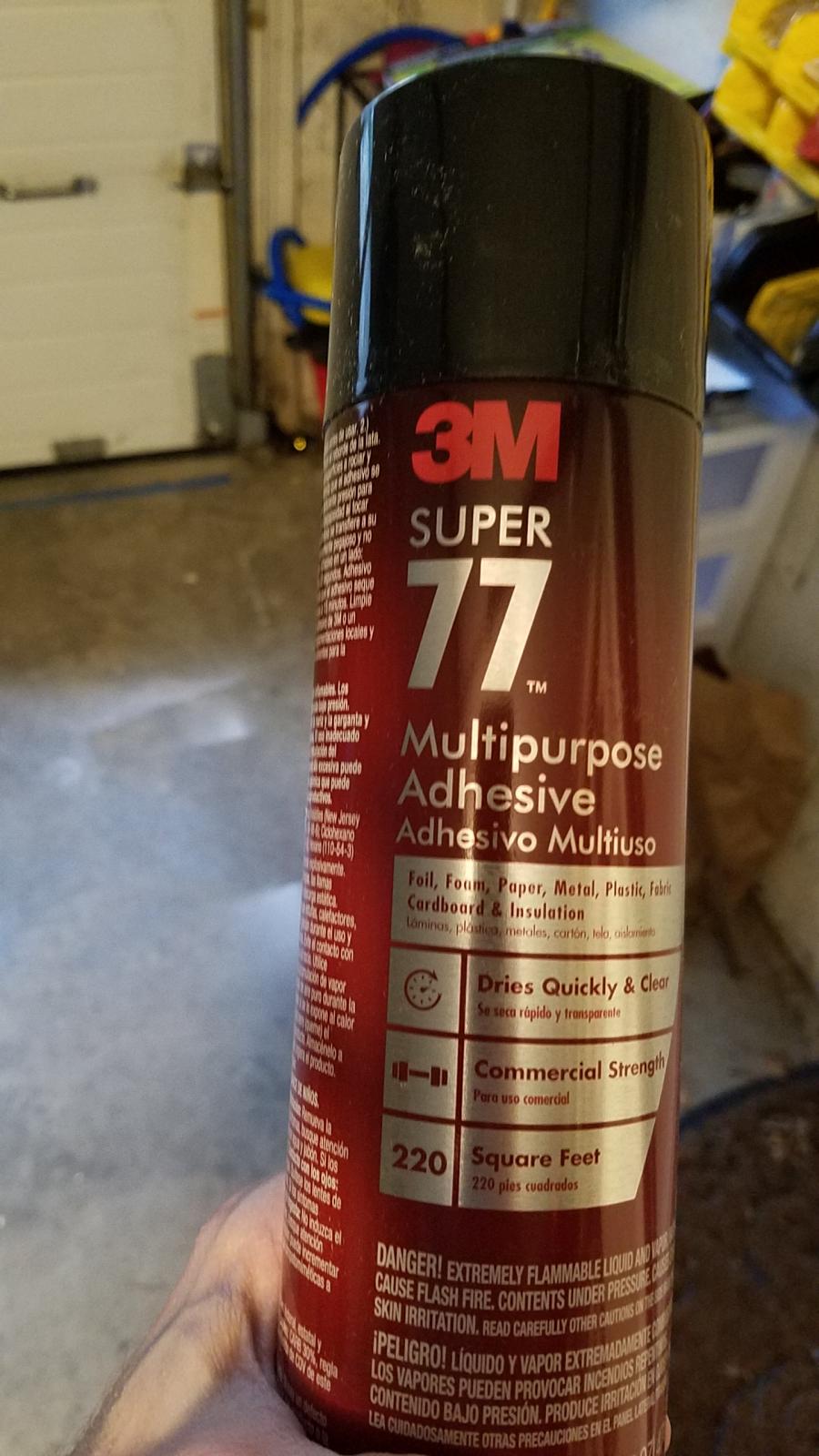

* 3M: This was the stuff! It was strong and could hold a lot of fibers.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


One problem - with the spray, I was still flocking both sides (the spray stayed in the air and adhered to the back of the test strips I propped up). My solution? Lay the test strips down on the ground (or, on some cardboard), and spray directly down on them. Amazingly, all flocking, after this point, only happened on one side. Win!

OK, so now it was time to do the final flocking!

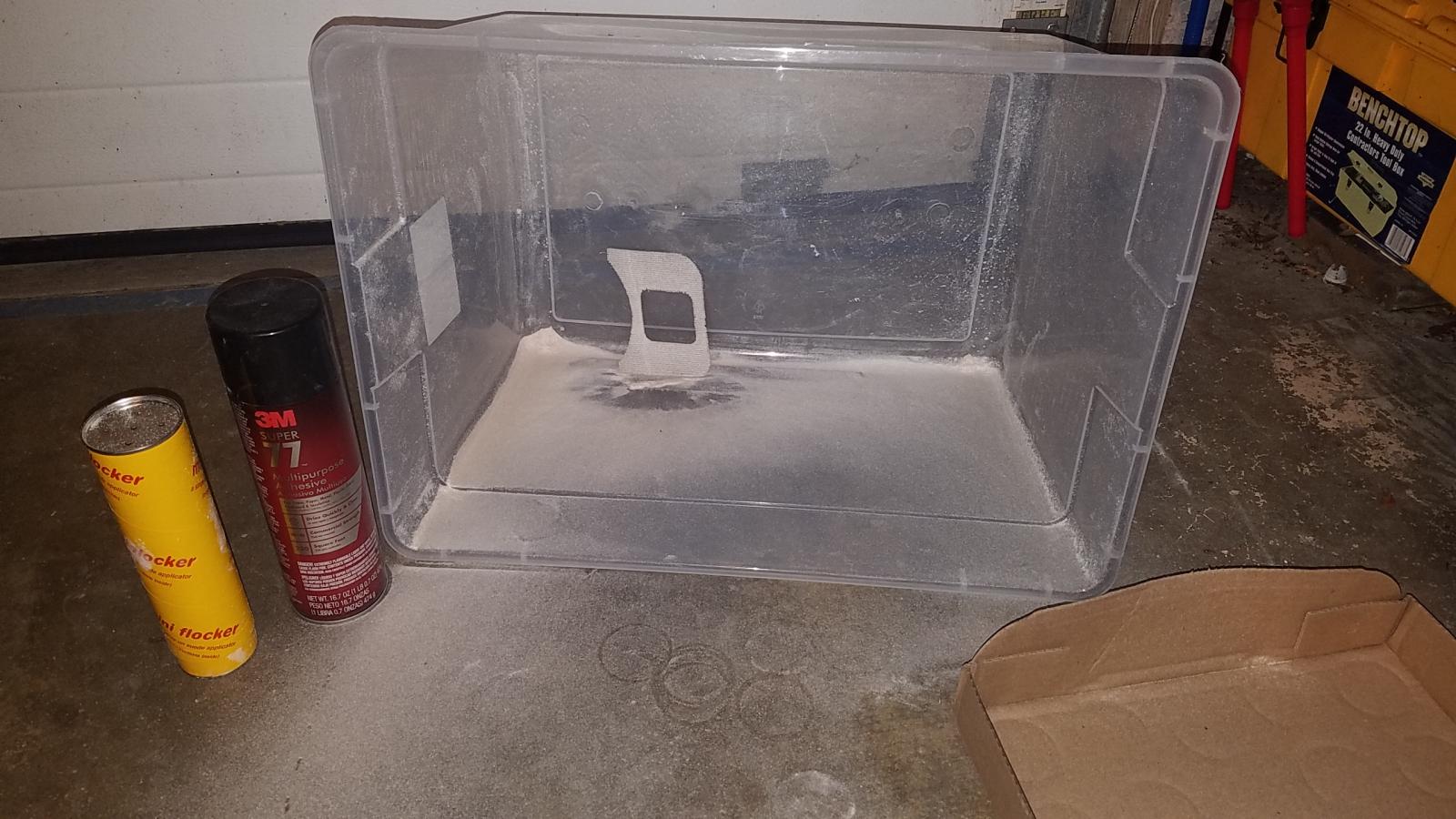

1) I set up my "flocking booth" (a plastic tub I had gotten from Target) - this is used to recapture the flocking that does not stick (you can reuse it). I put a piece of duct tape on the bottom to make sure the mesh didn't slip down (I had a problem with this one time, as it fell over, and messed up the consistency of the adhesive)
Image may have been reduced in size. Click image to view fullscreen.

2) I set up my "spray booth" (a cardboard carton)
Image may have been reduced in size. Click image to view fullscreen.

3) I filled my flocking bottle half way with flocking, and got it ready
4) I shook up my 3M adhesive
5) I put on my latex gloves (wow, the first time I flocked I got paint all over my hands - and I didn't want adhesive all over them)
6) I put my first mesh piece in the spray booth, facing up the way it would face towards the driver

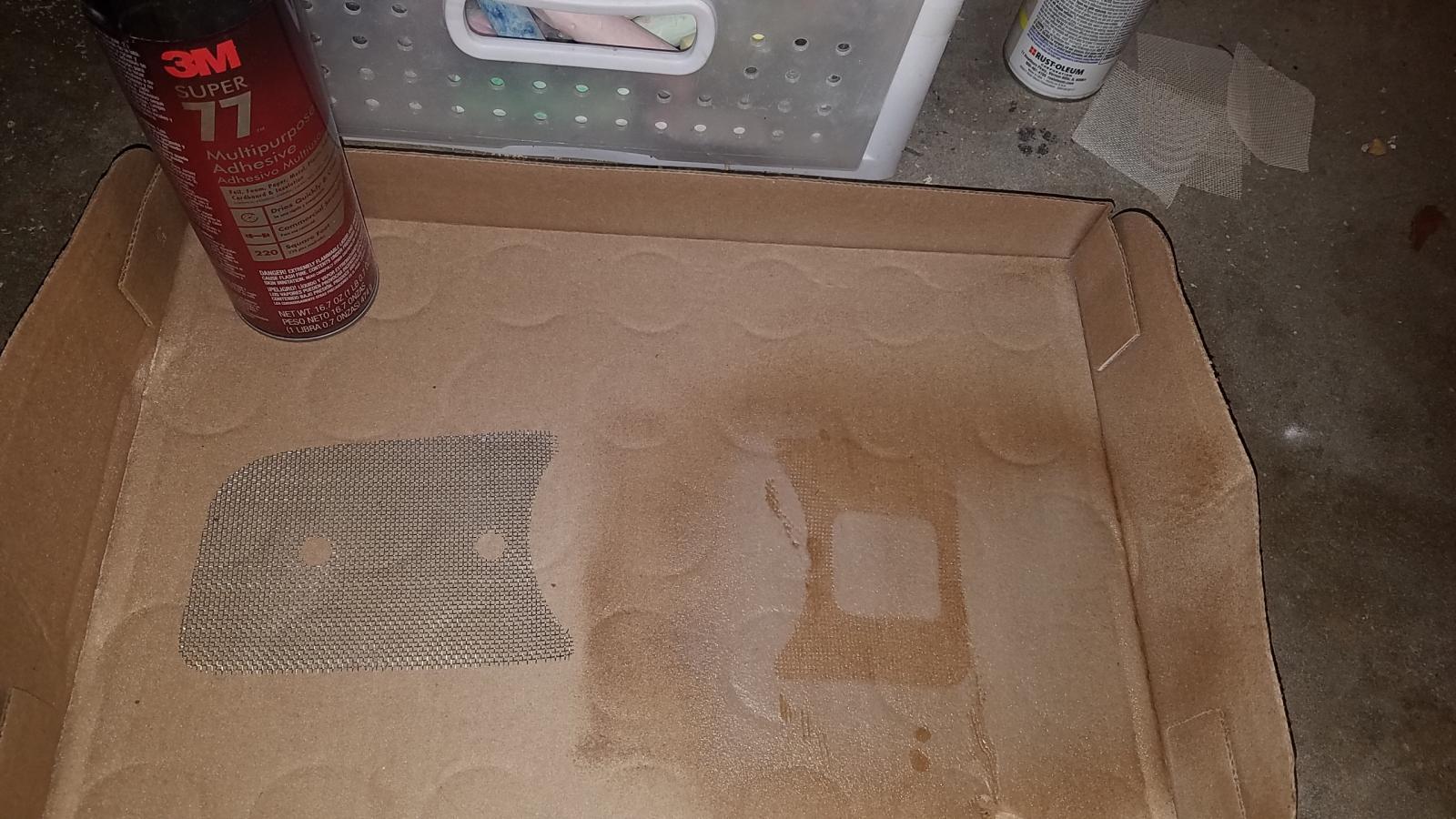

7) I heavily sprayed the mesh, going evenly back and forth (maybe too heavily)
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Cool I quickly took the mesh by the edges and put it in the flocking booth, propped up, facing towards me
9) I started pumping the flocking bottle, facing down at a 45 degree angle and twisting it at the same time, to make sure the flocking material came out. I kept doing this until the mesh was completely covered and I couldn't see anything (only what sticks will stay)
Image may have been reduced in size. Click image to view fullscreen.

10) I let it dry in the booth
11) later that day, I knocked it down a little to get off the excess flocking, and recaptured it into the flocking bottle

Whew! I then repeated this for the other mesh piece.
Front of mesh:
Image may have been reduced in size. Click image to view fullscreen.


Back of mesh:
Image may have been reduced in size. Click image to view fullscreen.


What I noted was that even with my many attempts, I didn't evenly coat it enough. As a matter of fact, I missed a corner of one of the mesh pieces, and tried to redo it (mistake - you can not spray adhesive evenly on just one part, after flocking - as you can see, it's a little over covered in that corner, now).

So, it's not perfect, but I'm pretty happy with it. I also know that the flocking will fall out over time, so it may weather/age well. Before installation, I might scrub it all off and try again, now that I've learned a bit. But I might not. My goal was achieved. I notice it's already shedding, though. Shocked

In the end, I just wanted to pass on some of what I learned during my screen flocking work. I'm not sure how many people want to do this, or care - but I'm trying to get as original as possible - and this is part of it! If this helps someone else, then it was useful!
_________________
-Harry
--------------------------
1967 Ruby Red Convertible Beetle ("Becky")
ISO Albuquerque "Imported Motors" dealership paraphernalia


Last edited by harrymarlin on Fri Feb 14, 2020 1:16 pm; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
bluebus86
Banned


Joined: September 02, 2010
Posts: 11075

bluebus86 is offline

PostPosted: Fri Feb 14, 2020 1:07 pm    Post subject: Re: What the flock is flocking? Reply with quote

Thank You, Most Excellent!

Now about flock colors? What colors may have been used stock? I got one of them early1961 Turkis color matched interior cars, would the flocking be grey, white, or a light blue, green, turquoise, or...?

Thanks again for the info!

Bug On! With Flock!
_________________
Help Prevent VW Engine Fires, see this link.....Engine safety wire information

Stop introducing dirt into your oil when adjusting valves ... https://www.thesamba.com/vw/forum/viewtopic.php?t=683022
Back to top
View user's profile Send private message Gallery Classifieds Feedback
KTPhil Premium Member
Samba Member


Joined: April 06, 2006
Posts: 27703
Location: Conejo Valley, CA
KTPhil is offline

PostPosted: Fri Feb 14, 2020 1:10 pm    Post subject: Re: What the flock is flocking? Reply with quote

Funny, my Bugs were always old when bought, and I thought the speaker grille "flocking" was just corrosion from exposure to moisture, and paid it no mind!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
[email protected]
Samba Member


Joined: May 17, 2003
Posts: 3892
Location: Harmony, PA
gkeeton@zbzoom.net is offline

PostPosted: Fri Feb 14, 2020 6:39 pm    Post subject: Re: What the flock is flocking? Reply with quote

Not that I doubt your findings, but for future car show reference, where did you find that the grills are flocked?
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
WADVR
Samba Member


Joined: December 03, 2015
Posts: 102
Location: Carnation, WA
WADVR is offline

PostPosted: Fri Feb 14, 2020 6:51 pm    Post subject: Re: What the flock is flocking? Reply with quote

KTPhil wrote:
Funny, my Bugs were always old when bought, and I thought the speaker grille "flocking" was just corrosion from exposure to moisture, and paid it no mind!


Ha That is what I thought too. Laughing
_________________
- 67 Beetle Full Resto Project
- 66 Beetle ďParts CarĒ Project
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Chickensoup
Samba Member


Joined: January 06, 2018
Posts: 1221
Location: Good Hope, Ga
Chickensoup is offline

PostPosted: Sat Feb 15, 2020 8:04 am    Post subject: Re: What the flock is flocking? Reply with quote

Wow! thank you for your time!! bookmarked this one. Very Happy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bluebus86
Banned


Joined: September 02, 2010
Posts: 11075

bluebus86 is offline

PostPosted: Sat Feb 15, 2020 8:59 am    Post subject: Re: What the flock is flocking? Reply with quote

[email protected] wrote:
Not that I doubt your findings, but for future car show reference, where did you find that the grills are flocked?


I have had my 61 Bug for 40 years, And rode in it for 16 years prior to my ownership. I can attest that it was flocked, nowdays it is not so evident, but it was once very evident.

Bug On!
_________________
Help Prevent VW Engine Fires, see this link.....Engine safety wire information

Stop introducing dirt into your oil when adjusting valves ... https://www.thesamba.com/vw/forum/viewtopic.php?t=683022
Back to top
View user's profile Send private message Gallery Classifieds Feedback
[email protected]
Samba Member


Joined: May 17, 2003
Posts: 3892
Location: Harmony, PA
gkeeton@zbzoom.net is offline

PostPosted: Sat Feb 15, 2020 10:33 am    Post subject: Re: What the flock is flocking? Reply with quote

bluebus86 wrote:
[email protected] wrote:
Not that I doubt your findings, but for future car show reference, where did you find that the grills are flocked?


I have had my 61 Bug for 40 years, And rode in it for 16 years prior to my ownership. I can attest that it was flocked, nowdays it is not so evident, but it was once very evident.

Bug On!


I completely believe you guys. Coming from a show car restoration background, and knowing a few certified judges, Iím always intrigued to find actual documentation.

The owner, and a coworker of the shop Iím at now were at a GTO event where a participant was docked points for a very rare dealer installed exhaust tip. Turned out, a few cars down the row, a car within their class had the same tips. Only they were the original owner of the car, had the Pontiac documentation of the accessory, and the actual receipt of the purchase for the car from the dealer.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
harrymarlin
Samba Member


Joined: June 07, 2018
Posts: 249
Location: Washington, DC
harrymarlin is offline

PostPosted: Sat Feb 15, 2020 12:27 pm    Post subject: Re: What the flock is flocking? Reply with quote

[quote="[email protected]"]
bluebus86 wrote:
The owner, and a coworker of the shop Iím at now were at a GTO event where a participant was docked points for a very rare dealer installed exhaust tip. Turned out, a few cars down the row, a car within their class had the same tips. Only they were the original owner of the car, had the Pontiac documentation of the accessory, and the actual receipt of the purchase for the car from the dealer.


That is a cool story, and gives a really good lesson in documentation.

Unfortunately, I have been unable to find any official flocking documentation, at all. I would love to see actual documentation that VW did this. The flocking makes sense to me (and it was on mesh, and other's have mentioned it on theirs), but I have only seen some official advertising photos in which it *looks* like something could have been on them - nothing that states it.

Anyone have any ideas on documentation?
_________________
-Harry
--------------------------
1967 Ruby Red Convertible Beetle ("Becky")
ISO Albuquerque "Imported Motors" dealership paraphernalia
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
harrymarlin
Samba Member


Joined: June 07, 2018
Posts: 249
Location: Washington, DC
harrymarlin is offline

PostPosted: Sat Feb 15, 2020 12:29 pm    Post subject: Re: What the flock is flocking? Reply with quote

bluebus86 wrote:
Now about flock colors? What colors may have been used stock? I got one of them early1961 Turkis color matched interior cars, would the flocking be grey, white, or a light blue, green, turquoise, or...?


I have a ruby red, and the remnants of my flocking looked off-white, so I would *guess* that flocking was not color matched with the car - they were all off-white (especially as folks have only mentioned off-white flocking).
_________________
-Harry
--------------------------
1967 Ruby Red Convertible Beetle ("Becky")
ISO Albuquerque "Imported Motors" dealership paraphernalia
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
harrymarlin
Samba Member


Joined: June 07, 2018
Posts: 249
Location: Washington, DC
harrymarlin is offline

PostPosted: Mon Feb 17, 2020 8:07 am    Post subject: Re: What the flock is flocking? Reply with quote

Just to tie these two threads together:
https://www.thesamba.com/vw/forum/viewtopic.php?p=8863947
_________________
-Harry
--------------------------
1967 Ruby Red Convertible Beetle ("Becky")
ISO Albuquerque "Imported Motors" dealership paraphernalia
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
67conv
Samba Member


Joined: July 10, 2005
Posts: 91
Location: Simi Valley, California
67conv is offline

PostPosted: Mon Feb 17, 2020 9:03 am    Post subject: Re: What the flock is flocking? Reply with quote

Harry, you "flocking" rock!! The attention to detail and minutia you have been putting into your 67 vert restoration is beyond sublime! I'm sure that in the end, you will possess one of the finest 67's anywhere! Having owned and cared for a Ruby red 1967 convertible myself for 30 years, and having also the pleasure to own an original low mile (57,000 orig mi., orig paint, interior, engine, etc) 67 Savanna beige (bought from original owner in 1985), I can attest to the fact that both cars had this 'cream' or white-ish colored dash grill screen flocking material. Apparently, the color of the car made no difference in the speaker grill color of 'flocking' - at least not in 1967 anyway. Both 67's were early 1967 model year versions - Aug 1966 manufacture. As a side note, I foolishly removed my original screens 30 years ago on my 67 vert when installing a replacement speaker and cleaned up & re-painted them thinking the original "paint" was getting old and corroded not knowing it was the flocking. We call this "killing with kindness" haha Rolling Eyes Thank you for a very informative and well written article.
_________________
1967 VW Convertible owned /driven 30 years
1957 DKW 3=6 owned / driven 16 years
2002 Mazda Protege5 daily driver

previously owned: 72 "Baja Champion SE" Spec. Edition Super Beetle bought NEW; 79 Convertible bought NEW; 67 type 1 savanna beige; 67 2.0 911S; 73 2.4 911T; 63 356 T6 B Cabriolet; 64 356 SC sunroof coupe; 72 Type-3 Squareback; 68 + 69 Type-3 Fastbacks; 87 Vanagon GL Wasserboxer
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
harrymarlin
Samba Member


Joined: June 07, 2018
Posts: 249
Location: Washington, DC
harrymarlin is offline

PostPosted: Sun Feb 23, 2020 12:44 pm    Post subject: Re: What the flock is flocking? Reply with quote

As a follow-up, I did decide that I wanted to try to make the mesh flocking look a little better, so I made a couple of changes to my process:
1) I did both pieces together to make the cover more consistent
2) I did a base coat of the Rust-oleum ultra cover smokey beige paint (I did this to ensure it still looked colored if flocking falls off inconsistently)
3) I did a heavy spray of the 3M super 77 multipurpose adhesive
4) Applied flocking on all pieces at once
5) Used a wooden skewer I bought at the grocery stores (for kabobs) to poke consistent sized holes in the mesh

After flocking, while poking the holes with the skewer:
Image may have been reduced in size. Click image to view fullscreen.

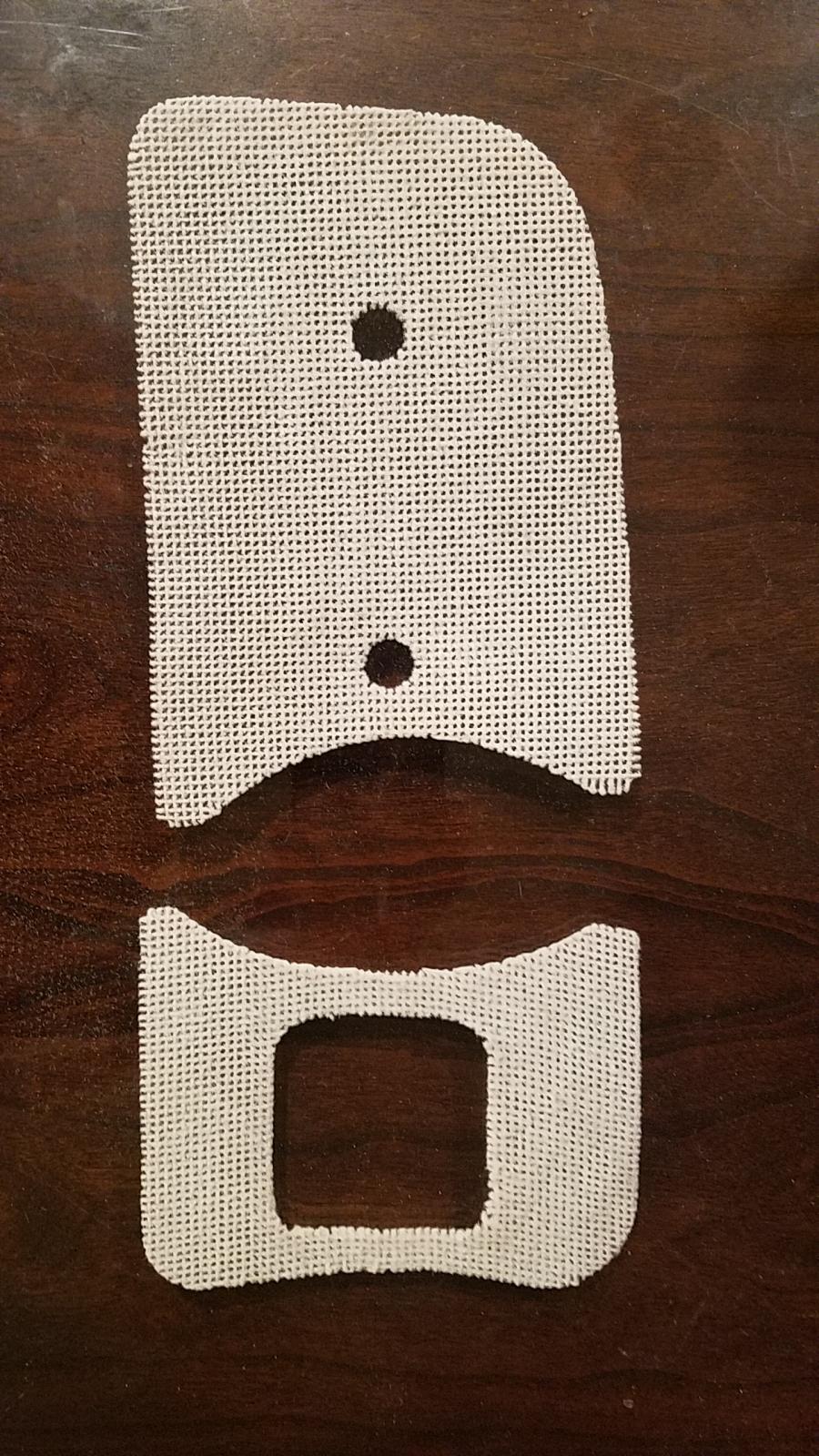

At the end, front of the mesh:
Image may have been reduced in size. Click image to view fullscreen.


At the end, the back of the mesh (to show the metal hasn't been coated - just the front):
Image may have been reduced in size. Click image to view fullscreen.
