PostPosted: Sat Jan 09, 2021 12:25 pm    Post subject: Wiper shaft disassembly Reply with quote

Hi

I got a 67 wiper assembly and I want to remove all the parts to blast and repaint the metal frame. How do I disassemble the wiper shafts? There is a clip on the wiper side, which secures the shaft from moving. This clip is so tiny, I can‘t find a good way to remove it. Anyone has done it and have a good advise or tool to use to get it removed without destroying it?

Image may have been reduced in size. Click image to view fullscreen.


Thanks!
_________________
Recent pics from my SO-42 rebuild: https://www.instagram.com/anni_vintage_bus/
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
mdege
Samba Member


Joined: January 16, 2018
Posts: 504
Location: Niederkruechten, Germany
mdege is offline

PostPosted: Sun Jan 10, 2021 2:13 am    Post subject: Re: Wiper shaft disassembly Reply with quote

I would replace both shaft assemblies and not bother about taking them apart. Yours look really warn out.

You can press against the arm, then the clip should be a bit more accessible.Then you can use a pointy tool to pry it off. There is a springwasher between the arm and rhe bushing.
_________________
- Michael

1965 21F: Restoration of a former '65 firetruck
1963 Typ3 Notchback project
1988 Multivan Magnum 112i
1984 Standard: My son wanted a bug for his first car
Back to top
View user's profile Send private message Gallery Classifieds Feedback
BarryL Premium Member
Samba Member


Joined: November 01, 2004
Posts: 12827
Location: Casa de Oro, California
BarryL is offline

PostPosted: Sun Jan 10, 2021 6:41 pm    Post subject: Re: Wiper shaft disassembly Reply with quote

Plus strop your shaft with a strip of 320 sandpaper like a shoeshine boy. The snap-clip only needs to move out of the recess then slid off.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Clara Premium Member
Samba Member


Joined: June 14, 2003
Posts: 11826

Clara is offline

PostPosted: Mon Jan 11, 2021 9:30 am    Post subject: Re: Wiper shaft disassembly Reply with quote

mdege wrote:
I would replace both shaft assemblies and not bother about taking them apart. Yours look really warn out.

You can press against the arm, then the clip should be a bit more accessible.Then you can use a pointy tool to pry it off. There is a springwasher between the arm and rhe bushing.


IIRC, you have to take them apart to replace them.
Make sure the shafts and moving parts are greased upon reassembly.

take pics so you know how to orient the parts.

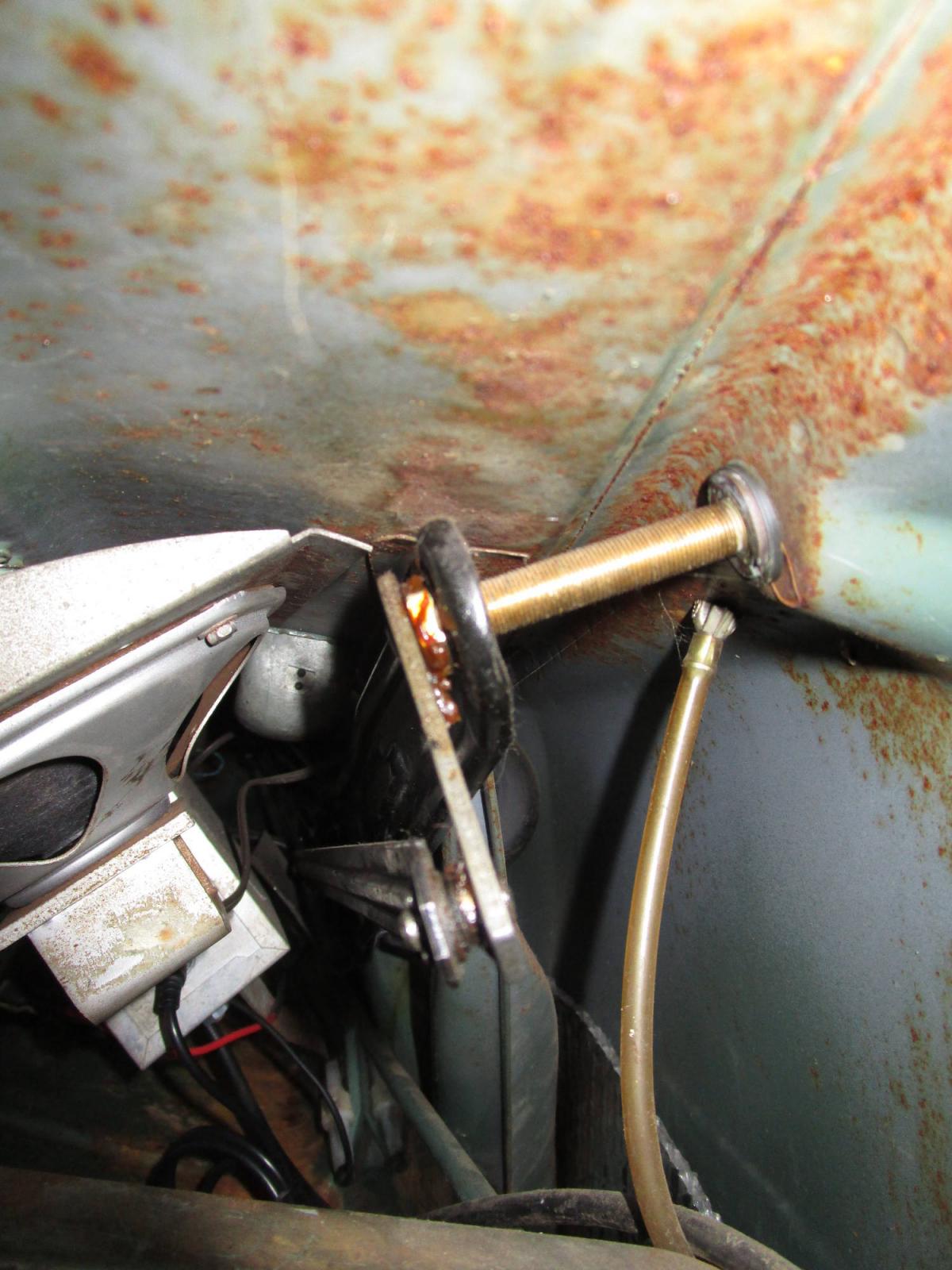

my 66 kombi had worn sloppy pivots, and I installed new WW repro pivots:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
