Leak at Rear CV -Transaxle connection
Page: 1, 2  Next
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
markf1
Samba Member


Joined: September 21, 2019
Posts: 205
Location: Telluride, Colorado
markf1 is offline

PostPosted: Mon Apr 05, 2021 1:21 pm    Post subject: Leak at Rear CV -Transaxle connection Reply with quote

First a little sad history. In October 2019 the transaxle blew up on our 86 Syncro. We got towed into a town where we did not know any mechanics. We ended up having the transaxle re-built by Mr. Gas in Canon City, CO. Respected and experienced rebuild guy. We had the transaxle put back in by foreign car shop in town where the van had been towed after break down. Very bad experience with this shop on multiple levels.

While we were traveling they contacted us and said we need new rear axles and cv assemblies and they need them immediately and they had already ordered some. I was leery of what they ordered and said that we want the right parts and so had them overnighted from Go Westy. Now I have learned that the EMPI parts from Go Westy are not that desirable but that was what was put in. I also ordered the Rockford boot Kit. In the end I don't really know what they did. Far more to the story with these guys but I will leqve it at that.

Since the work was done we have only put 1K miles on the van. At 600 miles one of the rear axles became unbolted form the wheel. Another tow. It seems the hex type bolts had never been properly torqued.

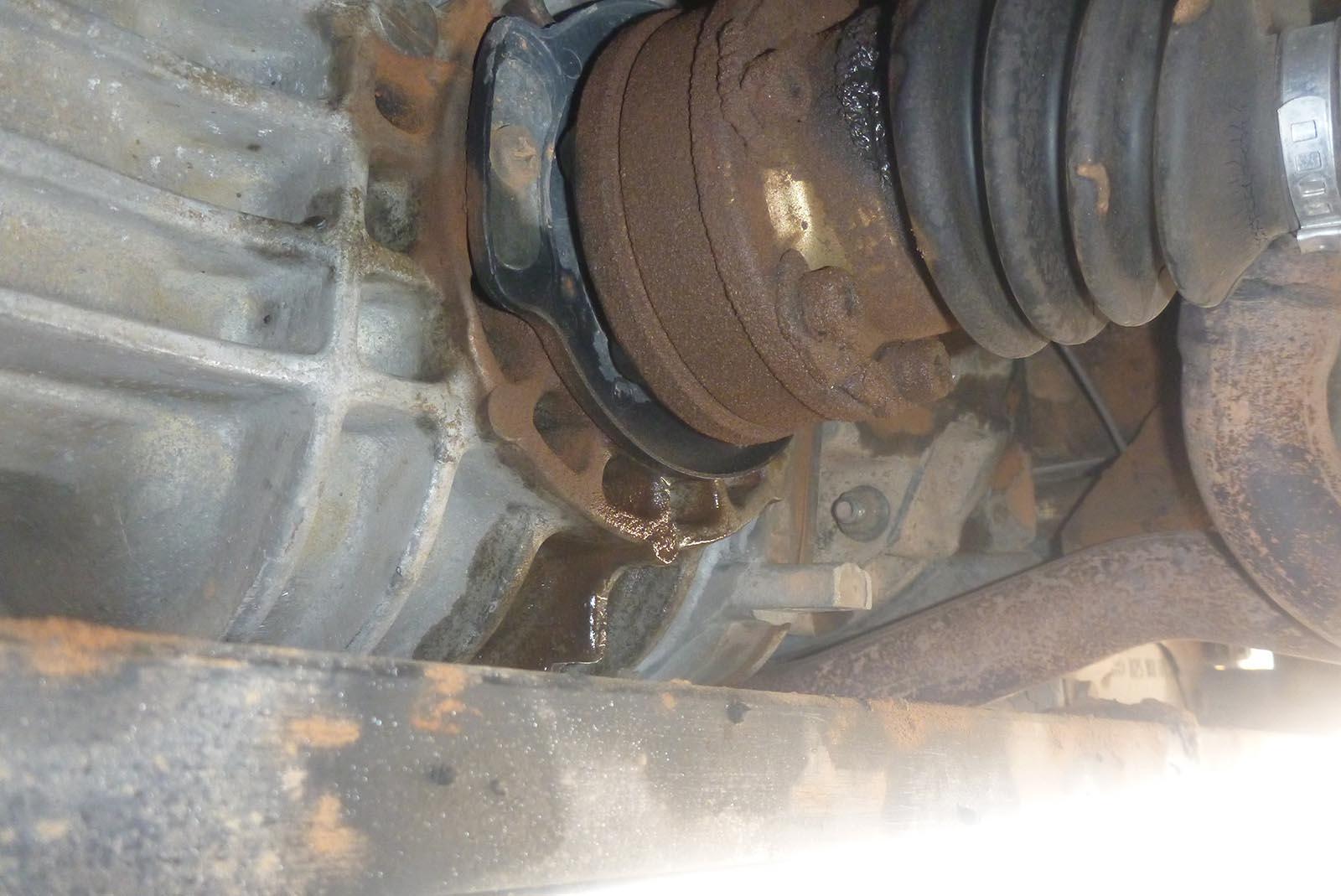

Now - on the other side (passenger rear I am seeing this slight leak where the axle/cv connects to the transaxle. Photo is attached. If you look close it alos appears that there are wear/age cracks on the samll side of the boot and also signs of leakage around it. No way that boot only has 1K miles on it imo.

My question. Can transaxle fluid leak out from that point? Is there a seal that we should get replaced?

In a few days we are taking the van to a new shop that has been highly recommended from a very experienced and trusted source. They are putting on new rear shocks, new rear locker switch, power steering hose. I am going to show them this but thought to get some expert advice and opinions from you all first.

Thanks in advance!

Image may have been reduced in size. Click image to view fullscreen.

_________________
1986 Westfalia Syncro
Some Westy supported adventure photos:
https://www.openrangeimaging.com/adventure.html
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MarkWard
Samba Member


Joined: February 09, 2005
Posts: 14769
Location: Palm Beach County, Florida
MarkWard is offline

PostPosted: Mon Apr 05, 2021 3:10 pm    Post subject: Re: Leak at Rear CV -Transaxle connection Reply with quote

Thatís 1000 miles? The leak appears to be from transaxle the seal/race adjusting ring. That would likely be a claim with Mr Gas. There is a side cover O ring and seal. The cv flange is where the trans seal seals. A proficient tech should be able to fix it. Worse case the flange may need a speedi sleeve repair.
_________________
1982 Vanagon Camper with ALH TDI.
1990 Vanagon Camper Syncro.
In Car https://youtu.be/5hbfdUJR88Q
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 26992
Location: North West New Jersey
djkeev is offline

PostPosted: Mon Apr 05, 2021 3:42 pm    Post subject: Re: Leak at Rear CV -Transaxle connection Reply with quote

Have you been doing a LOT of dirt road driving?

That level of dirt for 1000 miles is astounding!

You have two leaks, CV grease and differential oil.

I see a new boot to axle clamp so I'm guessing that extreme layer of filth is your doing.

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
markf1
Samba Member


Joined: September 21, 2019
Posts: 205
Location: Telluride, Colorado
markf1 is offline

PostPosted: Mon Apr 05, 2021 4:41 pm    Post subject: Re: Leak at Rear CV -Transaxle connection Reply with quote

Thanks to you both. Yes just 1K miles since re-built transaxle and (supposedly) new axle/cv assemblies put in. It's a new cv boot clamp but look at the wear/age cracks on the small end of the boot by the clamp.

Yes we do drive on a lot of dirt roads.

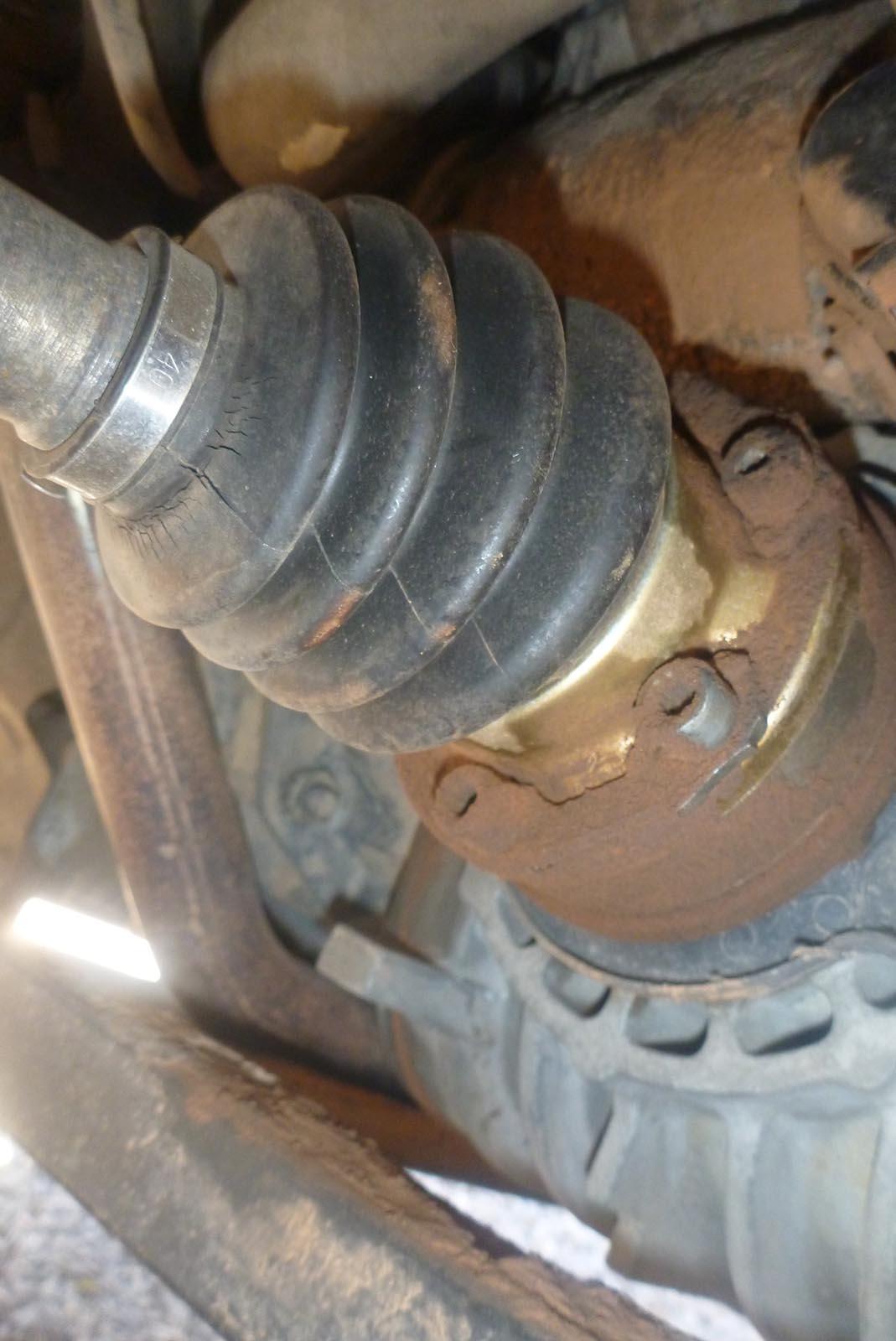

Photos of passenger side inner cv area attached for a comparison. Again both sides supposedly had new axles/cv/boots put on 1K miles ago when rebuilt transaxle got put back in.

I could go on at length about the other problems with this foreign car repair shop, Alpine Autohaus in Grand Junction , CO but it is too painful to regurgitate how badly I feel we got ratf***ed.

Talking to new mechanic now about replacing all this "new" stuff with Lobro CV and Rockford boots. Hoping now to get it done asap cause plan is to head out into the canyon country wilderness with the van @ 4/12.

You guys here on the samba continue to amaze me with your expertise, good advise and positive spirits Thanks!!

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
1986 Westfalia Syncro
Some Westy supported adventure photos:
https://www.openrangeimaging.com/adventure.html
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MarkWard
Samba Member


Joined: February 09, 2005
Posts: 14769
Location: Palm Beach County, Florida
MarkWard is offline

PostPosted: Mon Apr 05, 2021 4:48 pm    Post subject: Re: Leak at Rear CV -Transaxle connection Reply with quote

These are brand new Lobro boots. 10 miles

Image may have been reduced in size. Click image to view fullscreen.


Boots are a crap shoot. There have been posted issues with Rockford boots too.
_________________
1982 Vanagon Camper with ALH TDI.
1990 Vanagon Camper Syncro.
In Car https://youtu.be/5hbfdUJR88Q
Back to top
View user's profile Send private message Gallery Classifieds Feedback
markf1
Samba Member


Joined: September 21, 2019
Posts: 205
Location: Telluride, Colorado
markf1 is offline

PostPosted: Mon Apr 05, 2021 4:54 pm    Post subject: Re: Leak at Rear CV -Transaxle connection Reply with quote

Ho. Lee. Phuq.
_________________
1986 Westfalia Syncro
Some Westy supported adventure photos:
https://www.openrangeimaging.com/adventure.html
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 26992
Location: North West New Jersey
djkeev is offline

PostPosted: Mon Apr 05, 2021 5:04 pm    Post subject: Re: Leak at Rear CV -Transaxle connection Reply with quote

Axle boots have proven themselves to be garbage.

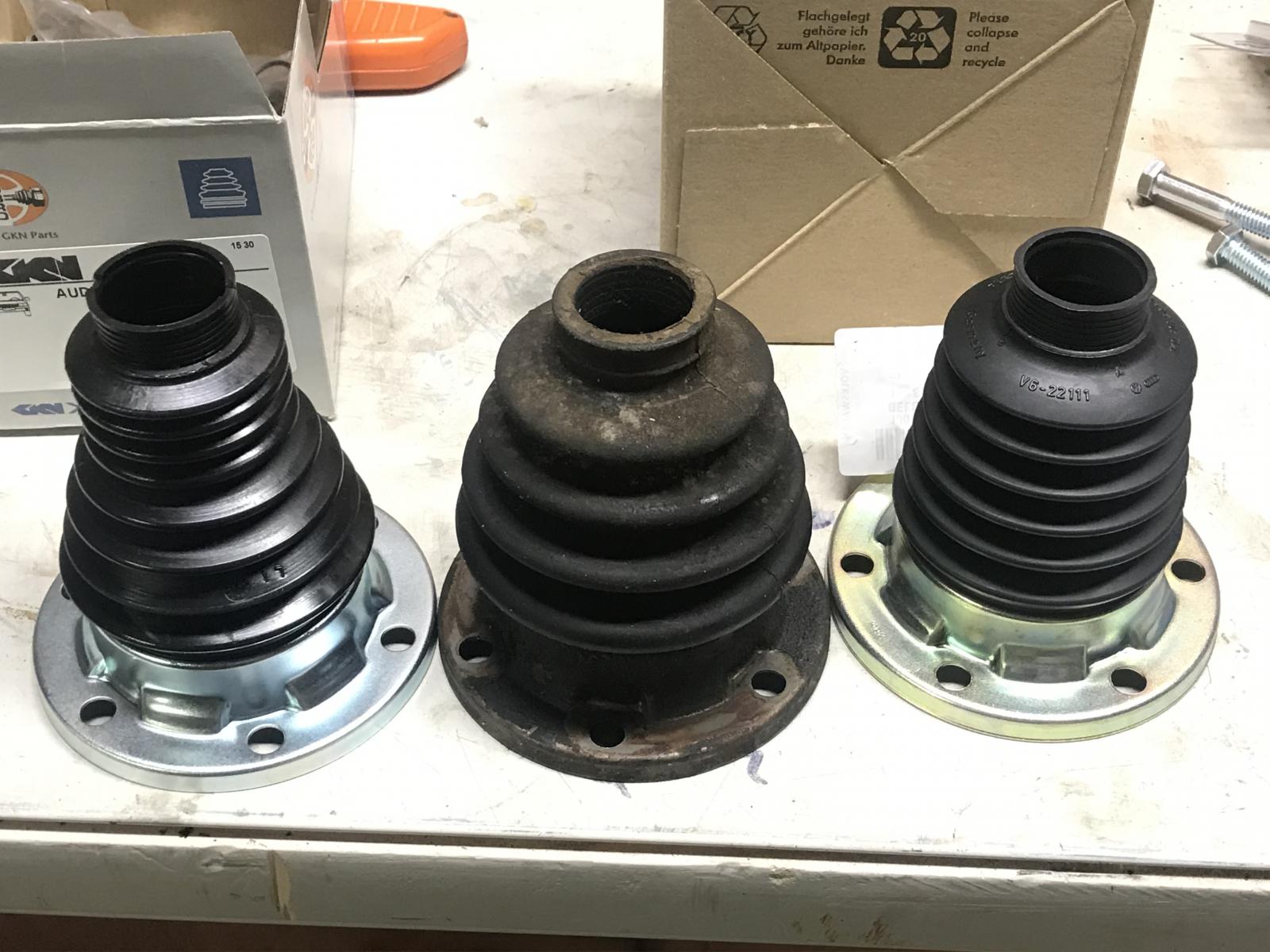

There is a new boot alternative.

VW Tiquan Boots.

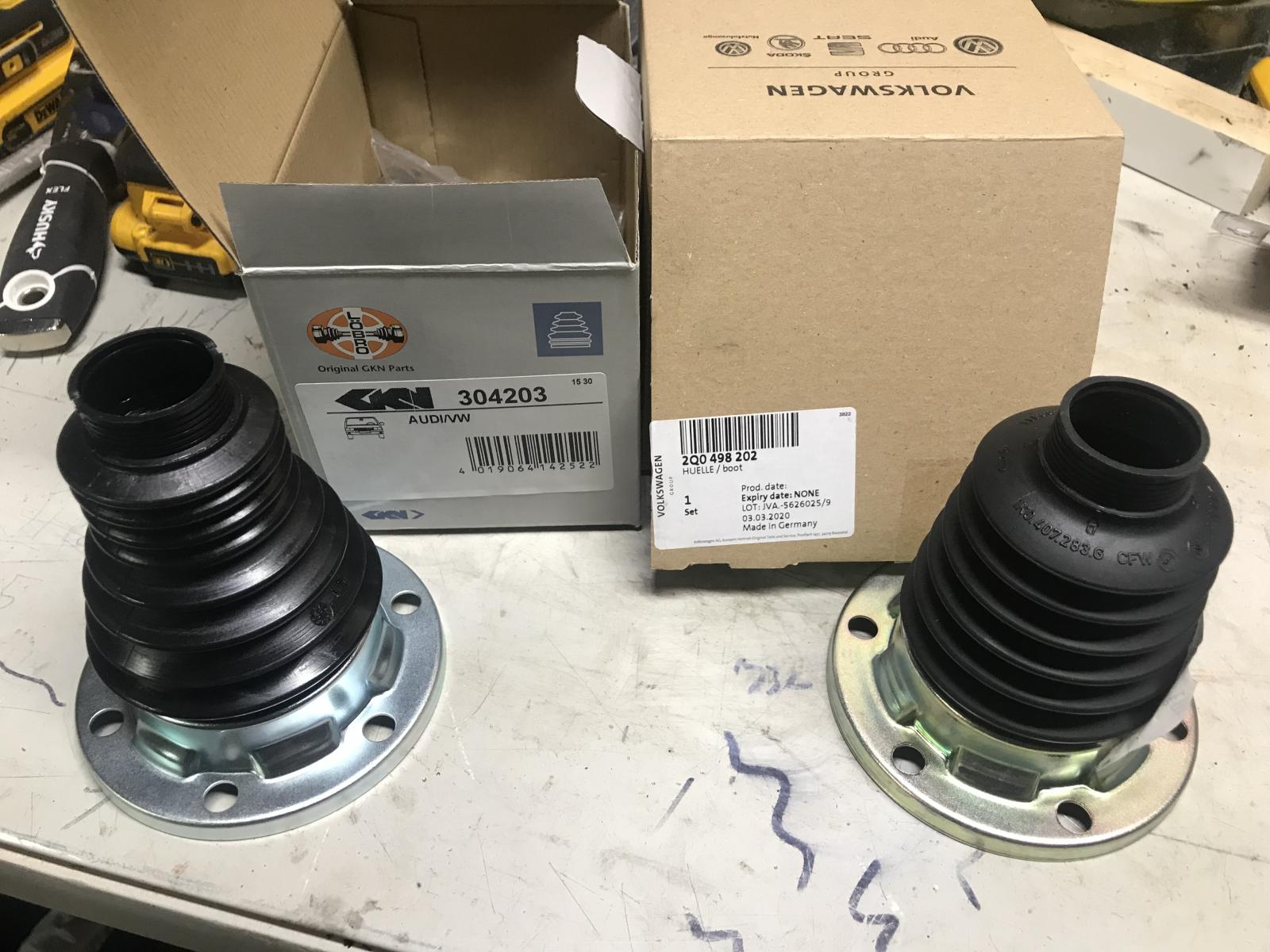

I am currently running GKN boots on one axle and Genuine VW boots on the other.
A test to see if one is better than the other.
Initial thoughts? I like the VW boots better.


Image may have been reduced in size. Click image to view fullscreen.


Order from FCP, they have a lifetime warranty. Yes, even on axle boots.

Link to Tiquan boot thread......

https://www.thesamba.com/vw/forum/viewtopic.php?t=...p;start=40

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert


Last edited by djkeev on Mon Apr 05, 2021 5:33 pm; edited 2 times in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Abscate Premium Member
Samba Member


Joined: October 05, 2014
Posts: 16156
Location: NYC/Upstate/ROW
Abscate is offline

PostPosted: Mon Apr 05, 2021 5:24 pm    Post subject: Re: Leak at Rear CV -Transaxle connection Reply with quote

MarkWard wrote:
These are brand new Lobro boots. 10 miles

Image may have been reduced in size. Click image to view fullscreen.


Boots are a crap shoot. There have been posted issues with Rockford boots too.


If it werenít fir the user I would call user error on this, but this guy knows his way around the shop.

Unbelievable new low in part quality
_________________
.ssS!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
markf1
Samba Member


Joined: September 21, 2019
Posts: 205
Location: Telluride, Colorado
markf1 is offline

PostPosted: Mon Apr 05, 2021 5:30 pm    Post subject: Re: Leak at Rear CV -Transaxle connection Reply with quote

Hmm. That is interesting. I am thinking of having the Lobro Cv joints with Rockford Boots put on. I could sub the VW Tiquan boots. Too bad your test is still in it's early stages!

Is there a preferred axle I should be considering as well? IOW - The part that connects between the inner and outer cv'c?.

there is so much labor involved and I want to (and wanted to previously) use the best parts. Doesn't cost any more labor to put in better components. We don't do any extreme four wheeling but we get off the pavement quite often on high clearance roads. Dependability in remote travel is our primary concern
_________________
1986 Westfalia Syncro
Some Westy supported adventure photos:
https://www.openrangeimaging.com/adventure.html
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 26992
Location: North West New Jersey
djkeev is offline

PostPosted: Mon Apr 05, 2021 5:36 pm    Post subject: Re: Leak at Rear CV -Transaxle connection Reply with quote

markf1 wrote:
Hmm. That is interesting. I am thinking of having the Lobro Cv joints with Rockford Boots put on. I could sub the VW Tiquan boots. Too bad your test is still in it's early stages!

Is there a preferred axle I should be considering as well? IOW - The part that connects between the inner and outer cv'c?.

there is so much labor involved and I want to (and wanted to previously) use the best parts. Doesn't cost any more labor to put in better components. We don't do any extreme four wheeling but we get off the pavement quite often on high clearance roads. Dependability in remote travel is our primary concern


Tiquans are all over the place running OE VW boots.
I would NOT run any Vanagon boot available today.
I would, if pressed, say run VW's boot.
FCP has them.

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
markf1
Samba Member


Joined: September 21, 2019
Posts: 205
Location: Telluride, Colorado
markf1 is offline

PostPosted: Mon Apr 05, 2021 5:59 pm    Post subject: Re: Leak at Rear CV -Transaxle connection Reply with quote

OK. so you would not use these:
http://www.t3technique.com/drivetrain-parts/cv-joints,-boots,-etc/rockford-cv-boot.html.

Like I said we plan to put in the Lobro cv joints BUT we hope to get them overnighted and the T3:shop owner is on vacation till 4/9. Any other soirces for those anyone may know of?

Continuing thanks!


Edit>> maybe answered my own question re cv joints plus boots:
https://www.fcpeuro.com/products/vw-drive-shaft-cv...-251598101
_________________
1986 Westfalia Syncro
Some Westy supported adventure photos:
https://www.openrangeimaging.com/adventure.html
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 26992
Location: North West New Jersey
djkeev is offline

PostPosted: Mon Apr 05, 2021 6:16 pm    Post subject: Re: Leak at Rear CV -Transaxle connection Reply with quote

That kit won't solve your boot problems.

The VW boots are $43 each.

https://www.fcpeuro.com/products/audi-vw-cv-joint-boot-rear-inner-vag-1k0498201

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dobryan Premium Member
Samba Member


Joined: March 24, 2006
Posts: 13273
Location: Brookeville, MD
dobryan is offline

PostPosted: Mon Apr 05, 2021 6:17 pm    Post subject: Re: Leak at Rear CV -Transaxle connection Reply with quote

Lobro CVs are available from all the usual Vanagon vendors.
_________________
Dave O
'87 Westy w/ 2002 Subaru EJ25 and Peloquin TBD

"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson

MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646

Building a bus for travel in Europe (euroBus)
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371

The West Coast Westy
https://www.thesamba.com/vw/forum/viewtopic.php?t=746794
Back to top
View user's profile Send private message Gallery Classifieds Feedback
markf1
Samba Member


Joined: September 21, 2019
Posts: 205
Location: Telluride, Colorado
markf1 is offline

PostPosted: Mon Apr 05, 2021 6:21 pm    Post subject: Re: Leak at Rear CV -Transaxle connection Reply with quote

djkeev wrote:
That kit won't solve your boot problems.

The VW boots are $43 each.

https://www.fcpeuro.com/products/audi-vw-cv-joint-boot-rear-inner-vag-1k0498201

Dave


OK. I thought from the thread you linked to that you bought a set of the vag/vw boots and a set of the lobro and you were testing both?
_________________
1986 Westfalia Syncro
Some Westy supported adventure photos:
https://www.openrangeimaging.com/adventure.html
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 26992
Location: North West New Jersey
djkeev is offline

PostPosted: Mon Apr 05, 2021 6:28 pm    Post subject: Re: Leak at Rear CV -Transaxle connection Reply with quote

markf1 wrote:
djkeev wrote:
That kit won't solve your boot problems.

The VW boots are $43 each.

https://www.fcpeuro.com/products/audi-vw-cv-joint-boot-rear-inner-vag-1k0498201

Dave


OK. I thought from the thread you linked to that you bought a set of the vag/vw boots and a set of the lobro and you were testing both?


I am.
But you need answers tonight.

My opinion tonight is don't waste money on any Vanagon boot, you already did once.
Buy a Tiquan boot.
IMHO I prefer the fit of the VAG boot over the GKN boot. Also the OE VW boot has millions of proven users on the road right now.

My boots are nearing the mileage of yours where yours died. Both brands look brand new still.

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
markf1
Samba Member


Joined: September 21, 2019
Posts: 205
Location: Telluride, Colorado
markf1 is offline

PostPosted: Mon Apr 05, 2021 6:50 pm    Post subject: Re: Leak at Rear CV -Transaxle connection Reply with quote

Dave - Thanks man. I was just a bit confused by the various GNK, Tiguan, VAG, Lobro, OE designations. I absolutely want to put on the best we can get and if I now understand correctly, these are the ones.

https://www.fcpeuro.com/products/audi-vw-cv-joint-boot-rear-inner-vag-1k0498201

That link says inners. Are there different boots for the outers?
_________________
1986 Westfalia Syncro
Some Westy supported adventure photos:
https://www.openrangeimaging.com/adventure.html
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Syncronoid
Samba Member


Joined: January 21, 2012
Posts: 931
Location: Atherton, CA and Bend, OR
Syncronoid is offline

PostPosted: Mon Apr 05, 2021 7:08 pm    Post subject: Re: Leak at Rear CV -Transaxle connection Reply with quote

For the price of labor for this job, you could likely buy all the equipment necessary to do it yourself, forever. Just sayin'.
_________________
'90 Syncro Westy w/2.5L GW
Back to top
View user's profile Send private message Gallery Classifieds Feedback
markf1
Samba Member


Joined: September 21, 2019
Posts: 205
Location: Telluride, Colorado
markf1 is offline

PostPosted: Mon Apr 05, 2021 7:50 pm    Post subject: Re: Leak at Rear CV -Transaxle connection Reply with quote

Yes and I think I could do the work although I am by no means a professional mechanic. BUT

I have a outside gravel parking space to work on it in.
I have a business and clients to take care of.
I have a GF relationship to keep on track
I have a house that requires maintenance
I like to do alot of other stuff like outdoor rec/exercise , piano, etc.

So... I will gladly pay a pro and esp if he is honest and conscientious.
_________________
1986 Westfalia Syncro
Some Westy supported adventure photos:
https://www.openrangeimaging.com/adventure.html
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 26992
Location: North West New Jersey
djkeev is offline

PostPosted: Tue Apr 06, 2021 12:26 am    Post subject: Re: Leak at Rear CV -Transaxle connection Reply with quote

markf1 wrote:
Dave - Thanks man. I was just a bit confused by the various GNK, Tiguan, VAG, Lobro, OE designations. I absolutely want to put on the best we can get and if I now understand correctly, these are the ones.

https://www.fcpeuro.com/products/audi-vw-cv-joint-boot-rear-inner-vag-1k0498201

That link says inners. Are there different boots for the outers?


You are using a boot for a different vehicle that someone discovered fits the Vanagon and solves a part quality supply problem.

The parts listing could say it fits on the roof, I don't care!
It is the part number that matters not the description.

This is a genuine VAG VW/Audi part.

You can get the exact boot at your VW dealer also ...... but no lifetime warranty.

Order four (4) ...... cry once.


Image may have been reduced in size. Click image to view fullscreen.



Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
ZsZ
Samba Member


Joined: December 11, 2010
Posts: 1060
Location: Budapest Hungary, Europe
ZsZ is offline

PostPosted: Tue Apr 06, 2021 2:30 am    Post subject: Re: Leak at Rear CV -Transaxle connection Reply with quote

New aftermarket rubber parts are crap nowadays. Sometimes OE too.
I don't know why.
_________________
Zoltan
1.9 MTdi 2wd Multivan (ex Caravelle)
Van since 2006, engine since 2008
Back to top
View user's profile Send private message Visit poster's website Instagram Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
