PostPosted: Tue Apr 20, 2021 11:40 am    Post subject: Type 3 Parts into CAD: Post it here Reply with quote

In the Type 3 mailing list someone asked about the heater vent flaps so I decided I would CAD them up and post them here. I will print out the parts tonight and see how accurate they are and I will sell them if they come up good. Any other parts that are NLA that could be 3D printed that there would be interested in? Here are some pictures and dimensions. First the metal flap, I just realized I forgot to put the curve on the one edge
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

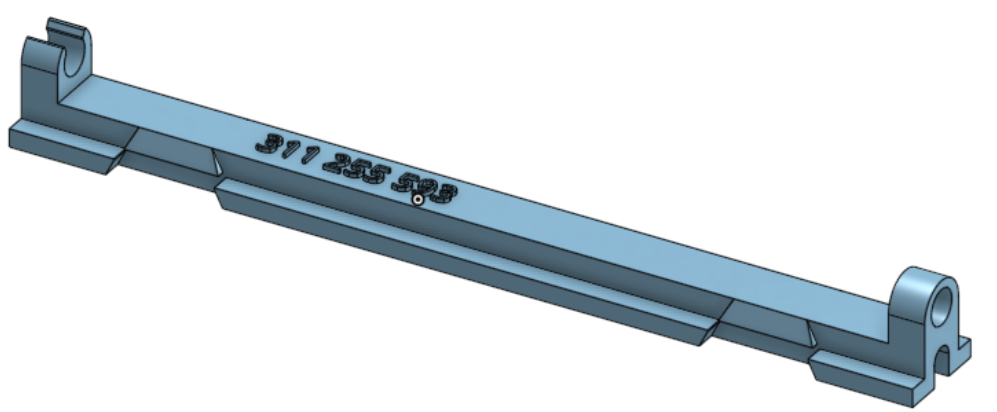

Then the plastic clip, I added the part number to it
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Aiden
_________________
1964 sunroof Beetle Restoration "Herbie"
“Joann” 1970 Elm Green Squareback
1972 Sierra Yellow Tin Top Westfalia Camper
“Fitz” 1971 Westfalia Poptop
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
VWporscheGT3
Samba Member


Joined: September 01, 2006
Posts: 2066
Location: Gardnerville, NV
VWporscheGT3 is offline

PostPosted: Tue Apr 20, 2021 1:42 pm    Post subject: Re: Type 3 Parts into CAD: Post it here Reply with quote

if i could get my hands on a center plastic dash vent for 68-70 I could probably model it up in solidworks
_________________
Schnell, SCHNELL!

I like being wrong, Because, it is another opportunity to learn. If you stop learning from your mistakes than what is the point?

If you have any questions about Forged ICON 4032 VW pistons just shoot me a line.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Clatter
Samba Member


Joined: September 24, 2003
Posts: 7526
Location: Santa Cruz
Clatter is offline

PostPosted: Tue Apr 20, 2021 6:18 pm    Post subject: Re: Type 3 Parts into CAD: Post it here Reply with quote

Ya, those three dash vent plastic tubes would be really nice to have..
Almost always rotten and crusty by now.
I have some i could send you.


Except,
Like with that heater flap,
Best be sure it will survive the heat.. Wink
_________________
Bus Motor Build

What’s That Noise?!?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ceckert64
Samba Member


Joined: September 16, 2015
Posts: 1917
Location: Manitowoc, WI
Ceckert64 is offline

PostPosted: Tue Apr 20, 2021 6:46 pm    Post subject: Re: Type 3 Parts into CAD: Post it here Reply with quote

I’m going to the junkyard this week and there is a 70 Squareback I could get the vent tubes off of. The ones on my Square are also in good shape.

When I installed the piece after 3D printing, it fit and worked well, but I’m definitely wondering if after getting the heater up to temp if I will have a melted blob Laughing I will ad some pictures. Either way there is at least a good CAD file now for the part.
_________________
1964 sunroof Beetle Restoration "Herbie"
“Joann” 1970 Elm Green Squareback
1972 Sierra Yellow Tin Top Westfalia Camper
“Fitz” 1971 Westfalia Poptop
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
Max Welton
Samba Member


Joined: May 19, 2003
Posts: 10697
Location: Black Forest, CO
Max Welton is offline

PostPosted: Tue Apr 20, 2021 6:52 pm    Post subject: Re: Type 3 Parts into CAD: Post it here Reply with quote

Aiden, what material did you print?

Max
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Ceckert64
Samba Member


Joined: September 16, 2015
Posts: 1917
Location: Manitowoc, WI
Ceckert64 is offline

PostPosted: Wed Apr 21, 2021 3:30 pm    Post subject: Re: Type 3 Parts into CAD: Post it here Reply with quote

Max Welton wrote:
Aiden, what material did you print?

Max

I printed with PLA plastic I think. I will double check though.

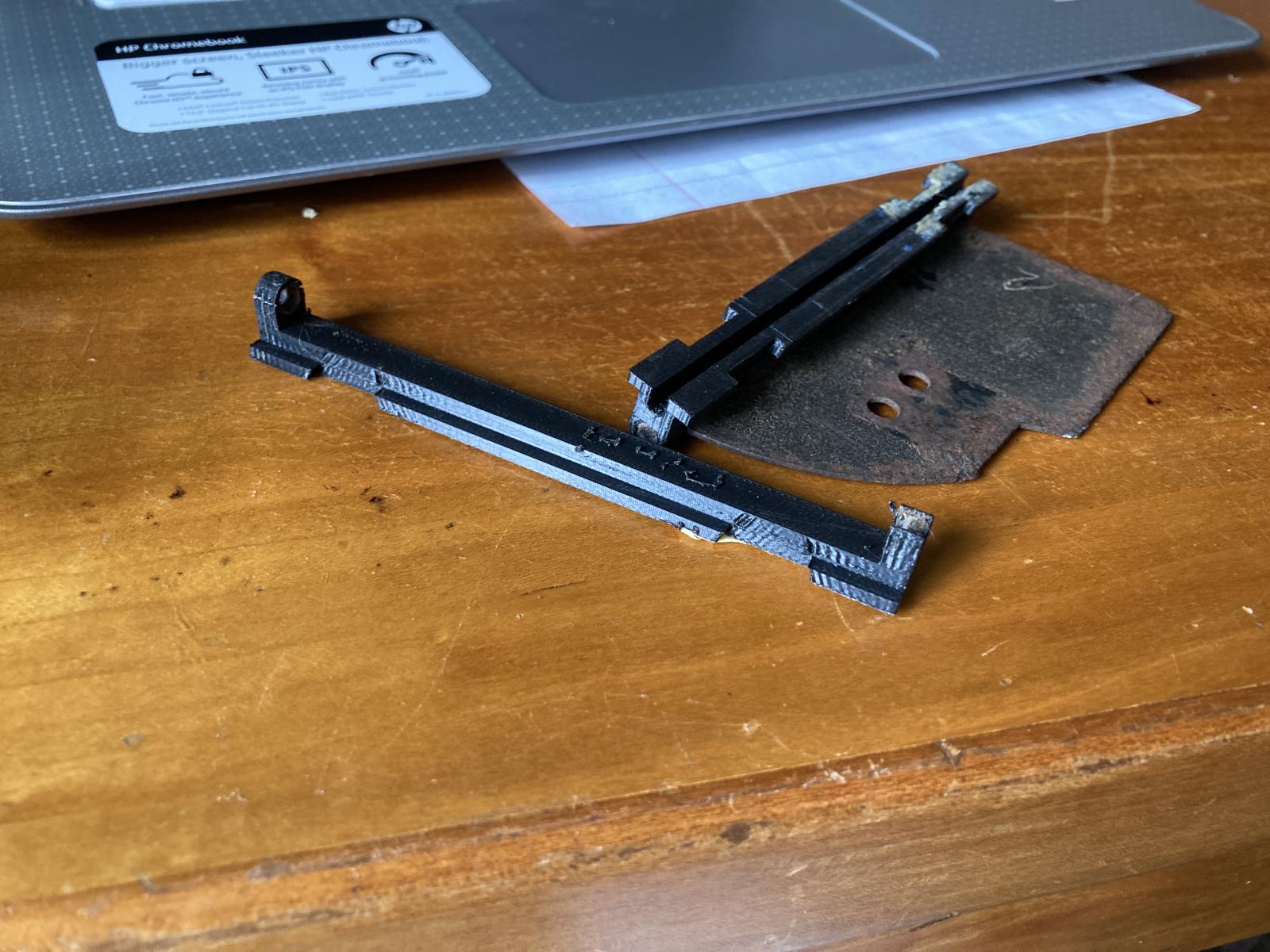

Here is the new parts. I drove the car today and I forgot to move the flap and check to make sure it didn’t melt. I will look at it tomorrow. Here is the new part
Image may have been reduced in size. Click image to view fullscreen.

_________________
1964 sunroof Beetle Restoration "Herbie"
“Joann” 1970 Elm Green Squareback
1972 Sierra Yellow Tin Top Westfalia Camper
“Fitz” 1971 Westfalia Poptop
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
Max Welton
Samba Member


Joined: May 19, 2003
Posts: 10697
Location: Black Forest, CO
Max Welton is offline

PostPosted: Wed Apr 21, 2021 5:13 pm    Post subject: Re: Type 3 Parts into CAD: Post it here Reply with quote

Nice!

If it works, maybe I can pay you to make me two. Wink

Max
_________________
1967 Type-3 Fastback
Under the Knife https://shoptalkforums.com/viewtopic.php?f=24&t=151582
Home Stretch https://www.thesamba.com/vw/forum/viewtopic.php?t=767836
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
VWporscheGT3
Samba Member


Joined: September 01, 2006
Posts: 2066
Location: Gardnerville, NV
VWporscheGT3 is offline

PostPosted: Thu Apr 22, 2021 10:14 am    Post subject: Re: Type 3 Parts into CAD: Post it here Reply with quote

Clatter wrote:
Ya, those three dash vent plastic tubes would be really nice to have..
Almost always rotten and crusty by now.
I have some i could send you.


Except,
Like with that heater flap,
Best be sure it will survive the heat.. Wink


sounds like a good idea.
_________________
Schnell, SCHNELL!

I like being wrong, Because, it is another opportunity to learn. If you stop learning from your mistakes than what is the point?

If you have any questions about Forged ICON 4032 VW pistons just shoot me a line.


Last edited by VWporscheGT3 on Thu Apr 29, 2021 2:58 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ceckert64
Samba Member


Joined: September 16, 2015
Posts: 1917
Location: Manitowoc, WI
Ceckert64 is offline

PostPosted: Thu Apr 22, 2021 5:35 pm    Post subject: Re: Type 3 Parts into CAD: Post it here Reply with quote

Max Welton wrote:
Nice!

If it works, maybe I can pay you to make me two. Wink

Max

I took it for a drive on the highway with the heater on, it didn’t melt so I will get some more printed out!
_________________
1964 sunroof Beetle Restoration "Herbie"
“Joann” 1970 Elm Green Squareback
1972 Sierra Yellow Tin Top Westfalia Camper
“Fitz” 1971 Westfalia Poptop
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
Max Welton
Samba Member


Joined: May 19, 2003
Posts: 10697
Location: Black Forest, CO
Max Welton is offline

PostPosted: Sat May 01, 2021 8:52 am    Post subject: Re: Type 3 Parts into CAD: Post it here Reply with quote

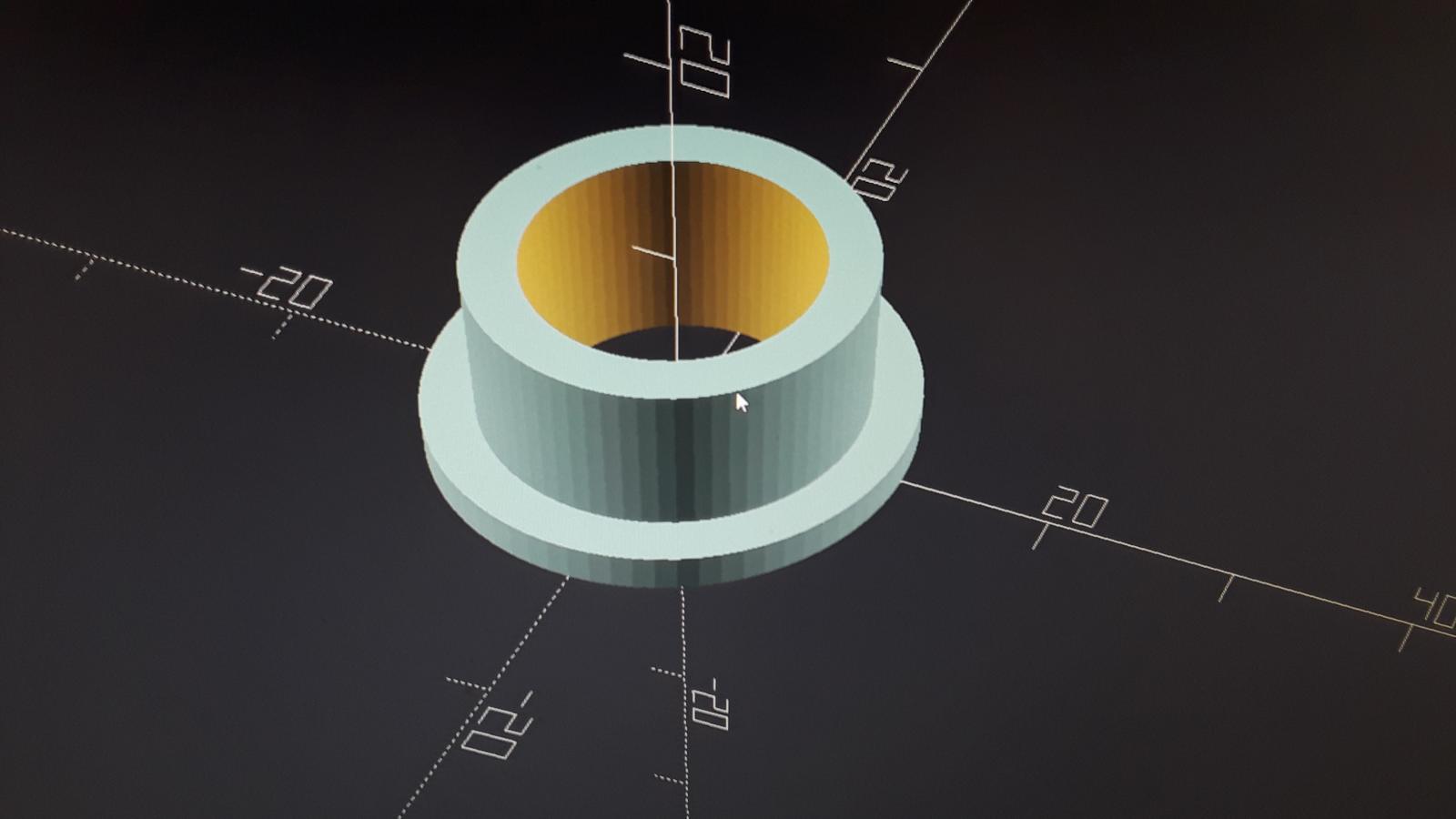

Here is a model of a brake reservoir seal I did for my type-3 fastback. The seal is the same as for the beetle of the same year, but I didn't know it at the time.

There appear to be companies out there that will print your model in silicone rubber which would be just the thing for such a seal.

https://www.google.com/search?q=3d+printing+silicone+rubber

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


I used OpenSCAD

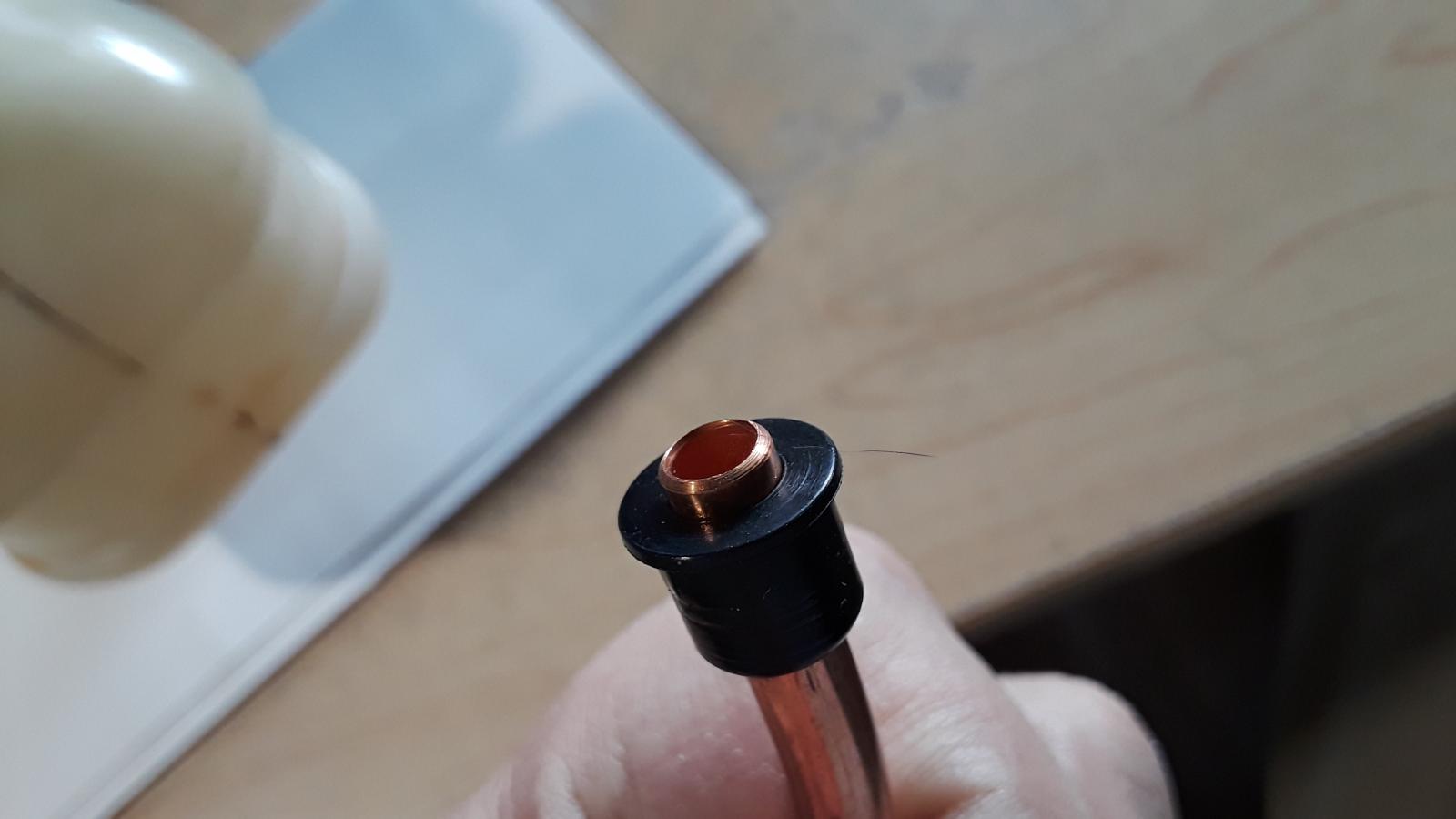

This is the actual seal:
Image may have been reduced in size. Click image to view fullscreen.


Max
_________________
1967 Type-3 Fastback
Under the Knife https://shoptalkforums.com/viewtopic.php?f=24&t=151582
Home Stretch https://www.thesamba.com/vw/forum/viewtopic.php?t=767836
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Mike Fisher
Samba Member


Joined: January 30, 2006
Posts: 17961
Location: Eugene, OR
Mike Fisher is offline

PostPosted: Thu May 06, 2021 3:17 pm    Post subject: Re: Type 3 Parts into CAD: Post it here Reply with quote

You could make money selling new plastic squareback rear seatback grab handles!
_________________
https://imgur.com/user/FisherSquareback/posts
69 FI/AT square Daily Driver
66 sunroof,67,70,71,71,71AT,72,72AT,73 Parts
two 57 oval ragtops sold
'68 Karmann Ghia sold

Society is like stew. If you don't keep it stirred up you end up with a lot of scum on the top! - Russ_Wolfe/Edward Abbey
Back to top
View user's profile Send private message Send e-mail Facebook Gallery Classifieds Feedback
Bobnotch
Samba Member


Joined: July 06, 2003
Posts: 22328
Location: Kimball, Mi
Bobnotch is offline

PostPosted: Thu May 06, 2021 4:06 pm    Post subject: Re: Type 3 Parts into CAD: Post it here Reply with quote

Mike Fisher wrote:
You could make money selling new plastic squareback rear seatback grab handles!


Seat belt material works so much better for that Mike. It folds flat, and doesn't get brittle in the sun.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
Tram wrote:
"Friends are God's way of apologizing for relatives."
Tram wrote:
People keep confusing "restored" and "restroyed".
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Bobnotch
Samba Member


Joined: July 06, 2003
Posts: 22328
Location: Kimball, Mi
Bobnotch is offline

PostPosted: Thu May 06, 2021 4:23 pm    Post subject: Re: Type 3 Parts into CAD: Post it here Reply with quote

When making patch panels and metal parts like that, I do them in CAD (Cardboard Aided Design). Wink It works for a lot of smaller flat stuff. Cool
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
Tram wrote:
"Friends are God's way of apologizing for relatives."
Tram wrote:
People keep confusing "restored" and "restroyed".
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Clatter
Samba Member


Joined: September 24, 2003
Posts: 7526
Location: Santa Cruz
Clatter is offline

PostPosted: Thu May 06, 2021 9:04 pm    Post subject: Re: Type 3 Parts into CAD: Post it here Reply with quote

Seriously,
I was just up in the attic looking for other stuff and found those three plastic heater duct pieces that go up under the dash.
These being from the beginning until 71 or so..

If you’re into doing this,
I’ll send you the set of three.

They are going to be pretty tricky with hollow and curves and all.

These are getting precious, so be for real..

You game?
_________________
Bus Motor Build

What’s That Noise?!?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Max Welton
Samba Member


Joined: May 19, 2003
Posts: 10697
Location: Black Forest, CO
Max Welton is offline

PostPosted: Thu May 06, 2021 10:11 pm    Post subject: Re: Type 3 Parts into CAD: Post it here Reply with quote

Yikes. Shocked

I imagine back in the day they made those in clay first in order to create molds.

I searched for 3d scanning and printing and came up with ...

https://www.sculpteo.com/en/3d-learning-hub/best-articles-about-3d-printing/3d-scan-smartphone/

Photogrammetry?

Max
_________________
1967 Type-3 Fastback
Under the Knife https://shoptalkforums.com/viewtopic.php?f=24&t=151582
Home Stretch https://www.thesamba.com/vw/forum/viewtopic.php?t=767836
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Mike Fisher
Samba Member


Joined: January 30, 2006
Posts: 17961
Location: Eugene, OR
Mike Fisher is offline

PostPosted: Fri May 07, 2021 5:05 am    Post subject: Re: Type 3 Parts into CAD: Post it here Reply with quote

Bobnotch wrote:
Mike Fisher wrote:
You could make money selling new plastic squareback rear seatback grab handles!


Seat belt material works so much better for that Mike. It folds flat, and doesn't get brittle in the sun.

There are a lot of ads looking for them on facebook!
I'd never sell mine.
_________________
https://imgur.com/user/FisherSquareback/posts
69 FI/AT square Daily Driver
66 sunroof,67,70,71,71,71AT,72,72AT,73 Parts
two 57 oval ragtops sold
'68 Karmann Ghia sold

Society is like stew. If you don't keep it stirred up you end up with a lot of scum on the top! - Russ_Wolfe/Edward Abbey
Back to top
View user's profile Send private message Send e-mail Facebook Gallery Classifieds Feedback
VWporscheGT3
Samba Member


Joined: September 01, 2006
Posts: 2066
Location: Gardnerville, NV
VWporscheGT3 is offline

PostPosted: Fri May 07, 2021 7:58 am    Post subject: Re: Type 3 Parts into CAD: Post it here Reply with quote

Clatter wrote:
Seriously,
I was just up in the attic looking for other stuff and found those three plastic heater duct pieces that go up under the dash.
These being from the beginning until 71 or so..

If you’re into doing this,
I’ll send you the set of three.

They are going to be pretty tricky with hollow and curves and all.

These are getting precious, so be for real..

You game?


Im totally game... if im who you are talking to .
_________________
Schnell, SCHNELL!

I like being wrong, Because, it is another opportunity to learn. If you stop learning from your mistakes than what is the point?

If you have any questions about Forged ICON 4032 VW pistons just shoot me a line.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ceckert64
Samba Member


Joined: September 16, 2015
Posts: 1917
Location: Manitowoc, WI
Ceckert64 is offline

PostPosted: Fri May 07, 2021 7:32 pm    Post subject: Re: Type 3 Parts into CAD: Post it here Reply with quote

It would be interesting to see if you could scan the heater duct parts. For printing them I would think you would have to thicken up the wall of the part so it could print easier and not break.

For the Squareback seat handle, ISP west has them for sale, but they are NOS and would likely fall apart quick. But I don’t know if a hard plastic handle would work great.
_________________
1964 sunroof Beetle Restoration "Herbie"
“Joann” 1970 Elm Green Squareback
1972 Sierra Yellow Tin Top Westfalia Camper
“Fitz” 1971 Westfalia Poptop
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
BSQUARE
Samba Member


Joined: November 05, 2004
Posts: 1876
Location: Feeling, Minnesota
BSQUARE is offline

PostPosted: Sat May 08, 2021 4:35 am    Post subject: Re: Type 3 Parts into CAD: Post it here Reply with quote

Bobnotch wrote:
Mike Fisher wrote:
You could make money selling new plastic squareback rear seatback grab handles!


Seat belt material works so much better for that Mike. It folds flat, and doesn't get brittle in the sun.


I like to use a section from a 1" tie-down strap. Same idea as yours, just a little narrower.
_________________
1988 Ford Festiva L
1965 Honda 50 "Super Cub"
2016 Miami Sun Trike
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Max Welton
Samba Member


Joined: May 19, 2003
Posts: 10697
Location: Black Forest, CO
Max Welton is offline

PostPosted: Sat May 08, 2021 6:04 am    Post subject: Re: Type 3 Parts into CAD: Post it here Reply with quote

Ceckert64 wrote:
It would be interesting to see if you could scan the heater duct parts. For printing them I would think you would have to thicken up the wall of the part so it could print easier and not break.

How would you scan the inside surface? Maybe take the scan of the outside and scale it down slightly to represent the inside?

Max
_________________
1967 Type-3 Fastback
Under the Knife https://shoptalkforums.com/viewtopic.php?f=24&t=151582
Home Stretch https://www.thesamba.com/vw/forum/viewtopic.php?t=767836
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Type 3 All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
