 Posted: Tue Jan 19, 2010 1:40 pm Post subject: Stock factory engine 1965 |
 |
|
I'm trying to make my bus engine look "fackory" as I like to say.
1965- do i need a hard line threaded into the fuel pump?
What else do you purists see wrong in this picture?
What color should the oil pressure switch wire be? I want to put on the OG metal wire crimp ends.
Did the Deluxe 21 window buses ever have a speed regulator?
I'm missing one clamp for the rubber air cleaner tube. Anyone have one?
before
|
|
| Back to top |
|
 |
arthurnugen
Samba Member
Joined: January 11, 2005
Posts: 3081
Location: The PNW, where "going green" means rolling with moss.
|
| Posted: Tue Jan 19, 2010 1:54 pm Post subject: |
|
|
Nice looking engine. Here's a page from the owner's manual for comparison, if you have not seen it already:
Arthur
_________________
| cdennisg wrote: |
| Lawyers don't deserve buses. |
| zozo wrote: |
| Don't worry too much. You can always trust a lawyer. |
ALWAYS WEAR STEEL-TOE BOOTS IN THE GARAGE!
1965 Bus (Riviera camper)
1972 Bug 'vert
1967 Bug sunroof
1961 Ghia 'vert
1957 DKW 3=6: 3 cylinder 2 stroke! |
|
| Back to top |
|
|
crofty
Judas of the North
Joined: August 09, 2000
Posts: 19821
Location: Land of Whine and Phonies
|
| Posted: Tue Jan 19, 2010 1:57 pm Post subject: |
|
|
You should have a 30 pic 1, metal fuel line, speed govenor, valve adj sticker is in wrong place, missing pre-heat hose clamp on air cleaner, you might need the loop style vac line but I forget.
What dist. is that?
_________________
Your Vanagon sucks, Stop waving at me.
| HamburgerBrad wrote: |
I slept on crofty's tent once. I passed out drunk from two bottles of Everett's brother's wine. |
|
|
| Back to top |
|
|
[email protected]
Samba Member
Joined: February 03, 2003
Posts: 127
Location: NOR-CAL
|
| Posted: Tue Jan 19, 2010 2:22 pm Post subject: |
|
|
| crofty wrote: |
You should have a 30 pic 1, metal fuel line, speed govenor, valve adj sticker is in wrong place, missing pre-heat hose clamp on air cleaner, you might need the loop style vac line but I forget.
What dist. is that? |
Thanks for the input Crofty.
Its just a single vacuum unit i found in my collection of engine junk.
Should i have the short cap and rotor on the dist.?
Where does the fackory valve adj sticker go?
The pre-heat clamp, just one of those thick wire springs right?
30 pic 1 round bowl carb? Dam, the one i have works and looks good with the VW logo on it. |
|
| Back to top |
|
|
crofty
Judas of the North
Joined: August 09, 2000
Posts: 19821
Location: Land of Whine and Phonies
|
| Posted: Tue Jan 19, 2010 3:38 pm Post subject: |
|
|
| [email protected] wrote: |
| crofty wrote: |
You should have a 30 pic 1, metal fuel line, speed govenor, valve adj sticker is in wrong place, missing pre-heat hose clamp on air cleaner, you might need the loop style vac line but I forget.
What dist. is that? |
Thanks for the input Crofty.
Its just a single vacuum unit i found in my collection of engine junk.
Should i have the short cap and rotor on the dist.?
Where does the fackory valve adj sticker go?
The pre-heat clamp, just one of those thick wire springs right?
30 pic 1 round bowl carb? Dam, the one i have works and looks good with the VW logo on it. |
Distributor: VW 111-905-205L or M, Bosch ZV/JU4R3 (0231 147 002) > 111-905-205N or 113-905-205J, (Both VW Numbers are: 0231 137 005) > 315-905-205B, 0231 137 031
The sticker would be on the aircleaner side of the fan shroud
Spring- yes
_________________
Your Vanagon sucks, Stop waving at me.
| HamburgerBrad wrote: |
I slept on crofty's tent once. I passed out drunk from two bottles of Everett's brother's wine. |
|
|
| Back to top |
|
|
tasb
The Distributor Distributor
Joined: April 27, 2002
Posts: 6743
Location: Pentwater, Michigan
|
| Posted: Tue Jan 19, 2010 6:48 pm Post subject: |
|
|
Distributor looks like a 113 T or therabouts. Prolly works well with that carb but not Fackory! I' dont't get all worked up about the fuel filter being ion the engine bay like many. I''ve run one there for many years but it is not a factory install or look. If you want a governor many of your parts are incorrect and willl need to be resourced.
_________________
Roads Scholar
1957 Kombi low mileage 36 hp governor equipped M 178 Slow Drag Winner 2014, 2015, 2018
1965 hardtop Deluxe Microbus owned since 1990 M 620 factory 12 v 1500cc
1961 (October)Single Cab- Road Trip Workhorse
Member# 2059 |
|
| Back to top |
|
|
mtb7001
Samba Member
Joined: February 11, 2009
Posts: 899
Location: Meridian Idaho
|
| Posted: Tue Jan 19, 2010 8:02 pm Post subject: |
|
|
I'm not really worked up about it but I'd get rid of the fuel filter, install one at the fuel tank outlet and use some type of security clamp to help prevent fuel leaks and the possibility of fire.
_________________
63 15 window deluxe Turkis walk through 1500
"comfort the afflicted, afflict the comfortable" |
|
| Back to top |
|
|
bherder
Samba Member
Joined: July 19, 2008
Posts: 374
Location: Portland/Forest Grove, OR
|
| Posted: Tue Jan 19, 2010 10:45 pm Post subject: |
|
|
A little off topic, but not much. I'm looking for part 211 119 549. The preheat hose clip that holds the hose down in front of the engine. Should I just home depot it? I can't find it anywhere online.
_________________
My bus resto thread:
http://www.thesamba.com/vw/forum/viewtopic.php?t=371654
Parts manual:
http://oacdp.org/ |
|
| Back to top |
|
|
crofty
Judas of the North
Joined: August 09, 2000
Posts: 19821
Location: Land of Whine and Phonies
|
| Posted: Tue Jan 19, 2010 11:01 pm Post subject: |
|
|
| bherder wrote: |
| A little off topic, but not much. I'm looking for part 211 119 549. The preheat hose clip that holds the hose down in front of the engine. Should I just home depot it? I can't find it anywhere online. |
Good luck. I've been looking for one for years.
_________________
Your Vanagon sucks, Stop waving at me.
| HamburgerBrad wrote: |
I slept on crofty's tent once. I passed out drunk from two bottles of Everett's brother's wine. |
|
|
| Back to top |
|
|
bherder
Samba Member
Joined: July 19, 2008
Posts: 374
Location: Portland/Forest Grove, OR
|
| Posted: Tue Jan 19, 2010 11:07 pm Post subject: |
|
|
| crofty wrote: |
| bherder wrote: |
| A little off topic, but not much. I'm looking for part 211 119 549. The preheat hose clip that holds the hose down in front of the engine. Should I just home depot it? I can't find it anywhere online. |
Good luck. I've been looking for one for years. |
I hear a quote from Jeremyrockjock coming on.... why buy what you can build.... maybe I'll get motivated this weekend.....
_________________
My bus resto thread:
http://www.thesamba.com/vw/forum/viewtopic.php?t=371654
Parts manual:
http://oacdp.org/ |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71497
Location: Phoenix 602
|
| Posted: Tue Jan 19, 2010 11:45 pm Post subject: |
|
|
| bherder wrote: |
| A little off topic, but not much. I'm looking for part 211 119 549. The preheat hose clip that holds the hose down in front of the engine. Should I just home depot it? I can't find it anywhere online. |
Yes, there are some from the hardware store that are almost an exact match. Paint it black and you can't tell.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
matthew henricks
Samba Member
Joined: January 02, 2002
Posts: 1342
Location: So. Cal
|
| Posted: Wed Jun 25, 2025 1:43 pm Post subject: Re: stock factory engine 1965 |
|
|
Resurrecting an old thread as i work on my 65.
Crofty, Everett.
Carburetor.
- 30 PICT-1 carb. It looks like it is a earlier no return spring style. Is that correct and is there any difference in the top of a 28 PICT-1 carb?
Fan shroud
- Fan shroud style return spring w/ governor. Was the hole in the shroud where the tube and return spring go in a different location to accommodate the governor? My 30 PICT-1 WITH carb mounted return spring seems to bind leading me to think they changed the hole location for the governor.
Other parts
- What crank pulley would they have used? What timing markings and other details.
- Same for generator pulley.
The image in this thread are gone. Any known accurate images to reference out there other than the factory manual above?
TIA.
Fo
_________________
1964 Original Owner build Thread. https://www.thesamba.com/vw/forum/viewtopic.php?t=702135&highlight=
Ambulance Fan's. https://www.thesamba.com/vw/forum/viewtopic.php?t=627707&highlight=
Parts i am looking for:
64 bug nice used front/rear Black LHD floor mat. |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 25904
Location: Olympia Wash Rinse & Repeat
|
| Posted: Wed Jun 25, 2025 2:38 pm Post subject: Re: stock factory engine 1965 |
|
|
| matthew henricks wrote: |
Fan shroud
- Fan shroud style return spring w/ governor. Was the hole in the shroud where the tube and return spring go in a different location to accommodate the governor? My 30 PICT-1 WITH carb mounted return spring seems to bind leading me to think they changed the hole location for the governor. |
Governor requires special shorter intake manifold to keep the throttle cable to carb alignment proper.
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71497
Location: Phoenix 602
|
|
| Back to top |
|
|
tasb
The Distributor Distributor
Joined: April 27, 2002
Posts: 6743
Location: Pentwater, Michigan
|
| Posted: Wed Jun 25, 2025 4:58 pm Post subject: Re: Stock factory engine 1965 |
|
|

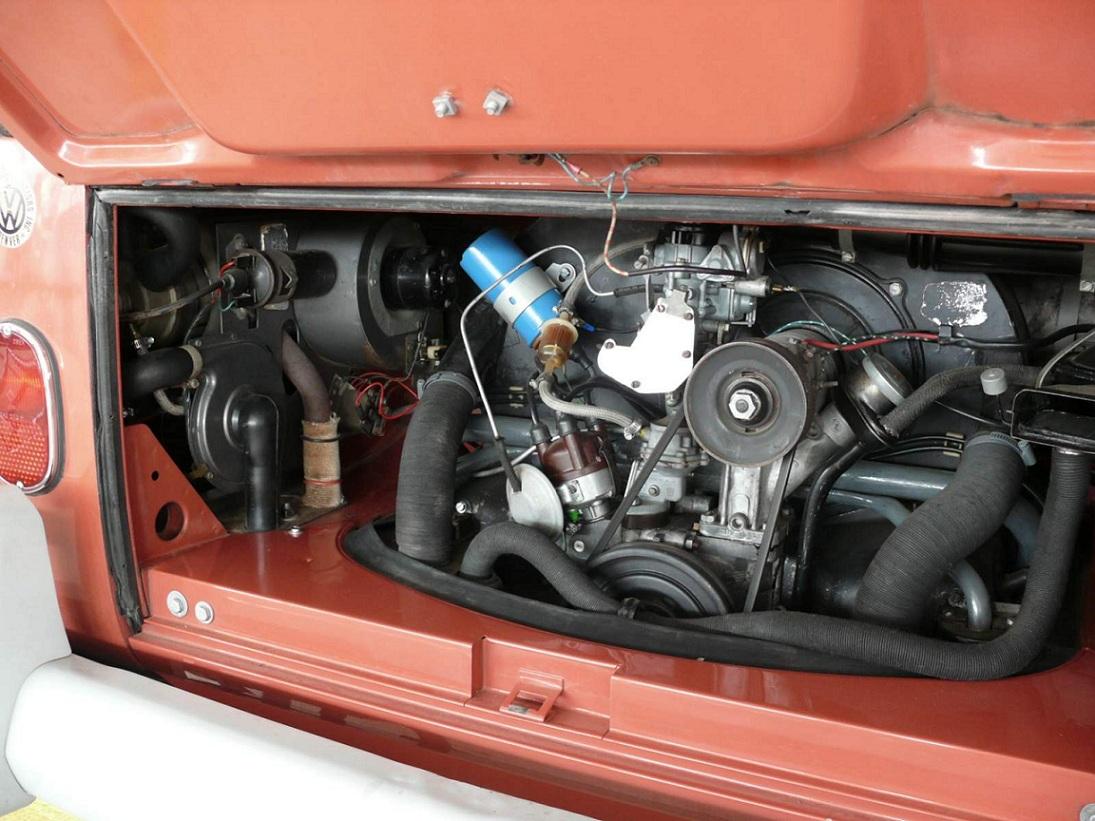

That’s pretty close. It does have a governor. The blue coil is not correct and I think they started out with the vacuum line upside down and bent it to fit that way which is distracting IMHO. And then there’s that fuel filter.contraption.
_________________
Roads Scholar
1957 Kombi low mileage 36 hp governor equipped M 178 Slow Drag Winner 2014, 2015, 2018
1965 hardtop Deluxe Microbus owned since 1990 M 620 factory 12 v 1500cc
1961 (October)Single Cab- Road Trip Workhorse
Member# 2059 |
|
| Back to top |
|
|
matthew henricks
Samba Member
Joined: January 02, 2002
Posts: 1342
Location: So. Cal
|
|
| Back to top |
|
|
tasb
The Distributor Distributor
Joined: April 27, 2002
Posts: 6743
Location: Pentwater, Michigan
|
| Posted: Wed Jun 25, 2025 7:12 pm Post subject: Re: Stock factory engine 1965 |
|
|

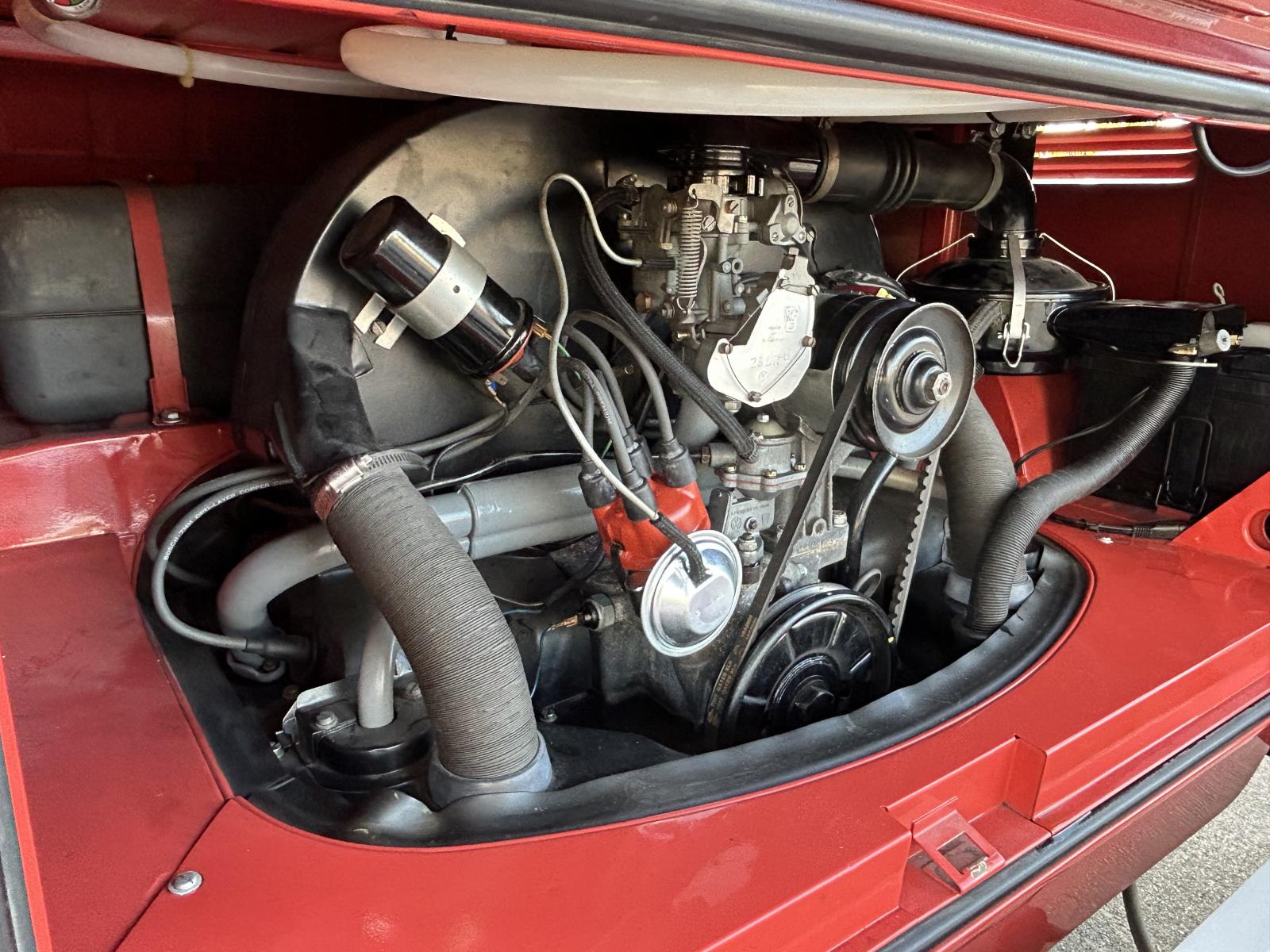

Looks really good. The lower vacuum hose should be reduced by about half its current length. The distributor cap should be dark brown. The tamper wire does not extend beyond the cover on the governor and should have a lead seal on the wire. The coil bracket needs to be exchanged for an earlier piece. The hose clamps on the air horns should be exchanged for original- they are fairly common.
_________________
Roads Scholar
1957 Kombi low mileage 36 hp governor equipped M 178 Slow Drag Winner 2014, 2015, 2018
1965 hardtop Deluxe Microbus owned since 1990 M 620 factory 12 v 1500cc
1961 (October)Single Cab- Road Trip Workhorse
Member# 2059 |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 25904
Location: Olympia Wash Rinse & Repeat
|
| Posted: Thu Jun 26, 2025 12:13 pm Post subject: Re: Stock factory engine 1965 |
|
|
| tasb wrote: |
| The hose clamps on the air horns should be exchanged for original- they are fairly common. |
Plus need hose clamps on top and bottom of each of the fresh air hoses.
Spark plug cables should be blue colored.
Spark plug plastic clips in the fan shroud should be a whitish color (nylon?).
Need proper factory style terminals on the generator. Not only for stock appearance, but for much less chance of voltage drops.
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 25904
Location: Olympia Wash Rinse & Repeat
|
| Posted: Thu Jun 26, 2025 12:44 pm Post subject: Re: Stock factory engine 1965 |
|
|
Here is a very all original 1964 beetle with only 22 miles on it:
https://www.thesamba.com/vw/forum/viewtopic.php?t=657206
Beetle and bus used almost all the same engine parts (yes it is a 40HP engine, but it is the small details of this that translate to the similar year buses) , so a really good reference to go off of. Page 4 & 5 especially has the engine photos.
For any newbies. All pipes are steel plated with copper for corrosion protection. Using all copper lines is a no no.
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
matthew henricks
Samba Member
Joined: January 02, 2002
Posts: 1342
Location: So. Cal
|
| Posted: Fri Jun 27, 2025 7:42 am Post subject: Re: Stock factory engine 1965 |
|
|
Thank you Eric & Barb, tasb & Everett.
I have oogled that black bug since it was discovered as the bases for my 64 bug project. Did not realize the similarities.
I have my hit list now.
A few follow-up questions.
1. What options are out there today for blue spark plug wires with the correct ends and correct color. Most are darker blue with the more modern spark plug end.
2. What would be a "OEM style electrical connector" other than not having the insulation?
3. Clarification on the copper comment. Your saying the vacuum and fuel hard lines are steel plaited with copper? Are you suggesting that what the higher end shops sell is pure copper? Why can't you use copper?
Thank you.
