Help identify these headlights I have?
Forum Index -> Beetle - Split-Window/1938-53 VWs Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Seeya
Samba Member


Joined: March 28, 2015
Posts: 2
Location: Clearwater Beach, FL
Seeya is offline

PostPosted: Tue Sep 02, 2025 6:45 am    Post subject: Help identify these headlights I have? Reply with quote

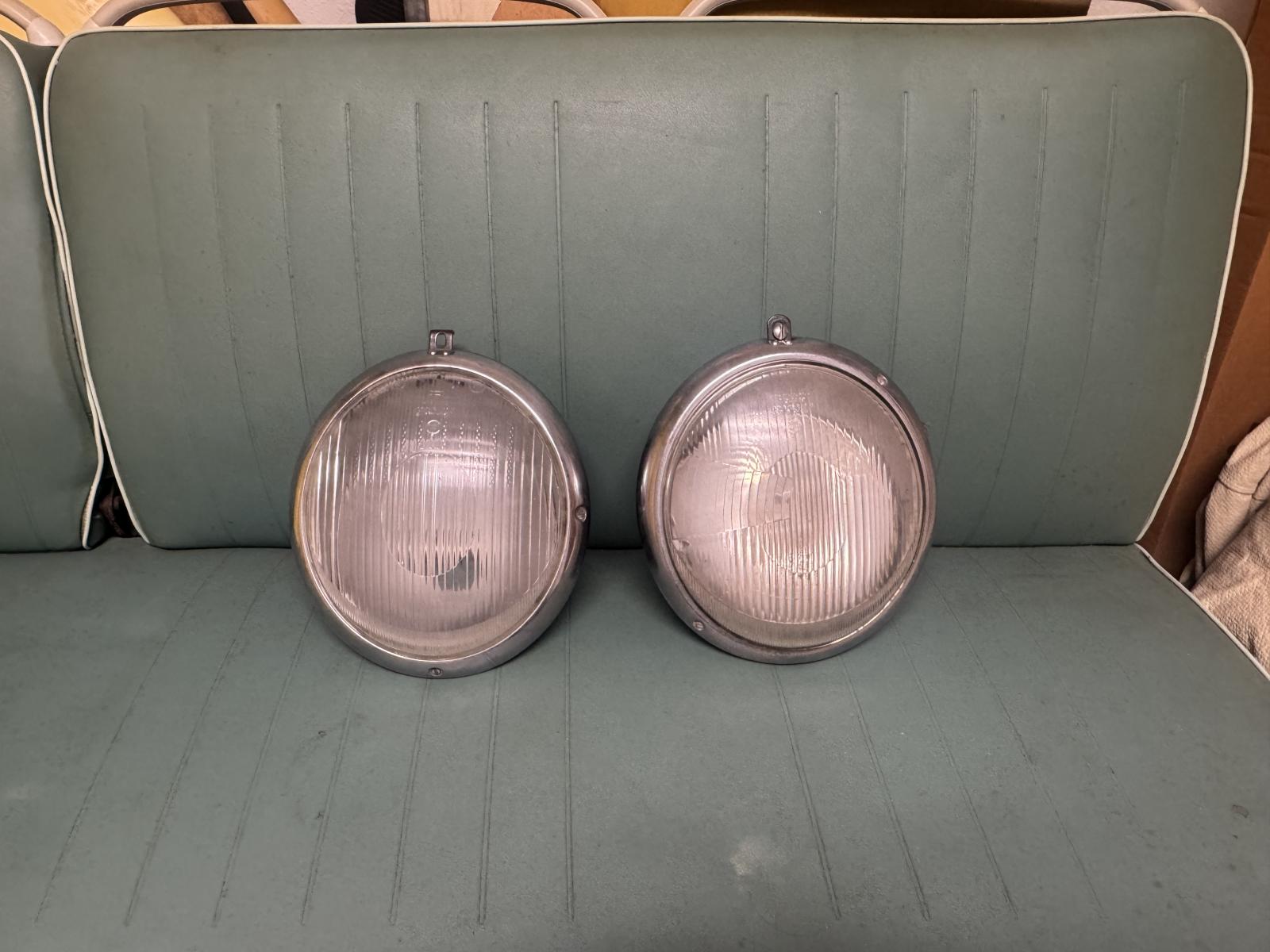

Have had these split beetle headlights for a while. Hoping some of the beetle experts (I’m more of a bus guy) can help me determine what I have exactly. Thanks in advance!!

More photos in my gallery

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Two Glove Boxes
Samba Member


Joined: March 03, 2005
Posts: 1004
Location: Texas
Two Glove Boxes is offline

PostPosted: Tue Sep 02, 2025 2:52 pm    Post subject: Re: Help identify these headlights I have? Reply with quote

I believe the one on the left is a Bosch 356 pre A or B headlight ring and lense. The one on the right seems to be a Bosch bus lense with a later 356 ring.
_________________
1950 Deluxe Sedan Build

1951 Split Standard Hoffman Build

1960 Dove Blue Double Cab Patina Build

Two Glove Boxes IG
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
KTPhil Premium Member
Samba Member


Joined: April 06, 2006
Posts: 36265
Location: Conejo Valley, CA
KTPhil is offline

PostPosted: Wed Sep 03, 2025 9:01 am    Post subject: Re: Help identify these headlights I have? Reply with quote

I don't think its for a Bus, with the vertical fluting.
(typo maybe?)
_________________
Current Fleet:
- '71 Fastback
- '69 Westfalia
Retired:
- '67 Beetle
- '65 Beetle (x2)
- '65 Bus
- '71 Squareback
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Frederik
Samba Member


Joined: August 18, 2007
Posts: 594
Location: Sweden
Frederik is offline

PostPosted: Wed Sep 03, 2025 2:31 pm    Post subject: Re: Help identify these headlights I have? Reply with quote

The one to the right is an asymmetric headlight used post MY1960, looks like a regular type 1.

The one to the left is a symmetric headlight of somewhat mixed age. Also looks like a regular type 1. Some better photos could be needed to pinpoint the age. The chrome ring looks like it could be split era. The reflector/ part number hints that it's 1956 or earlier (it looks like reflector/bucket is hold with aluminum rivets/ early). The glass is a later replacement. For one it has the "A" and "NL" approval (post 1956?), but more telling it looks like it has the 10-digit Bosch part number on the edge (is it 1 305 614 001?) so it's definitely a 60's replacement glass.

You could also look for Bosch date codes:
https://www.thesamba.com/vw/forum/viewtopic.php?t=279505
