Flanged Main Bearings from CB
Forum Index -> Performance/Engines/Transmissions Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
kangaboy
Samba Member


Joined: August 28, 2010
Posts: 1064
Location: St. Louis, Mo
kangaboy is offline

PostPosted: Sun Sep 27, 2020 8:03 am    Post subject: Flanged Main Bearings from CB Reply with quote

How are these superior to standard bearings and what is their application (street/strip/daily)? Are they worth the almost 4x price of standard mains?

https://www.cbperformance.com/product-p/1845.htm
_________________
-74 Standard - "CaliBug" 2084T, MS3X w/FI and Crank Fire
-76 Westy - "Gandalf"
-18 GTI SE

skills@eurocarsplus wrote:
Shocked

that fucking thing looks like it drove through a J.C. Whitney catalogue and hit everything on the way out Laughing
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
[email protected]
Samba Member


Joined: May 17, 2003
Posts: 4876
Location: Harmony, PA
gkeeton@zbzoom.net is offline

PostPosted: Sun Sep 27, 2020 8:13 am    Post subject: Re: Flanged Main Bearings from CB Reply with quote

They aren’t simply a replacement stock size bearing set. They have a very specific use for a flanged crank with Type 4 main journals in an unmachined standard linebore case. The other more common way was to take two sets of standard Type 4 bearing sets to create the two piece flanged bearing, then have the case line bored to accept the larger Type 4 bearing. Comparing prices to their counter parts are about the same, but there isn’t the additional machine work to the case needed.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Stripped66
Samba Member


Joined: May 31, 2005
Posts: 3509
Location: Charleston, SC
Stripped66 is offline

PostPosted: Sun Sep 27, 2020 8:13 am    Post subject: Re: Flanged Main Bearings from CB Reply with quote

Are you running a flanged crank?
_________________
66brm wrote:
Bodacious wrote:
Why not just make a custom set of wires with a Y splice in them. Then you could just run one distributor.

I don't think electrickery works that way
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kangaboy
Samba Member


Joined: August 28, 2010
Posts: 1064
Location: St. Louis, Mo
kangaboy is offline

PostPosted: Sun Sep 27, 2020 8:21 am    Post subject: Re: Flanged Main Bearings from CB Reply with quote

[email protected] wrote:
They have a very specific use for a flanged crank with Type 4 main journals in an unmachined standard linebore case.


Awesome, thanks for the response. I never heard of them before, so was just asking about their general application.

Stripped66 wrote:
Are you running a flanged crank?


Nope, so now I don't need to worry about using these.
_________________
-74 Standard - "CaliBug" 2084T, MS3X w/FI and Crank Fire
-76 Westy - "Gandalf"
-18 GTI SE

skills@eurocarsplus wrote:
Shocked

that fucking thing looks like it drove through a J.C. Whitney catalogue and hit everything on the way out Laughing
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Dan Ruddock
Samba Member


Joined: October 25, 2012
Posts: 3668
Location: Sarasota, in my adopted state of Florida
Dan Ruddock is offline

PostPosted: Sun Sep 27, 2020 10:49 am    Post subject: Re: Flanged Main Bearings from CB Reply with quote

Makes me think 🤔 CB is going to start selling flanged cranks SOON. Dan
Back to top
View user's profile Send private message Gallery Classifieds Feedback
stealth67vw
Samba Member


Joined: January 22, 2004
Posts: 1872
Location: Grass Pants, Orygun
stealth67vw is offline

PostPosted: Sun Sep 27, 2020 11:32 am    Post subject: Re: Flanged Main Bearings from CB Reply with quote

Dan Ruddock wrote:
Makes me think 🤔 CB is going to start selling flanged cranks SOON. Dan
CB had flanged cranks in their booth at Sacramento Bugorama 4 or 5 years ago and had wondered why they haven't been selling them. I would assume bearing supply was the main issue.
_________________
John Bates
JB Machining Services
1967 street Bug 2276 w/ 48 IDAs, 2050lbs with driver
7.76 @ 89.55mph 1/8 mile
12.27 @ 109.56 mph 1/4 mile

https://youtube.com/shorts/GmifEu5QvnA?si=OIw8eM7QU3LMhtiz
https://www.tiktok.com/t/ZT68foYFS/
Back to top
View user's profile Send private message MSN Messenger Gallery Classifieds Feedback
Dan Ruddock
Samba Member


Joined: October 25, 2012
Posts: 3668
Location: Sarasota, in my adopted state of Florida
Dan Ruddock is offline

PostPosted: Sun Sep 27, 2020 11:38 am    Post subject: Re: Flanged Main Bearings from CB Reply with quote

stealth67vw wrote:
Dan Ruddock wrote:
Makes me think 🤔 CB is going to start selling flanged cranks SOON. Dan
CB had flanged cranks in their booth at Sacramento Bugorama 4 or 5 years ago and had wondered why they haven't been selling them. I would assume bearing supply was the main issue.


The current Empi/bugpack should be available to CB also. Wish a Porsche journal version was produced. Dan
Back to top
View user's profile Send private message Gallery Classifieds Feedback
[email protected]
Samba Member


Joined: May 17, 2003
Posts: 4876
Location: Harmony, PA
gkeeton@zbzoom.net is offline

PostPosted: Sun Sep 27, 2020 6:36 pm    Post subject: Re: Flanged Main Bearings from CB Reply with quote

stealth67vw wrote:
Dan Ruddock wrote:
Makes me think 🤔 CB is going to start selling flanged cranks SOON. Dan
CB had flanged cranks in their booth at Sacramento Bugorama 4 or 5 years ago and had wondered why they haven't been selling them. I would assume bearing supply was the main issue.


The main issue with a flanged crank is the cost. That’s why Empi contacted Revmaster to start making the ones they used to do for Bugpack again. Empi has them listed for a little over $1500 for a crank/flywheel. That’s a bargain compared to the $2200+ the Scat ones are up to. And you don’t want to know what the Pro-Stock/Pro-Mod cranks are going for.

CB definitely is an innovator in creating something to fill a market void, or make performance stuff more available to the common hobbiest. With everyone complaining about aluminum rod bearings, they should of had King make some tri-metal VW/Chevy journal bearings.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
UK Luke 72
Samba Member


Joined: September 07, 2011
Posts: 2875
Location: Little Britain
UK Luke 72 is offline

PostPosted: Mon Sep 28, 2020 12:17 am    Post subject: Re: Flanged Main Bearings from CB Reply with quote

[quote="stealth67vw"]
Dan Ruddock wrote:
I would assume bearing supply was the main issue.


We got a double Cool
_________________
2276 Beetle build https://www.thesamba.com/vw/forum/viewtopic.php?t=670744&highlight=2276+beetle+daily
2276 EFI Conversion https://www.thesamba.com/vw/forum/viewtopic.php?t=689172
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SLAKKER
Samba Member


Joined: August 11, 2010
Posts: 56
Location: SOUTH AFRICA
SLAKKER is offline

PostPosted: Mon Sep 28, 2020 1:34 pm    Post subject: Re: Flanged Main Bearings from CB Reply with quote

On the flanged crank how do the seal work is there a pic
of the crank in a block somwhere , haven't seen one in a block
yet
Back to top
View user's profile Send private message Gallery Classifieds Feedback
[email protected]
Samba Member


Joined: May 17, 2003
Posts: 4876
Location: Harmony, PA
gkeeton@zbzoom.net is offline

PostPosted: Mon Sep 28, 2020 2:53 pm    Post subject: Re: Flanged Main Bearings from CB Reply with quote

SLAKKER wrote:
On the flanged crank how do the seal work is there a pic
of the crank in a block somwhere , haven't seen one in a block
yet


The seal rides on the outer diameter of the rear flange section of the crank, as opposed to riding on the flywheel. The flanged seals are larger in diameter than a stock VW one, so the case needs machined for the seal.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Dauz
Samba Member


Joined: January 05, 2010
Posts: 1861

Dauz is offline

PostPosted: Mon Oct 12, 2020 9:34 am    Post subject: Re: Flanged Main Bearings from CB Reply with quote

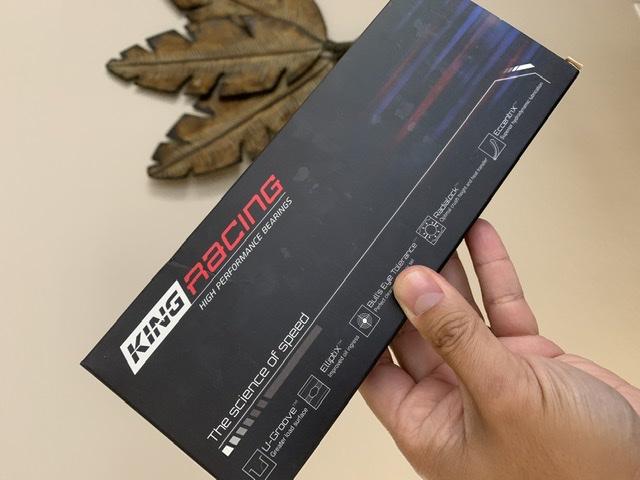

I wound up buying these bearings. They're basically 411 adapters for standard type 1 mains. I opted out of doing the thrust conversion this time around since it is built into the bearing.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vw donvieira
Samba Member


Joined: May 11, 2004
Posts: 626
Location: stockton, California
vw donvieira is offline

PostPosted: Mon Dec 26, 2022 10:16 pm    Post subject: Re: Flanged Main Bearings from CB Reply with quote

How is the crankshaft end play managed? I have a flanged crank and was going to have GEERS do the bronze bushing, but this seems reasonable alternative.
_________________
"No Give Up"
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
