| Author |
Message |
[email protected]
Samba Member
Joined: June 21, 2003
Posts: 221
Location: glendale, az
|
 Posted: Sat Dec 23, 2023 2:14 pm Post subject: 69 fastback engine compartment |
 |
|

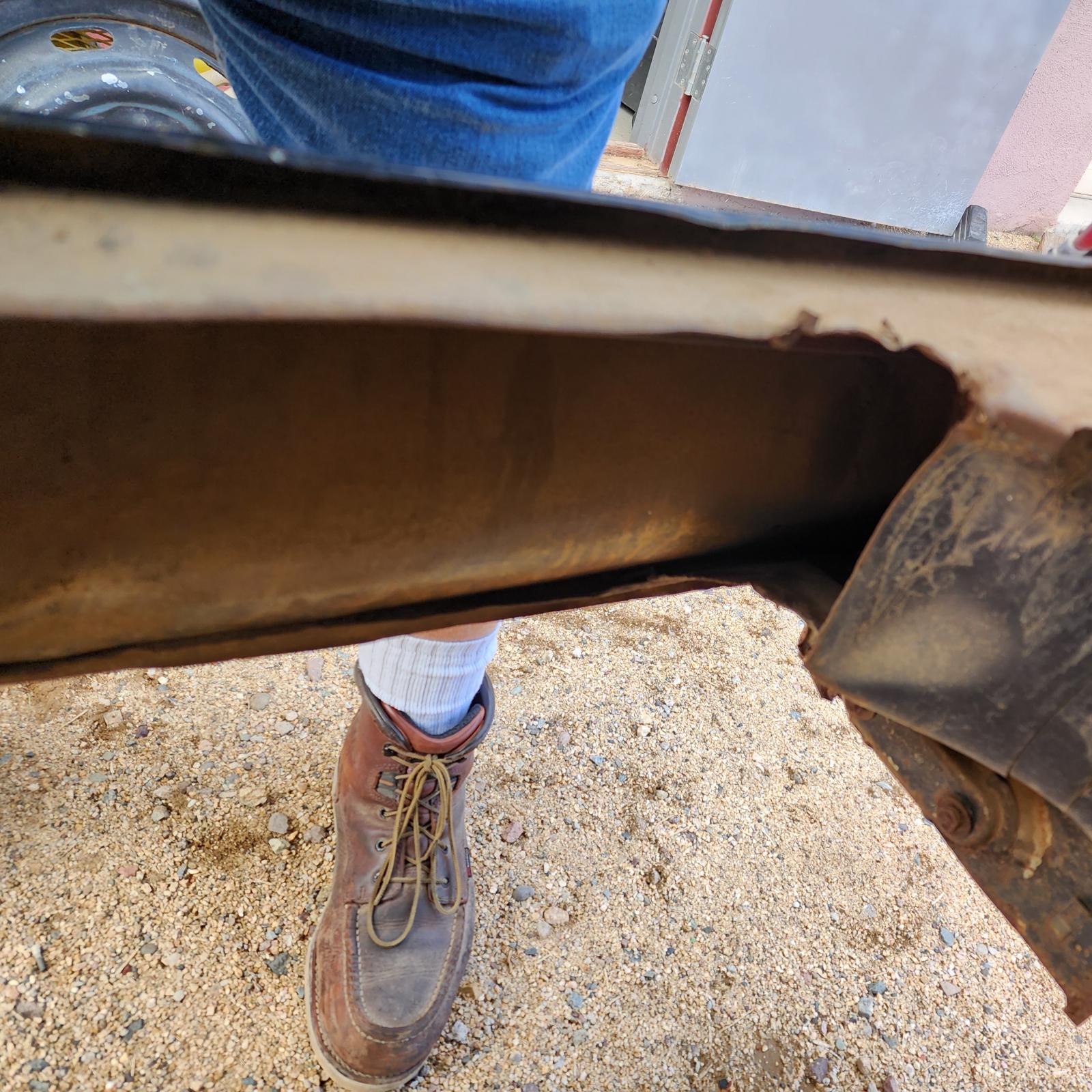

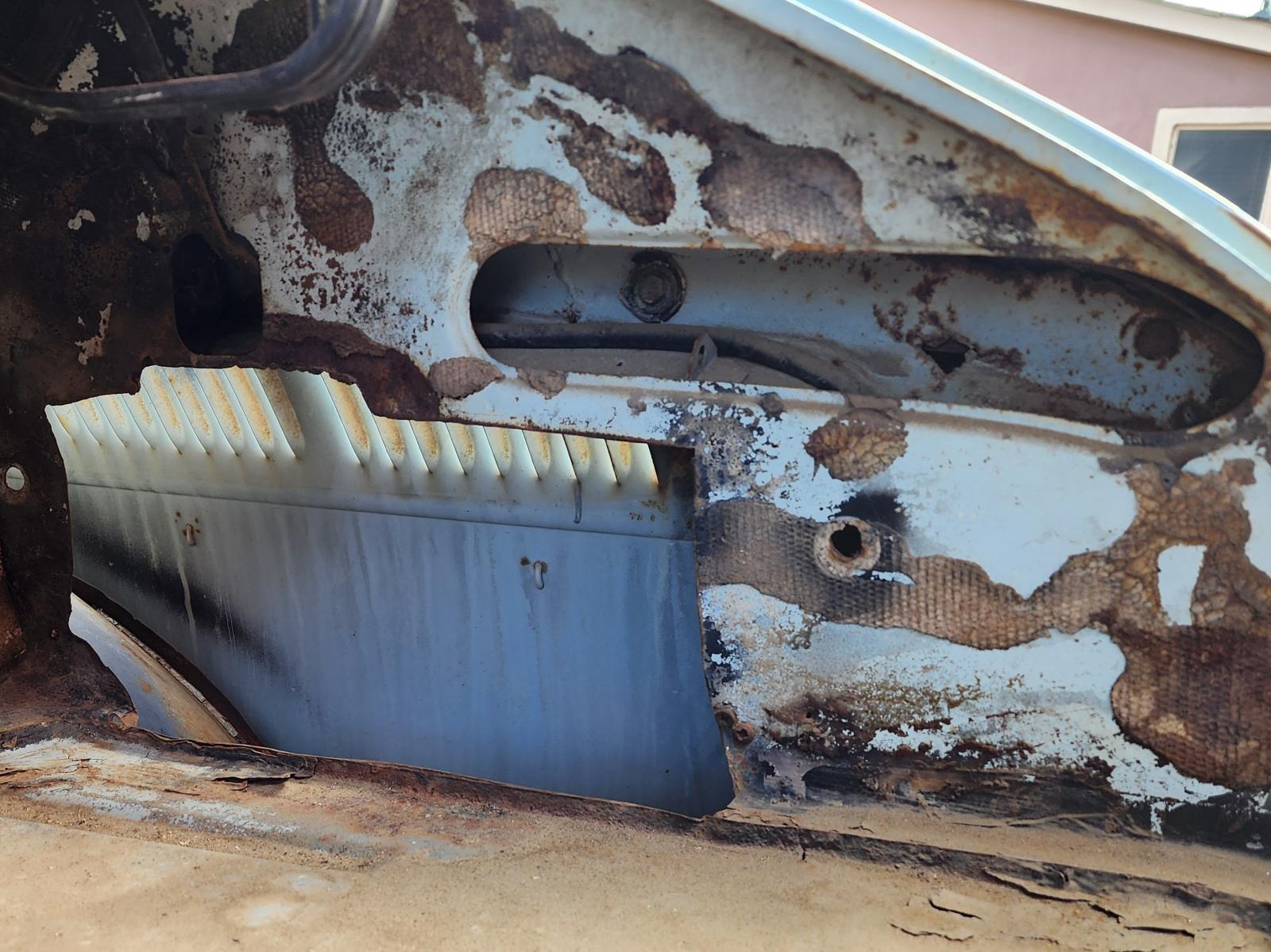

Hey guys! I just got my first type 3, a 69 fastback! I have been around vws for years, but its mainly been type 1s, a ghia, and numerous offroad vehicles. Anyway, the car i bought had a corvair in it back in the day, and alot of the rear sheetmetal has been cut out. That being said, i am looking for some pics of rear ducting in the bodywork behind the rear apron. I can fab up most of what i need, but would prefer to use some factory sheetmetal. So what i am looking for is some pics of the inside of the engine compartment (mostly the rear and right side)...so ill know what i need to gather up. Sorry for the long winded message...ill post a cpl pics of the car and the areas that were cut out. Thanks for looking!
_________________
if it jams, force it. if it breaks, it needed replacing anyways.... |
|
| Back to top |
|
 |
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23417
Location: Kimball, Mi
|
| Posted: Sat Dec 23, 2023 2:28 pm Post subject: Re: 69 fastback engine compartment |
|
|
| [email protected] wrote: |
| Hey guys! I just got my first type 3, a 69 fastback! I have been around vws for years, but its mainly been type 1s, a ghia, and numerous offroad vehicles. Anyway, the car i bought had a corvair in it back in the day, and alot of the rear sheetmetal has been cut out. That being said, i am looking for some pics of rear ducting in the bodywork behind the rear apron. I can fab up most of what i need, but would prefer to use some factory sheetmetal. So what i am looking for is some pics of the inside of the engine compartment (mostly the rear and right side)...so ill know what i need to gather up. Sorry for the long winded message...ill post a cpl pics of the car and the areas that were cut out. Thanks for looking! |
I'd look up Andy's 66 Squareback rebuild pics, as he shows a lot of what you're looking for. Fortunately a Squareback and a Fastback are very similar in the rear, including the rear fenders. The cooling ducts are the same pieces too.
These may help as well.
I hope this helps.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
[email protected]
Samba Member
Joined: June 21, 2003
Posts: 221
Location: glendale, az
|
| Posted: Sat Dec 23, 2023 2:39 pm Post subject: Re: 69 fastback engine compartment |
|
|
Thank you! I will check it out for sure...thats great news, as i do have a line on a parts squareback that has been partially cut up...
