 Posted: Wed Nov 27, 2024 9:19 am Post subject: question regarding starter wiring |
 |
|
Hi there everyone,

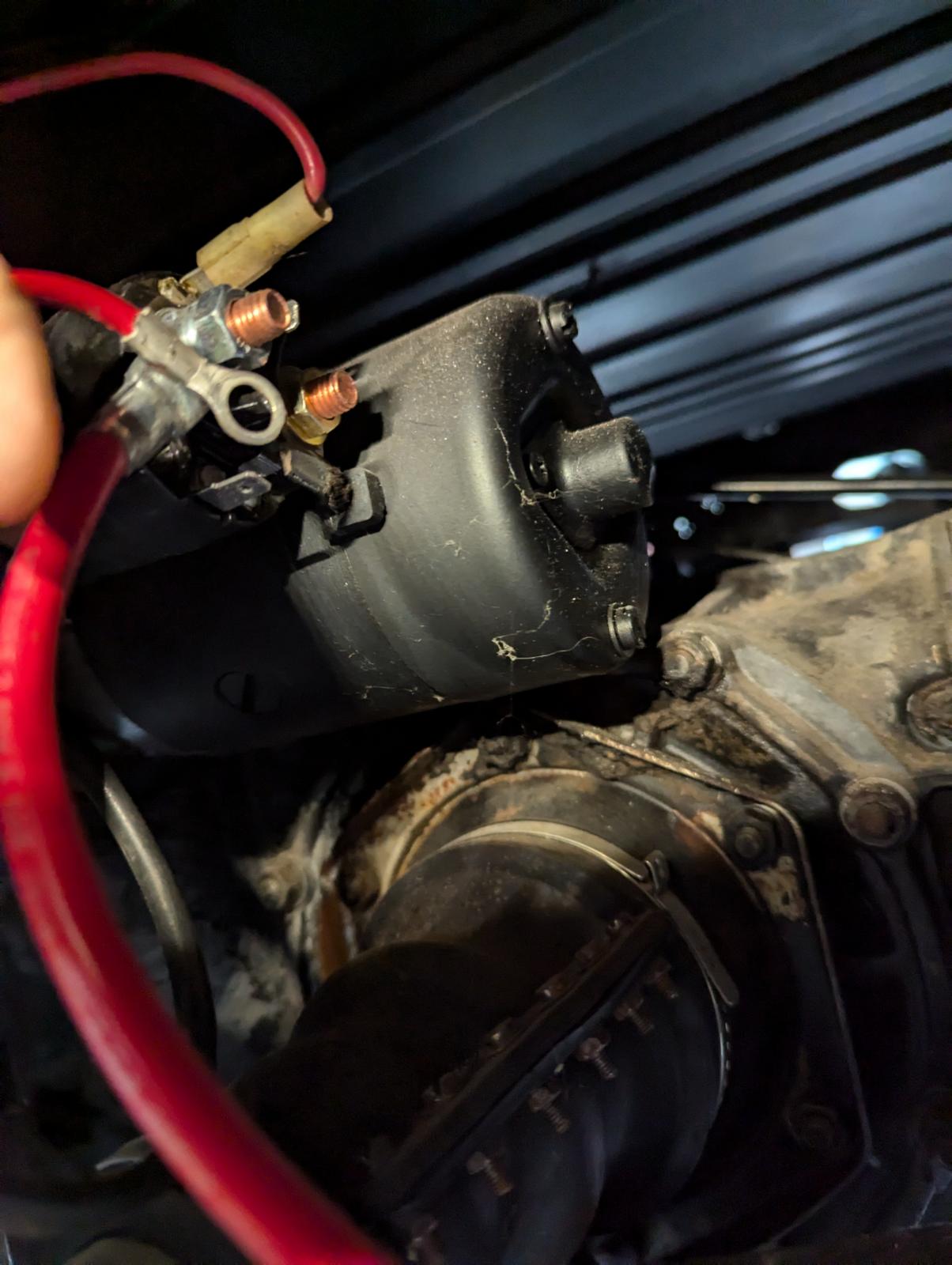

I am hoping to get the start/charge connections made and I've forgotten the wiring between the starter and gen. I've got the two connections made from the front of car to the regulator and I've got the run from the regulator to the starter connected at the reg but I'm confused about two connections. First, the start wire female spade: there are two male spades on the starter relay. Does it matter which one the start wire connects to? Second is the wire from pos on regulator to starter relay: should that be on the same post as the positive battery terminal or on the other post active only during start?
Thanks for your time!
_________________
Zippy the Wonderbug's achingly slow meandering toward roadworthiness |
|
| Back to top |
|
 |
Wayne S. Johnson
Samba Member
Joined: April 12, 2006
Posts: 1289
Location: GILROY, CA
|
|
| Back to top |
|
|
schwim
Samba Member
Joined: May 18, 2008
Posts: 304
Location: Coastal VA, 'Murica
|
| Posted: Wed Nov 27, 2024 10:00 am Post subject: Re: question regarding starter wiring |
|
|
| Wayne S. Johnson wrote: |
| The wire in the second picture goes to the top solenoid terminal with the 13 mm nut. |
Thanks for the help!
So same as positive battery cable, sending power to the regulator all the time?
Also, do you happen to know if it matters which of the two spades I connect the start trigger wire to? The old starter only had one spade if I remember correctly.
_________________
Zippy the Wonderbug's achingly slow meandering toward roadworthiness |
|
| Back to top |
|
|
Cusser
Samba Member
Joined: October 02, 2006
Posts: 32377
Location: Hot Arizona
|
| Posted: Wed Nov 27, 2024 10:49 am Post subject: Re: question regarding starter wiring |
|
|
| schwim wrote: |
| So same as positive battery cable, sending power to the regulator all the time? |
Yes.
| schwim wrote: |
| Also, do you happen to know if it matters which of the two spades I connect the start trigger wire to? The old starter only had one spade if I remember correctly. |
Fine where your photo shows it now.
_________________
1970 VW (owned since 1972) and 1971 VW Convertible (owned since 1976), second owner of each. The '71 now has the 1835 engine, swapped from the '70. Second owner of each. 1988 Mazda B2200 truck, 1998 Frontier, 2014 Yukon, 2004 Frontier King Cab. All manual transmission except for the Yukon. http://www.thesamba.com/vw/forum/album_page.php?pic_id=335294 http://www.thesamba.com/vw/forum/album_page.php?pic_id=335297 |
|
| Back to top |
|
|
wdfifteen
Samba Member
Joined: January 26, 2019
Posts: 639
Location: Ohio
|
| Posted: Wed Nov 27, 2024 11:52 am Post subject: Re: question regarding starter wiring |
|
|
| schwim wrote: |
So same as positive battery cable, sending power to the regulator all the time?
|
Actually, it's sending the power the generator created from the regulator to the battery.
| schwim wrote: |
| Also, do you happen to know if it matters which of the two spades I connect the start trigger wire to? The old starter only had one spade if I remember correctly. |
I assume you mean the two male connectors on the solenoid. It makes no difference. |
|
| Back to top |
|
|
.65vw
Samba Member
Joined: August 06, 2008
Posts: 133
Location: Washington - East of Seattle
|
| Posted: Wed Nov 27, 2024 12:14 pm Post subject: Re: question regarding starter wiring |
|
|
Hey Schwim!
Good to see you are still bugging around. Me too! |
|
| Back to top |
|
|
schwim
Samba Member
Joined: May 18, 2008
Posts: 304
Location: Coastal VA, 'Murica
|
| Posted: Thu Nov 28, 2024 12:26 pm Post subject: Re: question regarding starter wiring |
|
|
| .65vw wrote: |
Hey Schwim!
Good to see you are still bugging around. Me too! |
Well, hello there
I'm working on ending my reign of the title of longest disassembled driver(in my zipcode).
Hope you're doing well, it's great to see you still having fun.
_________________
Zippy the Wonderbug's achingly slow meandering toward roadworthiness |
|
| Back to top |
|
|
MrGoodtunes
Samba Member
Joined: May 14, 2012
Posts: 964
Location: South Florida
|
| Posted: Thu Nov 28, 2024 6:03 pm Post subject: Re: question regarding starter wiring |
|
|
| wdfifteen wrote: |
| ... the two male connectors on the solenoid. It makes no difference. |

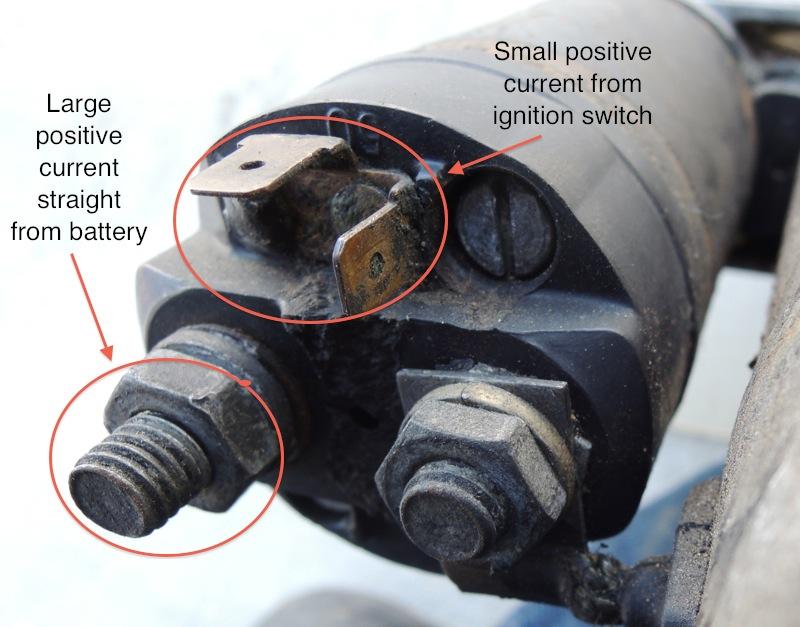

Don't be so sure about that. Solenoid can have 2 male spade terminals that are electrically identidal (VW #50); like here:
But the solenoid in the picture posted by schwim has its 2 male spade terminals far apart, probably not electrically the same. At least one of them is the VW #50 connection from Start position of ignition switch. The other could very well be VW #15a, which connects to positive terminal of ignition coil. I call it a "quick start hot wire" because of the effect it has had upon starting my engine since recently installing a starter solenoid that has this extra terminal. I love it, and posted about it here:
https://www.thesamba.com/vw/forum/viewtopic.php?p=10121633&highlight=#10121633 |
|
