Special Service Tools - 1000-up
Click on the thumbnail for larger image and model application details
Submissions of tool
photos, missing tool numbers, and scans are welcomed
Tools Listing Information
Page 1 (100 series) | Page 2
(200-249) | Page 3 (250-299) |
Page 4 (300 series) | Page 5
(400 series)
Page 6 (500 series) | Page 7
(600 series) |
Page 8 (700-999) | Page 9
(1000-up) |
Page 10 (Other)
Local Manufacture of Tools (600-799) | 8/70 Spare Parts
| Number | Designation and Application | Tool Photo |
| 1001 | 17mm 1/2" Drive Torque wrench extension | From Zelenda VW Special Tools Catalog |
| 1002 | 6mm DIN 911 Hex Key | From Zelenda VW Special Tools Catalog |
| 1003 | 19mm 1/2" Drive Torque wrench extension | From Zelenda VW Special Tools Catalog |

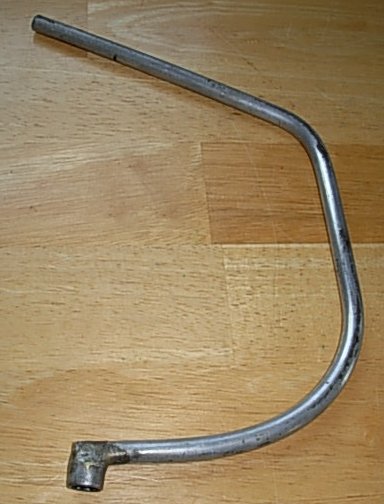

| 1004 | Box Wrench 10 mm For removal and installation of single port intake manifold nuts |
 |
| 1006 | 12mm carrier
plate - Type 4 Also see Tool 174b | From Baum Tools catalog |
| 1007 | 14mm oil
pressure relief valve - Type 4, 914 Also see Tool 174c | From Baum Tools catalog |
| 1010 | Alternator
pulley puller - Type 4 | From Baum Tools catalog |
| 1011 | Countersinking
Tool For crankcase stud holes | From Zelenda VW Special Tools Catalog |
| 1015 | Puller for
steering arm - Type 4, multiple pulling applications on suspension for all models | From Baum Tools catalog |
| 1016 | Pressure gauge kit for brake regulator | From Baum Tools catalog |
| 1024 | Special wrench with permanent magnet, 17mm, 12-points | From Zelenda VW Special Tools Catalog |
| 1031 | Roof trim pliers - 411 | From Baum Tools catalog |
| 1037 | Internal
extractor for various bearing races - All models - 46mm - 56mm range | From Baum Tools catalog |
| 1039 | Counterstay for
use with extractors 1037, 1088, and 1099 - For bushing and bearing removal, all models | From Baum Tools catalog |
| 1043 | 2.5mm allen - For vacuum control units | From Baum Tools catalog |
| 1054 | Special socket
and extension - For removing the pressure sending unit, Types 1, 2, 3, 4, 914 | From Baum Tools catalog |
| 1056 | Removal and
install head bolts - Dash, Scirocco, Rabbit, Fox Also see Tool 157a | From Baum Tools catalog |
| 1064 | Turning torque
wrench, 1/2" drive - 0-30cm/kp | From Baum Tools catalog |

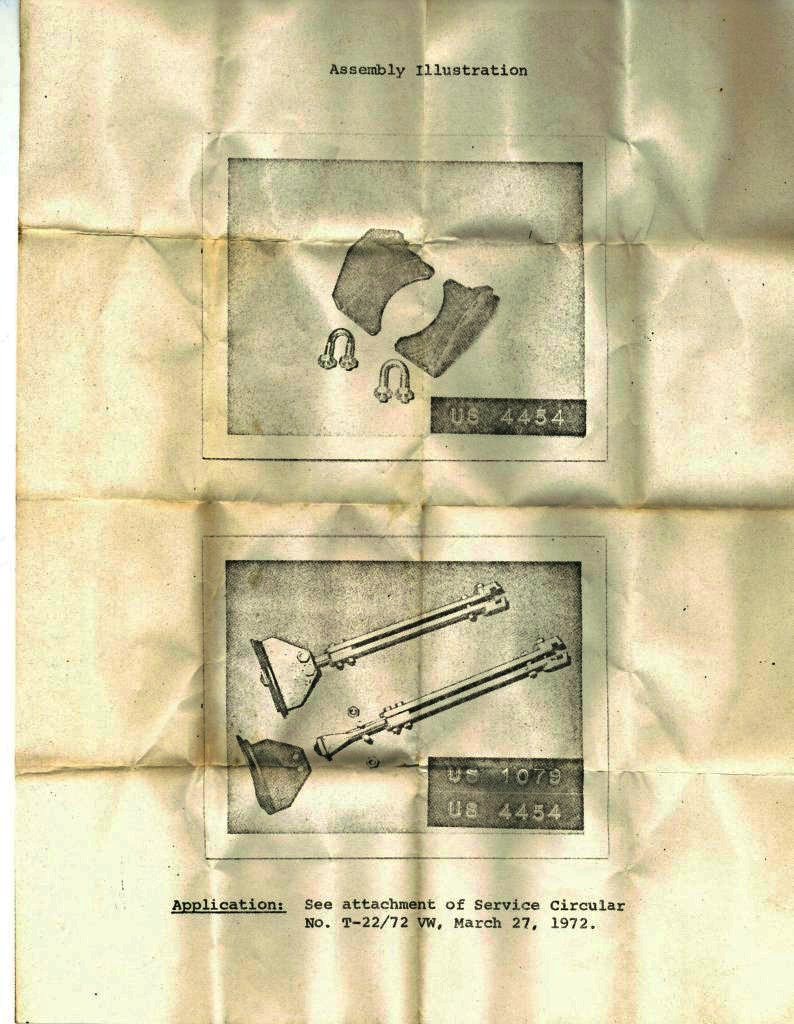

| 1078 | Puller for main
shaft gear and carrier shield and various operations - Type 4, Rabbit, Scirocco, Dasher, Fox | From Baum Tools catalog |
| 1079 | Extra long arms for 1078 | From Baum Tools catalog |
| 1080 | Herko battery
filler - All models | From Baum Tools catalog |

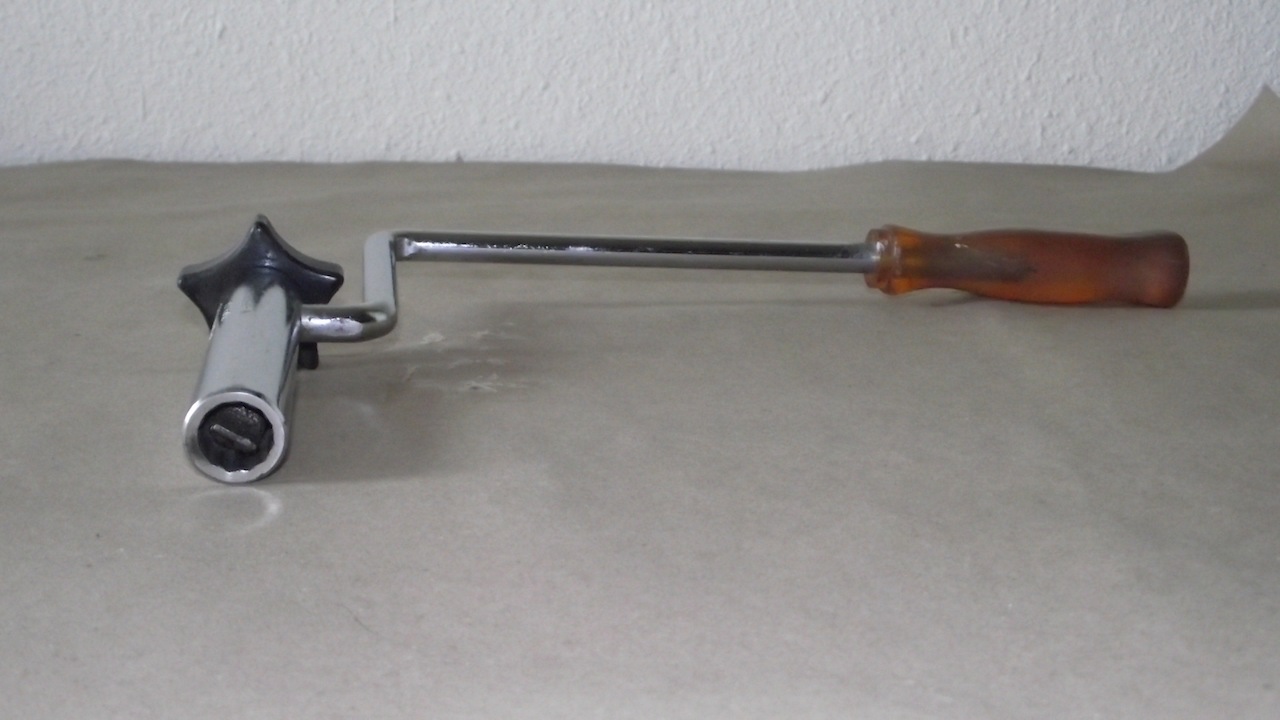

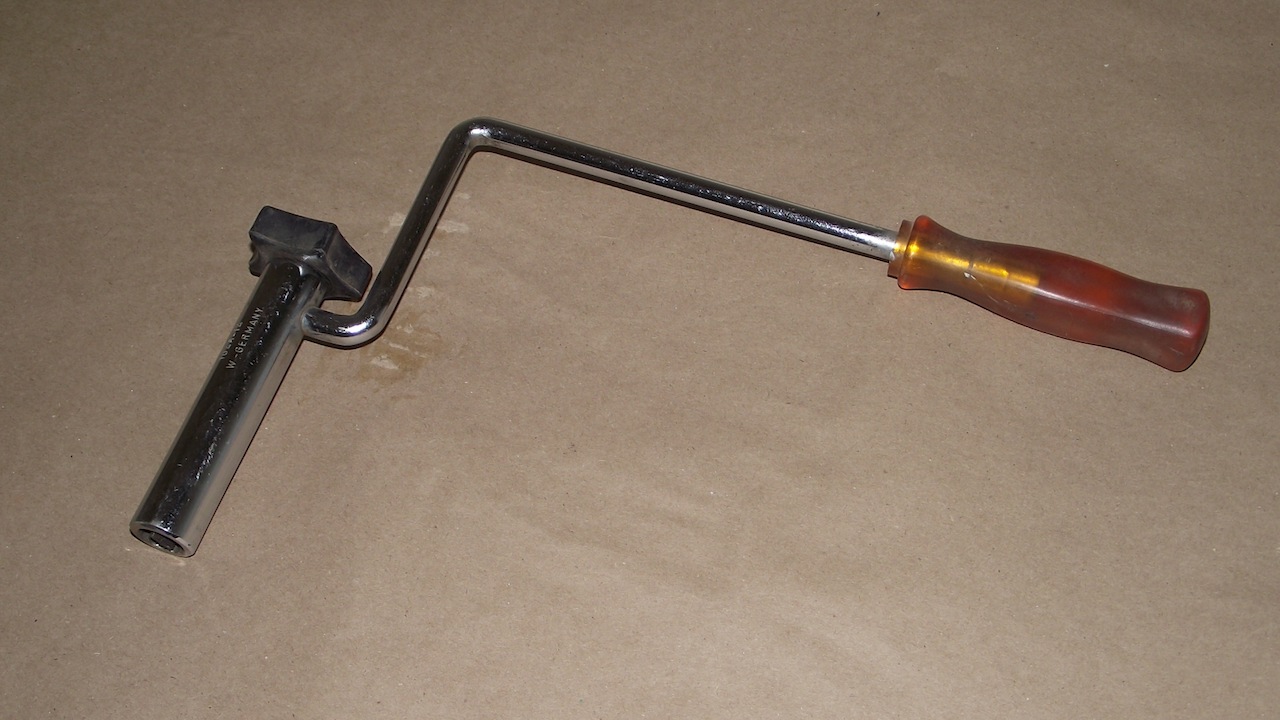

| 1086 | Valve Adjustment
Tool Stahlwille 1048-14 Type 4-based engines |
 |
| 1088 | Internal
extractor for needle bearing race on transmission mainshaft - Rabbit, Scirocco - 18.5mm - 23.5mm range Use with 1039 | From Baum Tools catalog |
| 1089 | Steering wheel
adjusting wrench - Scirocco, Rabbit | From Baum Tools catalog |
| 1090 | Oil pressure gauge with adapters for automatic transmissions | From Baum Tools catalog |
| 1099 | Internal
extractor for outer bearing race in automatic transmissions - Rabbit, Scirocco - 37mm - 46mm range Use with 204b and 1039 | From Baum Tools catalog |
| 1102 | 7mm allen socket - For retaining strut lock nut - Dasher, Fox Rabbit, Scirocco | From Baum Tools catalog |
| 1103 | Pinion separator - Type 1, 2, 3, Dasher, Fox | From Baum Tools catalog |
| 1105 | Engine removal
chain assembly - Includes 10-207 and 559 - Use with 10-222 | From Baum Tools catalog |
| 1106 | Leak down tester for checking bypass on rings, valves, gaskets, etc. | From Baum Tools catalog |

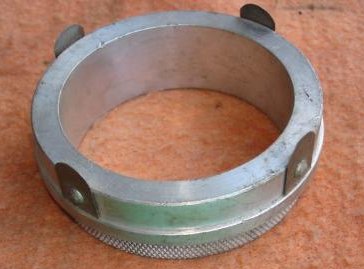

| 1109 | Air sensor plate
center mandrel - 80mm - Rabbit, Dasher, Fox |
From Baum Tools catalog US1109:
 |
| 1245 | Brace | From Baum Tools catalog |
| 1277 | Fixture | From Baum Tools catalog |
| 1278 | Thrust pad |
From Baum Tools catalog
 |
| 1324a | Air powered
adaptor unit for checking RPM of diesel engines - Changes air pulse to electrical pulse - Use with 1324b tachometer or equivalent | From Baum Tools catalog |
| 1324b | All purpose Dwell tachometer - 4/6/8-cylinder cars | From Baum Tools catalog |
| 1324c | Heavy duty A/C current 12-volt sold-state timing light | From Baum Tools catalog |
| 1324d | Alternator or generator current indicator | From Baum Tools catalog |

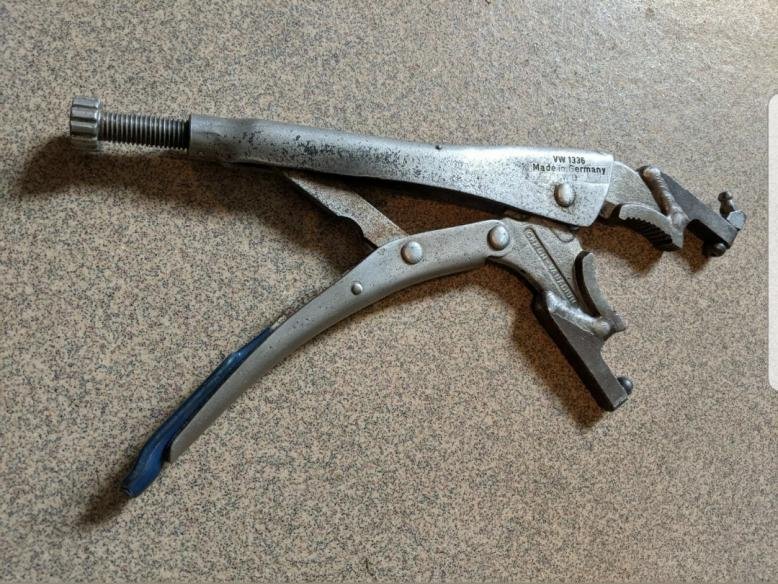

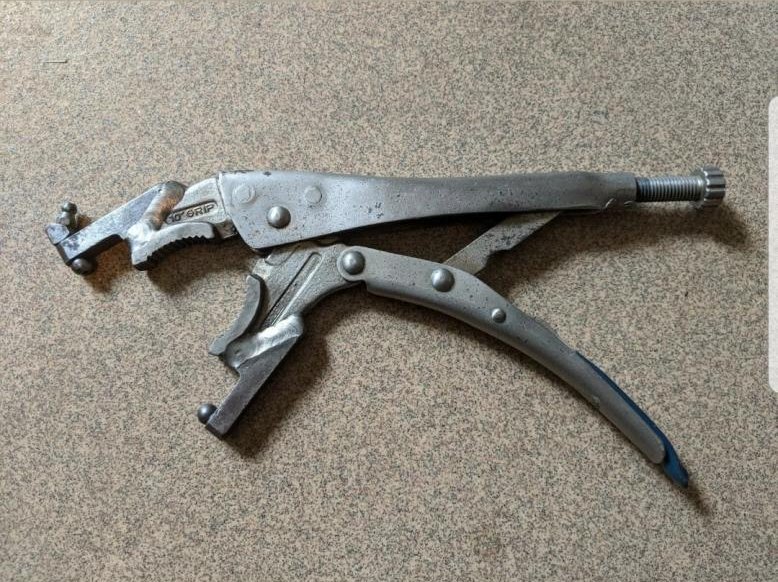

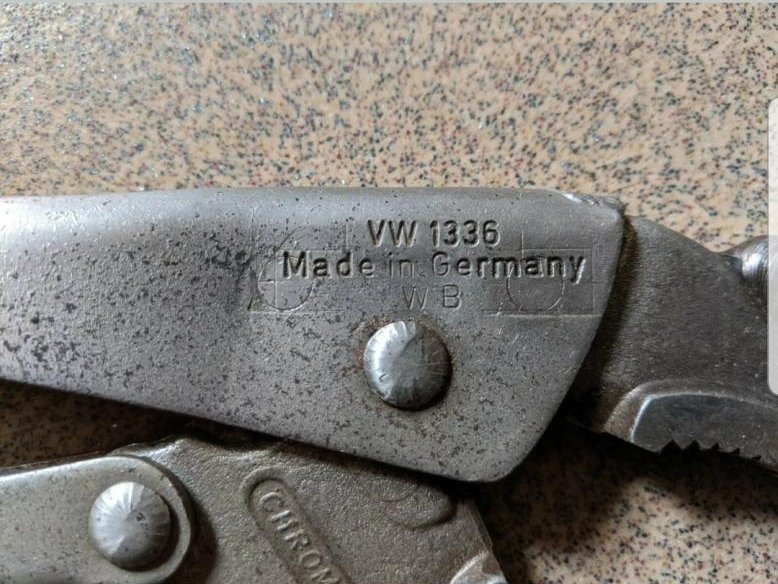

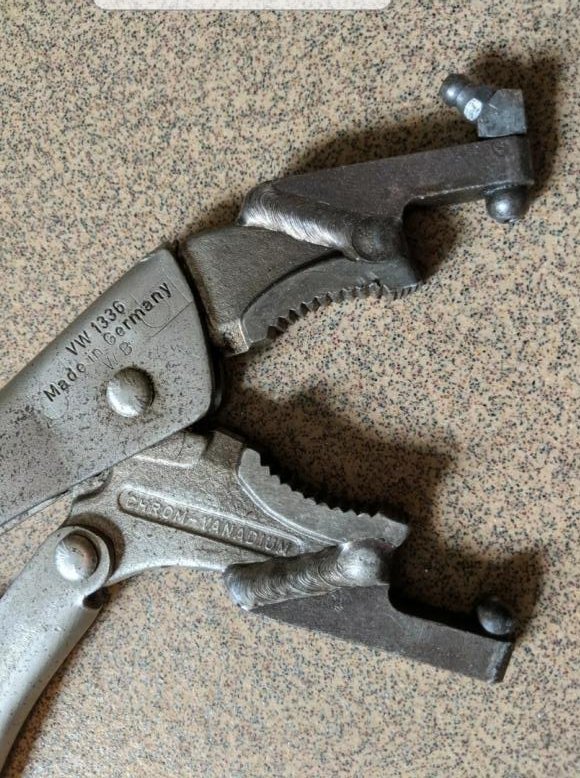

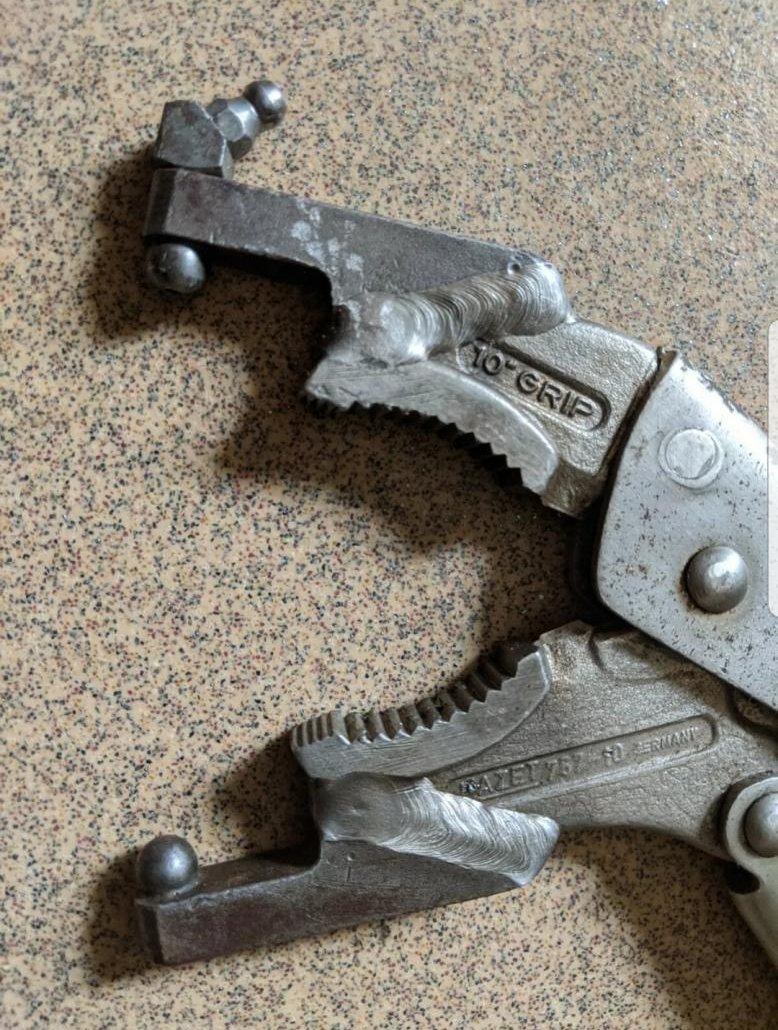

| 1336 | Vice Grips May have been modified |
|

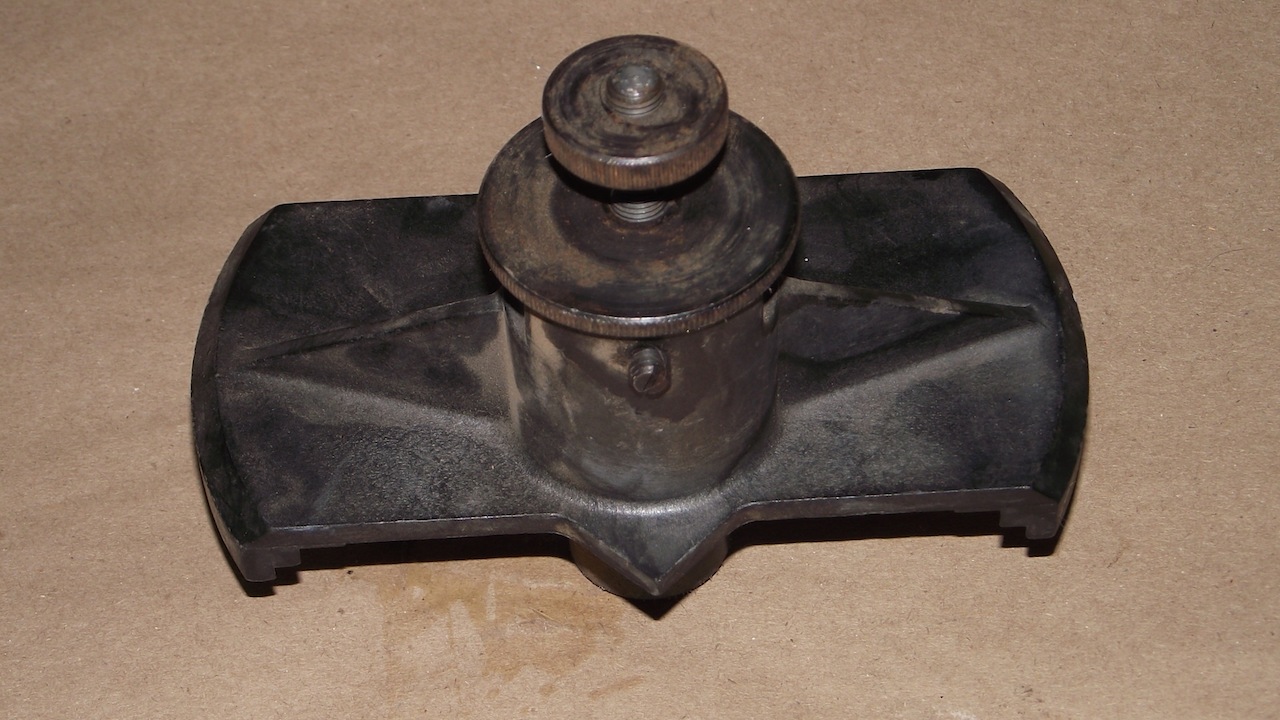

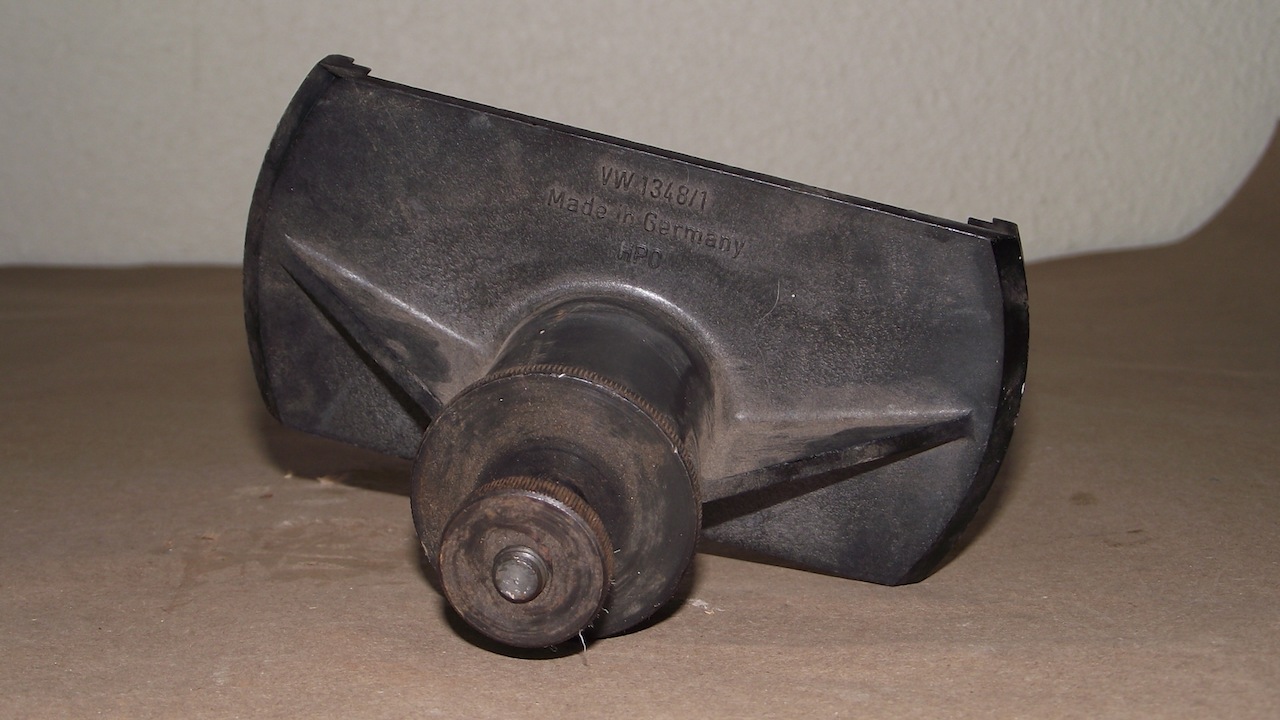

| 1348 | Adjusting jig Component part of VAG1348/99 adjust air sensor potentiometer sensor plate. K-KE Jetronic. |
 |

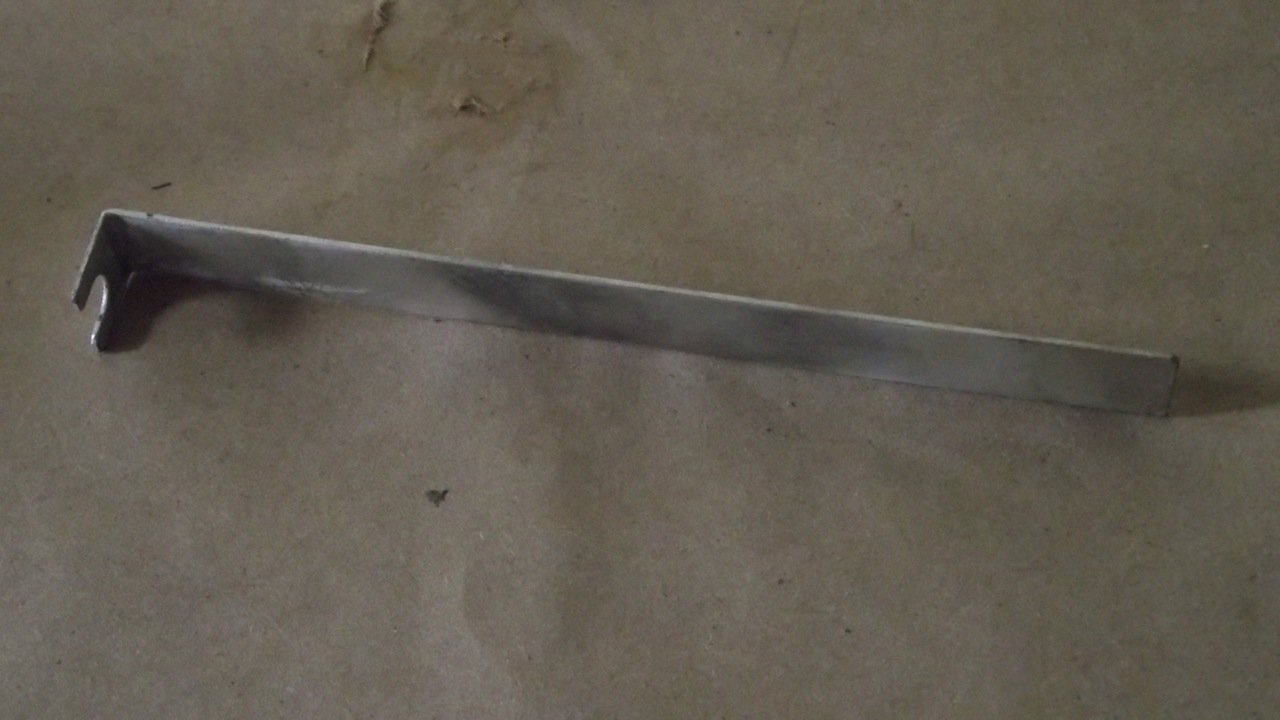

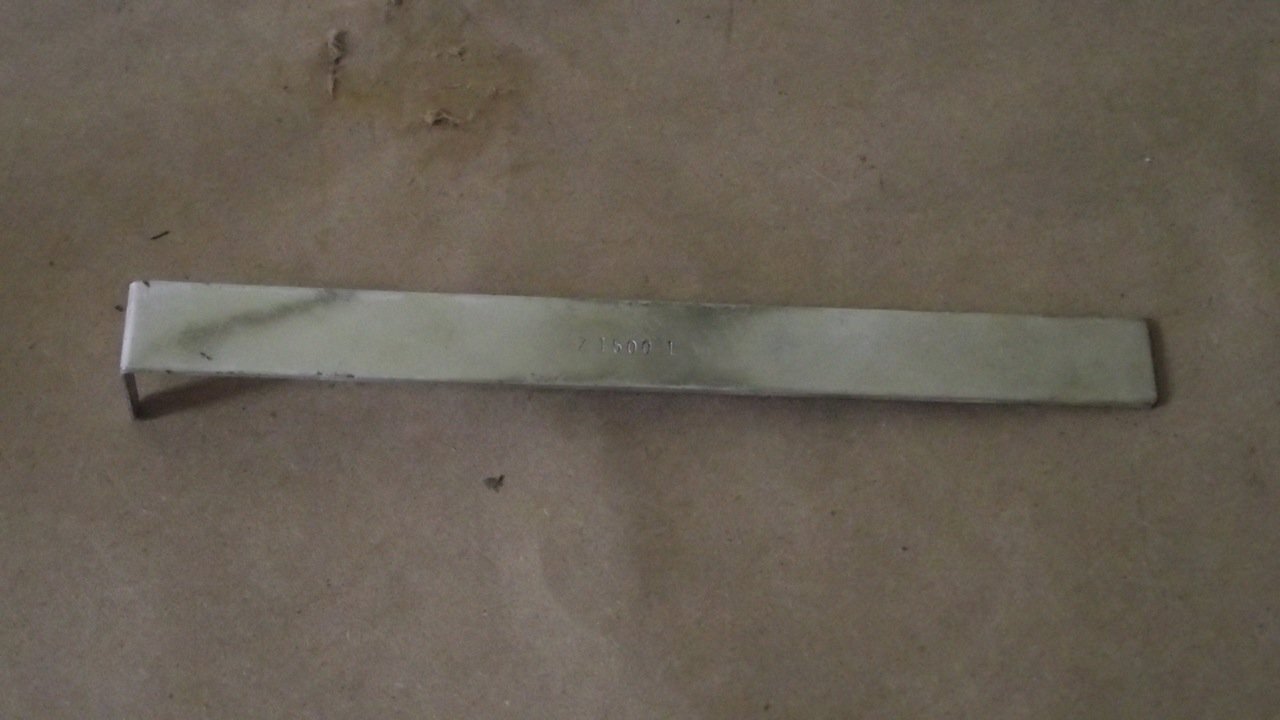

| 1500 | Complete Disc
brake tool set - Rotating plier - Plier for brake caliper - Extractor hook - Setting gauge - Installing clamp - Dial gauge bracket |
From Baum Tools catalog
 |

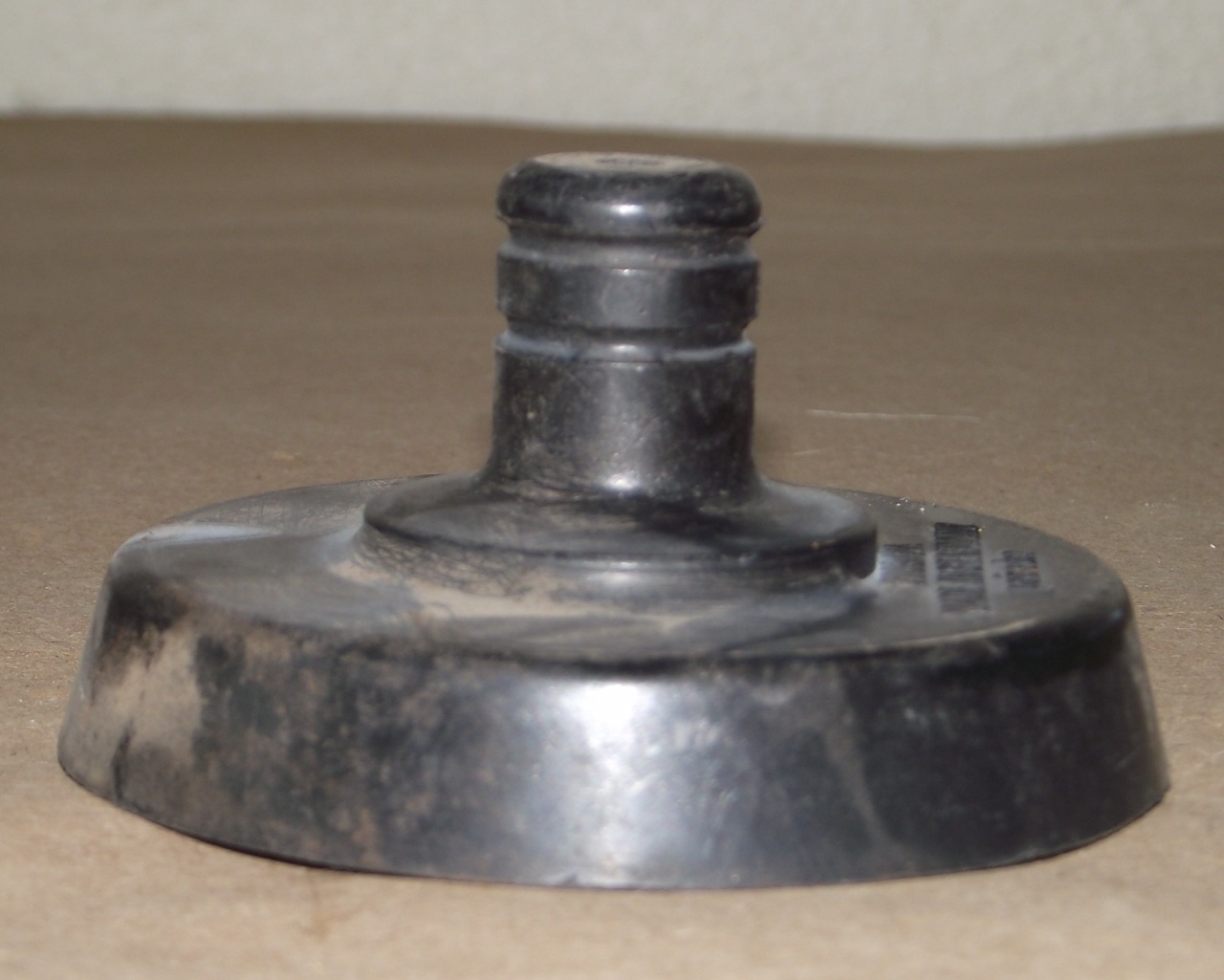

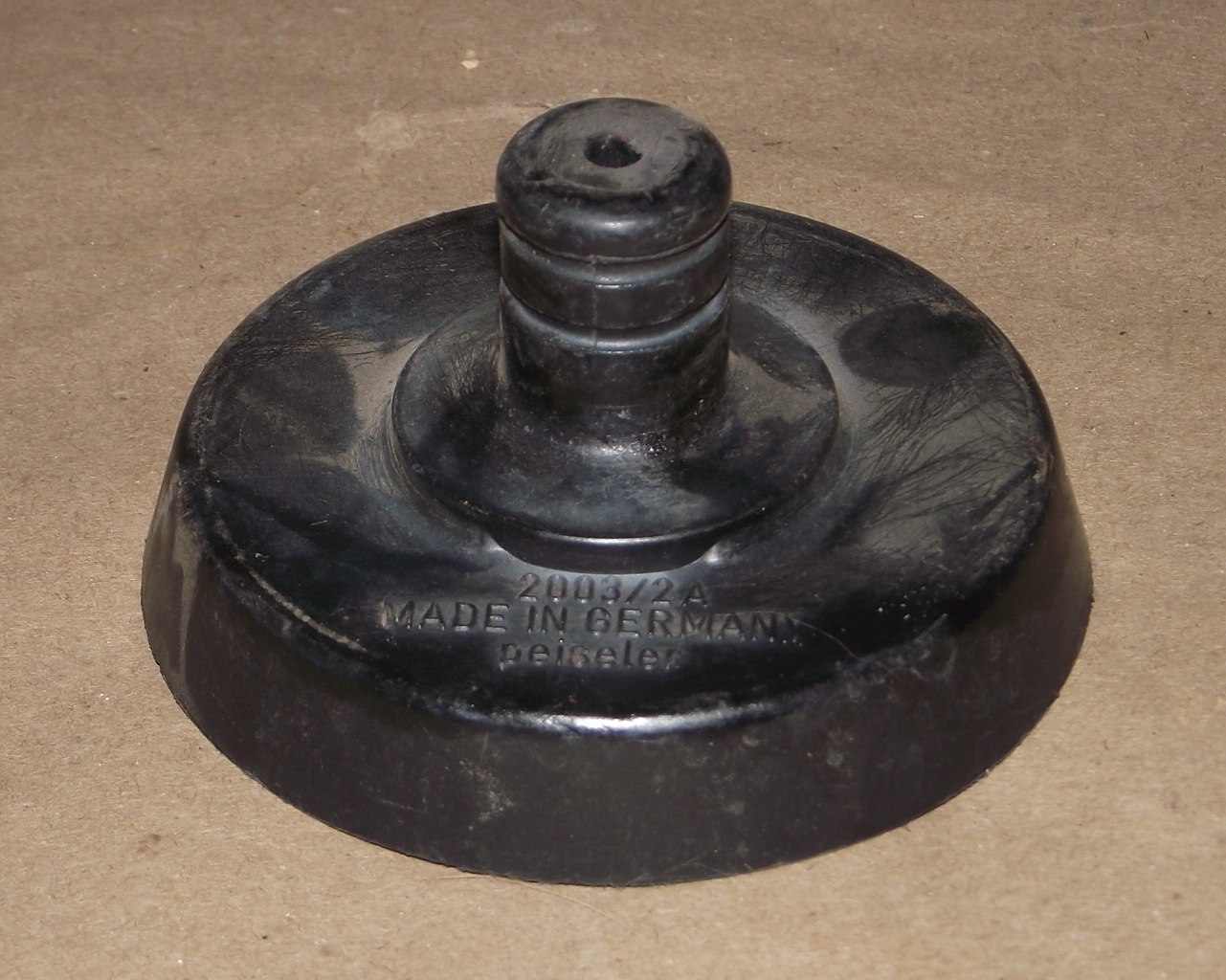

| 2003 | Flywheel seal
tool - 1975-on - Dasher, Rabbit, Fox, Diesel |
From Baum Tools catalog
 |

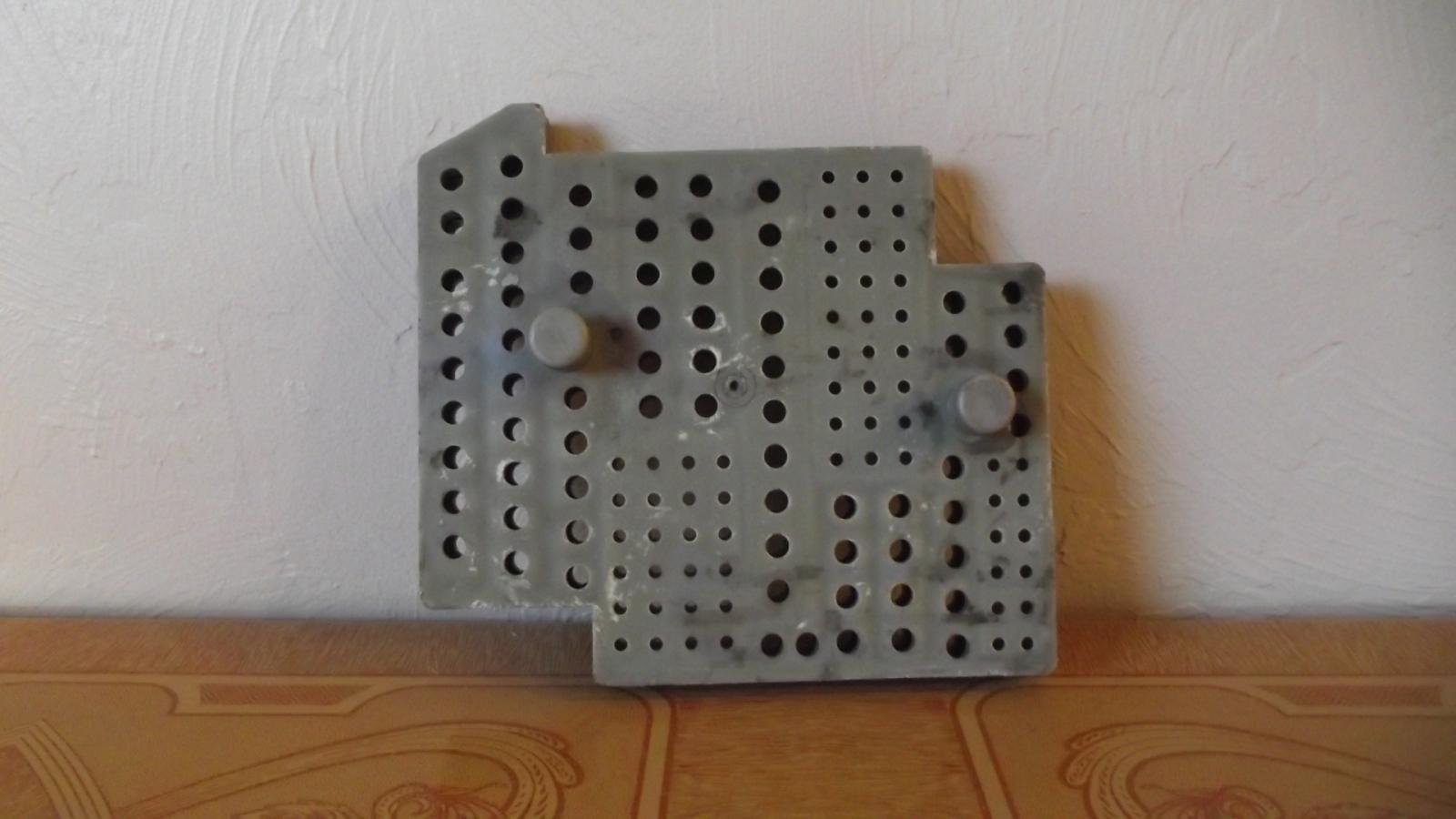

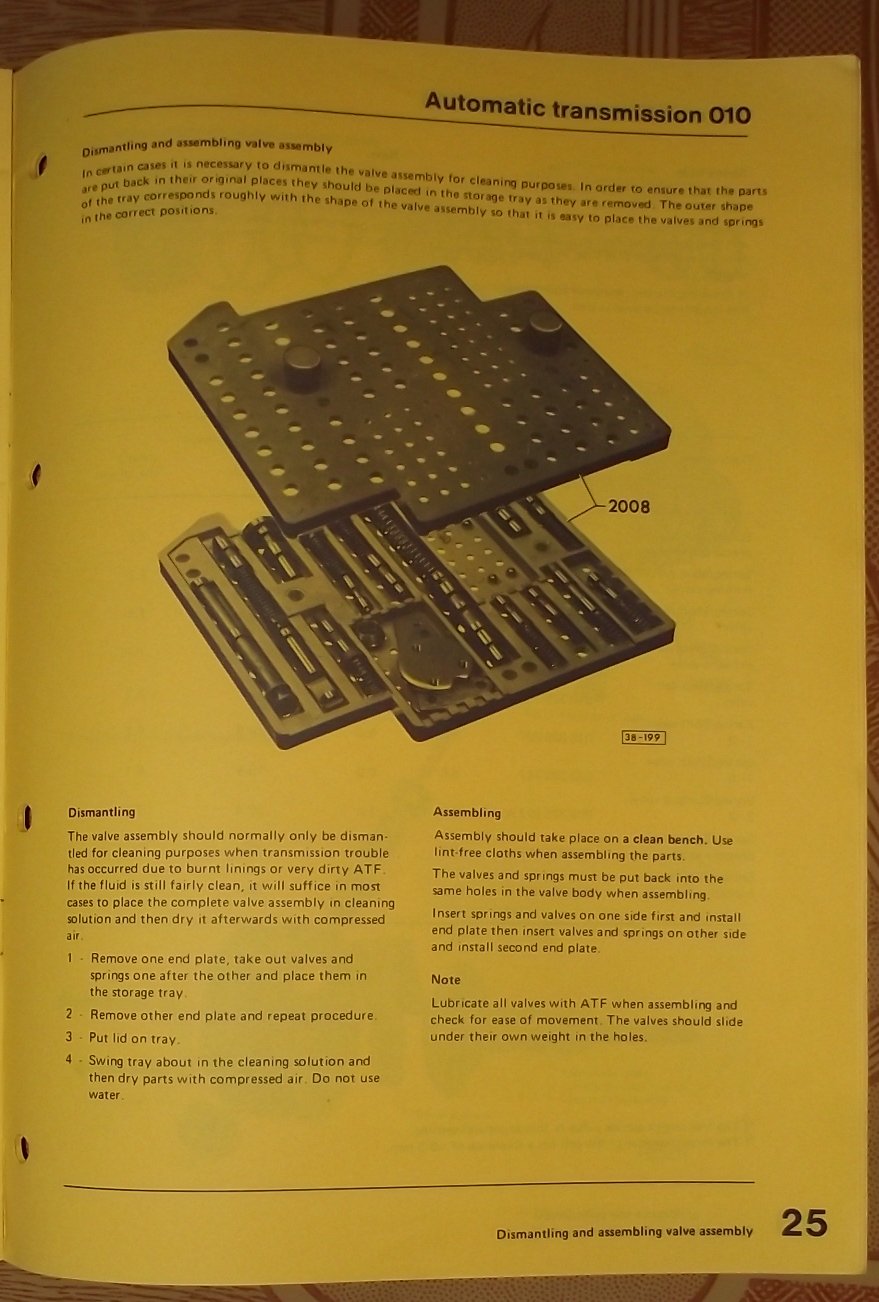

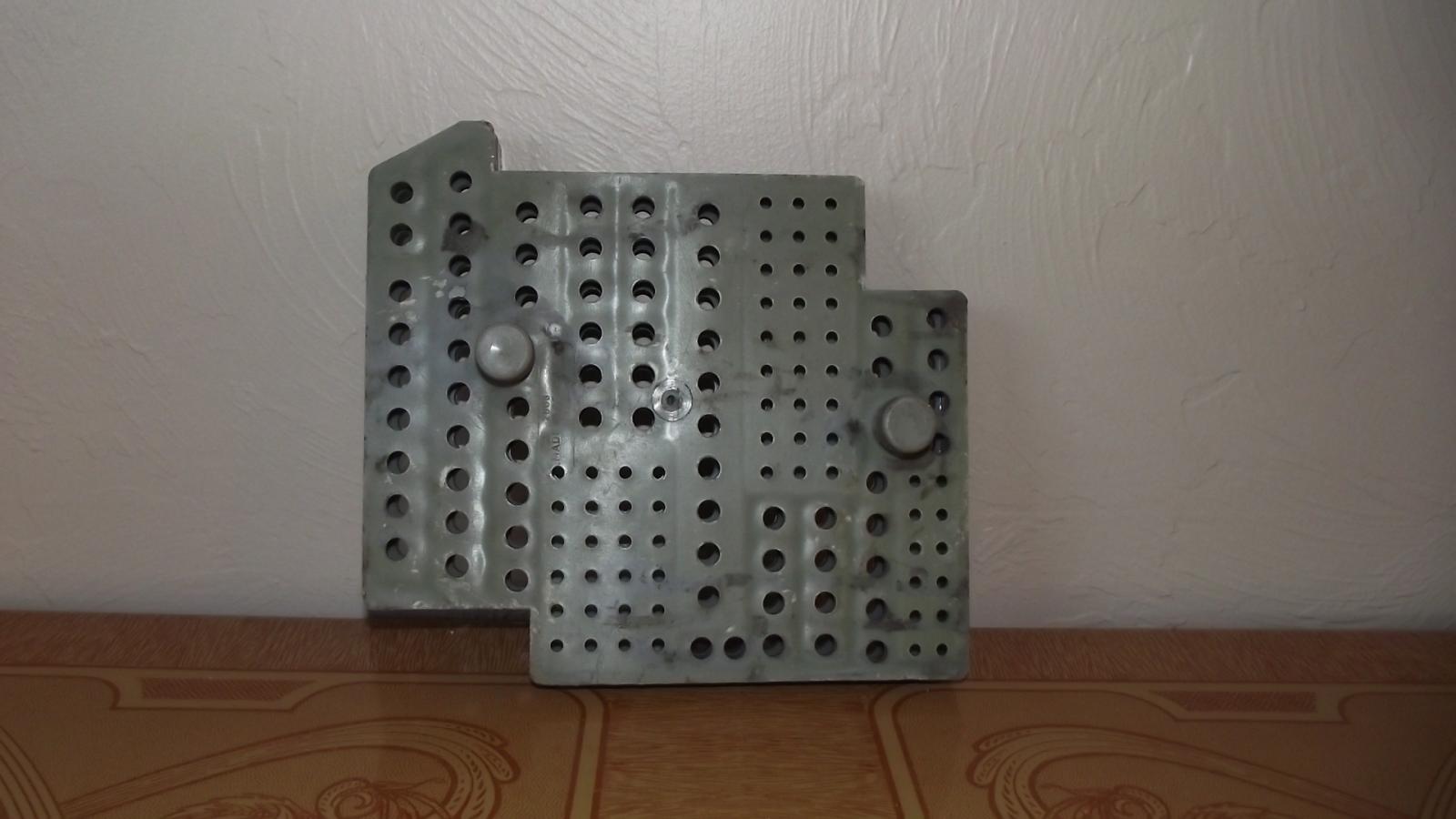

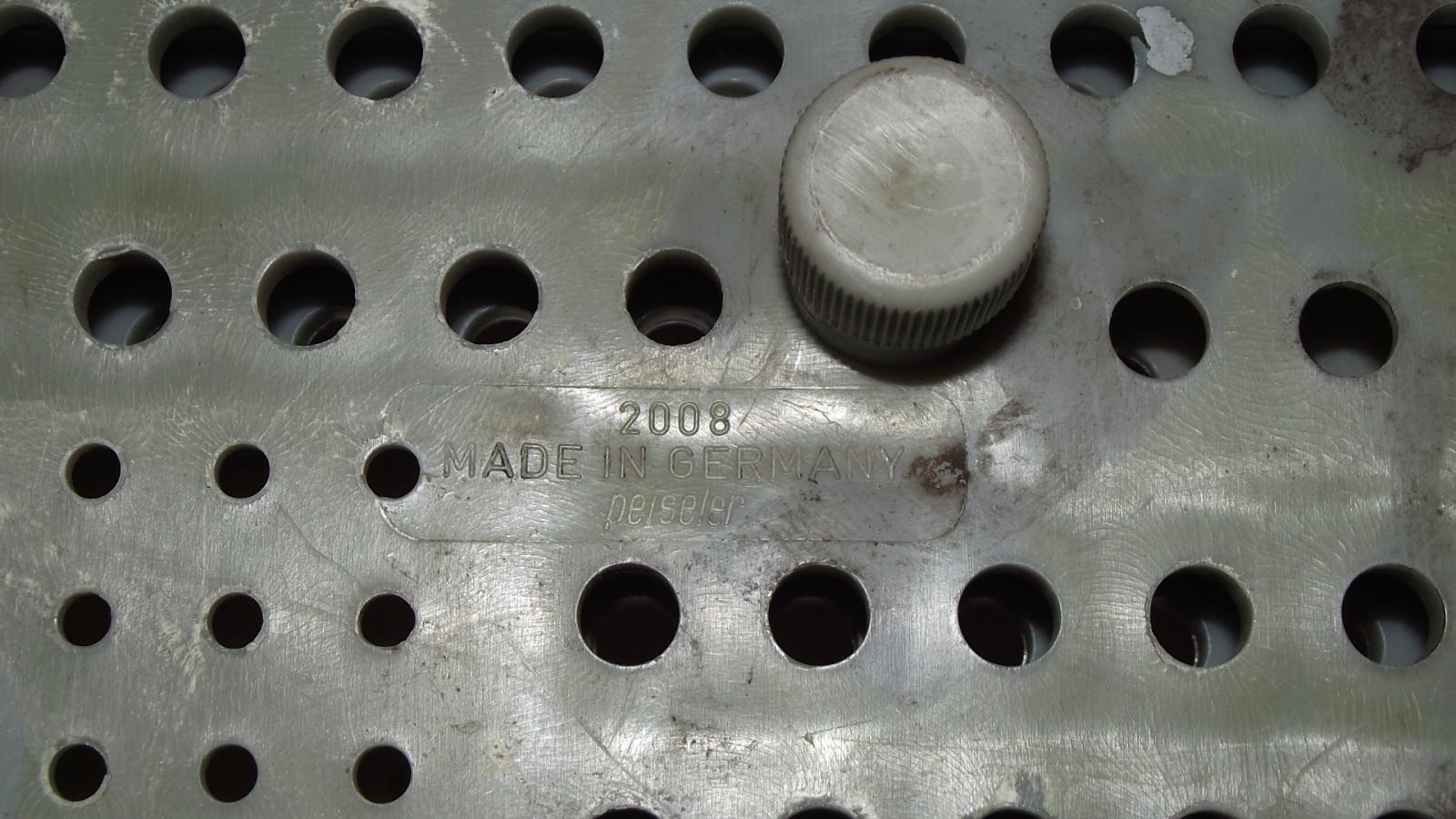

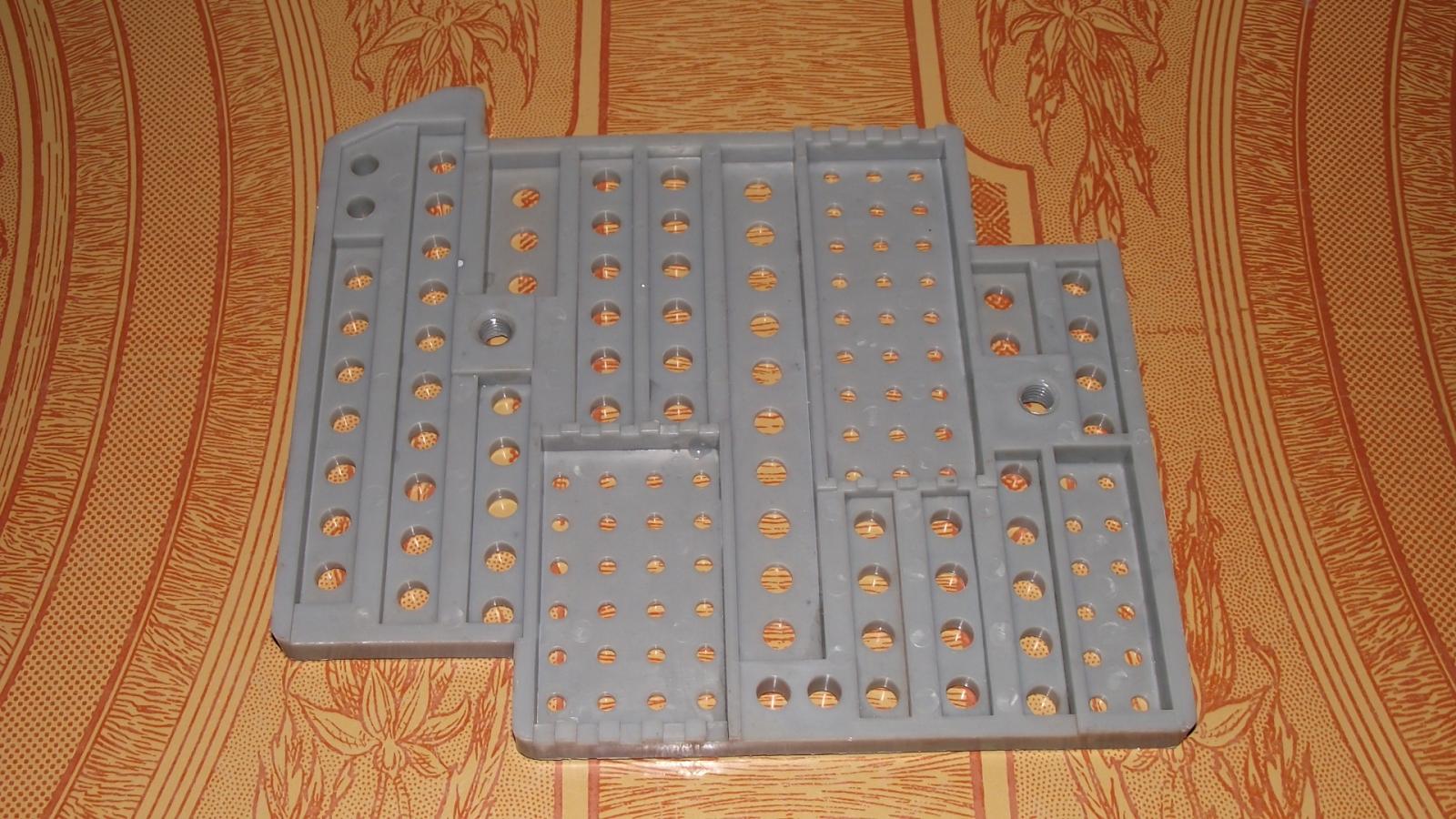

| 2008 | Valve body part tray |
From Baum Tools catalog From the 1976 Type 2 Automatic Transmission 010 Workshop Bulletin
 |
| 2010 | Install bearing
in trailing arm - Dasher, Fox | From Baum Tools catalog |
| 2012 | Hook wrench for
removal and installation of fuel sending unit - Dasher, Rabbit, Scirocco | From Baum Tools catalog |

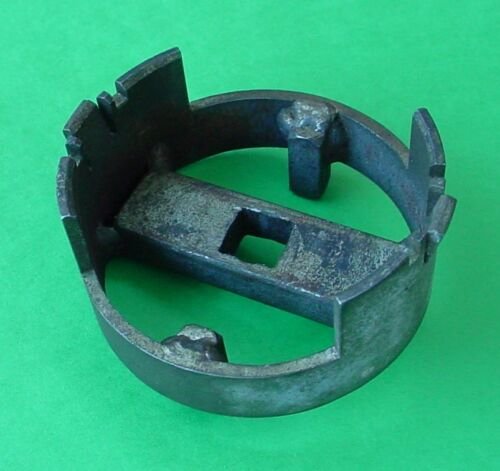

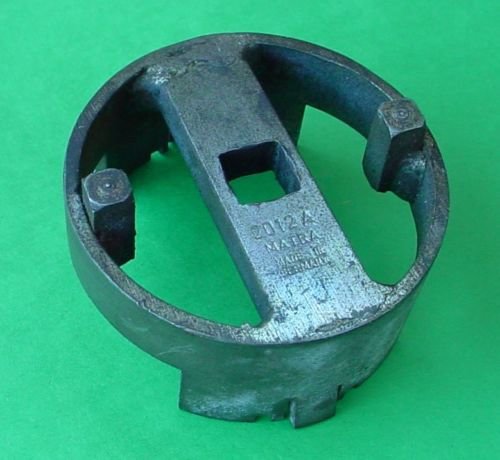

| 2012a | Fuel sender Wrench |
 |
| 2026 | Crankshaft needle bearing installation | From Baum Tools catalog |
| 2050 | Thrust plate for
installation of outer bearing races in differential - Type 2, Type 4 | From Baum Tools catalog |

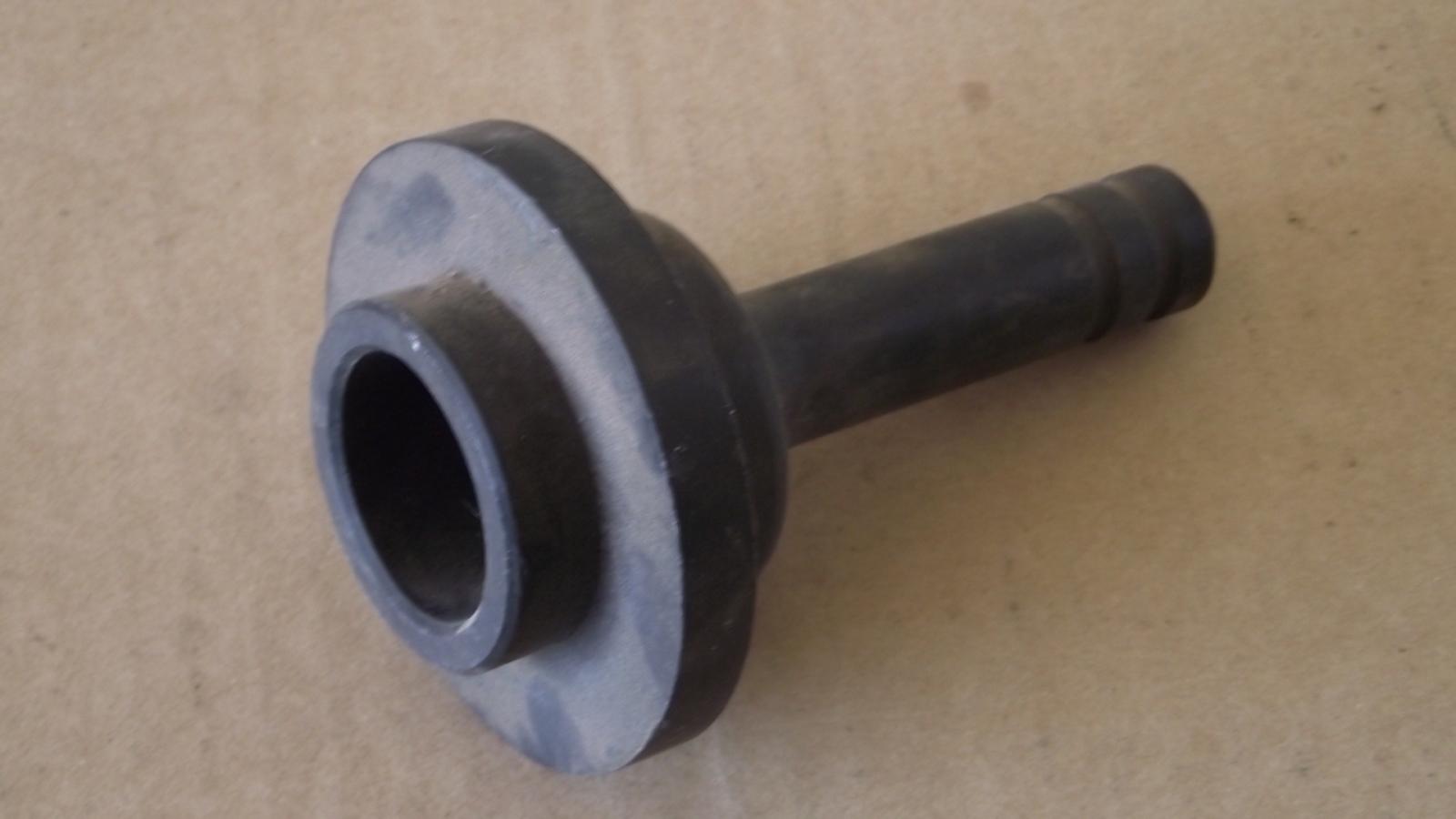

| 2051 | Arbor for
installation of drive flange seal - Type 2 |
From Baum Tools catalog
 |

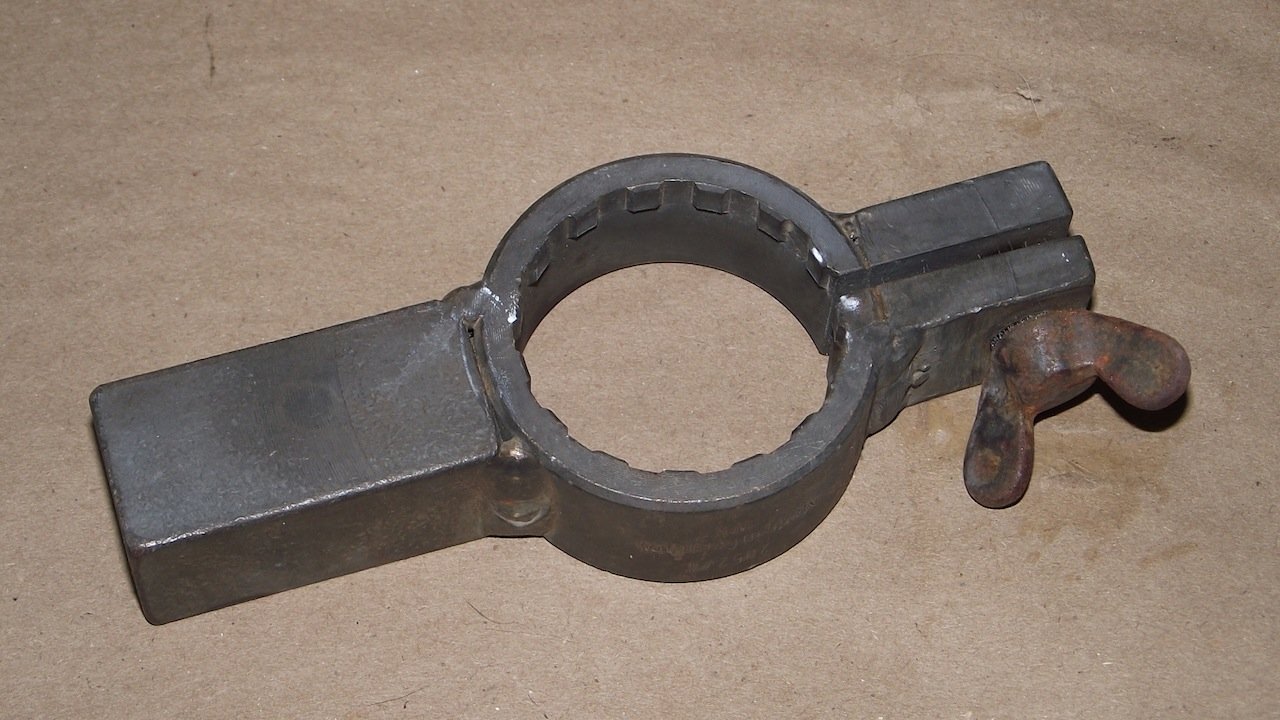

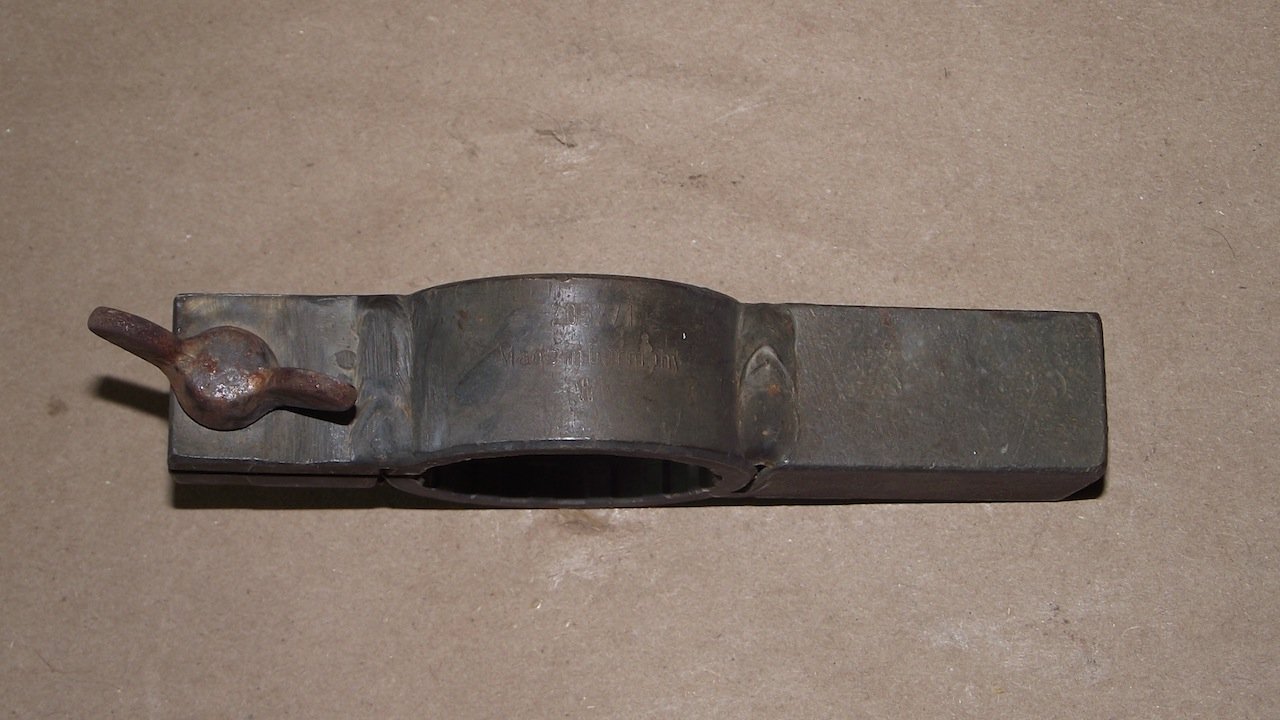

| 2052 | Pinion holding
fixture - For removal of installation of pinion nut, Type 2 |
From Baum Tools catalog
 |

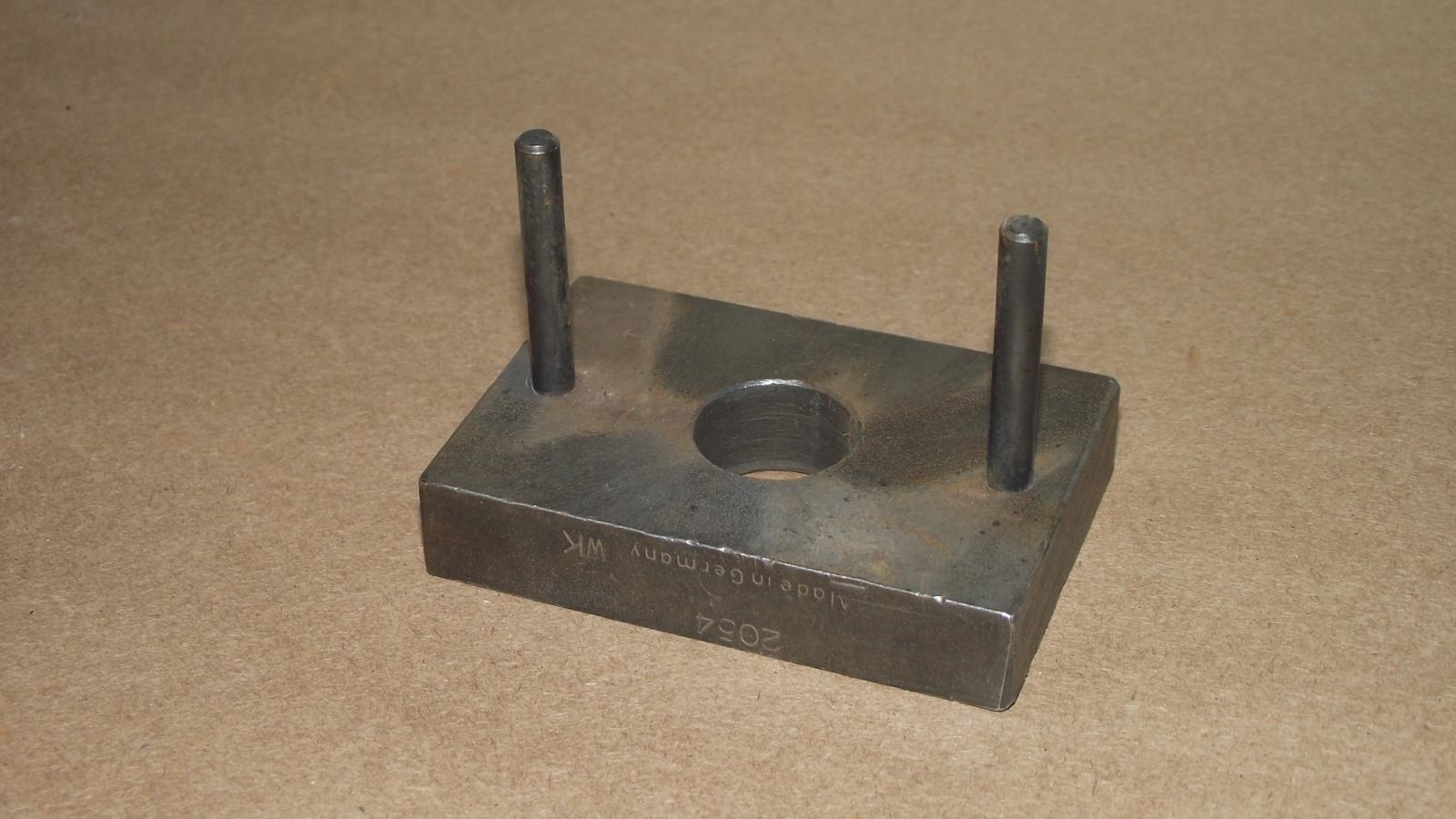

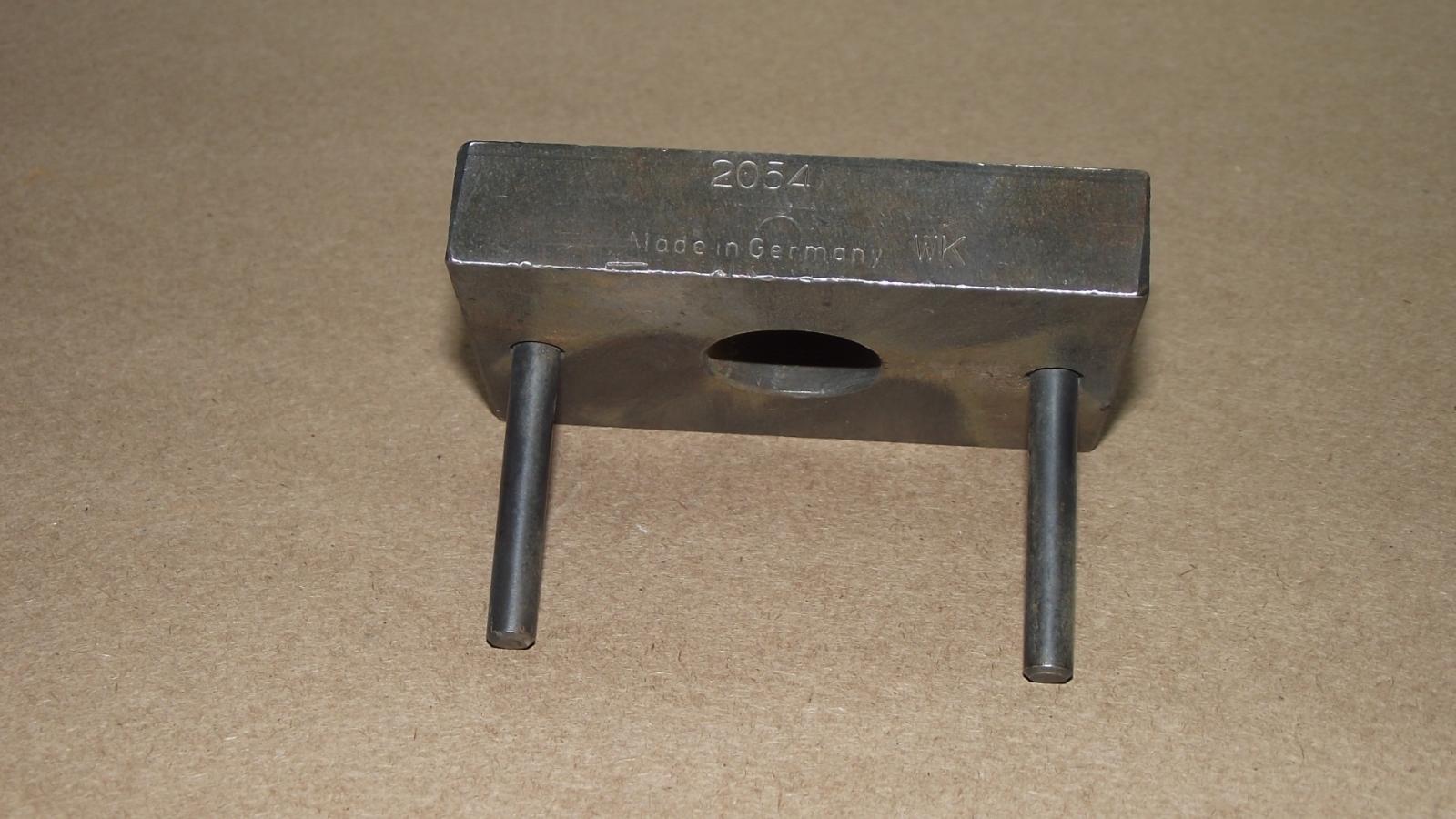

| 2054 | Plate for
removal of inner bearing races - Type 2 |
From Baum Tools catalog
 |

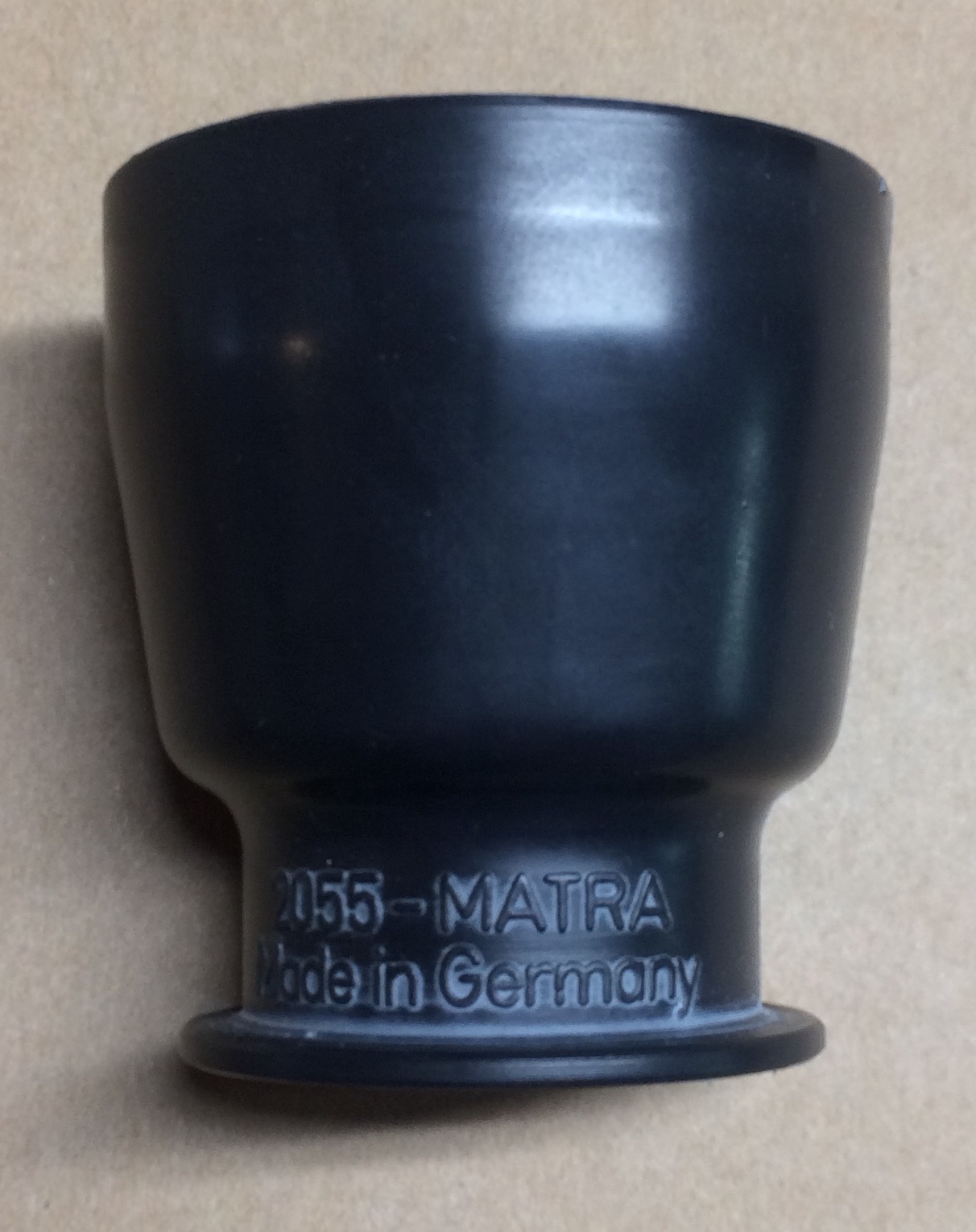

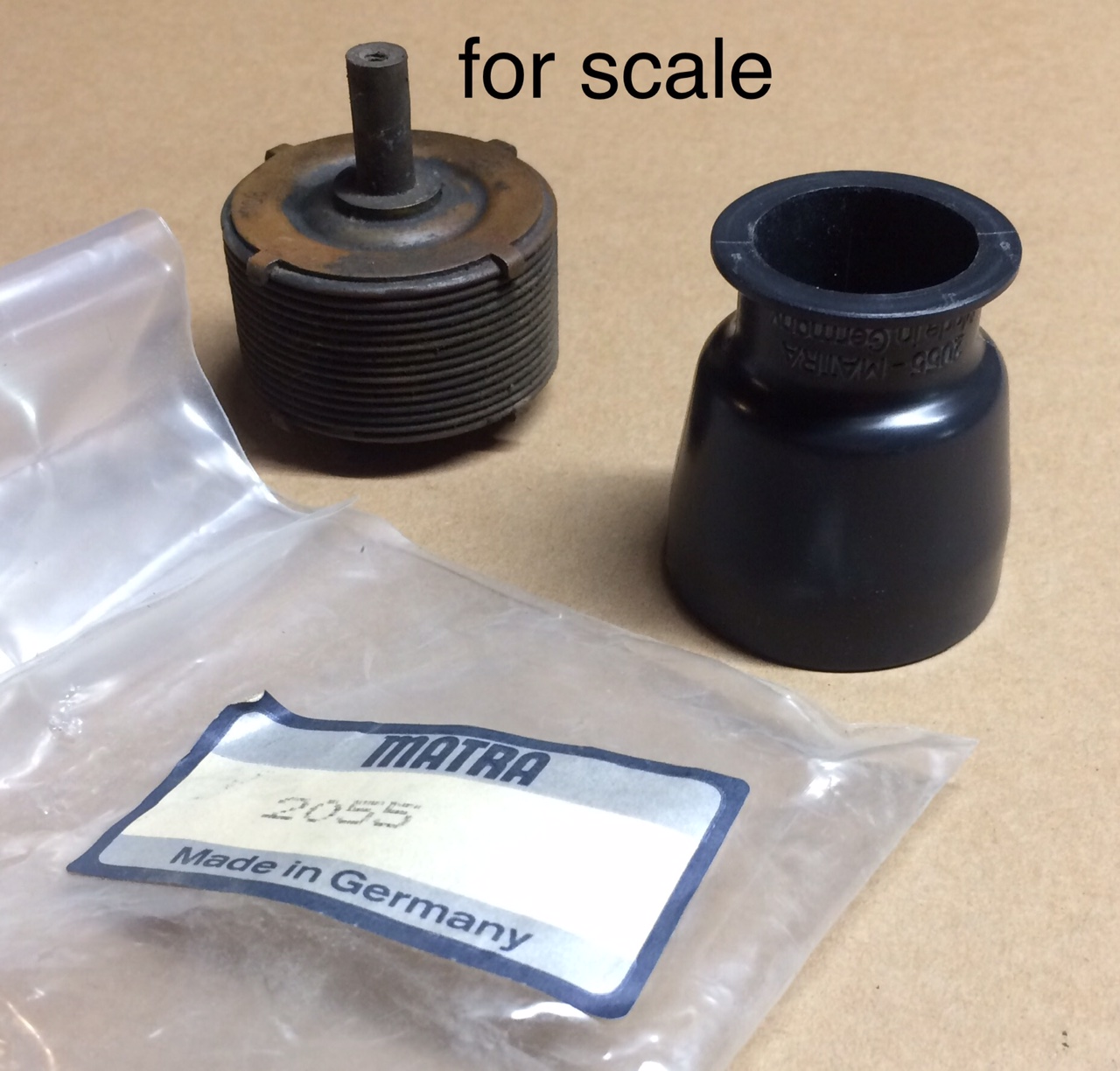

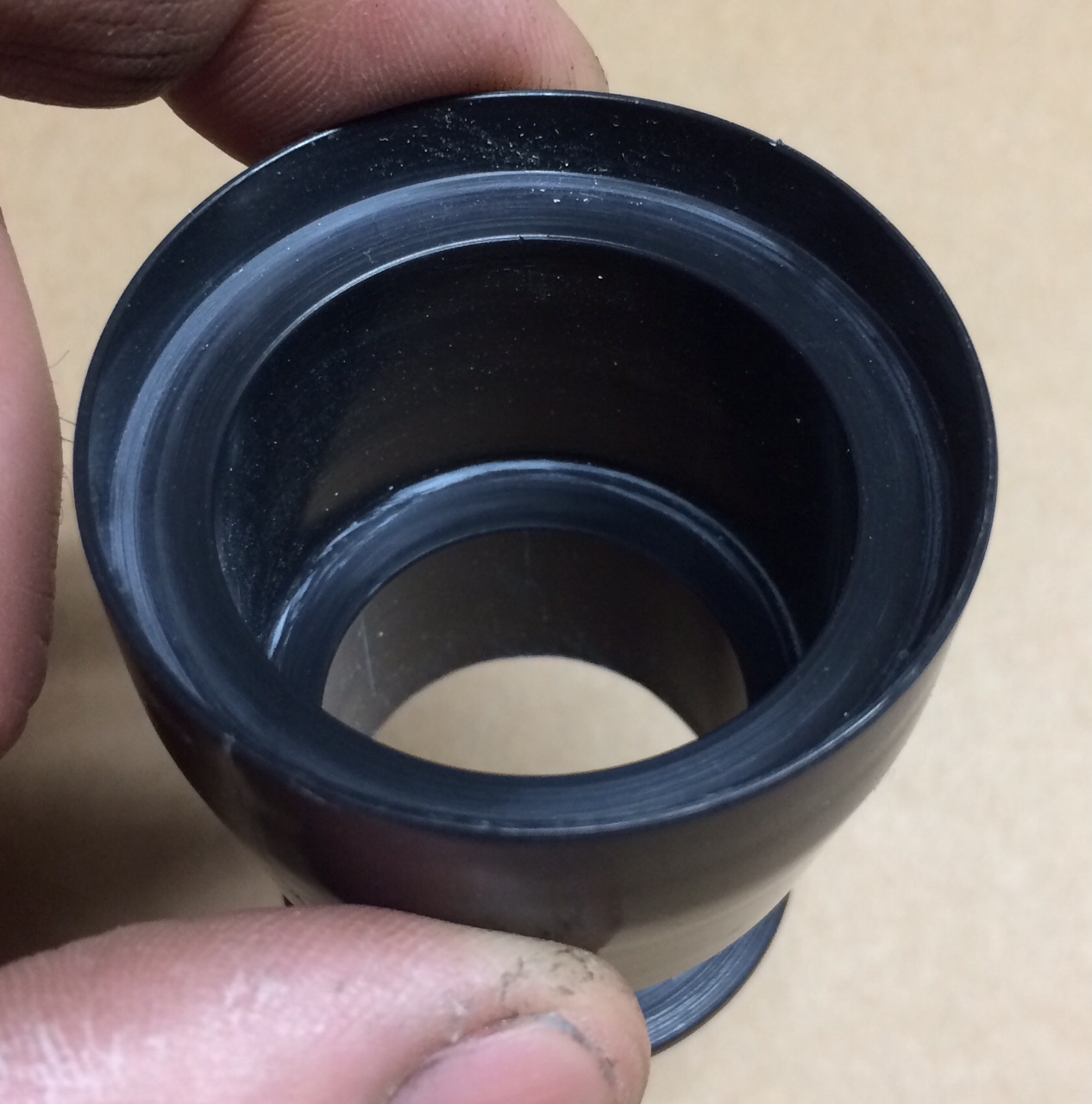

| 2055 | Sleeve - Unknown |
|

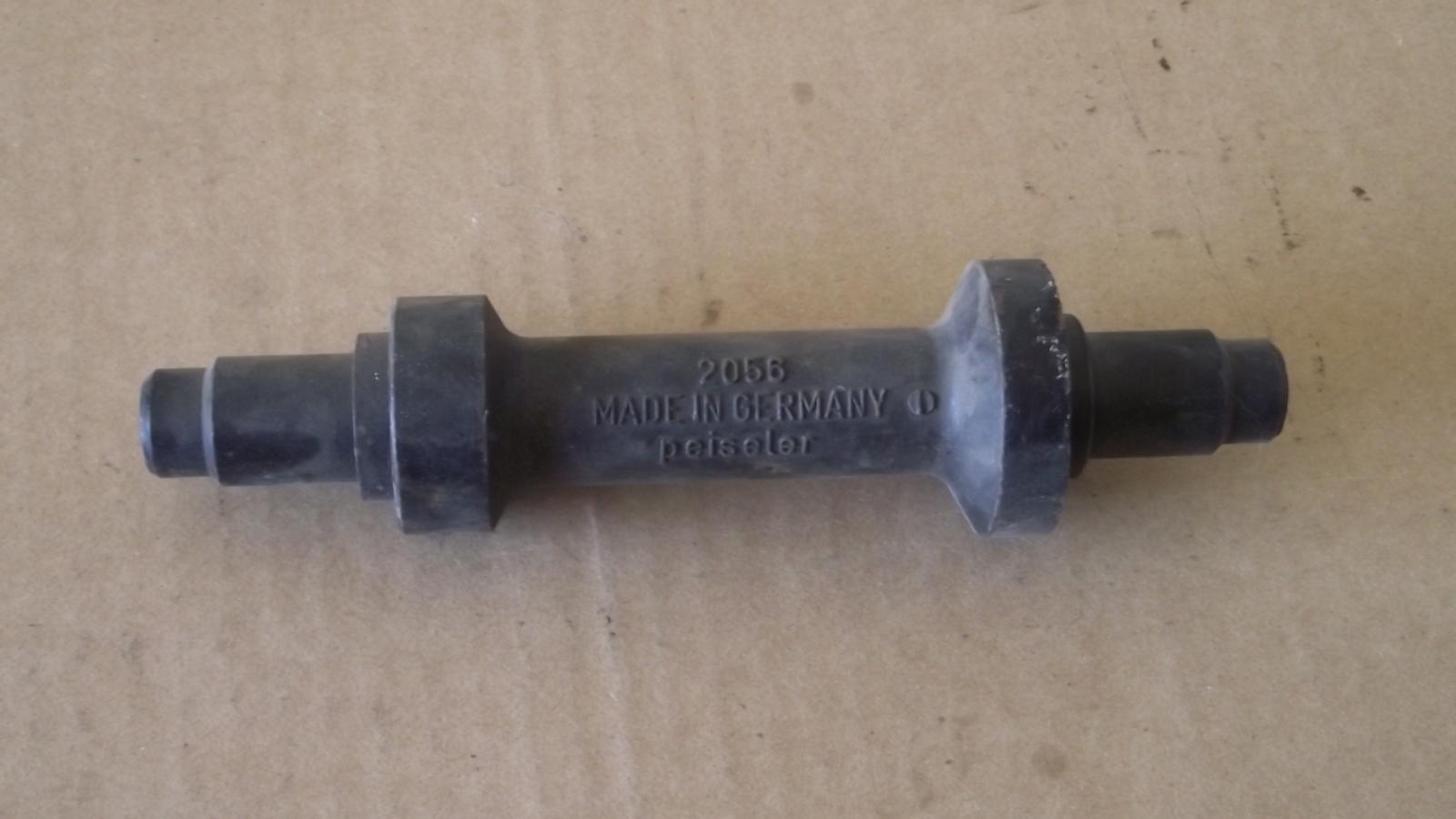

| 2056 | Mandrel |
 |
| 2058 | Sleeve for
pinion shaft installation - Type 2, Dasher, Fox | From Baum Tools catalog |
| 2064 | Lock pin for
checking and adjusting engine timing: removal and installation of timing
belt and injection pump - Rabbit, Diesel | From Baum Tools catalog |
| 2065 | Setting bar for
timing adjustment and for removal and installation of injection pump, timing
belt, and camshaft gear - Rabbit, Diesel | From Baum Tools catalog |
| 2066 | Dial gauge
adapter - For checking and adjusting timing - Rabbit, Diesel | From Baum Tools catalog |
| 2066-1 | 100mm extension for 2066 | From Baum Tools catalog |

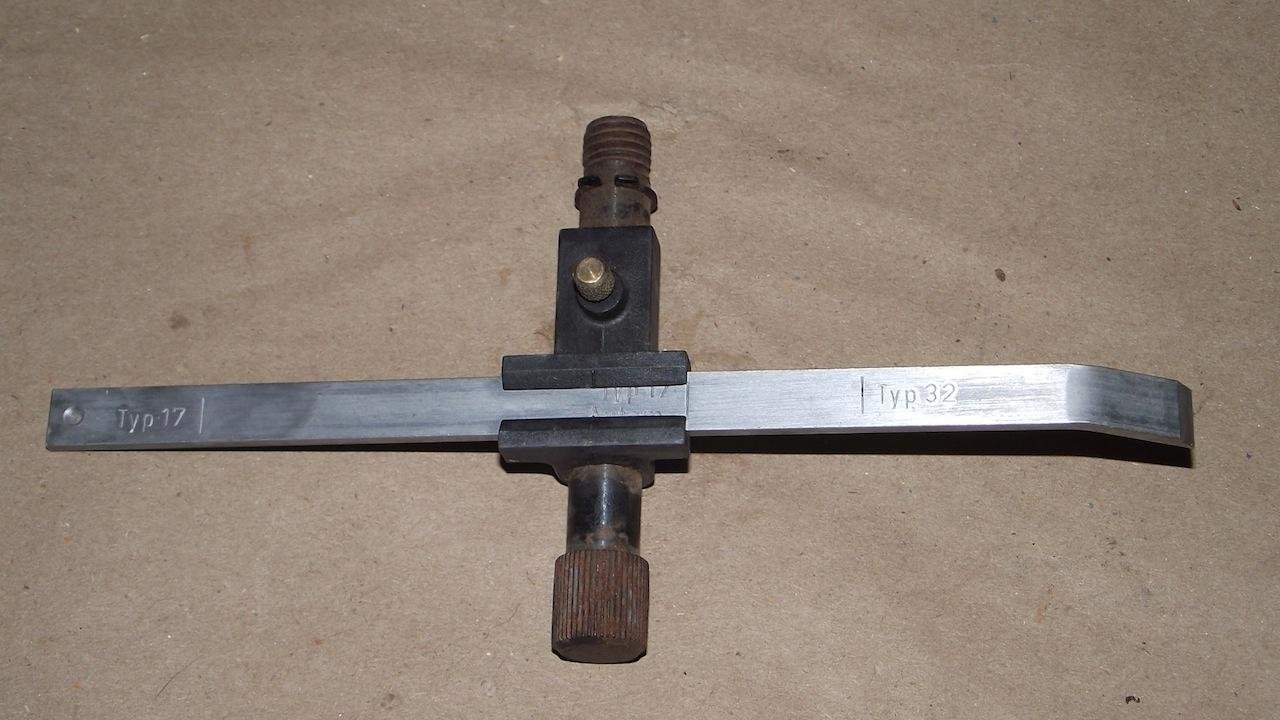

| 2068 | Adjustment gauge
for TDC diesel injection system Used to align TDC mark on flywheel - Rabbit, Diesel |
 |

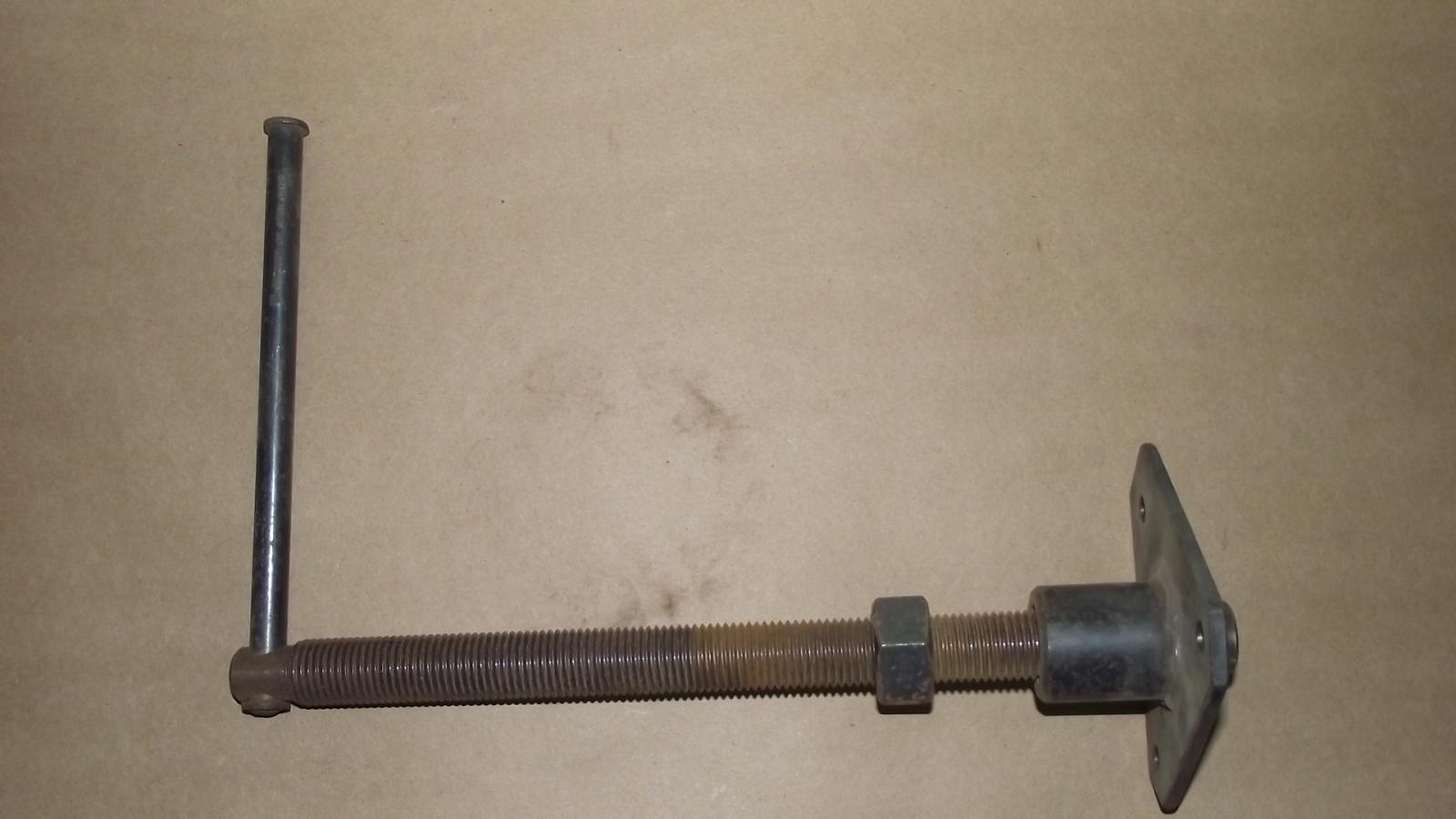

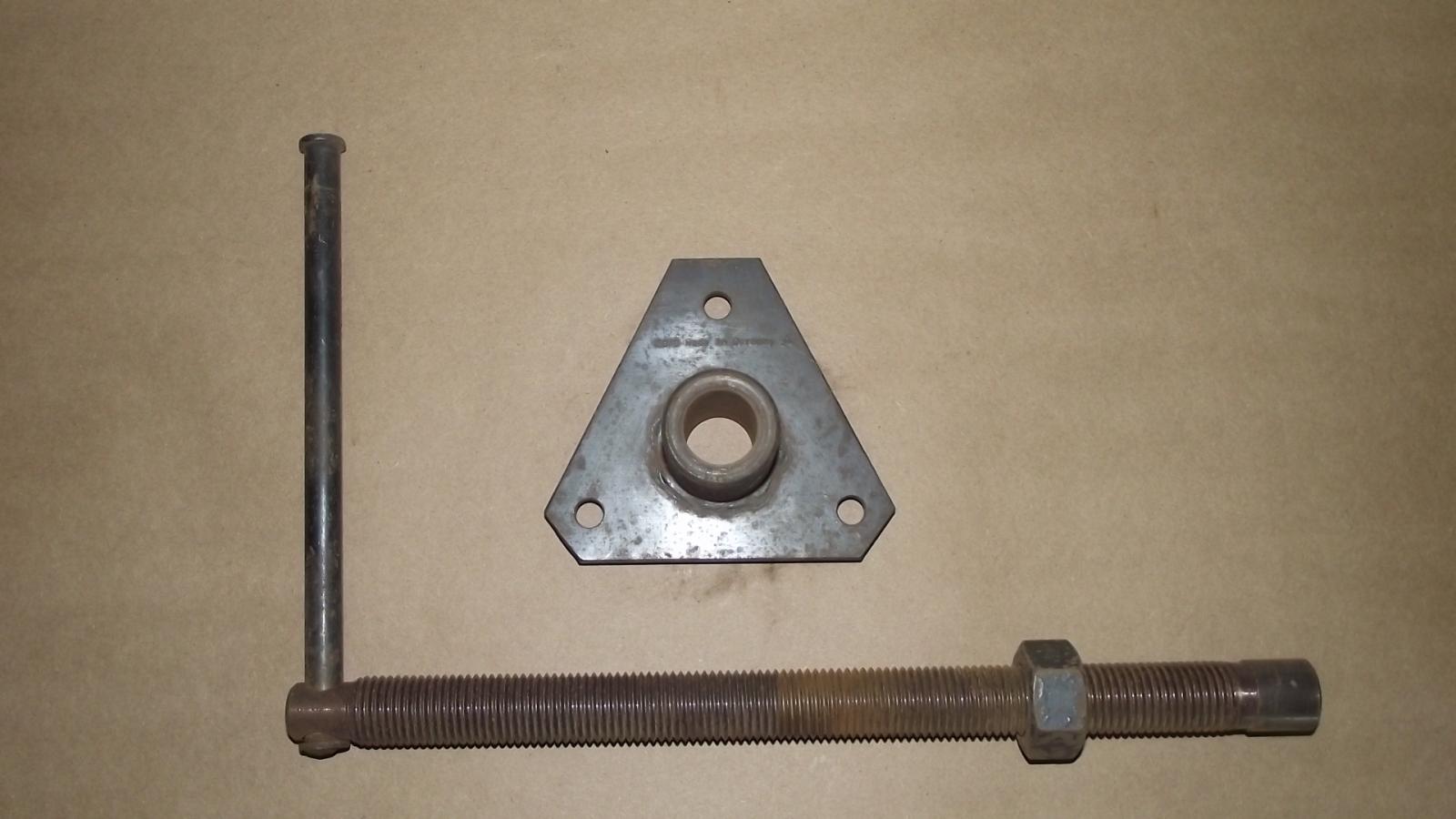

| 2070 | Spring Strut
Compressor Remove and install shock absorber. |
 |

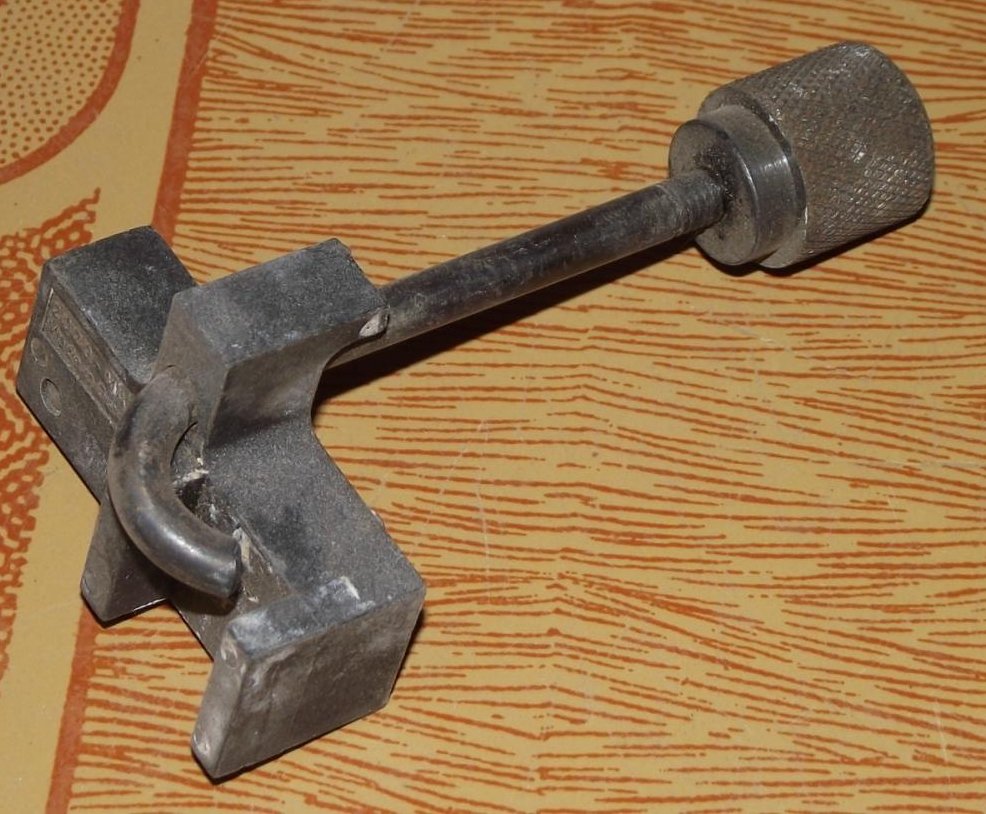

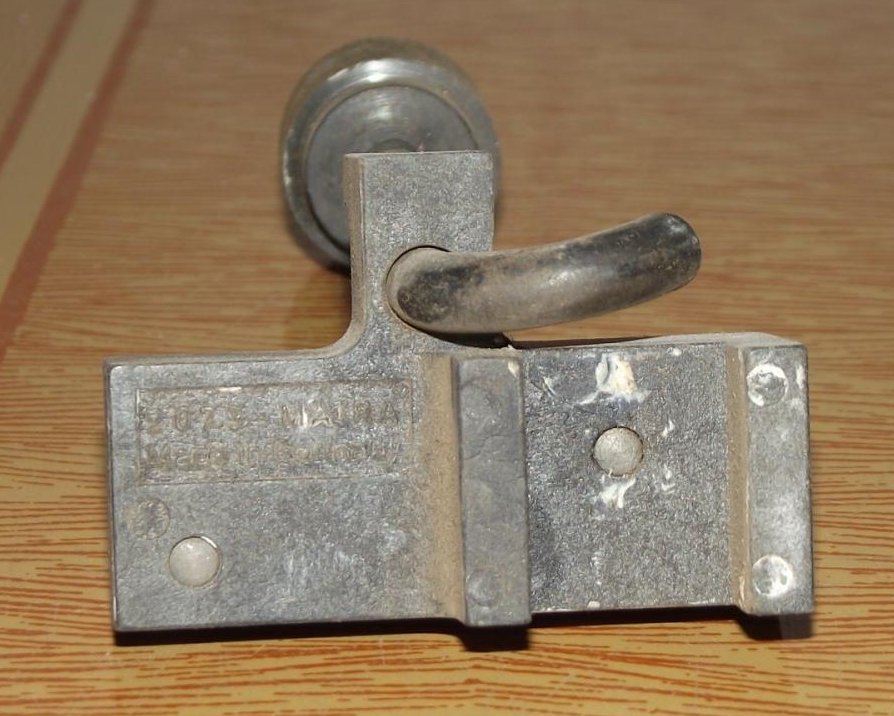

| 2073 | Gearshift gauge Adjustment of gearshift linkage (locates gearshift lever) |
 |

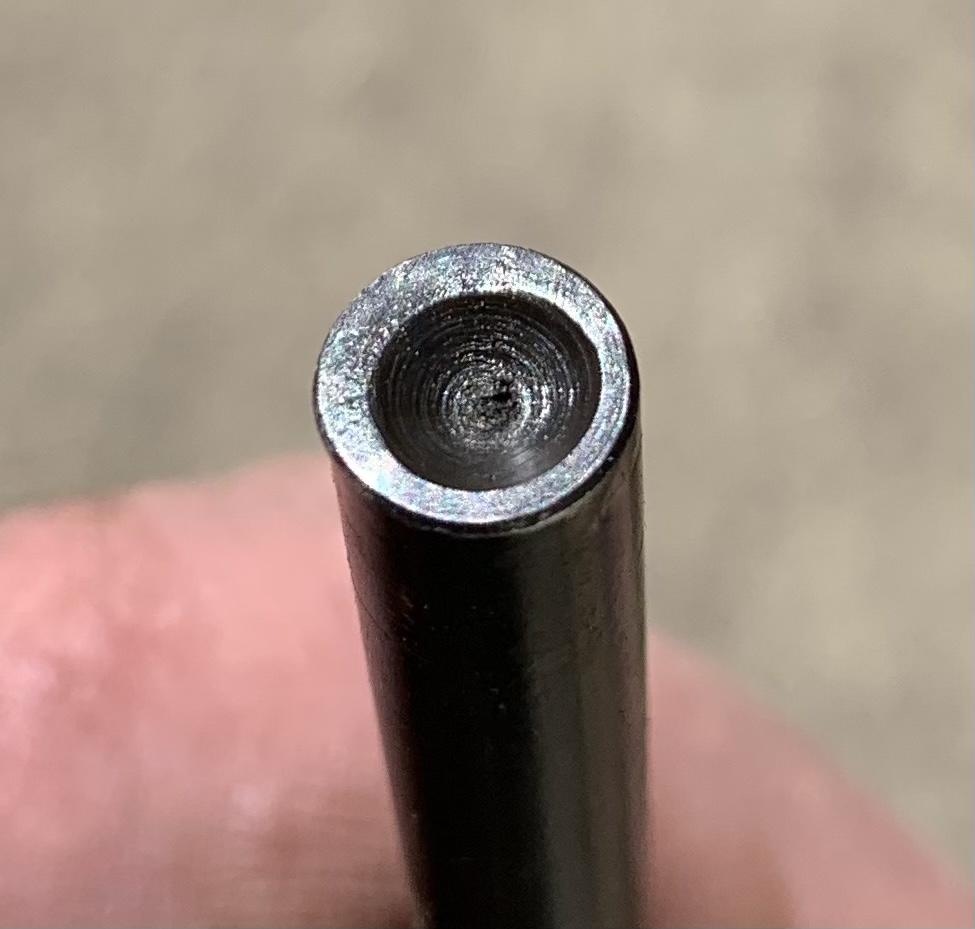

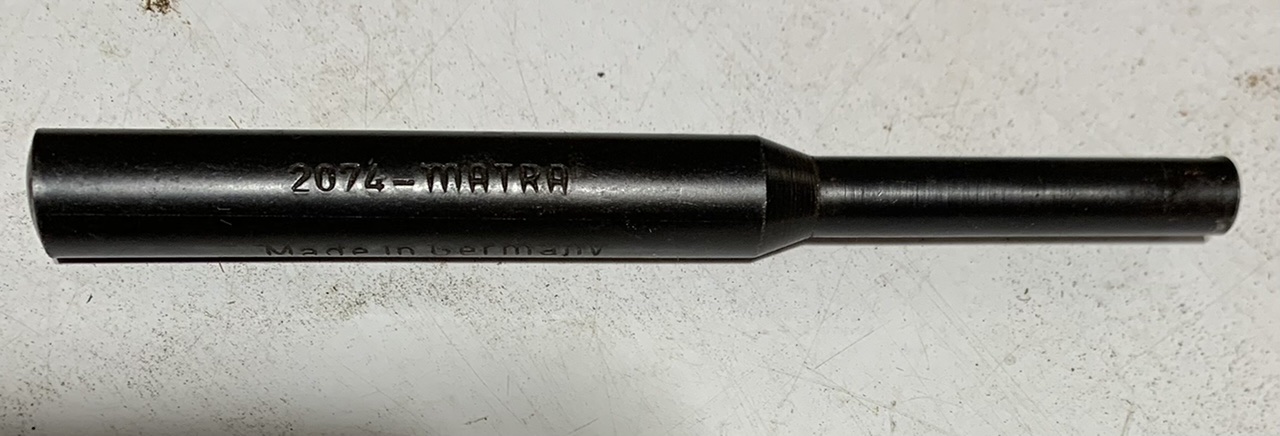

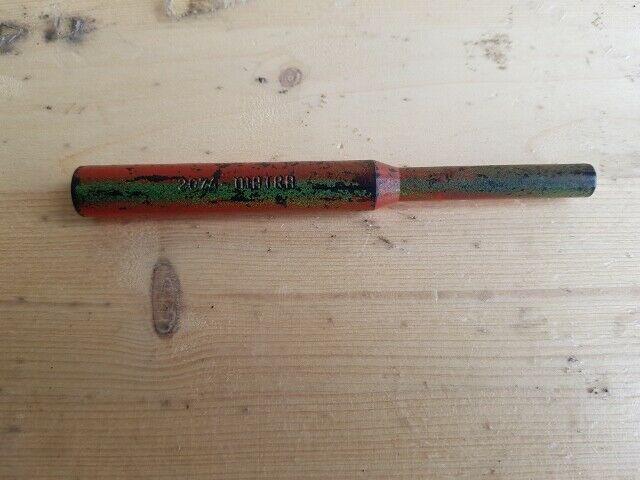

| 2074 | Unknown - Rivet Punch? |

 |

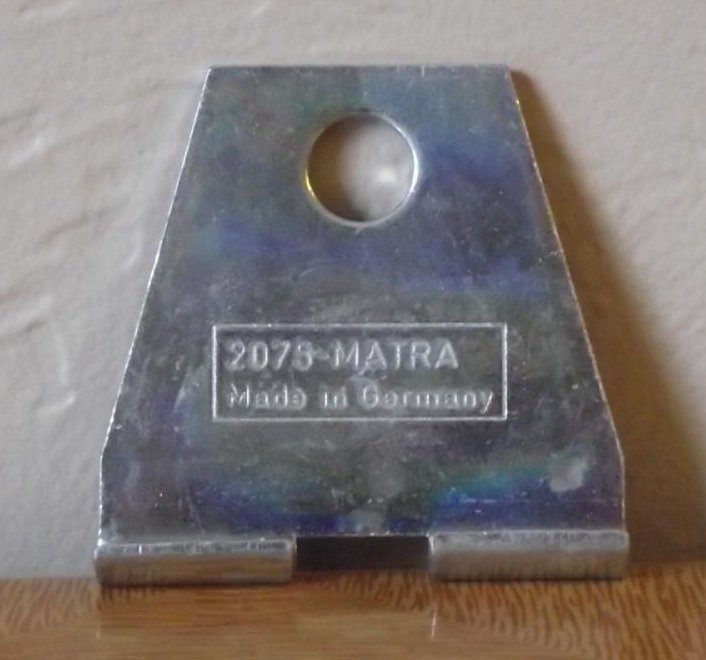

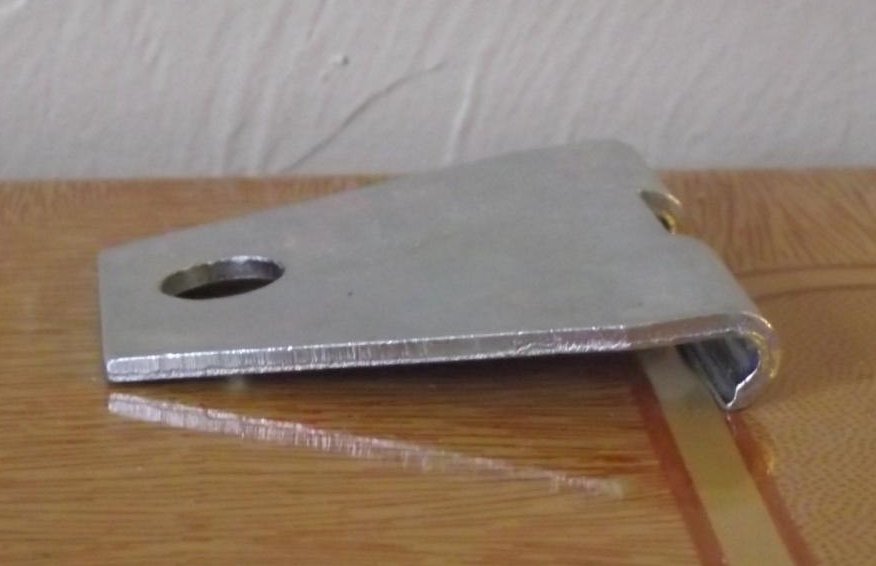

| 2075 | Heater claw Used to remove heater |
 |

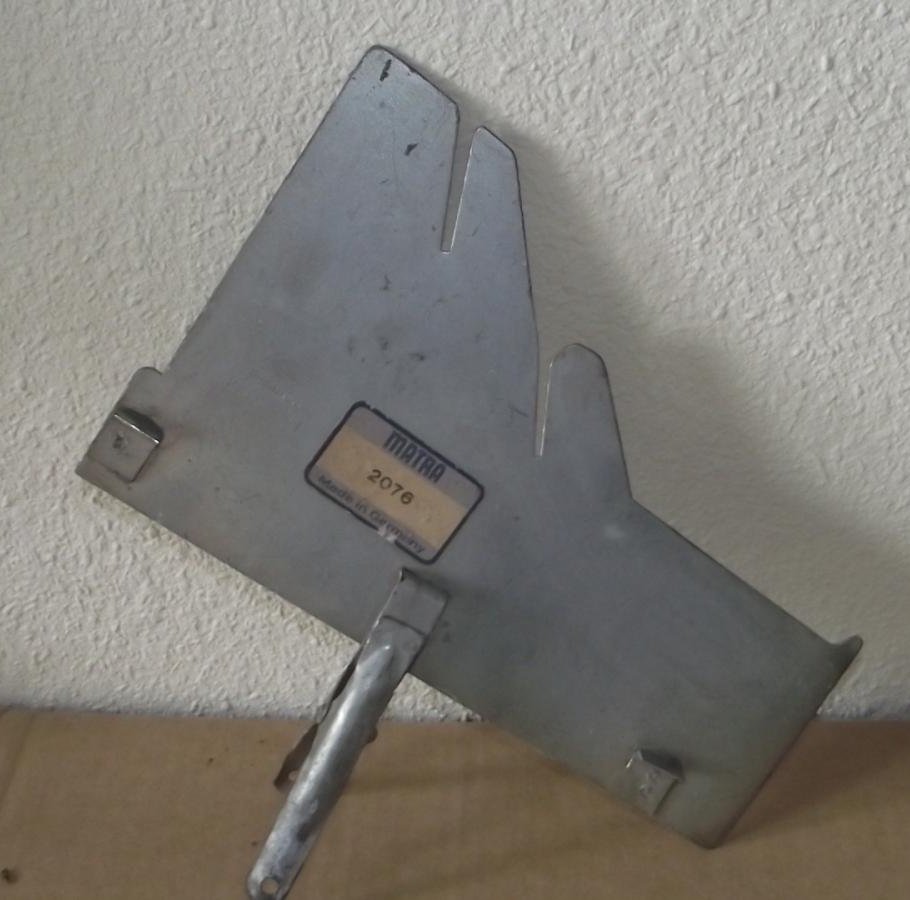

| 2076 | Heater Template To facilitate assembly of the heater during reassembly. For Audi 100 |
 |

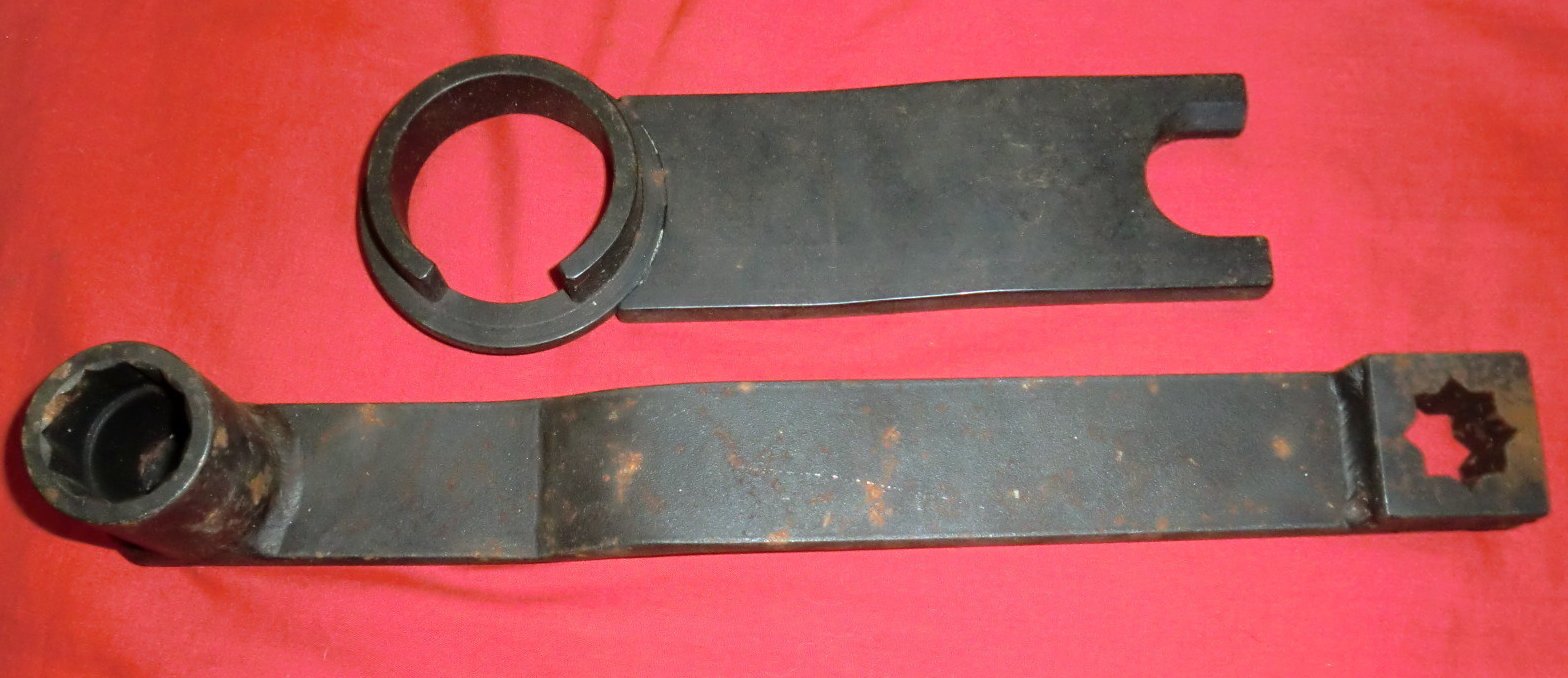

| 2079 | Crankshaft Pulley Nut Wrench |
 |

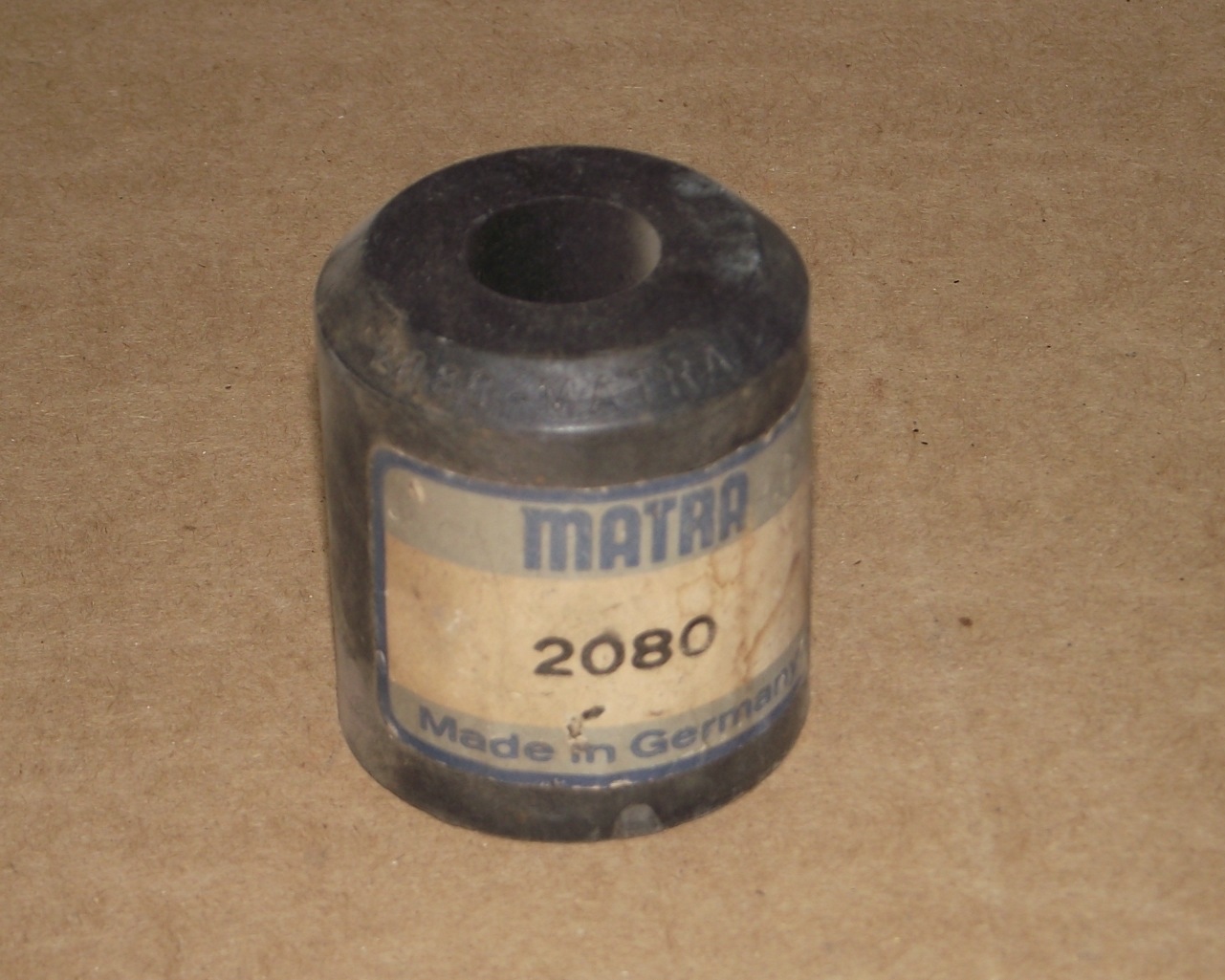

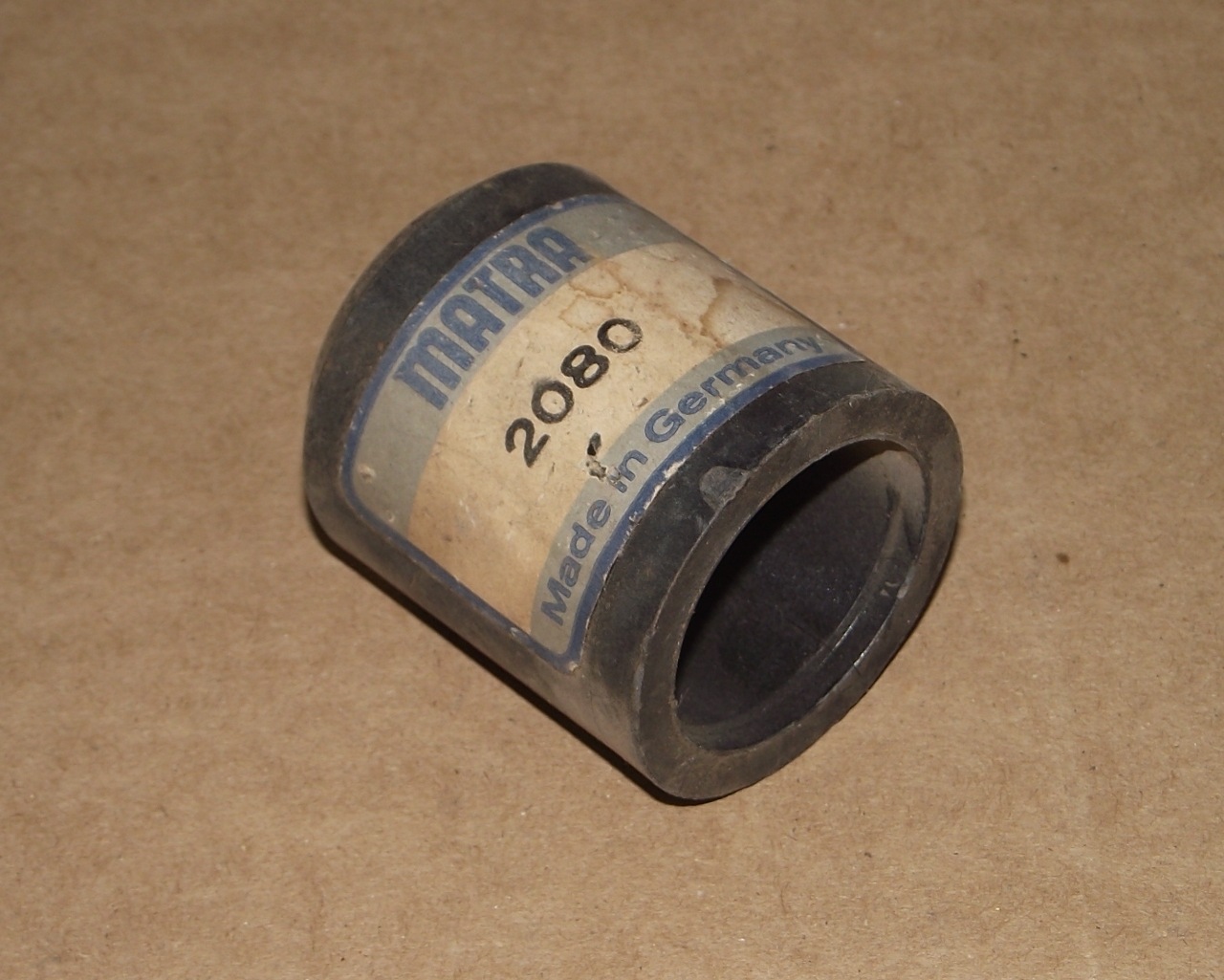

| 2080 | Sleeve Installation of front crankshaft oil seal 5 - (pulley side). Also used in repairing 01a transmission. |
 |

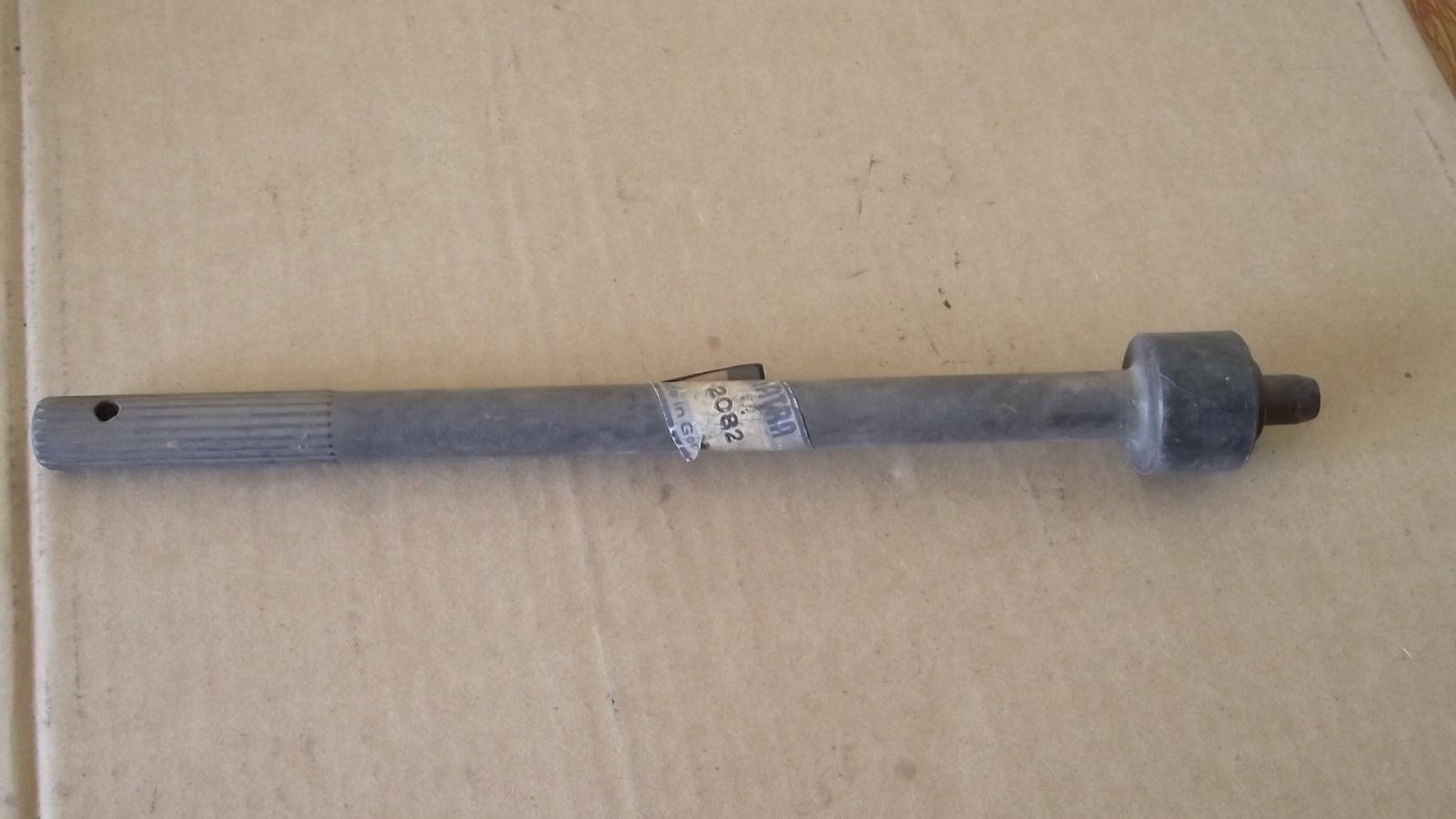

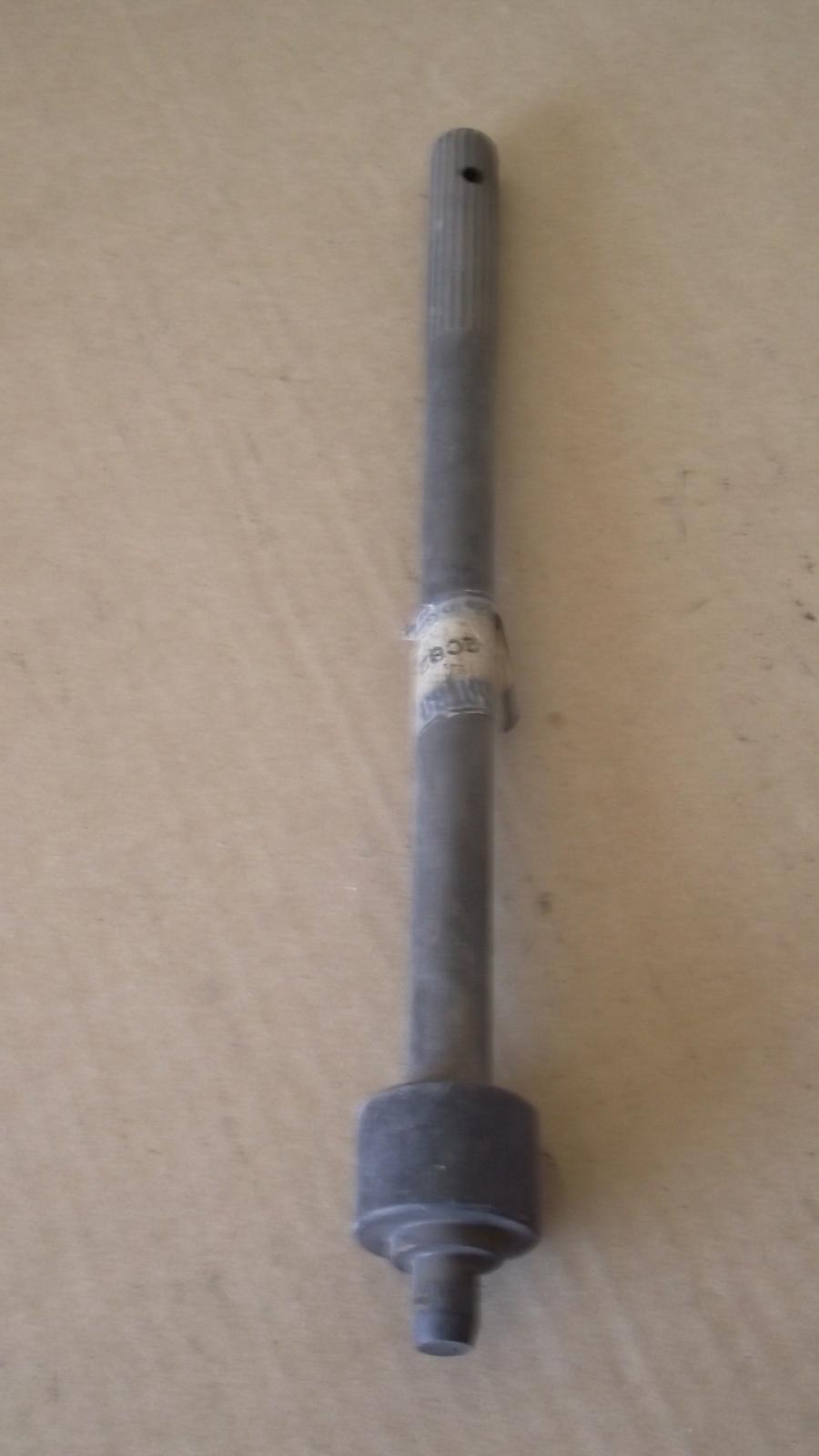

| 2082 | Installation Mandrel |
 |

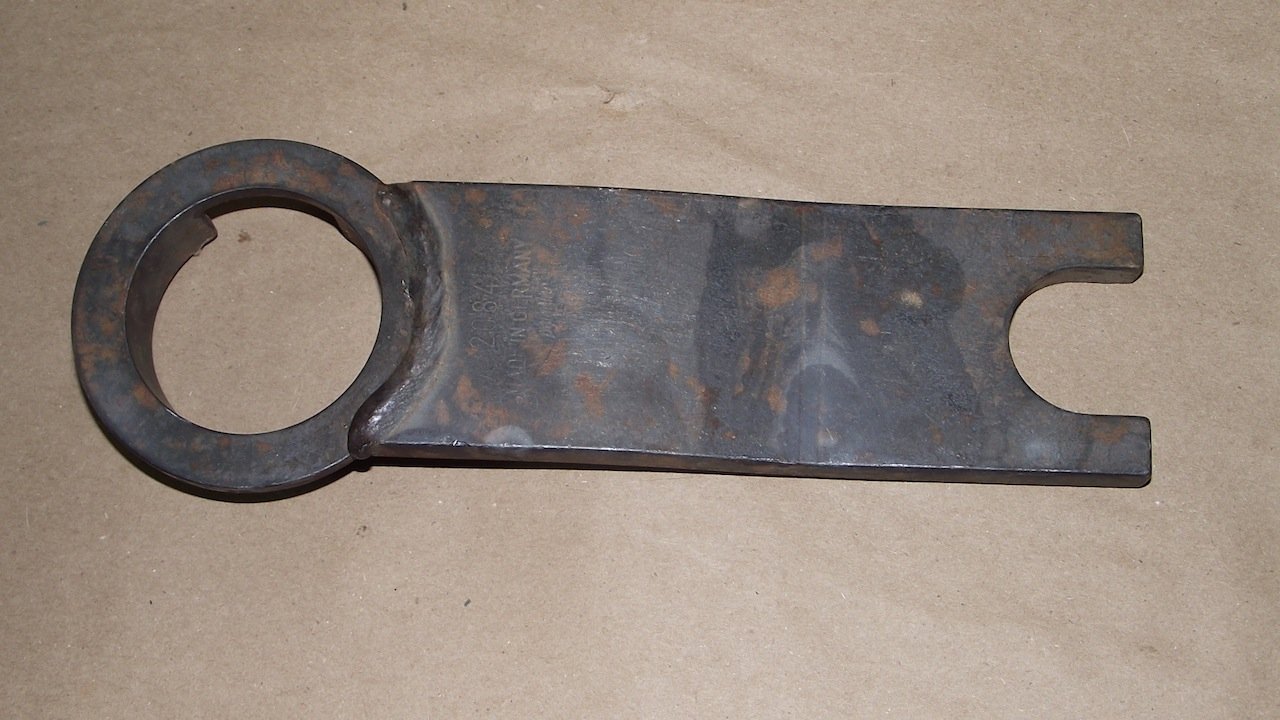

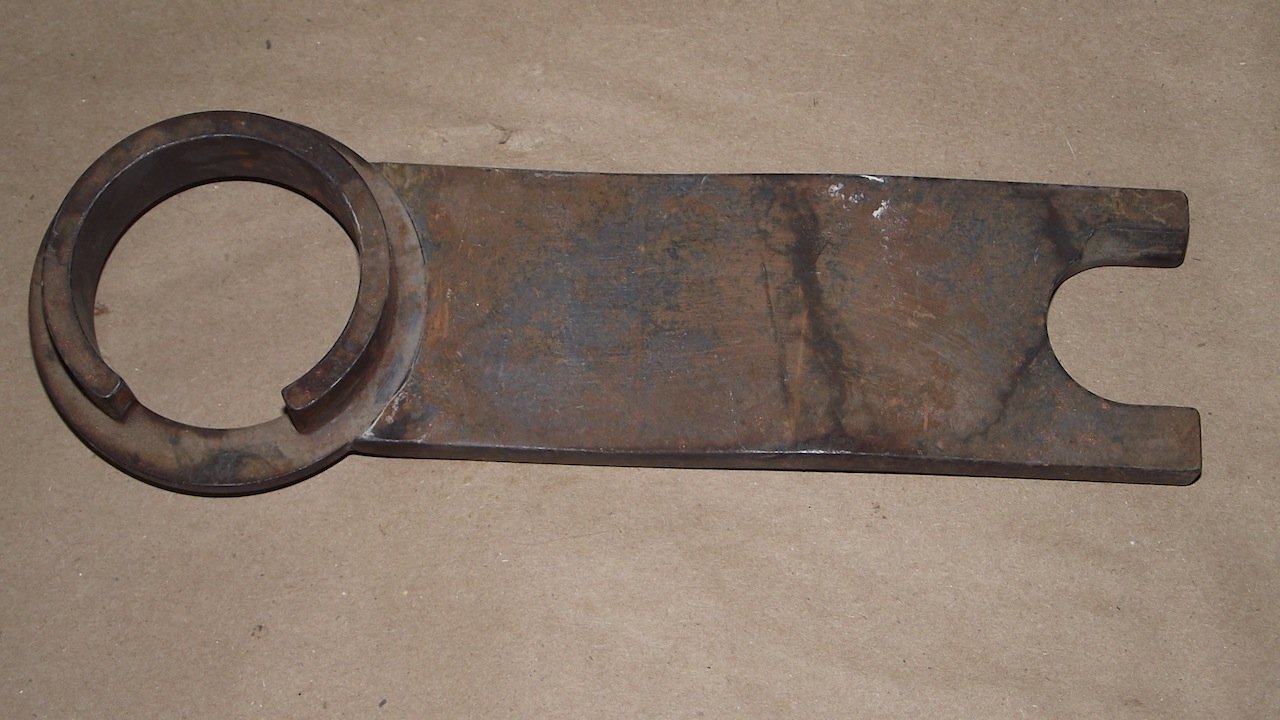

| 2084 | Counter Holder Remove and install front pulley use with 2079 5-cylinder engine |
  |
| 2165-1 | Pry Bar For lifting cylinder-heads, taking off gears, bushings Hazet chrome vanadium | From Zelenda VW Special Tools Catalog |
| 2165-2 | Pry Bar For lifting cylinder-heads, taking off gears, bushings Hazet chrome vanadium | From Zelenda VW Special Tools Catalog |

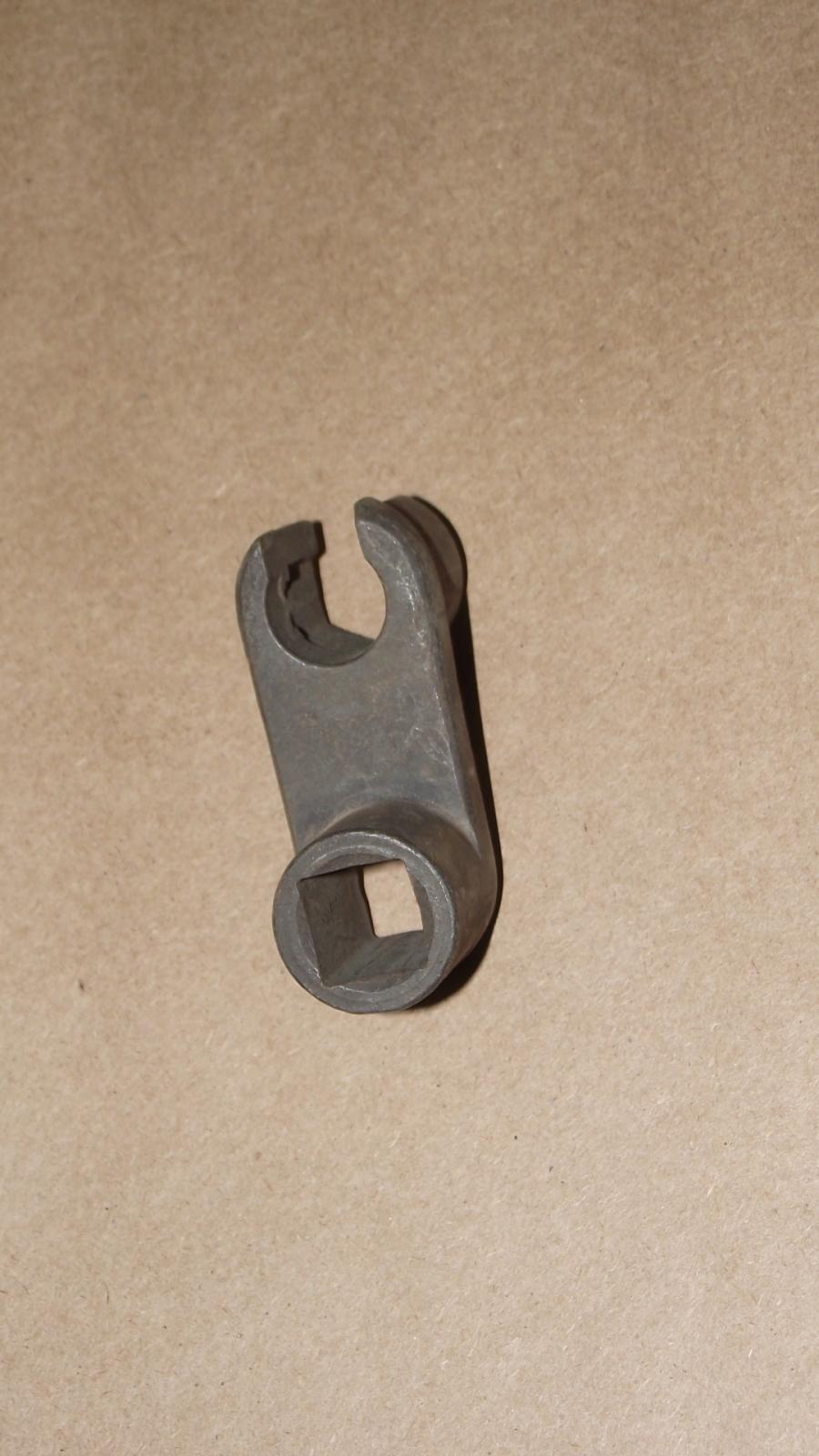

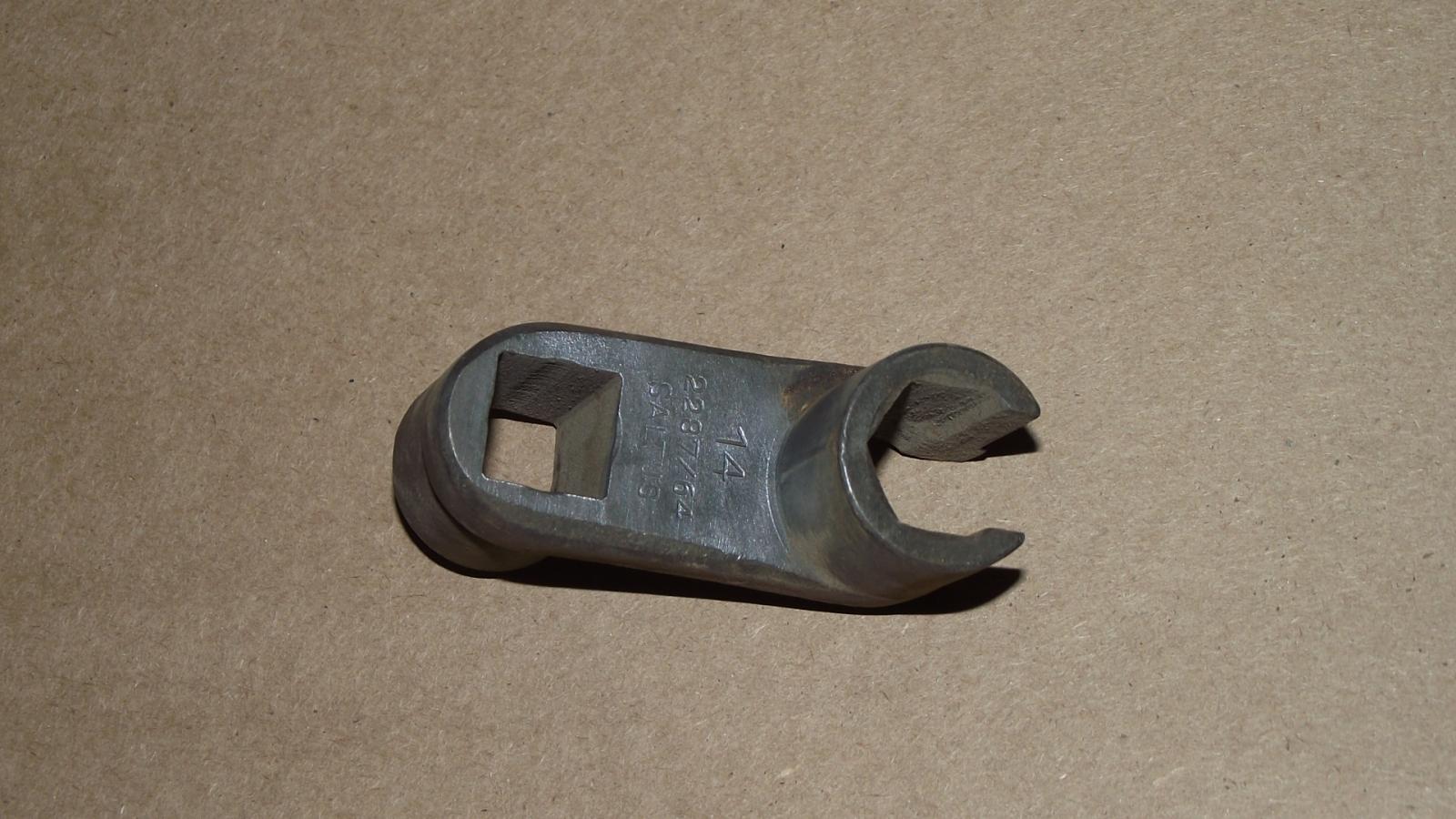

| 2287-64 | Special
socket - 14mm For Brake Hose |
 |

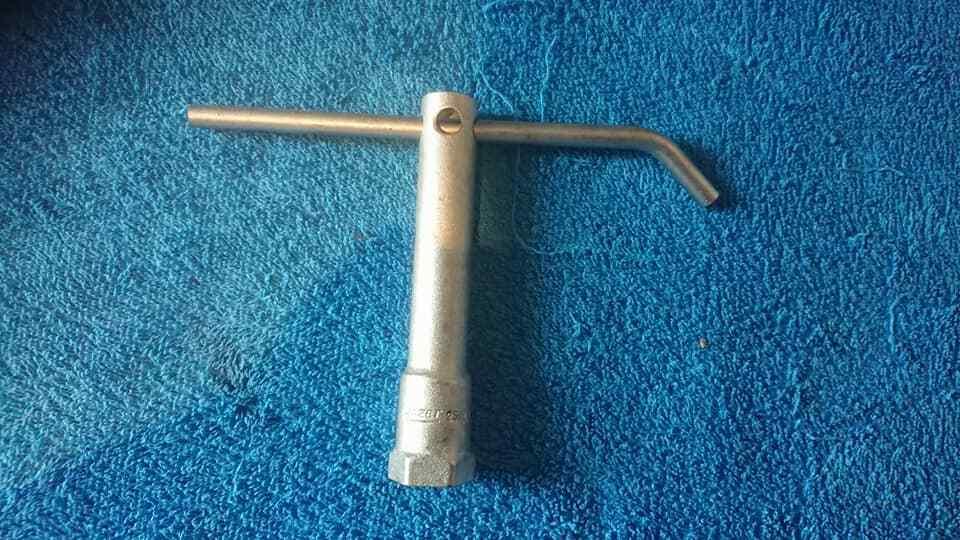

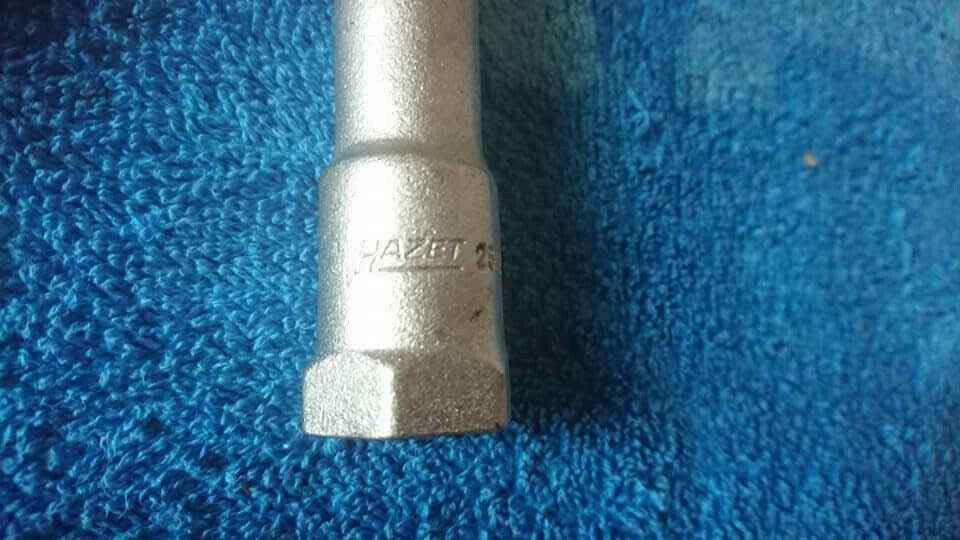

| 2502 | Special Spark
Plug Wrench Hazet chrome vanadium |
From Zelenda VW Special Tools Catalog
 |

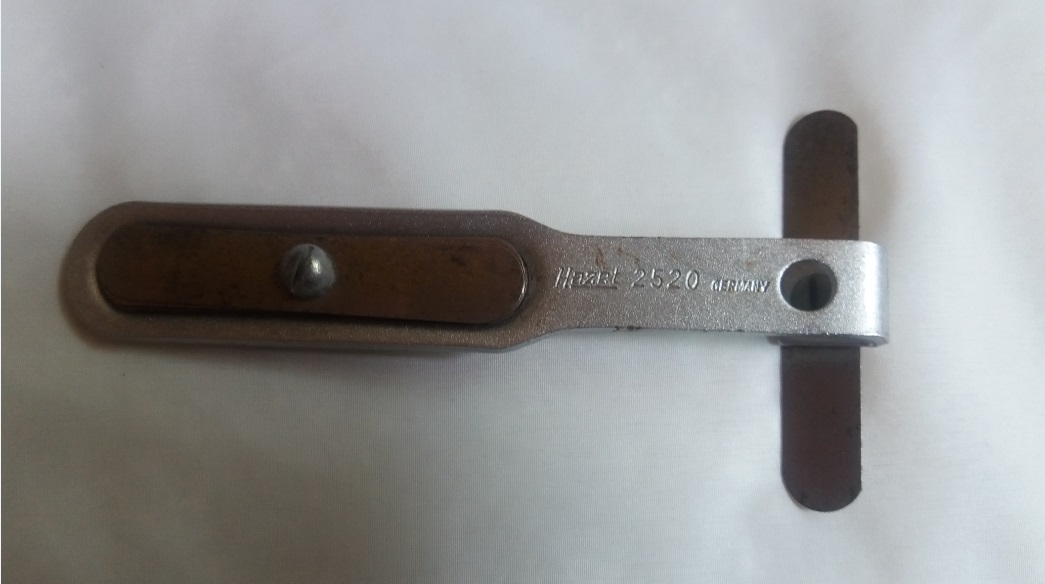

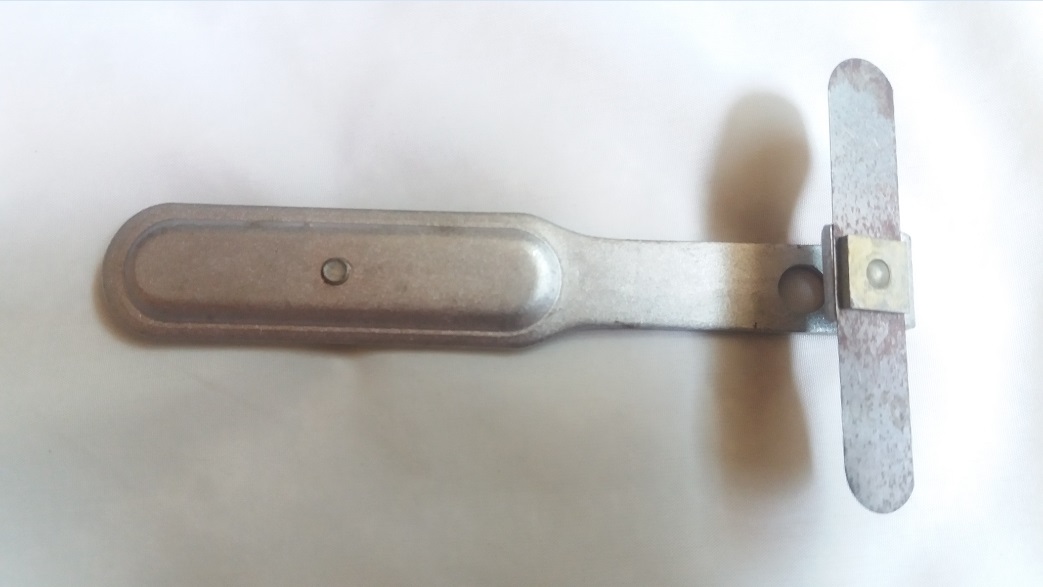

| 2520 Hazet | Feeler Gauge |
 |

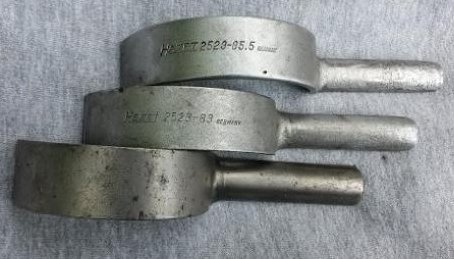

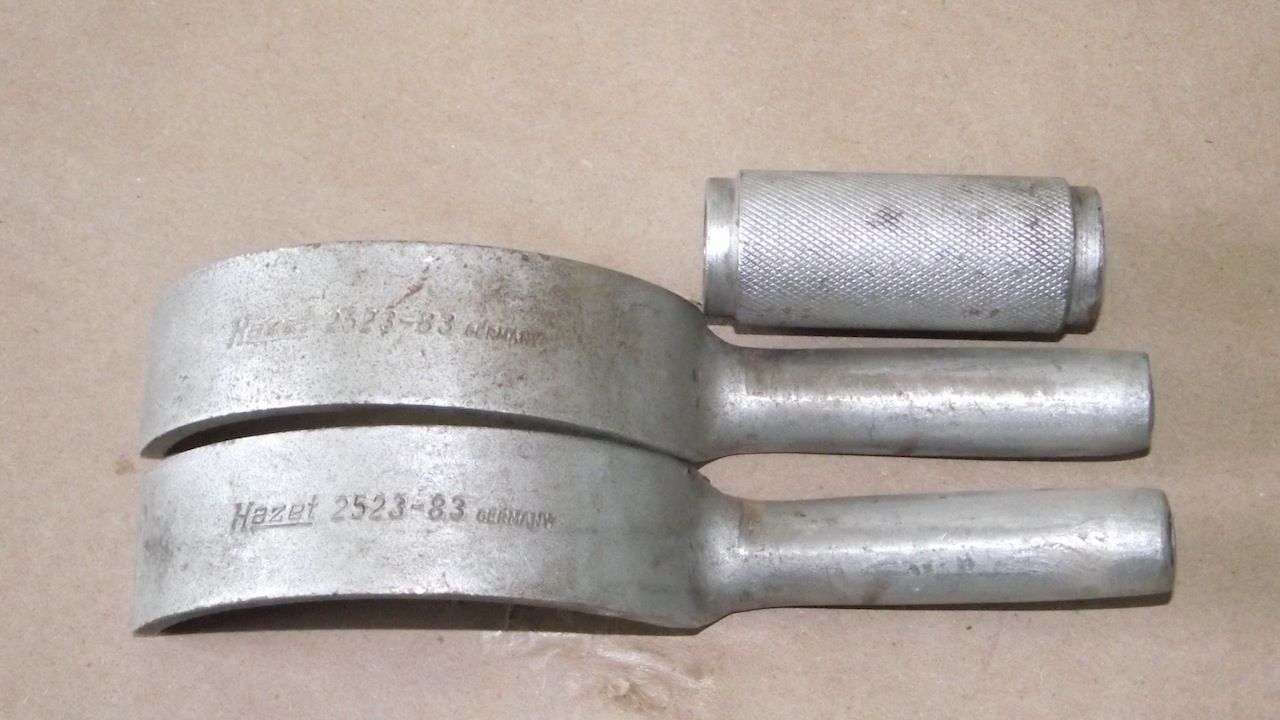

| 2523-83 | Ring
Compressor Hazet - For 83mm pistons |
 |
| 2523-85.5 | Ring
Compressor Hazet - For 85.5mm pistons |
 |
| 2560 | Double Hex Box
Wrench, 27x36mm Hazet chrome vanadium | From Zelenda VW Special Tools Catalog |
| 2561 | Double Hex Box
Wrench, 21x36mm Hazet chrome vanadium | From Zelenda VW Special Tools Catalog |
| 2566 | Special Tool For the switch of the windshield wiper | From Zelenda VW Special Tools Catalog |
| 2567 | Special wrench
for oil service Hazet chrome vanadium | From Zelenda VW Special Tools Catalog |

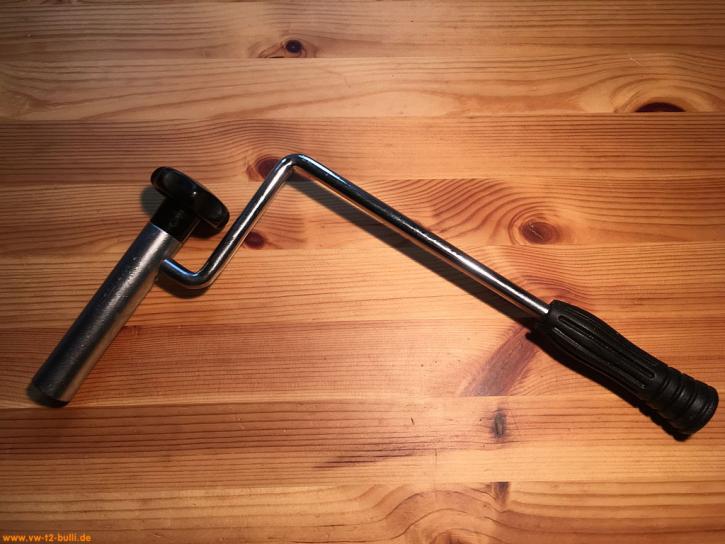

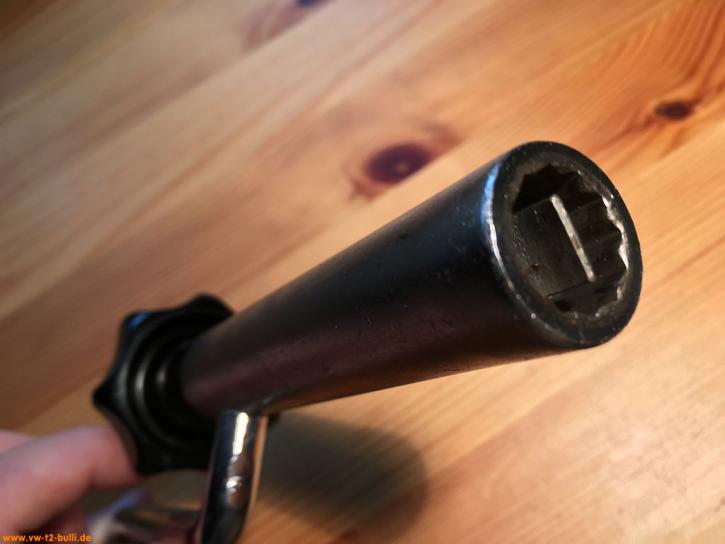

| 2568 | Adjusting valve
wrench, 13mm Hazet chrome vanadium |
From Zelenda VW Special Tools Catalog
 |

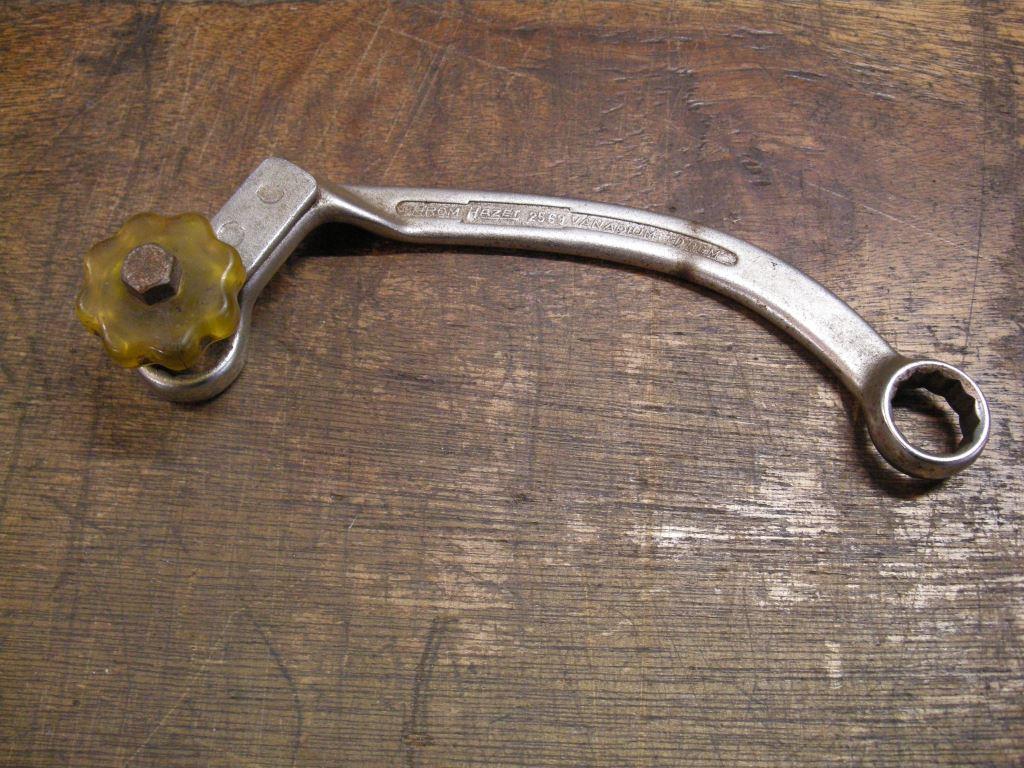

| 2569 | Special wrench,
17mm, For adjusting roller worn and steering Hazet chrome vanadium |
 From Zelenda VW Special Tools Catalog |
| 2573 | Special wrench,
10mm, length 285mm For removing and tightening of nuts on manifold of cylinder head Hazet chrome vanadium |
 From Zelenda VW Special Tools Catalog |
| 2577 | Double box
wrench, 17x22mm Opening 22mm is used for installing backup light Opening 17mm for screw on gear box | From Zelenda VW Special Tools Catalog |
| 2578 | Special wrench For tightening nuts on oil pump covers on right and left side Hazet chrome vanadium | From Zelenda VW Special Tools Catalog |
| 2579 | Special box
wrench, 13x13mm Hazet chrome vanadium | From Zelenda VW Special Tools Catalog |
| 2582 | Adjusting lever
for brake shoes Hazet chrome vanadium | From Zelenda VW Special Tools Catalog |
| 2587 | Special wrench,
15 degree and 60 degree For removing and tightening free-run nozzle on Solex carburetor Hazet chrome vanadium | From Zelenda VW Special Tools Catalog |
| 2596d | Oil filter
remover - Dasher | From Baum Tools catalog |
| 2596-1 | Universal oil
filter wrench - To fit all filters, Type 4 | From Baum Tools catalog |
| 2596-2 | Oil filter
remover - Rabbit See also 4462, 4462/1 | From Baum Tools catalog |
| 2597 | Diesel fuel
injection lines - Rabbit, Dasher | From Baum Tools catalog |
| 2598 | 13mm angle
wrench - For removal and installation of fuel pump - Rabbit, Diesel | From Baum Tools catalog |

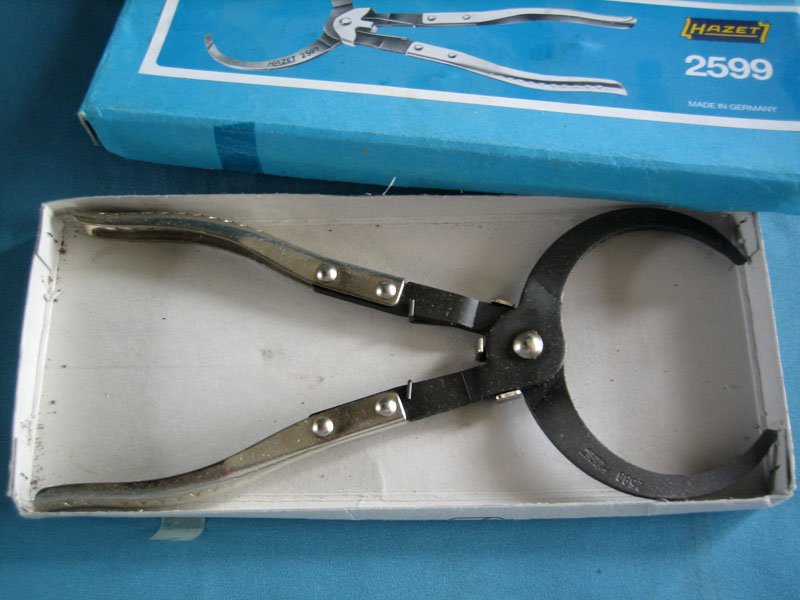

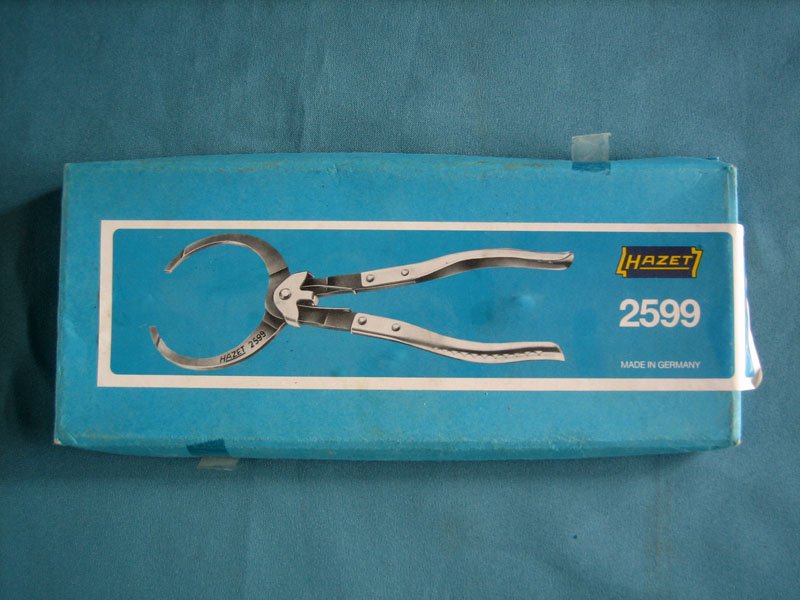

| 2599 | Valve Shim
Pliers Hazet |
 |
| 2775 | Removal and
installation of injectors, 27mm deep socket - Rabbit, Diesel See also M35 | From Baum Tools catalog |
| 2776 | Delivery valve
and injection pump lines - All Diesel |
From Baum Tools catalog
|

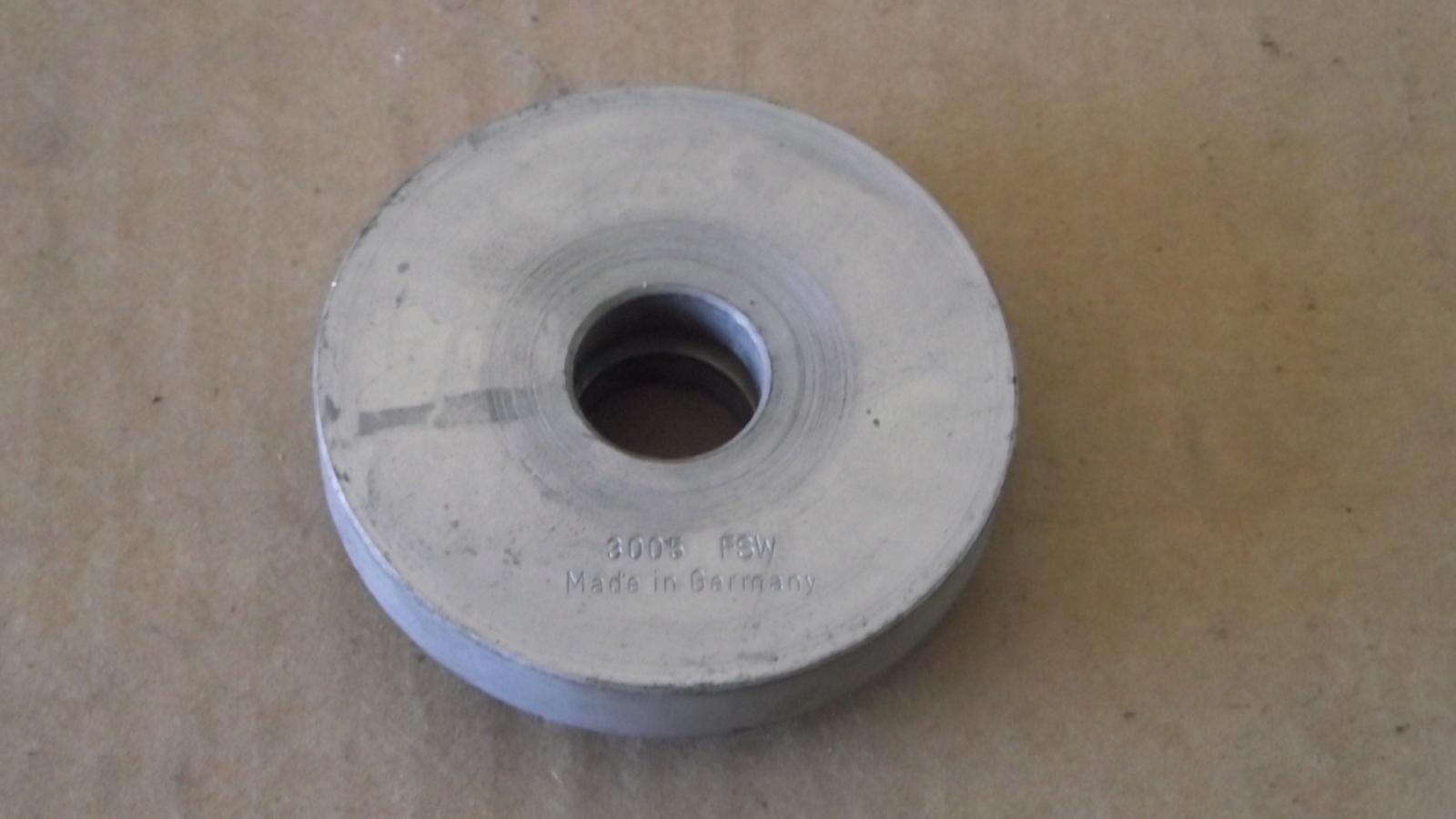

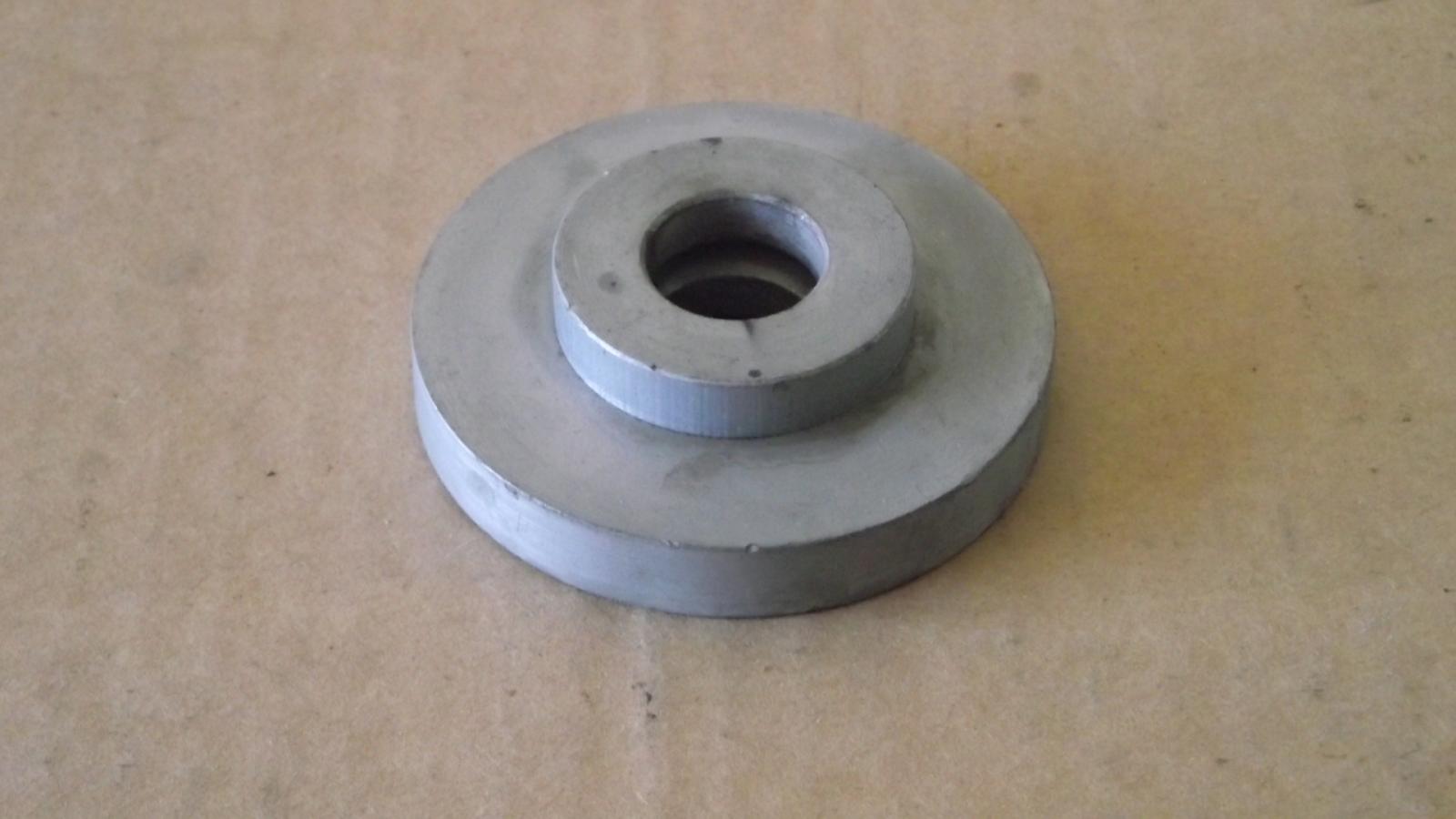

| 3005 | Thrust Pad 1. Removal of wheel hub 2. Install pinion bearing outer race in final drive 3. Press wheel bearing. 5-speed 016 093 Pressing taper roller bearing outer race in clutch housing. |
 |

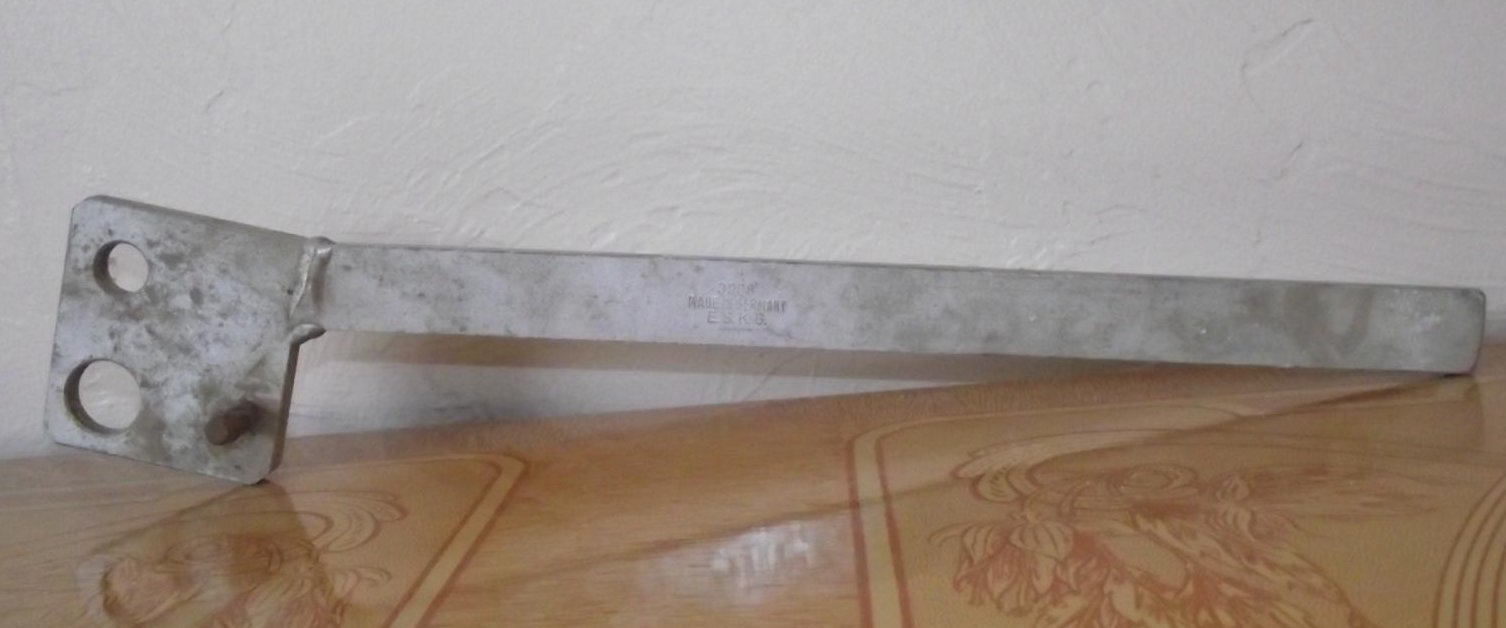

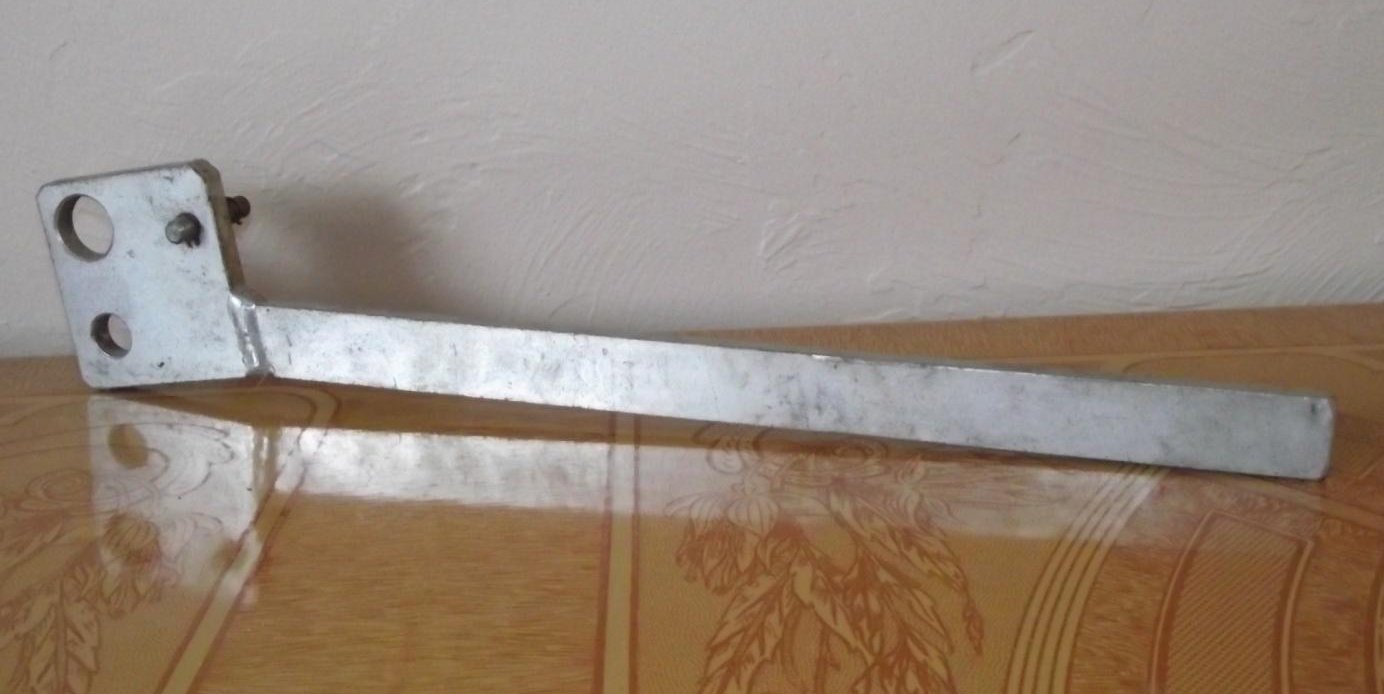

| 3006 | Wrench for adjustment of caster |
 |

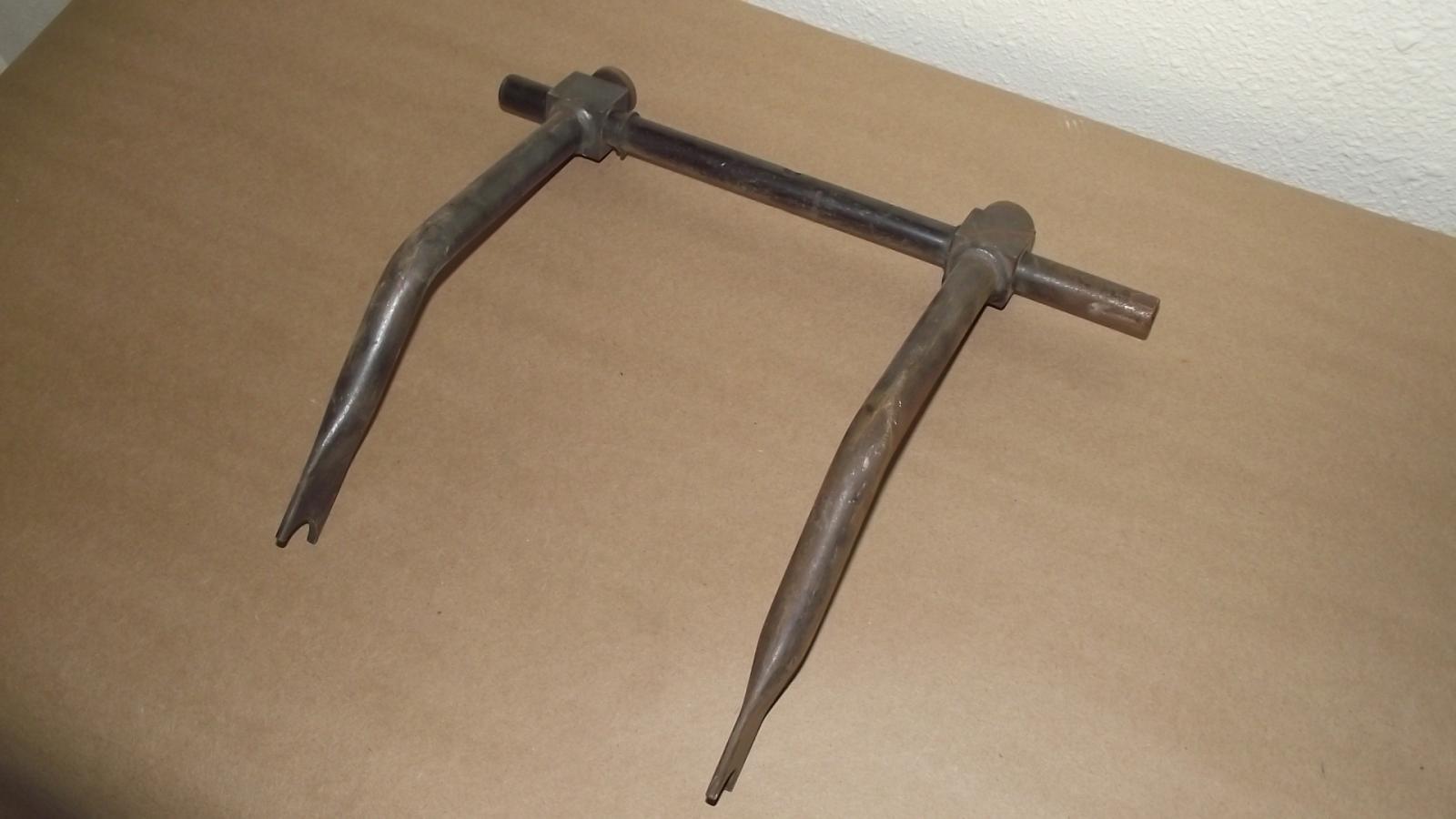

| 3007 | Unknown |
 |

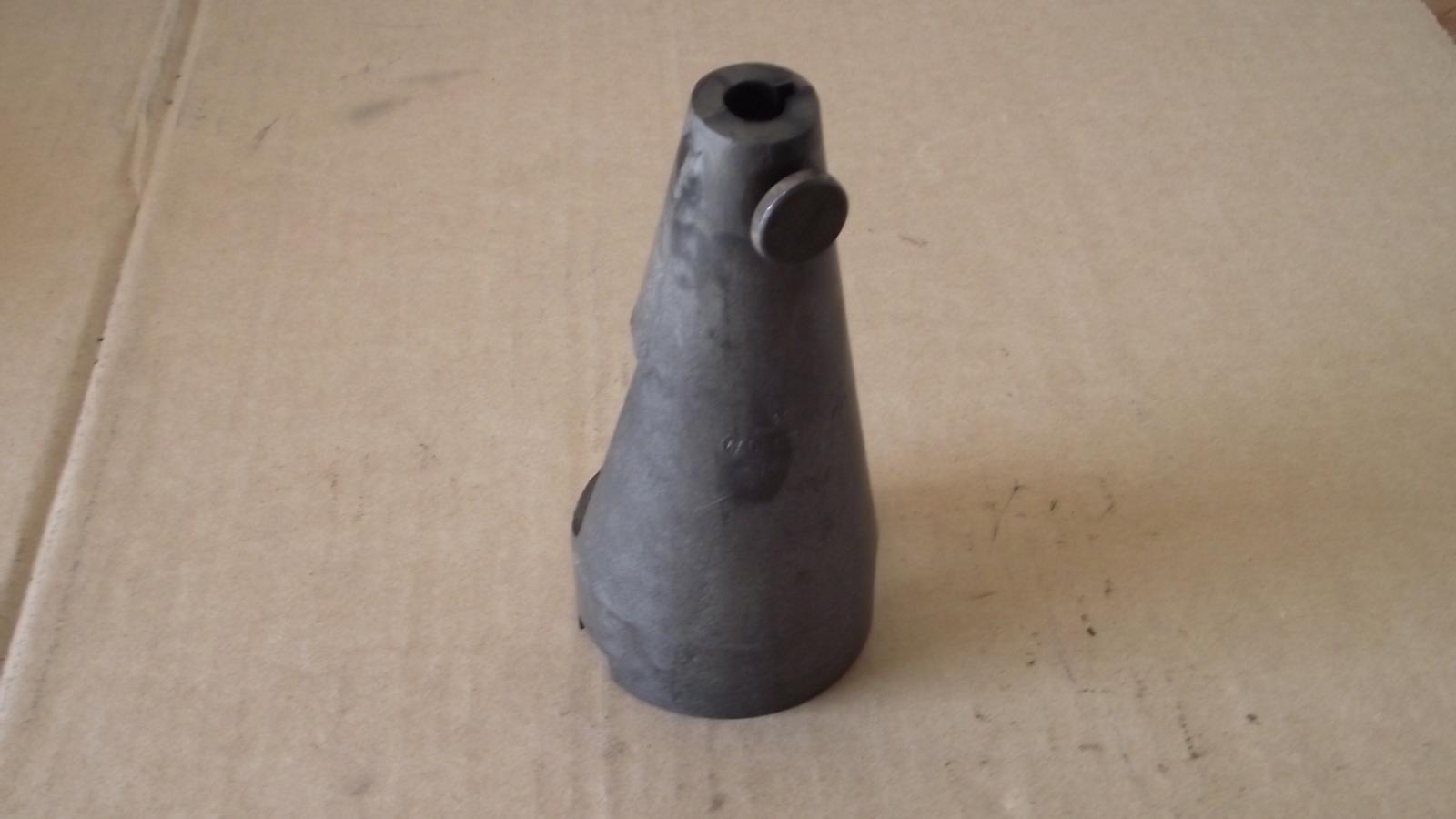

| 3009 | Gearshift
adjustment gauge - Dasher, Fox |
From Baum Tools catalog
 |

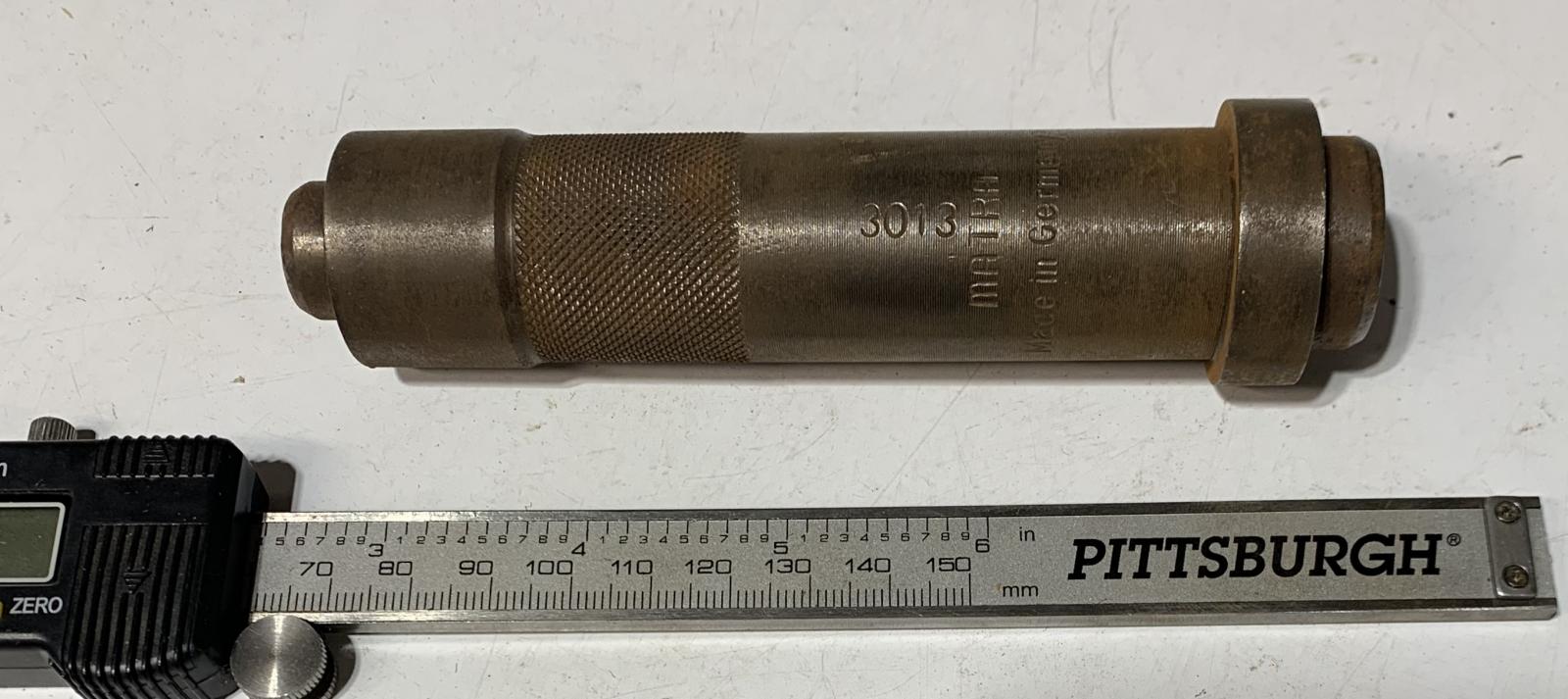

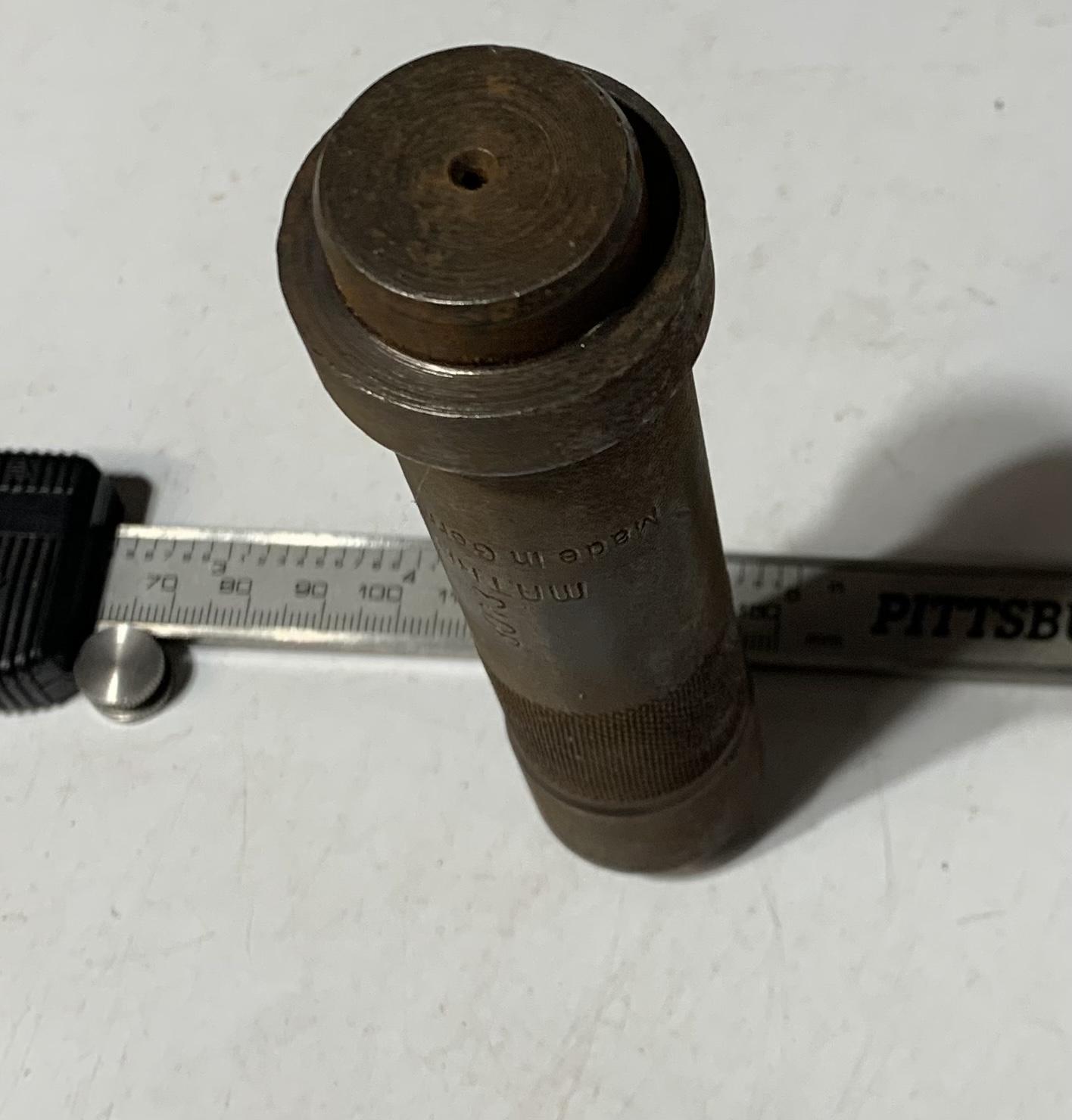

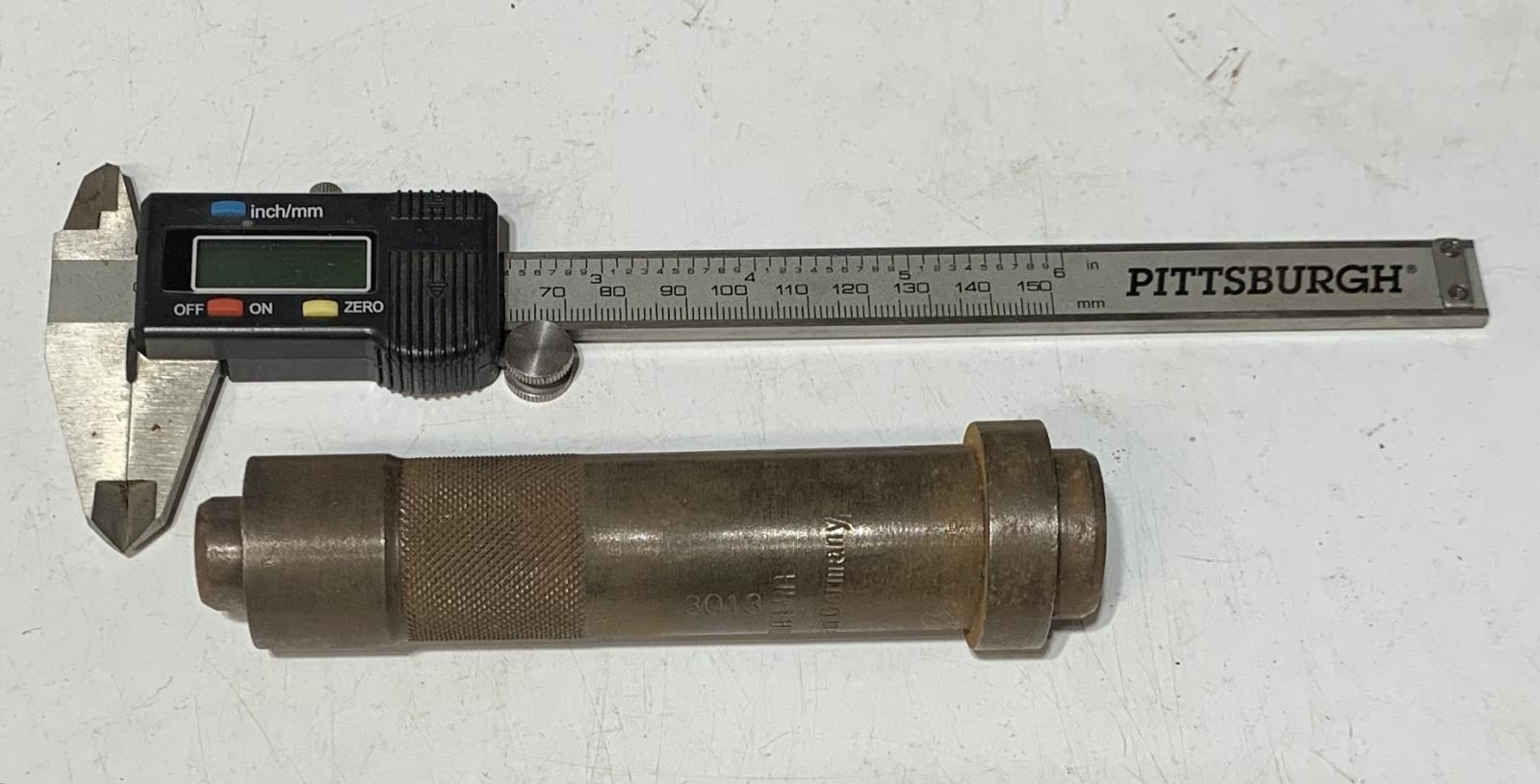

| 3013 | Unknown |
 |

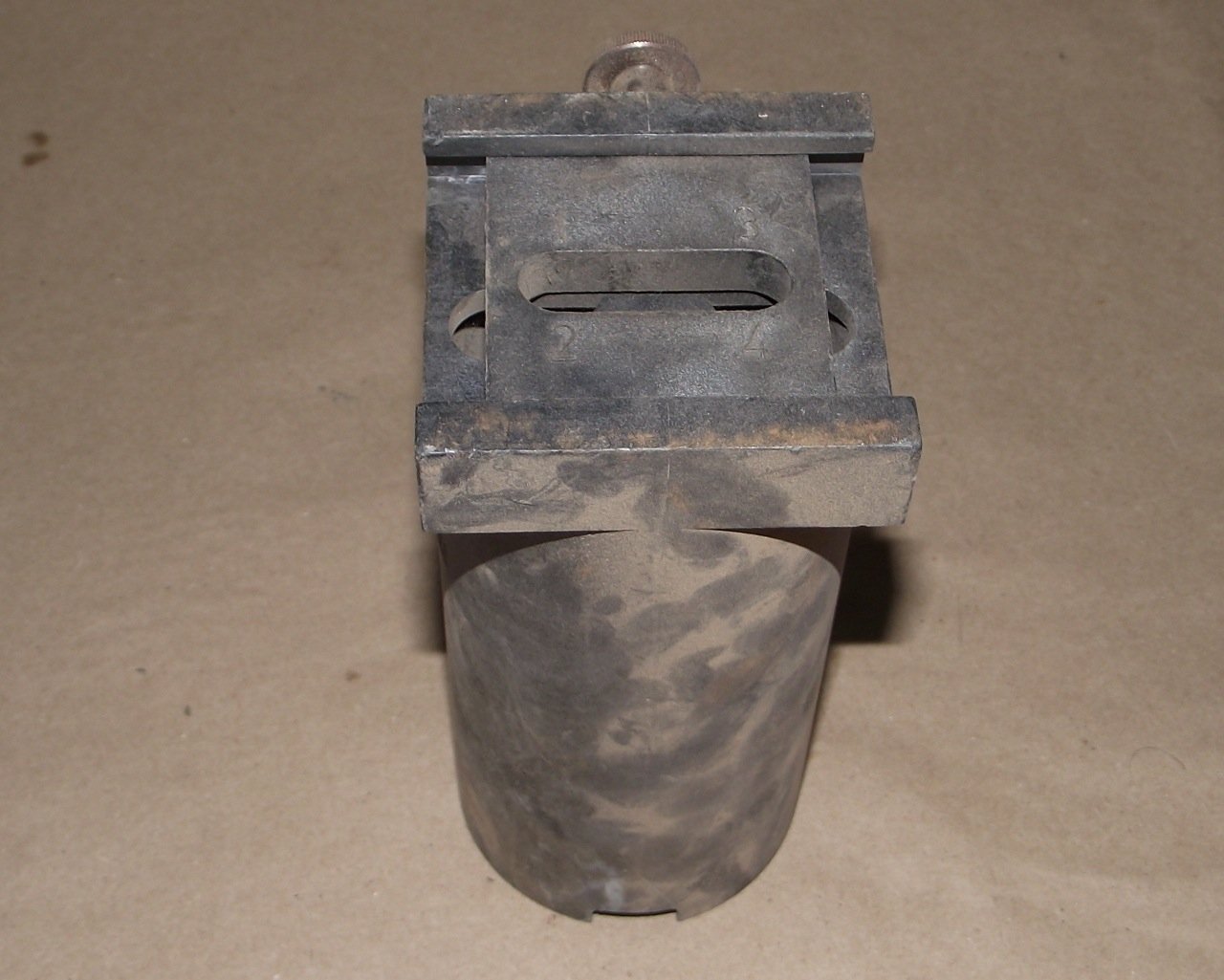

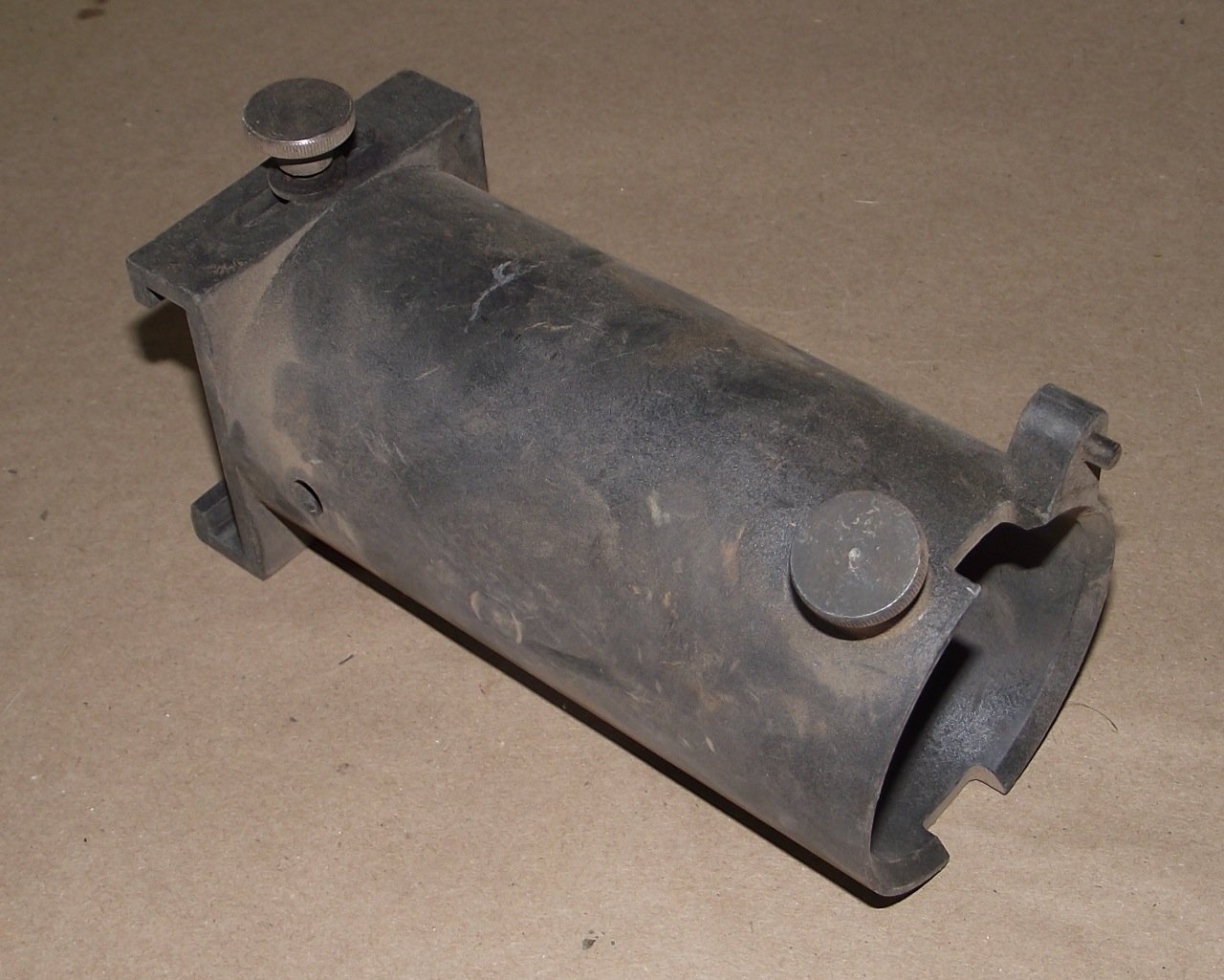

| 3014 | Adjustment of
gear shift linkage - Dasher, Fox |
From Baum Tools catalog
 |

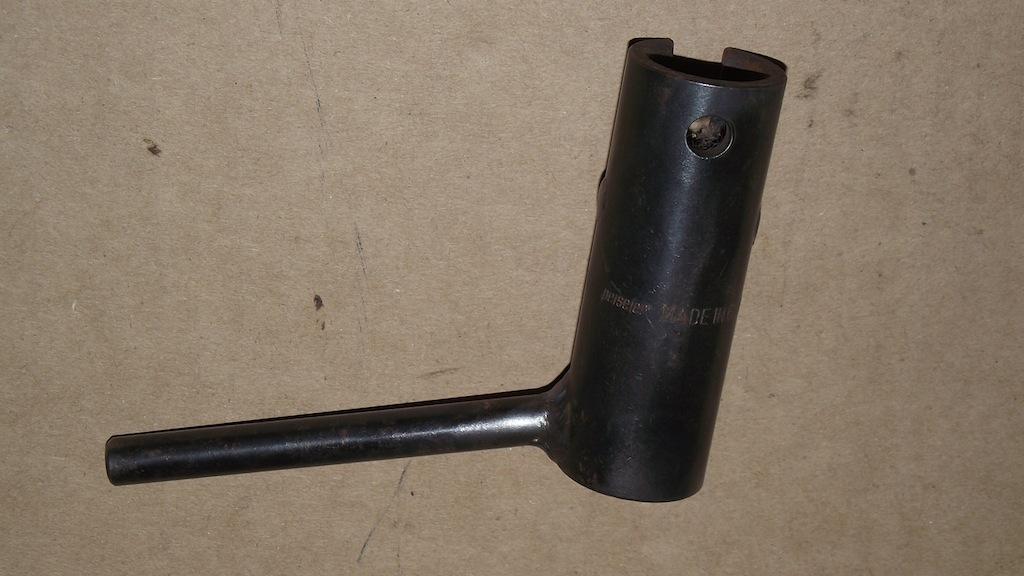

| 3016 | Remove and
Install speedometer drive - Dasher, Fox |
From Baum Tools catalog
 |

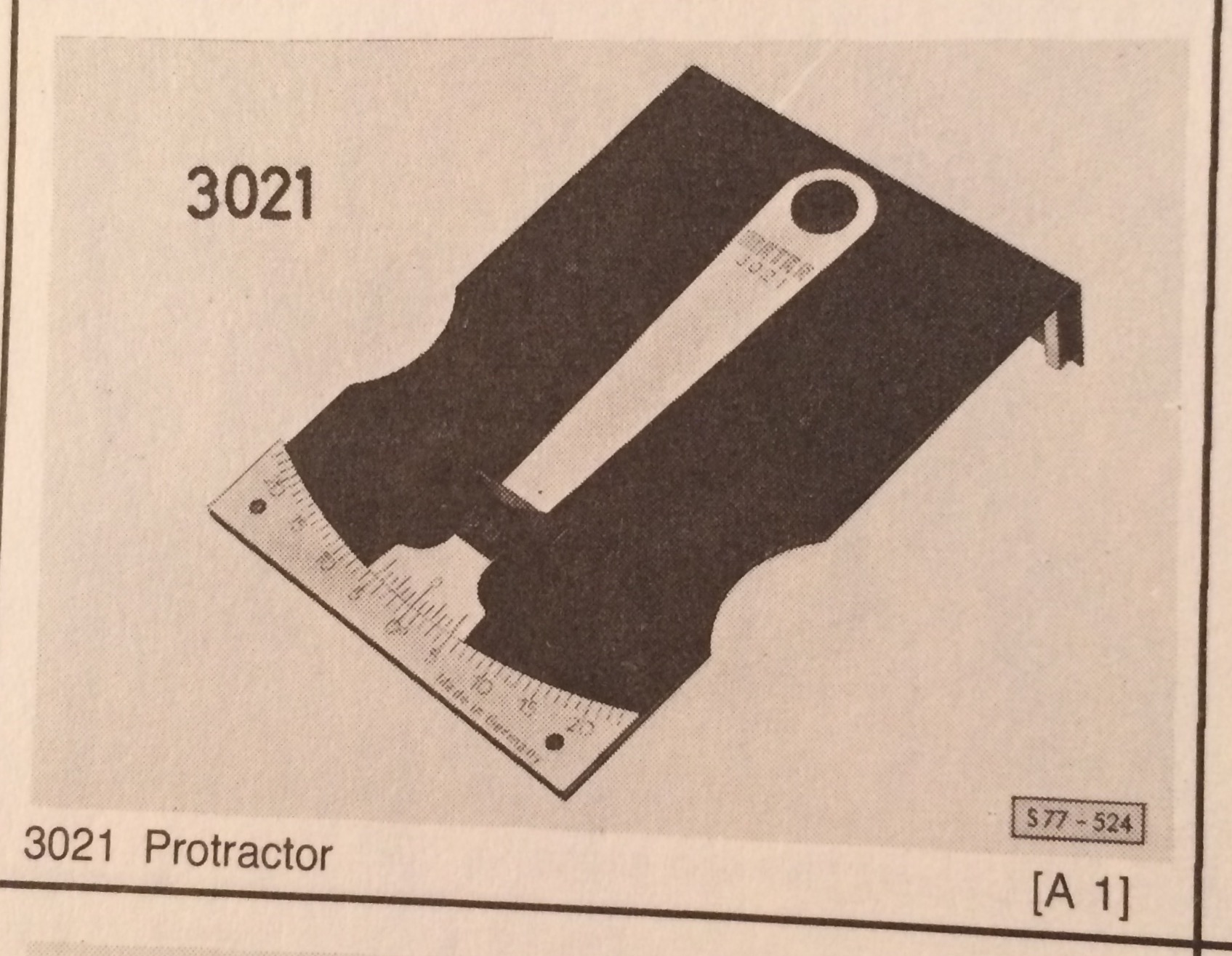

| 3021 | Protractor Also see 245 |
 |
| 3022 | Clamp adjustment
of roller bearing torque - 1978 and on - Dasher, Fox |
From Baum Tools catalog US3022Z:
 |

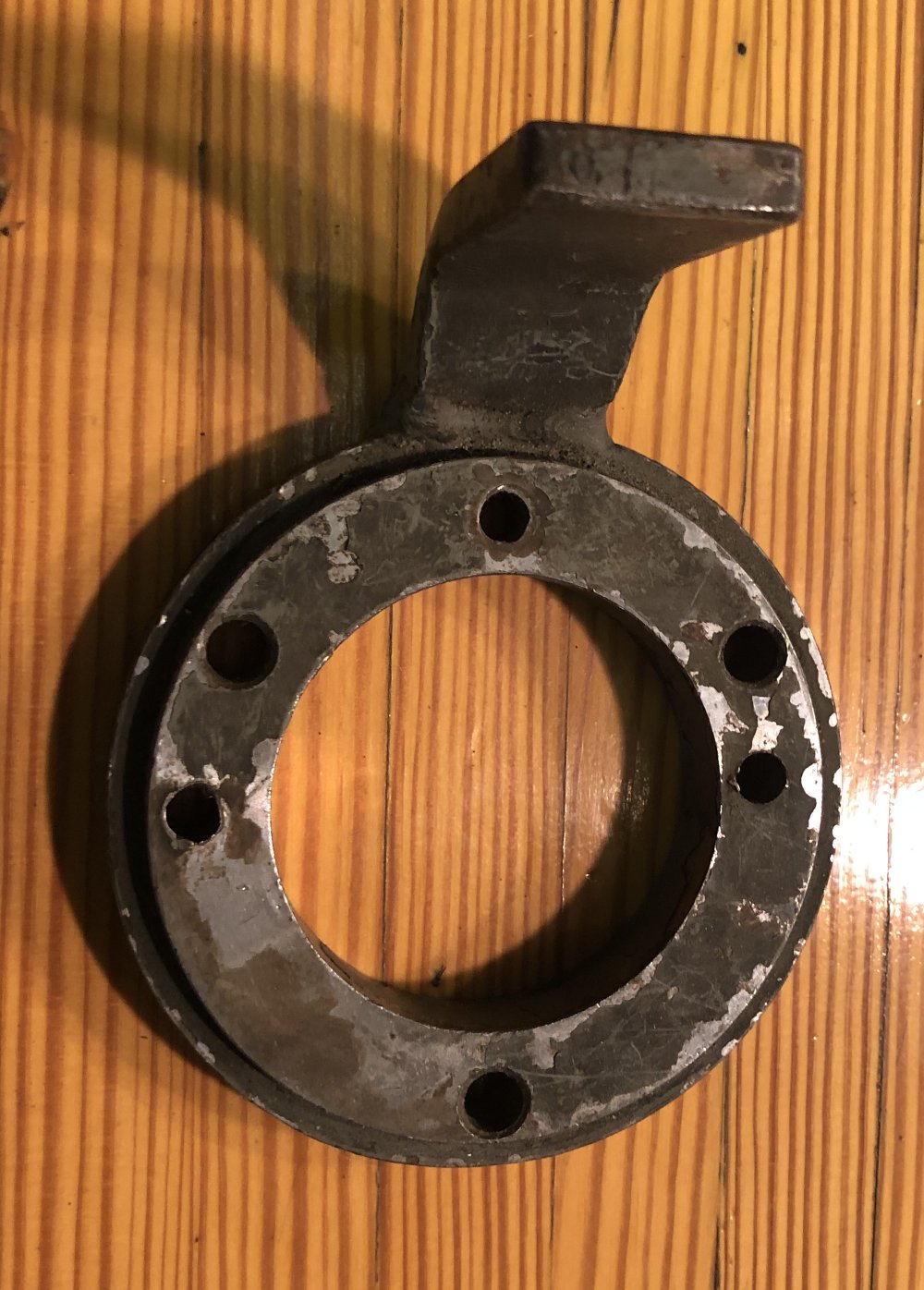

| 3028 | Retainer Application unknown |
 |
| 3032 | Injector Pump
Sprocket Extractor For water-cooled engines |
 |

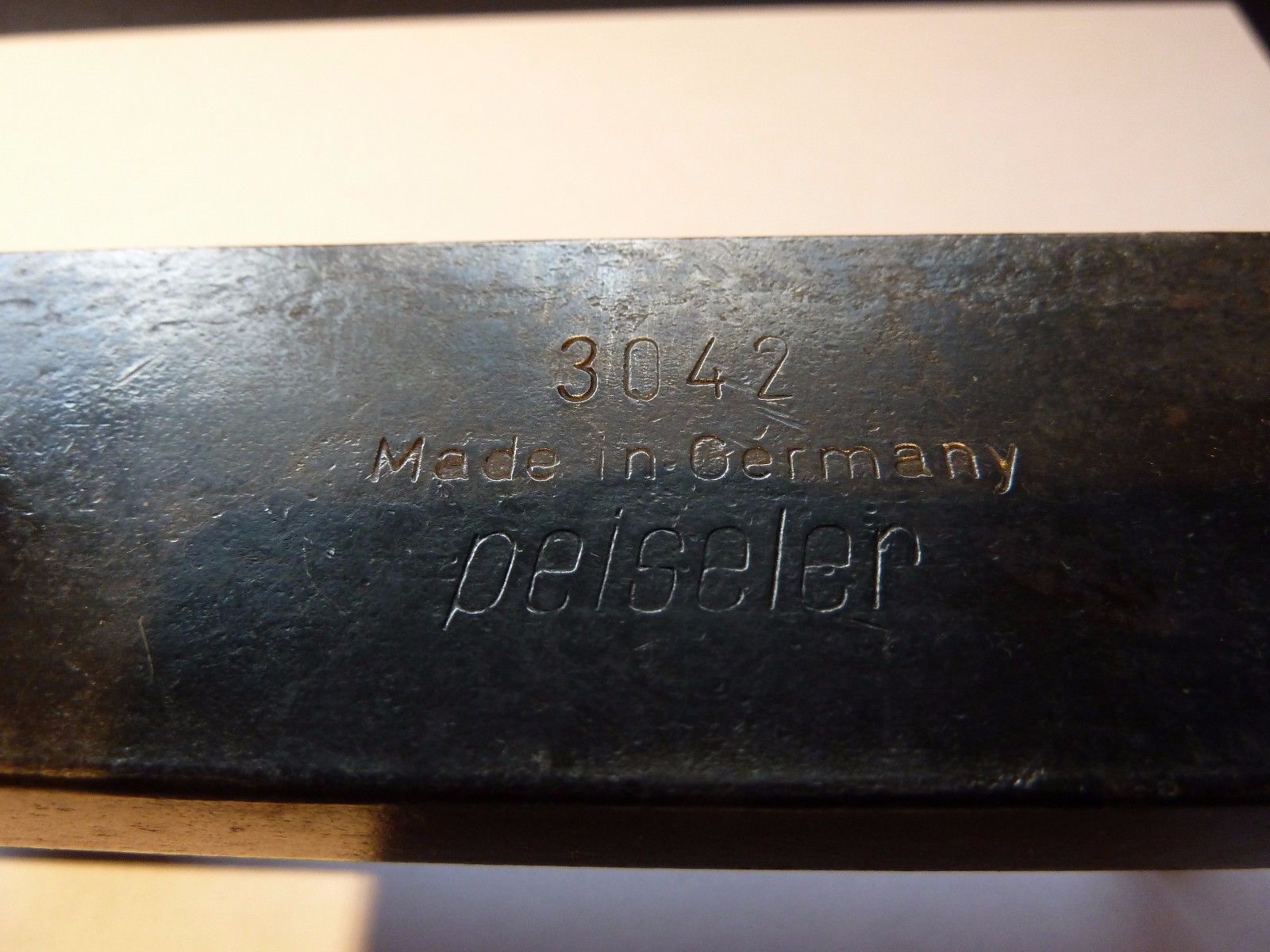

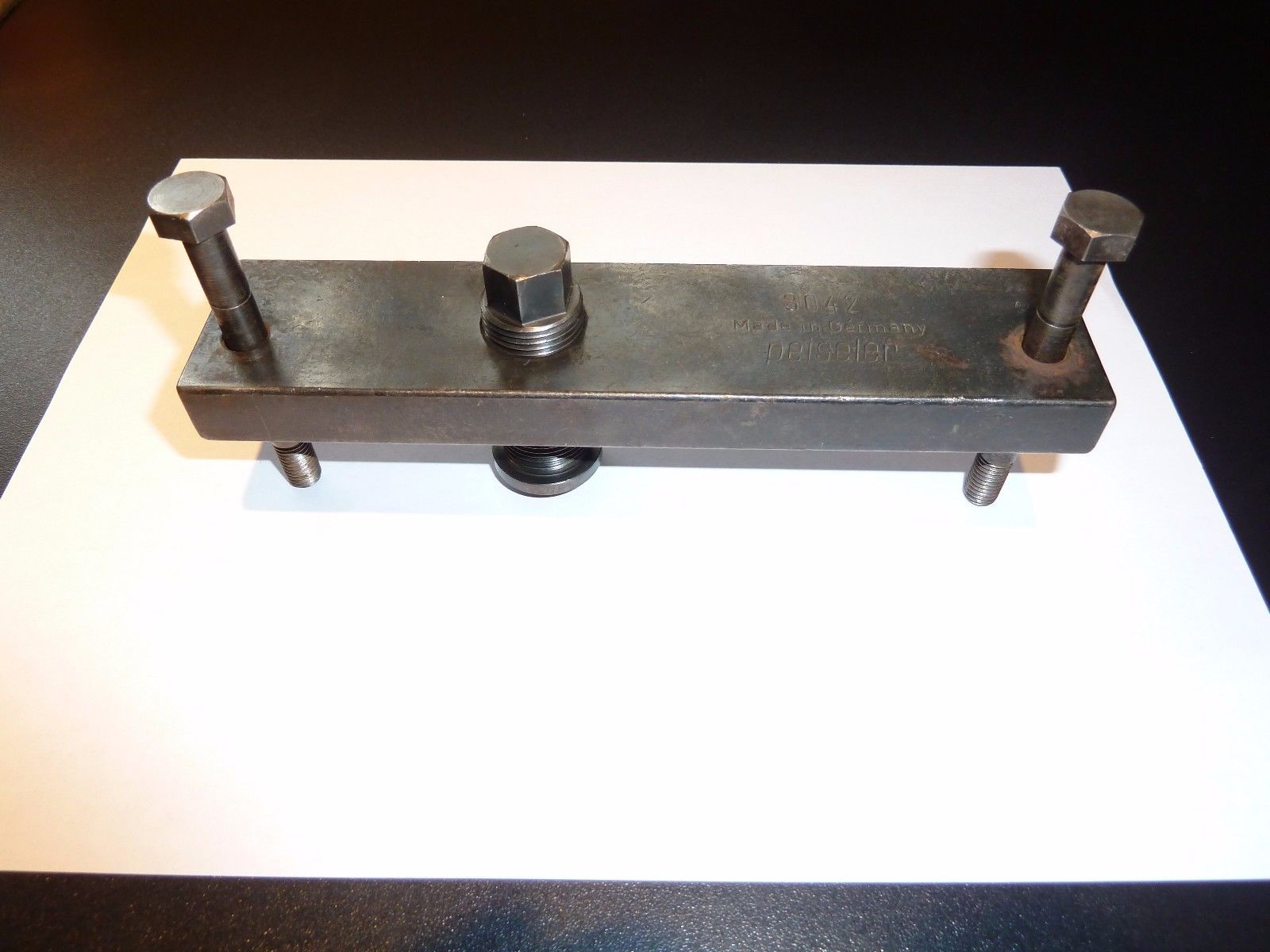

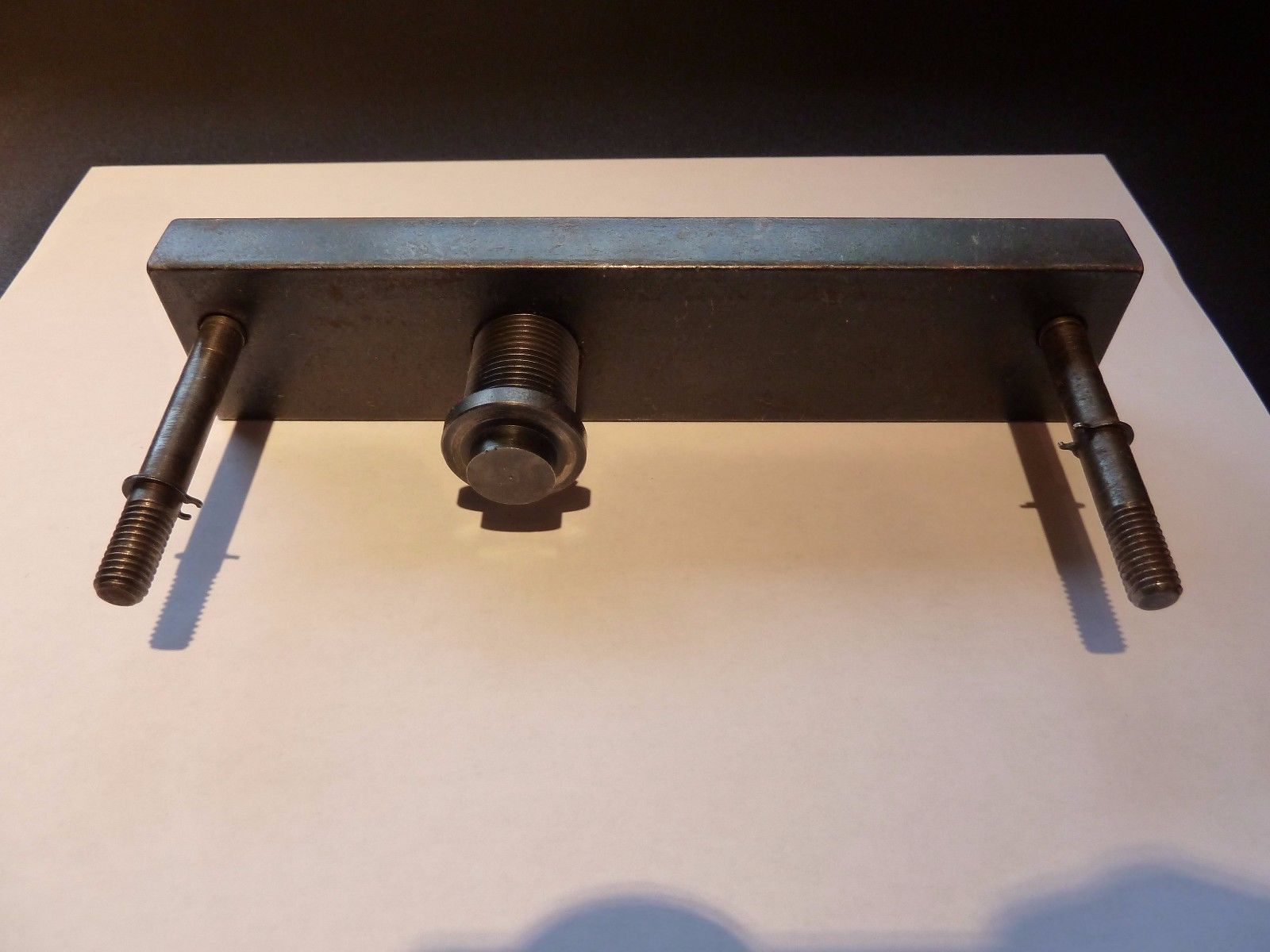

| 3042 | Puller - Transmission Case |
 |

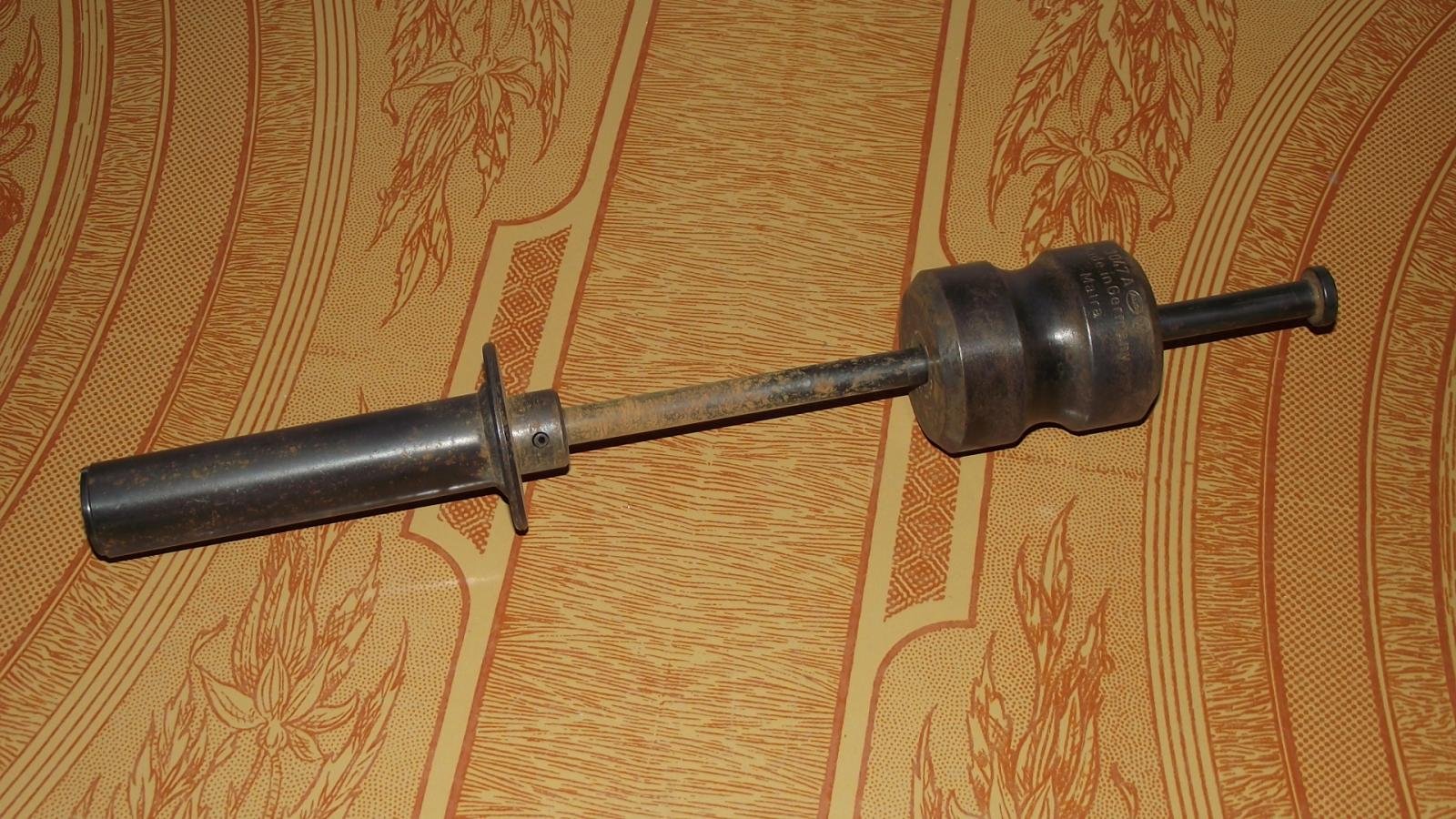

| 3047a | Slide hammer For removing 78 & 79mm valve stem seals. All water cooled engines. |
 |

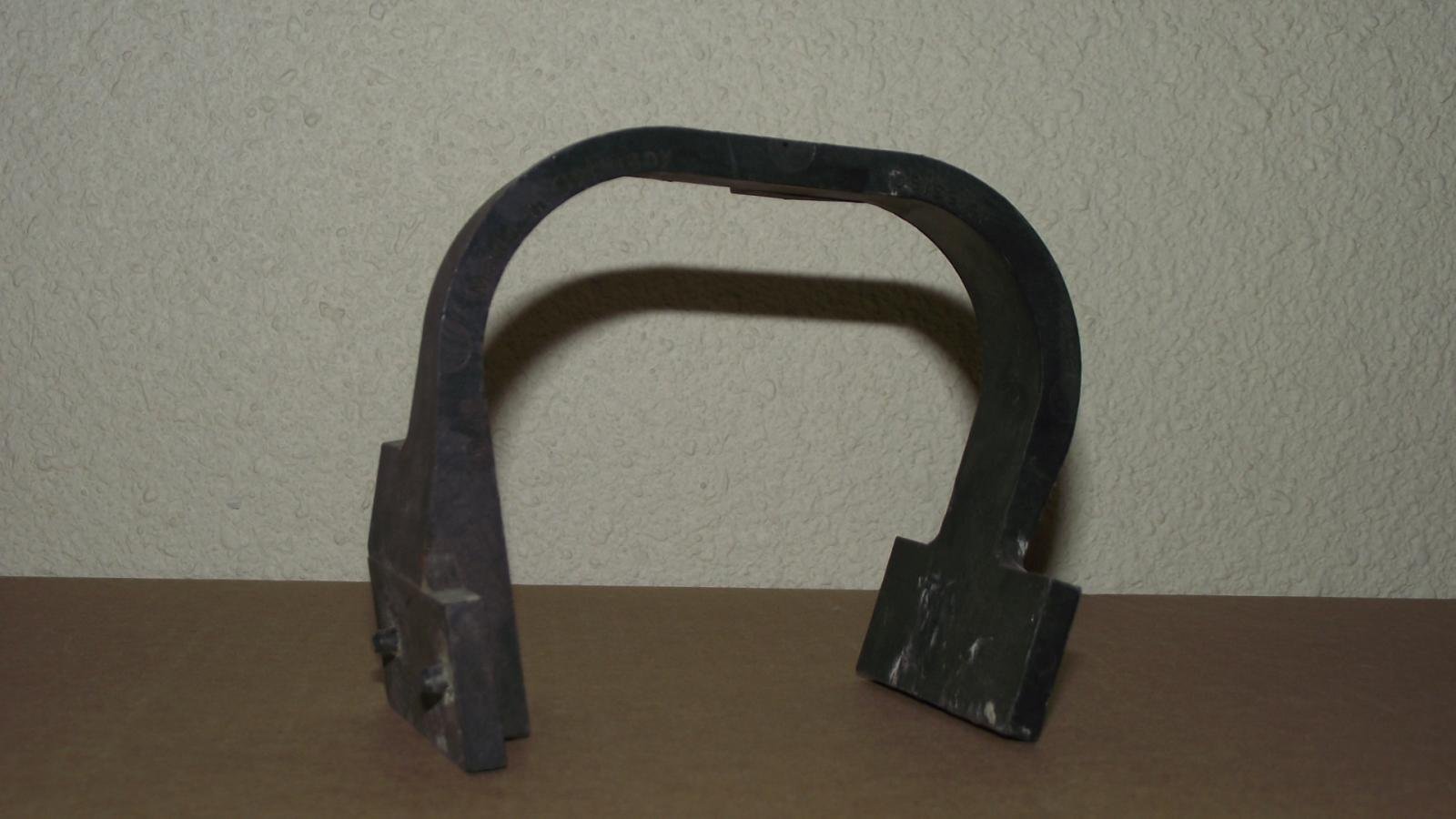

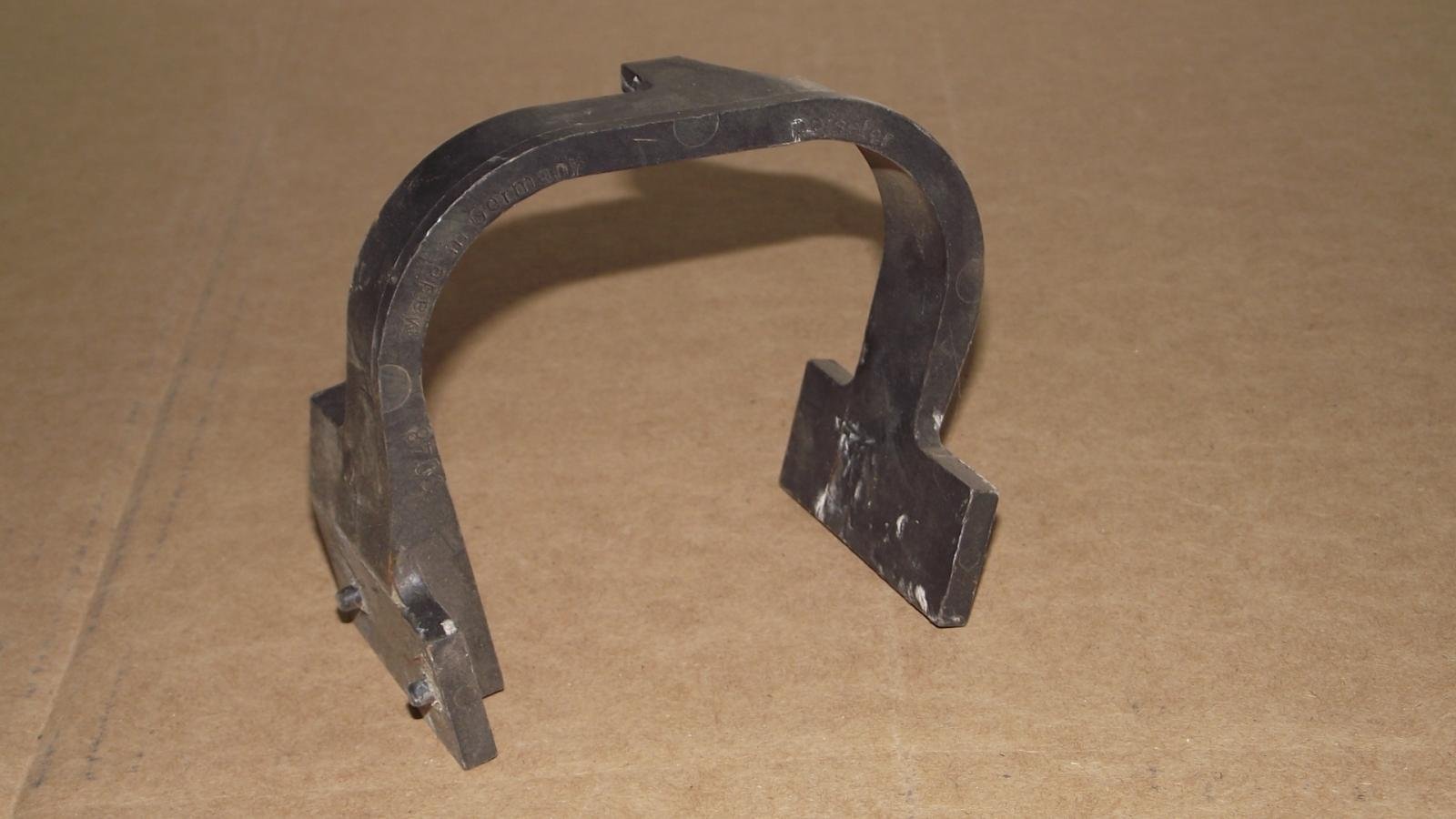

| 3048 | Gauge-Gearshift
Linkage Adjustment of gearshift linkage 5speed 016 transmission |
 |

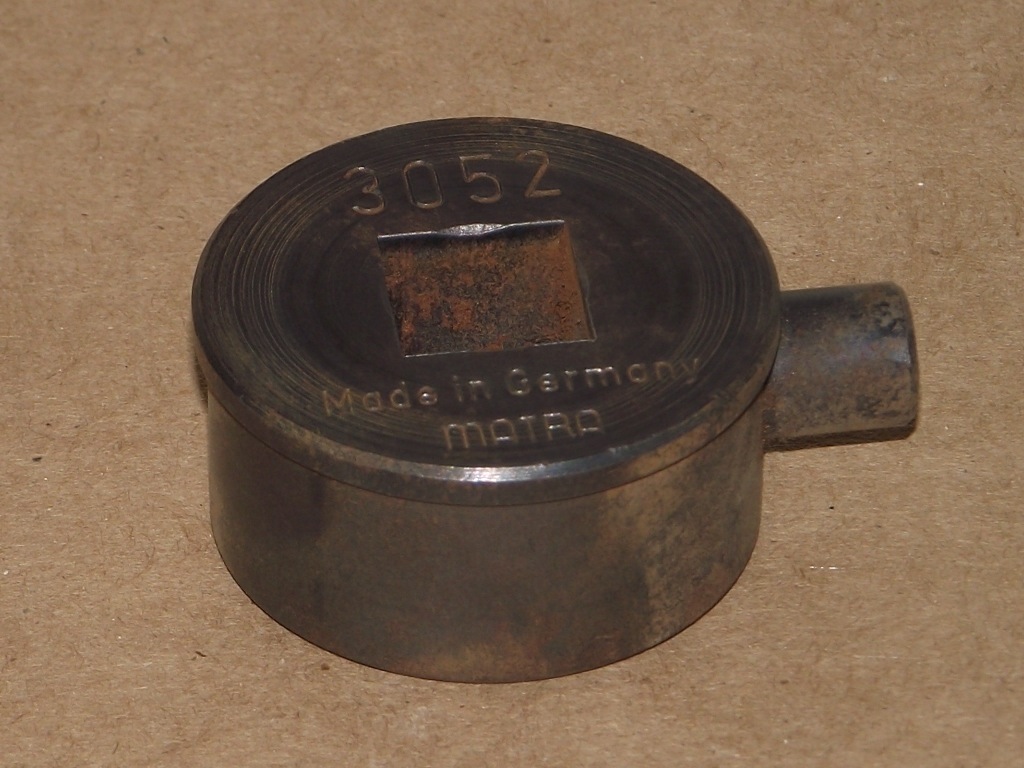

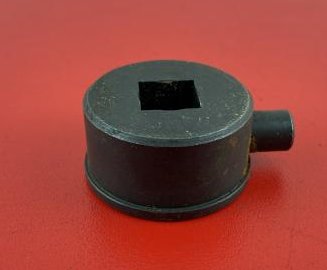

| 3052 | Adapter Used to turn crankshaft with extension and t-handle |

 |

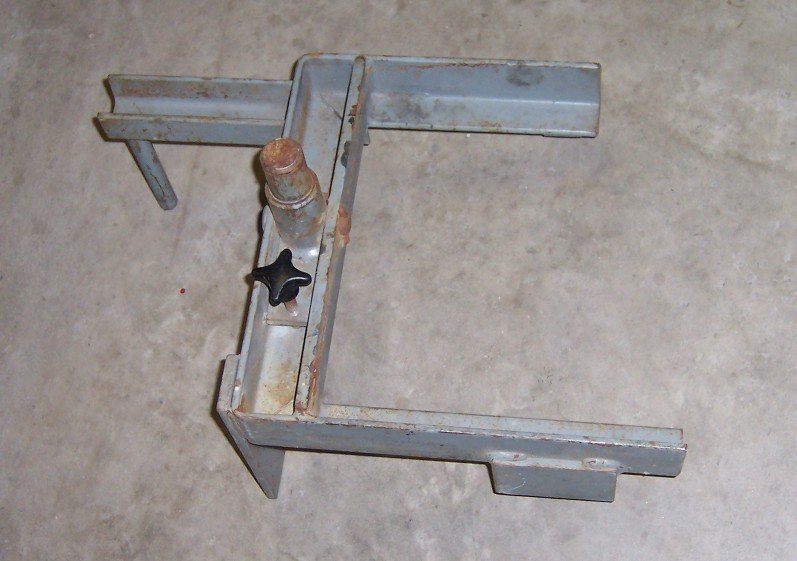

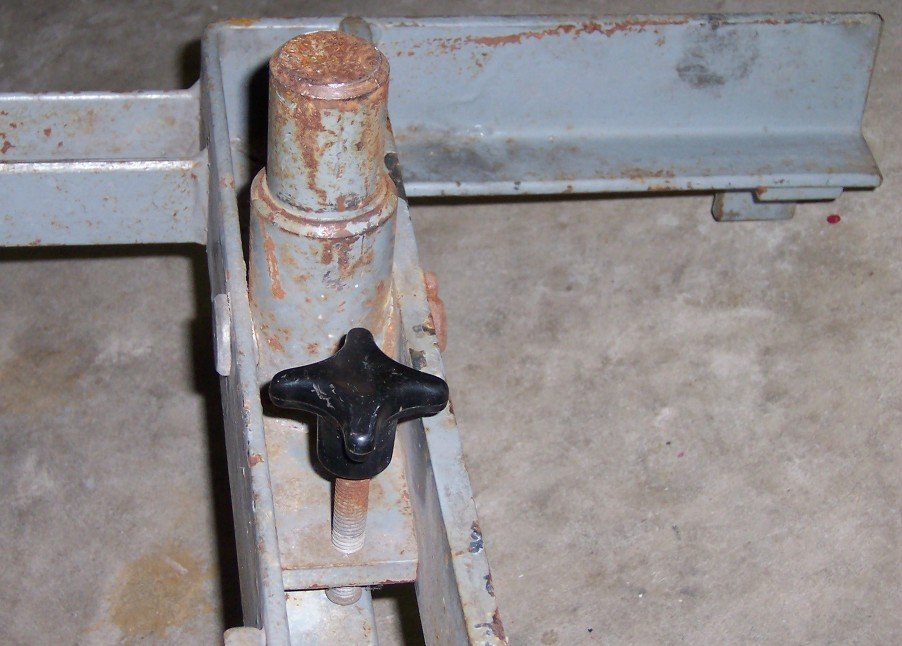

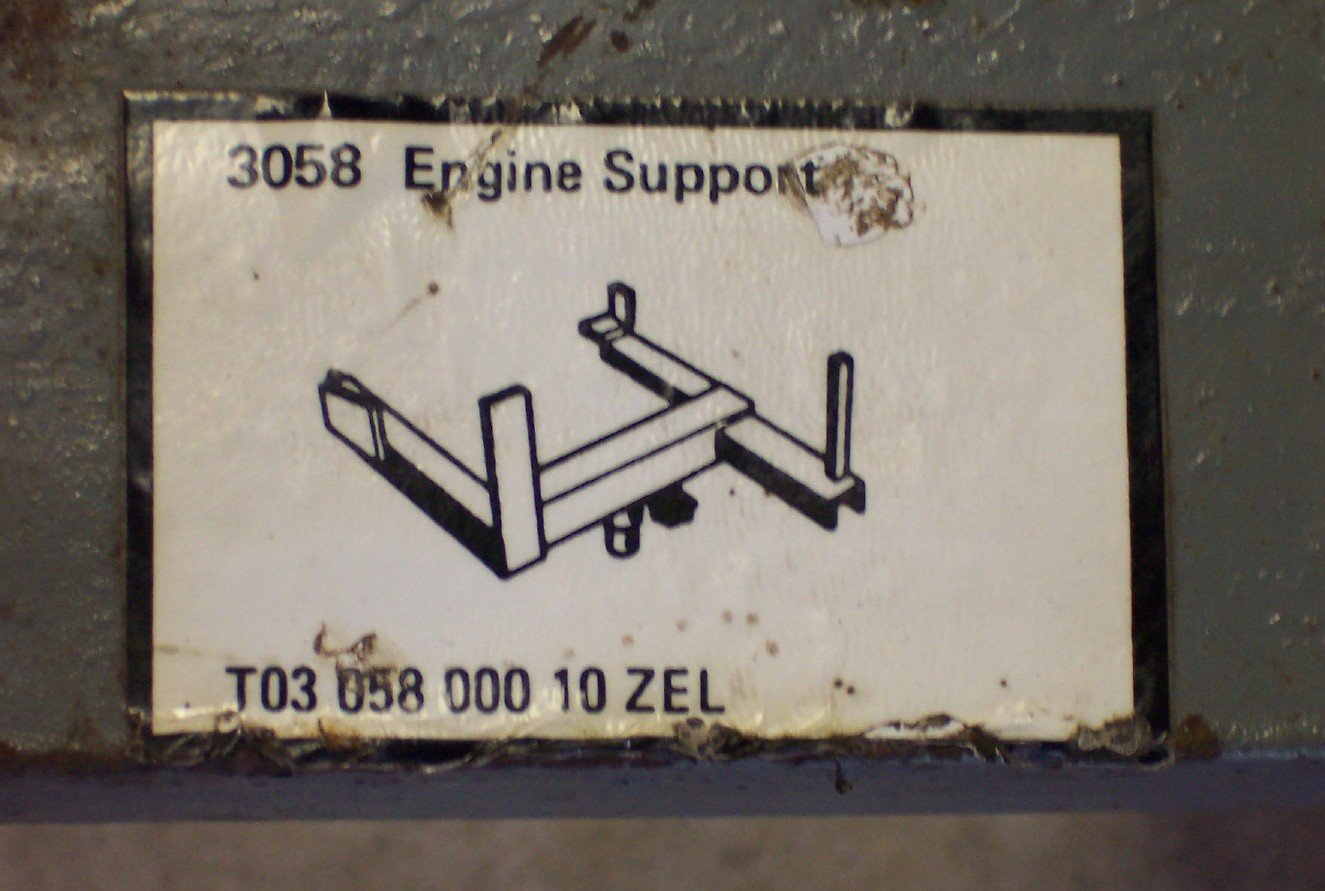

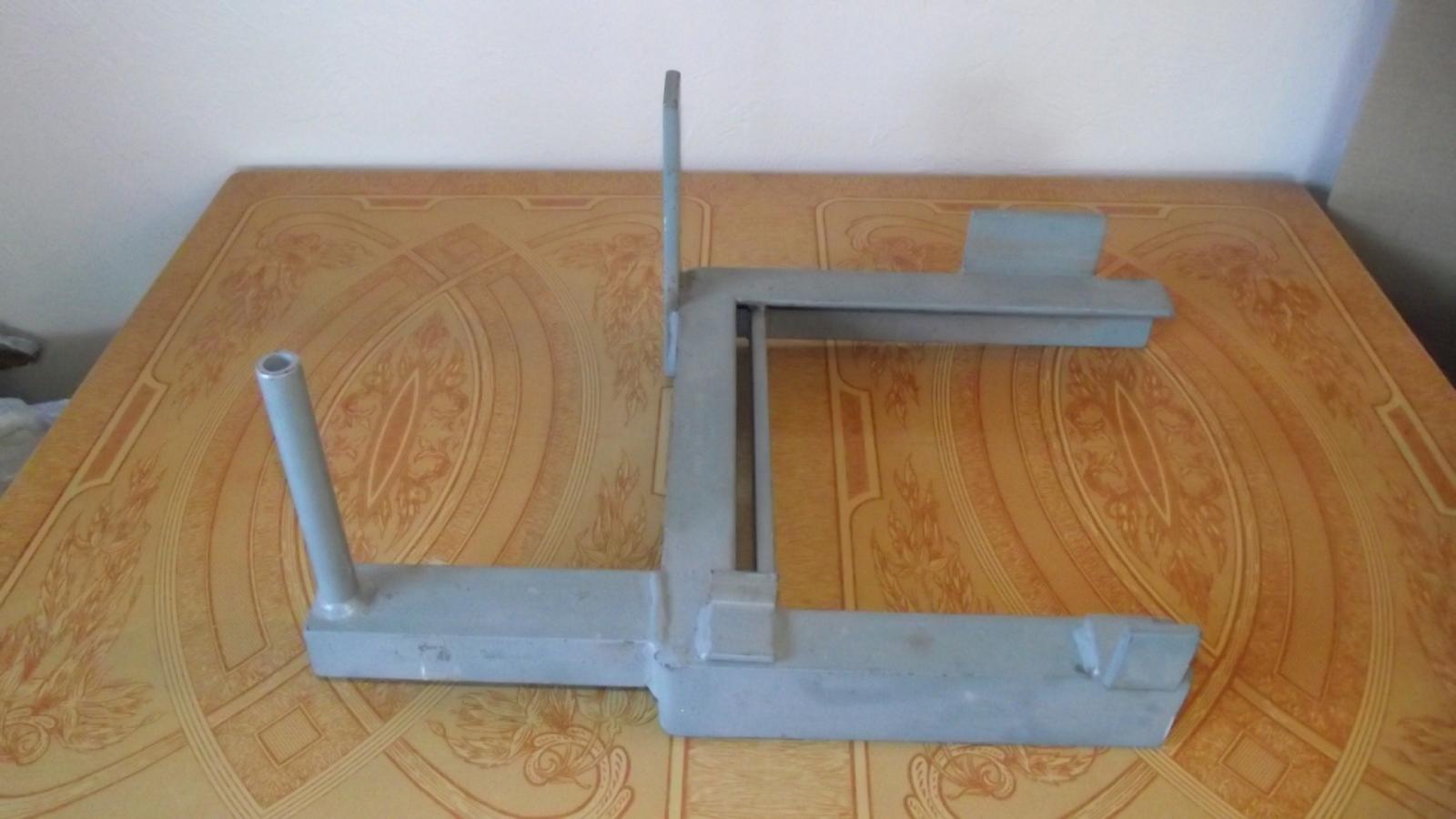

| 3058 | Vanagon engine
removal tool For early diesel engines |
   |

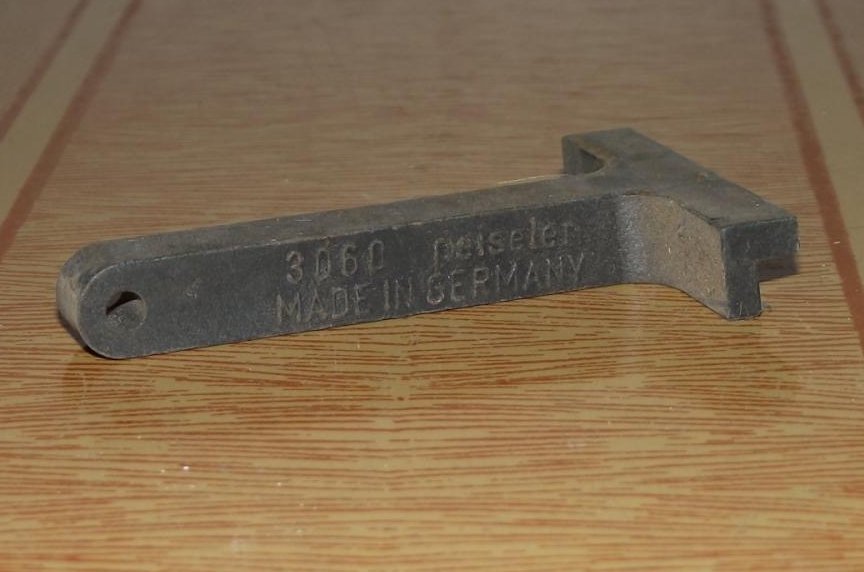

| 3060 | Sunroof alignment checker |
 |

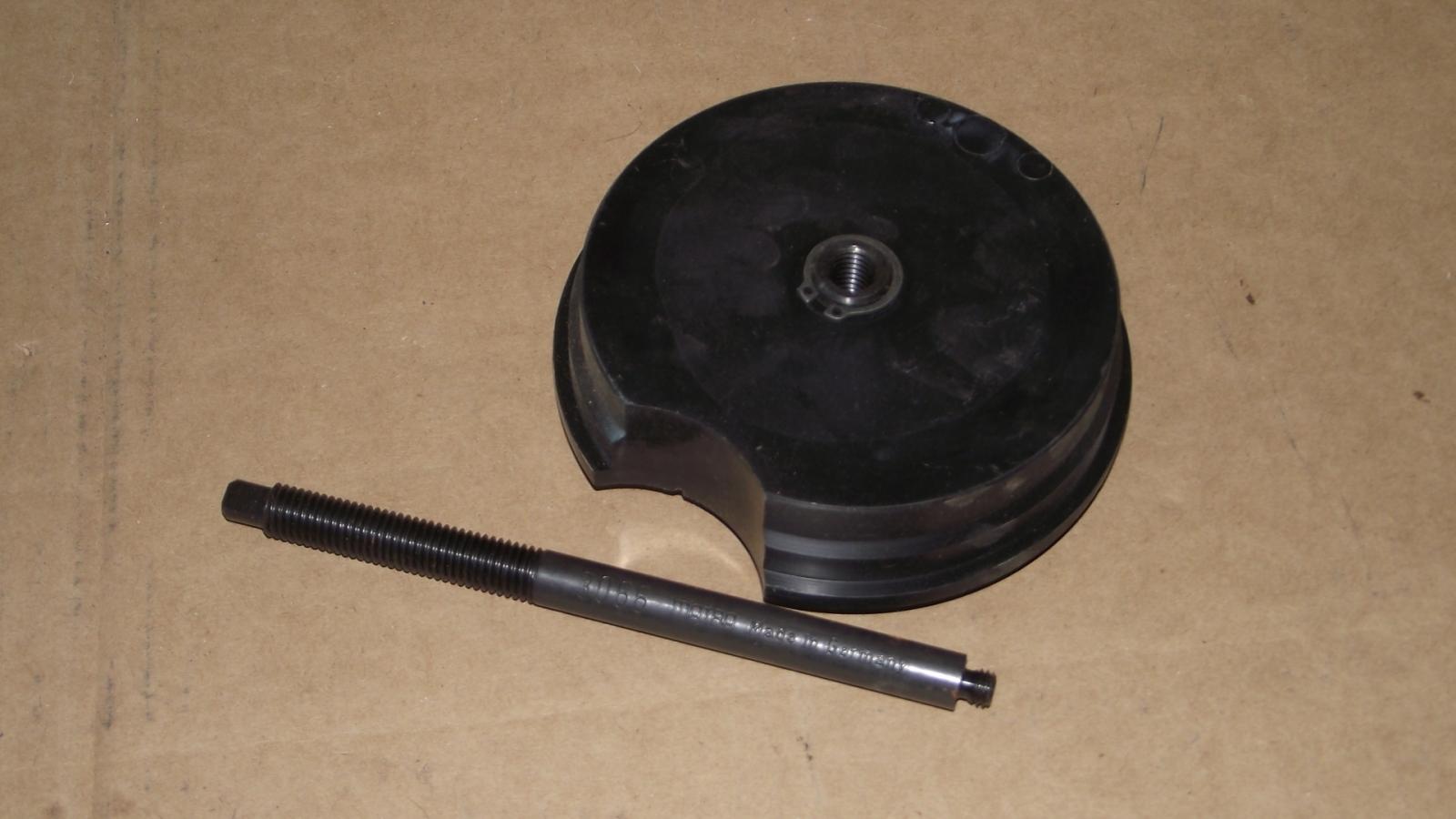

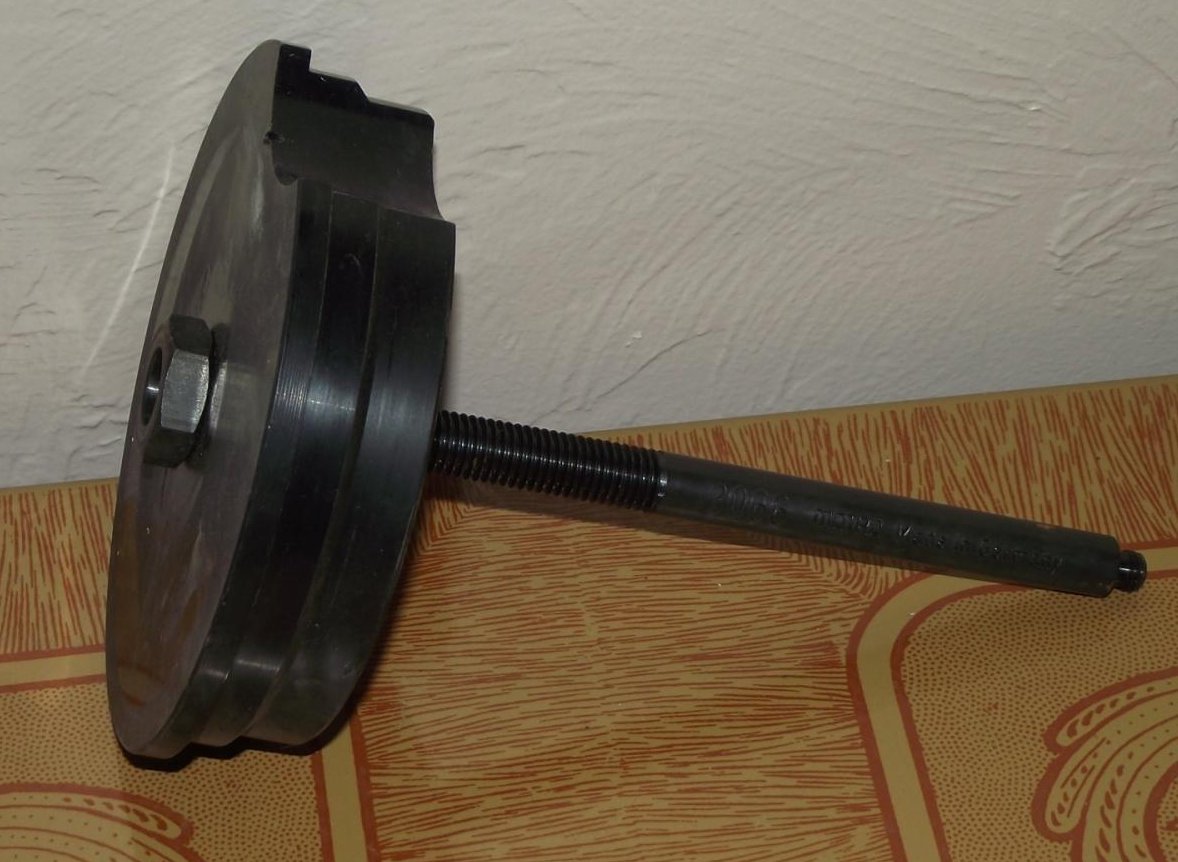

| 3066 | Seal Installer -
Rear Diff Install rear differential axle flange oil seal |
  |

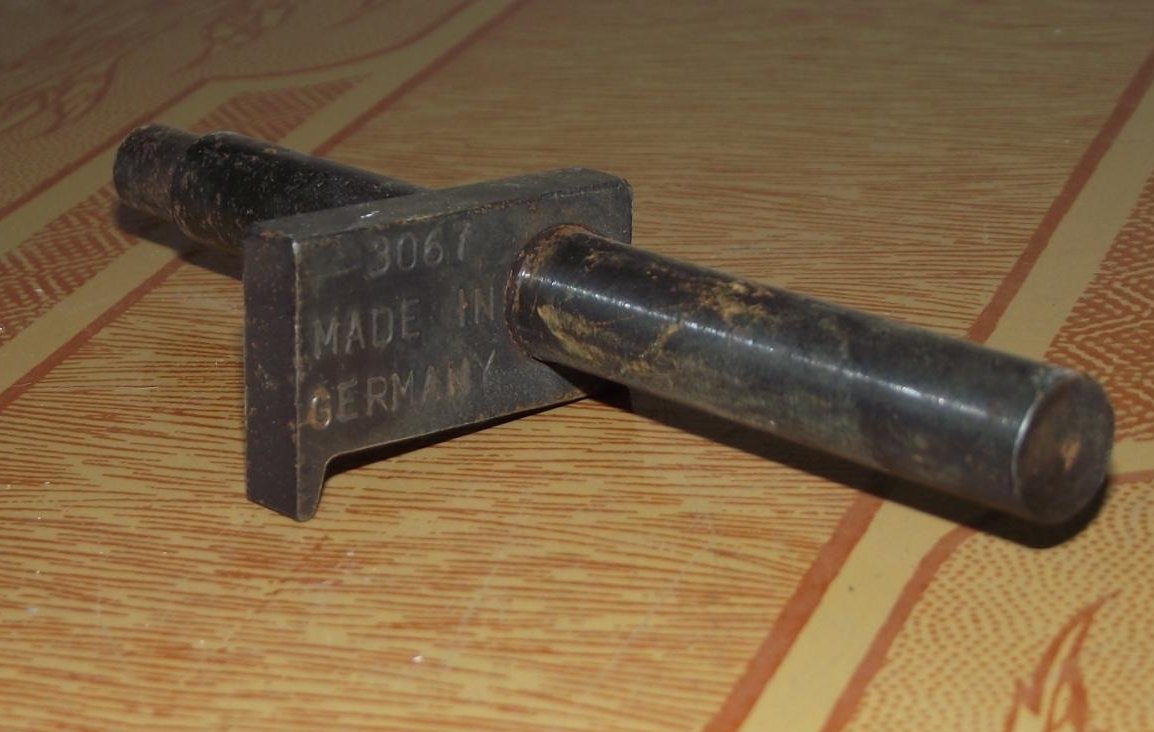

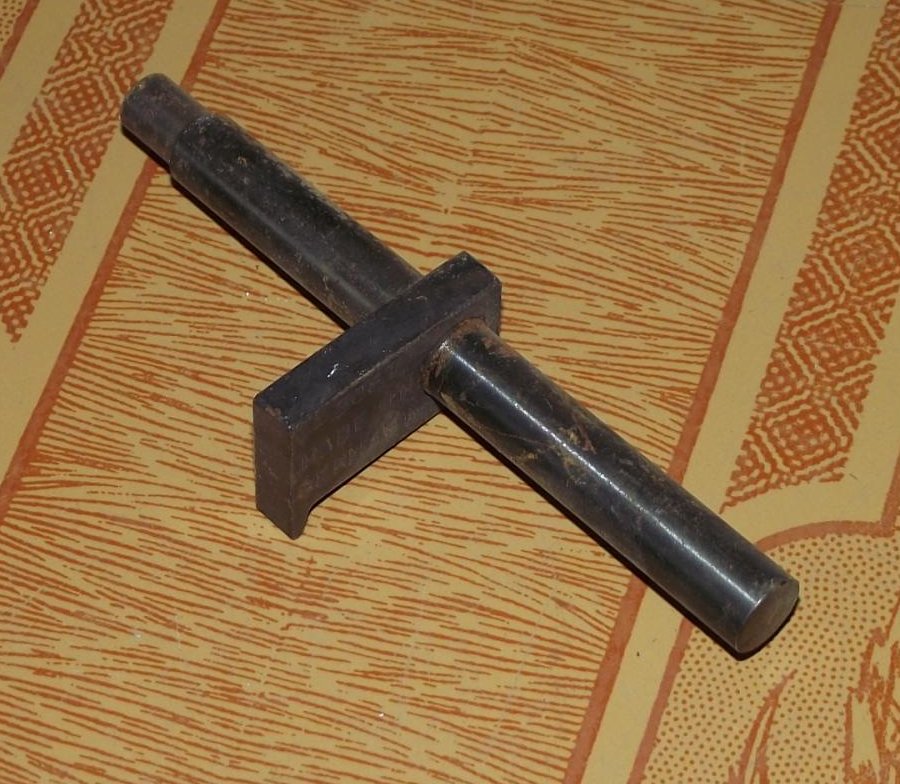

| 3067 | Flywheel Lock For early VW/Audi diesel transmission. |
 |

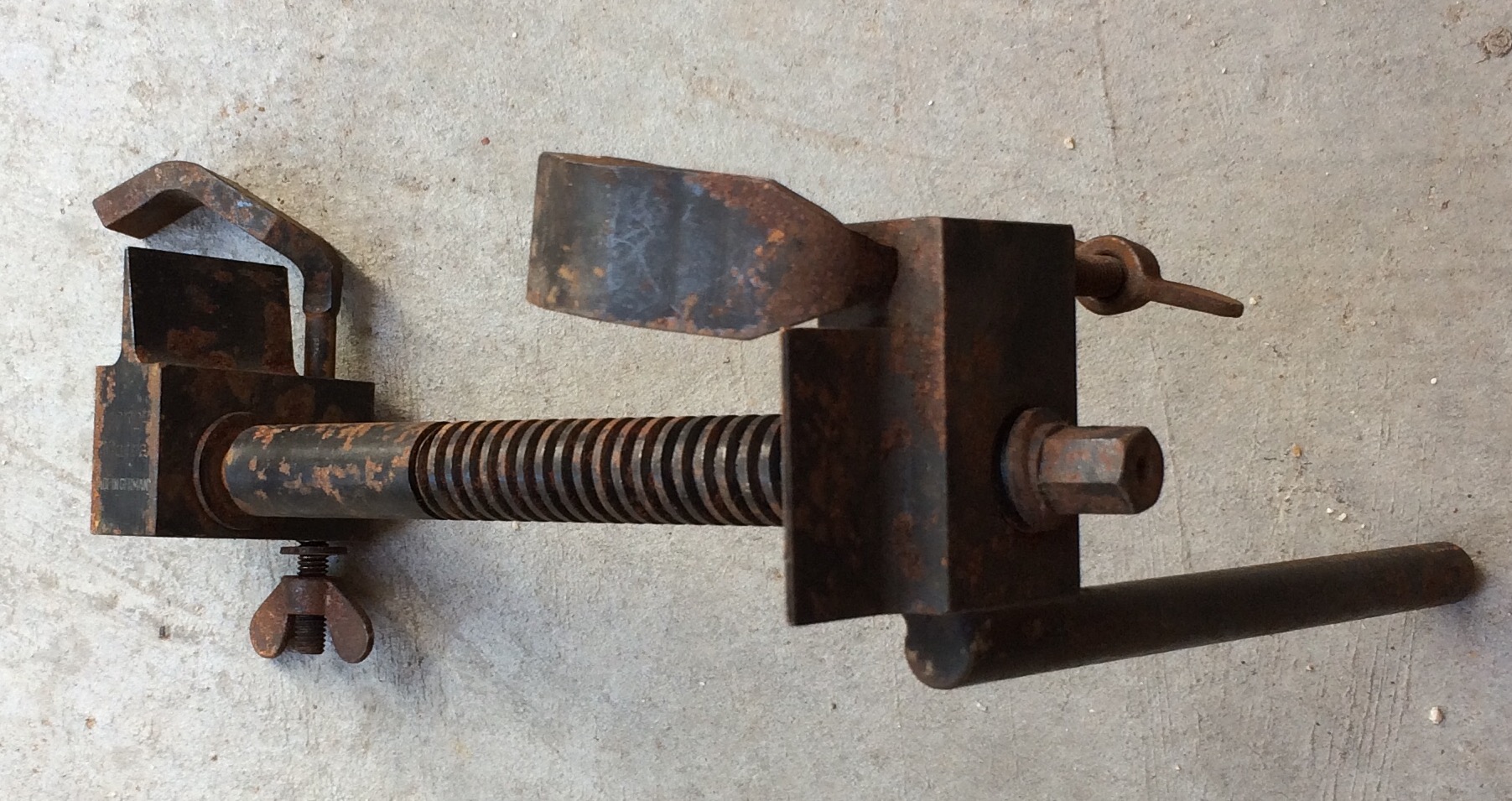

| 3072 | Tensioner for
removing and installing rear lid spring Rabbit, Jetta, GTI, Scirocco |

 |

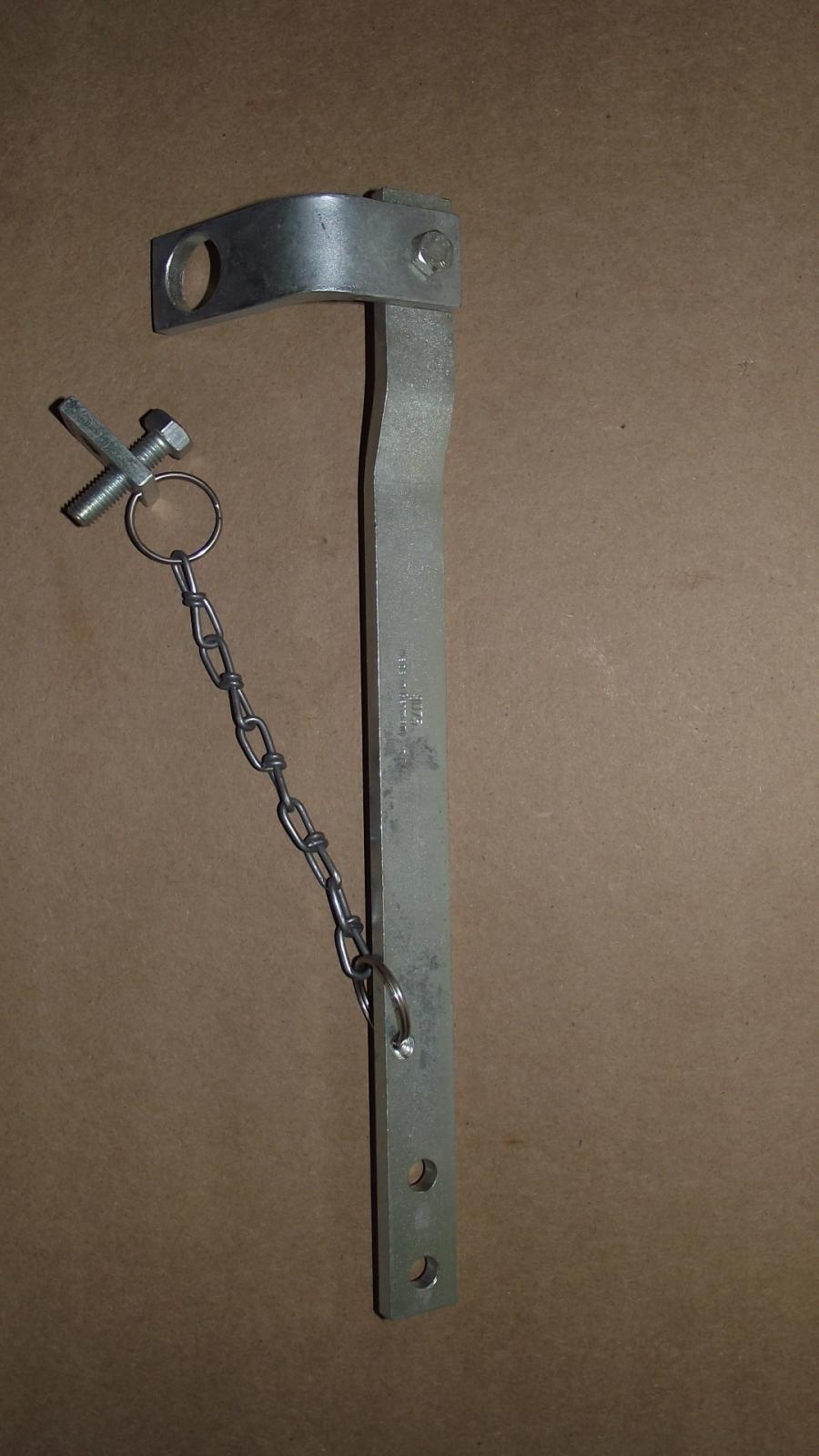

| 3075 | Locking Bar
Used to center the steering gear prior to performing tow adjustments on vehicles equipped with two adjustable tie rods. |
 |

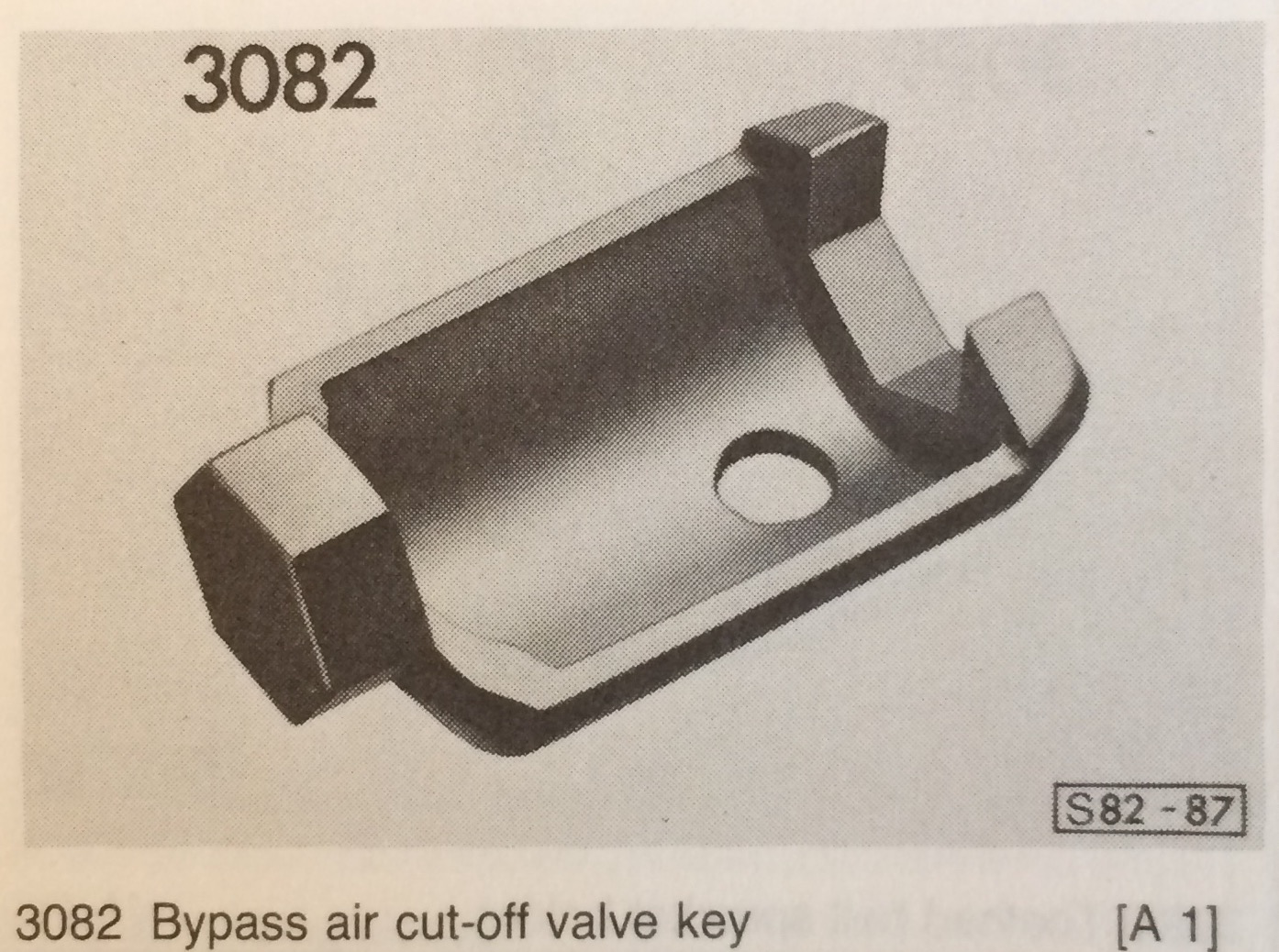

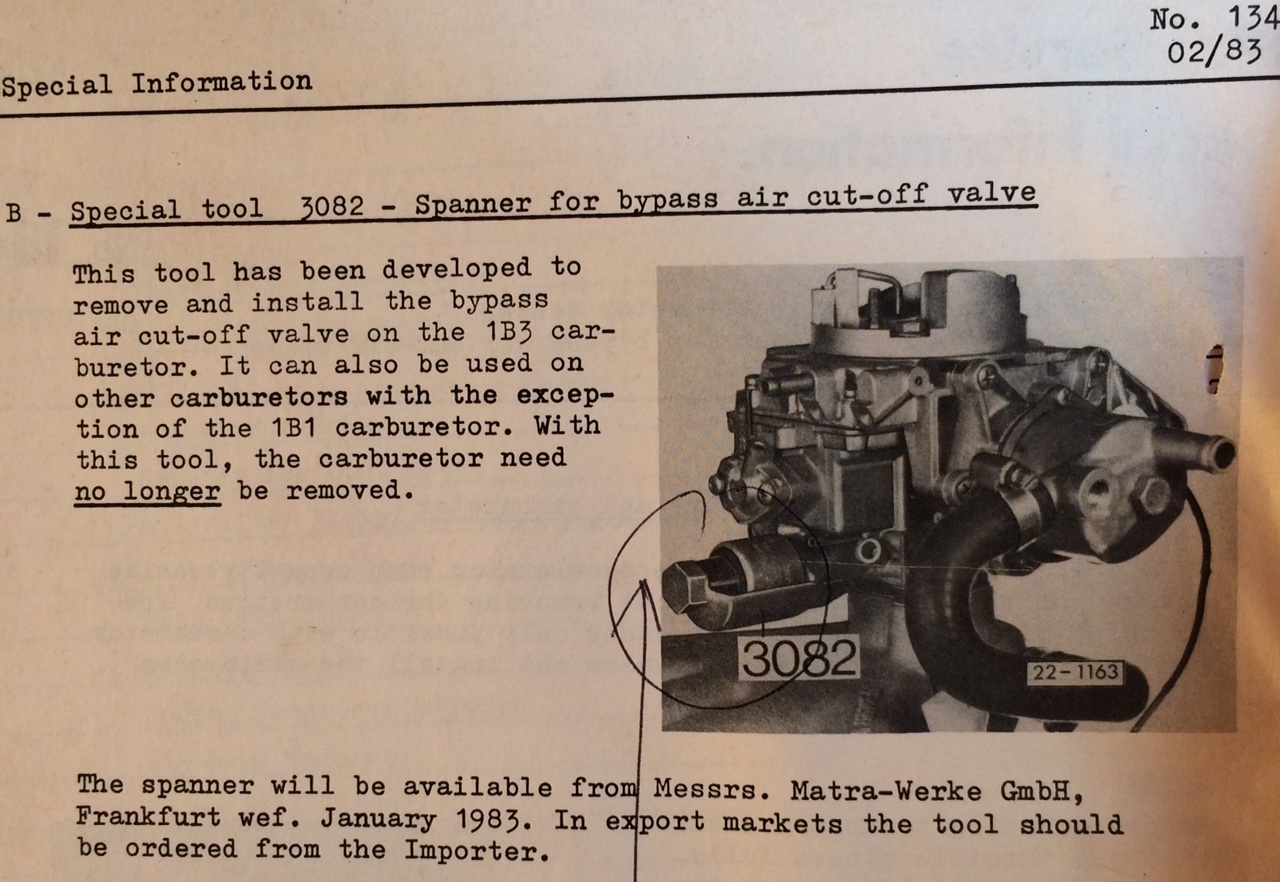

| 3082 | Bypass air
cut-off valve key For Petrol engine 1.3/1.5/1.6/1.8L |
 |

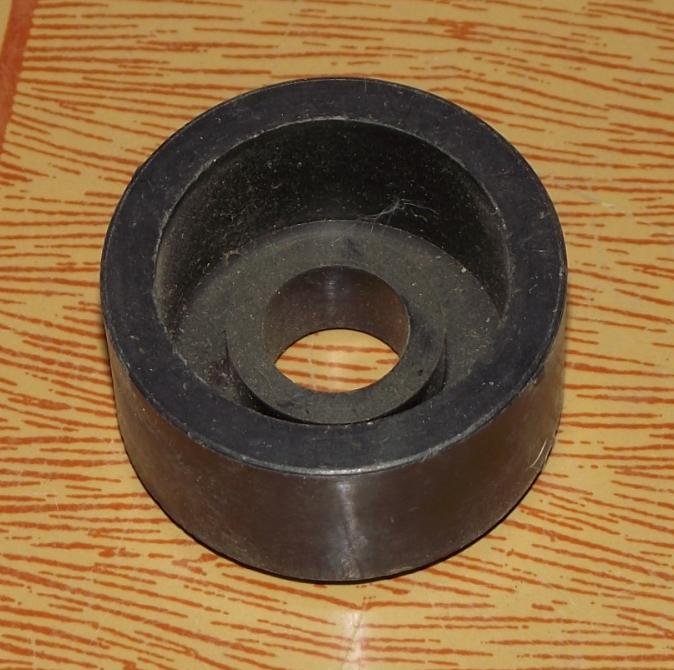

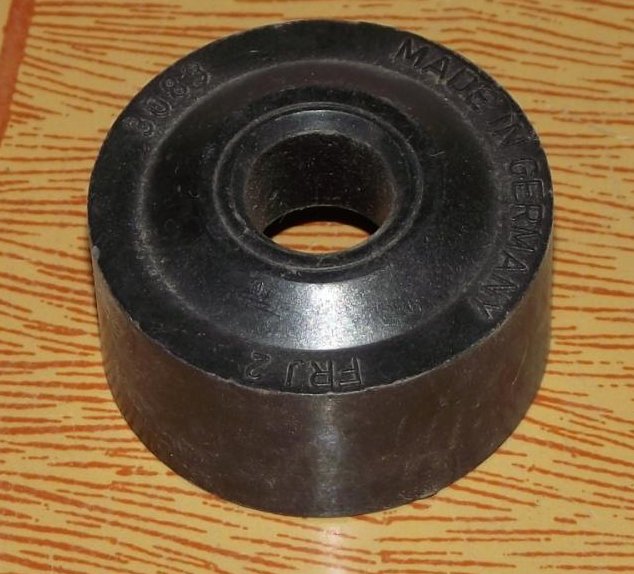

| 3083 | Arbor Installation of front crankshaft oil seal on 4-cylinder turbo diesel engine. |
 |

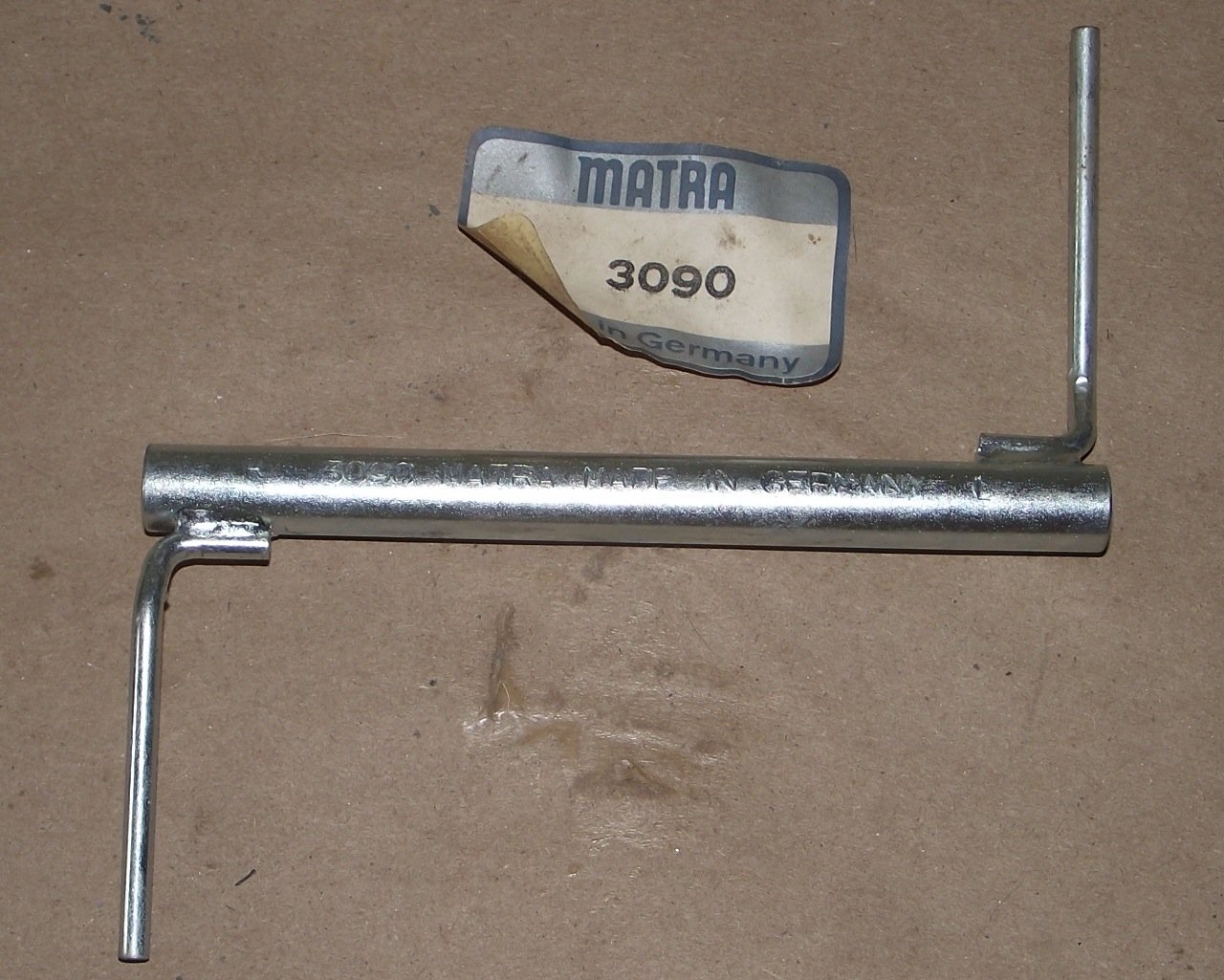

| 3090 | Water boxer rod support tool for re installing piston wrist pins |
 |

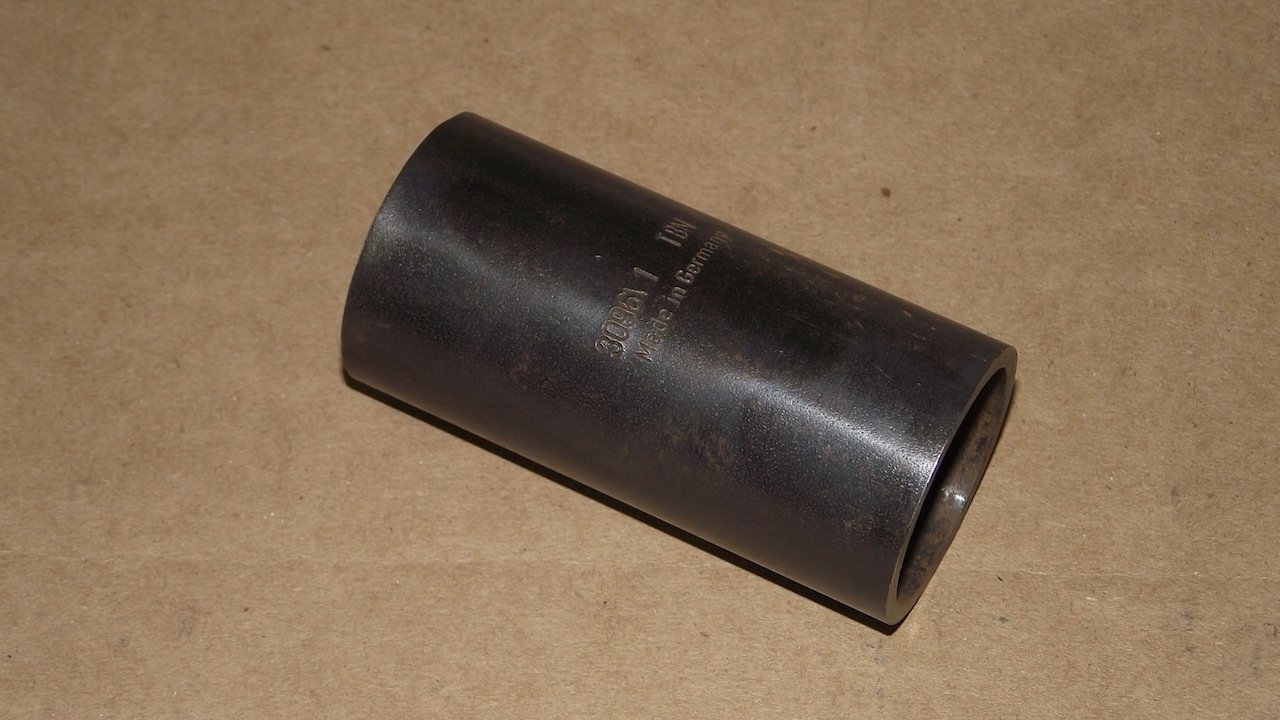

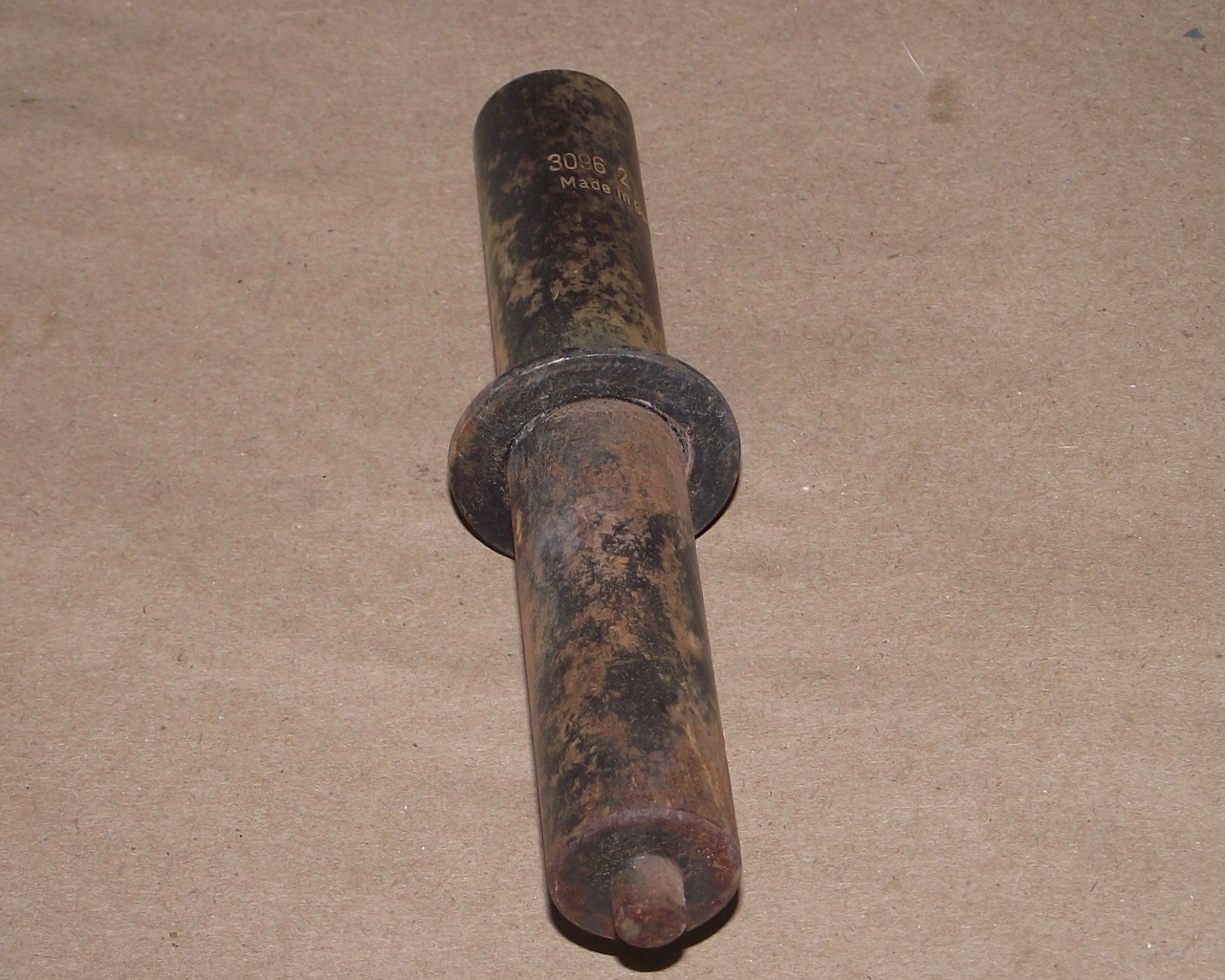

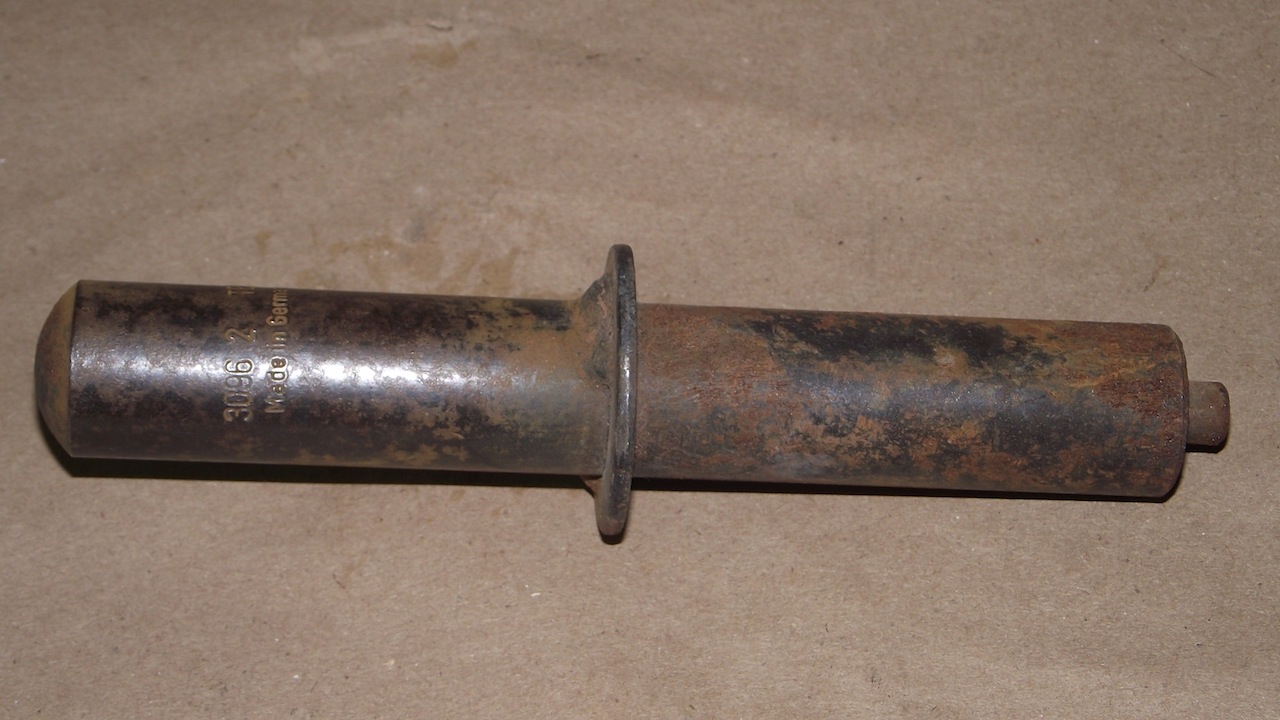

| 3096 | Press Multi-part tool For pressing stabilizer bushings to lower front trailing arms on passats, Audis, etc. |
Part 2:
  |

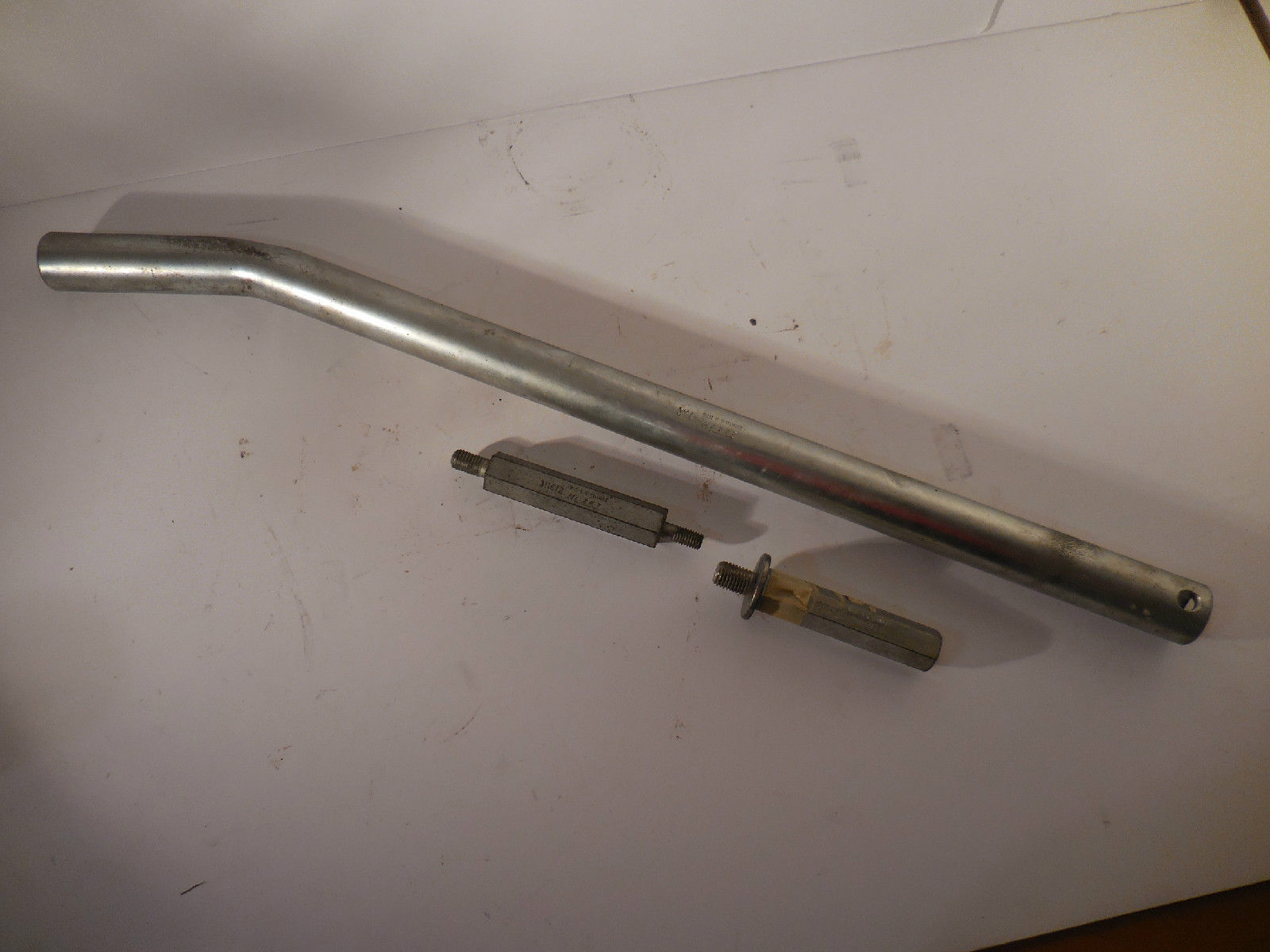

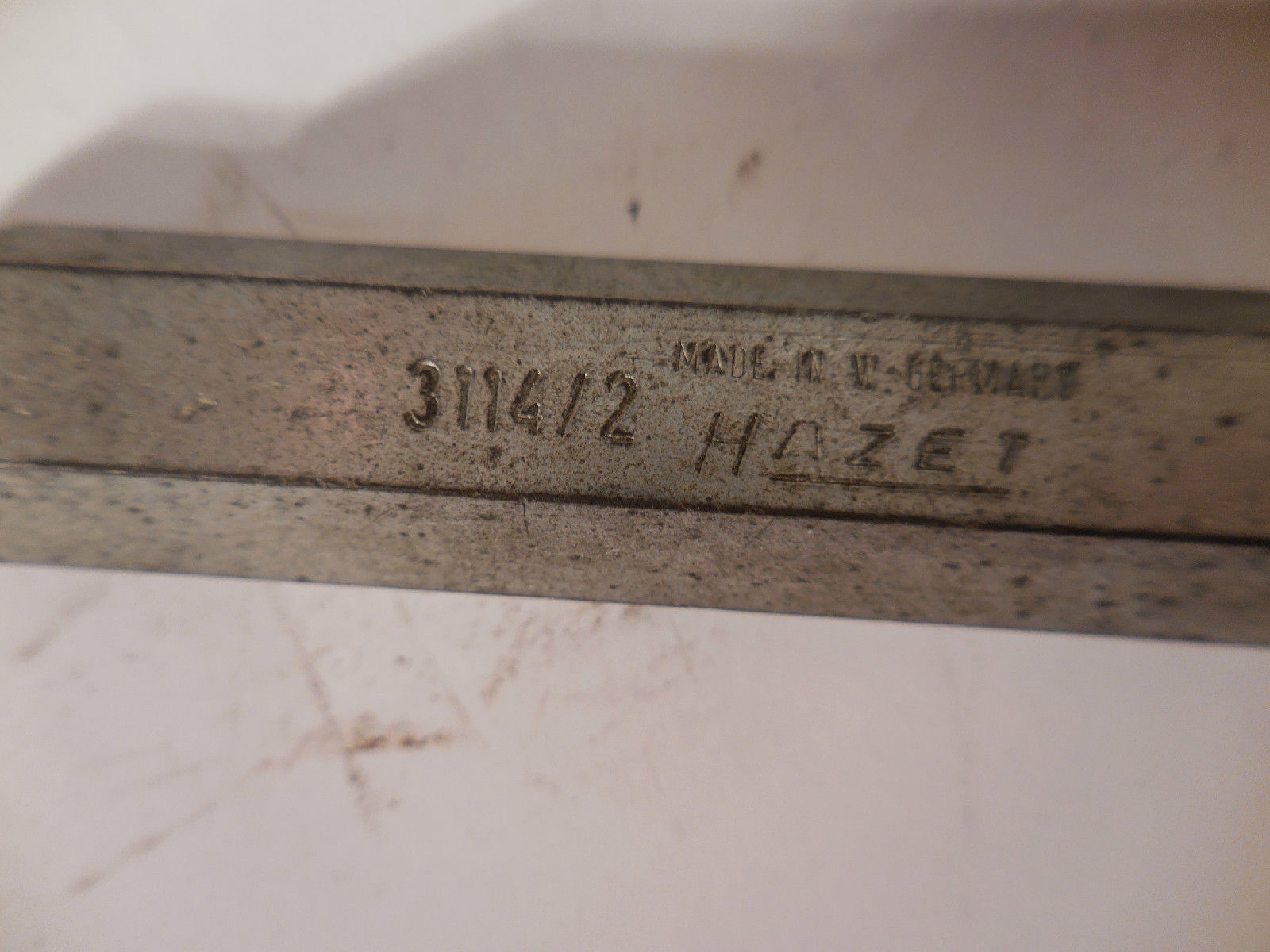

| 3114 |
Door Alignment Tool 3114/1 Pin with M 12 x 1.5 thread 3114/2 Pin with M 8 and M 10 thread |
|

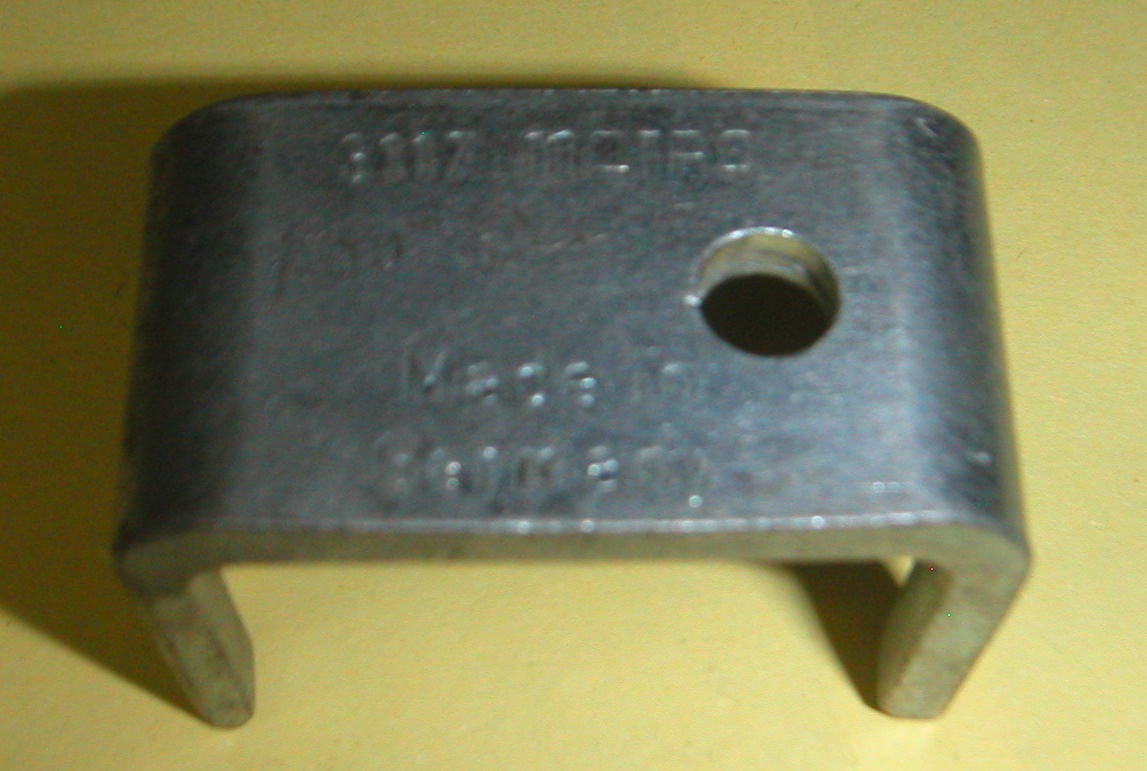

| 3117 |
Spring Retainer Holds clutch pedal spring while removing and installing self adjusting clutch VW Quantum |
 |

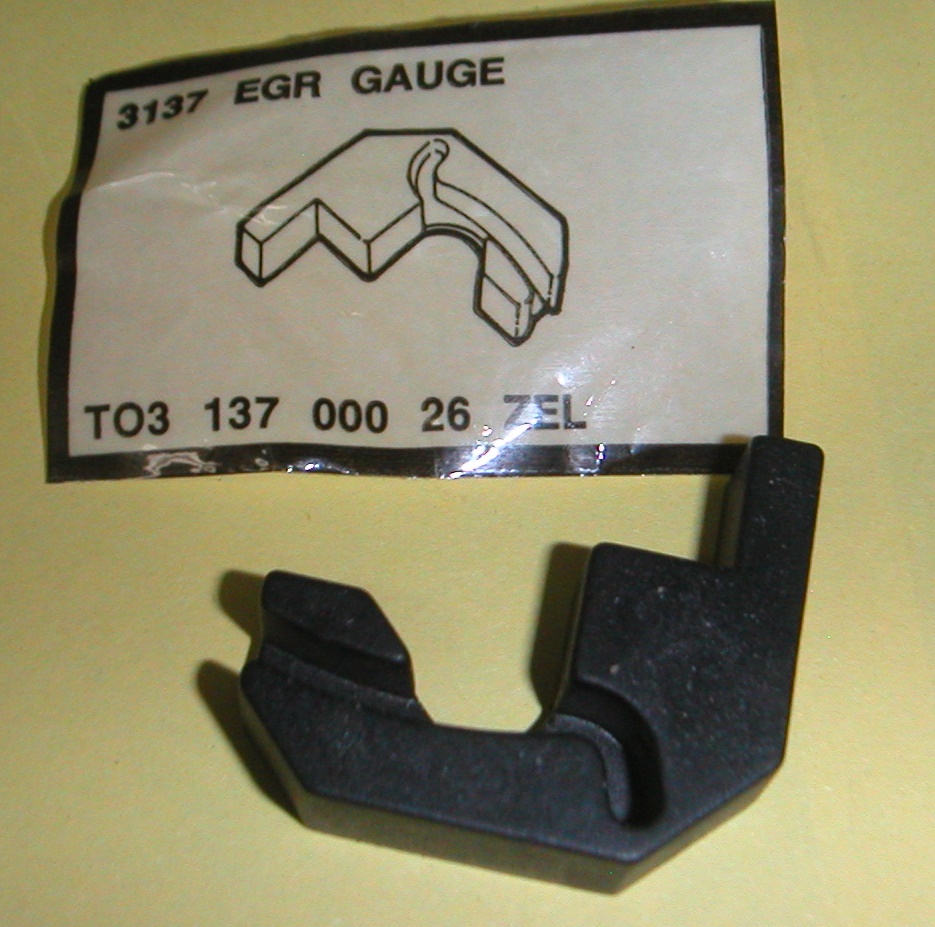

| 3137 | EGR gauge, TO3 137 000 26 ZEL |
 From Zelenda VW Special Tools Catalog |

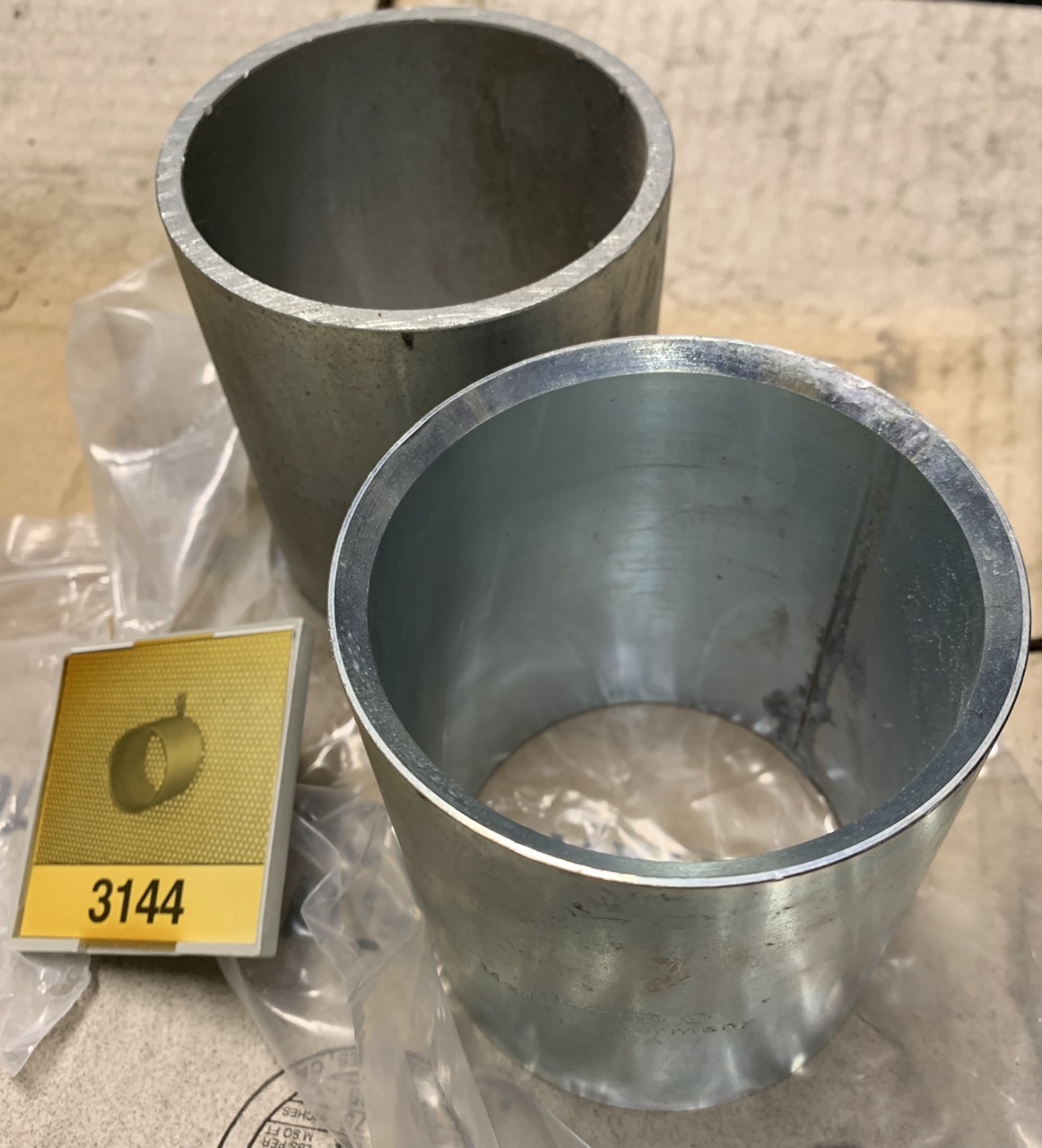

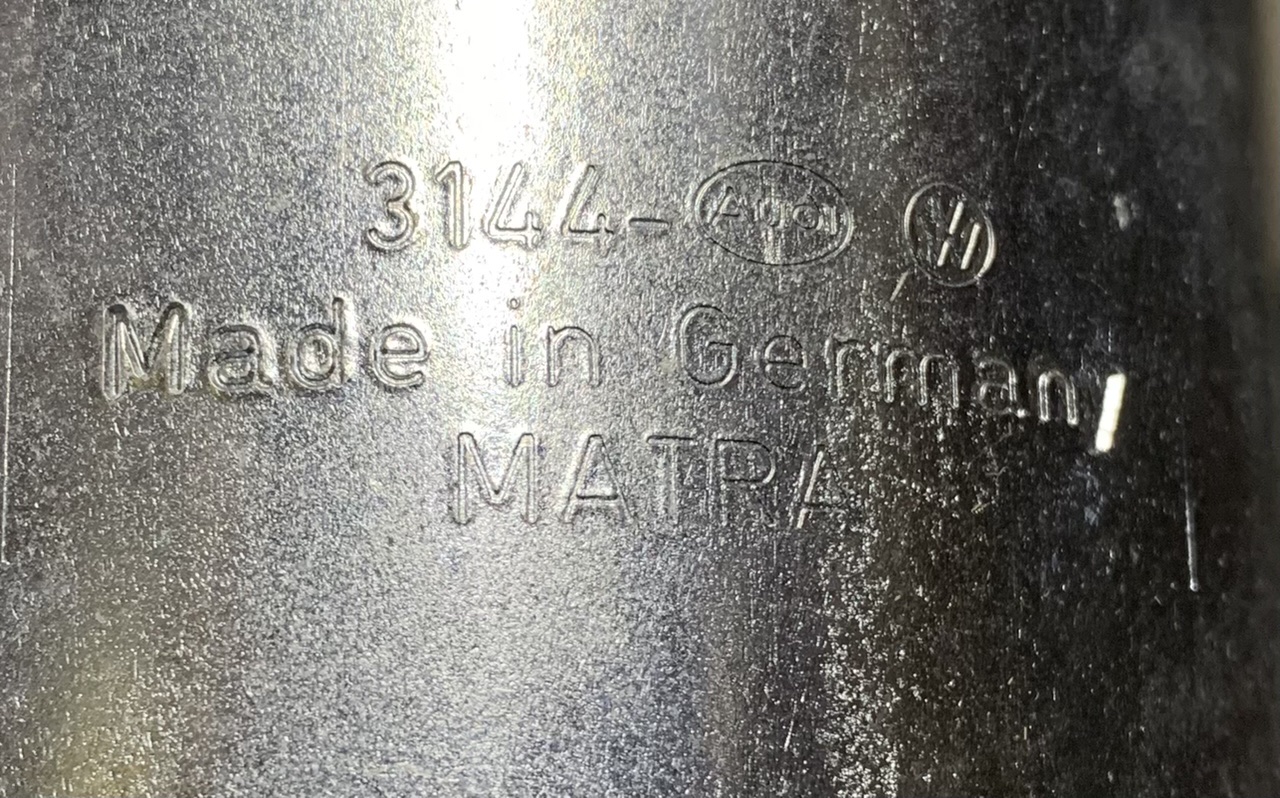

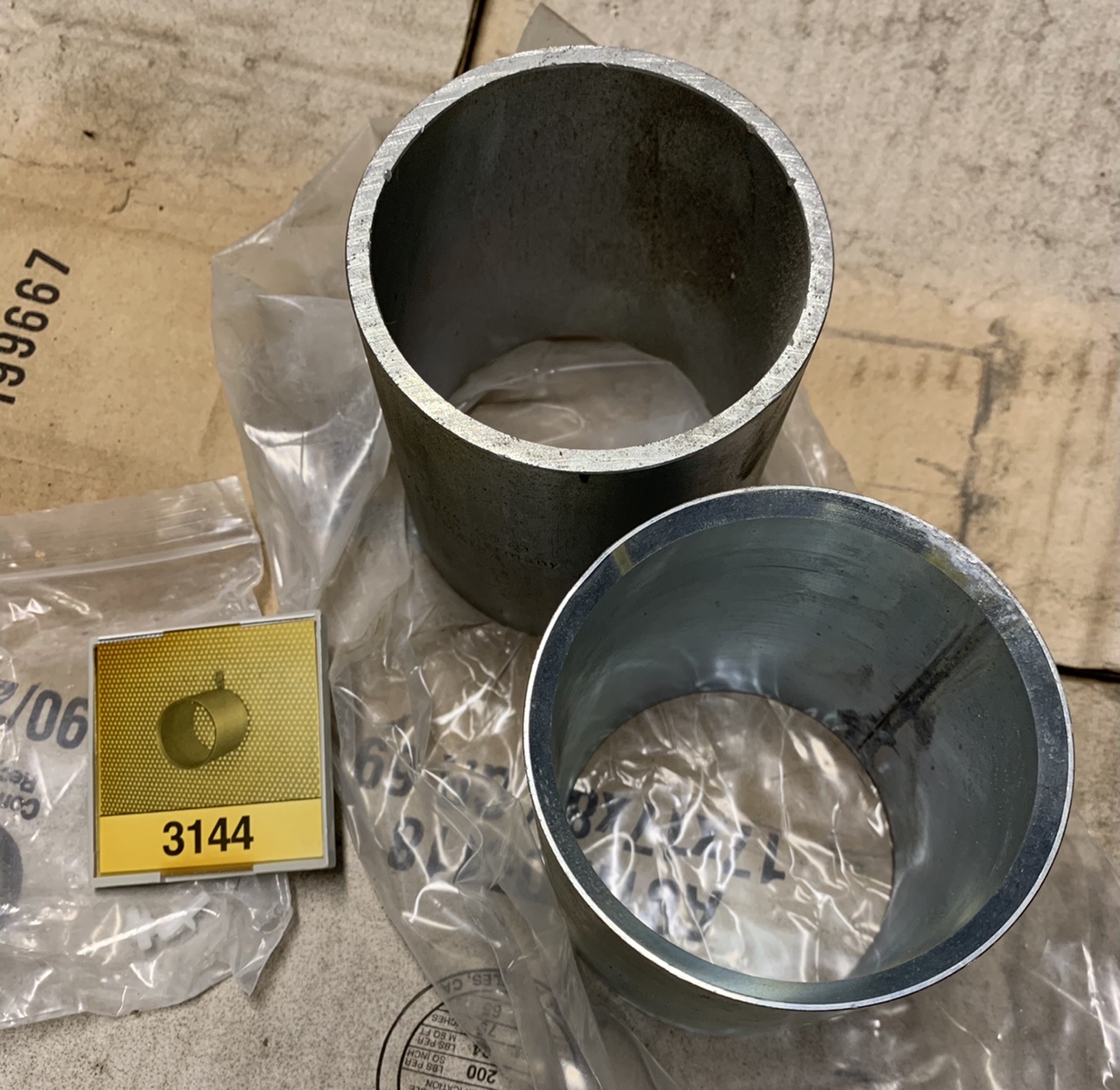

| 3144 | Press Support used to remove and install the front wheel bearings (82mm OD) |

 |
| 3163 | Distributor Trigger Wheel Puller |
 |

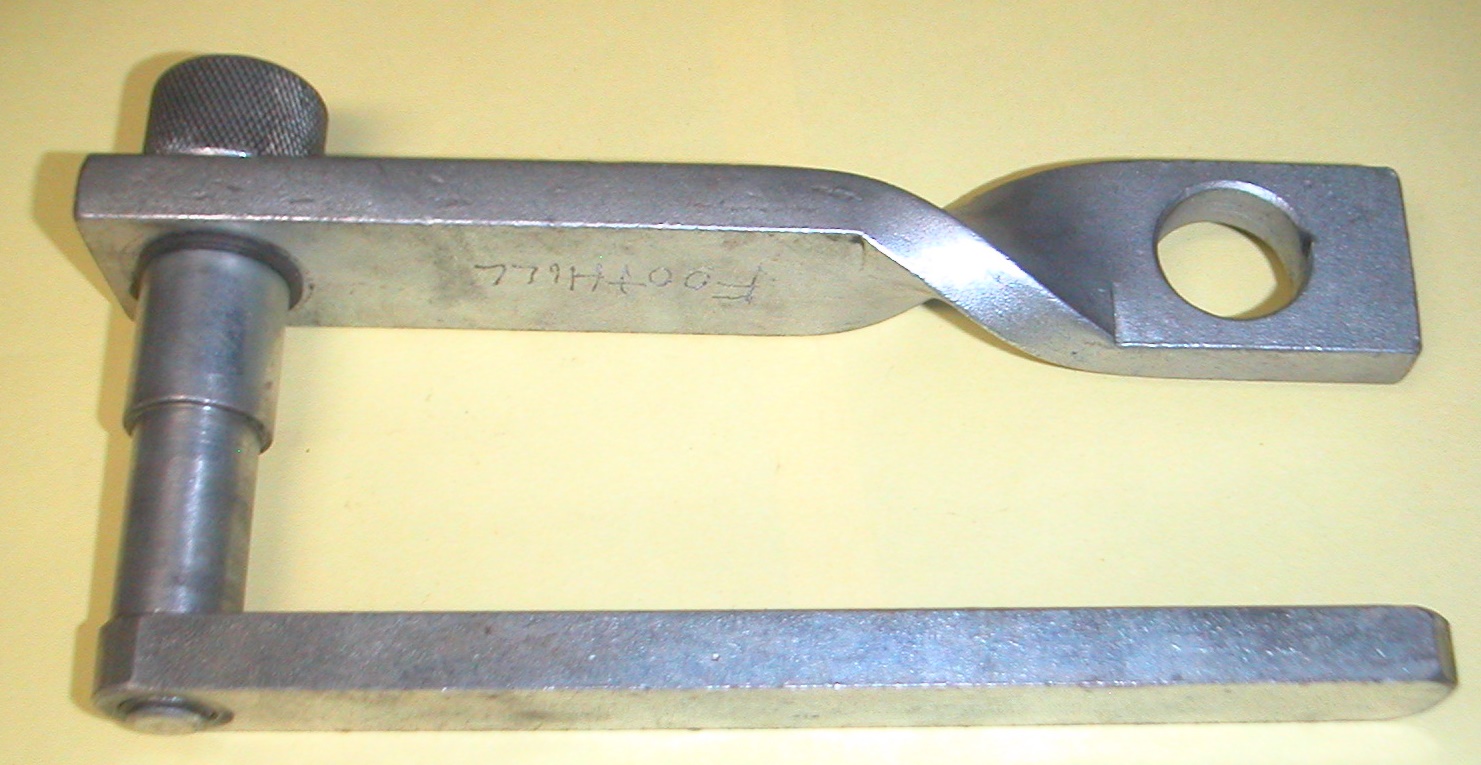

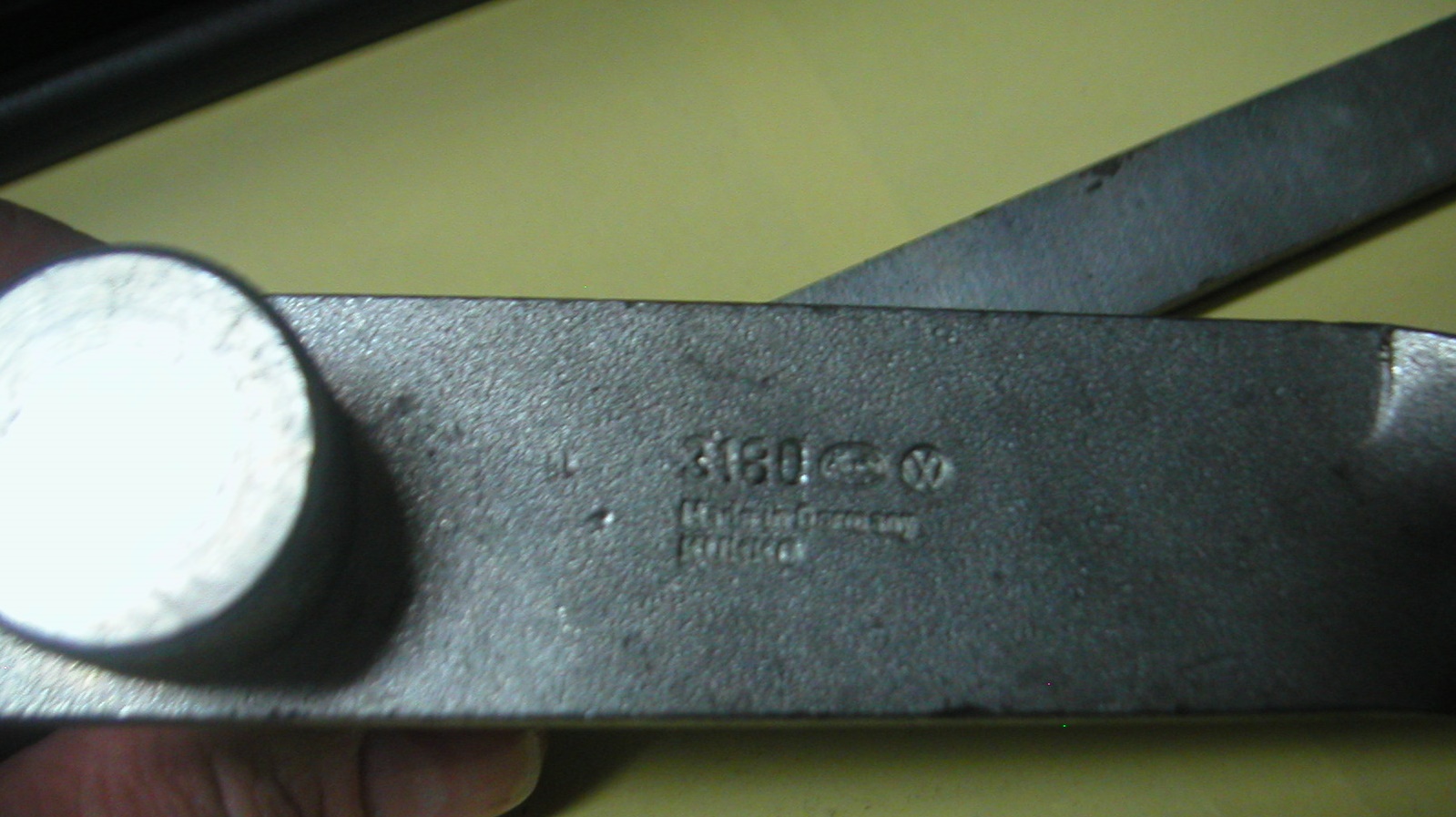

| 3180 |
Retainer Use with 10-222A when removing or installing gearbox on 16 valve engines |
 |

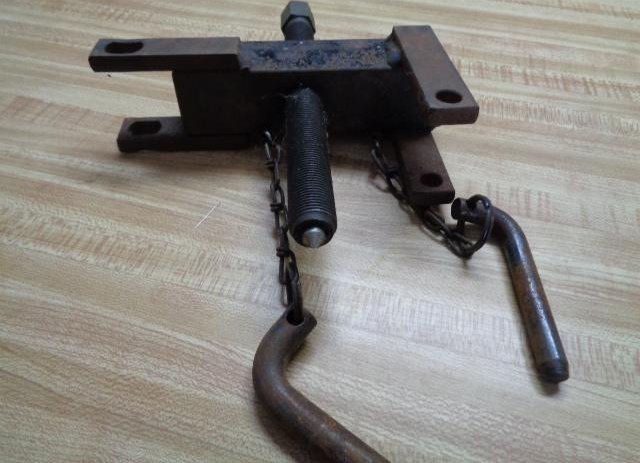

| 3194 |
Bearing Puller |
 |

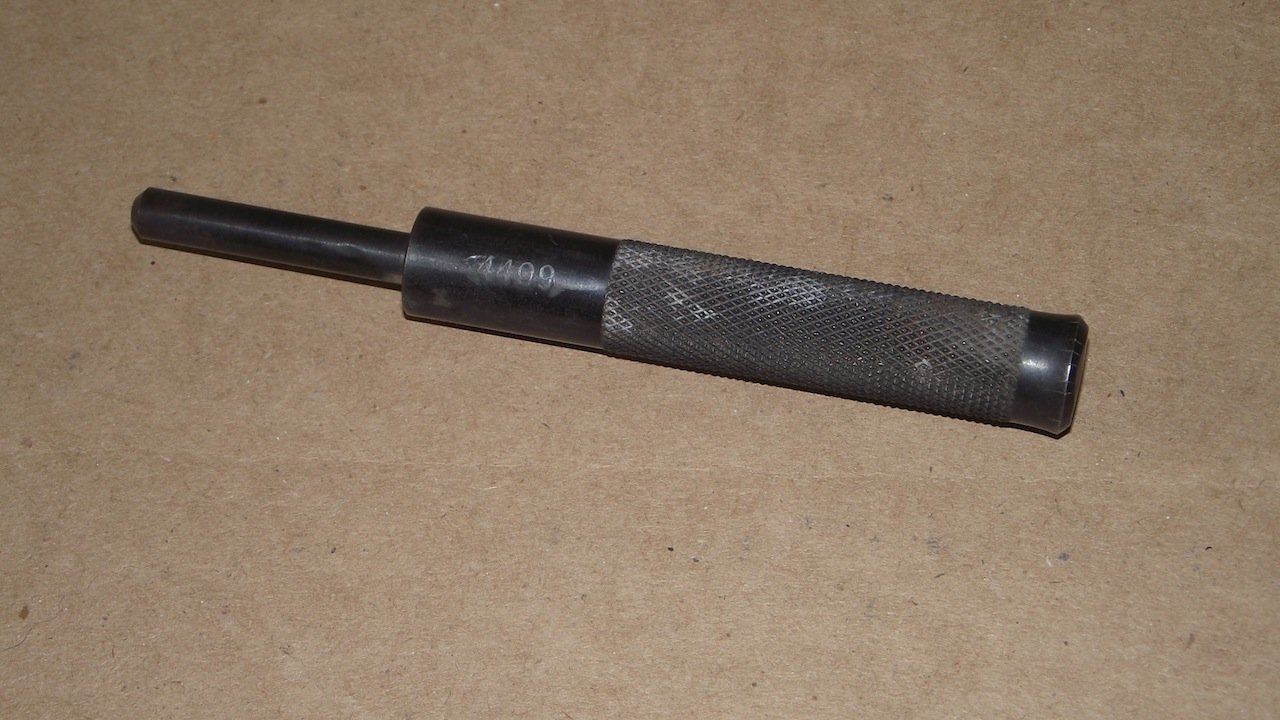

| 4400 | Valve Guide Replacement Kit, complete | From Zelenda VW Special Tools Catalog |
| 4401 | Angle plate with 2 Pins | From Zelenda VW Special Tools Catalog |
| 4401 | Holding plate to level cylinder heads for various repairs - 9.5 degrees | From Baum Tools catalog |
| 4401a | Holding plate
to level cylinder heads for various repairs - 13 degrees - Type 4 | From Baum Tools catalog |
| 4404 | Clamping Plate | From Zelenda VW Special Tools Catalog |
| 4405 | 7/9mm shouldered drill | From Zelenda VW Special Tools Catalog |
| 4406 | 8/11 shouldered drill | From Zelenda VW Special Tools Catalog |
| 4407 | 7mm valve guide drift | From Zelenda VW Special Tools Catalog |
| 4408 | 8mm valve guide drift | From Zelenda VW Special Tools Catalog |
| 4409 | 7mm valve guide arbor |
 From Zelenda VW Special Tools Catalog |

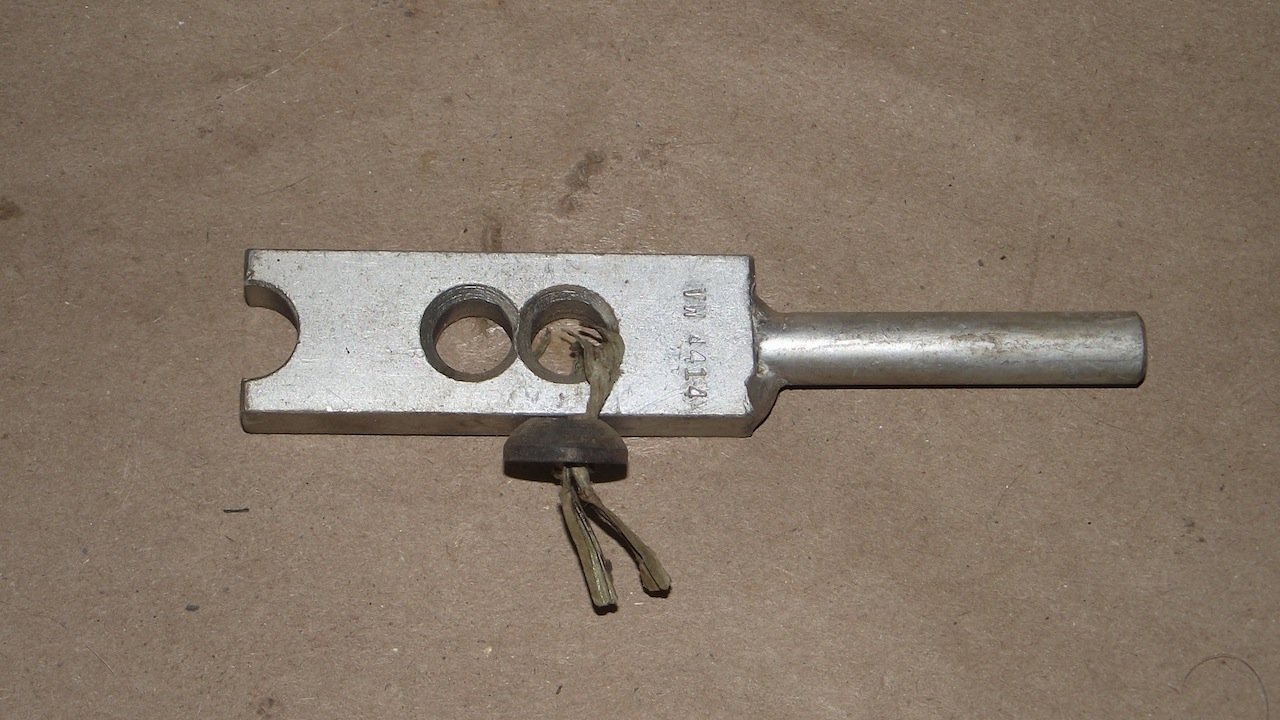

| 4410 | 8mm valve guide arbor | From Zelenda VW Special Tools Catalog |
| 4411 | 7mm reamer See also US 311-2 | From Zelenda VW Special Tools Catalog |
| 4412 | 8mm reamer See also US 311-3 | From Zelenda VW Special Tools Catalog |
| 4414 | Drill guide kit Recommend for use with 4400. This kit helps avoid breakage of the shouldered drills. | From Zelenda VW Special Tools Catalog |
| 4414 | Installation
of clutch oil seal and gear selector shaft - Rabbit, Diesel |
From Baum Tools catalog |

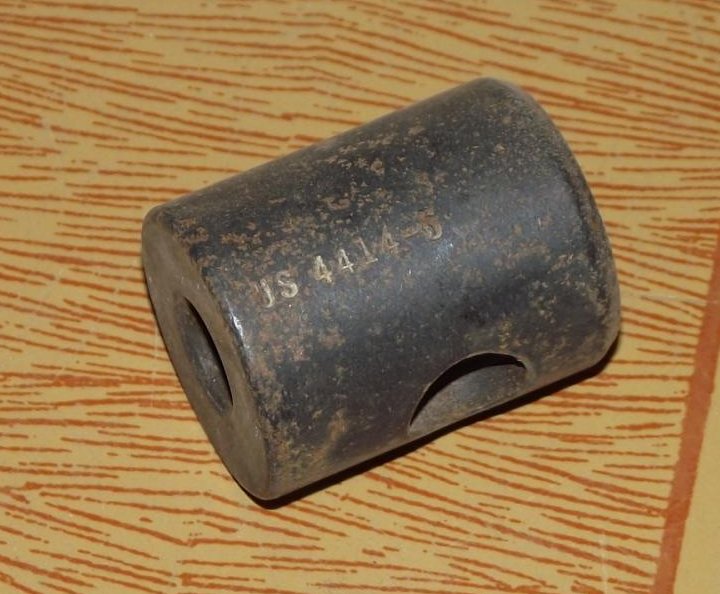

| 4414-5 | Drill guide
kit Recommend for use with 4400 This kit helps avoid breakage of the shouldered drills |
 |

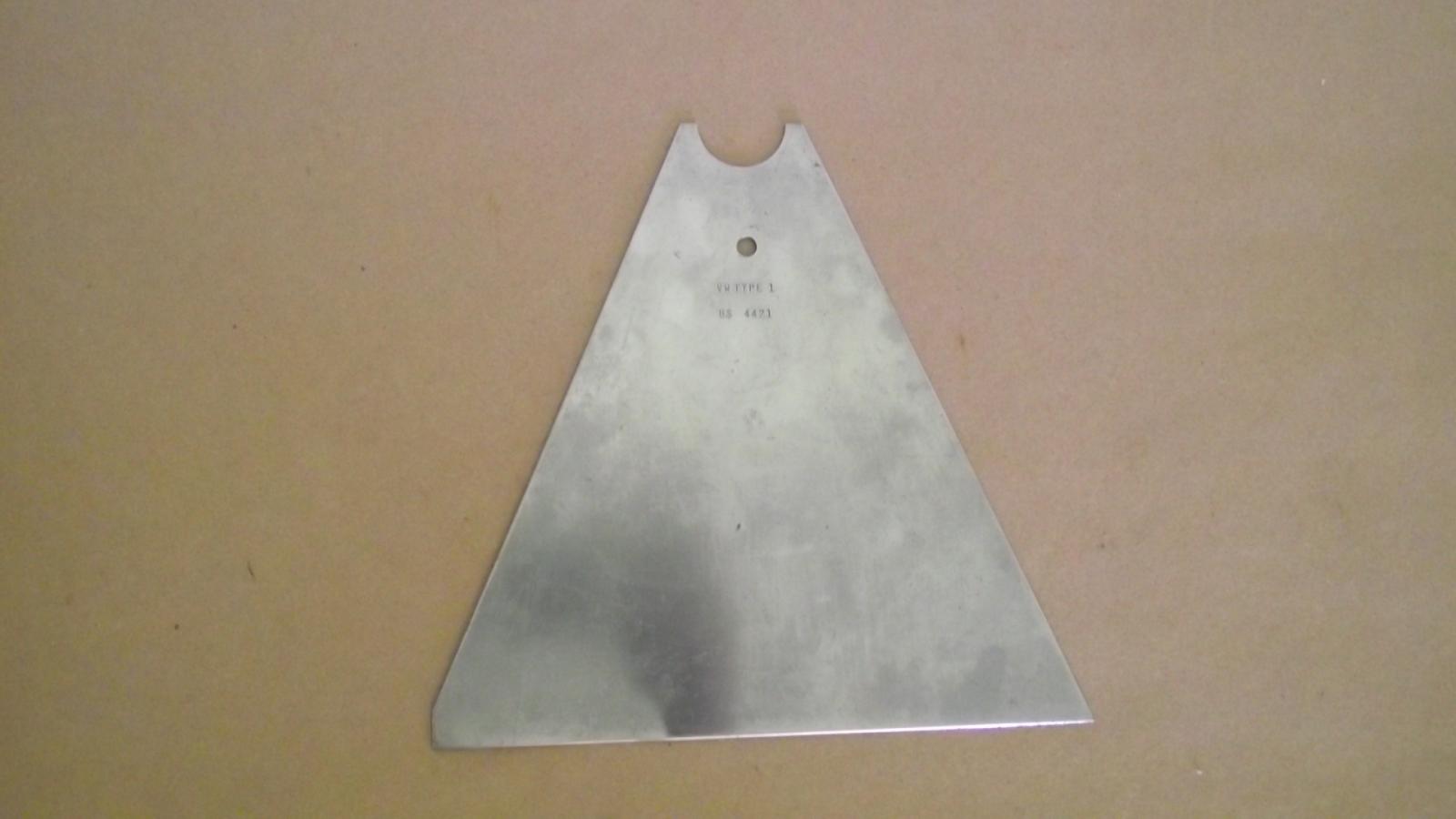

| 4415 | Tap and drill set for installing crankcase inserts - 5 pieces | From Baum Tools catalog |
| 4420 | Valve guide
clearance checking device VWoA Serv. Circular 0-46-66 Replaces 689/1 | From Zelenda VW Special Tools Catalog |
| 4420-1 | Base plate for magnet with eccenter | From Zelenda VW Special Tools Catalog |
| 4420-2 | Eccentric pin | From Zelenda VW Special Tools Catalog |
| 4420-3 | Universal magnet with 2 adjustable bars and universal joint | From Zelenda VW Special Tools Catalog |
| 4420-4 | Dial indicator bracket | From Zelenda VW Special Tools Catalog |
| 4420-5 | Flat extension with 2.6mm screw | From Zelenda VW Special Tools Catalog |
| 4420-6 | Two 8mm wing
nuts To fasten cylinder on clamping plate | From Zelenda VW Special Tools Catalog |
| 4421 | Template for
master cylinder pushrod adjustment - Type 1 |
From Baum Tools catalog |

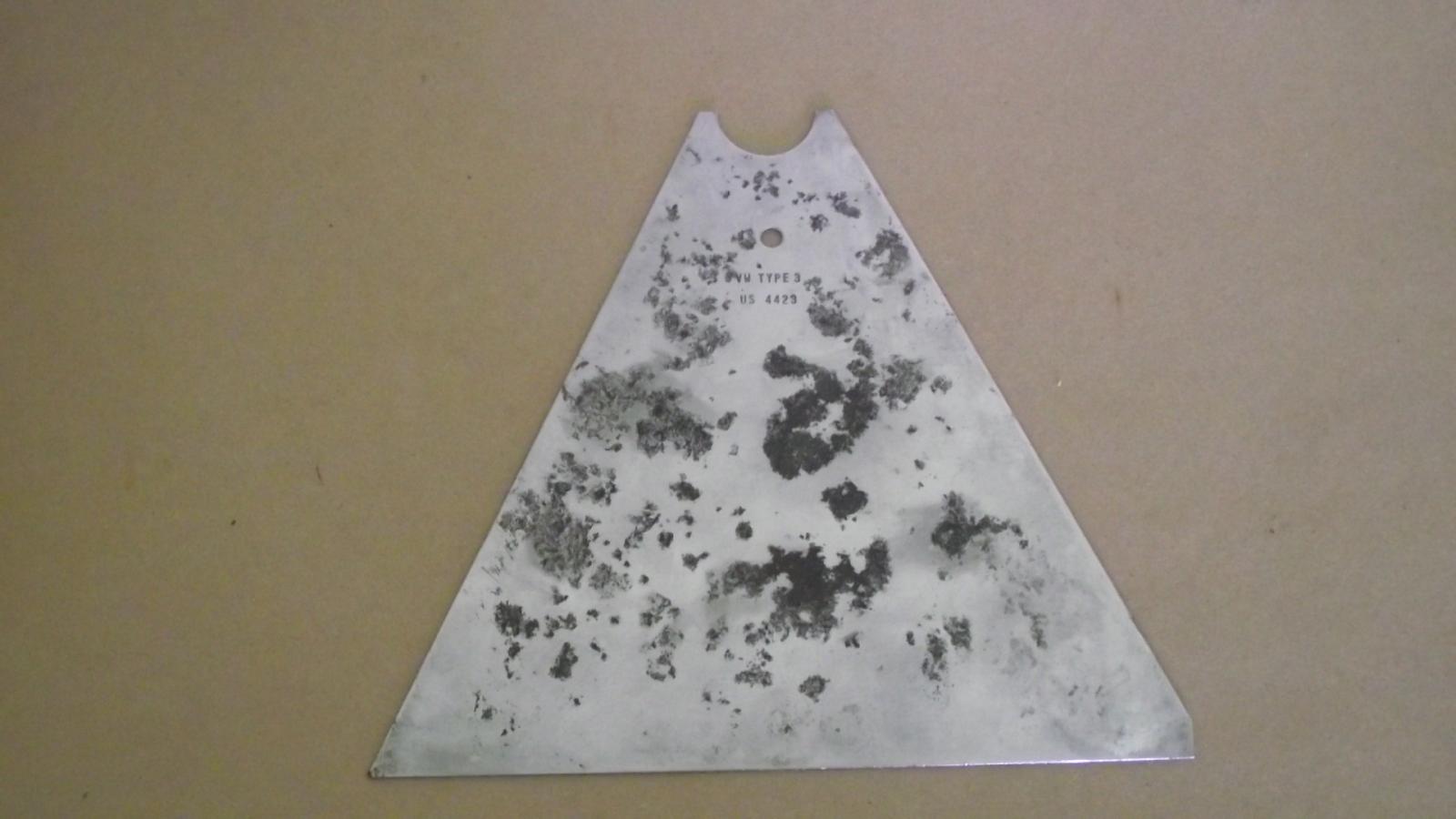

| 4423 | Template for
master cylinder pushrod adjustment - Type 3 |
From Baum Tools catalog |
| 4424 | Support bar Used with disc brake tool | From Zelenda VW Special Tools Catalog |
| 4425 | Sleeve for
master cylinder washer - Type 1, Type 3 | From Baum Tools catalog |
| 4426 | Sleeve for
master cylinder washer - Type 2 | From Baum Tools catalog |
| 4427 | Installing
sleeve For installing the ball joint rubber boots | From Zelenda VW Special Tools Catalog |
| 4428 | Door pin lubrication attachment | From Baum Tools catalog |

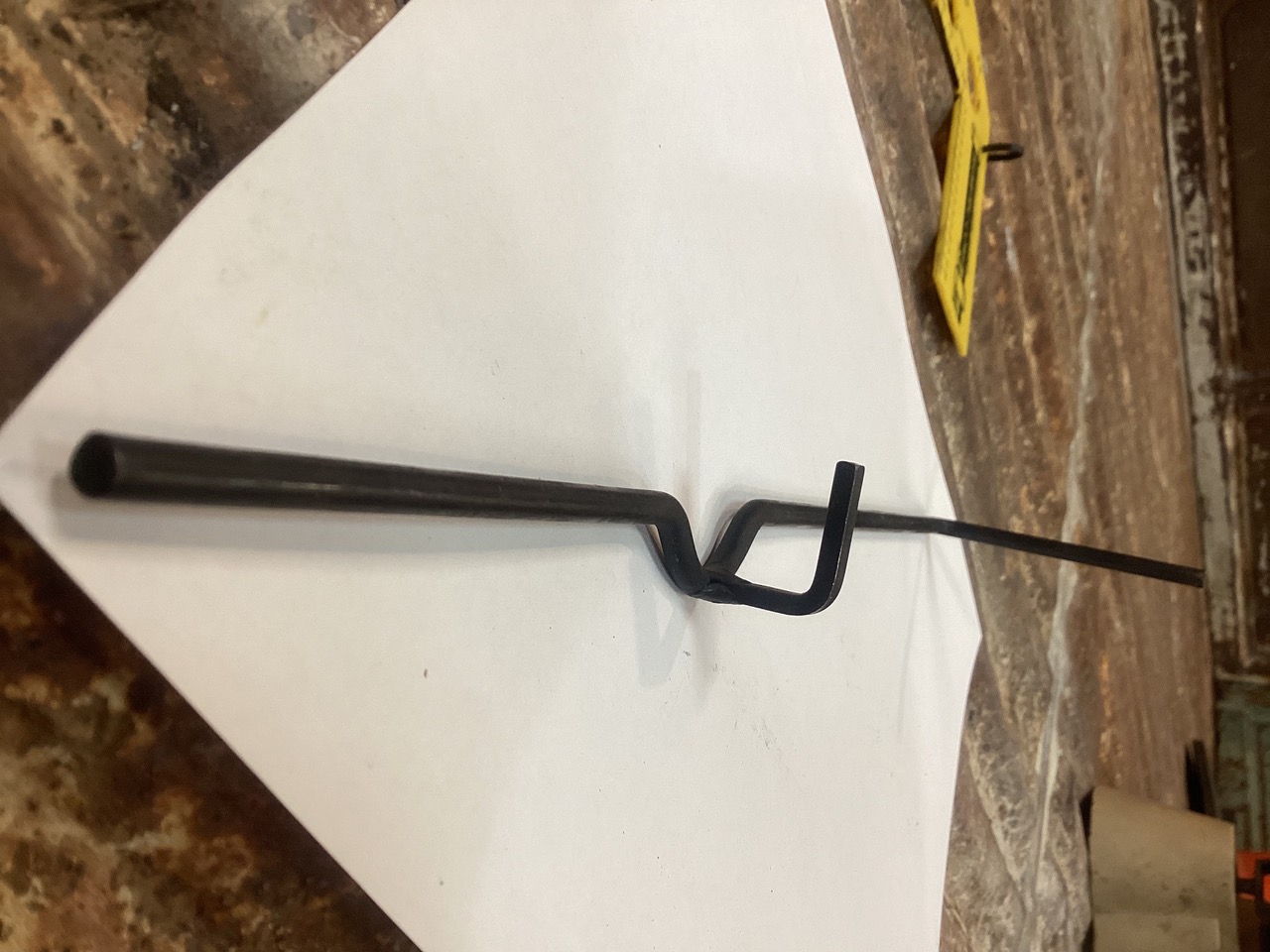

| 4429 | Fan belt tension
checking device - Type 1, Type 2 | From Baum Tools catalog |

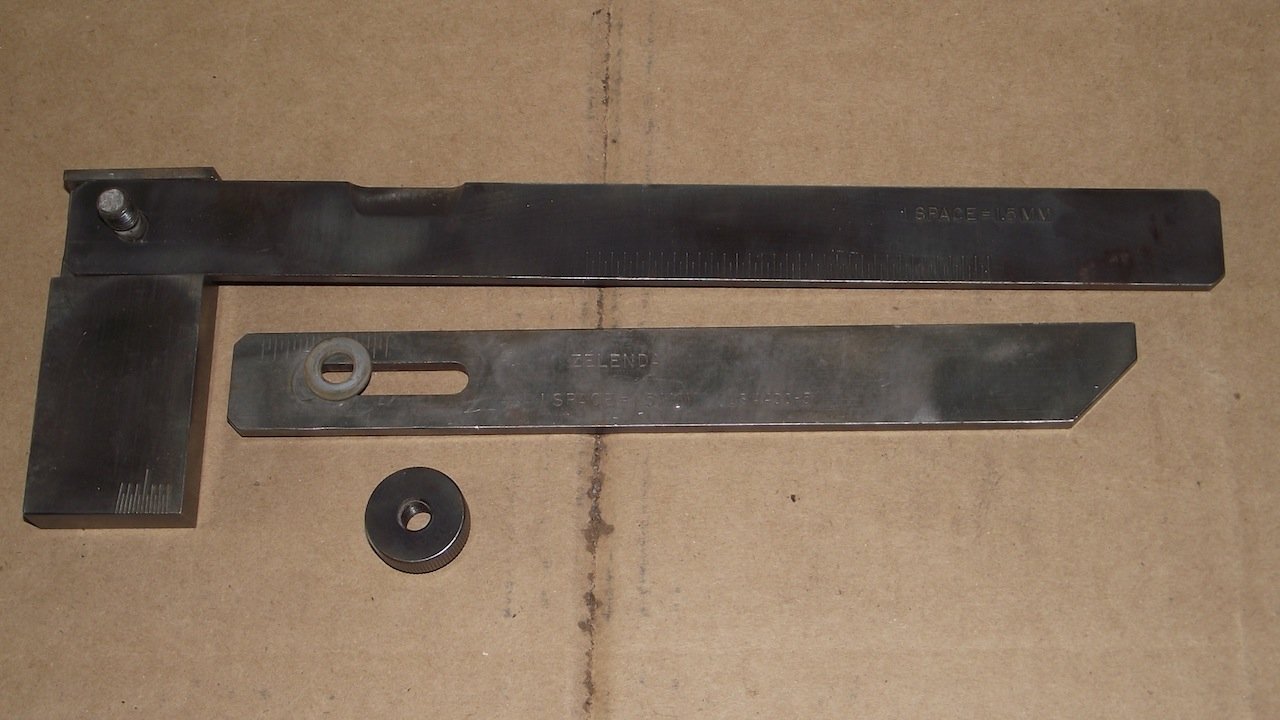

| 4430 | Frame jig To check misalignment and for replacement of frame head Includes 4430-5 | From Zelenda VW Special Tools Catalog |
| 4430-5 | Protractor for
measuring Used in connection with 4430 |
 From Zelenda VW Special Tools Catalog |
| 4431 | Distance Bridge: Center points distance 40mm – Type 1 Automatic |
From Baum Tools catalog |

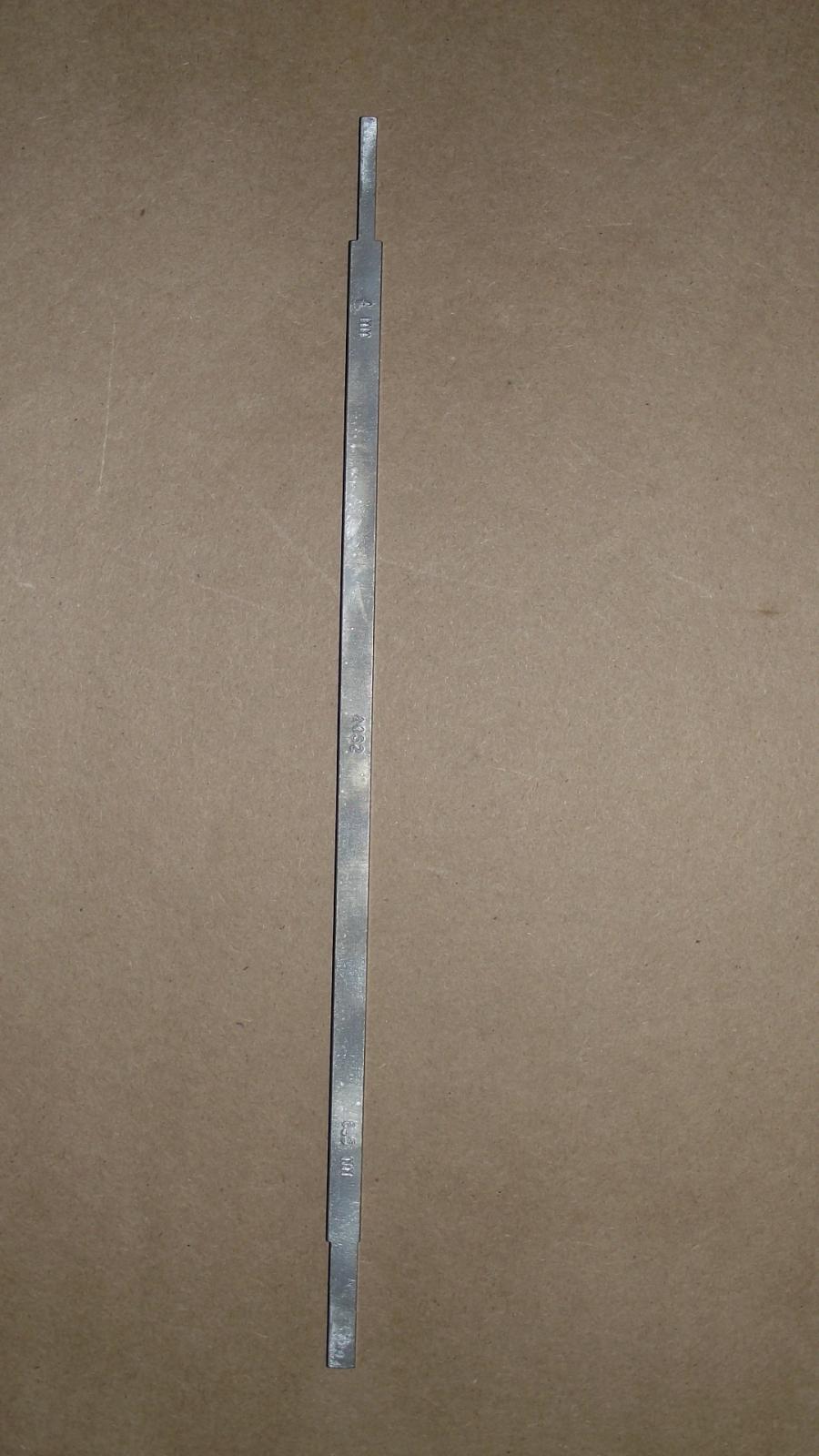

| 4432 | Clutch gauge for automatic stick shift, 4mm - 6.5mm |
From Baum Tools catalog |
| 4433 | Feeler blade, 5" long | From Baum Tools catalog |
| 4434 | Distance bridge for clutch adjustment | From Baum Tools catalog |

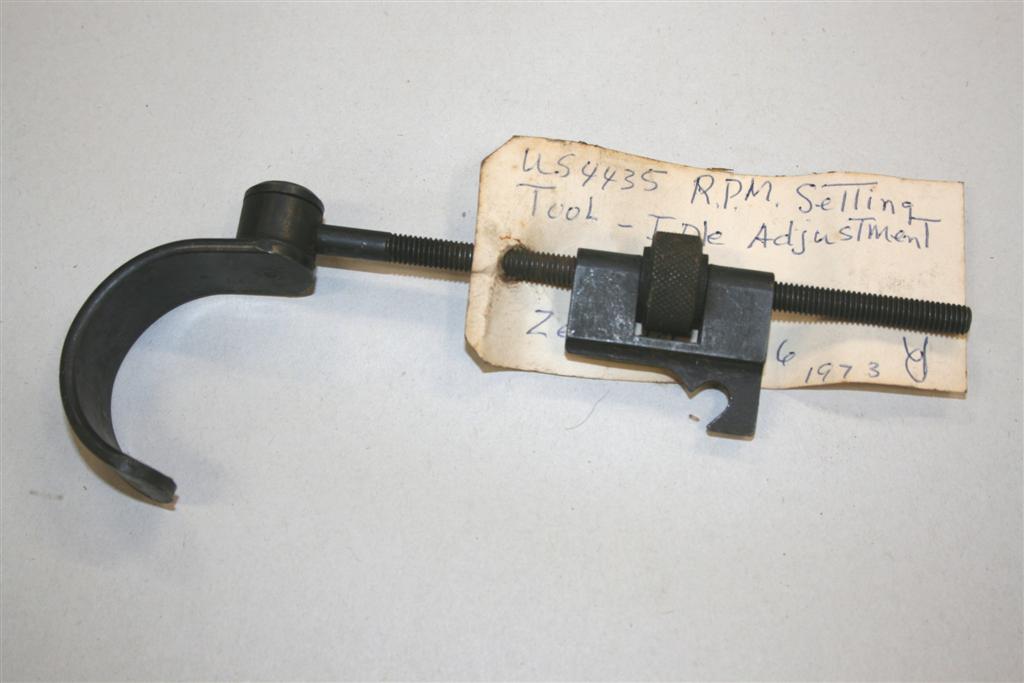

| 4435 | RPM Setting Tool For idle adjustment |
 |
| 4436 | Transmission
alignment tool For type 4 manual transmission |
 |

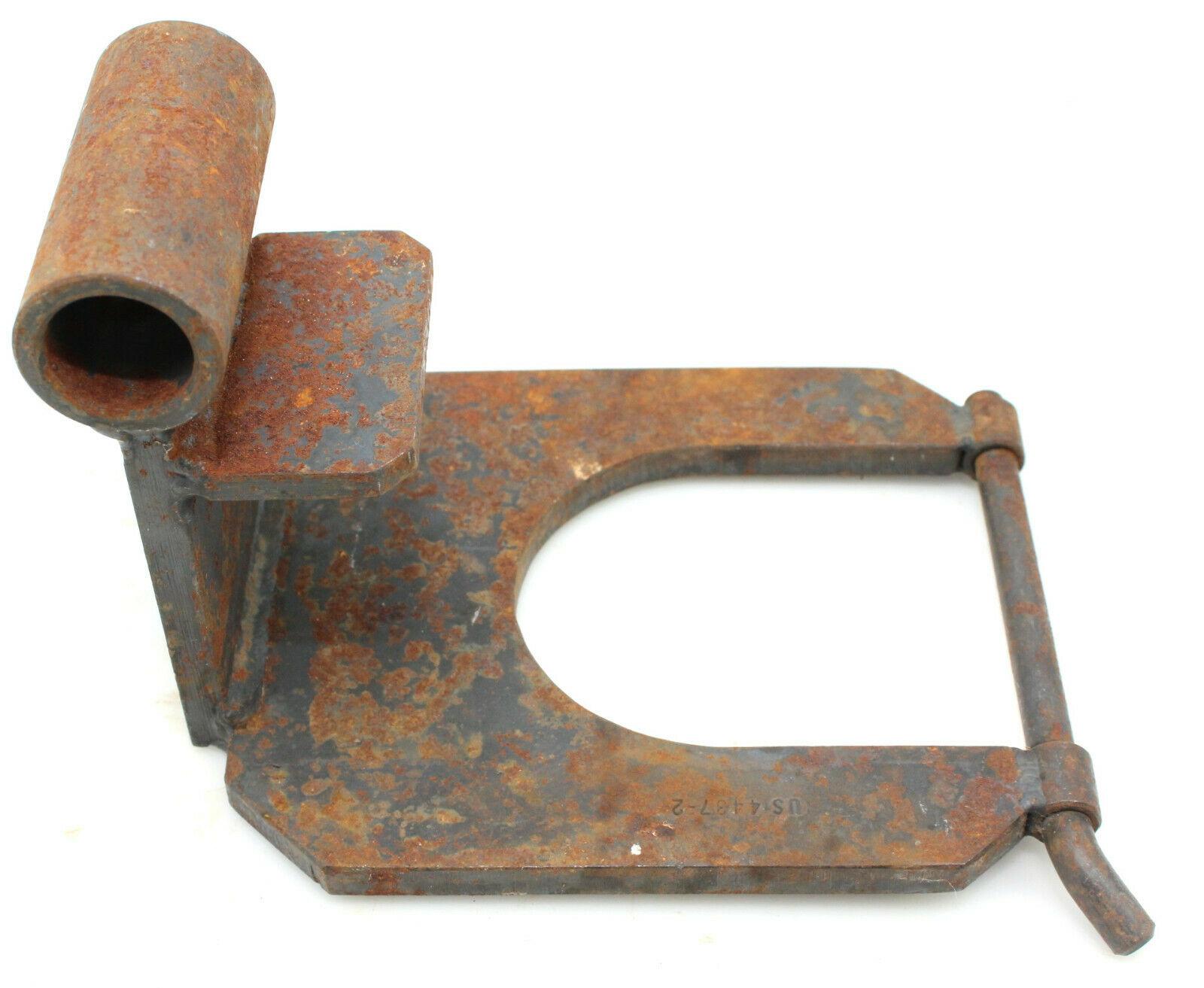

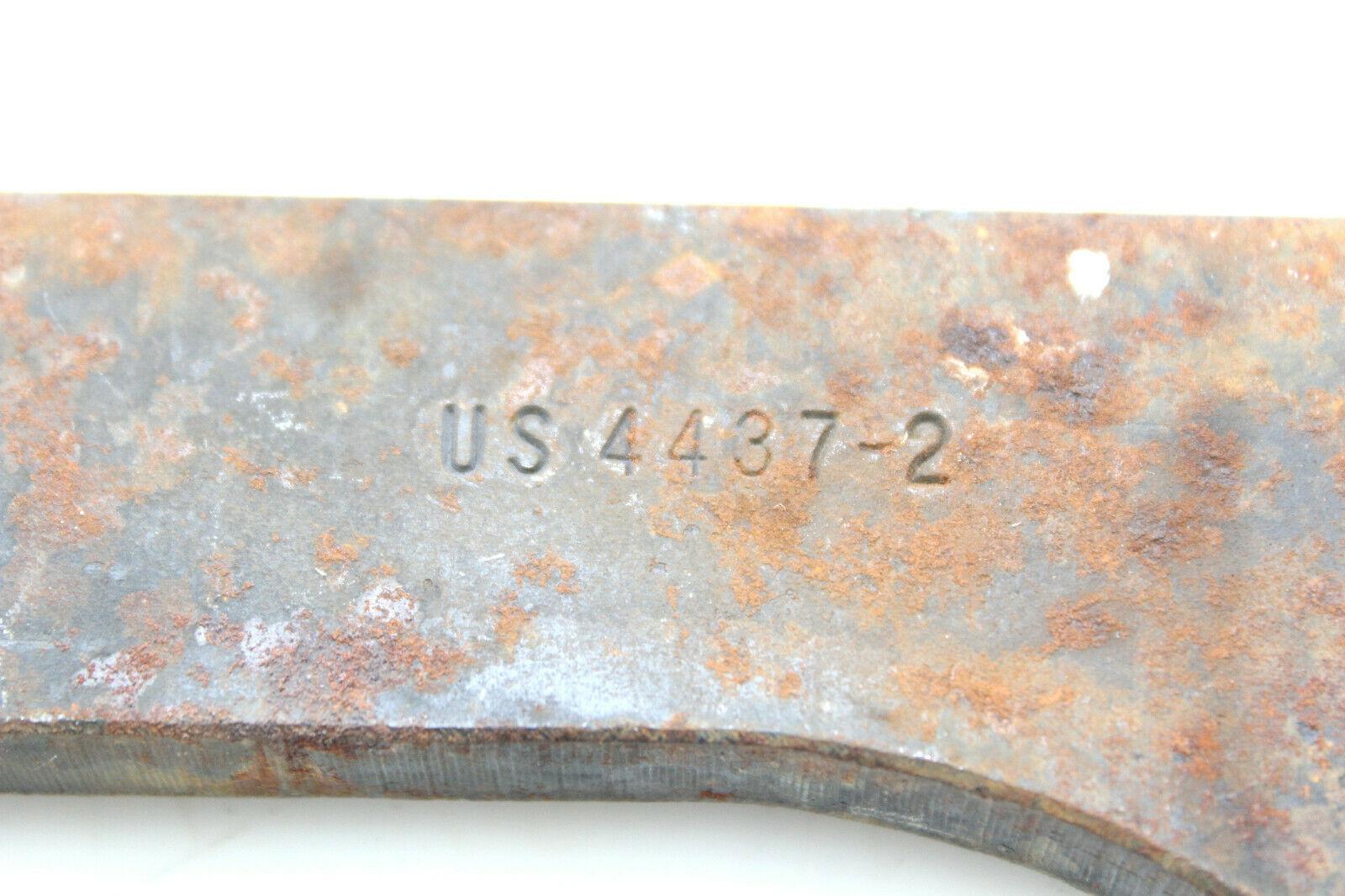

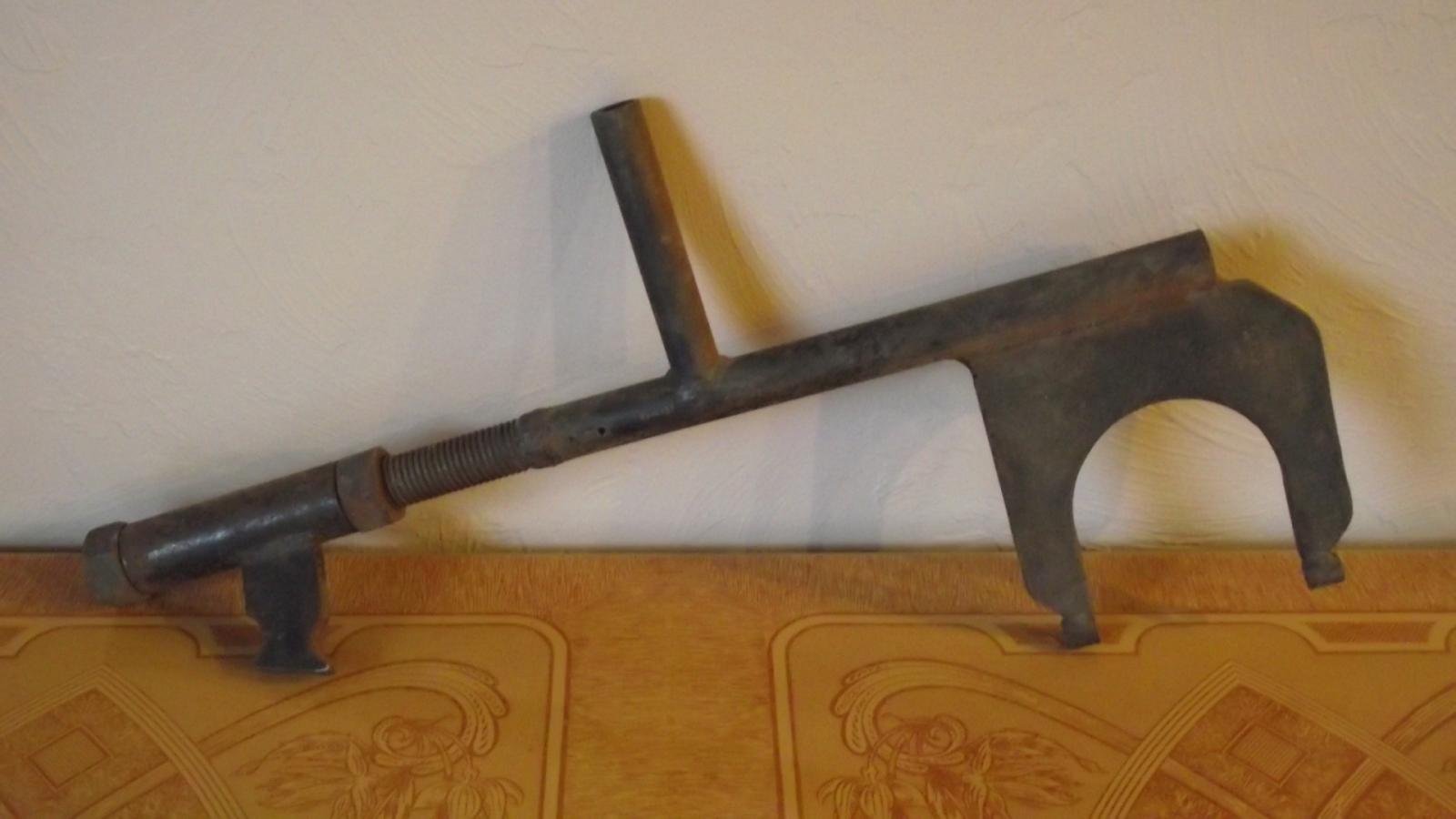

| 4437 | Adjusting device For adjusting rear camber and toe in - Type 3/4? |

 |
| 4437a | Rear wheel
alignment tool - Modified for all current models - Type 1, 2, 3 | From Baum Tools catalog |
| 4439 | Bearing separator for multiple press operations | From Baum Tools catalog |
| 4450 | Complete oil seal installing kit |
From Baum Tools catalog US4450:
 |
| 4451 | Puller for
torque converter bushing - Type 1 | From Baum Tools catalog |
| 4452 | Puller for
torque converter bushing - Type 2, 3, 4, Rabbit, Scirocco Dasher, Fox Use with 691b, 228a or 201 bar | From Baum Tools catalog |
| 4454 | Adapters for 1079 and 1078 |
From Baum Tools catalog  |

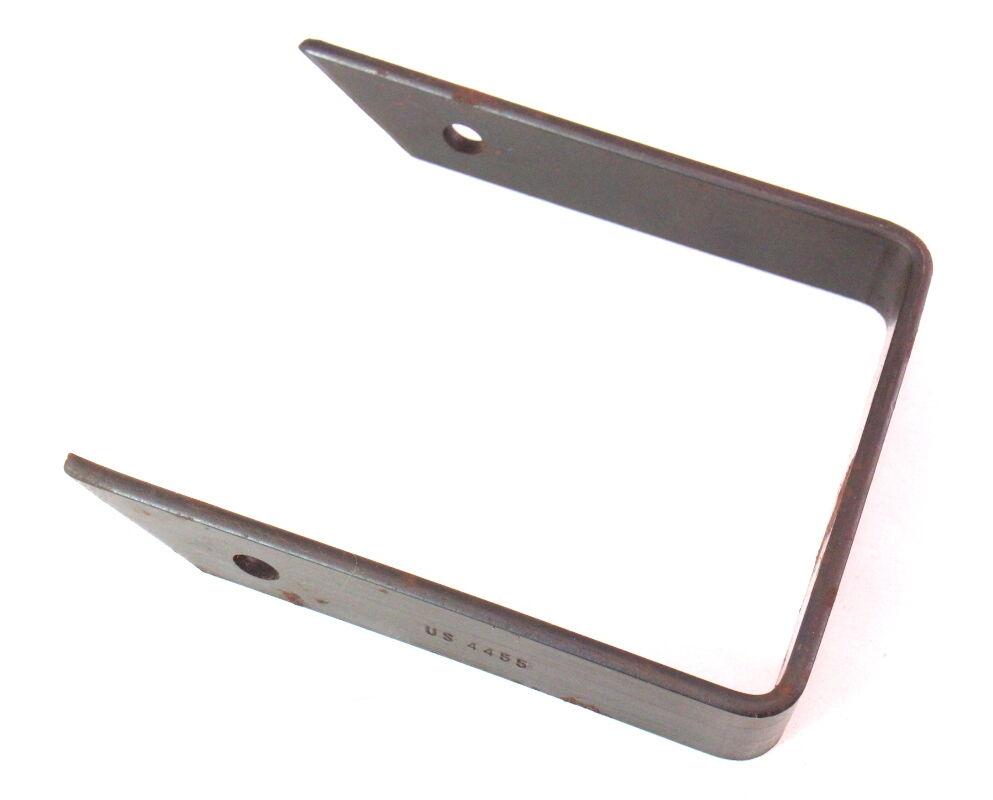

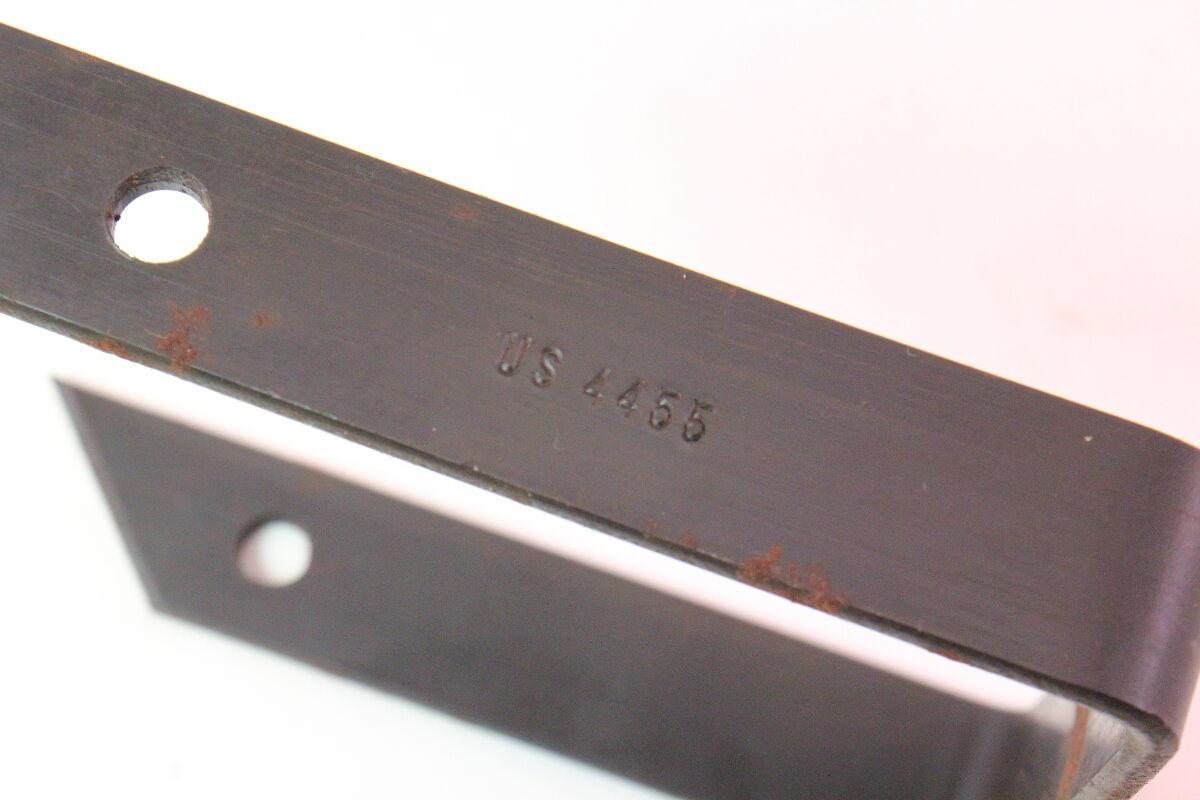

| 4455 | Use with 385 for adjustment of tapered roller bearing rings |
From Baum Tools catalog
 |

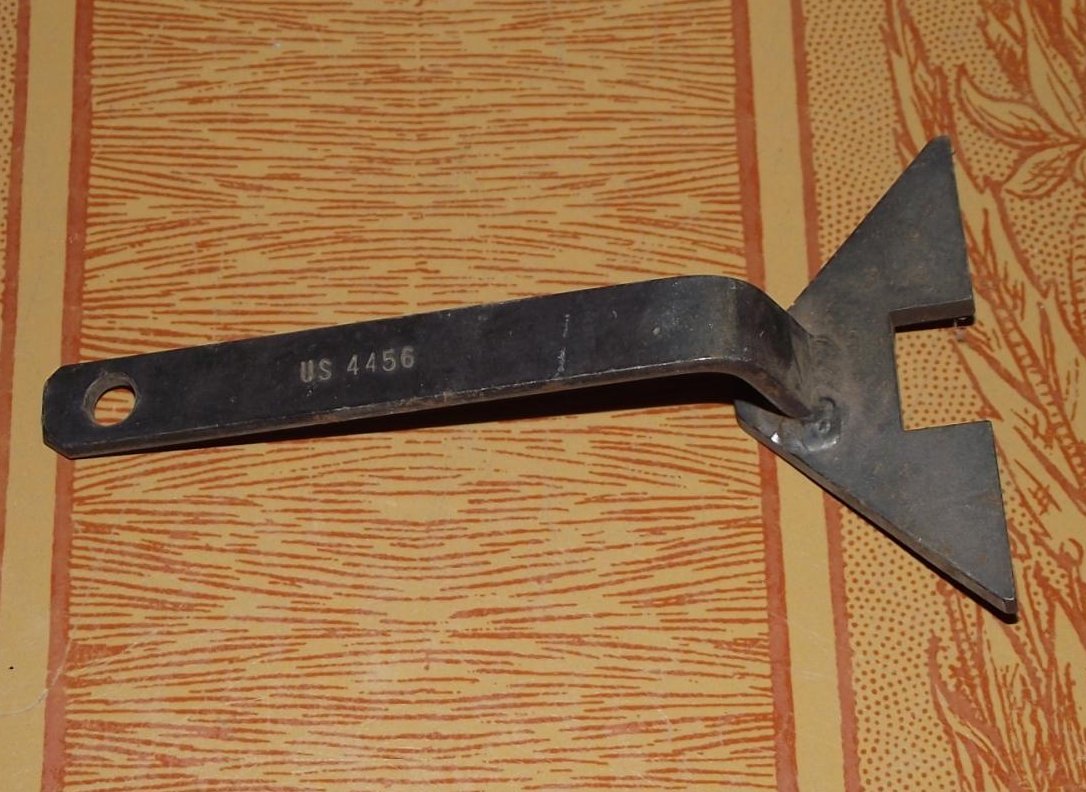

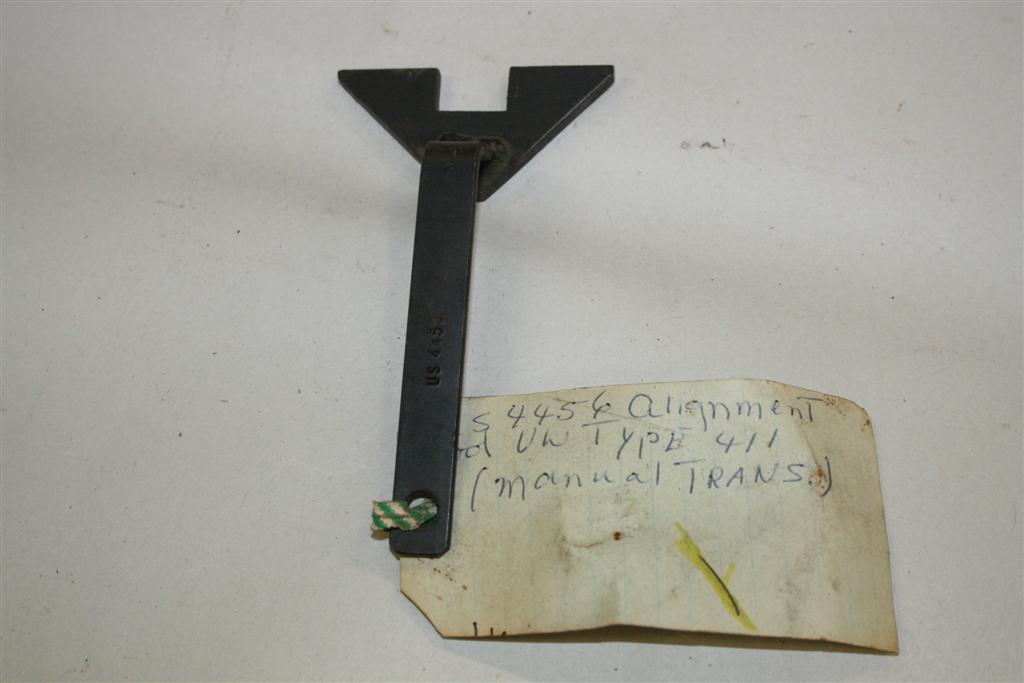

| 4456 | Transmission
alignment tool For type 4 manual transmission. |
 |
| 4460 | Pry bar for
checking ball joint wear - Rabbit, Scirocco | From Baum Tools catalog |
| 4462 | Oil filter remover | From Baum Tools catalog |
| 4463 | Special TDC
sensor and gearshift plug socket pump lines - Dasher, Rabbit, Scirocco | From Baum Tools catalog |
| 4463a | Gearshift end
plug removal - Dasher, Rabbit, Scirocco | From Baum Tools catalog |
| 4464 | Puller for
removal of governor seal and needle bearing - Rabbit, Scirocco, Fox | From Baum Tools catalog |
| 4467 | Radiator
pressure tester adaptor for US-made tester - Rabbit, Scirocco | From Baum Tools catalog |

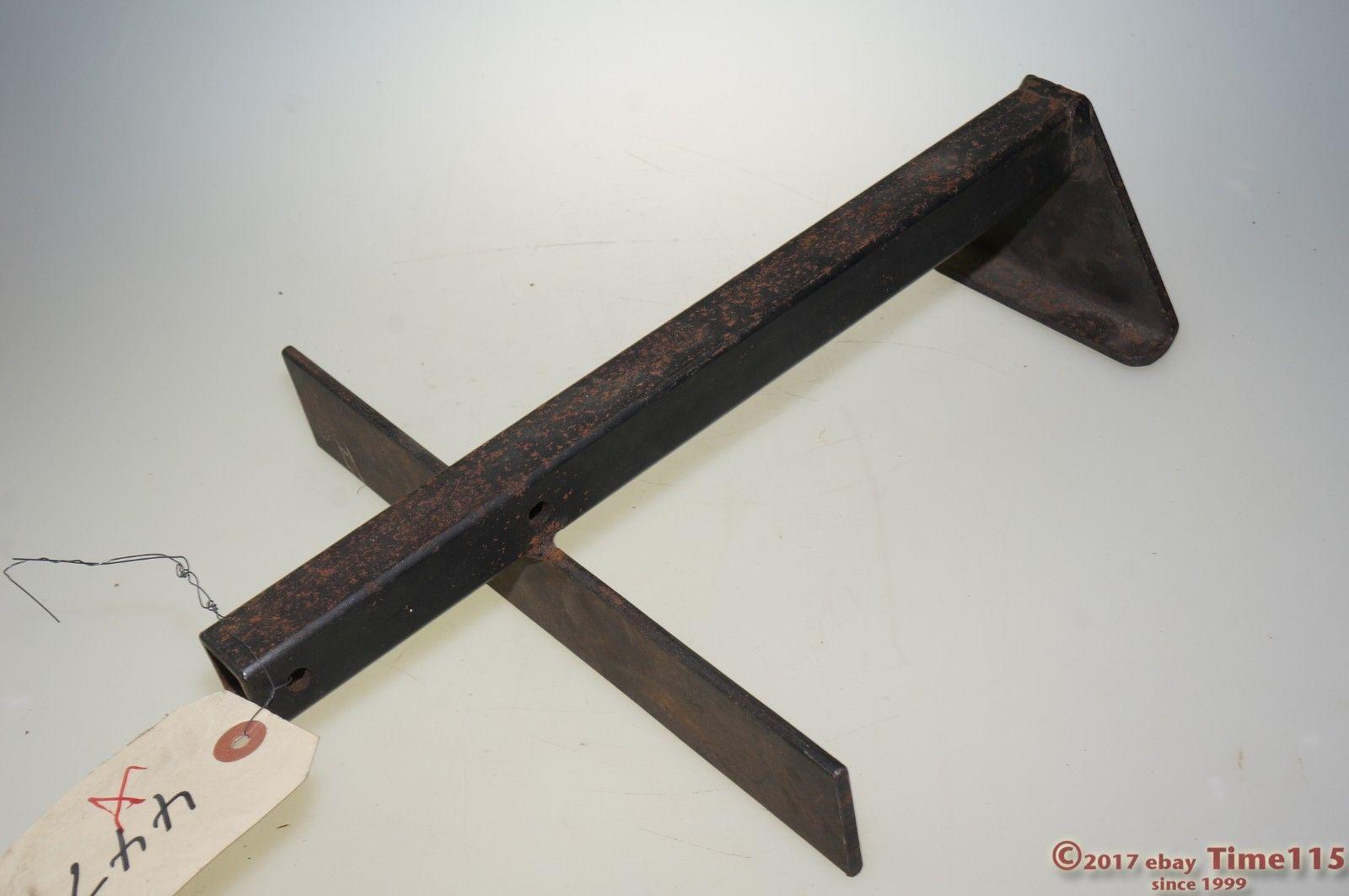

| 4470 | Unknown |
 |
| 4471 | Camber adjusting
tool - Dasher, Fox | From Baum Tools catalog |
| 4474 | Oil filter
removal wrench - Rabbit, Diesel | From Baum Tools catalog |
| 4475 | Remove and
install coil spring - Rabbit, Dasher, Fox, Scirocco | From Baum Tools catalog |
| 4476 | Remove valve
adjustment disc - Rabbit, Dasher, Fox, Scirocco | From Baum Tools catalog |

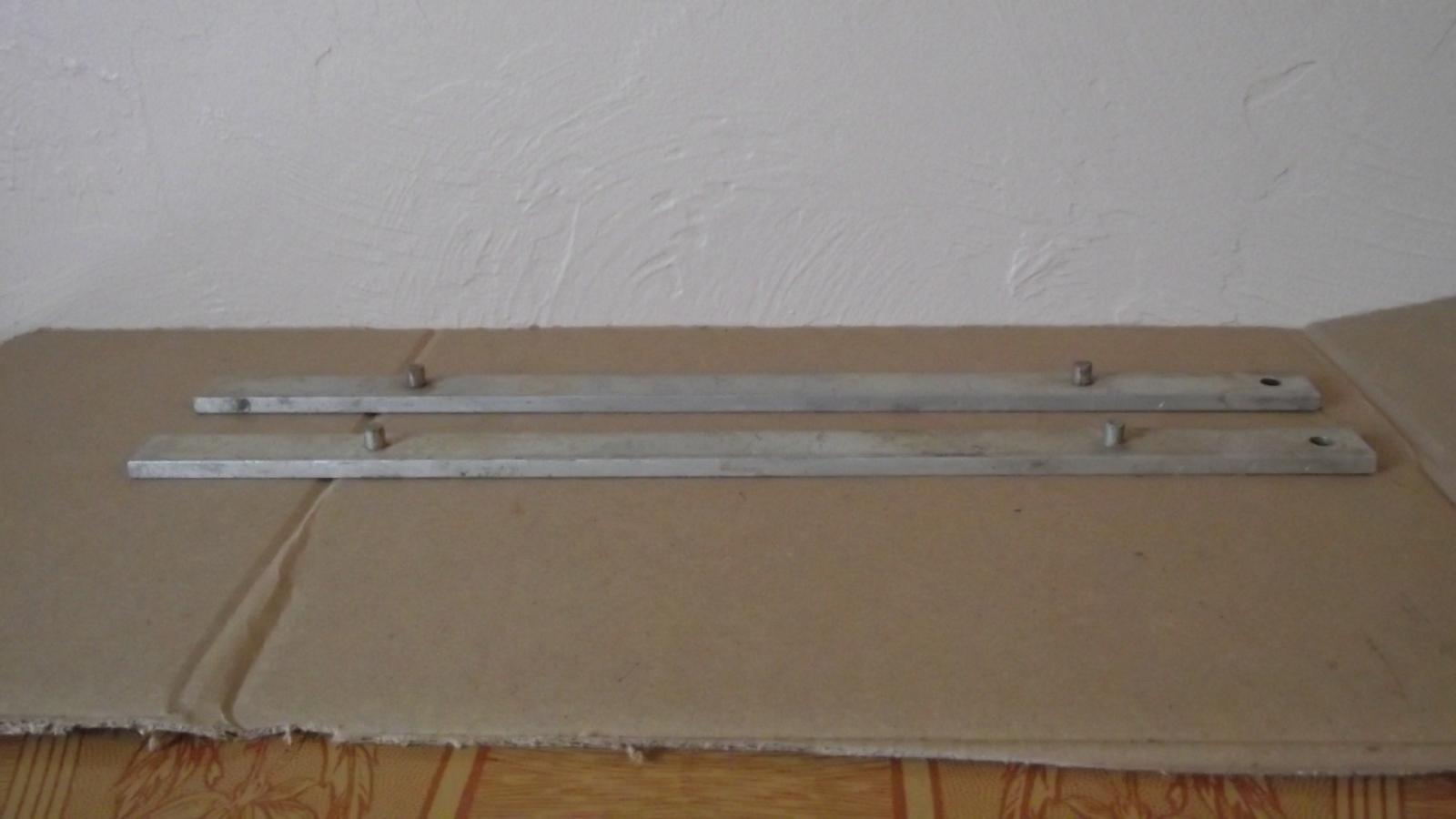

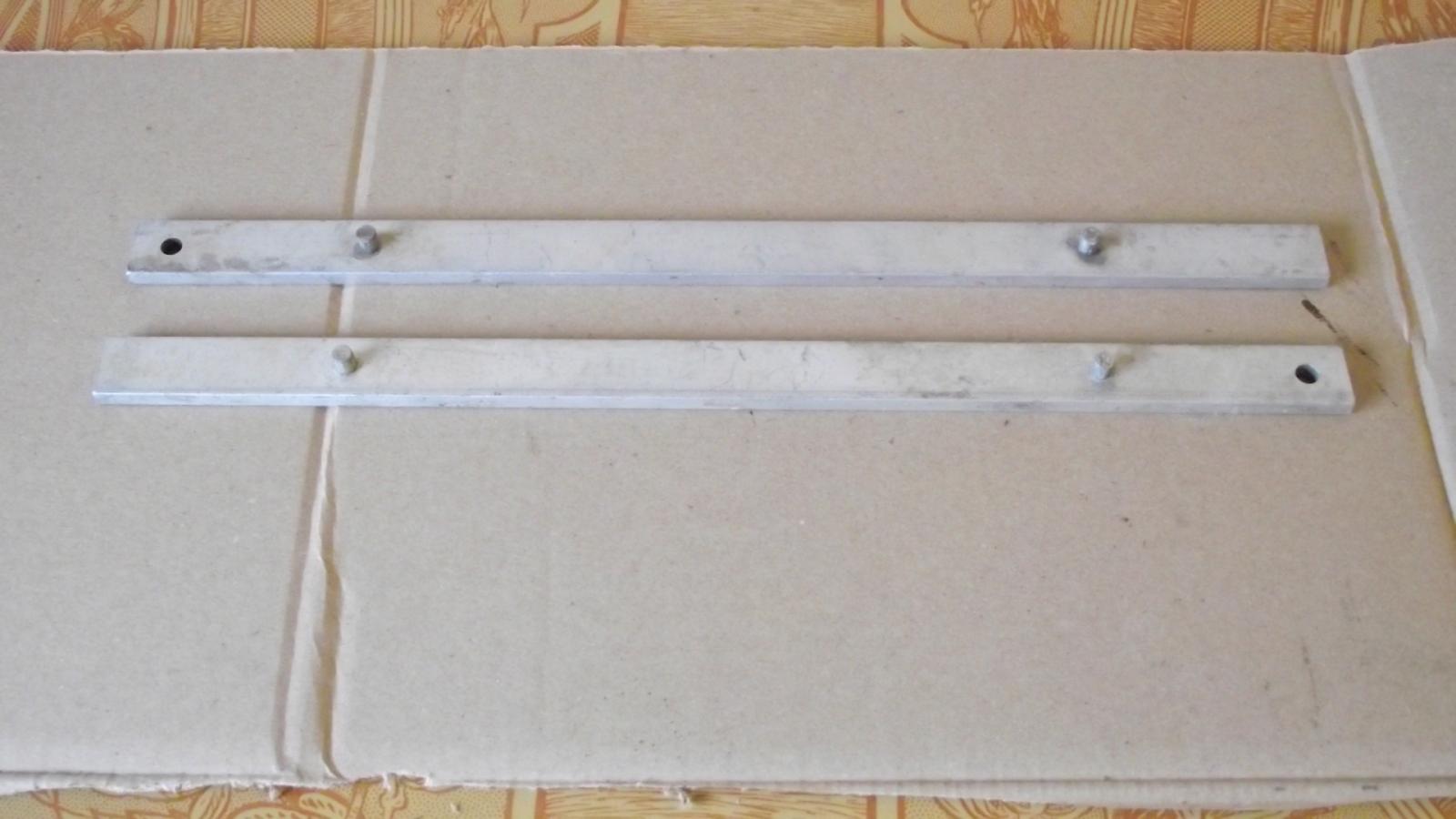

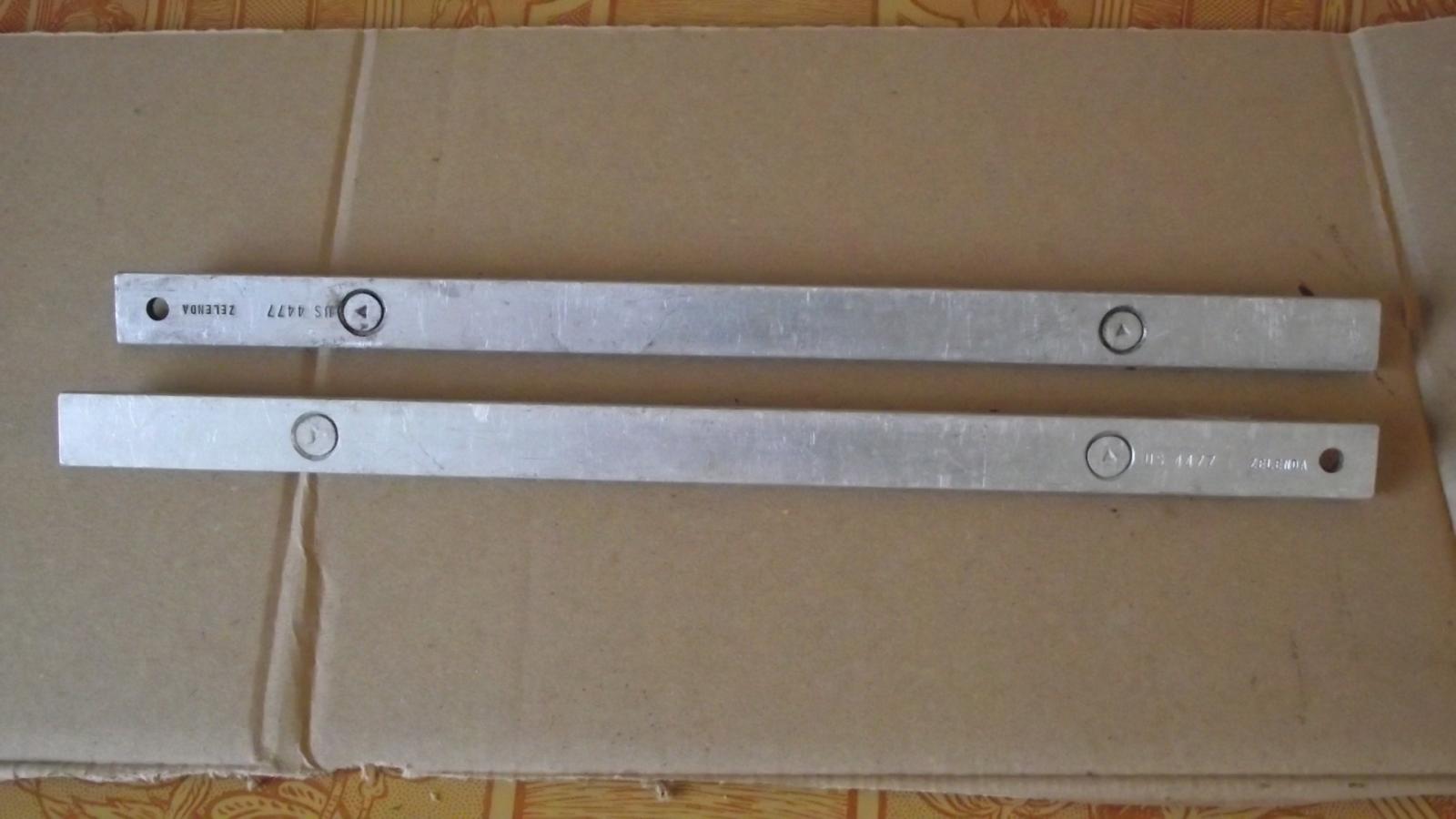

| 4477 | Adaptor strips for 541 to accommodate Rabbit Diesel valve spring compression |
From Baum Tools catalog
 |

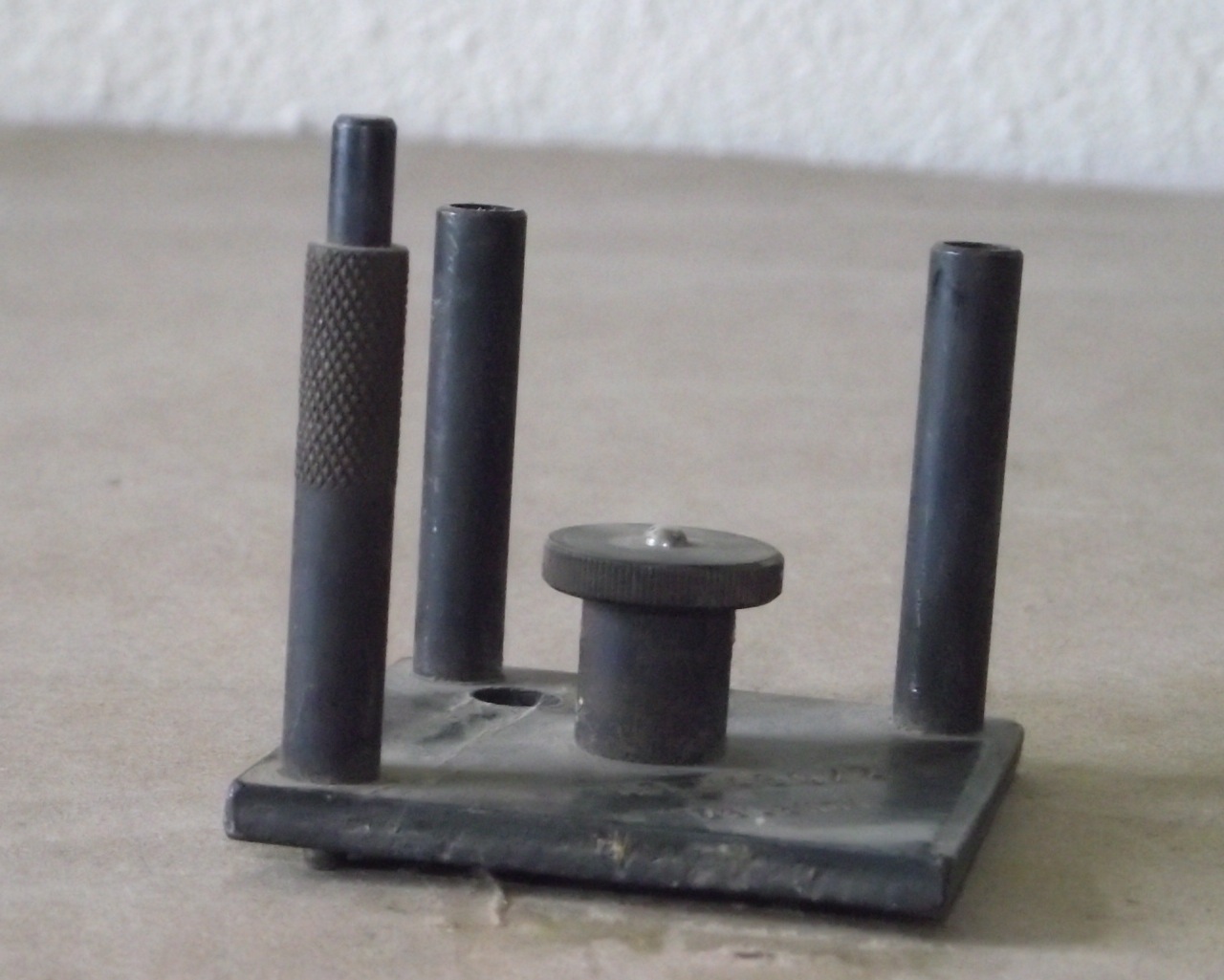

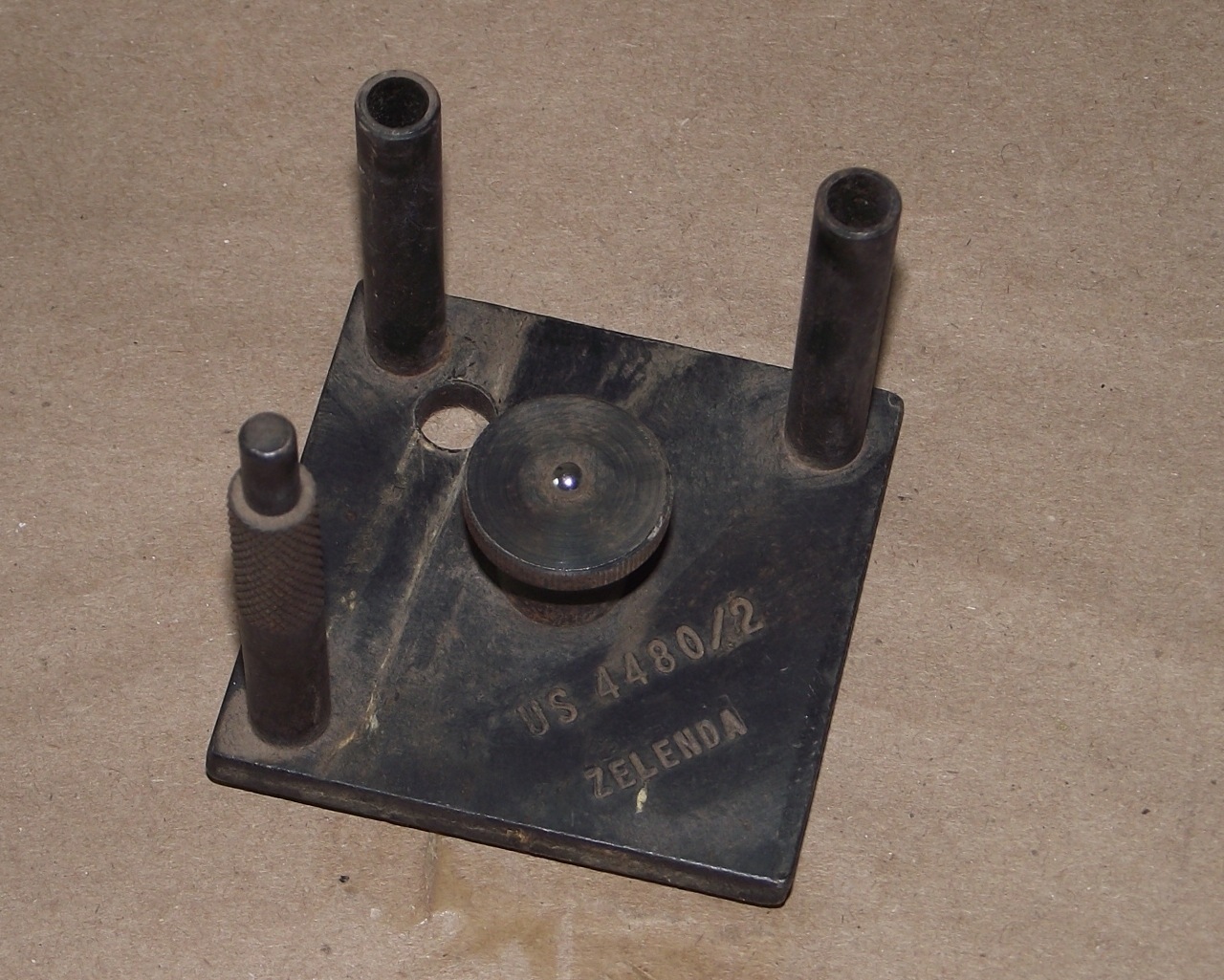

| 4480 | Fuel measuring
device for 4 cylinder CIS Multi-part tool. Missing are the graduated cylinder and a jump harness for the relay. |
Part 2:
 |
| 4480m | Fuel
performance analysis - Check spray pattern, fuel volume, fuel distribution Basic unit for 4-cylinder cars | From Baum Tools catalog |
| 4483 | Rabbit cylinder
read socket - From 1978 models except Diesel | From Baum Tools catalog |
| 4485 | Unknown |
 |

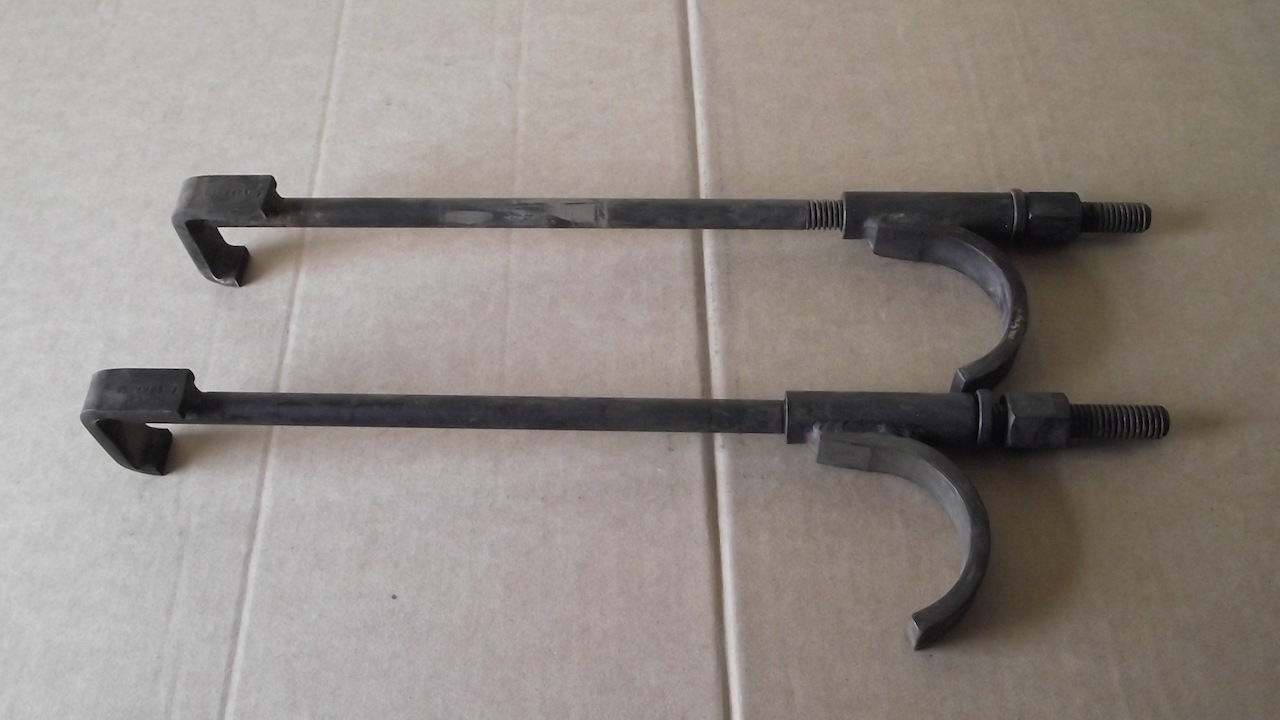

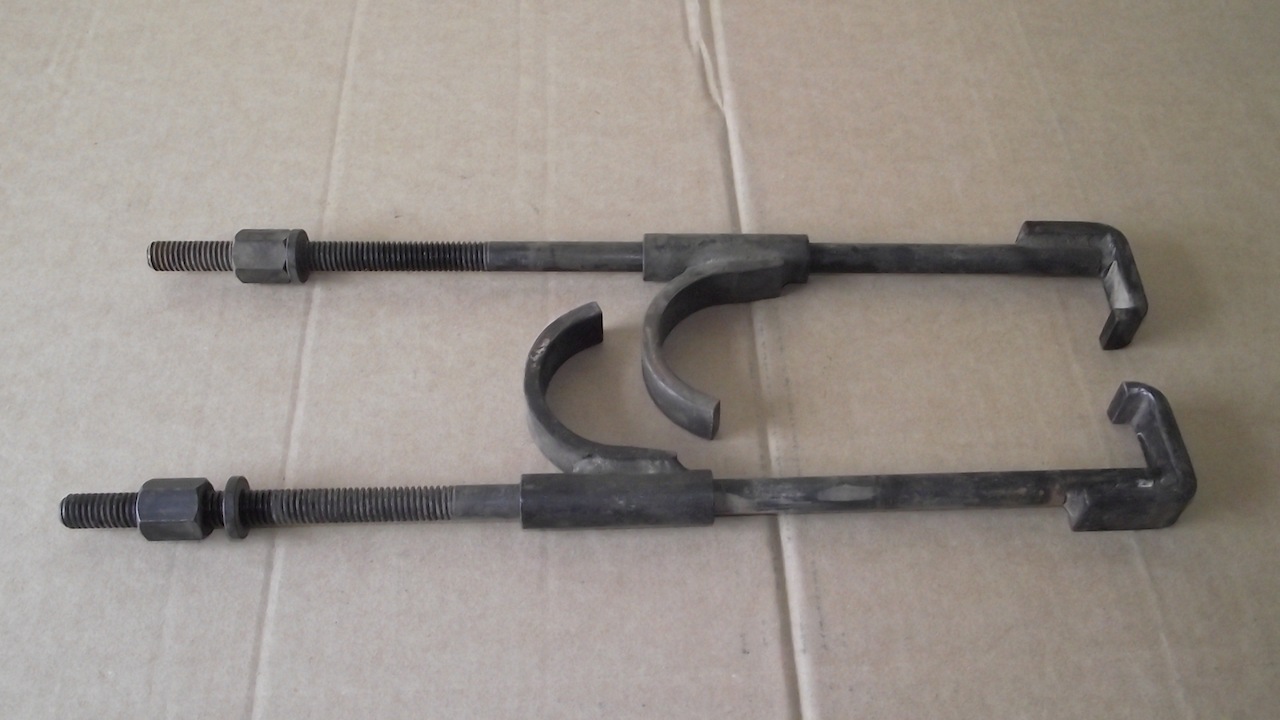

| 4489 | Compressor For removing/installing the rear axle on Rabbit, Jetta, GTI, pickup, and Scirocco. |
 |

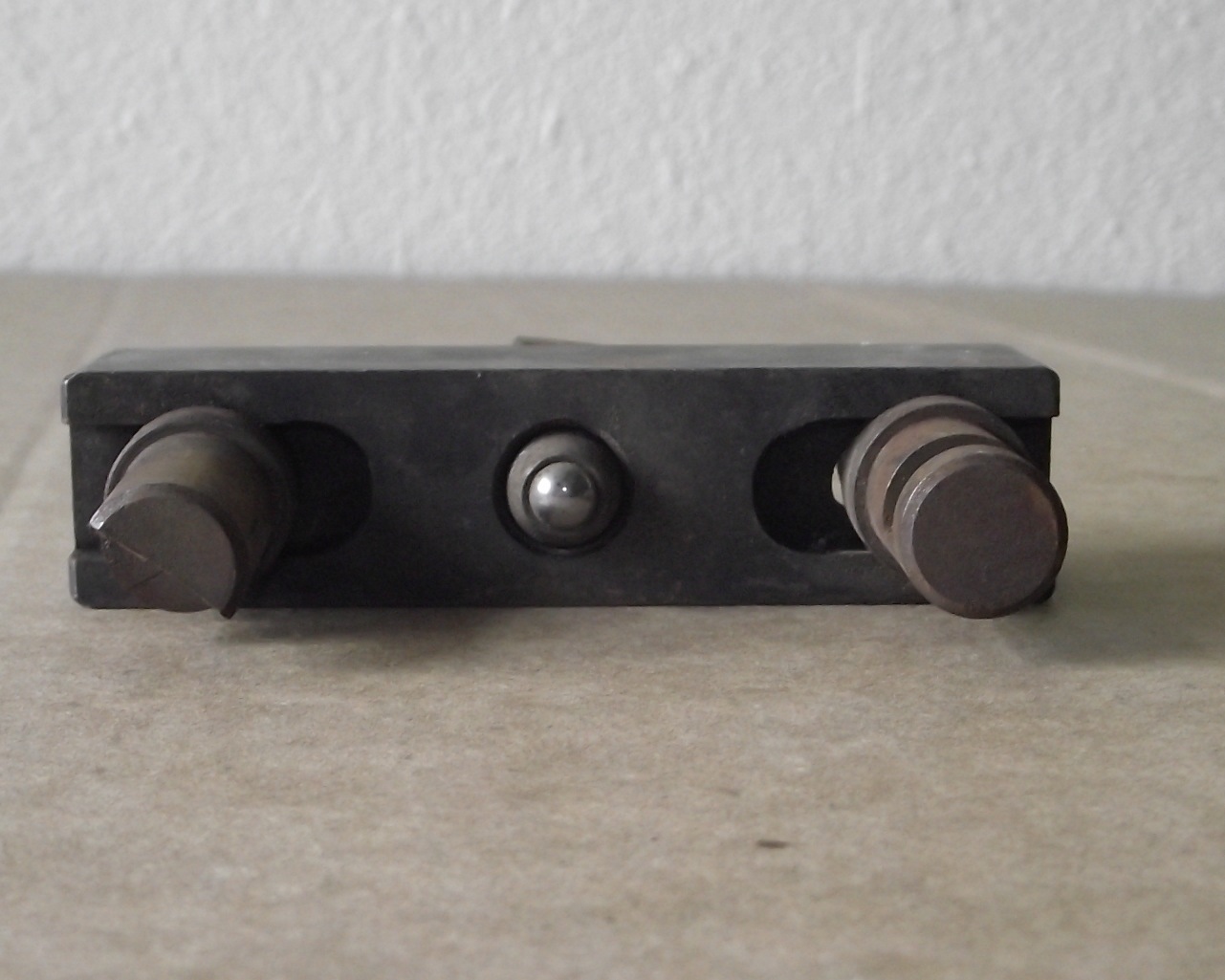

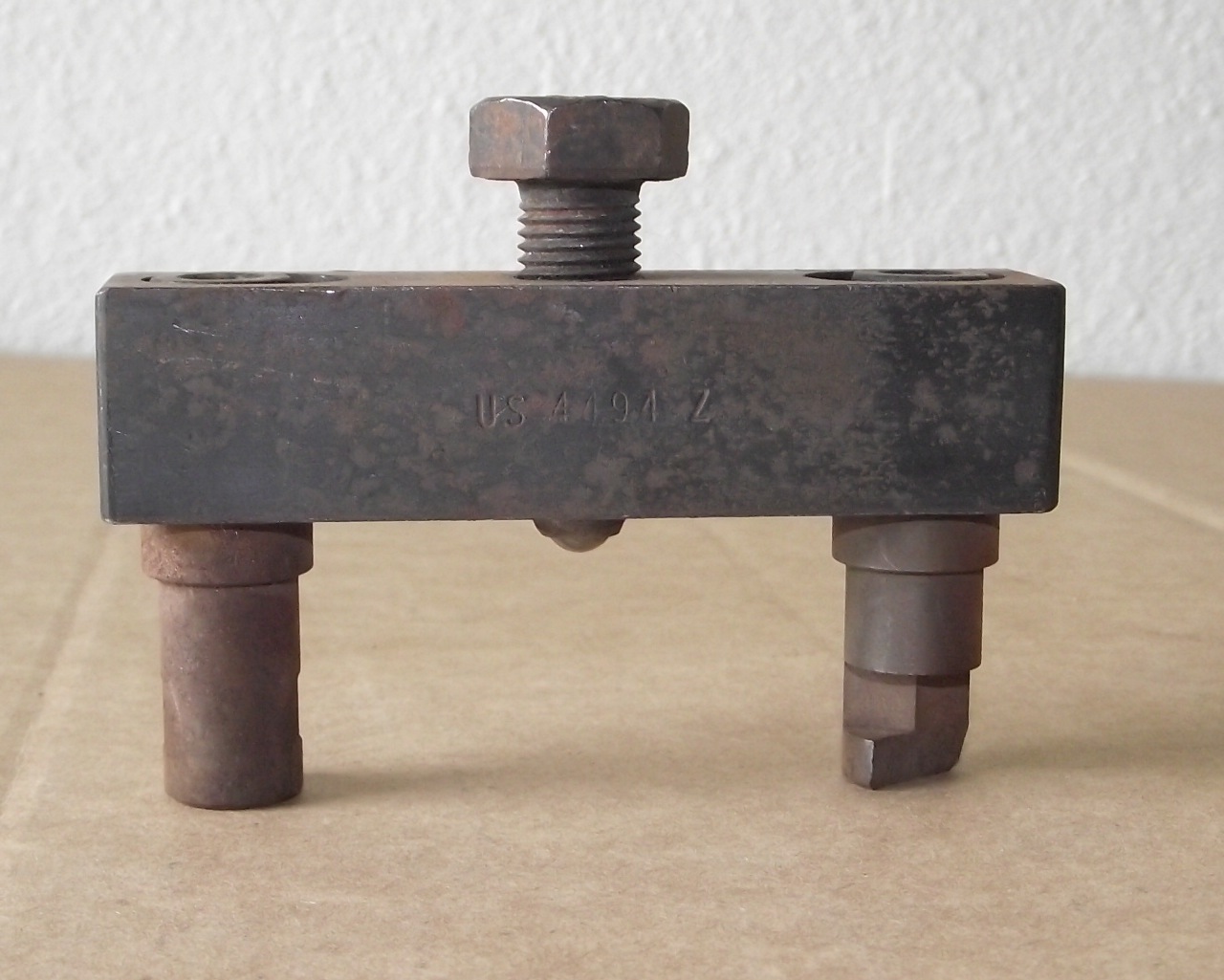

| 4494 | Puller To remove fuel injection pump drive gear, diesel |
 |
| 4513-13 | Special
Socket, 13mm with folding screwdriver To use on Solex carburetor, Hazet chrome vanadium | From Zelenda VW Special Tools Catalog |
| 4513-14 | Special
Socket, 14mm with folding screwdriver To use on Solex carburetor, Hazet chrome vanadium | From Zelenda VW Special Tools Catalog |

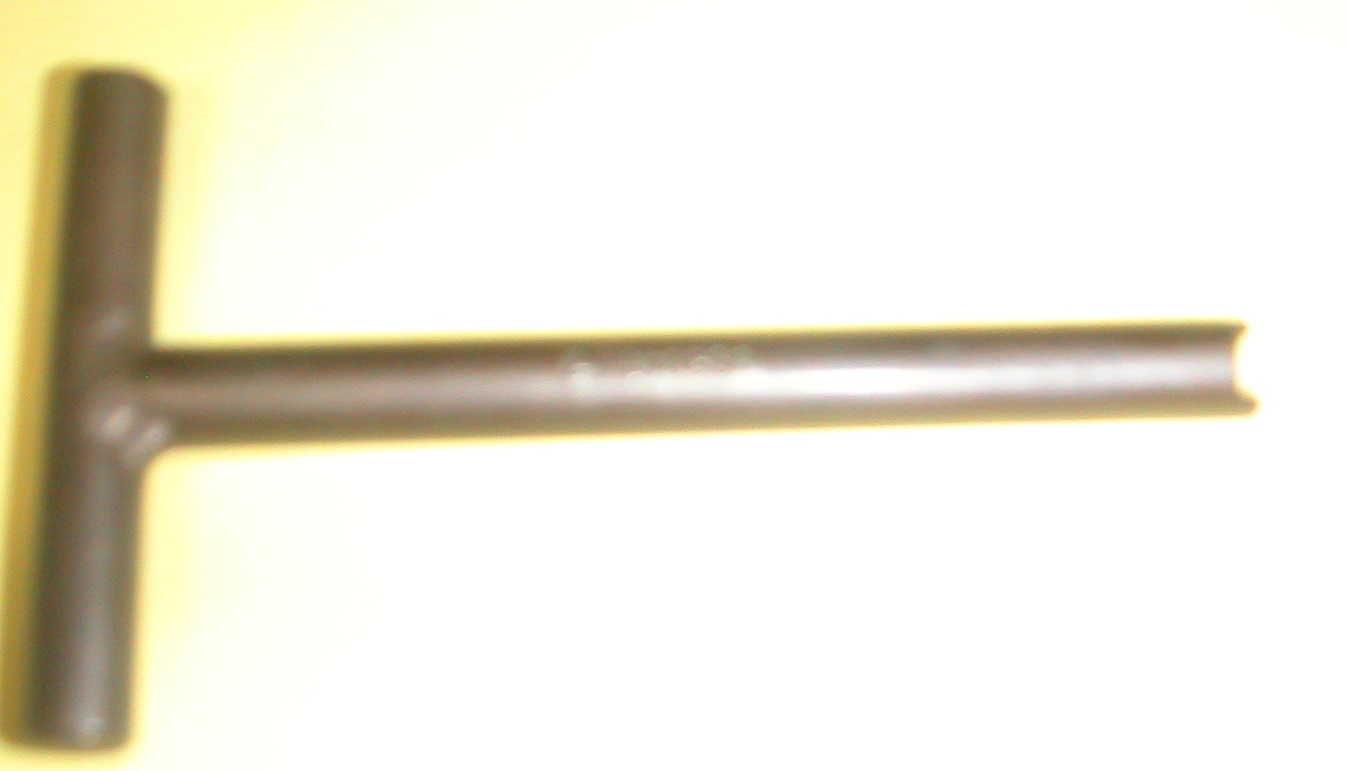

| 5041Z | Unknown |
 |

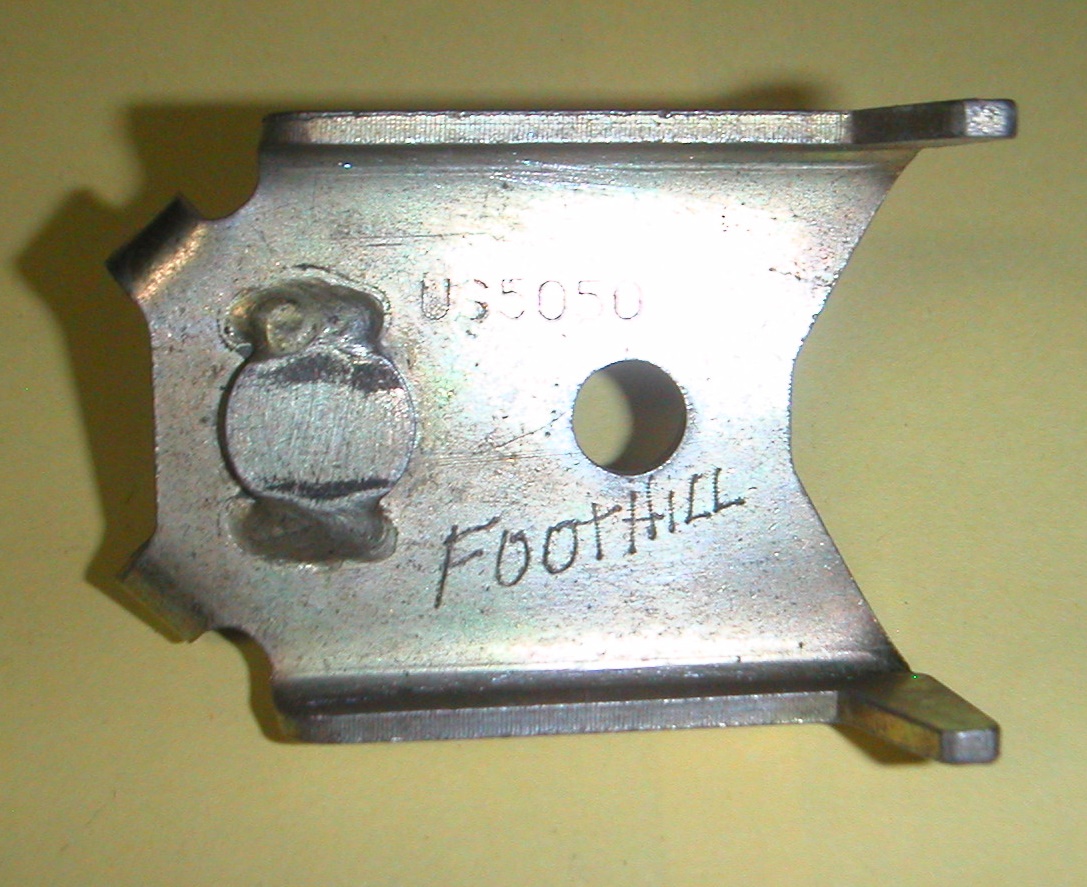

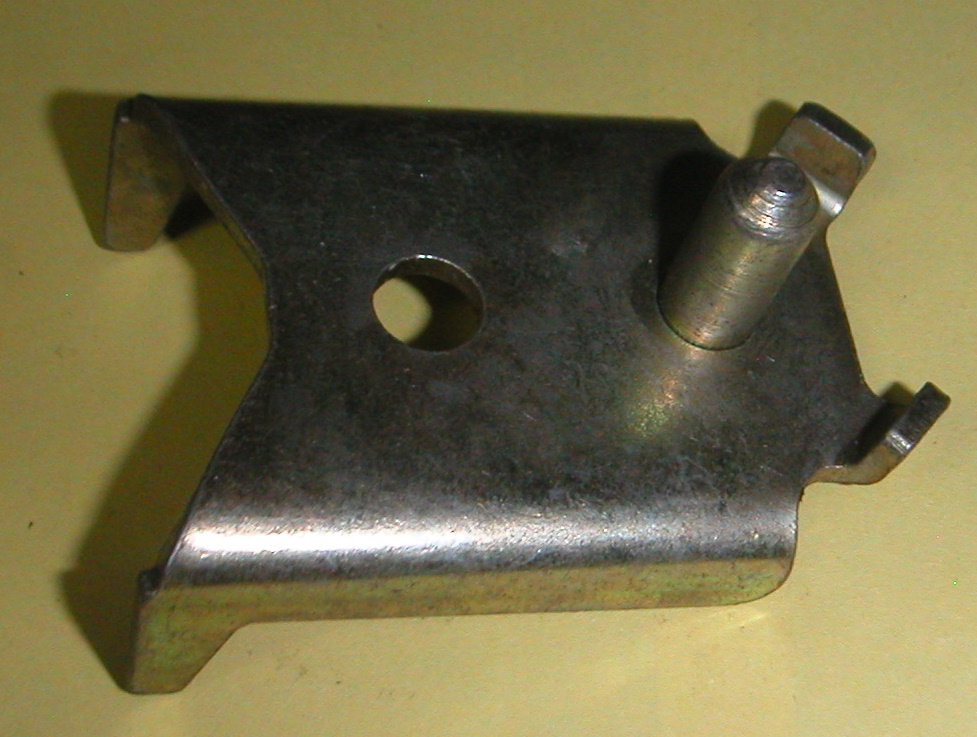

| 5050 | Unknown |
|
| 5709 US5709 | Lever, Door Stop Spring |
US5709/2: |
| 8002 | Removal and installation of thrust nut on Boge and Koni front end shock struts | From Baum Tools catalog |
| 8003 | Flexible screw driver for adjusting C.O. value | From Baum Tools catalog |

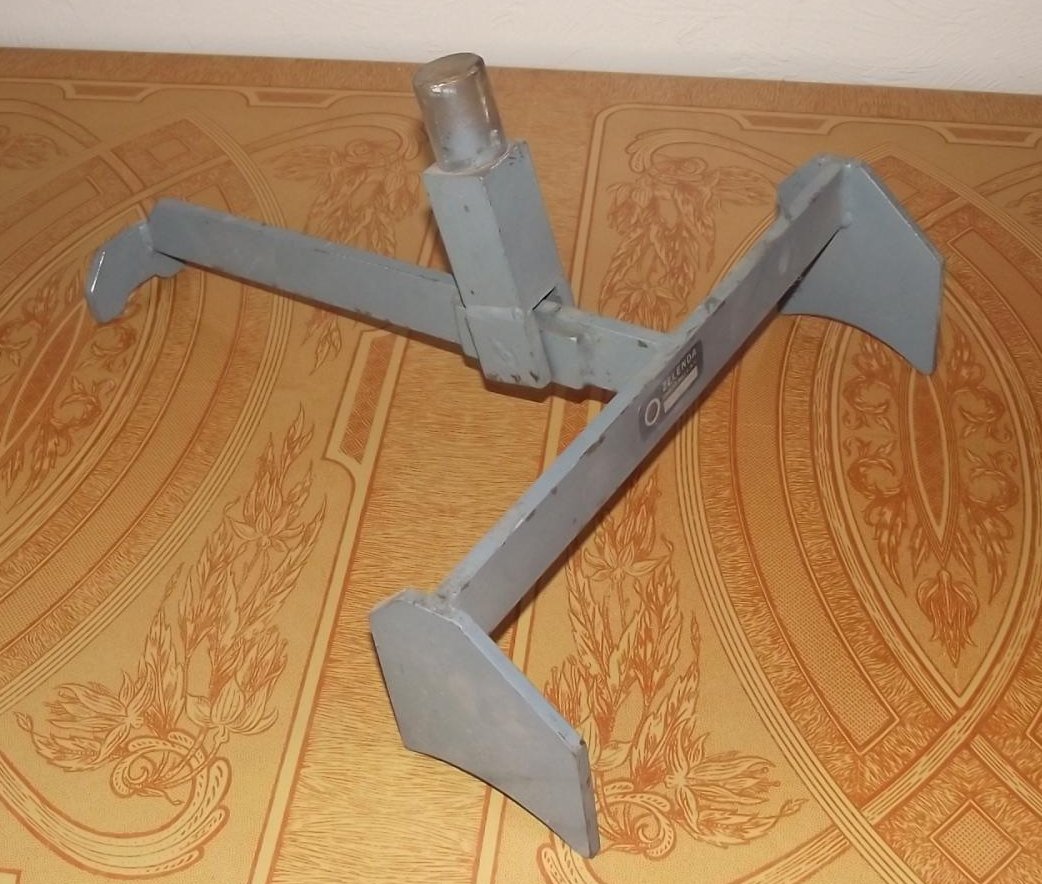

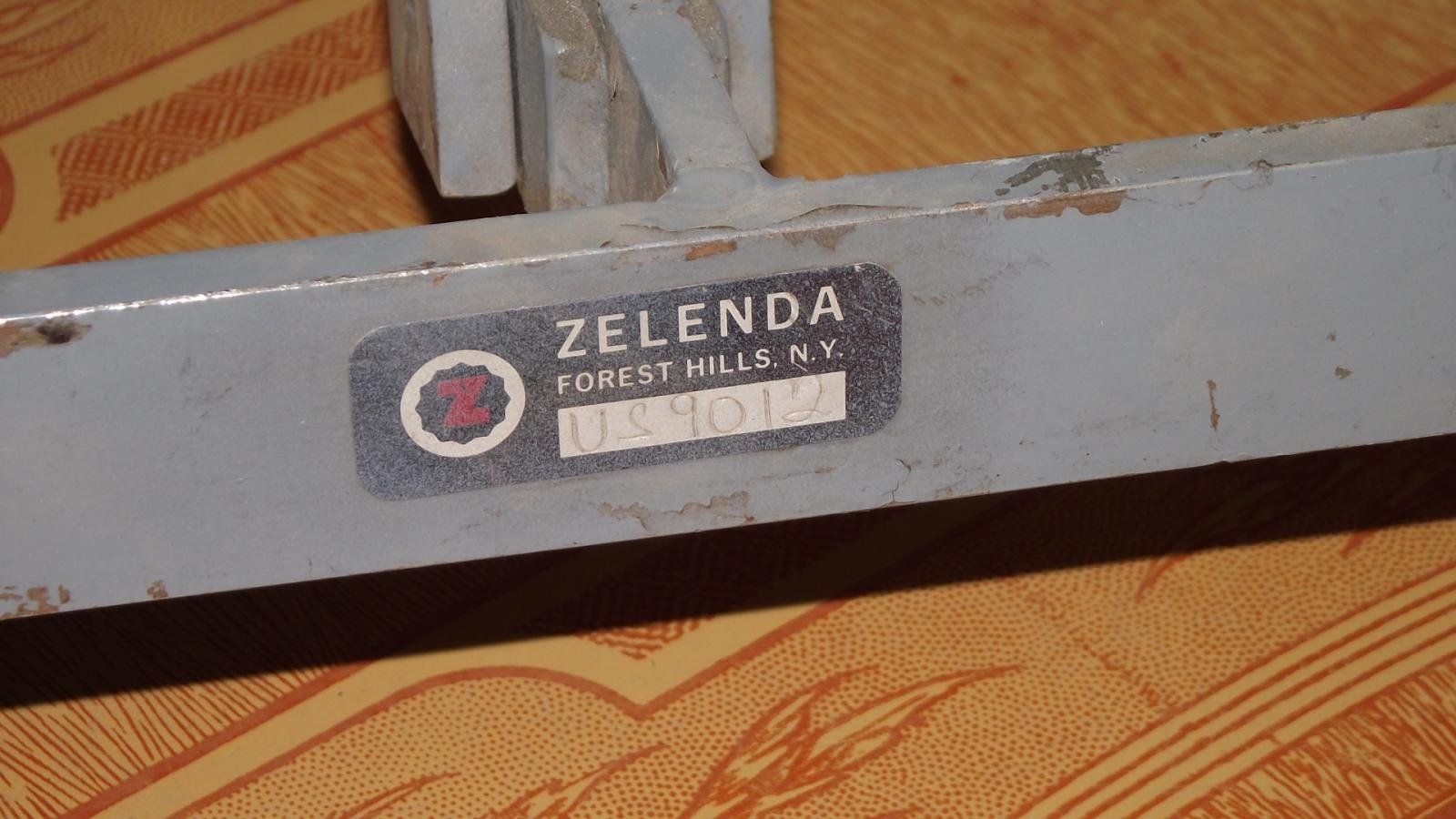

| 9012 | Transmission
support Used to remove and install transmission up to '74 |
 |

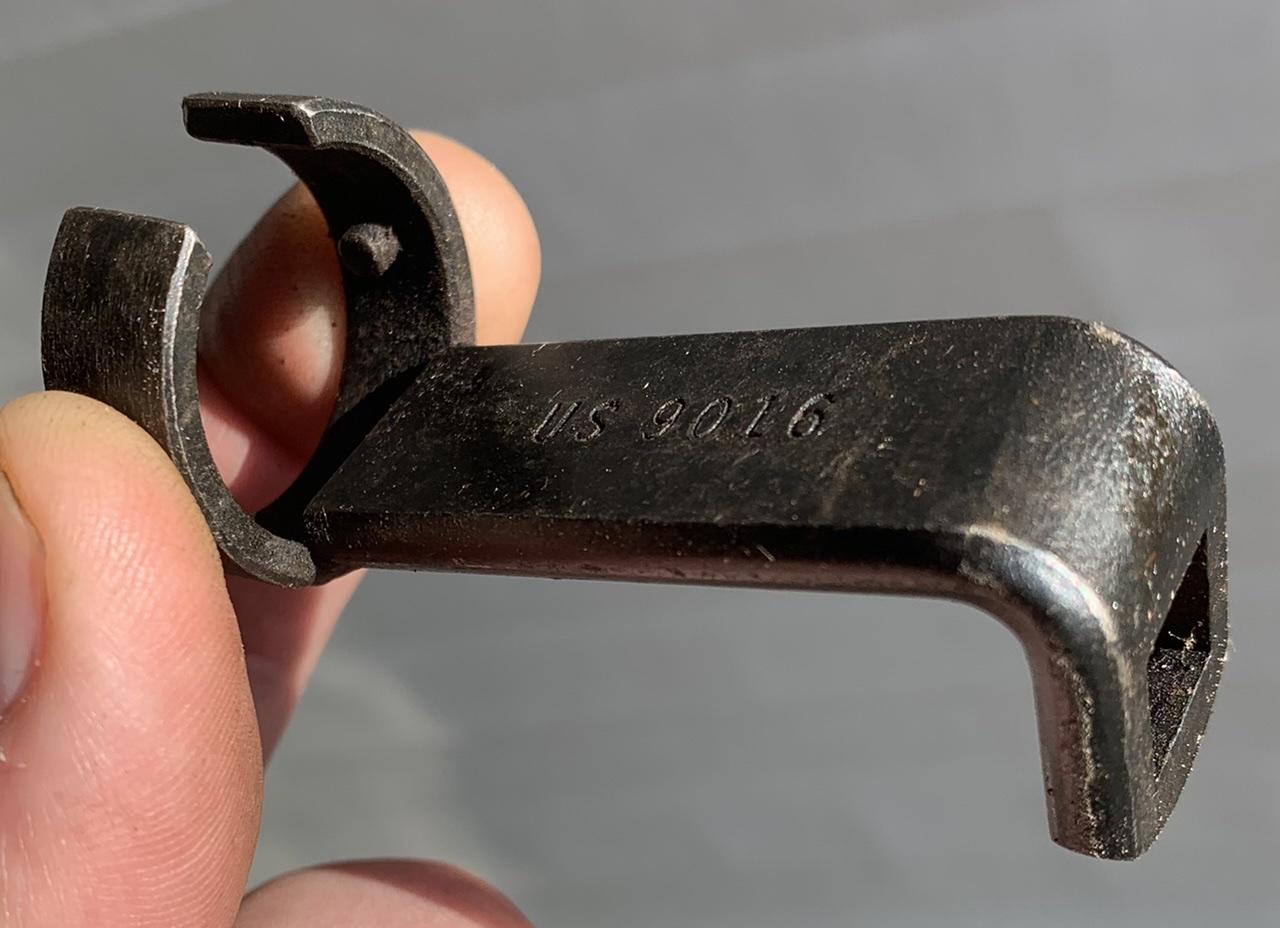

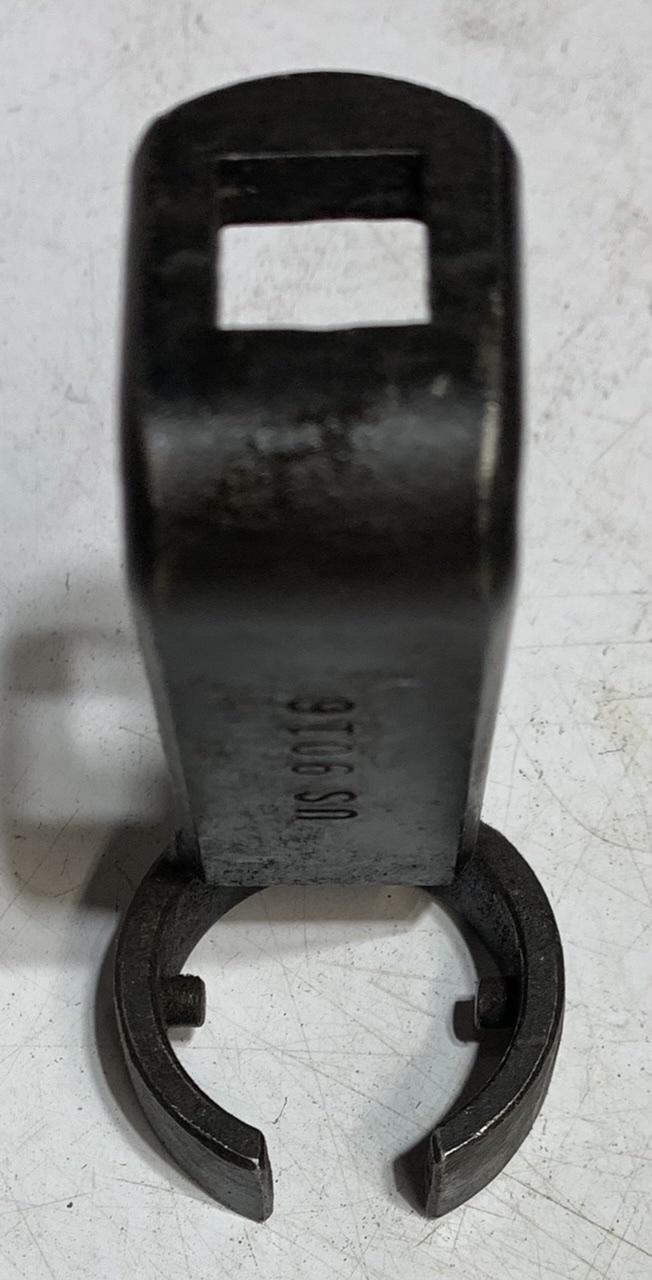

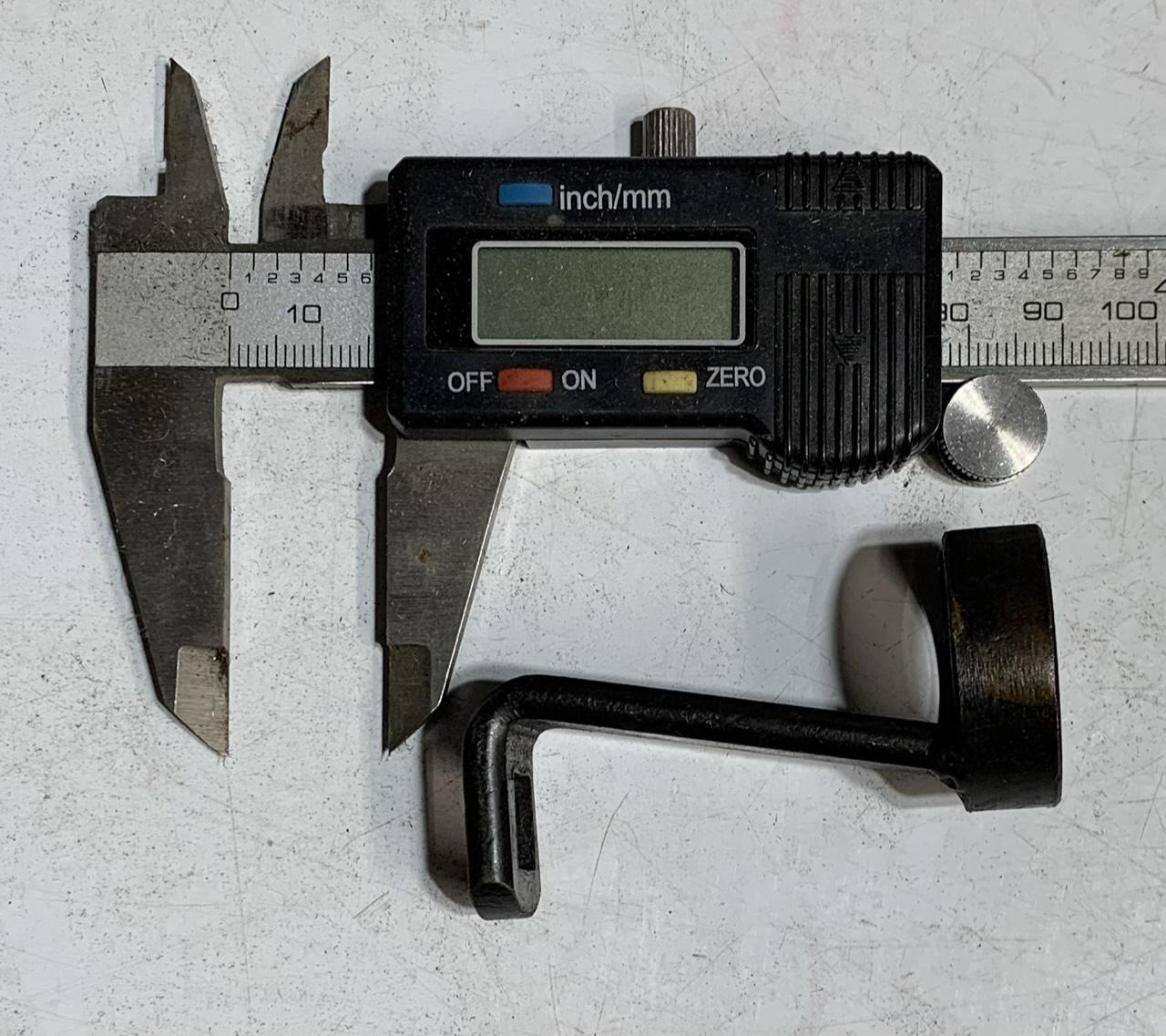

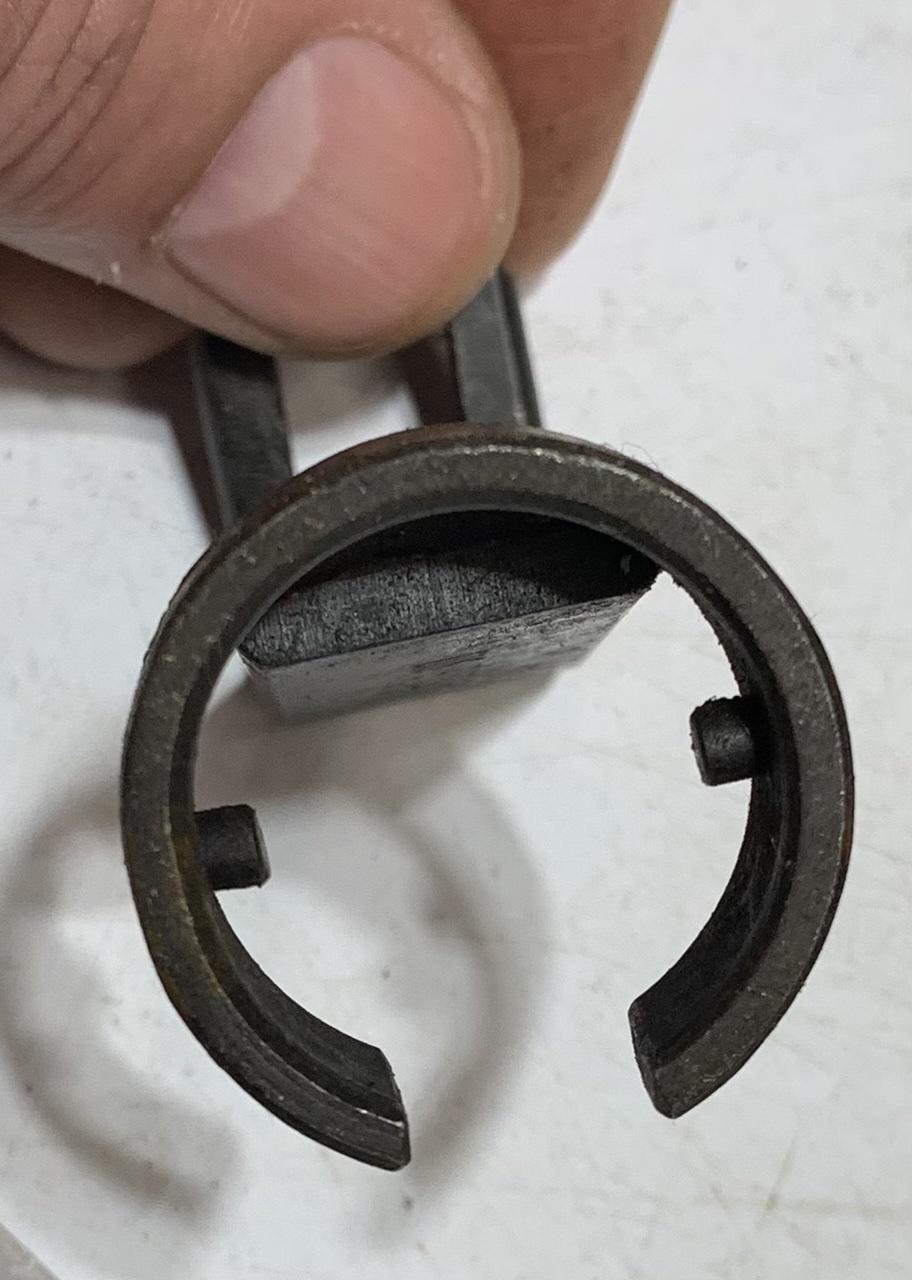

| 9016 | Unknown |
 |
| 9017 | Rear deck lid
spring pliers - Fox | From Baum Tools catalog |
| 9101 | Installation of power take-off fuel injection pump oil seal | From Baum Tools catalog |

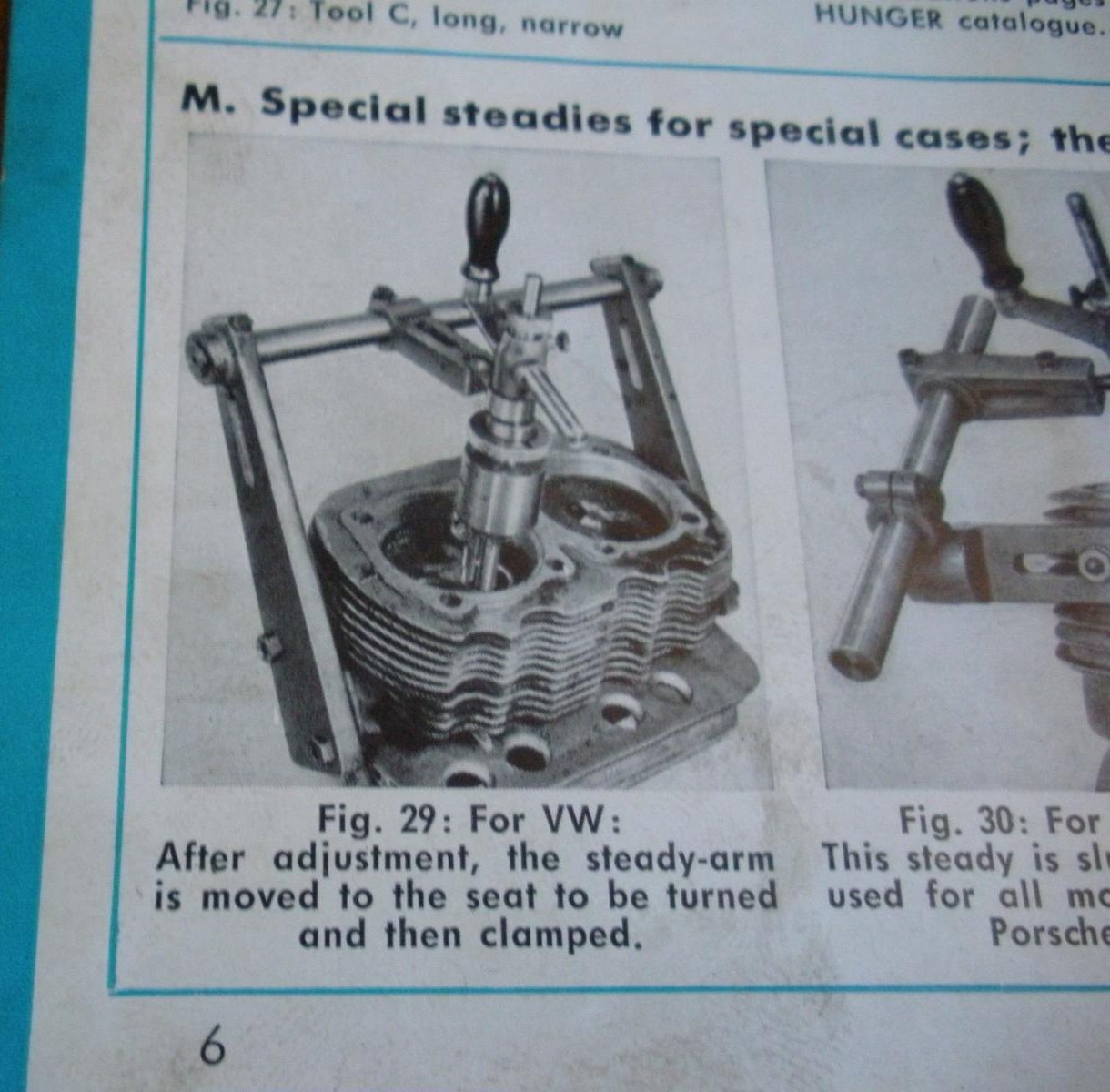

| 11620/2a |
Ludwig-Hunger Valve seat cutting set See these Gallery entries for more: 1 2 |
 |

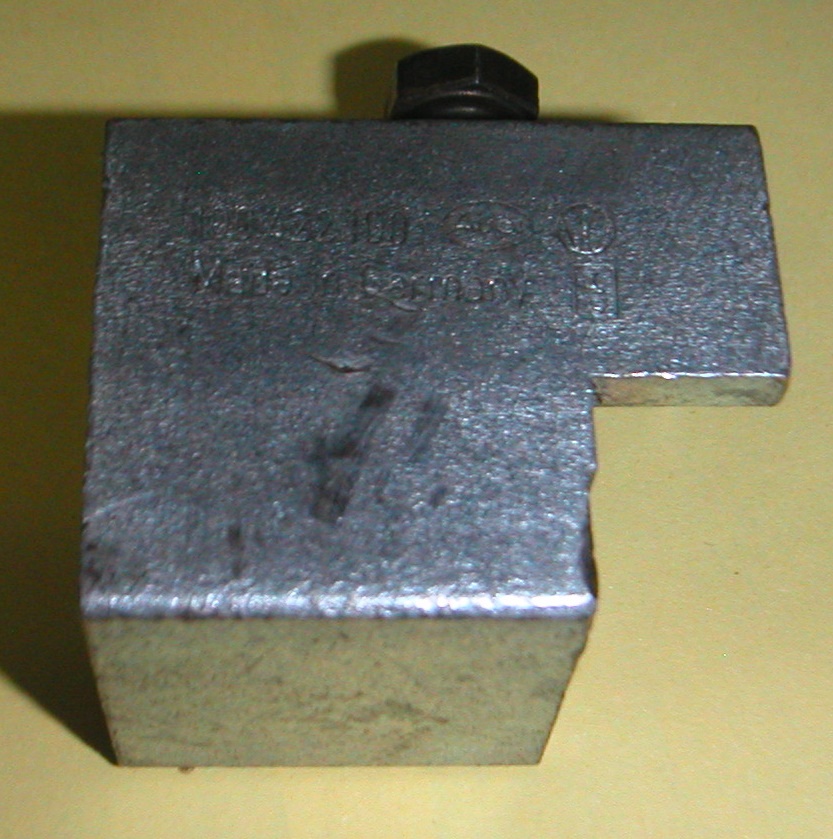

| 100 400 100 | Unknown |
|
Tools Listing Information
Page 1 (100 series) | Page 2
(200-249) | Page 3 (250-299) |
Page 4 (300 series) | Page 5
(400 series)
Page 6 (500 series) | Page 7
(600 series) |
Page 8 (700-999) | Page 9
(1000-up) |
Page 10 (Other)
Local Manufacture of Tools (600-799) | 8/70 Spare Parts
Actual tool photos courtesy of various TheSamba.com Gallery
contributors
