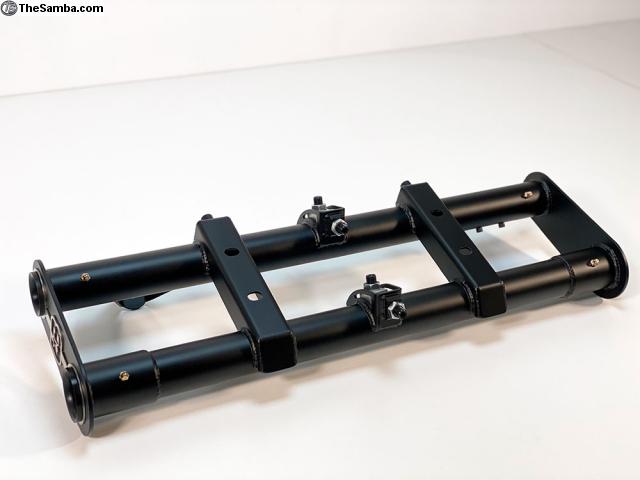

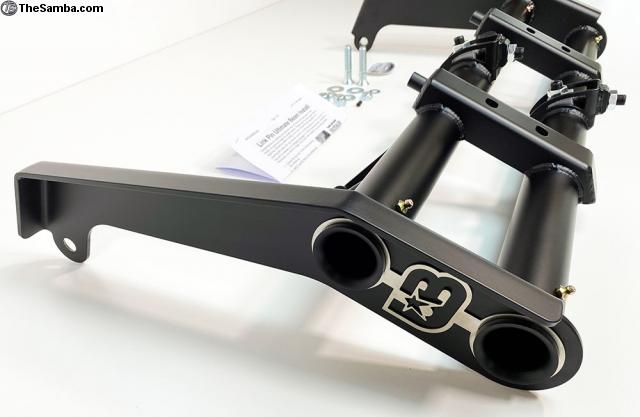

Ultimate Narrowed & Adjustable Beams   Price: See Ad
Origin Series - The Ultimate Beam - https://youtu.be/kpUXEr0bCwE

To date, as os 10/9/19, the PRO's at Airkewld have now built over 18,300 Ultimate Beams in 12 years. Many of the top builders in the industry including some OE Kit car builders trust the PRO's to give them the best quality product on the market. But it goes beyond just the product. It might sound cliche, but our customer service and tech support is where we excel.

Do you need to lift or lower your front end? Are your wheels scrubbing the fenders? Did you add some disc brakes or drop spindles on your ride and now they stick out? Are you trying to achieve a certain look? If any of these questions pertain to a need that you have, then The Ultimate Narrowed Beam is your answer.

The Ultimate Narrowed Beam has 7.5 inches of adjustability so you can fine tune where you want your car. Because of the adjuster we use, you can adjust your car up and down by 1/16th-inch increments. That means you can get the exact height and look you are after.

If your wheels are sticking out after a disc brake addition, installing drop spindles or after installing a new set of wheels, The Ultimate Beam is the product to remedy this issue. We can narrow a beam up to 4 with shock towers and no body modifications. The inside dimension is 29 13/16". That gives a clearance of 1/16" on each side. We can not guarantee the tower will not touch on your vehicle due to age, accidents or anything else.

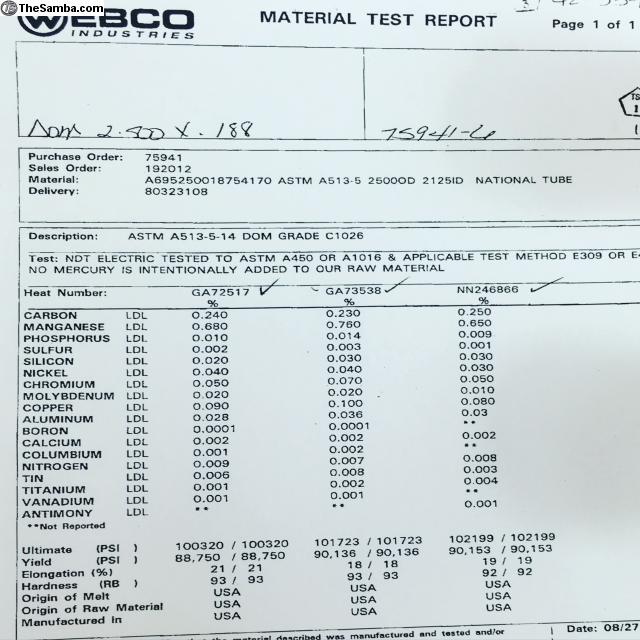

These beams are built with 100% brand new parts made in the USA. Each front end is jig built to ensure straightness and longevity. The beams are MIG welded for strength and clean looks. They come complete with zerk fittings and zinc hardware. All shock tower beams can be used for air ride. You can have an adjustable beam now and install air ride at a later time without issue. They are built for all Beetles, Ghias, and Things.

Some companies use stock beams, narrow them, install adjusters and replace the bearing and bushing with polyurethane. This is old technology. Some companies skip steps to save time and money. We do not skip a thing.

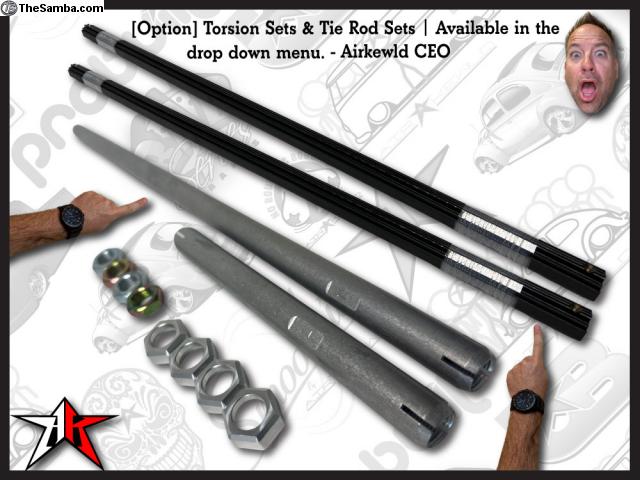

You will need to purchase narrowed torsion leaves & narrowed tie rods to complete the job or you can narrow them yourself.

With Towers:

Link Pin Application - http://www.airkewld.com/Ultimate-4-Narrowed-Adjustable-Front-Beam-2102-p/2102.htm

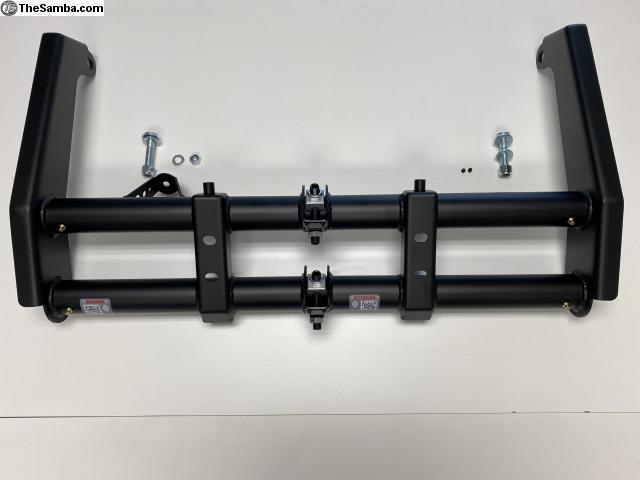

Ultimate 4" Narrowed/Adjustable Front Beam - 2102
Fits the following:

1949-1965 US Spec Type 1 Beetle-Bug-Fusca

1949-1965 US Spec Karmann Ghia

Kit cars with link pin suspensions

No body mods, cutting or notching is necessary with this beam. If the vehicle has been in an accident, it is possible that minimal massaging will be needed to install.

PDF Instructions and Tips:
Guide - Anatomy of the narrowed Beam - Link - https://www.airkewld.com/kb_results.asp?ID=55
Assembling an Ultimate Beam - Link - http://www.airkewld.info/PDF/Assembling%20an%20Link%20Pin%20Ultimate%20Beam.pdf

The PRO's Recommendations:
Get the Installation Kit, well worth it.
Get the matching Tie Rods and Torsions as well.

Usually Ships in 4 to 6 Weeks
Our Price: $520.00
(Built to Order)

Check out this article on ride quality from the PRO's at Airkewld here - https://www.airkewld.com/Articles.asp?ID=350

thesamba.com members only discount - Samba19

very happy with the fit and quality,highly recommend
June 19, 2018
Reviewer: mike lawrence from lumby, BC Canada

very happy with the fit and quality,highly recommend this product!

Ultimate Beam
April 9, 2018
Reviewer: Brian Schriewer from Waddell, AZ United States

Amazing attention to detail as well as excellent customer service. Pete was very helpful, listening to exactly what I wanted for my build and accommodating.

Excellent customer service
December 26, 2017
Reviewer: Robert N Irwin from Maricopa, AZ United States

Product and customer service is always top notch at Air Kewld. Pete is always very responsive answering product questions and spending the time to find out how you will be using the product, to assist in making proper recommendations etc..
Thanks AirKewld!

Ultimate Beam
March 2, 2017
Reviewer: Steve Savanovic

Airkewld Army, I purchased of your ultimate beams for my 63 bug. This was probably about a year and a half ago. All I can say is it is absolutely awesome!!! I love it! Steve Savanovic

are these guys making money???
April 13, 2016
Reviewer: Jim Grant from Longmont, CO United States

i asked for a 6. narrowed beam with shock towers. he said, we normally don't do that but ok. 2 weeks later i asked can i skip powder coat and get it quicker. he said yes. shipped the next day. when it showed up i couldn't believe what i saw. looks like the guy who made it actually cares about what he makes!
i got an ultimate beam and pro service!!!

Narrow Beam Link Pin April 8, 2015
Reviewer: Michael Geisert from Tampa, FL United States
Man, words can describe how awesome the beam is and how outstanding the customer service was when I call to order my beam. Turn around time was quicker than expected. I really appreciate the one on one treatment when I called my order in, it did not fell transactional at all. I will let on my VW friends to make sure they buy there stuff here!

Videos

https://youtu.be/qBJAg995UTY?list=PLeAxwmZ0kqBWmtJTQUc2boIZ7D6D2nUVT

https://www.youtube.com/watch?list=PLeAxwmZ0kqBWmtJTQUc2boIZ7D6D2nUVT&v=Iry8nYSoHK0

https://www.youtube.com/watch?list=PLeAxwmZ0kqBWmtJTQUc2boIZ7D6D2nUVT&v=bq3VnlCjcJ8

https://www.youtube.com/watch?list=PLeAxwmZ0kqBWmtJTQUc2boIZ7D6D2nUVT&v=hXcMrcyysYE

https://www.youtube.com/watch?list=PLeAxwmZ0kqBWmtJTQUc2boIZ7D6D2nUVT&v=C8w6qyDKsn8

https://www.youtube.com/watch?list=PLeAxwmZ0kqBWmtJTQUc2boIZ7D6D2nUVT&v=a2vRa2l0cSM

Want something more assembled, the PRO's can make it easy for you! Check it out here - https://www.airkewld.com/Stage-1-PRObuilt-Adjustable-Beam-Complete-2201-p/2201.htm

Ball Joint application - http://www.airkewld.com/Ultimate-4-Narrowed-Adjustable-Front-Beam-2100-p/2100.htm

Ultimate 4" Narrowed/Adjustable Front Beam - 2100

Fits the following:

1966-1977 US Spec Type 1 Beetle-Bug-Fusca
1966-1977 US Spec Karmann Ghia
1965-1979 UK Spec Type 1 Beetle-Bug
1965-1979 Uk Spec Karmann Ghia
Mexican Beetle
Fridolin
Kit cars with ball joint suspensions
No body mods, cutting or notching is necessary with this beam. If the vehicle has been in an accident, it is possible that minimal massaging will be needed to install.

PDF Instructions and Tips:
Guide - Anatomy of the narrowed Beam - Link - https://www.airkewld.com/kb_results.asp?ID=55
Assembling an Ball Joint Ultimate Beam - Link - http://www.airkewld.info/PDF/Assembling%20an%20Ball%20Joint%20Ultimate%20Beam.pdf

The PRO's Recommendations:
Get the Installation Kit, well worth it.
Get the matching Tie Rods and Torsions as well.

thesamba.com members only discount - Samba19

Front Beam March 14, 2018
Reviewer: bruce paul from worthington, OH United States
Once again when starting a restoration project the first place I start is the stance. The first company I contacted was Airkewld for my front end needs. I have used them on my last three projects 2 Beetles and a SC split. There front ends are far superior to anything on the market and Pete will help you with any questions you could have. There beams are not prebuilt, they built each one for the individual so it fits the need of the customer and it's like Xmas when you open the box and that perfect beam is gleaming at you. Trust there process and you will not be disappointed.
Bruce Paul
Worthington Ohio 67 Cal-Look Beetle

Ultimate 4" Beam on 69' Bug April 12, 2017
Reviewer: Lewis
Customer service second to none...product came and installation was a breeze...seemed to actually take longer unpacking then it did for the install...thank you again!!!

Pleased with the quality March 2, 2017
Reviewer: Riggs Wagenheim
I love what ya'll have been doing with the website and emails. I'm really getting fired up about completing the 72 Ghia convertible. My son and I have a long way to go, but have been very pleased with the quality of the narrowed beam we purchased from Airkewld and will likely be purchasing the rest of our components from Airkewld.
Satisfied,
Riggs Wagenheim

Great product, great service! February 13, 2016
Reviewer: Eric Johnston from Hendersonville, NC United States
Well worth the wait. The beam is a piece of art and it's a shame to hide it under the body. Installation was easy. I would highly recommend Airkewld. I emailed a few times with questions and they promptly responded.

Narrowed beam June 4, 2015
Reviewer: Matt Derbyshire from Happy Valley, South Australia Australia
Wow you really got the name right for your front beam because it certainly is an ultimate product.
I have dealt with quite a few VW company's from around the globe and pete you are sitting up on top of the ladder. great work.

Videos

https://youtu.be/TW62CLcxtIU?list=PLeAxwmZ0kqBVlb5fjAPLOkbMT37fx3rm3

https://www.youtube.com/watch?list=PLeAxwmZ0kqBVlb5fjAPLOkbMT37fx3rm3&v=QiTRl4pNwoI

https://www.youtube.com/watch?list=PLeAxwmZ0kqBVlb5fjAPLOkbMT37fx3rm3&v=a2vRa2l0cSM

https://www.youtube.com/watch?list=PLeAxwmZ0kqBVlb5fjAPLOkbMT37fx3rm3&v=36t5l8_4F7w

Want something more assembled, the PRO's can make it easy for you! Check it out here - https://www.airkewld.com/Stage-1-PRObuilt-Adjustable-Beam-Complete-2200-p/2200.htm

SHOCKLESS

Link Pin application - http://www.airkewld.com/6-Ultimate-Narrowed-Shockless-Front-2118-p/2118.htm

Fits the following:

1949-1965 US Spec Type 1 Beetle-Bug-Fusca
1949-1965 US Spec Karmann Ghia
Kit cars with link pin suspensions

Contrary to belief, the shockless beam can and does ride amazing when using Airkewld's delrin bushings. One tip though, if the vehicle is adjusted all the way down, the ride will be rough, lift it up and inch and the ride improves. Check out this article on ride quality from the PRO's at Airkewld here - https://www.airkewld.com/Articles.asp?ID=350

PDF Instructions and Tips:

Guide - Anatomy of the narrowed Beam - Link - https://www.airkewld.com/kb_results.asp?ID=55
Assembling an Ultimate Beam - Link - https://www.airkewld.com/kb_results.asp?ID=10

The PRO's Recommendations:

Get the Installation Kit, well worth it.
Get the matching Torsions and Tie Rods as well.

Usually Ships in 4 to 6 Weeks
Our Price: $395.00
(Built to Order)

Want something more complete, the PRO's got you covered here - https://www.airkewld.com/Stage-1-PRObuilt-Adjustable-Shockless-Beam-2209-p/2209.htm

Ball joint Shockless

Fits the following:

1966-1977 US Spec Type 1 Beetle-Bug-Fusca
1966-1977 US Spec Karmann Ghia
1965-1979 UK Spec Type 1 Beetle-Bug
1965-1979 Uk Spec Karmann Ghia
Mexican Beetle
Fridolin
Kit cars with ball joint suspensions

Contrary to belief, the shockless beam can and does ride amazing when using Airkewld's delrin bushings. One tip though, if the vehicle is adjusted all the way down, the ride will be rough, lift it up and inch and the ride improves. Check out this article on ride quality from the PRO's at Airkewld here - https://www.airkewld.com/Articles.asp?ID=350

PDF Instructions and Tips:
Guide - Anatomy of the narrowed Beam - Link - https://www.airkewld.com/kb_results.asp?ID=55
Assembling an Ball Joint Ultimate Beam - Link - http://www.airkewld.info/PDF/Assembling%20an%20Ball%20Joint%20Ultimate%20Beam.pdf

The PRO's Recommendations:
Get the Installation Kit, well worth it.
Get the matching Torsions and Tie Rods as well.
Usually Ships in 4 to 6 Weeks
Our Price: $415.00
(Built to Order)

Ball Joint Application - http://www.airkewld.com/6-Ultimate-Narrowed-Shock-less-Front-Beam-2112-p/2112.htm

thesamba.com members only discount - Samba19

Video - https://youtu.be/CQur8Q9iLQc

review
January 28, 2015
Reviewer: Carl Bland from Midland, MI United States

This is the second beam I have bought from Airkewld in my time in the VW hobby the build quality on this beam looks superb. I'm very pleased with my purchase. I wish it would have came with an Airkewld sticker to put on my car but there was not on in the box this time around. Great work. And probably cost close to what it would have cost if I built it myself so much easier.

I'm thrilled
December 3, 2014
Reviewer: justin blondell from middletown, NY United States

I'm thrilled either my beam and the customer service you supplied was excellent. Would recommend you guys to any or my air-cooled friends! And I'm sure I'll be buying more stuff in the future!

Want something more complete, the PRO's got you covered here - https://www.airkewld.com/Stage-1-PRObuilt-Adjustable-Shockless-Beam-2208-p/2208.htm

_________________
If you have any questions or concerns about the product when you receive it or install it, please contact us first. We want you to be 100% satisfied.

We can ship anywhere in the world. We ship FedEx R&L Freight Carriers and USPS. Visa, American Express, Master Card, Wire transfers and Paypal are accepted online & over the phone.

(623)518-3537 BIZ/Text/Fax
International calls (011) 623-513-3537

Airkewld Catalog is coming soon, get yours today - https://airkewld.co/2018-19AirkewldCatalog
